EHRLE KD1140 Premium User manual

High Pressure Cleaner cold water, mobile
Series KD 4x4
Assembly and Operating Instructions
Operating personnel
KD1140 Premium
KD1340 Premium
KD1840 Premium
KD1540 Premium
KD2040 Premium
KD1140 Standard
KD1340 Standard

2 von 70
Declaration of Conformity
Ehrle GmbH
Industriestraße 3
D – 89165 Dietenheim
Standard: KD1140, KD1340
Premium: KD1140, KD1340,
KD1840, KD1540,
KD2040
CE-0085
Manufacturer:
Adress:
Product:
High Pressurce Cleaner cold water, mobile
Series 4x4
The product given below is in conformity with the European Directives:
This product is used like
follows marked:
Development
Christoph Nöldner Reiner Ehrle
Head of Development CEO
Relevant EC Directives:
2000/14/EG
2006/42/EG
2011/65/EU
2014/30/EU
2004/108/EG
Applied harmonized standards:
EN 60335–1
EN 60335–2–79
EN 50581
EN 55014–1: 2006+A1: 2009+A2: 2011
EN 55014-2: 2015
EN 62233: 2008
EN IEC 61000–3–2: 2019
EN 61000–3–3: 2020–07
EN 61000–3–11: 2017–04 (Bei KD1540/KD2040)
Conformity procedures applied:
2000/14/EG: Anhang V
Illertissen, 19.10.2020

Operating Instruction
High Pressure Cleaner cold water, mobile
Series 4x4
3 of 46
Table of content
Table of content
1 User information
1.1 General...............................................................................................................................................5
1.2 Functional device concept ................................................................................................................5
1.3 Terminology.......................................................................................................................................6
1.4 Meaning of the emphasis .................................................................................................................6
1.5 Meaning of the symbols ...................................................................................................................7
1.6 Target groups.....................................................................................................................................9
1.7 Warranty and Liability.......................................................................................................................9
1.8 Environmental protection............................................................................................................... 10
2 Safety
2.1 General safety information ............................................................................................................11
2.2 Authorized persons for device access ............................................................................................11
2.3 Safety instructions for cleaning operation ....................................................................................11
2.4 Accident prevention regulations....................................................................................................12
2.5 Lifting and moving loads ................................................................................................................12
2.6 Periodic inspections.........................................................................................................................13
2.7 Guidelines for liquid sprayers .........................................................................................................13
2.8 Design changes to the device .........................................................................................................13
2.9 Safety devices ..................................................................................................................................13
3 Product description

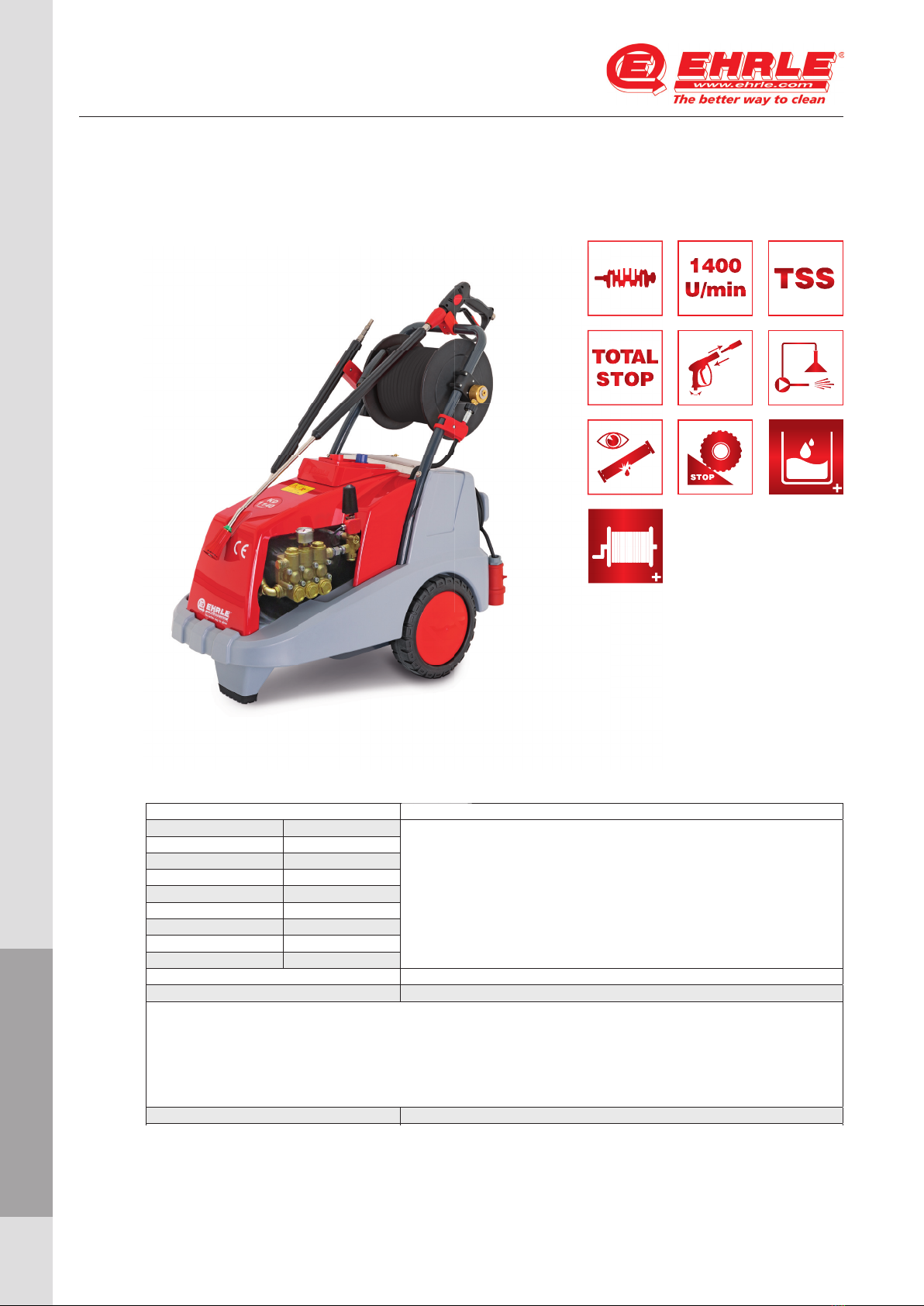

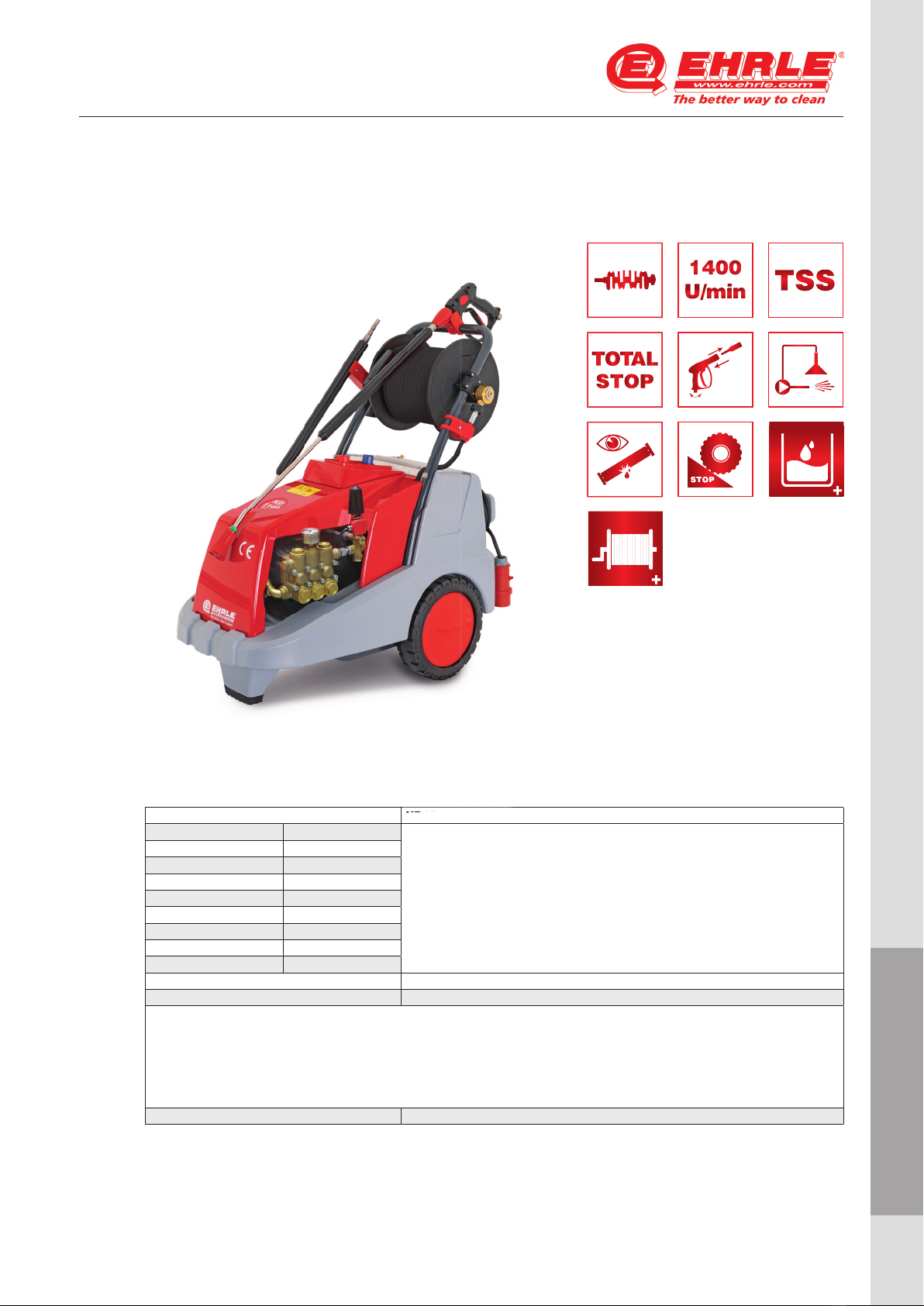

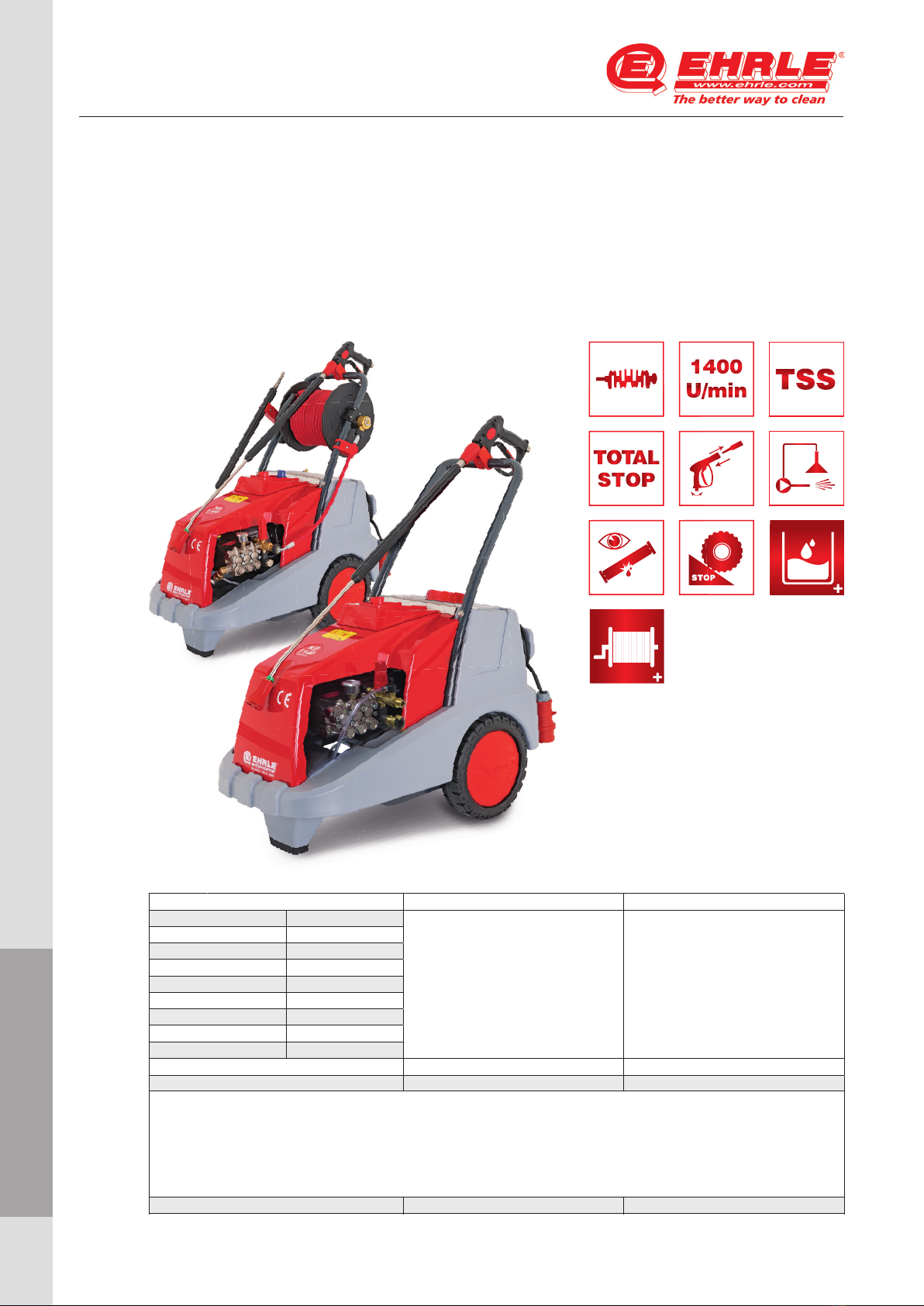

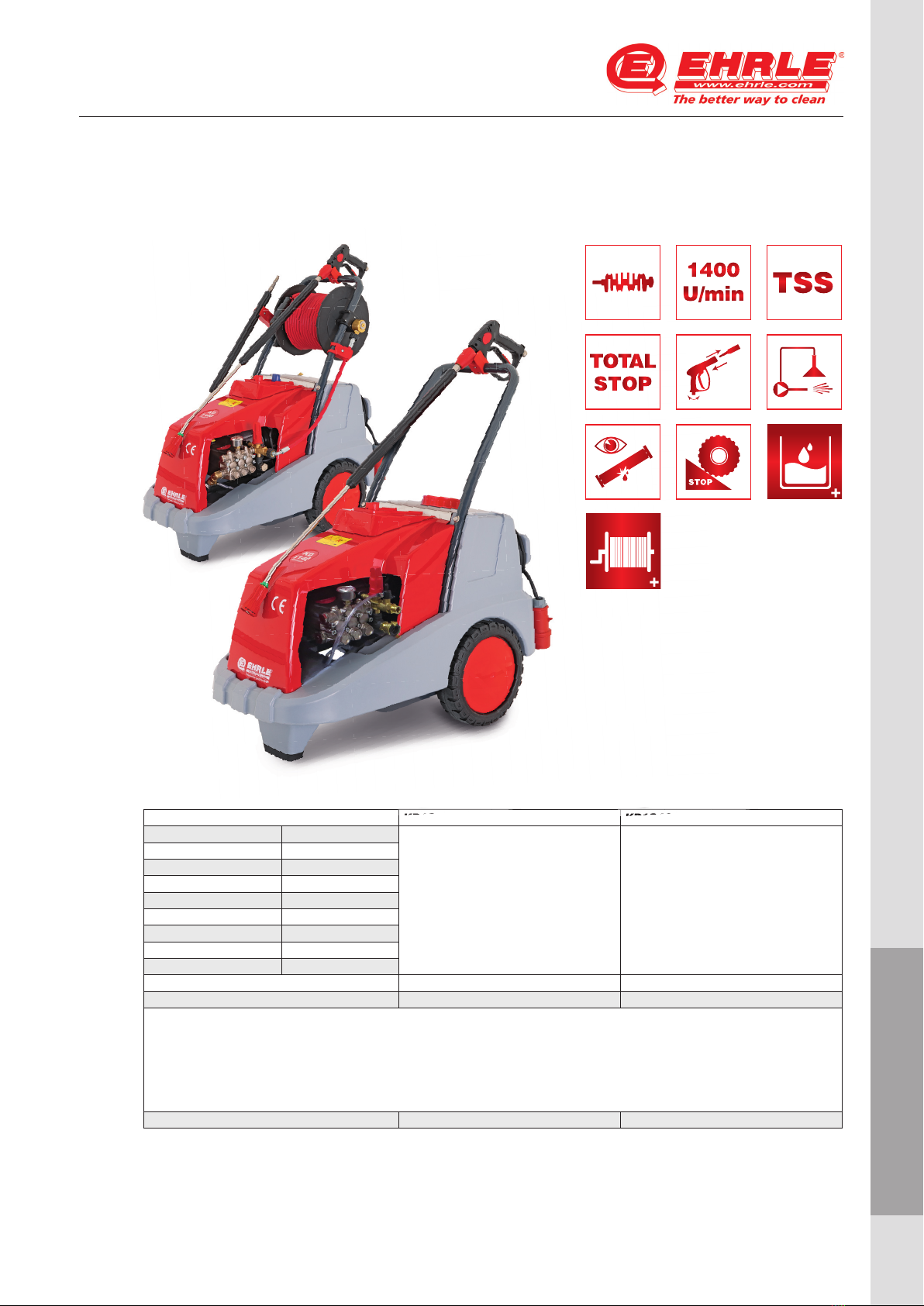

3.1 Product data sheet KD1140 ............................................................................................................14
3.1 Product data sheet KD1340 ............................................................................................................15
3.1 Product data sheet KD1840 ............................................................................................................16
3.1 Product data sheet KD1540 ............................................................................................................17
3.1 Product data sheet KD2040 ............................................................................................................18
4 Device assembly
4 Device assembly...............................................................................................................................19
5 Commissioning
5.1 Select location for device operation ..............................................................................................20
5.2 Establishing the water connection.................................................................................................21
5.3 Establishing the electrical mains connection.................................................................................22
5.4 Commissioning the device ..............................................................................................................23

4 of 46
Operating Instruction
High Pressure Cleaner cold water, mobile
Series 4x4
Table of content
6 Operation
6.1 Control elements of the trigger gun.............................................................................................. 24
6.2 EMERGENCY STOP - switch-off in case of danger ......................................................................... 25
6.3 Cleaning operation ......................................................................................................................... 25
6.4 Operation with cleaning detergent (chemistry)............................................................................ 28
6.4.1 General Informationen ...................................................................................................................28
6.4.2 Cleaning detergent operation with version Standard..................................................................29
6.4.3 Cleaning detergent operation with version Premium .................................................................. 30
6.4.4 Special application of detergent agents for food appliance (only version Premium) ................ 31
7 Decommissioning
7.1 Temporary decommissioning.......................................................................................................... 33
7.1.1 Device version Standard..................................................................................................................33
7.1.2 Device version Premium..................................................................................................................34
7.2 Decommissioning for a longer period of time .............................................................................. 35
8 Maintenance
8.1 General Information ....................................................................................................................... 36
8.2 EHRLE Maintenance and Inspection Contract ............................................................................... 36
8.3 Maintenance work ..........................................................................................................................36
8.3.1 Frost Protection ..............................................................................................................................38
8.3.1.1 Drain water from high pressure cleaner........................................................................................38
8.3.1.2 Rinse high pressure cleaner with antifreeze agent ......................................................................38
8.3.2 Cleaning the filter in the water inlet .............................................................................................38
8.3.3 Checking the HP-Hoses ..................................................................................................................39
9 Troubleshooting
9.1 Troubleshooting table..................................................................................................................... 40

5 of 46
Operating Instruction
High Pressure Cleaner cold water, mobile
Series 4x4
1 User information
1 User information
1.1 General
General information
For a comprehensive advice and information on the High Pressure
Cleaner cold water, mobile - Series 4x4 please contact the EHRLE
Customer Service.
With the purchase of a EHRLE High Pressure Cleaner cold water,
mobile - Series 4x4 you are the owner of a quality product, which is
characterised by:
●user-friendliness,
●reliability,
●environmental friendliness.
These operating instructions are part of the High Pressure Cleaner cold
water, mobile - Series 4x4 and must be kept at the operating site and
available at all times.
For the High Pressure Cleaner cold water, mobile - Series 4x4, the manual
contains information on
●User information
●Safety
●Product information
●Device assembly
●Commissioning, Decommissioning
●Operation
●Maintenance
●Troubleshooting
1.2 Functional device concept
Due to the specific constructive properties the high pressure cleaners can
be used in all conceivable industries, for example:
●Industry
●Agriculture and forestry
●Painting companies (e.g. facades, floors)
●Construction companies (structural engineering, underground
construction and road construction
●Forwarding companies, vehicle and rental parks
●Local government
●Hotels and restaurants, as well as food industry

6 of 46
Operating Instruction
High Pressure Cleaner cold water, mobile
Series 4x4
1 User information
1.3 Terminology
In this manual the terminology listed below is replaced by the relevant
short terms whenever possible
●High Pressure Cleaner
cold water, mobile - Series 4x4 high pressure cleaner or device
●Operating Instruction manual
●High pressure hose HP-Hose
If a clear reference to a subject is required in the description parts, the
terminology „High Pressure Cleaner cold water, mobile - Series 4x4“ is used.
1.4 Meaning of the emphasis
The emphasis used in this manual have the following meanings:
WARNING
Warning precedes operating procedures, instructions, etc., which, if not
strictly observed, could result in personal injury or loss of life. Warning
precedes also, when device misuse could result in personal injury or loss of
life.
CAUTION
Caution precedes operating procedures, instructions, etc., which, if not
strictly observed, could result in damage to the high pressure cleaner.
Caution precedes also, when device misuse could result in damage to the
high pressure cleaner.
This symbol indicates additional information.

7 of 46
Operating Instruction
High Pressure Cleaner cold water, mobile
Series 4x4
1 User information
1.5 Meaning of the symbols
Symbol Meaning
WARNING
Follow instructions!
Non-observance or neglecting of prescribed
instructions, incorrect operation or misuse of
the device may endanger life and limb of
persons.
WARNING
Danger of death due to electric shock.
Do not open the device. During operation,
dangerous voltages are present on live parts of
the device.
Touching live parts can lead to life-threatening
injuries.
WARNING
Danger of burns and scalds.
When operating with a water inlet tempera-
ture of up to 45 °C (device version Standard
and Premium) resp. up to 80 °C (device version
Standard and Premium for food appliance) the
cleaning objects, the hot water emerging from
the trigger gun, surfaces of the cleaning objects
or device components can become hot.
Touching hot surfaces or hot water can cause
burns or scalding of the skin surface. Make sure
surfaces have cooled before touching.
The hot water escaping from the trigger gun
must not come into contact with the skin.
WARNING
Danger with heavy loads.
A person is not allowed to lift and move loads
more than 23 kg. Otherwise the health of per-
sons may be endangered (e.g. overload of the
spinal column, injuries from falling loads).
For loads of more than 23 kg, use suitable lif-
ting equipment (e.g. forklift truck, lift truck).
CAUTION
Observe instructions for installation, device
adjustment, operation, maintenance and repair.
Non-observance or neglecting prescribed
instructions, incorrect operation or misuse of
the device may result in damage to device parts,
assemblies or components.

8 of 46
Operating Instruction
High Pressure Cleaner cold water, mobile
Series 4x4
1 User information
Symbol Meaning
General Information
General additional information.
Information on recycling
General information on recycling.
Information on disposal
General information on the proper and en-
vironmentally sound disposal of materials and
consumables.
Information on hearing protection
General information on hearing protection.
Calls for a direct action.
Result after an action.
•Enumeration

9 of 46
Operating Instruction
High Pressure Cleaner cold water, mobile
Series 4x4
1 User information
1.6 Target groups
This Operating Instruction contains information and instructions for
operating personnel for carrying out general cleaning work.
1.7 Warranty and Liability
The EHRLE High Pressure Cleaner cold water, mobile - Series 4x4 may only
be used for its intended purpose.
Intended use includes:
●Operation only by authorised persons who
○are instructed and trained on the device, or
○have completely read and understood the information and
instructions in this Operating Instruction and can therefore
guarantee safe handling of the device.
●The information and instructions contained in this Operating Instruction
must be observed.
●If the safety and protective devices are faulty, the high pressure cleaner
must not be put into operation
●The high pressure cleaner may only be operated with fully functional
safety and protective devices. In the event of functional failures during
operation, the high pressure cleaner must be taken out of operation
immediately.
●Faulty, insufficient or defective high pressure cleaners must not be put
into operation. Before commissioning, carry out a visual inspection for
faulty, defective or defective
○Device parts, assemblies or components
○Electrical cables
○HP-Hoses.
●The high pressure cleaner must be switched off immediately and taken
out of operation if defects, faults or deficiencies occur on
○Device parts, assemblies or components
○Electrical cables
○HP-Hoses.
●No constructive changes may be made to the device.
●The device may only be operated in the configuration certified by the
manufacturer. Operation with subsequently installed modules, compo-
nents or additional devices is not permitted and may endanger life and
limb of persons or lead to damage to the device
●Only original parts from the manufacturer or consumables approved by
the manufacturer may be used for maintenance and repair work.
Any warranty and liability claims for personal injury and damage to the
device are void if the high pressure cleaner is not used for its intended
purpose.

10 of 46
Operating Instruction
High Pressure Cleaner cold water, mobile
Series 4x4
1 User information
1.8 Environmental protection
Note on recycling
The packaging materials are recyclable. Please do not throw the
packaging into the household waste, but recycle it.
Note on disposal
Old appliances contain valuable recyclable materials which should be
recycled. Batteries, oil and similar materials must not be discharged into
the environment. For this reason, please dispose of old appliances using
suitable collection systems.
Dispose of used materials in an appropriate and environmentally friendly
manner. Observe the local regulations.
According to environmental regulations, waste water containing mineral
oil, fuels for hot water heating or lubricants such as oils and greases must
not enter the soil, water or sewerage system.
Do not allow engine oil, fuel oil or petrol to escape into the environment.
Protect the soil and dispose of used oil in an environmentally friendly
manner.
Engine cleaning or underbody washing of all types of vehicles may only be
carried out at washing stations equipped with oil separators in accordance
with environmental regulations (environmental protection).

11 of 46
Operating Instruction
High Pressure Cleaner cold water, mobile
Series 4x4
2 Safety
2 Safety
2.1 General safety information
Observe the respective national regulations of the legislator for liquid
sprayers.
Observe the relevant national regulations of the legislator on accident
prevention. Liquid sprayers must be inspected regularly and the result of
the inspection must be recorded in writing.
Observe the safety instructions provided with the cleaning agents used
(usually on the packaging label).
Keep cleaning agents out of the reach of unauthorized persons. Risk of
poisoning or caustic burns from cleaning agents! Observe the instructions
on the cleaning agents.
Perform prescribed maintenance and inspection work in due time (see
Section 8, Maintenance).
Safety-relevant defects must be rectified immediately. Keep all signs on
the device legible.
2.2 Authorized persons for device access
Ensure that access to the device is only possible for the persons who
●have completely read and understood the information and instructions
in this Operating Instruction and can therefore guarantee safe handling
of the device or
●are instructed and trained on the device.
Children as well as persons with reduced physical, sensory or mental
abilities are not allowed to operate the device.
2.3 Safety instructions for cleaning operation
During cleaning work, the personnel at the workplace must wear the
necessary Personal Protective Equipment (PPE). This includes waterproof
protective suits, rubber boots, protective goggles, headgear, ear protection
if necessary, etc
No cleaning work may be carried out in the presence of persons without
sufficient PPE.
Before switching on, carry out a visual inspection of the device parts from
the outside for damage (HP-Hose, electrical or mechanical parts). Devices
with damaged parts, assemblies or components must not be put into
operation.
The water jet leaving the trigger gun must not be directed at
●persons
●animals
●live electrical installations (building mains connections, sockets,
electrical wiring, etc.)
●live electrical installations, machines, devices, assemblies or components
●system, machinery or equipment in operation.

12 of 46
Operating Instruction
High Pressure Cleaner cold water, mobile
Series 4x4
2 Safety
Under the influence of the high pressure jet, parts can be separated from
the cleaning object and thrown away. Persons can be injured as a result.
Never aim the high pressure jet at fragile or loose objects.
When cleaning tyres and their valves, keep a minimum distance of 30 cm
from the high pressure nozzle. Otherwise damage may occur.
Before cleaning the High Pressure Cleaner cold water, mobile - Series 4x4
itself, take the device out of operation and disconnect it from the electrical
mains connection. Secure the device against unintentional or unauthorised
restarting (e.g. lock main switch, warning sign indicating work on the high
pressure cleaner, etc.).
Never operate the device unattended.
The device is designed for a water inlet temperature of up to 45 °C (device
version Standard and Premium) resp. up to 80 °C (device version Standard
and Premium for food appliance). When operated with hot water, water-
carrying parts (for example pump housing, uninsulated pipes, metal parts
of the trigger gun and spray lance) as well as cleaning objects may become
hot. Touching hot surfaces can cause burns or scalding of the skin surface.
Make sure surfaces have cooled before touching. The hot water escaping
from the trigger gun must not come into contact with the skin.
Asbestos-containing and other materials containing substances hazardous
to health must not be sprayed off.
Information on hearing protection
If the sound levels exceed the permissible values, the personnel and
persons in the area of exposure must wear hearing protection.
The sound level for EHRLE high pressure cleaners under maximum load is
82 dB (A). A high sound level over a long period can cause hearing loss. If
the noise produced by the application of the emerging high pressure jet
to noise-enhancing objects exceeds the permissible values, the operating
personnel and any persons affected must wear hearing protection.
Do not operate the device if electrical cables or other safety-relevant parts
(pressure relief valve, HP-Hose, trigger gun, etc.) are defective.
2.4 Accident prevention regulations
Observe the applicable national regulations of the legislator on accident
prevention.
2.5 Lifting and moving loads
The High Pressure Cleaner cold water, mobile - Series 4x4 weighs from
89 to 131kg depending on the type (with packaging from approx. 113kg
to approx. 155kg).
Lifting and moving loads is permitted for one person up to 23 kg. If the
load exceeds 23 kg use suitable lifting equipment (e.g. forklift, lift trucks).
Observe the international standard „ISO 11228-1 Ergonomie - Manuelles
Handhaben von Lasten - Teil 1 Heben und Tragen 05/2003“.

13 of 46
Operating Instruction
High Pressure Cleaner cold water, mobile
Series 4x4
2 Safety
2.6 Periodic inspections
The periodic inspections are listed in Section 8 (Maintenance).
2.7 Guidelines for liquid sprayers
High pressure cleaners must be inspected by an expert in accordance with
the „Guidelines for liquid sprayers“, if necessary or at least every
12 months. The result of the test must be recorded in writing.
In the appendix of this manual there is a test sheet (proof of customer
service) to record the tests carried out.
EHRLE service technicians are experts and can be consulted and
commissioned by EHRLE service for this prescribed inspection.
2.8 Design changes to the device
Design changes to the high pressure cleaner are not permitted.
When operating a device which has been modified or changed in design,
the device will not be used for its intended purpose. If the device is not
used for its intended purpose, no liability or warranty will be accepted (see
Section 1.7, Warranty and Liability).
2.9 Safety devices
Safety devices serve to protect the user and must not be suspended or
circumvented in their function.
The high pressure cleaner has the following safety devices listed below:
●Pressure switches:
Device functions are switched on or off (safety functions) based on type
of construction and intended use.
●Unloader valve and non-return valve:
The first serves to adjust the operating pressure and the second valve
keeps the pump head depressurised when the trigger gun is deactivated.
●TSS system with pump-off delay:
After deactivating the trigger gun, the pump continues operation for
approx. 30 s in the pressureless bypass mode (avoidance of too high
pressure build-up in the pump); after 30 s the high pressure cleaner
automatically switches into the stand-by mode.
●Total Switch-off:
Automatically switches the high pressure cleaner off in the event of
prolonged interruption of operation or unused trigger gun for more
than 20 minutes.
●Overload protection switch:
When the motor current load is too high the switch releases and the
device is switched off.
●Mechanical arrest for trigger gun:
Prevents unintentional or unconscious activating the trigger gun.

14 of 46
Operating Instruction
High Pressure Cleaner cold water, mobile
Series 4x4
3 Product description
3 Product description
3.1 Product data sheet
High Pressure Cleaner
Cold water, mobile - Series 4x4
KD1140
High Pressure Cleaner
Cold water, mobile - Series 4x4
KD1340
Type KD1340-Standard KD1340-Premium
Voltage 3/PE/AC/50Hz/415V ►10m HP-Hose DN08 - 315bar
►Trigger-Gun with swivel
►Spray-Lance 900mm c/w
Vario-Nozzle
►Stainless-Steel Jet-Nozzle 25°
►25l Cleaning-Detergent tank
►Detergent-Supply c/w Low-Pressure
Injector and Metering-valve
►Hose-Reel
►20 m HP-Hose DN08 - 315bar
►Trigger-Gun with swivel
►Spray-Lance 900mm c/w Nozzle-Protection
►Stainless-Steel Jet-Nozzle 25°
►Spray-Lance 900mm c/w Rotary-Nozzle
►35l Water-Storage tank
►Water-Supply separation acc. water reg.
►Chemical supply in high-pressure Jet
c/w Metering-valve
Operating pressure 30-170bar/3-17MPa
Max. pressure 190bar/19MPa
Discharge capacity 300-1.300l/h
Nozzle size 070
Max. Inlet temperature 45°C
Pump speed 1400rpm
Connected load 7,4 k W /1 3 ,1 A
Electrical protection 3x16A slow-blowing
Weight net/with package 89kg/113kg 97kg/121kg
Dimensions device/with package (LxWxH) 980x620x1000mm/1090x630x1120mm 980x620x1000mm/1090x630x1120mm
Self-supporting, robust, rotation-moulded device-chassis, impact-resistant device-cover made of ABS, triplex-piston pump with brass
pump head, nickel-plated, high-performance ceramic piston, stainless-steel valves, leakage-return, start-stop system with switch-
off delay, total-switch-off after 20min, unloader safety-valve c/w Infi nitely variable pressure and quantity regulation, 2 large rubber
wheels for rough terrain, with a patented wheel brake 2-way, storage possibility for all accessories, robust rotary on-off switch,
7,5m connection cable, removable ergonomic drawbar.
Art. No. 552003 552004
Retail price plus VAT £2,316.00 £2,786.00
Type KD1140-Standard KD1140-Premium
Voltage 3/PE/AC/50Hz/400V ►10m HP-Hose DN08 - 315bar
►Trigger-Gun with swivel
►Spray-Lance 900mm c/w
Vario-Nozzle
►Stainless-Steel Jet-Nozzle 25°
►25l Cleaning-Detergent tank
►Detergent-Supply c/w Low-Pressure
Injector and Metering-valve
►Hose-Reel
►20 m HP-Hose DN08 - 315bar
►Trigger-Gun with swivel
►Spray-Lance 900mm c/w Nozzle-Protection
►Stainless-Steel Jet-Nozzle 25°
►Spray-Lance 900mm c/w Rotary-Nozzle
►35l Water-Storage tank
►Water-Supply separation acc. water reg.
►Chemical supply in high-pressure Jet
c/w Metering-valve
Operating pressure 30-250bar/3-25MPa
Max. pressure 270bar/27MPa
Discharge capacity 300-1.000l/h
Nozzle size 045
Max. Inlet temperature 45°C
Pump speed 1400rpm
Connected load 7,4 k W /1 3 ,1 A
Electrical protection 3x16A slow-blowing
Weight net/with package 89kg/113kg 97kg/121kg
Dimensions device/with package (LxWxH) 980x620x1000mm/1090x630x1120mm 980x620x1000mm/1090x630x1120mm
Self-supporting, robust, rotation-moulded device-chassis, impact-resistant device-cover made of ABS, triplex-piston pump with brass
pump head, nickel-plated, high-performance ceramic piston, stainless-steel valves, leakage-return, start-stop system with switch-
off delay, total-switch-off after 20min, unloader safety-valve c/w Infi nitely variable pressure and quantity regulation, 2 large rubber
wheels for rough terrain, with a patented wheel brake 2-way, storage possibility for all accessories, robust rotary on-off switch,
7,5m connection cable, removable ergonomic drawbar.
Art. No. 551005 551006
Retail price plus VAT £2,172.00 £2,643.00
10
KD1140

15 of 46
Operating Instruction
High Pressure Cleaner cold water, mobile
Series 4x4
3 Product description
High Pressure Cleaner
Cold water, mobile - Series 4x4
KD1340
High Pressure Cleaner
Cold water, mobile - Series 4x4
KD1340
Type KD1340-Standard KD1340-Premium
Voltage 3/PE/AC/50Hz/415V ►10m HP-Hose DN08 - 315bar
►Trigger-Gun with swivel
►Spray-Lance 900mm c/w
Vario-Nozzle
►Stainless-Steel Jet-Nozzle 25°
►25l Cleaning-Detergent tank
►Detergent-Supply c/w Low-Pressure
Injector and Metering-valve
►Hose-Reel
►20 m HP-Hose DN08 - 315bar
►Trigger-Gun with swivel
►Spray-Lance 900mm c/w Nozzle-Protection
►Stainless-Steel Jet-Nozzle 25°
►Spray-Lance 900mm c/w Rotary-Nozzle
►35l Water-Storage tank
►Water-Supply separation acc. water reg.
►Chemical supply in high-pressure Jet
c/w Metering-valve
Operating pressure 30 -170bar/3-17MPa
Max. pressure 190bar/19MPa
Discharge capacity 300-1.300l/h
Nozzle size 070
Max. Inlet temperature 45°C
Pump speed 1400rpm
Connected load 7, 4 k W/1 3 ,1 A
Electrical protection 3x16A slow-blowing
Weight net/with package 89kg/113kg 97kg/121kg
Dimensions device/with package (LxWxH) 980x620x1000mm/1090x630x1120mm 980x620x1000mm/1090x630x1120mm
Self-supporting, robust, rotation-moulded device-chassis, impact-resistant device-cover made of ABS, triplex-piston pump with brass
pump head, nickel-plated, high-performance ceramic piston, stainless-steel valves, leakage-return, start-stop system with switch-
off delay, total-switch-off after 20min, unloader safety-valve c/w Infi nitely variable pressure and quantity regulation, 2 large rubber
wheels for rough terrain, with a patented wheel brake 2-way, storage possibility for all accessories, robust rotary on-off switch,
7,5m connection cable, removable ergonomic drawbar.
Art. No. 552003 552004
Retail price plus VAT £2,316.00 £2,786.00
Type KD1140-Standard KD1140-Premium
Voltage 3/PE/AC/50Hz/400V ►10m HP-Hose DN08 - 315bar
►Trigger-Gun with swivel
►Spray-Lance 900mm c/w
Vario-Nozzle
►Stainless-Steel Jet-Nozzle 25°
►25l Cleaning-Detergent tank
►Detergent-Supply c/w Low-Pressure
Injector and Metering-valve
►Hose-Reel
►20 m HP-Hose DN08 - 315bar
►Trigger-Gun with swivel
►Spray-Lance 900mm c/w Nozzle-Protection
►Stainless-Steel Jet-Nozzle 25°
►Spray-Lance 900mm c/w Rotary-Nozzle
►35l Water-Storage tank
►Water-Supply separation acc. water reg.
►Chemical supply in high-pressure Jet
c/w Metering-valve
Operating pressure 30-250bar/3-25MPa
Max. pressure 270bar/27MPa
Discharge capacity 300-1.000l/h
Nozzle size 045
Max. Inlet temperature 45°C
Pump speed 1400rpm
Connected load 7, 4 k W/1 3 ,1 A
Electrical protection 3x16A slow-blowing
Weight net/with package 89kg/113kg 97kg/121kg
Dimensions device/with package (LxWxH) 980x620x1000mm/1090x630x1120mm 980x620x1000mm/1090x630x1120mm
Self-supporting, robust, rotation-moulded device-chassis, impact-resistant device-cover made of ABS, triplex-piston pump with brass
pump head, nickel-plated, high-performance ceramic piston, stainless-steel valves, leakage-return, start-stop system with switch-
off delay, total-switch-off after 20min, unloader safety-valve c/w Infi nitely variable pressure and quantity regulation, 2 large rubber
wheels for rough terrain, with a patented wheel brake 2-way, storage possibility for all accessories, robust rotary on-off switch,
7,5m connection cable, removable ergonomic drawbar.
Art. No. 551005 551006
Retail price plus VAT £2,172.00 £2,643.00
10
KD1140
KD1340-Premium
KD1340-Standard

16 of 46
Operating Instruction
High Pressure Cleaner cold water, mobile
Series 4x4
3 Product description
High Pressure Cleaner
Cold water, mobile - Series 4x4
KD1840
High Pressure Cleaner
Cold water, mobile - Series 4x4
KD1540
KD1840
Type KD1840-Premium
Voltage 3/PE/AC/50Hz/415V ►Hose-Reel
►20 m HP-Hose DN08 - 315bar
►Trigger-Gun with swivel
►Spray-Lance 900mm c/w Nozzle-Protection
►Stainless-Steel Jet-Nozzle 25°
►Spray-Lance 900mm c/w Rotary-Nozzle
►35l Water-Storage tank
►Water-Supply separation acc. water reg.
►Chemical supply in high-pressure Jet c/w Metering-valve
Operating pressure 30-120bar/3-12MPa
Max. pressure 140bar/14MPa
Discharge capacity 300-1.800l/h
Nozzle size 150
Max. Inlet temperature 45°C
Pump speed 1400rpm
Connected load 7, 4 k W/ 13 ,1 A
Electrical protection 3x16A slow-blowing
Weight net/with package 105kg/129kg
Dimensions device/with package (LxWxH) 980x620x1000mm/1090x630x1120mm
Self-supporting, robust, rotation-moulded device-chassis, impact-resistant device-cover made of ABS, triplex-piston pump with brass
pump head, nickel-plated, high-performance ceramic piston, stainless-steel valves, leakage-return, start-stop system with switch-
off delay, total-switch-off after 20min, unloader safety-valve c/w Infi nitely variable pressure and quantity regulation, 2 large rubber
wheels for rough terrain, with a patented wheel brake 2-way, storage possibility for all accessories, robust rotary on-off switch, 7,5m
connection cable, removable ergonomic drawbar.
Art. No. 563004
Retail price plus VAT £3,546.00
Type KD1540-Premium
Voltage 3/PE/AC/50Hz/415V ►Hose-Reel
►20 m HP-Hose DN08 - 315bar
►Trigger-Gun with swivel
►Spray-Lance 900mm c/w Nozzle-Protection
►Stainless-Steel Jet-Nozzle 25°
►Spray-Lance 900mm c/w Rotary-Nozzle
►35l Water-Storage tank
►Water-Supply separation acc. water reg.
►Chemical supply in high-pressure Jet c/w Metering-valve
Operating pressure 30-280bar/3-28MPa
Max. pressure 310bar/31MPa
Discharge capacity 300-1.500l/h
Nozzle size 070
Max. Inlet temperature 45°C
Pump speed 1400rpm
Connected load 13,8kW/24A
Electrical protection 3x32A slow-blowing
Weight net/with package 127kg/151kg
Dimensions device/with package (LxWxH) 980x620x1000mm/1090x630x1120mm
Self-supporting, robust, rotation-moulded device-chassis, impact-resistant device-cover made of ABS, triplex-piston pump with brass
pump head, nickel-plated, high-performance ceramic piston, stainless-steel valves, leakage-return, start-stop system with switch-
off delay, total-switch-off after 20min, unloader safety-valve c/w Infi nitely variable pressure and quantity regulation, 2 large rubber
wheels for rough terrain, with a patented wheel brake 2-way, storage possibility for all accessories, robust rotary on-off switch, 7,5m
connection cable, removable ergonomic drawbar.
Art. No. 553004
Retail price plus VAT £4,706.00
11

17 of 46
Operating Instruction
High Pressure Cleaner cold water, mobile
Series 4x4
3 Product description
High Pressure Cleaner
Cold water, mobile - Series 4x4
KD1540
High Pressure Cleaner
Cold water, mobile - Series 4x4
KD1540
KD1840
Type KD1840-Premium
Voltage 3/PE/AC/50Hz/415V ►Hose-Reel
►20 m HP-Hose DN08 - 315bar
►Trigger-Gun with swivel
►Spray-Lance 900mm c/w Nozzle-Protection
►Stainless-Steel Jet-Nozzle 25°
►Spray-Lance 900mm c/w Rotary-Nozzle
►35l Water-Storage tank
►Water-Supply separation acc. water reg.
►Chemical supply in high-pressure Jet c/w Metering-valve
Operating pressure 30 -120bar/3-12MPa
Max. pressure 140bar/14MPa
Discharge capacity 300-1.800l/h
Nozzle size 150
Max. Inlet temperature 45°C
Pump speed 1400rpm
Connected load 7, 4 k W/1 3 ,1 A
Electrical protection 3x16A slow-blowing
Weight net/with package 105kg/129kg
Dimensions device/with package (LxWxH) 980x620x1000mm/1090x630x1120mm
Self-supporting, robust, rotation-moulded device-chassis, impact-resistant device-cover made of ABS, triplex-piston pump with brass
pump head, nickel-plated, high-performance ceramic piston, stainless-steel valves, leakage-return, start-stop system with switch-
off delay, total-switch-off after 20min, unloader safety-valve c/w Infi nitely variable pressure and quantity regulation, 2 large rubber
wheels for rough terrain, with a patented wheel brake 2-way, storage possibility for all accessories, robust rotary on-off switch, 7,5m
connection cable, removable ergonomic drawbar.
Art. No. 563004
Retail price plus VAT £3,546.00
Type KD1540-Premium
Voltage 3/PE/AC/50Hz/415V ►Hose-Reel
►20 m HP-Hose DN08 - 315bar
►Trigger-Gun with swivel
►Spray-Lance 900mm c/w Nozzle-Protection
►Stainless-Steel Jet-Nozzle 25°
►Spray-Lance 900mm c/w Rotary-Nozzle
►35l Water-Storage tank
►Water-Supply separation acc. water reg.
►Chemical supply in high-pressure Jet c/w Metering-valve
Operating pressure 30-280bar/3-28MPa
Max. pressure 310bar/31MPa
Discharge capacity 300-1.500l/h
Nozzle size 070
Max. Inlet temperature 45°C
Pump speed 1400rpm
Connected load 13,8kW/24A
Electrical protection 3x32A slow-blowing
Weight net/with package 127kg/151kg
Dimensions device/with package (LxWxH) 980x620x1000mm/1090x630x1120mm
Self-supporting, robust, rotation-moulded device-chassis, impact-resistant device-cover made of ABS, triplex-piston pump with brass
pump head, nickel-plated, high-performance ceramic piston, stainless-steel valves, leakage-return, start-stop system with switch-
off delay, total-switch-off after 20min, unloader safety-valve c/w Infi nitely variable pressure and quantity regulation, 2 large rubber
wheels for rough terrain, with a patented wheel brake 2-way, storage possibility for all accessories, robust rotary on-off switch, 7,5m
connection cable, removable ergonomic drawbar.
Art. No. 553004
Retail price plus VAT £4,706.00
11
KD1540-Premium

18 of 46
Operating Instruction
High Pressure Cleaner cold water, mobile
Series 4x4
3 Product description
High Pressure Cleaner
Cold water, mobile - Series 4x4
KD2040
KD1140-F
Food progressing
with stainless steel pump,
hot water resistant
High Pressure Cleaner
Cold water, mobile - Series 4x4
KD2040
Type KD2040-Premium
Voltage 3/PE/AC/50Hz/415V ►Hose-Reel
►20 m HP-Hose DN08 - 315bar
►Trigger-Gun with swivel
►Spray-Lance 900mm c/w Nozzle-Protection
►Stainless-Steel Jet-Nozzle 25°
►Spray-Lance 900mm c/w Rotary-Nozzle
►35l Water-Storage tank
►Water-Supply separation acc. water reg.
►Chemical supply in high-pressure Jet c/w Metering-valve
Operating pressure 30-220bar/3-22MPa
Max. pressure 240bar/24MPa
Discharge capacity 300-1.800l/h
Nozzle size 100
Max. Inlet temperature 45°C
Pump speed 1400rpm
Connected load 13,8kW/24A
Electrical protection 3x32A slow-blowing
Weight net/with package 131kg/155kg
Dimensions device/with package (LxWxH) 980x620x1000mm/1090x630x1120mm
Self-supporting, robust, rotation-moulded device-chassis, impact-resistant device-cover made of ABS, triplex-piston pump with brass
pump head, nickel-plated, high-performance ceramic piston, stainless-steel valves, leakage-return, start-stop system with switch-
off delay, total-switch-off after 20min, unloader safety-valve c/w Infi nitely variable pressure and quantity regulation, 2 large rubber
wheels for rough terrain, with a patented wheel brake 2-way, storage possibility for all accessories, robust rotary on-off switch, 7,5m
connection cable, removable ergonomic drawbar.
Art. No. 554004
Retail price plus VAT £4,633.00
Type KD1140-F-Standard KD1140-F-Premium
Voltage 3/PE/AC/50Hz/415V ►10m HP-Hose DN08 - 315bar blue
►Trigger-Gun with swivel
►Double Spray-Lance 900mm c/w
Nozzle-Protection
►Stainless-Steel Jet-Nozzle 25°
►25l Cleaning-Detergent tank
►Detergent-Supply c/w Low-Pressure
Injector and Metering-valve
►Hose-Reel
►15m HP-Hose DN08 - 315bar blue
►Trigger-Gun with swivel
►Double Spray-Lance 900mm c/w
Nozzle-Protection
►Stainless-Steel Jet-Nozzle 25°
►Spray-Lance 900mm c/w Rotary-Nozzle
►17l Water-Storage tank
►Water-Supply separation acc. water reg.
►Chemical supply in high-pressure Jet
c/w Metering-valve
Operating pressure 30-180bar/3-18MPa
Max. pressure 200bar/20Mpa
Discharge capacity 300-1.000l/h
Nozzle size 055
Max. Inlet temperature 80°C
Pump speed 1400rpm
Connected load 6,9kW/12,5A
Electrical protection 3x16A slow-blowing
Weight net/with package 89kg/113kg 97kg/121kg
Dimensions device/with package (LxWxH) 980x620x1000mm/1090x630x1120mm 980x620x1000mm/1090x630x1120mm
Food progressing with abrasion resistant high pressure hose blue, self-supporting, robust, corrossions free, rotation-moulded device-
chassis for food industry, stainless steel, impact-resistant device-cover made of ABS, triplex-piston pump with chrome, nickel plated
pump head (hot water resistant), high-performance ceramic piston, stainless-steel valves, leakage-return, start-stop system with switch-
off delay, total-switch-off after 20min, unloader safety-valve c/w Infi nitely variable pressure and quantity regulation, 4 large rubber
wheels for rough terrain, with a patented wheel brake 2-way, storage possibility for all accessories, robust rotary on-off switch, 7,5m
connection cable, removable ergonomic drawbar stainless steel.
Art. No. 551003 551004
Retail price plus VAT £4,040.00 £4,582.00
12

19 of 46
Operating Instruction
High Pressure Cleaner cold water, mobile
Series 4x4
4 Installation
4 Device assembly
WARNING
Ensure correct device assembly.
The persons assembling the high pressure cleaners must have
●read this manual and understood, that error-free device assembly can
be guaranteed, or
●specially trained and instructed on the respective device.
Otherwise, the life and limb of persons may be endangered.
WARNING
Danger with heavy loads.
The High Pressure Cleaner cold water, mobile - Series 4x4 weigh
depending on type from 89kg to 131kg (with packaging 113kg to 155kg).
A person is not allowed to lift and move loads (e.g. devices, assemblies)
more than 23 kg. Otherwise the health of persons may be endangered
(e.g. overload of the spinal column, injuries from falling loads).
For loads of more than 23 kg, use suitable lifting equipment (e.g.
forklift, lift truck).
General Information
For detailed advice and information on the device assembly of the High
Pressure Cleaner cold water, mobile - Series 4x4, please contact the
EHRLE customer service.

20 of 46
Operating Instruction
High Pressure Cleaner cold water, mobile
Series 4x4
5 Commissioning
5 Commissioning
WARNING
Commissioning must be carried out professional.
For commissioning, operators must follow the instructions in this section.
Otherwise the life and limb of persons may be endangered.
The Ehrle high pressure cleaners are subjected to a final test for correct
function and safety before delivery.
The first commissioning and the first cleaning operation serve to check
the correct functioning of the device, if damage to components that is not
immediately visible during transport has occurred.
If the device functions incorrectly, consult the EHRLE customer service
immediately.
5.1 Select location for device operation
WARNING
Select a suitable and permissible operating location.
The local regulations concerning the installation and operation of the
device must be observed.
The devices listed in this manual must not be set up and operated in
rooms or areas subject to fire or explosion hazards.
When selecting the location for device operation observe:
●The socket for the mains cable connection must be within easy reach
(provide an extension cable if necessary).
●Water inlet hose of sufficient length for connection to fittings of the
water supply network or water tap.
●Select a suitable washing place for the cleaning object.
Do not set up the device in very wet areas (e.g. areas with puddles) or
operate it under water. Do not lay cables and cable plugs in wet areas.
