Shark EEC User manual

9.801-297.0
SERVICE MANUAL
To locate your local Shark Commercial Pressure Washer Dealer nearest you,
visit www.Sharkpw.com
MODEL # ORDER #
EEC-422007C 1.106-068.0
EEC-353007C 1.106-069.0
EEC
L
I
S
T
E
D
®
98012970-1
HEATER
ON
TIMER — 7 DAY
CONTROLADOR DE TIEMPO DE SIETE DIEAS
MINUTERIE DE 7 JOURS
POWER
CORRIENTE
COURANT
HEATER
CALENTADOR
CHAUFFE-EAU
PULL OUT PINS TO SET DESIRED “ON” TIMES
EXTRAIGA LAS CLAVIJAS PARA ESTABLECER EL TIEMPO DESEADO.
TIRER LES POINTEURS VERS L’EXTERIEUR POUR E’TABLIR
LES HORAIRES D’OPERATION
10-0726
ON
PRENDER
O
I
OFF
APAGAR
ETTEINT
.
INSTRUCTIONS
40° 40°
25°
INSTRUCTIONS
INSTRUCCIONES
15°
ON
PRENDER
OFF
I
O
Cold Water
Inlet Hot Water
Outlet
EXPOSED PULLEYS AND
BELTS CAN CAUSE INJURY
PRECAUCION/AVERTISSEMENT
WARNING

9.801-297.0 • Shark • Rev. 5/11
OPERATOR’S MANUAL PRESSURE WASHER
4
98012970-2

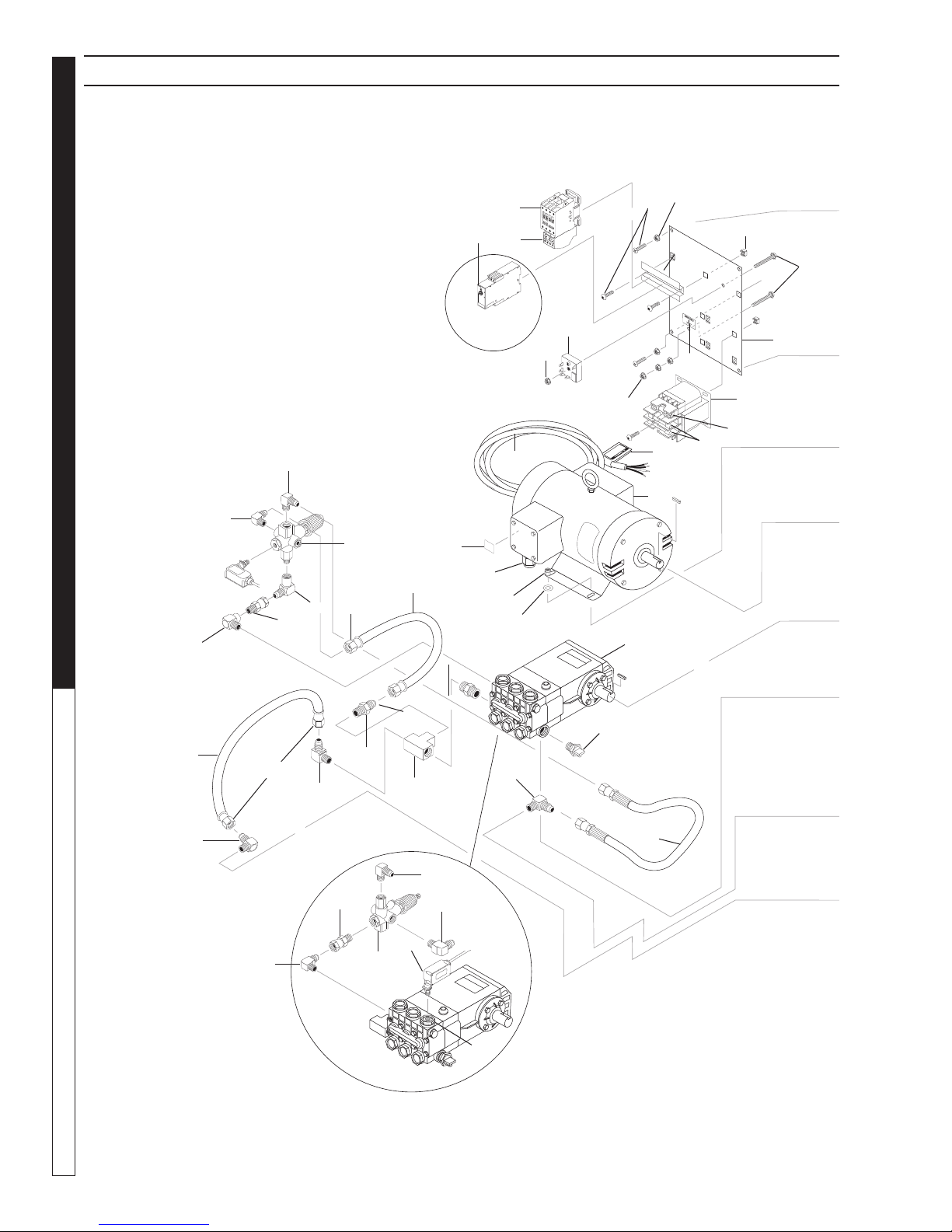

EXPLODED VIEW - LEFT SIDE
Time Delay
Option
17
95
84
4
886 84
89
10
87
93
5
7
6
57
84
92
3
20
2
21
9
19
59, 94
56
16
82
22
18
15
23
65
96
24
82
82
26
75
64
49
25
24
Reversed View of
Electrical Panel
Components
92
62
Time
Delay
Option
1
98
26
1
49
97

9.801-297.0 • Shark • Rev. 5/11
5
PRESSURE WASHER OPERATOR’S MANUAL
98012970-3

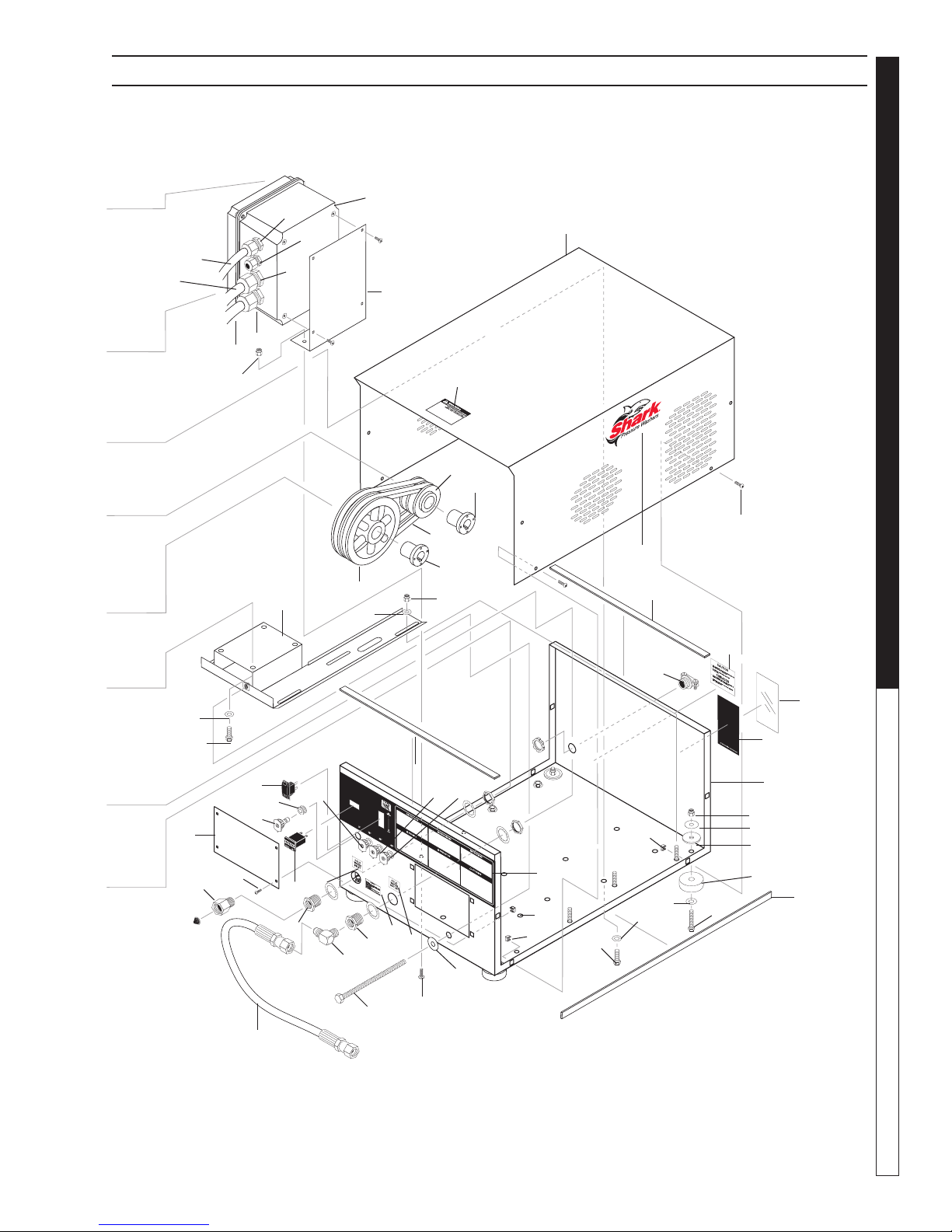

EXPLODED VIEW - RIGHT SIDE
11
12
14
13
59 60
56
83
28
54
88
46
70
73 74
44
48
47
45
50
80
58
68
77
61
29
63
79
80
91
85
90
31
51
20
53
80
40 41
42
81
90
72
50
71
55
78
35
34
37
50
33
39
32
38
30
67
52 69
27
36
43
66
99

9.801-297.0 • Shark • Rev. 5/11
OPERATOR’S MANUAL PRESSURE WASHER
6
EXPLODED VIEW PARTS LIST
ITEM PART NO. DESCRIPTION QTY
1 9.802-362.0 Unloader, PA 8GPM@3650 PSI,
VB8 W/Switch 1
8.750-299.0 Unloader,VRT3, 8 GPM @
4500 PSI, (Time Delay Option) 1
2 Pump, See Specification Pages
3 Motor, See Specification Pages
4 Overload, See Specification Pages
5 Transformer, See Specification Pages
6 Fuse, See Specification Pages
7 Fuse, See Specification Page 28-29
8 Contactor, See Specification Pages
9 9.802-259.0 Hose, 1/2" Push On 18"
10 9.802-457.0 Din Rail, 35mm 4"
(Time Delay Option) 6"
11 9.802-476.0 Box, Plastic, 10" x 8" x 6" w/Lid 1
12 9.803-038.0 Bracket, Support for Elec Box 1
13 9.802-518.0 Strain Relief, 3/4" LQ Tite 1
9.802-526.0  Locknut, 3/4" 1
14 9.802-515.0 Strain Relief, Strt, LQ Tite, Med 1
9.802-524.0  Locknut, 1/2" Conduit 1
15 8.918-423.0 Hose, 3/8" x 22", 2 Wire,
Pressure Loop 1
16 9.803-670.0 Pump Protector, 1/2, 190° 1
17 9.802-473.0 Timer, Multi-Function
(Time Delay Option) 1
18 9.802-039.0 Elbow, 1/2" JIC, 3/8", 90° 1
19 9.802-779.0 Nut, 3/8" ESNA 4
20 9.802-807.0 Washer, 3/8", SAE, Flat 8
21 8.706-797.0 Nipple, 1/2" Hex 1
22 8.706-844.0 Tee, 1/2" Female, Pipe 1
23 9.802-128.0 Nipple, 1/2" JIC x 1/2" MPT Pipe 1
24 9.802-131.0 Elbow, 1/2" JIC x 1/2", 90° 2
25 9.802-039.0 Elbow, 1/2" JIC x 3/8" Steel 1
26 9.802-129.0 Elbow, 1/2" x JIC x 3/8", Brass 1
27 9.802-807.0 Washer, 3/8 Flat 4
28 9.802-879.0 Cover, Kärcher 1
29 9.802-875.0 Base, Kärcher 1
30 9.802-451.0 Switch, Rocker, Carling
w/Green Lens 1
9.802-452.0 Switch, Rocker, Red Face
(Time Delay Only) 1
31 9.802-066.0 Pad, Soft Rubber, 50 Duro 4
32 9.802-064.0 Grommet, Rubber,
Nozzle Holder 4
33 9.802-146.0 Swivel, 1/2" MP x 3/4"
GHF w/Strainer 1
34 8.707-000.0 Connector, 1/2" Anchor 1
ITEM PART NO. DESCRIPTION QTY
35 8.706-998.0 Connector, 3/8" Anchor 1
36 9.804-058.0 Bolt, Pump Mounting 4
37 9.802-039.0 Elbow, 1/2" JIC x 3/8" 90° MPT 1
38 8.712-345.0 Nozzle, SAQCMEG 0004 Red
(HDS 4.0/30) 1
8.712-361.0 Nozzle, SAQCMEG 0006 Red
(HDS 4.0/20) 1
39 8.712-346.0 Nozzle, SAQCMEG 1504 Yellow
(HDS 4.0/30) 1
8.712-362.0 Nozzle, SAQCMEG 1506 Yellow
(HDS 4.0/20) 1
40 8.712-347.0 Nozzle, SAQCMEG 2504 Green
(HDS 4.0/30) 1
8.712-363.0 Nozzle, SAQCMEG 2506 Green
(HDS 4.0/20) 1
41 8.712-348.0 Nozzle, SAQCMEG 4004, White
(HDS 4.0/30) 1
8.712-364.0 Nozzle, SAQCMEG 4006, White
(HDS 4.0/20) 1
42 9.800-064.0 Label Karcher Control Panel CT 1
43 8.918-422.0 Hose, 3/8 x 20" 1
44 Bushing, See Specification Pages
45 Bushing, See Specification Pages
46 Pulley, See Specification Pages
47 Pulley, See Specification Pages
48 Belt, See Specification Pages
49 9.802-048.0 Swivel, 1/2" JIC Fem, 3/8" Male 1
50 9.802-765.0 Screw, 1/4"x1/2" BH SOC ES 14
51 9.802-817.0 Washer, 3/8" x 1" Steel 4
52 9.802-283.0 Hour Meter 1
53 9.802-720.0 Bolt, 3/8" x 1", NC HH 4
54 8.932-965.0 Label, Warning, Exposed
Pulley 1
55 8.932-970.0 Label, Cold Water Outlet 1
56 9.802-429.0 Service Cord 12/4 10 ft.
57 8.932-969.0 Label, GFCI 1
58 9.802-522.0 Strain Relief 1" 1
59 9.802-429.0 Service Cord 12/4 40"
60 9.802-518.0 Strain Relief, Strt, LQ Tite 3234
Large 1
9.802-526.0  Locknut, 3/4" 1
61 9.800-013.0 Label, Intended For Indoor Use 1
62 9.802-259.0 Hose, 1/2" Push-on 12"
63 9.802-779.0 Nut, 3/8" ESNA NC 4
64 8.706-207.0 Elbow, 3/8" Street 1
65 8.716-125.0 Switch, Pressure
(Time Delay Option) 1
66 9.802-514.0 Strain Relief, 1/2" 1
9.802-524.0  Locknut, 1/2" 1

9.801-297.0 • Shark • Rev. 5/11
7
PRESSURE WASHER OPERATOR’S MANUAL
ITEM PART NO. DESCRIPTION QTY
67 9.803-081.0 Cover, Access Hole 1
68 8.901-148.0 Label, Caution 1
69 9.800-020.0 Label, Cold Water Inlet 1
70 8.718-980.0 Washer, 5/16" Flat 4
71 9.802-738.0 Bolt, 1/2" x 8" NC HH 1
72 9.802-800.0 Washer, 1/2" Flat 1
73 9.803-100.0 Slider, Pump 1
74 9.802-776.0 Nut, 5/16" ESNA 4
75 9.802-042.0 Elbow, 1/2" JIC x 3/8" Female,
90 DGR 1
76 8.706-294.0 Bushing, 1/2" x 3/8" Steel 1
77 9.800-034.0 Clear Lexan 1
78 8.901-136.0 Detergent label 1
79 9.802-067.0 Bumper Pad 4
80 9.802-073.0 Weather Stripping 7 ft.
81 9.802-074.0 Nut, 1/4" Square 4
82 9.802-151.0 Swivel, 1/2" JIC Fem. Push-On 4
83 9.802-424.0 Cord, 16-4 Service 30"
84 9.802-695.0 Nut, 10/32" Keps 7
85 9.802-723.0 Bolt, 3/8" x 1-1/2" NC HH 4
86 9.802-759.0 Screw, 10/32" x 1/2" Black 10
87 9.802-762.0 Screw, 10/32" x 1-1/4" 1
88 9.802-773.0 Nut, 1/4" ESNA NC 2
89 9.802-791.0 Cage Nut, 10/32" x 16 Gauge 6
90 9.802-794.0 Cage Nut, 1/4" x 12 Gauge 8
91 9.802-811.0 Washer, 3/8" x 1-1/2" Fender 4
92 9.800-040.0 Label, Ground 2
93 9.803-302.0 Standoff, Electrical Box 1
94 9.802-520.0 Strain Relief, 3/4" 1
95 9.802-472.0 Timer, Solid State, 120V 5-60
Min. Adjust. 1
96 8.707-264.0 Plug, 3/8" Gas Tap
(Time Delay Option) 1
97 9.802-039.0 Elbow, 1/2 JIC x 1/2 MPT
(Time Delay) 1
98 9.802-042.0 Elbow, 1/2 JIC x 3/8 Fem
(Time Delay) 1
99 8.900-870.0 Label, Shark, Die Cut 2
 Not Shown
EXPLODED VIEW PARTS LIST

9.801-297.0 • Shark • Rev. 5/11
OPERATOR’S MANUAL PRESSURE WASHER
8
.
WARNING:
TANK FILL
ELBOW
DO NOT PLUG
VENT HOLE
Part No
98012970-4
CABINET EXPLODED VIEW - LEFT SIDE
1
2
6
5
47
9
8
3
10
11
13
12
17
16
15
14
42
43
44
45
46
47
24
To
Pressure
Washer
43
43
72
65
66
58

9.801-297.0 • Shark • Rev. 5/11
9
PRESSURE WASHER OPERATOR’S MANUAL
L1
L2
L3
98012970-5
32
31
30
CABINET EXPLODED VIEW - RIGHT SIDE
18
26
27
25
24
29
28
19
20
21
22
23
56
33
34
35
38
36
37
41
40
39
48
49
50
51
52
53
54
55
43
59
47
74
56
64
57
48
23
61
60
62
63
53
61
53
43
25
71
68
67
70
69
Coil Assembly
8.918-685.0
59
42
73

9.801-297.0 • Shark • Rev. 5/11
OPERATOR’S MANUAL PRESSURE WASHER
10
ITEM PART NO. DESCRIPTION QTY
1 9.802-039.0 Elbow, 1/2" JIC x 3/8" MPT 1
2 8.913-216.0 Lid, Top Cover 1
3 8.913-218.0 Outer Wrap, Fill Side 1
4 8.913-219.0 Outer Wrap, Power Side 1
5 8.940-048.0 Label, Heating Unit Power 1
6 9.802-455.0 Light, Green 125V 1
7 9.802-451.0 Switch, Rocker Carling
w/Green Lens 1
8 8.716-254.0 Timer, 7 Day Pin, 120V, 20A
PB873MKZ 1
9 8.706-161.0 Elbow, 1/4" Street, 90° Galv 1
10 8.716-633.0 Switch, Limit w/Clamp 1
11 8.913-211.0 Tank Assembly 1
12 8.716-650.0 Gasket, 6000W Heater,
2500 Series 9
13 8.716-645.0 Heater, 4500W 480V
#055994-091 9
14 8.913-222.0 Plug, 1.5" Pipe, Black 1
15 8.913-221.0 Elbow, 1-1/2" Female, Black
90° 1
16 9.802-518.0 Strain Relief, Large 1
17 9.802-526.0 Locknut, 3/4" 8465 1
18 8.913-212.0 Tank Assembly Lid 1
19 8.913-213.0 Bracket, Coil 2
20 8.706-542.0 Pad, 1/4" Rubber, Coil 4
21 8.711-785.0 Hose, 3/8" x 1/2" Push-on 10
22 8.913-214.0 Bracket, Coil Spacer 1
23 8.706-322.0 Tube Fitting, Parker 8MSC6N-316
1/2" SS A-Lok 2
24 8.706-207.0 Elbow, 3/8" Street 2
25 8.706-998.0 Connector, 3/8" Anchor 2
26 8.716-461.0 Terminal, Grounding Lug,
1/0-6 Copper Wire 1
27 8.716-122.0 Block, Power Distr, 3 Pol,
GO63133 1
28 9.802-491.0 Block, Terminal, 4 Pole 1
29 8.724-284.0 Contactor, 120V 1
30 8.913-210.0 Tank Base Assembly 1
31 8.718-696.0 Bolt, 1/2" x 3" NC, SS 4
32 8.716-225.0 Holder, Fuse Block, Buss
R60060-3CR 1
33 8.730-762.0 Fuse, Buss FRS-R-50,
600V 50 Amp 3
34 8.716-883.0 Transformer, 208/230/460V-
24/115V, .050KVA 1
35 8.712-179.0 Switch TH HI 84°C NC
1/2 x 1/2 SP 1
36 9.813-220.0 Electrical Panel 1
37 9.800-016.0 Label, Disconnect Power
Supply 1
CABINET PARTS LIST
ITEM PART NO. DESCRIPTION QTY
38 8.913-215.0 Plate, Back Cover 1
39 8.913-217.0 Plate, Electrical Access 1
40 8.940-047.0 Label, Warning 1
41 8.912.251.0 Coil, 1/2" O.D. SS Tubing 1
42 9.802-793.0 Nut, Cage 1/4" x 16 Ga 30
43 9.802-754.0 Screw, 1/4" x 1/2" HH NC
Whiz Lock 32
44 8.717-480.0 Insulation, 1" x 24" x 48"
Fiberglass, Foil One Side 4
45 8.706-569.0 Gasket, Neop 8 ft
46 8.718-755.0 Screw, 8/32" x 1-1/2",
SS Phil PH 2
47 9.806-551.0 Screw, 5/16" x 3/4" Whiz 10
48 9.802-778.0 Nut, Whiz Loc, 5/16 Flange 12
49 9.802-716.0 Bolt, 5/16" x 2" NC HH 10
50 8.716-533.0 Clamp, Tie Wrap Adhesive 9
51 9.802-765.0 Screw, 1/4" x 1/2" BH
SOC CS 9
52 8.718-934.0 Screw, #8 x 1"
Phil Pan Sheet Metal 6
53 8.718-929.0 Screw, #6 x 3/8" Phil Pan
Sheet Metal 13
54 8.940-007.0 Label, Incoming Line 1
55 9.802-259.0 Hose, 1/2" Push-on 1 ft.
56 9.800-040.0 Label, Ground Symbol 3
57 9.802-103.0 Bushing, Snap 5/8 1
58 9.802-171.0 Nipple, 1/2" Hex Steel 1
59 9.802-073.0 Weatherstrip, 1/8" x 1/2" 10 ft.
60 8.718-803.0 Screw, 10/32" x 3/4"
BHSOC 1
61 9.802-695.0 Nut, 10/32" Keps 3
62 9.802-464.0 Fuse, Paper Bass 8/10 250V 1
63 8.713-081.0 Fuse, Class R1/2 Amp 2
64 9.802-759.0 Screw, 10/32" x 1/2" BH SOC 1
65 8.724-513.0 Label, Fill Elbow 1
66 9.800-021.0 Label, Hot Water Outlet 1
67 8.915-607.0 Label, Class RD5, 50 Amp 1
68 8.915-610.0 Label, XFMR Primary/
Secondary Fuses 1
69 9.802-770.0 Screw, 1/4" x 1", BH
SOC CS 1
70 9.802-773.0 Nut, 1/4" ESNA, NC 1
71 9.802-065.0 Grommmet, 1-5/16" Rubber 1
72 9.802-225.0 Detergent Injector Assy,
Non-Adj. #3 1
73 9.802-710.0 Bolt 5/16" x 1" 2
74 9.802-749.0 Screw, 8/32" x 3/4" 2
9.802-785.0  Nut, 8/32" 2
Not Shown

9.801-297.0 • Shark • Rev. 5/11
11
PRESSURE WASHER OPERATOR’S MANUAL
98012970-6
HOSE & SPRAY GUN ASSEMBLY AND PARTS LIST
HOSE & SPRAY GUN ASSEMBLY AND PARTS LIST
6
5
3
2
1
4
8
High Pressure
Nozzle
7
10
9
10
ITEM PART NO. DESCRIPTION QTY
6 8.710-384.0 Gun, ST-1500, 5000
10.4 GPM 1
7 9.802-216.0 Detergent Injector, Non-Adjust
3-5 GPM 1
8 8.707-057.0 Strainer, 1/4" Hose Barb 1
9 9.802-251.0 Tube, 1/4" x 1/2" Clear Vinyl 6 ft.
10 9.802-210.0 Clamp, Hose, UNI .46 - .54 2
 Not Shown
ITEM PART NO. DESCRIPTION QTY
1 9.802-165.0 Coupler, 1/4" Male 1
9.802-096.0  Quick Coupler O-Ring,
Small 1
2 9.802-286.0 Nozzle Only, 1/8", Soap 1
3 8.711-293.0 Wand, SS, VP, AL344
w/Coupler & Soap Nozzle 1
4 See Nozzles, Page 18
5 8.739-314.0 Hose, 3/8" x 50', 1 Wire,
Tuff-Flex 1

9.801-297.0 • Shark • Rev. 5/11
PRESSURE WASHER Specifications
12
SPECIFICATIONS
Model# HP Motor Pump Pump Pulley
Pump Pulley
Description Motor Pulley
Motor Pulley
Description
Pump Bushing
Description
1.106-068.0 6 hp 9.802-329.0 9.802-343.0 9.802-374.0 2AK74H 9.802-373.0 2AK56H 24 mm
1.106-069.0 7.5 hp 8.715-105.0 9.802-343.0 8.715-592.0 2BK80H 9.802-386.0 2BK52H 24 mm

9.801-297.0 • Shark • Rev. 5/11
13
PRESSURE WASHER Specifications
SPECIFICATIONS
Model#
Pump
Bushings
Motor
Bushing
Motor
Bushing# Belt Belt# Contactor
Overload
Fuse Primary Fuse Secondary Transformer
068.0 9.802-402.0 H x 1-1/8" 9.802-400.0 AX42 9.802-411.0 8.724-268.0 8.724-312.0 9.802-462.0(2) 9.802-463.0(1) 9.802-551.0
069.0 9.802-402.0 H x 1-3/8" 9.802-401.0 BX43 9.802-420.0 8.724-268.0 8.724-312.0 9.802-462.0(2) 9.802-463.0(1) 9.802-551.0

9.801-297.0 • Shark • Rev. 5/11
21
PRESSURE WASHER OPERATOR’S MANUAL

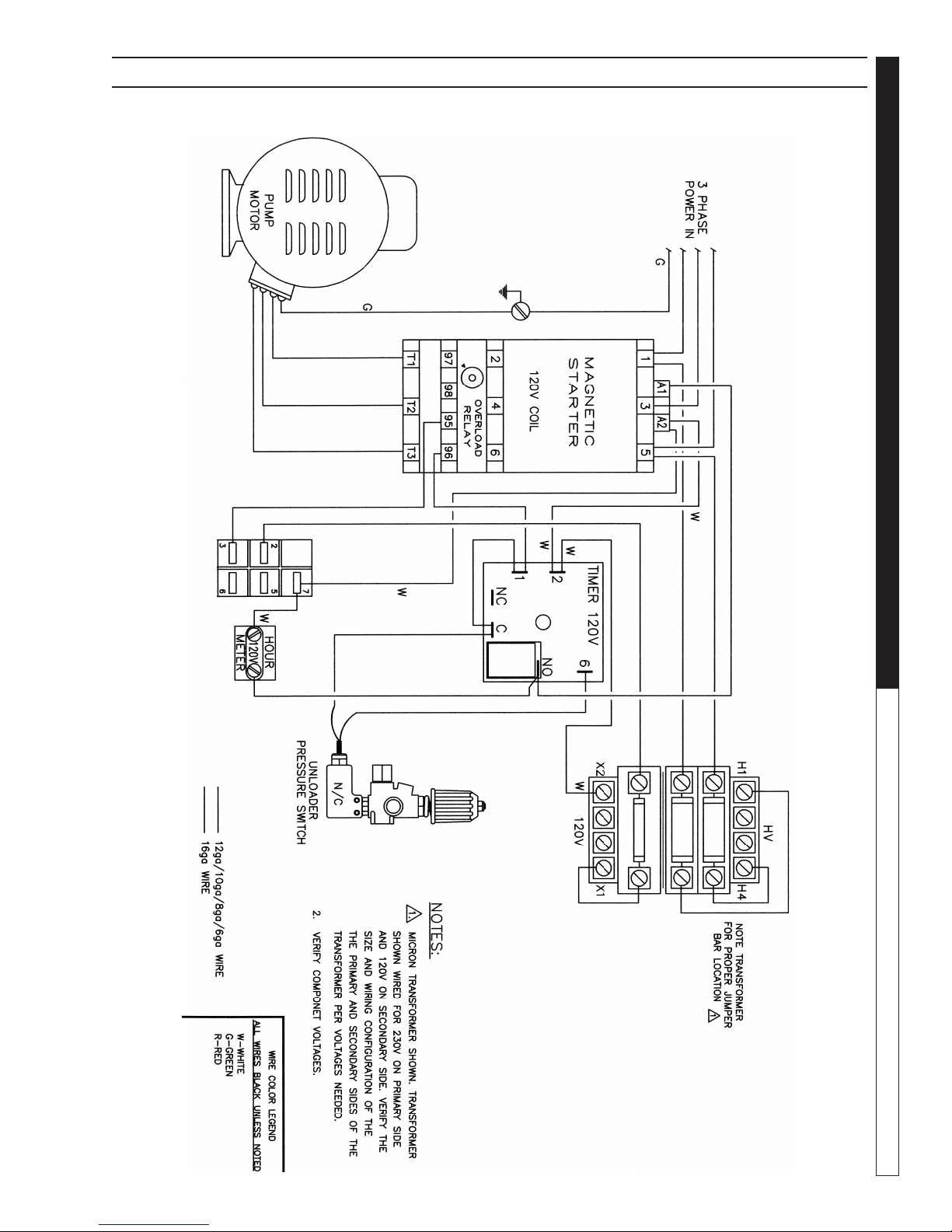

WIRING DIAGRAM - WITH AUTO START/STOP

9.801-297.0 • Shark • Rev. 5/11
OPERATOR’S MANUAL PRESSURE WASHER
22

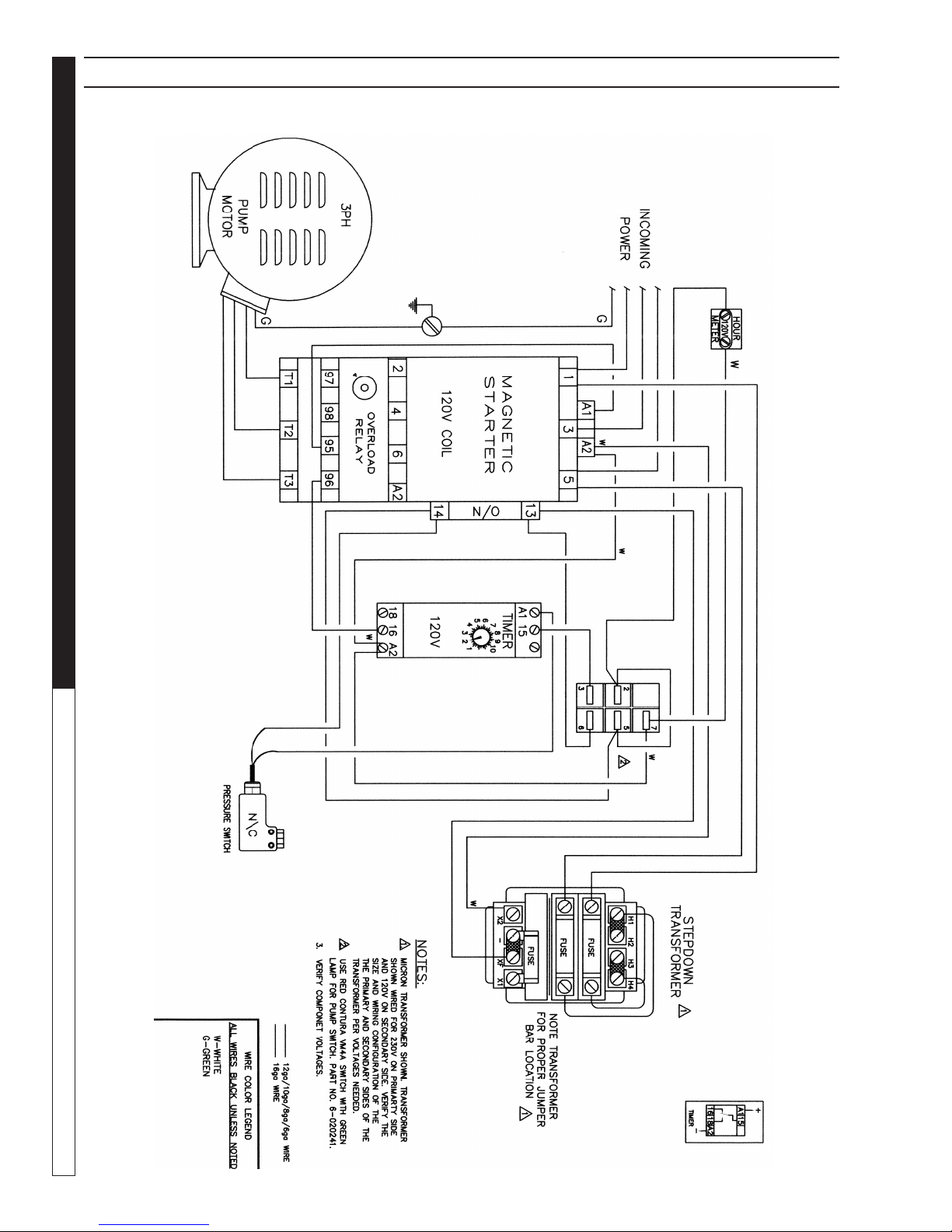

WIRING DIAGRAM - WITH TIME DELAY SHUTDOWN OPTION

www.Sharkpw.com
Form # 9.801-297.0 • Revised 5/11 • Printed in U.S.A. or Mexico
