Ei Electronics Ei605 Series User manual

Instructions
Read and retain carefully for as long as the product is being used. It contains vital information on the operation and installation
of your Alarm. The leaflet should be regarded as part of the product.
If you are just installing the unit, the leaflet must be given to the householder. The leaflet is to be given to any subsequent user.
Ei605 Smoke Alarm Series Ei603 Heat Alarm Series
Battery Powered
Smoke & Heat Alarms
Ei600 Series
B16301-R3-Ei600 SERIES-U&C.qxd 28/6/10 12:10 PM Page 1

Model
Ei605
Note: Certain alarms may be supplied (on request) with the appropriate RF module fitted
Ei605MRF
None
None
Ei605MRF
Ei605MRF
Ei605MRF
Ei605MTYRF
Optional
RF Module
Model No.
Ei605MTYRF
Ei605MTYRF
Ei605MTYRF
Optional
RF Module
Model No.
9V Replaceable Battery
Table 1
Model
10 Year Lithium Battery Built-in
Ei605C
Ei605W
Ei603C
Ei603W
Ei605TYC
Ei605TY
Ei605TYW
Ei603TYC
Ei603TYW
Optical
Optical
Optical
Optical
Optical
Heat
Heat
Heat
Heat
Alarm
Type
Alarm
Type
Optical
No
Yes
No
Yes
No
Yes
No
Yes
No
Hardwired
Interconnect
Hardwired
Interconnect
No
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
RF
Capability
Supplied
RF
Capability
Supplied
No
B16301-R3-Ei600 SERIES-U&C.qxd 28/6/10 12:10 PM Page 2

3
1
2
3
4
5
6
7
8
9
10
11
12
QUICK START GUIDE
LOCATION & POSITIONING
INSTALLATION
INTERCONNECTION - HARD WIRED
TESTING, MAINTENANCE & POWER SUPPLY
MONITORING
FIRE SAFETY ADVICE
SMOKE ALARM LIMITATIONS
RADIOLINK ACCESSORIES
GETTING YOUR ALARM SERVICED
FIVE YEAR GUARANTEE
TROUBLESHOOTING
CONTACT US
Page
CONTENTS
4
6
13
17
20
26
29
31
31
32
33
36
B16301-R3-Ei600 SERIES-U&C.qxd 28/6/10 12:10 PM Page 3

4
1. Quick Start Guide

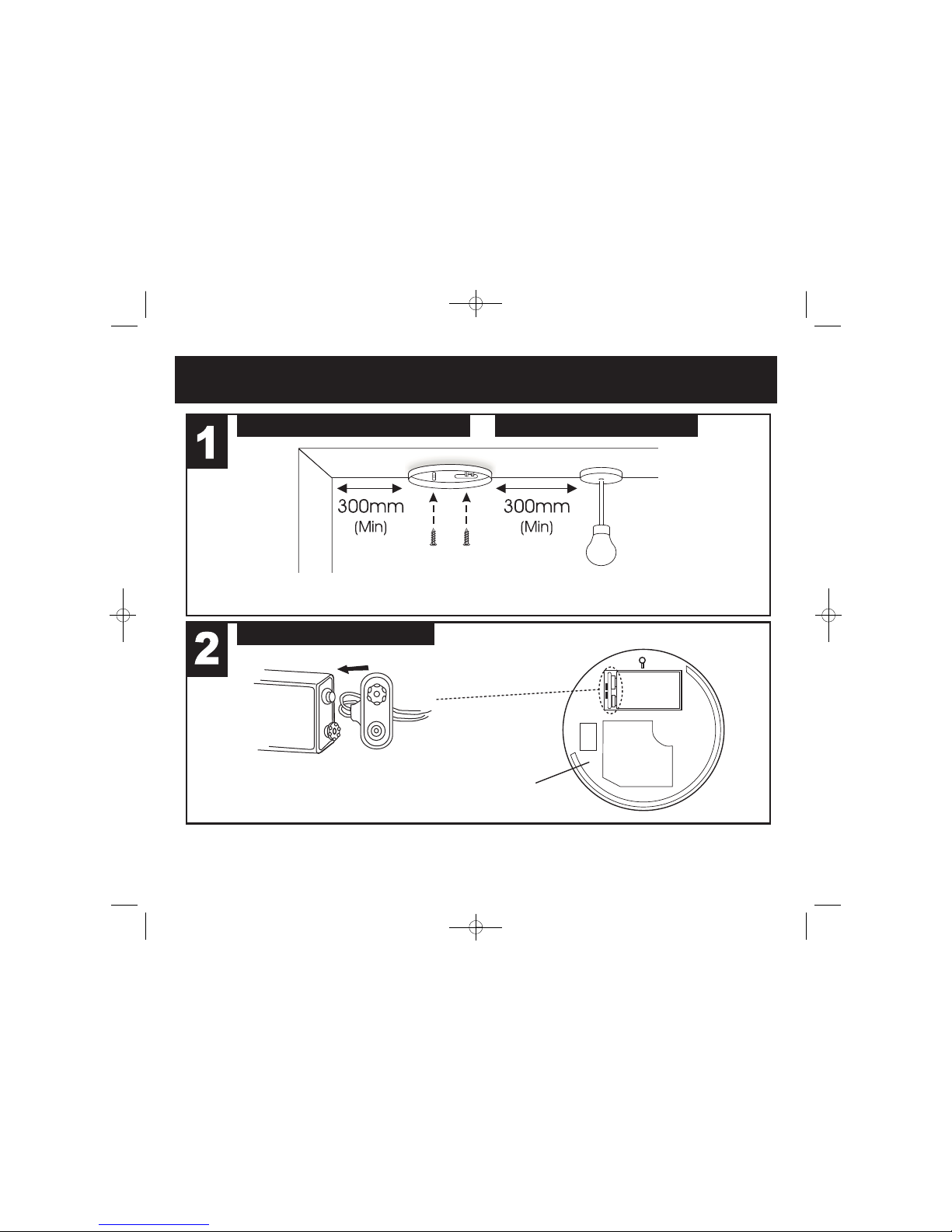

LOCATE CORRECT SITING POINT FIX BASEPLATE TO CEILING
CONNECT BATTERY SNAPS 9V BATTERY MODELS ONLY
ALARM SHOULD BE CEILING MOUNTED AT LEAST 300MM FROM
WALLS & OBSTRUCTIONS, IDEALLY CENTRALLY IN ROOM/AREA
CONNECT THE BATTERY TO THE
BATTERY SNAPS TO POWER THE UNIT
BASE OF
ALARM
9 VOLT
BATTERY
BATTERY
CONNECTORS
B16301-R3-Ei600 SERIES-U&C.qxd 28/6/10 12:10 PM Page 4

ON 10 YEAR LITHIUM BATTERY ALARM
MODELS - TWISTING THE UNIT ON TO
THE BASE AUTOMATICALLY CONNECTS
THE BATTERY
Quick Start Guide
PLACE ALARM & TWIST ON TO BASE
TEST ALARM
TEST ALARM AT LEAST WEEKLY
PRESS THE TEST BUTTON
5
B16301-R3-Ei600 SERIES-U&C.qxd 28/6/10 12:10 PM Page 5

2. Location & Positioning
Introduction
Congratulations on purchasing an Ei600 Series Alarm. You can easily install these
alarms throughout the property on escape routes, on each storey, in corridors & in
closed rooms to give warning of fire.
The Heat Alarms can be installed in kitchens and other areas where Smoke Alarms
are unsuitable.
Models Ei605C/Ei603C/Ei605TYC & Ei603TYC can be interconnected with hard
wiring to give the loudest alarm sound level throughout the house.
All models (except Ei605 & Ei605TY) can be interconnected using the RadioLINK
plug-in modules (These modules must be purchased separately when they are not
supplied with the Alarm (see Table 1)).
Note: Certain alarms may be supplied (on request) with the appropriate RF module
fitted.
SMOKE ALARMS - Ei605 Series
Sufficient smoke must enter your Smoke Alarm before it will respond. Your Smoke
Alarm needs to be within 7.5 metres of the fire to respond quickly. Smoke Alarms
also need to be in positions where they can be heard throughout the property, so
they can wake you and your family in time for everyone to escape. A single Smoke
Alarm will give some protection if it is properly installed, but most homes will require
two or more (preferably interconnected) to ensure that a reliable early warning is
given. For recommended protection you should put individual Smoke Alarms in all
rooms (apart from kitchen and bathroom) where fire is most likely to break out.
6
B16301-R3-Ei600 SERIES-U&C.qxd 28/6/10 12:10 PM Page 6

Your first Smoke Alarm should be located between the sleeping area and the
most likely sources of fire (living room, kitchen for example), but it should not
be more than 7.5 metres from the door to any room where a fire may start and
block your escape from the house.
HEAT ALARMS - Ei603 Series
The Heat Alarm gives a fire warning when the temperature at the Alarm
reaches 58°C. It is ideal for kitchens, garages, boiler houses and other areas
where there are normally high levels of fumes, smoke or dust i.e. places where
Smoke Alarms cannot be installed without the risk of excessive nuisance
alarms. A Heat Alarm should only be used in rooms adjoining escape routes,
in conjunction with Smoke Alarms on the escape routes.
All Heat Alarms must be interconnected to the Smoke Alarms to ensure that
the early warning will be heard, particularly by somebody sleeping. A properly
designed early warning fire system ensures the alarm is given before the
escape routes become blocked with smoke. Therefore there must be Smoke
Alarms along the escape routes as Heat Alarms would not give sufficient
warning.
However, a fire in a closed room (e.g. kitchen) adjoining the escape route, can
eventually cause the corridor to become smoke-logged due to smoke leaking out
from around the door before adequate warning can be given by detectors in the
corridor. (Smoke leaking out from a room is often cool and slow moving so it can
take a long time to rise to the ceiling, and travel to a detector which could be
some distance away). A Heat Alarm in the closed room will give early warning of
fire in that room and help overcome this problem.
7
Location & Positioning
B16301-R3-Ei600 SERIES-U&C.qxd 28/6/10 12:10 PM Page 7

8
Multi-Storey Dwellings
If your home has more than one floor, at least one Alarm should be fitted on each
level (see Figure 1). Preferably the units should be interconnected (if feature is
present on unit) so as to give sufficient warning throughout the property. RadioLINK
plug-in modules are ideal in this situation as the units will then interconnect using
Radio Frequency (RF) signals - so no wiring is required.
Figure 1 illustrates where Heat Alarms and Smoke Alarms should be located in a
typical two storey house. Note the spacings in “Protection Levels” which ensure the
early detection of fire and that the warning will be heard.
Locate Heat Alarms in rooms adjoining escape routes - kitchens, garages, boiler
houses etc. where Smoke Alarms are unsuitable. Install within 5.3m of potential
sources of fire.
Single Storey Dwelling
If the premises is one storey you should put your first Smoke Alarm in a corridor or
hallway between the sleeping and living areas. Place it as near to the living area as
possible, but make sure that it can be heard loudly enough in the bedroom to wake
someone. See Figure 2 for placement example.
In houses with more than one sleeping area, Smoke Alarms should be placed
between each sleeping area and the living area and it is recommended that Heat
Alarms should be placed in the kitchen & garage.
Recommended Protection
Fire authorities recommend you put individual Smoke Alarms in or near all rooms
where fire is most likely to break out (apart from the locations to avoid e.g
bathrooms - see Section 3). The living room is the most likely place for a fire to start
B16301-R3-Ei600 SERIES-U&C.qxd 28/6/10 12:10 PM Page 8

Bed
r
oom
Bed
r
oom
Bed
r
oom
Livin
g
Roo
m
K
it
c
h
en
Ba
thr
oom
Dinin
g
Roo
m
Figure 2
For minimum protection
- Smoke Alarm on each storey
- in each sleeping area
- every 7.5 metres of hallways and
rooms
- within 3 metres of all bedroom doors
- all units interconnected (where
feature is present)
For recommended protection
(in addition to the above):
- Smoke Alarms in every room (except
kitchens and bathrooms)
- Heat Alarms located in kitchens,
garages etc. within 5.3m of potential
fire sources 9
Figure 1
B16301-R3-Ei600 SERIES-U&C.qxd 28/6/10 12:10 PM Page 9

at night, followed by the kitchen (where a Heat Alarm is recommended) and then
the dining room. Consideration should be given to installing Smoke Alarms in any
bedrooms where fires might occur, for instance, where there is an electrical
appliance such as an electric blanket or heater, or where the occupant is a smoker.
In addition, consideration should be also given to installing Smoke Alarms in any
rooms where the occupant is unable to respond very well to a fire starting in that
room, such as an elderly or sick person or a very young child.
Checking Alarms Can Be Heard
With the Alarms sounding in their intended locations check that the alarm can be
heard in each bedroom with the door closed, above the sound of any TV/audio
systems. The TV/audio systems should be set to a reasonably loud conversation
level. If you cannot hear the alarm over the sound of the TV/audio system, the
chances are it would not wake you. Interconnecting the Alarms using either a hard-
wired interconnection (where the feature is present) or RadioLINK plug-in modules
will help to ensure that the alarm will be heard throughout the property.
Positioning
Ceiling Mounting
Hot smoke rises and spreads out, so a central ceiling position is the recommended
location. The air is "dead" and does not move in corners, therefore Smoke & Heat
Alarms must be mounted away from corners. Keep at least 0.3m from walls and
corners (see Figure 3). Additionally, mount the unit at least 0.3m from any light
fitting or decorative object which might prevent smoke or heat entering the
Smoke/Heat Alarm.
We do not recommend wall mounting these Smoke/Heat Alarms.
10
B16301-R3-Ei600 SERIES-U&C.qxd 28/6/10 12:10 PM Page 10

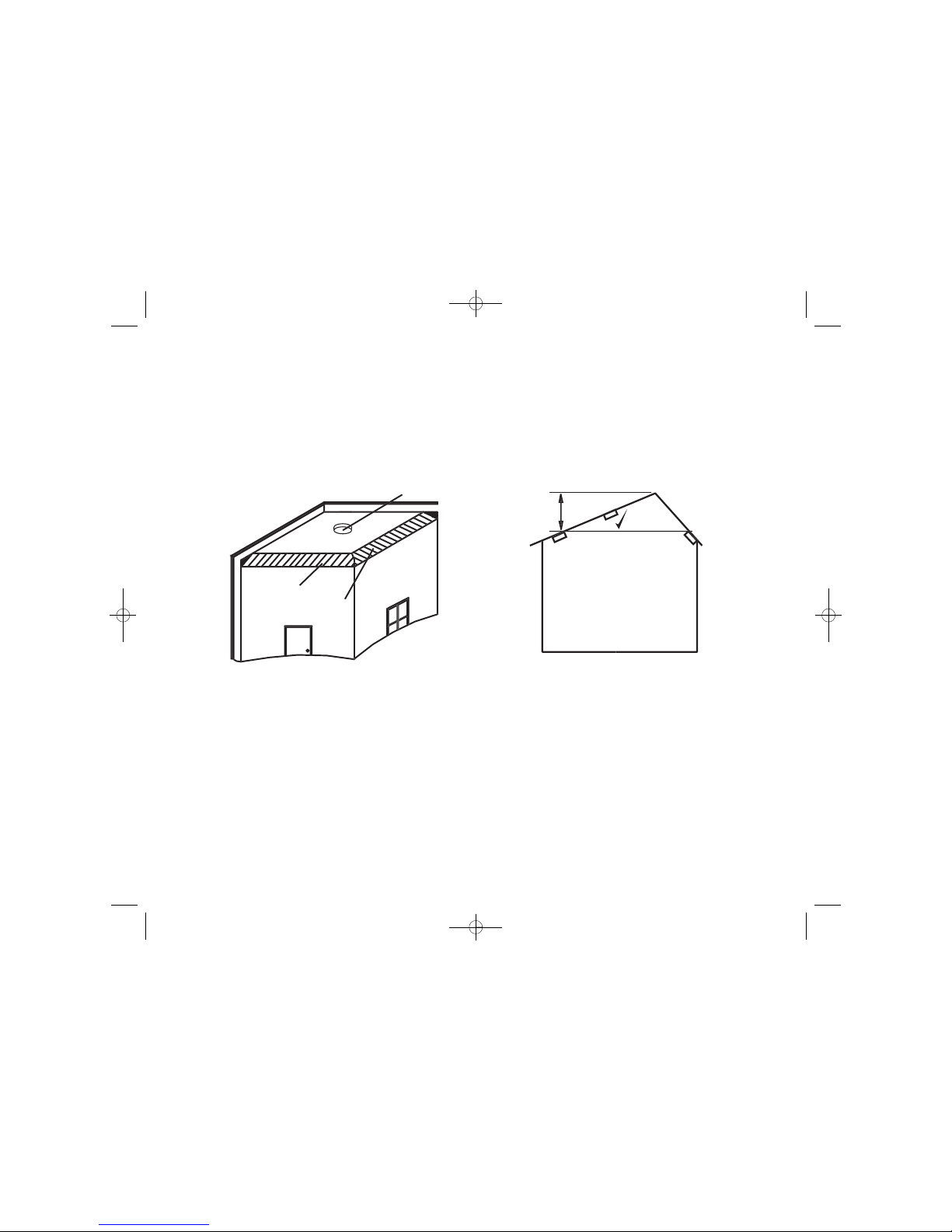

On a Sloping Ceiling
With a sloping or peaked ceiling install a Smoke Alarm within 600mm of the peak
or a Heat Alarm within 150mm of the peak (measured vertically). If this height is less
than 600mm for Smoke Alarms or 150mm for Heat Alarms the ceiling is regarded
as being flat (see Figure 4).
Locations to avoid
DON’T place Smoke Alarms in any of the following areas:
• Bathrooms, kitchens, shower rooms, garages or other rooms where the smoke
alarm may be triggered by steam, condensation, normal smoke or fumes. Keep at
least 6 metres away from sources of normal smoke/fumes.
• Locate away from very dusty or dirty areas as dust build-up in the chamber can impair
performance. It can also block the insect screen mesh and prevent smoke from
entering the smoke detector chamber.
DEAD AIR
SU
RFA
C
E
S
NEVER WITHIN
0
.
3
M
O
F ANY
CO
RNE
R
IDEAL IN
C
ENTR
E
O
F CEILIN
G
S
M
O
KE ALARM
S
<600
m
m
HEAT ALARM
S
<
15
0
m
m
APEX
x
x
Figure 3 Figure 4
11
B16301-R3-Ei600 SERIES-U&C.qxd 28/6/10 12:10 PM Page 11

• Do not locate in insect infested areas. Small insects getting into the smoke
detector chamber can cause intermittent alarms.
DON’T place Heat Alarms in any of the following areas:
• Bathrooms, shower rooms or other rooms where the unit may be triggered by
steam or condensation.
DON’T place Smoke or Heat Alarms in any of the following areas:
• Places where the normal temperature can exceed 40°C or be below 0°C (e.g.
attics, furnace rooms, directly above ovens or kettles etc.) as the heat/steam could
cause nuisance alarms.
• Near a decorative object, door, light fitting, window moulding etc., that may prevent
smoke or heat from entering the Alarm.
• Surfaces that are normally warmer or colder than the rest of the room (e.g. attic
hatches). Temperature differences might stop smoke or heat from reaching the unit.
• Next to or directly above heaters or air conditioning vents, windows, wall vents etc.
that can change the direction of airflow.
• In very high or awkward areas (e.g. over stairwells) where it may be difficult to
reach the alarm (for testing, hushing or battery replacement).
• Locate the unit at least 1m from dimmer controlled lights and wiring as some
dimmers can cause interference.
• Locate unit at least 1.5m and route wiring at least 1m away from fluorescent light
fittings as electrical “noise” and/or flickering may affect the unit.
12
B16301-R3-Ei600 SERIES-U&C.qxd 28/6/10 12:10 PM Page 12

3. Installation
Installation Procedure
1. Select a location complying with the advice in Section 2.
2. Remove the mounting plate from the Smoke/Heat Alarm by twisting it in an
anti-clockwise direction (see Figure 5).
3. Place the mounting plate on the ceiling exactly where you want to mount the
Alarm. With a pencil, mark the location of the two screw holes.
4. If interconnecting Alarms using hard-
wired connections, run suitable twin
core cabling to the marked locations of
each Alarm. Make the connections to
the Alarm (see Section 4).
5. Taking care to avoid any electrical
wiring in the ceiling, drill holes using a
5.0mm drill bit through the centre of the
marked locations. Push the plastic
screw anchors provided into the drilled
holes. Screw the mounting plate to the
ceiling.
If using RadioLINK Smoke/Heat Alarms
then they should be mounted with
antennas in the same orientation (i.e.
essentially parallel). This means picking
13
ROTATE UNIT ANIT-CLOCKWISE
UNIT WILL NOT TWIST OFF - IT MAY BE
TAMPERPROOFED - SEE FIGURE 8c
Figure 5
Installation
B16301-R3-Ei600 SERIES-U&C.qxd 28/6/10 12:10 PM Page 13

a part of the building, say the front wall of the building and then installing all
mounting plates in the same orientation with respect to this (see figure 6).
6. Connect the battery to the battery snaps as shown in the Quick Start Guide (for
9V Replaceable Battery models only).
7. Carefully line up the unit on the base, gentle press home & twist on. (This
connects the batteries in the 10 Year Lithium Battery models).
Install all the other Alarms similarly.
14
Large
hole
nearest
front
wall
Orientate all
mounting plates
in the same
direction
Front Wall Front Wall
Mounting Plate Mounting Plate
Mounting Plate Mounting Plate
Figure 6
B16301-R3-Ei600 SERIES-U&C.qxd 28/6/10 12:10 PM Page 14

8. Press the Test button on each
alarm to ensure that the Alarm
works (see Figure 7a for Smoke
Alarm & 7b for Heat Alarm).
9. For hard-wired interconnected
Alarms, hold down the Test button
on each Alarm in turn and check
that all other interconnected
Alarms sound.
10. If using RadioLINK
interconnection, see booklet ‘RF
Modules for Battery Powered
Smoke & Heat Alarms.
Install all the other Alarms similarly.
Tamperproofing the Alarms
The Alarm can be made tamperproof to prevent unauthorised removal of the Alarm.
Break off the small pillar on the base as shown in figure 8a.
To remove the Alarm from the ceiling it is now necessary to use a small screwdriver,
to release the catch (push catch towards the ceiling) and then twist off the alarm
(see figure 8b).
If necessary it is possible to further secure the Alarm by using a No.2 or No.4 (2 to
3mm diameter - not supplied) self tapping screw 6 to 8mm long (see figure 8d), to
firmly lock the Alarm and its mounting plate together (see figure 8c).
Attach the Alarm to the mounting plate.
15
Figure 7a
Smoke Alarm
Figure 7b
Heat Alarm
B16301-R3-Ei600 SERIES-U&C.qxd 28/6/10 12:10 PM Page 15

Line up the screw (not
supplied) on the “U”
shaped recessed area
shown in figure 8c and
screw firmly home.
To remove the Alarm from
the ceiling, remove the
screw first, and then twist
off anti-clockwise.
16
BREAK OFF
SMALL PILLAR
Figure 8a
How to Tamperproof
PUSH UP CATCH & TWIST
ALARM ANTI-CLOCKWISE TO REMOVE
Figure 8b
How to Remove
TAMPERPROOF SCREW
Figure 8c
6 to 8 mm
2 to 3 mm
SELF TAPPING
SCREW
Figure 8d
B16301-R3-Ei600 SERIES-U&C.qxd 28/6/10 12:10 PM Page 16

4. Interconnection - Hard Wired
A combined maximum of 12 Smoke Alarms and/or Heat Alarms may be wired
together such that when one unit senses fire all other units sound a warning -
(see Table 1 for the alarms with hardwired interconnect option). This helps
ensure the alarm will be heard throughout the property.
Do not connect to any other device as it may damage the unit or affect
performance.
A maximum of 250 metres of two core, 0.5mm2to 0.75mm2, stranded signal
cable can be used, (maximum resistance between detectors 50 ohm). The
Alarms are interconnected by wiring all the terminals marked 1 together, and
all the terminals marked 2 together (see in Figure 9a). Note: Draughts from
wiring openings, conduit, or mounting boxes/holes, may blow smoke away
17
OPENING IN
MOUNTING PLATE
Figure 9b
Figure 9a
Interconnection - Hard Wired
B16301-R3-Ei600 SERIES-U&C.qxd 28/6/10 12:10 PM Page 17

from the sensing chamber, making it insensitive. It is essential that all such ceiling
openings be closed with silicone sealant or similar.
1. Run the two core cable to the Alarm locations.
2. Bring the cable through the opening in the mounting plate (before screwing it to
the ceiling) see figure 9b.
3. If you are bringing the wiring along the surface, break out the two notches (see
figure 10a).
4. Using a small screwdriver, lift off the terminal block by raising it vertically (see
figure 10b).
5. Screw the two cable cores into the terminal block (see figure 10b). Then carefully
press the terminal block back on to the two pins in the base.
6. Twist the Alarm clockwise on to the mounting plate.
18

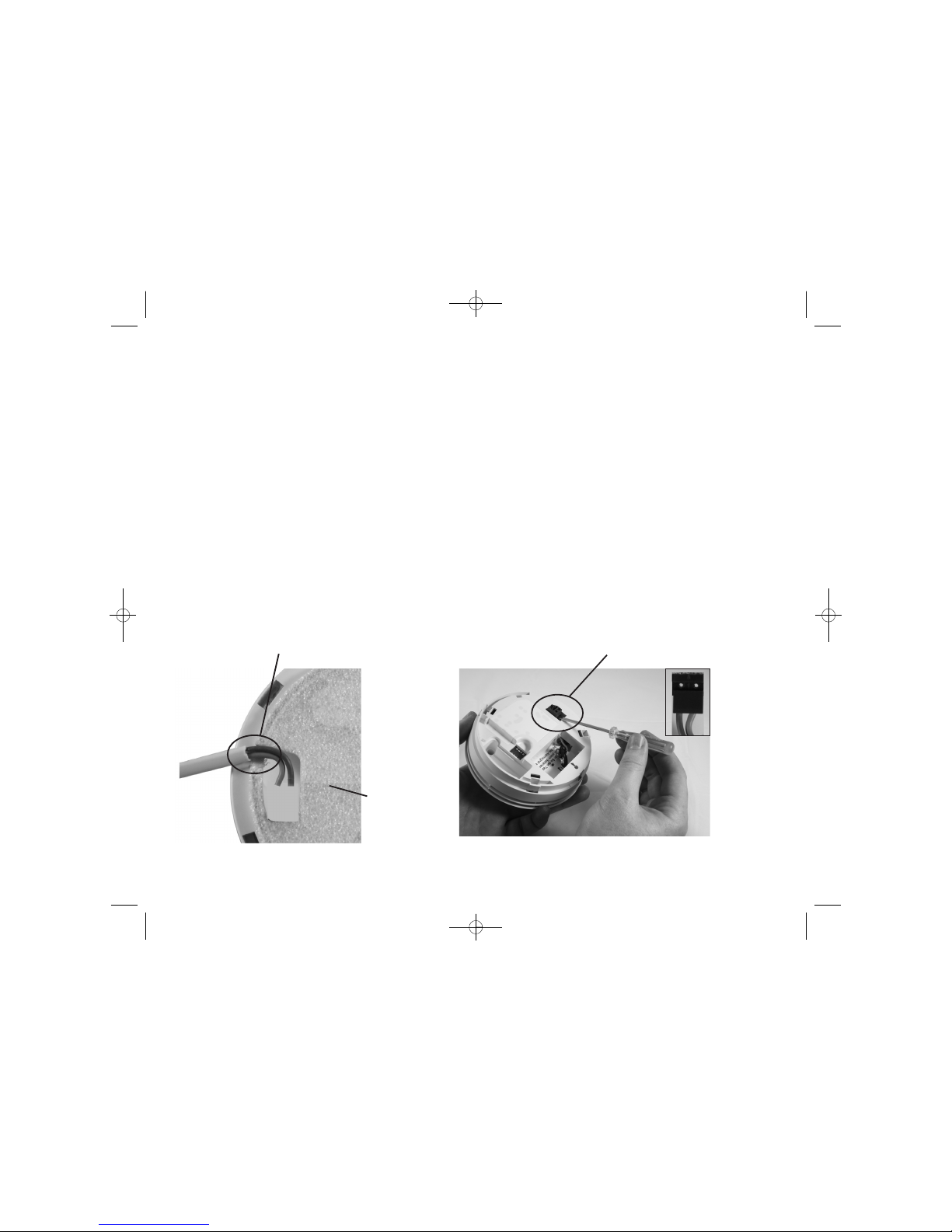

BREAK OUT
SIDE WALLS
REAR OF
MOUNTING
PLATE
Figure 10a
USE SCREWDRIVER TO GENTLY
LIFT OUT THE TERMINAL BLOCK
SCREW
CABLES
INTO
TERMINAL
BLOCK
Figure 10b
B16301-R3-Ei600 SERIES-U&C.qxd 28/6/10 12:10 PM Page 18

Install and connect all the other Alarms similarly.
Now test the first Alarm by pressing and holding the Test button (this may take
up to 5 seconds). The red indicator light will flash about once a second on the
first Alarm and all other Alarms should sound. Check all the other Alarms
similarly.
Note: These Alarms should be interconnected only within the confines of a
single family living unit. If they are connected between different residences
there may be excessive nuisance alarms. Everybody may not be aware that
they are being tested or that it is a nuisance alarm caused by cooking etc.
5. Testing, Maintenance & Power Supply Monitoring
Your Alarm is a life saving device and should be checked periodically.
Regularly check that the red light on the Alarm flashes approx once a minute
to show the units are powered. Replace the Alarm if the flashing stops.
5.1 Manually Testing your Alarms
It is recommended that you test your Alarms after installation and then at least
weekly to ensure the units are working. It will also help you and your family to
become familiar with the sound of the Alarms.
- Press and hold the Test Button until the Alarm sounds and the red light
flashes (see Figure 7a & 7b). The Alarm will stop sounding shortly after the
button is released.
- If the Alarms are interconnected using hard-wired connections, check that all
interconnected Alarms sound.
19
Testing, Maintenance & Power Supply Monitoring
B16301-R3-Ei600 SERIES-U&C.qxd 28/6/10 12:10 PM Page 19

- If they are interconnected using RadioLINK modules, hold down the Test button until
the blue light on the cover of the Alarm illuminates. Check that all other Alarms sound.
- Release the Test button. The Alarm and all connected Alarms should stop
sounding.
- Repeat this procedure for all other Alarms in the system.
WARNING: Do not test with flame.
This can set fire to the Alarm and damage the house. We do not recommend testing
with smoke or heat as the results can be misleading unless special apparatus is used.
When you press the Test button it simulates the effect of smoke in a Smoke Alarm
and heat in a Heat Alarm which they could experience in a real fire. So, there is no
need to test either Alarms with smoke or heat.
5.2 Test/Hush Button to Control Nuisance Alarms
The Smoke Alarms have a combined Test/Hush button to help you control
nuisance/false alarms.
If, when the Alarm sounds, there is no sign of smoke or noise to indicate that there
is a fire, it should be assumed that it is due to an actual fire and the dwelling should
be evacuated immediately.
Check the house carefully in case there is a small fire smouldering somewhere.
Check whether there is some source of smoke or fumes, for example cooking fumes
being drawn past the Alarm by an extractor.
If there are frequent nuisance/false alarms it may be necessary to re-locate the
Smoke Alarm away from the source of the fumes.
20
B16301-R3-Ei600 SERIES-U&C.qxd 28/6/10 12:10 PM Page 20
