EINHELL Bavaria BPW 48 User manual

Operating Instructions
Petrol Water Pump
Art.-Nr.: 41.713.44 I.-Nr.: 11013 BPW 48
Anleitung_BG_PW_48_SPK1:_ 25.06.2008 9:33 Uhr Seite 1

2
Read and follow the operating instructions and safety information
before using for the first time.
Anleitung_BG_PW_48_SPK1:_ 25.06.2008 9:33 Uhr Seite 2

3
1
213 14 15 16 20 21
17 1918
1
3
6
4
5
7
89
10
Anleitung_BG_PW_48_SPK1:_ 25.06.2008 9:33 Uhr Seite 3

4
3 4
5a 5b
6a 6b
HL
12
2
3
11
9
8
10
7
AB
Anleitung_BG_PW_48_SPK1:_ 25.06.2008 9:34 Uhr Seite 4

5
76c
Anleitung_BG_PW_48_SPK1:_ 25.06.2008 9:34 Uhr Seite 5

6
GB
Table of contents
1. Safety regulations
2. Layout
3. Intended use
4. Technical data
5. Before putting the equipment into operation
6. Operation
7. Cleaning, maintenance, storage and ordering of spare parts
8. Disposal and recycling
9. Troubleshooting guide
Anleitung_BG_PW_48_SPK1:_ 25.06.2008 9:34 Uhr Seite 12

7
GB
Important!
When using equipment, a few safety precautions
must be observed to avoid injuries and damage.
Please read the complete operating manual with due
care. Keep this manual in a safe place, so that the
information is available at all times. If you give the
equipment to any other person, give them these
operating instructions as well.
We accept no liability for damage or accidents which
arise due to non-observance of these instructions
and the safety information.
1. Safety information
Please refer to the booklet included in delivery for the
safety instructions.
CAUTION!
Read all safety regulations and instructions.
Any errors made in following the safety regulations
and instructions may result in an electric shock, fire
and/or serious injury.
Keep all safety regulations and instructions in a
safe place for future use.

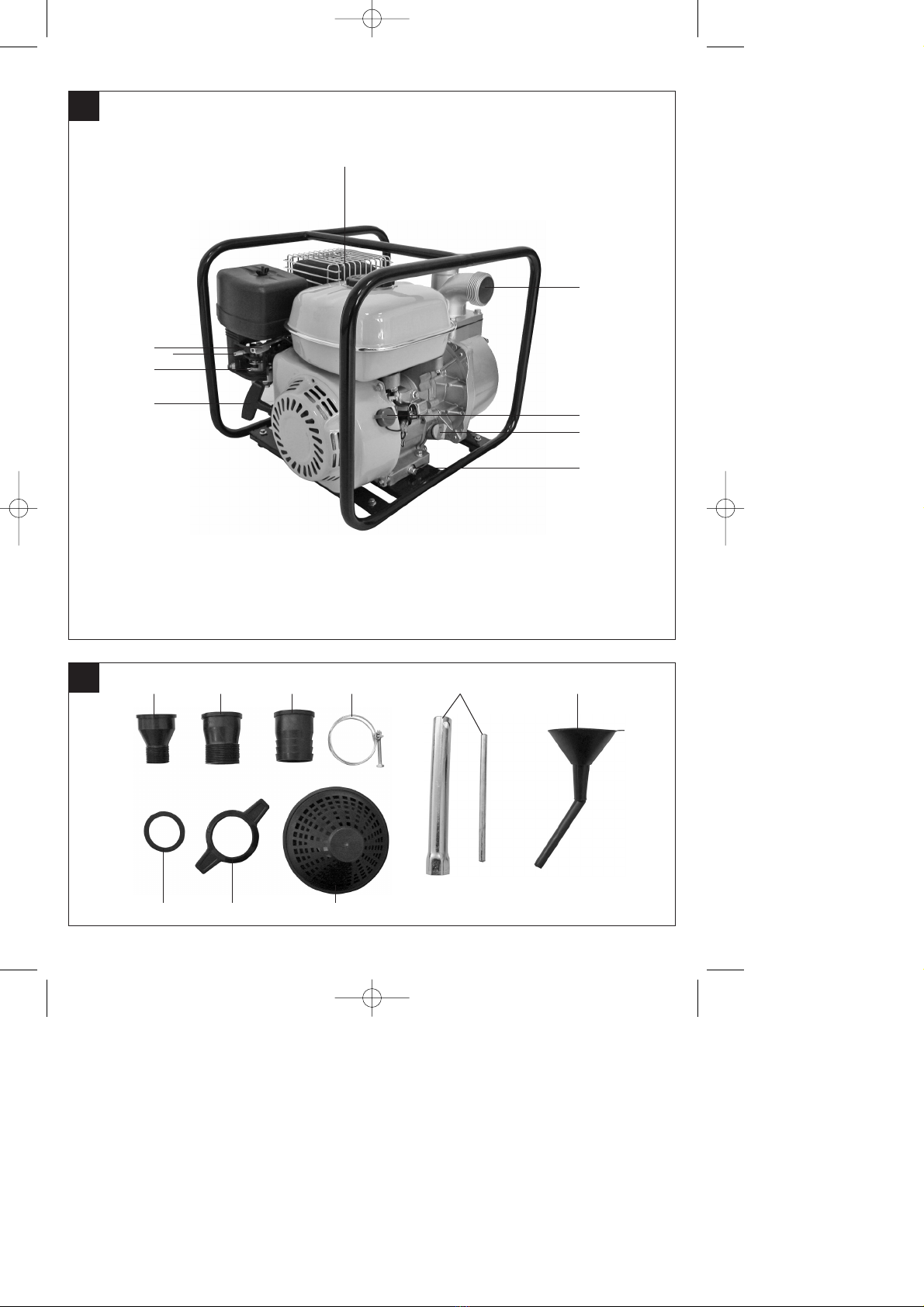

2. Layout (Fig. 1/4)
1 Tank cover
2 Refilling nozzle with screw
3 Pressure connection
4 Oil filler plug
5 Oil drain plug
6 ON/OFF switch
7 Reversing starter
8 Petrol cock
9 Choke lever
10 Throttle control
11 Suction connection
12 Water emptying plug
13 2x Threaded connector 1” external thread
14 2x Threaded connector 1.25” external thread
15 2x Hose connector 2“
16 3x Hose clip
17 2x Seal
18 2x Union nut
19 Intake cage
20 Spark plug wrench
21 Oil filler funnel
3. Proper use
The machine is suitable for irrigating and watering
landscaped areas, vegetable beds and gardens and
for operating lawn sprinklers.
The water can be taken from ponds, streams,
rainwater butts, rainwater cisterns and springs if an
initial filter is fitted.
The maximum temperature of the fluid must not
exceed +35°C if the machine is operated
permanently.
Clean water (sweet water), rainwater and low
concentrations of washing lye can be used as the
transport medium. The machine must not be used to
transport inflammable, gassing, explosive and
aggressive fluids (such as petrol, acids, lyes, silo
percolating juice, etc.) and fluids that contain
abrasive substances (such as sand).
The machine is to be used only for its prescribed
purpose. Any other use is deemed to be a case of
misuse. The user / operator and not the
manufacturer will be liable for any damage or injuries
of any kind caused as a result of this.
Please note that our equipment has not been
designed for use in commercial, trade or industrial
applications. Our warranty will be voided if the
machine is used in commercial, trade or industrial
businesses or for equivalent purposes.
Anleitung_BG_PW_48_SPK1:_ 25.06.2008 9:34 Uhr Seite 13

4. Technical data
Engine type: 4-stroke engine; air-cooled
Max. engine output: 4.8 kW / 6.5 bhp
Displacement: 196 cc
Idle speed of engine: 1500 rpm
Maximum engine speed: 3600 rpm
Fuel: Regular unleaded petrol
Tank capacity: 3.6 l
Oil volume / type: 600 mL SAE#30
Spark plug: L7TC
Max. intake head: 6 m
Max. pumping rate: 35000 l/h
Max. delivery head: 26 m
Max. pressure: 2.6 bar
Weight (with empty tank): 28 kg
Intake/Discharge connector: 2” hose connection
2” / 1.25“/ 1” thread connector
LWA sound power level: 95 dB
LpA sound pressure level: 75 dB
5. Before starting
As a basic principle, we recommend the use of a
preliminary filter and a suction set with suction hose,
suction strainer and non-return valve, in order to
prevent long priming periods and unnecessary
damage to the pump as a result of stones and solid
foreign bodies.
5.1 Preparing the machine
앬Fill the engine with engine oil (see also point
7.2.1 Oil change).
앬Fill the tank with petrol.
앬Place the machine on a flat, firm surface.
5.2 Connecting and routing the intake and
discharge lines
앬Connect the intake line to the intake connection
(Figure 3 / Item 11) and the discharge line to the
discharge connection (Figure 3 / Item 3).
앬Position the intake line so that it rises from the
water withdrawal point to the pump. It is essential
that you do not route the intake line above the
height of the pump. Air bubbles in the intake line
will slow down and prevent the intake process.
앬Install the intake and discharge lines in such a
way that they do not exert any mechanical
pressure on the pump.
앬The intake valve should be low enough in the
water to ensure that if the water level falls, the
pump will not run dry.
앬A leaking intake line will draw in air and therefore
not draw in any water.
앬Do not draw in any foreign bodies (sand, etc.). If
necessary install an initial filter.
6. Operation
The pump must be filled with the transport fluid at the
filler neck (Figure 3 / Item 2) before the engine is
started.
Note: We advise that you install a non-return valve in
the intake line and fill it with water before you start
the machine for the first time.
6.1 Starting the engine
1. Set the On/Off switch (Figure 1 / Item 6) to “ON”.
2. Set the petrol cock (Figure 4 / Item 8) to the “ON”
position.
3. If the engine is cold, set the choke lever (Figure
4 / Item 9) to “Choke”.
4. Move the throttle lever (Figure 4 / Item 10) to the
center position.
5. Pull the starter cord (Figure 4 / Item 7) until the
engine starts.
6. When the engine has been running for approx.
30 seconds, move the choke lever to “Run”.
If the engine is warm, leave the choke lever in the
“Run” position when starting.
Explanation of the positions of the throttle lever
(Figure 4 / Item 10):
“Tortoise”:
Engine in idling
“Hare”:
Maximum delivery rate
8
GB
Anleitung_BG_PW_48_SPK1:_ 25.06.2008 9:34 Uhr Seite 14

6.2 Intake process
앬During the priming process, the shut-off devices
present in the pressure pipe (spray nozzles,
valves etc.) must be completely open so that the
air in the suction pipe can escape freely.
앬Depending on the suction height and the air
quantity in the suction pipe, the initial priming
process can last for approx. 0.5 min. – 5 min. In
the case of longer priming periods, top up again
with water.
앬If the pump is removed after use, it is essential
that it is filled with water again the next time it is
connected and started.
6.3 Stopping the engine
앬Set the On/Off switch to “OFF”.
앬Close the petrol cock.
Running-in period:
For the first 20 hours of operation, the motor
must not be operated at full throttle for too long.
Misfires, start-up difficulties:
Check whether
앬fuel is flowing into the carburetor;
앬the fuel filter is clean;
앬the carburetor air valve is open;
앬the air filter is clean;
앬the spark plug is clean and the electrode gap is
between 0.6 and 0.7mm.
7. Cleaning, maintenance, storage and
ordering of spare parts
Disconnect the spark plug boot before doing any
cleaning and maintenance work!
7.1 Cleaning
Keep all safety devices, air vents and the motor
housing free of dirt and dust as far as possible.
Wipe the equipment with a clean cloth or blow it
with compressed air at low pressure.
We recommend that you clean the device
immediately each time you have finished using it.
Clean the equipment regularly with a moist cloth
and some soft soap. Do not use cleaning agents
or solvents; these could attack the plastic parts
of the equipment. Ensure that no water can seep
into the device.
7.2 Maintenance
In this connection, please also read the attached
service information
7.2.1 Changing the oil
The engine oil is best changed when the engine is at
working temperature
앬Use only engine oil (10W40).
앬Place the machine on a slightly inclined surface
so that the oil drain plug is at the lower end
(Figure 5a / Item A).
앬Remove the oil filler screw (Figure 5a / Item B).
앬Remove the oil drain plug and drain the warm
engine oil into a suitable container.
앬After all the oil has drained, screw in the oil drain
plug and place the machine on a flat surface.
앬Insert fresh engine oil up to the top mark on the
oil dipstick (Figure 5b / Item H).
Important. Only inset the oil dipstick to check
the oil level. Do not screw it in.
While the machine is working, the oil level must be
between the two marks “L” and “H” (Figure 5b).
Dispose of the waste oil properly.
7.2.2 Air filter
Clean the air filter at regular intervals, and replace it if
necessary.
앬Remove the screw from the air filter cover (Figure
6a)
앬Remove the air filter cover.
앬Remove the screw from the air filter element
(Figure 6b)
앬Remove the air filter element (Figure 6c).
앬Clean the air filter by tapping it, blowing it out
with compressed air or by washing it with soap
suds. Important. Leave the air filter to dry before
you refit it.
앬Assemble in reverse order.
7.2.3 Spark plug
Clean the spark plug at regular intervals, and replace
it if necessary. Set the electrode gap to 0.6 mm.
앬Remove the spark plug boot by twisting it (Figure
7)
앬Remove the spark plug using a spark plug
wrench
앬Clean the spark plug with a copper wire brush or
fit a new one.
앬Assemble in reverse order.
9
GB
Anleitung_BG_PW_48_SPK1:_ 25.06.2008 9:34 Uhr Seite 15

7.3 Storage
Rinse the pump thoroughly with water before
lengthy periods of inactivity or winter storage.
Close the petrol cock and allow the engine to run
until it stops to empty the carburetor.
Fill the tank fully to prevent rust formation.
Remove the drain plug (Figure 3 / Item 12) and
fully drain the pump housing.
Store the machine in a dry place out of the reach
of children.
7.4 Ordering replacement parts
Please quote the following data when ordering
replacement parts:
Type of machine
Article number of the machine
Identification number of the machine
Replacement part number of the part required
For our latest prices and information please call
1300 922 271
8. Disposal and recycling
The unit is supplied in packaging to prevent its being
damaged in transit. This packaging is raw material
and can therefore be reused or can be returned to
the raw material system.
The unit and its accessories are made of various
types of material, such as metal and plastic.
Defective components must be disposed of as
special waste. Ask your dealer or your local council.
10
GB
Anleitung_BG_PW_48_SPK1:_ 25.06.2008 9:34 Uhr Seite 16

11
GB
9. Troubleshooting
Important. The pump must not run dry.
Fault Cause Remedy
Engine does not start Spark plug fouled
Air filter dirty
No fuel in the tank
Automatic oil cut-out has not re
sponded
Clean or replace the spark plug
Clean the air filter.
Top up fuel.
Check oil level, top up engine oil
Pump fails to prime Intake valve not in the water
No water in the pump chamber
Air in the intake line
Intake cage (intake valve) blocked
Max. intake head exceeded
Place the intake valve in the water
Fill the pump chamber with water
through the filler neck
Check the intake line for leaks and
seal it if necessary.
Clean intake cage
Check intake head and reduce it if
necessary
Insufficient pumping rate Intake head too high
Intake cage soiled
Water level falling rapidly and in-
take line is out of the water-
Pump performance reduced by
deposits
Check intake head and reduce it if
necessary
Clean intake cage
Place the intake line at a deeper
level
Clean pump
Anleitung_BG_PW_48_SPK1:_ 25.06.2008 9:34 Uhr Seite 17

EINHELL AUSTRALIA PTY LTD
6/166 Wellington Street
Collingwood VIC 3066
Australia
Phone: [phone]
Dear Customer,
All of our products undergo strict quality checks. In the unlikely event that your device develops a fault, please
contact our service department at the address shown on this guarantee certificate. Of course, if you would
prefer to call us then we are also happy to offer our assistance under the service number printed below.
Please note the following terms under which claims under the Einhell Express Guarantee can be made:
1. The benefits conferred by the Einhell Express Guarantee are in addition to all rights and remedies which
you may be entitled to under the Australian Consumer Law, and any other statutory rights you may have
under other applicable laws. This Einhell Express Guarantee does not exclude, restrict or modify any
We do not charge you for the Einhell Express Guarantee.
2. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods
fail to be of acceptable quality and the failure does not amount to a major failure.
3. The Einhell Express Guarantee only covers problems caused by material or manufacturing defects, and
our liability under the Einhell Express Guarantee is limited, at our discretion, to the rectification of these
defects or replacement of the product. Please note that the product has not been designed for use in
commercial, trade or industrial applications. Consequently, the Einhell Express Guarantee will not apply
if the product is used in commercial, trade or industrial applications or for other equivalent activities.
4. The following are also excluded from the Einhell Express Guarantee: compensation for transport
damage, damage caused by failure to comply with the installation/assembly instructions or damage
caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to
the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the
product or use of non-approved tools or accessories), failure to comply with the maintenance and safety
regulations, ingress of foreign bodies into the product (e.g. sand, stones or dust), effects of force or
external influences (e.g. damage caused by the product being dropped) and normal wear resulting from
proper operation of the product. The Einhell Express Guarantee will also not apply if any attempt is made
5. The Einhell Express Guarantee is valid for a period of 2 years starting from the purchase date of the
product. Claims made under the Einhell Express Guarantee should be submitted before the end of this
guarantee period and within two weeks of the defect being noticed. No claims under the Einhell Express
Guarantee will be accepted if submitted after the end of this guarantee period. The original guarantee
period remains applicable to the device even if repairs are carried out or parts are replaced. In such
cases, the work performed or parts fitted will not result in an extension of the guarantee period for the
Einhell Express Guarantee, and the Einhell Express Guarantee will not apply for the work performed or
6. To make a claim under the Einhell Express Guarantee, please send the relevant product postage-free to
the address shown below and enclose either the original or a copy of your sales receipt or another dated
proof of purchase. It would help us if you could describe the nature of the problem in as much detail as
possible. If the defect is covered by the Einhell Express Guarantee, your product will be repaired
immediately and returned to you, or we will send you a new device (at our election).
Any costs incurred by you in making a claim under this Einhell Express Guarantee, unless specified
otherwise in this guarantee certificate, must be borne by you.
Of course, we are also happy to offer a chargeable repair service for any defects which are not covered by the
scope of the Einhell Express Guarantee or for products which are no longer covered by the Einhell Express
Guarantee. To take advantage of this service, please send the product to our service address.
such rights or remedies.
to tamper with the product.
parts fitted. This also applies when an on-site service is used.
The guarantee provided in this Guarantee Certificate is given by Einhell Australia Pty Limited
ACN 134 632 858 of 6/166 Wellington Street, Collingwood, Victoria (Telephone number 1300 922 271)
GUARANTEE CERTIFICATE
(Einhell Express Guarantee).
EH 07/2013 (01)
