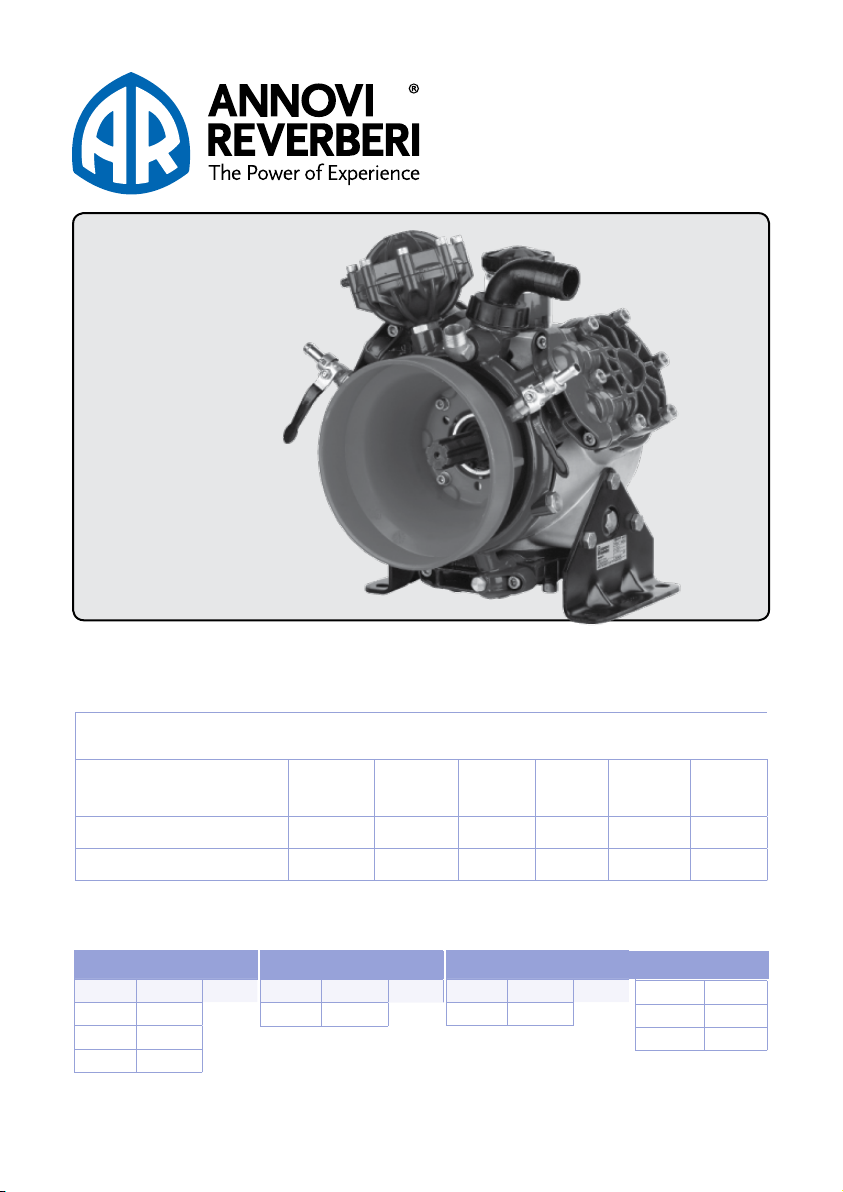

INSTRUCTION MANUAL
BHP 130
BHP 150
BHP130 • BHP150 - 550 RPm - S emi -H ydRAuLic T HRee d iAPHRAgm P umP
modeL mAx gPm mAx L/min mAx PSi mAx BAR HP PoweR
weigHT
LBS.
BHP130-C/C 33.7 127.5 725 50 14.5 88.2
BHP150-C/C 37.7 142.6 725 50 16.3 88.2
d iAPHRAgm K iTS
modeL deScRiPTion
AR43320 BlueFlex
AR43319 Desmopan
AR43318 NBR
V ALVe K iTS
modeL deScRiPTion
AR2445 Valves
o-R ing K iTS
modeL deScRiPTion
AR2446 O-Rings
o iL
modeL
AR64532D Oil
AR64532D-C Case (6)Oil
140° F - Max Water Temp
1 1/2” - Suction
3/4” BSP - Outlet

IMPORTANT SAFETY INFORMATION
Intended uses
The pump is designed and constructed for incorporation in plants and machinery (spraying machines for the
protective treatment of agricultural crops and garden plants). All other uses constitute misuse unless ap-
proved by the manufacturer's technical service
The pump must be used in a manner appropriate to its technical data (see “Technical Data”), and must not be
modified or improperly used.
Misuses
Do not put the pump into service until the plant or machinery in which it is incorporated has been declared
compliant with the relevant national and local legal requirements.
Do not use the pump in a potentially explosive atmosphere.
Do not use the pump for flammable, toxic or corrosive liquids or liquids with unsuitable density, especially
seawater, adhesives, bitumens, asphalt sealers, two-step curing compounds, concrete sealers, liquefied
gases or solvents of any kind, paints of any kind or liquids containing solids in suspension, and in all cases do
not use with any liquid unless certain that it is compatible with the materials used in the pump circuit.
Do not draw in liquids at temperatures above 50°C or below 5°C.
Do not use the pump in drinking water supply systems.
Do not use the pump on products for human consumption.
Do not use the pump on pharmaceutical products.
Do not use the pump without first checking that the intake and delivery circuit pipelines are correctly secured
and free from leaks.
Do not use the pump without the safety devices provided: guards for shafts and drive couplings and suitably
rated relief valve on the delivery circuit.
Do not use the pump to wash or spray: people, animals or delicate items, live electrical equipment or chemicals
whose characteristics are not known.
Safety devices
Danger - Warning
Never tamper with or by-pass the safety devices. Maintain all safe-
ty devices regularly to ensure they all work efficiently.
The drawing shows the position of the safety devices mounted on the
machine.
Additional safety devices must be added as necessary during the de-
sign phase (see “Installation information”).
A) Fixed guard: provides protection against accidental contacts with
the drive shaft when in operation.
Residual risks
Even if the safety regulations and information provided in the manual
are complied with, the residual risks described in the declaration of
incorporation still apply when the pump is in operation.
A

Installation diagram (guideline)












English language
Use and Installation
5
General guidelines on water supply connection
To operate correctly, the diaphragm pump must draw in liquids from containers at atmospheric pressure.
Do not supply the pump with pressurised liquids.
Forcontinuous duty, thepumpshouldnotdrawinwaterbygravityfromcontainerswithliquidlevelatheights
above 3m.
For continuous duty, the pump should not draw in liquids by vacuum from containers with the liquid level
more than 3m belowthe pump intake fittingandthe circuit mustconsist of hoses oflengthand diameter ap-
propriate tothe pump intake fitting (see “Technical Data”),free from restrictions and elbows, andwith a filter
ofsuitablecapacity (see “Installation”).
Foroccasionalduty,suchasfillingwatersupplytanks,thepumpcanbeoperatedatavacuumdrawinginliq-
uids from reservoirs havingthesurface of the liquidup to5 m belowthe pump intake fitting,forperiods ofno
more than 15minutes.
Drawing in liquidsfrom lowerlevels or forlongertimes causes cavitation in thepump circuitand re-
duces the lifetimeofthediaphragms,valvesandmechanicalparts.

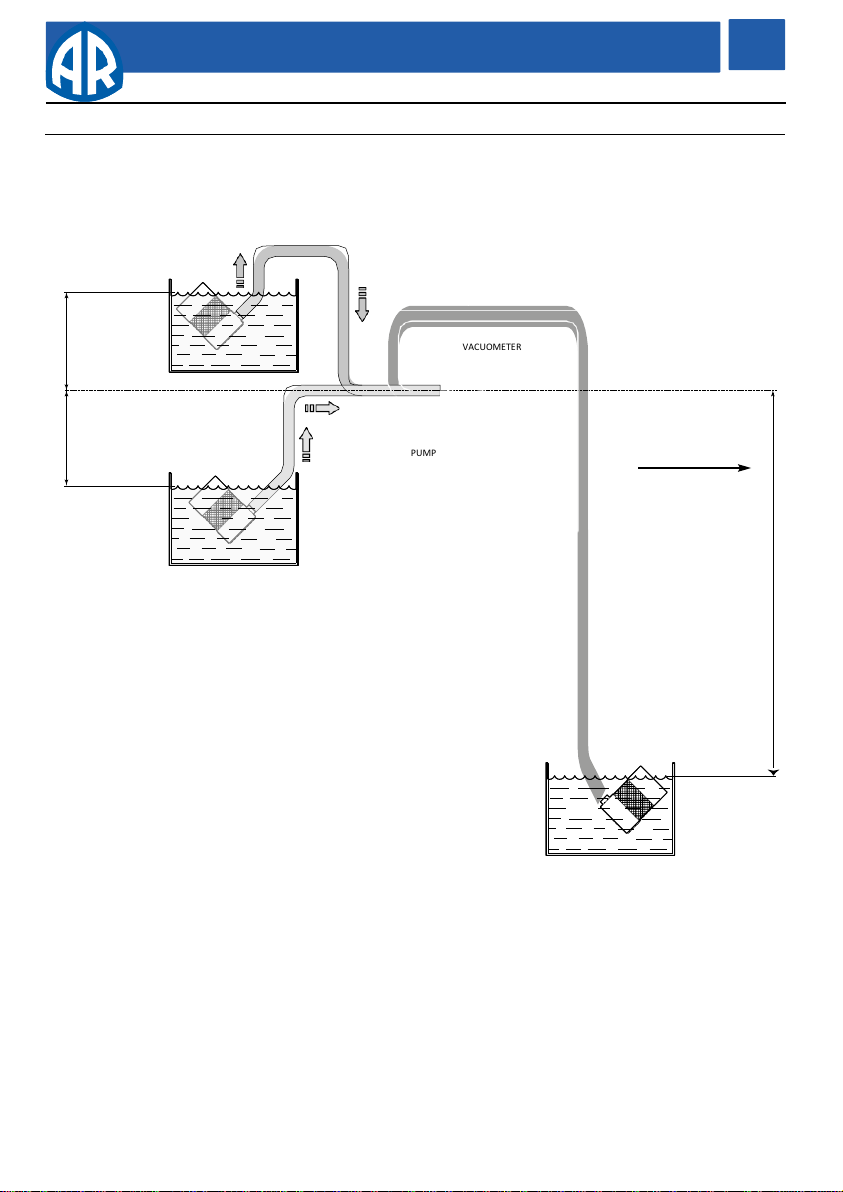

INSTALLATION INSTRUCTIONS
POSITIVE HEAD
VACUOMETER
ZERO HEAD
ZERO HEAD
Pump is operating
at acceptable
inlet
vacuum
PUMP
WARNING!
MAXIMUM OPERATING
TIME 15 MINUTES
NEGATIVE HEAD
Pump is
operating at
high inlet
vacuum
UN003415-EW
NEGATIVE HEAD
3m (9.8 ft ) m a x
3m (9.8 ft ) m a x
5m (16.4 ft ) m a x














 


















•
•


•
 7  H 

•
 







 



 z  x 










      
 A 

 
  A/  A  6  5 

 
 



 



 
   
  

  

  -
 
  

  

  
   
   







   30  















       







 /R  P 
D  P  P/  64  3  D 
       


1) .
  �
C
A /R P ump O il
P/ N A
R64 5 32D





 
 



 /R  P  S  R64511 






A/R Pump Saver
P/N 64511
Protects Pumps from
Freezing Conditions

TROUBLESHOOTING
 




Problem









Cause





















Remedy





























Problem Cause Remedy
 

 
 Stop the pump at once. 
{1)






66 - 2
66 - 3
66 - 5
66 - 1
2021 AR North America
66
66 - 4
A.R. NORTH AMERICAA.R. NORTH AMERICA
11
12
14
15
16
17 18 20
20
20
25
2023
22
18
22
23
21
24
35
26
27
40
39
37
36
40
39
41 42
48
47
46
45
42
53
43
52
44 43
51
49
50
34
28
33
31
30
29
38
79
80
78
77
41
81
37
3
42
5
6
7
8
98
110
61
62
63
64
64
65
63
62
61
60 66
68
60
67
BHP 130 - BHP 150
V
e
r
s
i
o
n
C/C

2021 AR North America 67
High pressure
BHP 130 - BHP 150
Pos Code Description Qty Note
1 2240100 Hub pin 3 TT265*
2 580090 Retaining washer 3
3
2240080 Diaphragm 3 NBR
2240085 Diaphragm 3 Desmopan
2240081 Diaphragm 3 BlueFlexTM
4
2240560 Sleeve 3 BHP 130
2240520 Sleeve 3 BHP 150
5
2240570 Piston ring 3 BHP 130
2240360 Piston ring 3 BHP 150
6
2240550 Piston Ø 76 3BHP 130
2240350 Piston Ø 82 3BHP 150
7
2240580 Pin 3BHP 130
540070 Pin 3BHP 150
8 160691 Ring circlip Øi 18 6
9 2240090 Connecting-rod 3
10 2240110 Nut M10 3 SS TT265*
11
1800060 Plug black 1 BHP 130
750050 Plug red 1BHP 150
12 1040060 O-ring Ø 72.69x2.62 1
14 540290 Bolt TCEI M8x25 3 TT90*
15 2240070 Oil sight glass 1
16 2240270 O-ring Ø 67.95x2.62 1
17 2240011 Pump body 1
18 2240454 Head
marked DX
2 green plasticised
20 2240470 Bolt TCEI M12x70 18 TT445*
21 180101 O-ring Ø 17.5x2 2
22 2240190 Base 2
23 540100 Bolt TE M12x40 6 TT445*
24 820361 Plug 1/2”G brass 2 Brass TT180*
25 2240455 Head
marked SX
1 green plasticised
26 1517 Air chamber
Buna
1
27 180020 Air valve 1 TT35*
28 650542 Gasket 1
29 380410 Bolt TCEI M8x40 8 TT180*
30 620231 Semi air chamber upper 1 Green
31
550190 Semi air chamber 1 NBR
550194 Air chamber 1BlueFlexTM
33 2240482 Semi air chamber lower 1 Green
34 2240490 Fitting 1
35 720030 O-ring Ø 22.22x2.62 1
36 540550 Elbow 1 1/2" 1
37 540540 Ring nut 1”3/4 G 1
38 250310 O-ring Ø 36.14x2.62 1
39 680070 O-ring Ø 31.5x4.25 6
40 759051 Valve 6
41 130491 Ball valve
3/8”G - 1/2”G M-M DX
1
42 110130 Ring nut 1/2” 2
43 900210 Fitting 3/8”G M-F 2
44 880530 Plug 3/8”G 1 TT180*
45 650330 Bolt TCEI M10x35 6 TT355*
Pos Code Description Qty Note
46 880581 Plug 1/4”G 1 TT355*
47 820510 O-ring Ø 10.82x1.78 1
48 2240462 Manifold asp./manifold 1
49 850250 Bolt TCEI M8x12 4 TT90*
50 390311 Washer 4
51 1500470 Shield 1
52 851650 Elbow manifold 1
53 130492 Ball valve
3/8”G - 1/2”G M-M SX
1
60 2240160 Ring circlip Øi 62 2
61 2240150 Ring seal 2
62 2240430 Bearing 2
63 2240121 Ring connecting rod 2
64 850320 Bearing 2
65 2240173 Shaft C/C m-BE 1
66 2240290 O-ring Ø 152.7x2.62 1
67 2240020 Flange 1
68 160670 Bolt TE M10x25 6 TT355*
71 2240390 Ring connecting rod 1
72 2240400 Retaining washer 1
73 2240440 Bearing 1
74 1800090 Ring seal 1
75 620330 Ring circlip Øi 65 1
76
2240610 Flange 1 ø 32
2240370 Flange 1 ø 1"3/8
77 760020 Elbow 2" 1 Optional
78 760040 Ring nut 2” G 1Optional
79 620210 O-ring Ø 40.95x2.62 1 Optional
80 2380080 Fitting 2”G - 1”3/4 G M-F 1 Optional
81 392190 Hose barb 1 1/2" 1 Optional
* Torque: in-lbs +/- 10%
AR 2446
O-Rings
Pos. Qty
12 1
16 1
21 2
35 1
38 1
39 6
47 1
57 1
66 1
Suggested oil
Type Oz
AR64532D 32
AR 2445
Valves
Pos. Qty
39 6
40 6
AR 43320
BlueFex™ diaphragms
AR 43318
Buna diaphragms
AR 43319
Desmopan diaphragms
Pos. Qty
3 3
31 1
39 6
Crankcase Oil
Capacity 89 oz
C/C
BHP130 31764
BHP150 31765
