EK EPROFILE FC User manual

LED PROFILE SPOT - FULL COLOR

2
SAFETY
General instruction
• The products referred to in this manual conform to the European Community Directives and are there-
fore marked with .
• The unit is supplied with hazardous network voltage (230V~). Leave servicing to skilled personnel only.
Never make
risk an electric shock.
•
cording to standard EN 60598-1). It is, moreover, recommended to protect the supply lines of the units
from indirect contact and/or shorting to earth by using appropriately sized residual current devices.
installer. Check that the main frequency and voltage correspond to those for which the unit is designed
as given on the electrical data label.
• This unit is not for home use, only professional applications.
- in places subject to vibrations or bumps;
- in places with a temperature of over 40 °C.
an inspection or contact the manufacturer directly.
plant for a disposal which is not harmful to the environment.
Warnings and installation precautions
damage and the guarantee becomes void. Furthermore, any other operation may lead to dangers like
short circuit, burns, electric shock, etc.
• Always additionally secure the projector with the safety rope. When carrying out any work, always com-
ply scrupulously with all the regulations (particularly regarding safety) currently in force in the country
• Shields, lenses or ultraviolet screens shall be changed if they have become damaged to such an extent
• The lamp (LED) shall be changed if it has become damaged or thermally deformed.
trigger epileptic seizures in photosensitive persons or persons with epilepsy.
• Do not touch the product’s housing when operating because it may be very hot.
WARNING! Before carrying out any operations with the unit, carefully read this instruction
manual and keep it with cure for future reference. It contains important information about
the installation, usage and maintenance of the unit.
15
Beam Angle: 19°
Luminance (lux)
Distance (m)
Full
Beam Angle: 26°
Luminance (lux)
Distance (m)
Full
Beam Angle: 36°
Luminance (lux)
Distance (m)
Full
Beam Angle: 50°
Luminance (lux)
Distance (m)
Full
PHOTOMETRICS
1
3 5 710
9699
14607
2462
10822
20425
53846
1078
1623
273.6
1202
2269
5983
388
584.3
98.49
432.9
817
2154
197.9
298.1
50.25
220.9
416.8
1099
96.99
146.1
24.62
108.2
204.3
538.5
R
G
B
A
L
RGBAL
0
1m
53846
3m
5983
5m
2154
7m
1099
10m
538.5
1
3 5 7 10
5933
9506
1677
7425
15453
36358
659.2
1056
186.4
825
1717
4040
237.3
380.2
67.09
297
618.1
1454
121.1
194
34.23
151.5
315.4
742
59.33
95.06
16.77
74.25
154.5
363
R
G
B
A
L
RGBAL
0
1m
36358
3m
4040
5m
1454
7m
742
10m
363
1
3 5 7 10
3486
5443
951.3
4320
8942
20968
387.3
604.7
105.7
480
993.5
2330
139.4
217.7
38.05
172.8
357.7
838.7
71.14
111.1
19.41
88.16
182.5
427.9
34.86
43
9.513
43.2
89.42
209.7
R
G
B
A
L
RGBAL
0
1m
20968
3m
2330
5m
838.7
7m
427.9
10m
209.7
1
3 5 7 10
1580
2379
412.1
1910
3820
9229
175.6
264.3
45.79
212.3
424.5
1025
63.22
95.16
16.48
76.4
152.8
369.1
32.25
48.55
8.41
38.99
77.97
188.3
15.8
23.79
4.121
19.1
38.2
92.29
R
G
B
A
L
RGBAL
0
1m
9229
3m
1025
5m
369.1
7m
188.3
10m
92.29
colors
meters
colors
meters
colors
meters
colors
meters

3
Packing content EPROFILE FC
TABLE OF CONTENTS Safety
General instructions
Warnings and installation precautions
General information
Introduction
Features
Specications
Maintenance
Cleaning the unit
Fuse replacement
• Mounting bracket
• Warranty card
• User manual
Overview
Dimensions
Operation
Trouble shooting
Display menu functions
DMX functions
DMX pin diagram
Menu Function Chart
DMX Function Chart
Photometrics
• Power cord
DMX CHARTS
14
14CH Function Value Percent/Setting
1 Dimmer 000-255 0~100%
2 Dimmer Fine 000-255 0~100%
3 Red 000-255 0~100%
4 Red Fine 000-255 0~100%
5 Green 000-255 0~100%
6 Green Fine 000-255 0~100%
7 Blue 000-255 0~100%
8 Blue Fine 000-255 0~100%
9 Amber 000-255 0~100%
10 Amber Fine 000-255 0~100%
11 Lime 000-255 0~100%
12 Lime Fine 000-255 0~100%
000-010 No function
011-255 Strobe slow to fast
000-010 Preset LED Frequency from display menu
011-050 600Hz
051-100 1200Hz
101-150 2000Hz
151-200 4000Hz
201-255 25KHz
13 Strobe
14 LED Frequency

4
INTRODUCTION
The EPROFILE FC is a full-color LED prole.
FEATURES
- Crisp gobo image projection, even at close range
- Extremely at eld projection
- Incorporating the latest advances in LED color-mixing
- 250W RGBA+L (Lime) LED for enhanced color tuning
- Flawless dimming with consistent color temperature throughout the dimming curve
- Flicker-free output with selectable PWM frequencies for worry-free video
- Quiet operation suitable for studio use
- Power linking (PowerCon In/Out)
- Rugged die-cast body and low-maintenance design
- Master/Slave mode, Auto Shows,
- Virtual color wheel (color presets)
- Selectable color temperatures (2800K ~ 6500K) and adjustable white balance
- Manual color selection, mixing and control via onboard menu
- Selection of four dimming curves
- DMX control
- Available optics: 19° - 26° - 36° or 50° (not included)
SPECIFICATIONS
Light Source:
Beam Angle:
Output:
Focus:
Strobe:
Dimming:
Control:
DMX Channels:
Built-in Programs:
Display:
Mains:
Consumption:
Power connections:
Data connections:
Housing:
Finish:
IP rating:
Cooling:
Operating temperature:
Max. Housing:
Dimensions:
Weight:
250W COB RGBAL LED
19° / 26° / 36° / 50°
2154 / 1454 / 839 / 369 LUX @ 5 meters
Manual
0-30 Hz
4 dimming curve modes
DMX
6 / 8 / 9 / 12 / 14
Yes
OLED function menu with 4 touch buttons
100V-240V, 50/60 Hz
233W
Neutrik PowerCon In/Out
5-pin XLR In/Out for DMX
Diecast aluminium
Matt blacke
IP20
Active (variable speed fan)
0°C to 40°C
60°C
625 x 285 x 487 mm
9.26 KG
13
12CH Function Value Percent/Setting
1 Dimmer 000-255 0~100%
2 Red 000-255 0~100%
3 Green 000-255 0~100%
4 Blue 000-255 0~100%
5 Amber 000-255 0~100%
6 Lime 000-255 0~100%
000-010 No function
011-255 Strobe slow to fast
000~010 No Function
011~030 R 100%, G 0~100%, B 0%
031~050 R 100%~0%, G 100%, B 0%
051~070 R 0%, G 100%, B 0~100%
071~090 R 0% G 100%~0% B 100%
091~110 R 0%~100% G 0% B 100%
111~130 R 100% G 0% B 100%~0%
131~150 R 100% G 0%~100% B 0%~100%
151~170 R 100%~0% G 100%~0% B 100%
171~200 R 100% G 100% B 100%
201~205 Color 1
206~210 Color 2
211-215 Color 3
216-220 Color 4
221-225 Color 5
226-230 Color 6
231-235 Color 7
236-240 Color 8
241-245 Color 9
246-250 Color 10
251-255 Color 11
000-010 No Function
011-060 Auto Program 1
061-110 Auto Program 2
111-160 Auto Program 3
161-210 Auto Program 4
211-255 Auto Program 5 Auto Program1-4
10 Auto speed 000-255 Auto speed slow to fast
000-051 Preset dimmer speed from display menu
052-101 Dimmer speed mode o
102-152 Dimmer speed mode1 (fast speed)
153-203 Dimmer speed mode2 (middle speed)
204-255 Dimmer speed mode3 (slow speed)
000-010 Preset LED Frequency from display menu
011-050 600Hz
051-100 1200Hz
101-150 2000Hz
151-200 4000Hz
201-255 25KHz
11 Dimmer Speed Mode
12 LED Frequency
8 Color Macros
9 Auto programs
7 Strobe

5
MAINTENANCE
MAINTENANCE AND CLEANING THE UNIT
• Make sure the area below the installation place is free from unwanted persons during setup.
• All screws used for installing the device and any of its parts should be tightly fastened and should not
be corroded.
deformation.
• The main cables must be in impeccable condition and should be replaced immediately even when a
small problem is detected.
• It is recommended to clean the front at regular intervals, from impurities caused by dust, smoke, or
other particles to ensure that the light is radiated at maximum brightness. For cleaning, disconnect the
main plug from the socket. Use a soft, clean cloth moistened with a mild detergent.Then carefully wipe
the part dry. For cleaning other housing parts use only a soft, clean cloth. Never use a liquid, it might
penetrate the unit and cause damage to it.
TROUBLESHOOTING
Problems Possible causes Checks and remedies
Fixture does not light up
• No mains supply
• Dimmer fader set to 0
• Faulty LED
• Faulty LED board
• Check the power supply voltage
• Increase the value of the dimmer channels
• Replace the LED board
• Replace the LED board
General low light intensity • Dirty lens assembly
• Misaligned lens assembly
•
• Install lens assembly properly
Fixture does not power up
• No power
• Loose or damaged power cord
• Faulty internal power supply
• Check for power on power outlet
• Check power cord
• Replace internal power supply
Contact an authorized service center in case of technical problems or not reported in the table can not be
resolved by the procedure given in the table.
FUSE REPLACEMENT
1. Disconnect this product from the power outlet.
2. Using a screwdriver, unscrew the fuse holder cap from the housing.
3. Remove the blown fuse and replace with a good fuse of the same type and rat-
ing (250V/T3.15A).
4. Screw the fuse holder cap back in place and reconnect power.
DMX CHARTS
12
9CH Function Value Percent/Setting
1 Dimmer 000-255 0~100%
2 Dimmer Fine 000-255 0~100%
3 Red 000-255 0~100%
4 Green 000-255 0~100%
5 Blue 000-255 0~100%
6 Amber 000-255 0~100%
7 Lime 000-255 0~100%
000-010 No function
011-255 Strobe slow to fast
000-010 Preset LED Frequency from display menu
011-050 600Hz
051-100 1200Hz
101-150 2000Hz
151-200 4000Hz
201-255 25KHz
9 LED Frequency
8 Strobe

6

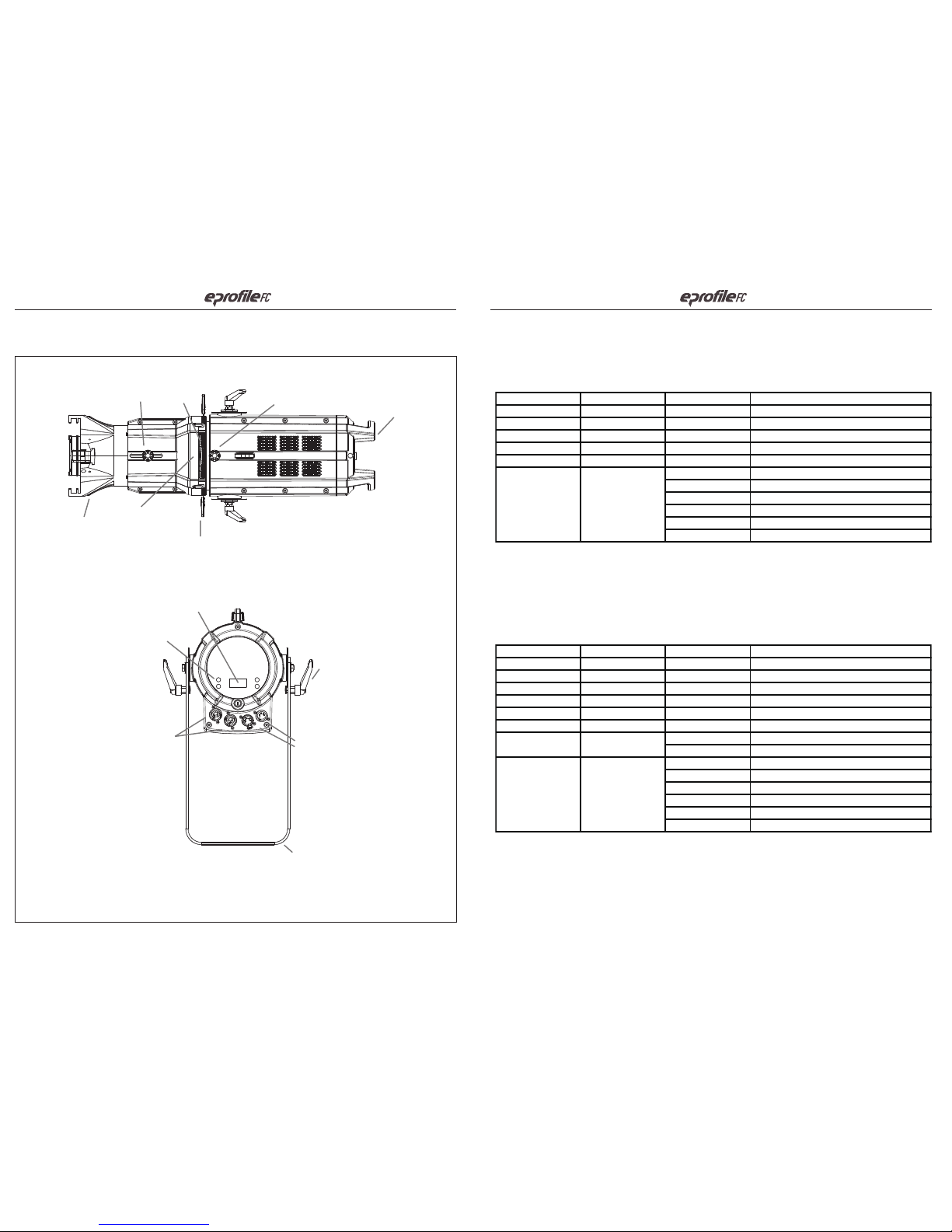

OVERVIEW
Barrel
rotation
knob
Mounting
bracket
Framing
shutter (x 4)
Gobo
holder
slot
Lens tube
(sold separately)
Focus
knob
Bracket
tightening
knob
PowerCon In & Out DMX In & Out
Menu display
Menu
navigation
buttons
Accessory
holder
slot
Handle
DMX CHARTS
11
6CH Function Value Percent/Setting
1 Red 000-255 0~100%
2 Green 000-255 0~100%
3 Blue 000-255 0~100%
4 Amber 000-255 0~100%
5 Lime 000-255 0~100%
000-010 Preset LED Frequency from display menu
011-050 600Hz
051-100 1200Hz
101-150 2000Hz
151-200 4000Hz
201-255 25KHz
6 LED Frequency
8CH Function Value Percent/Setting
1 Dimmer 000-255 0~100%
2 Red 000-255 0~100%
3 Green 000-255 0~100%
4 Blue 000-255 0~100%
5 Amber 000-255 0~100%
6 Lime 000-255 0~100%
000-010 NO Function
011-255 Strobe Slow to Fast
000-010 Preset LED Frequency from display menu
011-050 600Hz
051-100 1200Hz
101-150 2000Hz
151-200 4000Hz
201-255 25KHz
8 LED Frequency
7 Strobe

7
DIMENSIONS



10
UP
ENTER
MENU
DOWN
MENU FUNCTIONS (cont’d)
Main Menu Menu level 2 Defaults
DMX Address
<001> 001
6Ch
8Ch
9Ch
12Ch
14Ch
Master
Slave
600 Hz
1200 Hz
2000 Hz
4000 Hz
25 KHz
Auto
High
LED Frequency 1200Hz
Fan Mode Auto
White Balance Manual
Red <125-255>
RGB=255Green <125-255>
Blue <125-255>
12CH
Master/Slave Slave
Menu level 3
Menu level 4
DMX Channel

8
OPERATION
DISPLAY MENU FUNCTIONS
- DMX Address: Assign DMX starting address to the EPROFILE FC
- DMX Mode: Select either 6-, 8- or 9-, 12-, or 14-channel mode
- Virtual Color Wheel: Select from 32 dierent preset colors
- Manual Color Mixer: Manually set RGBAL values to create custom colors
- Auto Show: Select one of ve preprogrammed shows
- Master/Slave: Set the EPROFILE FC to function either as a master or slave when linking multiple units
- Dimmer Mode: Select the preferred dimming curve (1 = fast, 2 = medium, 3 = slow)
- White Balance: Adjust RGB values related to set white balance
- LED Frequency: Select the preferred frequency (for achieving icker-free video playback)
- Fan Mode: Select either variable speed (Auto) or always on (High)
- Back Light: Set display to darken after 10, 20 or 30 seconds, or set to always on (On)
- Information: View operating hours, sofware version and device ID
DMX FUNCTIONS
- 6-Channel Mode: Controls dimming of each channel (RGBAL) from 0 ~ 100%
+ LED frequency select
- 8-Channel Mode: Adds master dimming and strobe functions
- 9-Channel Mode: Adds 16-bit (ne) master dimming control
- 12-Channel Mode: Adds auto programs
+ Dimmer curve selection
+ Color macros and presets
- 14-Channel Mode: 16-bit (ne) master and individual color dimming control
DMX PIN DIAGRAM
DMX - OUTPUT
XLR socket
DMX - INPUT
XLR plug
Pin1 : GND - Shield
Pin2 : - Negative
Pin3 : + Positive
Pin4 : N/C
Pin5 : N/C
9
MENU FUNCTIONS
Main Menu Menu level 2 Defaults
Auto 1
Auto 2
Auto 3
Auto 4
Auto 5
R GA RAL RGBAL
G GL GBA
B BA GBL
A BL BAL
L AL GAL
RG RGB RGBA
RB RGA RGBL
RA RGL RGAL
RL RBA RBAL
GB RBL GBAL
Red <0-255>
Green <0-255>
Blue <0-255>
Amber <0-255>
Lime <0-255>
O
Dimmer 1
Dimmer 2
Dimmer 3
On
10S
20S
30S
Fixture Hours
Version
UID: ***
Information
<9999H>
<V1.0>
Dimmer Mode 0FF
Back Light ON
<1-100>
<1-100>
Static
Fixed Color RGBAL
Manual Color
Mixer RGBL=255
Menu level 3
Menu level 4
Auto Show
<1-100>
Auto 5
Speed: 100
<1-100>
<1-100>
