Ignition WAL-L412 BP User manual

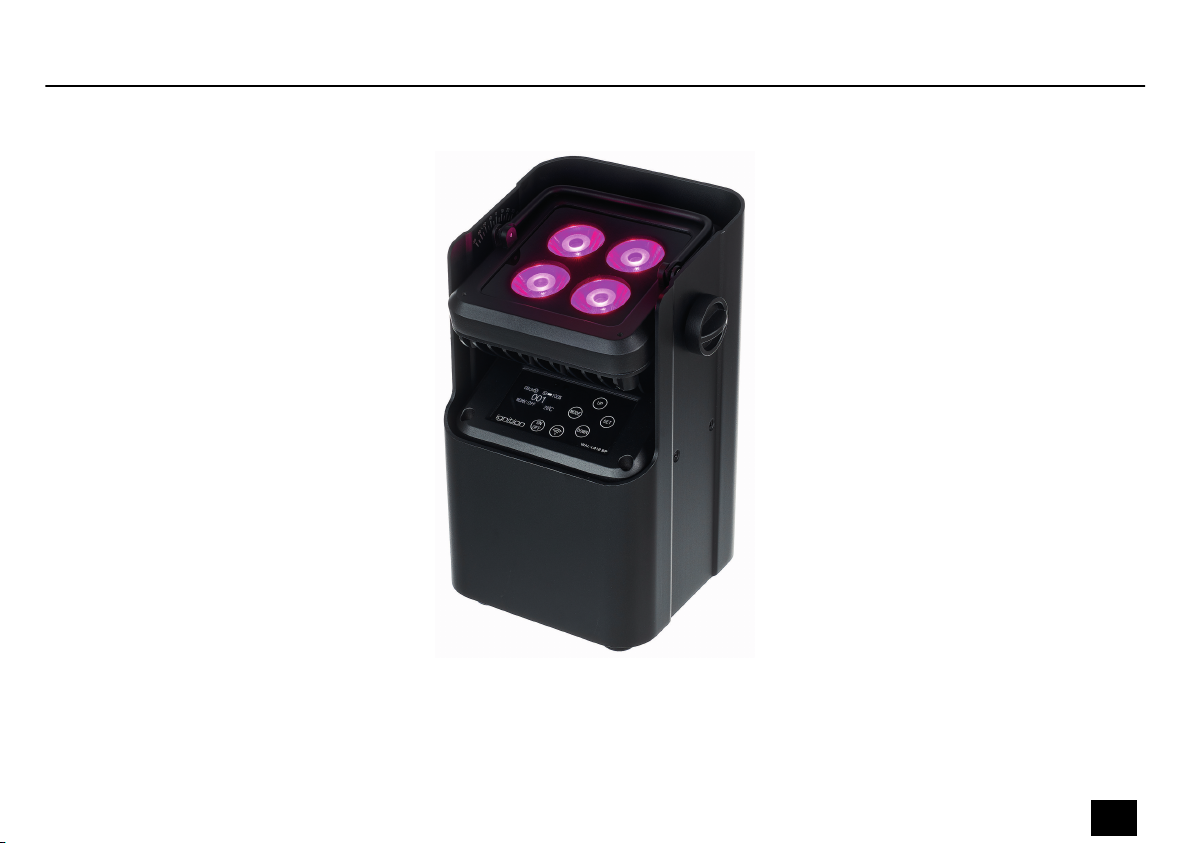

WAL-L412 BP
LED spotlight
User manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
25.11.2019, ID: 461723

Table of contents
1 General information................................................................................................................................. 6
1.1 Further information........................................................................................................................... 7
1.2 Notational conventions.................................................................................................................... 8
1.3 Symbols and signal words............................................................................................................... 8
2 Safety instructions.................................................................................................................................. 11
3 Features....................................................................................................................................................... 17
4 Installation.................................................................................................................................................. 19
4.1 Dealing with lithium batteries..................................................................................................... 24
5 Starting up.................................................................................................................................................. 26
6 Connections and controls................................................................................................................... 28
7 Operating.................................................................................................................................................... 34
7.1 Starting the device........................................................................................................................... 34
7.2 Main menu.......................................................................................................................................... 34
7.3 Menu overview................................................................................................................................. 40
7.4 Functions in 4-channel DMX mode........................................................................................... 41
Table of contents
WAL-L412 BP 3
LED spotlight

7.5 Functions in 6-channel DMX mode........................................................................................... 41
7.6 Functions in 9-channel DMX mode........................................................................................... 42
8 Technical specications....................................................................................................................... 48
9 Plug and connection assignments.................................................................................................. 51
10 Troubleshooting...................................................................................................................................... 52
11 Cleaning....................................................................................................................................................... 55
12 Protecting the environment.............................................................................................................. 56
Table of contents
4WAL-L412 BP
LED spotlight

WAL-L412 BP 5
LED spotlight

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
6WAL-L412 BP
LED spotlight

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
WAL-L412 BP 7
LED spotlight

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’ , ‘OFF’ .
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Letterings
Displays
General information
8WAL-L412 BP
LED spotlight

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – dangerous optical radiation.
General information
WAL-L412 BP 9
LED spotlight

Warning signs Type of danger
Warning – suspended load.
Warning – danger zone.
General information
10 WAL-L412 BP
LED spotlight

2 Safety instructions
This device is intended for use as an electronic lighting eect by means of LED technology. The
device is designed for professional use and is not suitable for use in households. Use the
device only as described in this user manual. Any other use or use under other operating con‐
ditions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Extend the life of the device by regular breaks in operation and avoid switching it on and o
frequently. This device is not suitable for continuous use.
Intended use
Safety instructions
WAL-L412 BP 11
LED spotlight

DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are missing or
damaged.
Safety
Safety instructions
12 WAL-L412 BP
LED spotlight

DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a pro‐
tective contact plug. Do not modify the mains cable or the plug. Failure to do so
could result in electric shock/death or re. If in doubt, seek advice from a regis‐
tered electrician.
WARNING!
Eye damage caused by high light intensity
Never look directly into the light source.
WARNING!
Risk of epileptic shock
Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons
should avoid looking at strobe lights.
Safety instructions
WAL-L412 BP 13
LED spotlight

WARNING!
Incorrect handling of lithium batteries can result in injury
In the event of a short circuit, overheating or mechanical damage, lithium bat‐
teries can cause severe injuries.
Follow the advice on the correct handling of lithium batteries in the present sec‐
tion.
NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat
source. Keep the device away from naked ames.
Safety instructions
14 WAL-L412 BP
LED spotlight

NOTICE!
Risk of re due to incorrect polarity
Incorrectly inserted batteries may destroy the device or the batteries.
Ensure that proper polarity is observed when inserting batteries.
NOTICE!
Possible damage by leaking batteries
Leaking batteries can cause permanent damage to the device.
Take batteries out of the device if it is not going to be used for a longer period.
Safety instructions
WAL-L412 BP 15
LED spotlight

NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react
with the coating of your parquet, linoleum, laminate or PVC oor and after some
time cause permanent dark stains.
In case of doubt, do not put the rubber feet directly on the oor, but use felt-pad
oor protectors or a carpet.
NOTICE!
Possible damage due to incorrect storage
Deep discharge can cause batteries to become permanently damaged or lose
some of their capacity.
Before prolonged rest periods, charge the batteries to around 50 % of their
capacity and then switch the equipment o. Store the equipment at a tempera‐
ture between 10 °C and 32 °C in as dry an environment as possible. During
extended storage periods, charge the batteries to 50 % approximately every three
months.
Safety instructions
16 WAL-L412 BP
LED spotlight

3 Features
Special features of the device:
nFour four-colour LEDs (RGBW, 12 W each)
nBattery-operated LED spotlight
nOperation in DMX mode (4, 6 or 9 channels)
nFoldable carrying handle on the top
nSpotlight with adjustable inclination angle
nControl via DMX, Wireless DMX, with the optionally available infrared remote control (item
no. 354223) as well as the buttons and the display on the device
nNumerous pre-programmed mixed colours and eects programmes
nStanding or hanging mounting
nAdditional diusion lters available: 20° (item no. 461726), 40° (item no. 461727), 15x60°
(item no. 471120)
nCompatible charging station (Item no. 461728, optionally available).
nCompatible Touring Case 4in1 (Item no. 461732) or 6in1 (Item no. 461733) with power
supply for charging optionally available.
Features
WAL-L412 BP 17
LED spotlight

For technological reasons, the light output of LEDs decreases over their lifetime. This eect
increases with higher operating temperature. You can extend the service life of the illuminants
by providing adequate ventilation and operating the LEDs with the lowest possible brightness.
Features
18 WAL-L412 BP
LED spotlight

4 Installation
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply
in your country. Always secure the device with a secondary safety attachment,
such as a safety cable or a safety chain.
Installation
WAL-L412 BP 19
LED spotlight

NOTICE!
Risk of overheating
The distance between light output and the illuminated surface must be more
than 1.5 m (19.7in).
Provide sucient ventilation.
The ambient temperature must always be below 40 °C (104 °F).
NOTICE!
Possible data transmission errors
For error-free operation make use of dedicated DMX cables and do not use ordi‐
nary microphone cables.
Never connect the DMX input or output to audio devices such as mixers or ampli‐
ers.
Installation
