Ekars EPM-2082 User manual

EPM-2082
Public Address
Monitor Panel
OPERATING MANUAL
LEVEL SELECTOR
CHANNEL SELECTOR
OUTPUT LEVEL METER
OFF
CH8
-18dB -6dB 0dB-24dB -12dB
CH7CH6CH5CH4CH3CH2CH1
-28dB
-23dB
-18dB
-13dB
-6dB
-3dB
0dB
+3dB
CH8CH7CH6CH5CH4CH3CH2CH1
PUBLIC ADDRESS MONITOR PANEL EPM-2082

Contents
1.Unpacking And Installation ------------------------------------------------------ 2
2.Features & Specifications --------------------------------------------------------- 3
3.Front Panel Controls --------------------------------------------------------------- 4
4.Rear Panel Controls --------------------------------------------------------------- 5
5.Connections ---------------------------------------------------------------------------- 6
1
SamHyoung Electronics Co., Ltd.
3Ra-618, Shihwa Industrial Complex, #1378, Jungwang-Dong,
Shiheung-City, Kyonggi-Do, Korea (429-450)
Tel : 82)31+432+5112 / 82)31+432+4422
Fax: 82)31+432+5450 / 82)31+431+1690
Home Page : http://www.ekars.co.kr
http://www.samhyoung.co.kr
E-mail : [email protected]
[email protected]

Unpacking And Installation
2
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
:
TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICICE PERSONNEL.
TO PREVENT FIRE OR SHOCK HAZARD,
WARNING
:
DO NOT EXPOSE THE UNIT TO RAIN OR
MOISTURE.
This symbol is intended to alert the user to the
presence of important operation and maintenance
(servicing) instructions in the literature
accompanying the appliance.
This symbol is intended to alert the user to the
presence of uninsulted "dangerous voltage"
with in the product's enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
To prevent electric shock do not use this
(polarized) plug with an extension cord,
receptacle or other outlet unless the blades can
be fully inserted to prevent blade exposure.
:
CAUTION
Although it is neither complicated to install nor difficult to operate your Monitor Panel,
a few minutes of your time is required to read manual for a properly wired
installation and becoming familiar with its many features and how to use them.
Please take a great care in unpacking your Monitor Panel and do not discard the carton
and other packing materials.
They may be needed with when moving your set and are required if it ever becomes
necessary to return your set for service.
Never place the unit radiators, in front of heating vents, in excessively humid or dusty
location to avoid early damage and for your years of quality use.
Connect your complementary components as illustrated in the following page.
The instruction for use shall state that the apparatus shall not be exposed to dripping or
splashing and that no objects filled with liquids, such as vases, shall be placed on the
apparatus.

Features
MONITOR OF POWER OUTPUT STATUS
With the channel selection switch, you can monitor audibly for any of eight Amps.
LED BARAGRAPH INDICATOR OF OUTPUT POWER
You can simultaneously watch the output power levels of eight dot,
three colors LED Meter.
MONITOR SPEAKER
With the built -in output monitor speaker, you can audibly check
the output power situation of each power amp.
3
Specifications
Input Signal -------------------------------------------------------------------- 100Vrms, 8channels
LED Level Output ------------------------------------------------------------------------- 8 channels
Monitor Speaker Output ------------------------------------------------------------- Max 2.5 Watts
Power Requirements -------------------------------------------------------------------------- DC24V
Net Weight (Kg/lb) ------------------------------------------------------------------------------ 3.1/6.8
Dimensions --------------------------------------------------------- 483(W) x 89(H) x 250(D) mm
Specifications and design are subjected to change without notice
for improvements.

Front Panel Controls
4
1. MONITOR SPEAKER
You can monitor the situation of each Power Amplifier with the clear and rich sound
of High Power Speaker.
2. OUTPUT LEVEL INDICATIORS
These indicators show the operation situation as the LED lights when the switch
is pushed.
3. INPUT CHANNEL SELECTOR SWITCH
When you select each switch, you can check the output of each Power Amplifier
by Monitor Speaker.
4. VOLUME LEVEL SWITCH
These switches adjust the Volume of the Monitor Speaker.
(-24dB, -18dB, -12dB, -6dB, 0dB, OFF)
5. OUTPUT LEVEL METER
These indicate the output power of each channel.
LEVEL SELECTOR
CHANNEL SELECTOR
OUT PU T LE VE L ME TER
OFF
CH8
-18dB -6dB 0dB-24dB -12dB
CH7CH6CH5CH4CH3CH2CH1
-28dB
-23dB
-18dB
-13dB
-6dB
-3dB
0dB
+3dB
CH8CH7CH6CH5CH4CH3CH2CH1
PUBLIC ADDRESS MONITOR PANEL EPM-2082
123 4
5

Rear Panel Controls
5
1. DC 24V INPUT TERMINAL
This is a terminal for connect to the power supply.
2. SIGNAL INPUT TERMINAL
These are terminals for connecting to the speaker output terminals (Com, 100V)
of each Power Amplifier.
INPUT
INPUT
CH8 CH7 CH6 CH5 CH4 CH3 CH2 CH1
DC INPUT
DC INPUT
24V
POWER AMP 100V OUTPUT
TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK DON'T EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
WARN ING
:
TO REDUCE THE RISK OF FIRE
TO REDUCE THE RISK OF FIRE
REPLACE ONLY WITH SAME TYPE FUSE.
CAUTION
:
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISK OF ELECTRIC SHOCK
DO NOT OPEN
MADE IN KOREA
MADE IN KOREA
MONITOR PANEL
MONITOR PANEL
POWER CONSUMPTION 14W
POWER CONSUMPTION 14W
PUBLIC ADDRESS
PUBLIC ADDRESS
MODEL NO : EPM-2082
MODEL NO : EPM-2082
www.ekars.co.kr
SN
12

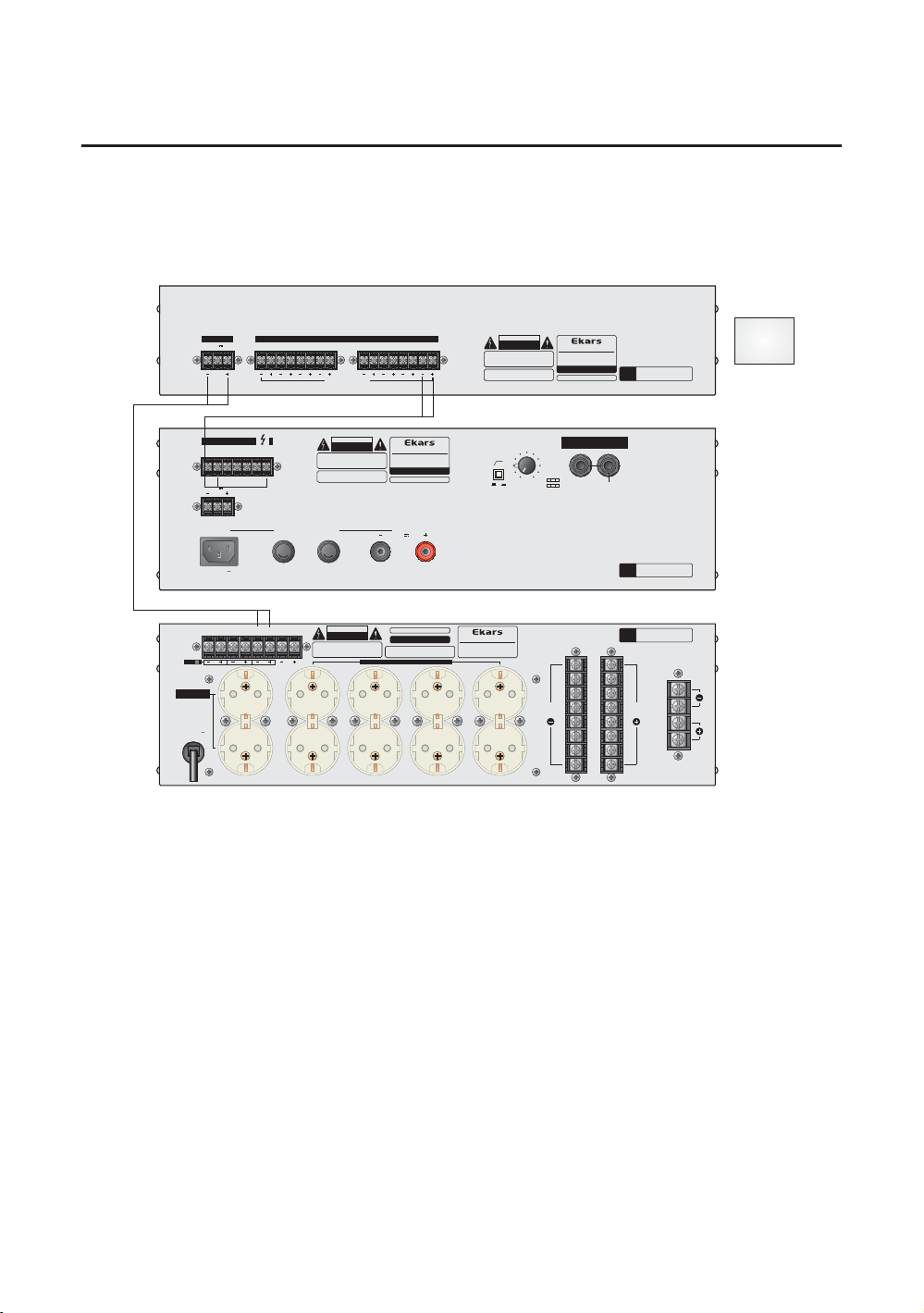

Connections
6
INPUT
INPUT
CH8 CH7 CH6 CH5 CH4 CH3 CH2 CH1
DC INPUT
DC INPUT
24V
POWER AMP 100V OUTPUT
TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK DON'T EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
WARNING
:
TO REDUCE THE RISK OF FIRE
TO REDUCE THE RISK OF FIRE
REPLACE ONLY WITH SAME TYPE FUSE.
CAUTION
:
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISK OF ELECTRIC SHOCK
DO NOT OPEN
MADE IN KOREA
MADE IN KOREA
MONITOR PANEL
MONITOR PANEL
POWER CONSUMPTION 14W
POWER CONSUMPTION 14W
PUBLIC ADDRESS
PUBLIC ADDRESS
MODEL NO : EPM-2082
MODEL NO : EPM-2082
www.ekars.co.kr
SN
FUSEFUSE
OUTPUT RMS 120W
OUTPUT RMS 120W
GND COM 4Ω
(22V)
8Ω
(31V)
16Ω
(44V)
70V
(41 )Ω
100V
(83 )Ω
POWER REMOTE IN
AC INPUT AC FUSE DC FUSE
F2AL 250V F10AL 250V
ONOFF
400Hz -3dB
HPF
INPUT LEVEL
MIN MAX
BALANCED INPUT
0dBm (775mV) / 20KΩ
BALANCED INPUT
0dBm (775mV) / 20KΩ
DC INPUT
24V
24V
LINK
TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK DON'T EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
WARNI NG
:
TO REDUCE THE RISK OF FIRE
TO REDUCE THE RISK OF FIRE
REPLACE ONLY WITH SAME TYPE FUSE.
CAUTION
:
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISK OF ELECTRIC SHOCK
DO NOT OPEN
MADE IN KOREA
MADE IN KOREA
www.ekars.co.kr
POWER AMPLIFIER
POWER AMPLIFIER
OUTPUT POWER 120W RMS
OUTPUT POWER 120W RMS
PUBLIC ADDRESS
PUBLIC ADDRESS
MODEL NO : EPA-2123
MODEL NO : EPA-2123
SN
50/60Hz. 300W
220V-240V
POWER
REMOTE IN
CHARGER
IN
SWITCHED
OUT
UNSWITCHED
OUT
BATTERY
24V DC INPUT
SWITCHED
24V DC OUT
(ONLY AMP)
SWITCHED
24V DC OUT
(ONLY AMP)
SWITCHED OUT(3000W MAX)
SWITCHED OUT(3000W MAX)
UNSWITCHED
OUT(750W MAX)
UNSWITCHED
OUT(750W MAX)
24V
24V
TO REDUCE THE RISK OF FIRE
TO REDUCE THE RISK OF FIRE
REPLACE ONLY WITH SAME TYPE FUSE.
CAUTION
:
TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK DON'T EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
WARNI NG
:
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISK OF ELECTRIC SHOCK
DO NOT OPEN
MADE IN KOREA
MADE IN KOREA
www.ekars.co.kr
PUBLIC ADDRESS
PUBLIC ADDRESS
POWER DISTRIBUTOR
POWER DISTRIBUTOR
MODEL NO : EPD-2083
MODEL NO : EPD-2083
POWER CONSUMPTION 135VA
POWER CONSUMPTION 135VA
SN
50/60Hz. 135VA
AC INPUT
220V-240V
POWER AMP
EPA-2123
EPA-2243
EPA-2403
POWER
DISTRIBUTOR
EPD-2083
MONITOR
PANE L
EPM-2082

3rd floor, 271-183, Kochk-2Dong,
Guro-Gu, Seoul, Korea (152-082)
Tel : 82)2+2612+4422
Fax : 82)2+2612+7676
Seoul office.
936-4, Kumuncheoun-Ri, Hyangnam-Myun,
Hwaseong-City, Kyunggi-Do, Korea (445-922)
Tel : 82)31+432+5112 / 82)31+432+4422
Fax : 82)31+352+7637 / 82)31+352+7649
E-mail : [email protected] / [email protected]
Home Page : http://www.ekars.co.kr / http://www.samhyoung.co.kr
Headquarter & Overseas Dep.
