Eko Devices CORE User manual

Step 1
Assemble your CORE
Choose the standard or pediatric
tubing connector and screw into
the top of the CORE, the end
closest to the power toggle
Attach the chest piece to the
tubing connector
Choose either the standard or
pediatric barb to screw into the
base of the CORE
Attach your stethoscope tubing to
the barb
Slide the On / O toggle to power
the device. CORE will only deliver
amplied sound in the ON
position
1.
2.
3.
4.
5.
Step 2 (optional)
Connect CORE to the Eko App
With the app installed, you can now
Visualize Auscultation Sounds, Create
Recordings, Save, and Share Patient
Data
Your CORE is now ready to be
used in Analog or Digital mode.
Download and install the App
Create an account, and log in
Turn on the CORE
Follow the prompts to connect your
device and select the CORE
1.
2.
3.
4.

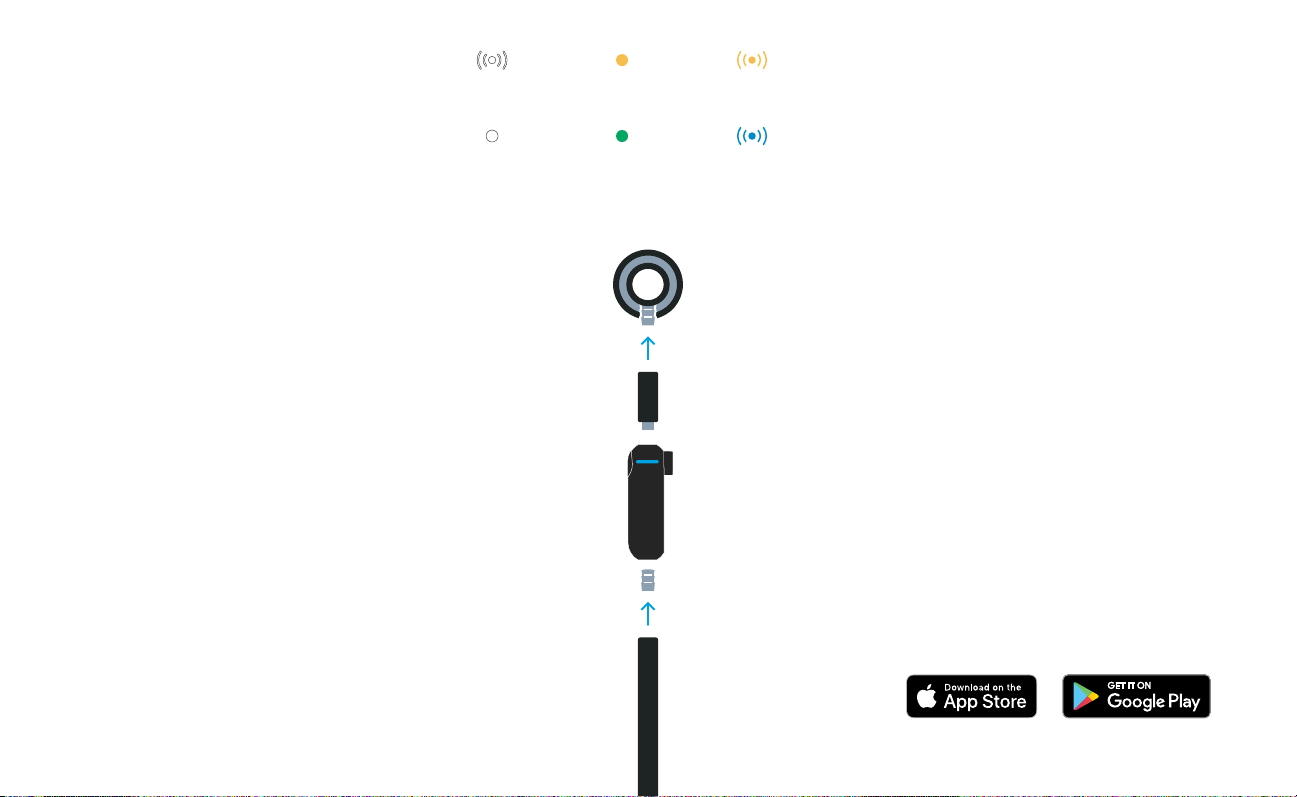

Chestpiece
Tubing connector
CORE
Barb
Stethoscope tubing
CORE is OFF &
charging
CORE is LOW on
battery
CORE is ON &
seeking device
CORE is ON &
connected
CORE is fully
charged
CORE is
recording
TM and © Eko Devices Inc.
LBL 055 Rev B
Google Play and the Google Play logo are
trademarks of Google LLC.

CORE
Digital Attachment
Quick Start Guide
In the Box
CORE, pediatric and standard tubing
connectors, and USB charging cable.
Compatibility
CORE is designed and tested to work
with most acoustic stethoscopes.
User Manual and Support
Review the user manual before using
your Eko CORE.
To view the manual visit:
ekohealth.com/getstarted
For support, please email:
[email protected]
Charging
Connect the micro USB cable to the
CORE and use a UL-certied or
CE-marked USB wall charger. The
CORE will take about 2 hours to fully
charge. The light will turn green when
it is fully charged.
Amplication
CORE provides up to 40x
amplication for hearing support.
CORE does not connect wirelessly to
hearing aids.
Active Noise Cancellation
The CORE includes active noise
cancellation to remove ambient noise
from the environment. Active noise
cancellation can be turned on or o
through the Eko app.
TM and © Eko Devices Inc.
LBL 055 Rev B
Notication Light
Volume Up
Record
Volume Down
Charging Port
On / O Toggle
