USER MANUAL
MD HD L 4K
122015
DIGITAL MODULATOR WITH BUILT-IN
HDMI 4K LOOP
V02

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
USER MANUAL MD HD L 4K
TABLE OF CONTENTS
Introduction:................................................................................................................................................................................................................................ 3
Introduction: .......................................................................................................................................................................................................................... 3
Key features:......................................................................................................................................................................................................................... 3
Packaging content:.......................................................................................................................................................................................................... 3
Interfaces and connection:.............................................................................................................................................................................................4
Interfaces:................................................................................................................................................................................................................................4
Diagrama de instalación:............................................................................................................................................................................................4
Basic programming using buttons:.........................................................................................................................................................................6
Advanced programming using MD HD Soft:.................................................................................................................................................. 7
Technical specifications:..................................................................................................................................................................................................8
Channel and Frequency Table (Standard B/G):..........................................................................................................................................9

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
3
USER MANUAL MD HD L 4K
Introduction:
Introduction:
You can transfer a FHD signal over a coaxial cable network to your TV receivers with excellent quality.
Key features:
•Resolution up to 1080p.
•Active HDMI source indication.
•LOOP HDMI IN / OUT.
•Excellent MER modulation quality ≥33 dB.
•Quick menu. Easy adjustment using channel buttons, attenuation, program ID.
•Easy Advanced Programming using PC Program (MDHDSoft).
Packaging content:
1. 1 x MD HD L 4K.
2. 1 x Power supply 5V DC 2A.

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
4
USER MANUAL MD HD L 4K
Interfaces and connection:
Interfaces:
1 2 3 4 5
6 7 8 9 10
1, 3- Buttons for programming.
2.- Display
4.- RF output.
5.- RF input.
6.- 5V DC power supply.
7.- USB Type B for setup.
8.- HDMI input.
9.- Micro-USB for FW uploading.
10.- HDMI Output (LOOP).
Diagrama de instalación:
1 2 3 4 5
6 7 8 9 10
5.- RF input. Connect antenna
signal, to the output we will have
that signal with the modulated
channel inserted.
4.- RF output.
6.- Connect 5V DC feeder.
7.- Connects to PC in case that you
need to configure with MD HD
SOFT application.
8.- 4K HDMI input.
9.- The PC is connected if you need
to upgrade FW using the DPA
Upgrade app.
10.- HDMI 4K (LOOP) output.

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
5
USER MANUAL MD HD L 4K
For your convenience, in case you have the
modulator near the TV, you could use the RF IN
input as an output for the TV.

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
6
USER MANUAL MD HD L 4K
Basic programming using buttons:

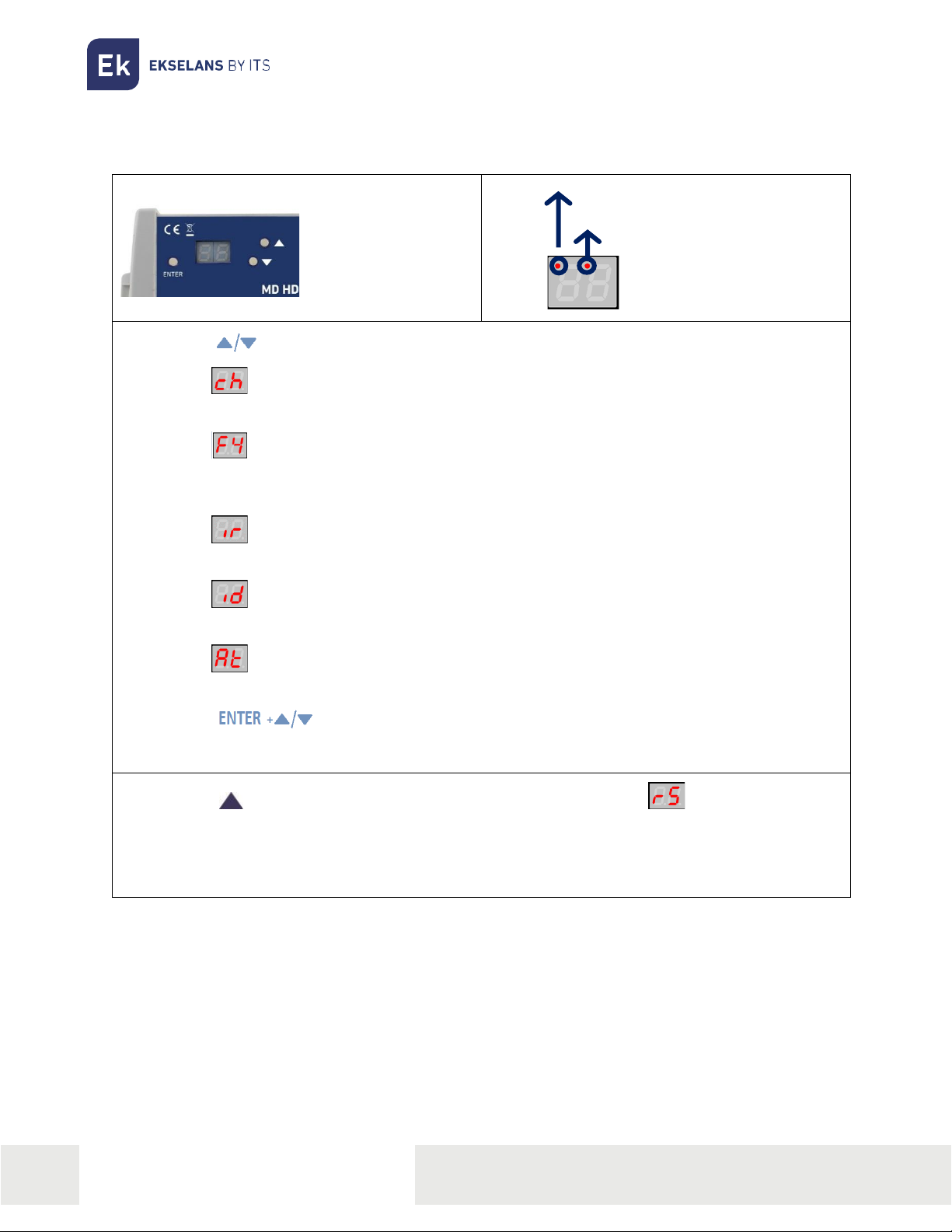

Connected power supply
HDMI source
•Press to change the menu option.
•
Sets the output channel [5... 12+ 21... 69].
•
Set to "n" if the device connected to HDMI out does not support 4K.
Set to "y" if the device connected to HDMI out it supports 4K.
•
Adjusts the FREQUENCY of the IR carrier [38 / 46 / 56 KHz]. Not usable in this model.
•
Modify the program ID [1... 34].
•
Sets the desired attenuation [0... 15dB].
•Press in the different options of menu to modify its parameters.
•Press while the power is connected to defaults. Will be shown ..
•Note: If you use more than one modulator for the same receiver or TV, you need to modify the
"Program ID" to make them different.

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
7
USER MANUAL MD HD L 4K
Advanced programming using MD HD Soft:
•For advanced programming, download the "MD HD Soft" Software from the website
www.ek.plus.
•Connect modulator and computer via USB cable (Type A/Type B).

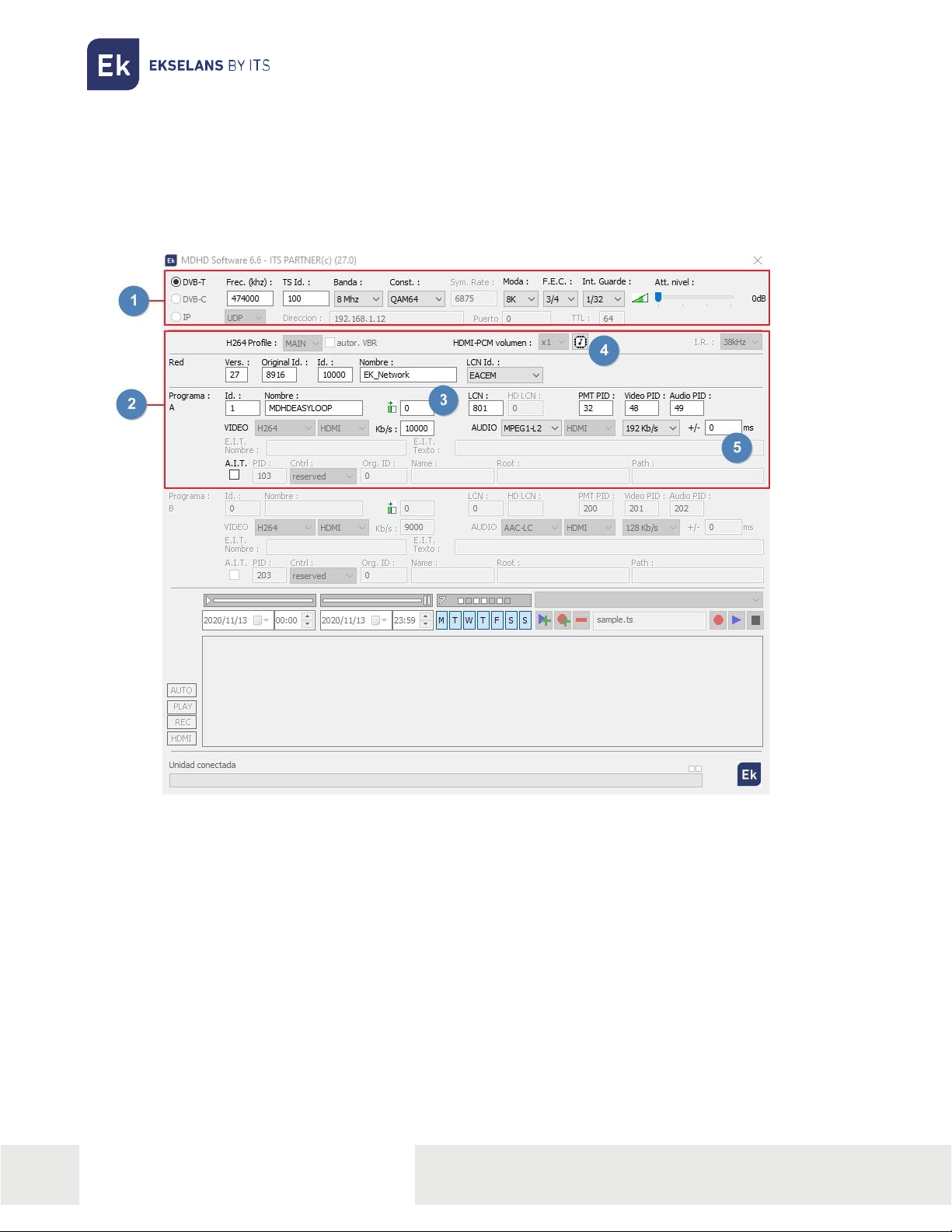

1. Settings RF.
2. Video and TS settings.
3. This option will be used to adjust some deviation in the video input signal. With some sources
(very rare cases), a green band appears to the left of the image. This option will allow you to move
this band until it disappears.
4. Use in case you do not listen to DD by RF output. Clicking this button will write the EDID table.
5. Offset between RF modulated audio and video. -999ms, indicates that the audio is almost 1
second ahead of the video.

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
8
USER MANUAL MD HD L 4K
Technical specifications:
Reference
MD HD L 4K
Code
122015
IN
HDMI 2.0, fully compliant HDCP 2.2 backwards compliant
HDMI 1.4
OUT
loop HDMI
VÍDEO
Video resolution
480i@60Hz, 480p@60Hz, 576i@50Hz, 720p@50/60Hz,
1080p@50/60Hz, 1080i@50/60Hz, 4Kx2K@24/30/50Hz
Data rate
6Gbps por canal
Video compression
H.264
Video rate
15Mbps
AUDIO
Audio compression
MPEG1-L2, AAC-LC
Audio rate
Kbps
128, 192, 256, 320, 384
MODULACION
Resolution Video Output
1080p maximum
DVB processing
NIT, PID
DVB configuration
NID, ONID, Network ID, Network name, TS ID,
ProgramID,Programname,PMTPID,VideoPID, Audio PID
Output frequency
MHz
170-230 & 470-862
Output channel
N.
5…12 + 21…69
Output level
dBµV
>80
Attenuation
dB
0…15
MER
dB
≥33
Bandwidth
MHz
6, 7, 8
Constellation
QPSK, 16QAM, 64QAM
Mode
2K, 8K
FEC
1/2, 2/3, 3/4, 5/6, 7/8
Guard interval
1/4, 1/8, 1/16, 1/32
LCN
EACEM, ITC, NORDIG
Loop RF
dB
-2
GENERAL
Supply voltage
Vdc
5
Power consumption
W
< 5
Size
mm
170x130x35
Weight
Kg
0.6

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
9
USER MANUAL MD HD L 4K
Channel and Frequency Table (Standard B/G):
•Band III. 7MHz Bandwidth.
•Band IV - V. 8MHz Bandwidth.
Band
Channel
Start frequency
End frequency
Central frequency
III
5
174 MHz
181 MHz
177,5 MHz
6
181 MHz
188 MHz
184,5 MHz
7
188 MHz
195 MHz
191,5 MHz
8
195 MHz
202 MHz
198,5 MHz
9
202 MHz
209 MHz
205,5 MHz
10
209 MHz
216 MHz
212,5 MHz
11
216 MHz
223 MHz
219,5 MHz
12
223 MHz
230 MHz
226,5 MHz
Band
Channel
Start frequency
End frequency
Central frequency
IV
21
470 MHz
478 MHz
474 MHz
22
478 MHz
486 MHz
482 MHz
23
486 MHz
494 MHz
490 MHz
24
494 MHz
502 MHz
498 MHz
25
502 MHz
510 MHz
506 MHz
26
510 MHz
518 MHz
514 MHz
27
518 MHz
526 MHz
522 MHz
28
526 MHz
534 MHz
530 MHz
29
534 MHz
542 MHz
538 MHz
30
542 MHz
550 MHz
546 MHz
31
550 MHz
558 MHz
554 MHz
32
558 MHz
566 MHz
562 MHz
33
566 MHz
574 MHz
570 MHz
34
574 MHz
582 MHz
578 MHz
35
582 MHz
590 MHz
586 MHz
36
590 MHz
598 MHz
594 MHz
37
598 MHz
606 MHz
602 MHz

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
10
USER MANUAL MD HD L 4K
Band
LTE
Channel
Start
frequency
End
frequency
Central
frequency
V
38
606 MHz
614 MHz
610 MHz
39
614 MHz
622 MHz
618 MHz
40
622 MHz
630 MHz
626 MHz
41
630 MHz
638 MHz
634 MHz
42
638 MHz
646 MHz
642 MHz
43
646 MHz
654 MHz
650 MHz
44
654 MHz
662 MHz
658 MHz
45
662 MHz
670 MHz
666 MHz
46
670 MHz
678 MHz
674 MHz
47
678 MHz
686 MHz
682 MHz
48
686 MHz
694 MHz
690 MHz
2
49
694 MHz
702 MHz
698 MHz
2
50
702 MHz
710 MHz
706 MHz
2
51
710 MHz
718 MHz
714 MHz
2
52
718 MHz
726 MHz
722 MHz
2
53
726 MHz
734 MHz
730 MHz
2
54
734 MHz
742 MHz
738 MHz
2
55
742 MHz
750 MHz
746 MHz
2
56
750 MHz
758 MHz
754 MHz
2
57
758 MHz
766 MHz
762 MHz
2
58
766 MHz
774 MHz
770 MHz
2
59
774 MHz
782 MHz
778 MHz
2
60
782 MHz
790 MHz
786 MHz
1
61
790 MHz
798 MHz
794 MHz
1
62
798 MHz
806 MHz
802 MHz
1
63
806 MHz
814 MHz
810 MHz
1
64
814 MHz
822 MHz
818 MHz
1
65
822 MHz
830 MHz
826 MHz
1
66
830 MHz
838 MHz
834 MHz
1
67
838 MHz
846 MHz
842 MHz
1
68
846 MHz
854 MHz
850 MHz
1
69
854 MHz
862 MHz
858 MHz
