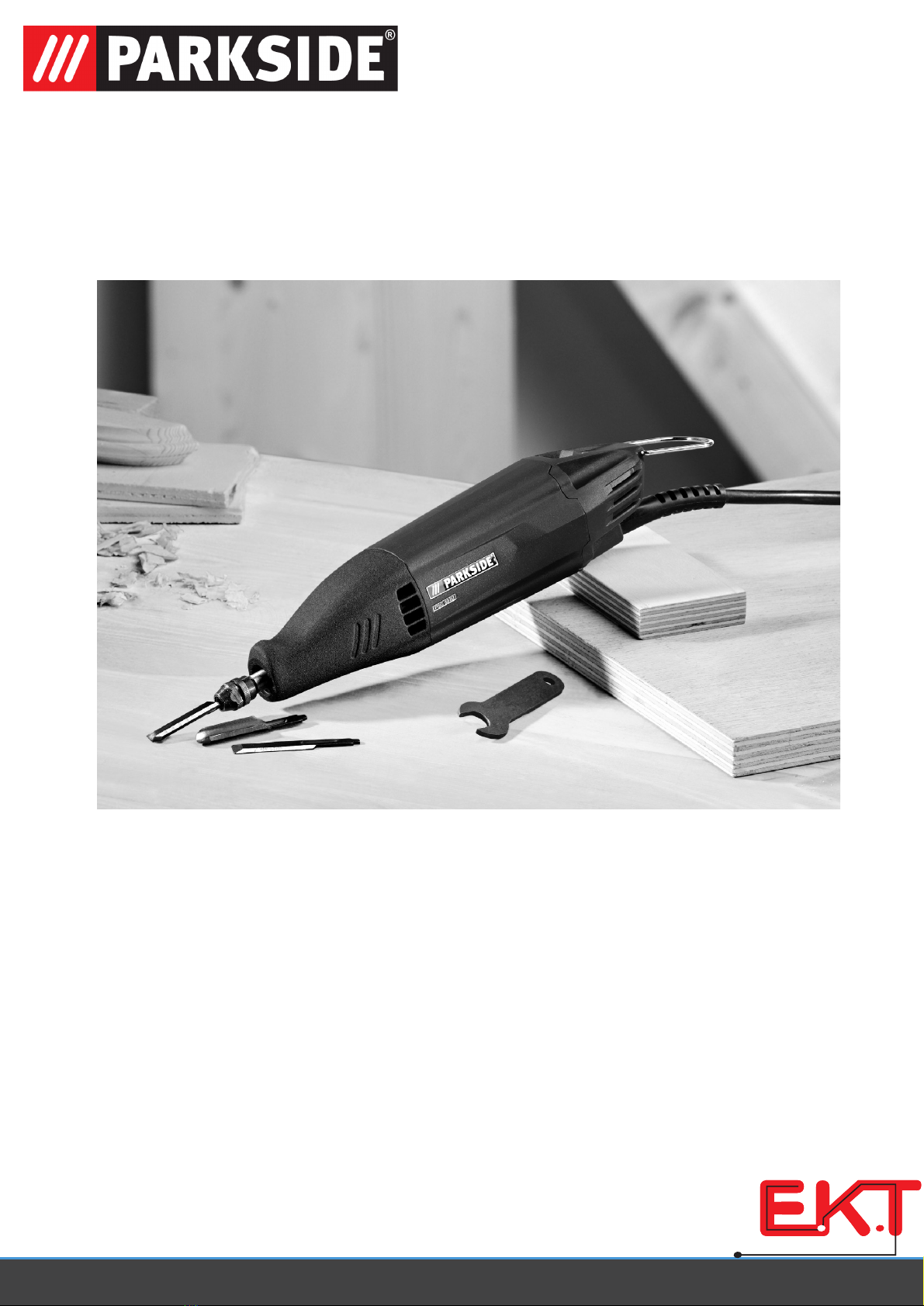

Power carving tool PSG 50 B2
Q
Introduction
We congratulate you on the purchase of
your new device. You have chosen a high
quality product. The instructions for use
are part of the product. They contain important infor-
mation concerning safety, use and disposal. Before
using the product, please familiarise yourself with
all of the safety information and instructions for use.
Only use the unit as described and for the specified
applications. If you pass the product on to anyone
else, please ensure that you also pass on all the
documentation with it.
Q
Proper use
This carving device is intended for processing all
types of wood. For example, it can be used for
carving, renovating furniture, refurbishing antiques,
fine paint stripping and linocuts. Any other use or
modification to the drill/grinder shall be considered
as improper use and could give rise to considerable
dangers. The manufacturer will not accept liability
for loss or damage arising from improper use. Not
intended for commercial use.
Q
Equipment
1ON/ OFF switch
2Bracket
3Mains lead with plug
4Ventilation slots
5Tool holder
6Cap nut
7Blade inserts
8Key
Q
Technical details
Rated voltage: 230V∼ 50 Hz
Power rating: 50W
Stroke rate when idling: n011500 strokes/ min
Noise and vibration data:
Measured values for noise are determined in accord-
ance with EN 60745. The A-weighted noise level
of the electrical power tool are typically:
Sound pressure level: 60.3dB(A)
Sound power level: 71.3dB(A)
Uncertainty K: 3dB
Wear ear protection!
Evaluated acceleration, typical:
Hand/ arm vibration: 0.864m/s2
Uncertainty K = 1.5 m/ s2
The vibration level given in these
instructions has been measured in accordance with
a standardised measurement procedure specified
in EN 60745 and can be used to compare devices.
Different uses of the device give rise to different
vibration levels and in many cases they may exceed
the values given in these instructions. It is easy to
underestimate the vibration load if the electrical pow-
er tool is used regularly in particular circumstances.
Note: If you wish to make an accurate assessment
of the vibration loads experienced during a particular
period of working, you should also take into account
the intervening periods of time when the device is
switched off or is running but is not actually in use.
This can result in a much lower vibration load over
the whole of the period of working.
General safety advice for
electrical power tools
Read all the safety advice
and instructions! Failure to observe the safety
advice and instructions may result in electric shock,
fire and/ or serious injury.
Keep all the safety advice and instructions
in a safe place for future reference!
The term “electrical tool” used in the safety advice
refers to electrical tools powered by mains electrici-
ty (by means of a mains lead) and electrical tools
powered by rechargeable batteries (without a
mains lead).
1. Workplace safety
a) Keep your working area clean and
well lit. Untidy or poorly lit working areas
can lead to accidents.
b) Do not work with the device
in potentially explosive envi-
ronments in which there are
inflammable liquids, gases or dusts.
Electrical power tools create sparks, which can
ignite dusts or fumes.
c) Keep children and other
people away while you are
operating the electrical tool.
Distractions can cause you to lose control of
the device.
2. Electrical safety
a) The mains plug on the device must match
the mains socket. The plug must not
be modified in any way. Do not use
an adapter plug with devices fitted
with a protective earth. Unmodified plugs
and matching sockets reduce the risk of elec-
tric shock.
b) Avoid touching earthed surfaces such
as pipes, radiators, ovens and refrig-
erators with any part of your body.
There is an increased risk of electric shock if
your body is earthed
.
c) Keep the device away from rain or
moisture. Water entering an electrical device
increases the risk of electric shock.
d) Do not use the mains lead for
any purpose for which it was
not intended, e.g. to carry the
device, to hang up the device or to pull
the mains plug out of the mains socket.
Keep the mains lead away from heat,
oil, sharp edges or moving parts of the
device. Damaged or tangled mains leads
increase the risk of electric shock.

www.ekt2.com
Electronics Katrangi Trading
www.ekt2.com
Electronics Katrangi Trading
e) When working outdoors with an
electrical power tool always use ex-
tension cables that are also approved
for use outdoors. The use of an extension
cable suitable for outdoor use reduces the risk
of electric shock.
f) Use a residual current device (RCD)
for protection if operating the electri-
cal power tool in a moist environment
is unavoidable. The use of an RCD reduces
the risk of electric shock.
3. Personal safety
a) Remain alert at all times, watch what
you are doing and always proceed
with caution. Do not use the device if
you are tired or under the influence of
drugs, alcohol or medication. One mo ment
of carelessness when using the device can lead
to serious injury.
b) Wear personal protective
equipment and always wear
safety glasses. The wearing of
personal protective equipment such as dust
masks, non-slip safety shoes, safety helmets or
ear protectors, appropriate to the type of elec-
trical power tool used and work undertaken,
reduces the risk of injury.
c) Avoid unintentional operation of the
device. Check that the electrical power
tool is switched off before you connect
it to the mains, pick it up or carry it.
Accidents can happen if you carry the device
with your finger on the ON/OFF switch or with
the device switched on.
d) Remove any setting tools or spanners
before you switch the device on. A tool
or spanner left attached to a rotating part of a
device can lead to injury.
e) Avoid placing your body in an unnat-
ural position. Keep proper footing
and balance at all times. By doing this
you will be in a better position to control the
device in unforeseen circumstances.
f) Wear suitable clothing. Do not wear
loose clothing or jewellery. Keep your
hair, clothing and gloves clear of mov-
ing parts. Loose clothing, jewellery or long
hair can become trapped in moving parts.
g) If vacuum dust extraction and collection
devices are fitted do not forget to
check
that they are properly connected and
correctly used. The use of these devices
reduces the hazard presented by dust.
4. Careful handling and use
of electrical power tools
a) Do not overload the device. Always
use an electrical power tool that is
intended for the task you are under-
taking. By using the right electrical power
tool for the job you will work more safely and
achieve a better result.
b) Do not use an electrical power tool if
its switch is defective. An electrical power
tool that can no longer be switched on and off
is dangerous and must be repaired.
c) Pull the mains plug from the socket
before you make any adjustments to
the device, change accessories or when
the device is put away. This precaution is
intended to prevent you from unintentionally
starting the device.
d) When not in use always ensure that
electrical power tools are kept out of
reach of children. Do not let anyone use
the device if he or she is not familiar
with it or has not read the instructions
and advice. Electrical power tools are dan-
gerous when they are used by inexperienced
people.
e) Look after the device carefully. Check
that moving parts are working prop-
erly and move freely. Check for any
parts that are broken or damaged
enough to detrimentally affect the
functioning of the device. Have dam-
aged parts repaired before you use
the device. Many accidents have their origins
in poorly maintained electrical power tools.
f) Keep cutting tools clean and sharp.
Carefully maintained cutting tools with sharp
cutting edges are less likely to jam and are
easier to control.
g) Use the electrical power tool, accesso-
ries, inserted tools etc. in accordance
with these instructions and advice, and
the stipulations drawn up for this par-
ticular type of device. In doing this, take
into account the working conditions
and the task in hand. The use of electrical
power tools for purposes other than those in-
tended can lead to dangerous situations.
Q
Original Accessories/
Additional Equipment
Use only the accessories and additional
equipment referred to in the instruc-
tions. The use of tools or other accessories
which are not recommended in the instructions
may represent a risk of injury.
Q
Operation
Q
Turning the Device On/ Off
Insert the mains plug into a socket.
Switching on:
Press the ON/OFF switch 1to the “I” position.
Switching off:
P ress the ON/OFF switch
1
to the “0” positio n.
Inserting /replacing
blade inserts
RISK OF INJURY! Switch the
device off and pull the plug out of the mains socket
before carrying out any work on the device.
RISK OF INJURY! The blade
inserts 7have very sharp cutting edges.

Wear appropriate protective gloves
when inserting and testing the blade.
The choice of blade insert 7depends on the inten-
ded task. The supplied blade inserts 7are suitable
for a wide range of common uses (see Fig. B–D).
Release the union nut 6by turning it anticlock-
wise using the key 8.
If necessary, remove the blade insert 7. Push
another blade insert into the tool holder 5as
far as it will go.
Tighten the union nut 6again by turning it
clockwise using the key 8.
Check that the blade insert 7is securely held
in place.
Q
Working Instructions
Always work away from the body.
Q
Maintenance and Cleaning
Before performing any cleaning
or maintenance work, always remove the mains
plug from the socket.
The device must be clean, dry and free of oil
or grease at all times.
Make sure that the ventilation slots 4are
always clear.
Clean the tool holder 5regularly.
Clean the blades of wood or other materials
and residual dirt.
No liquids must be allowed to enter the interior
of the device.
Use a soft, lint-free cloth to clean the housing.
Never use petrol, solvents or cleaning agents
which attack plastic.
www.ekt2.com
Electronics Katrangi Trading
www.ekt2.com
Electronics Katrangi Trading
