1. GENERAL INFORMATION
INTRODUCTION: Congratulations, you have just purchased one of the most innovative and
reliable lighting fixtures on the market today! The Design Spot 575E,™ has been designed
to perform reliably for years when the guidelines in this booklet are followed. Please read
and understand the instructions in this manual carefully and thoroughly before attempting to
operate this unit. These instructions contain important information regarding safety during
use and maintenance.
UNPACKING: Thank you for purchasing the Design Spot 575E™ by Elation Professional®.
Every Design Spot 575E™ has been thoroughly tested and has been shipped in perfect
operating condition. Carefully check the shipping carton for damage that may have occurred
during shipping. If the carton appears to be damaged, carefully inspect your unit for damage
and be sure all accessories necessary to operate the unit have arrived intact. In the event
damage has been found or parts are missing, please contact our customer support team for
further instructions. Please do not return this unit to your dealer without first contacting
customer support at the number listed below.
CUSTOMER SUPPORT: Elation Professional®provides a customer support line, to provide
set up help and to answer any question should you encounter problems during your set up
or initial operation. You may also visit us on the web at www.elationlighting.com for any
comments or suggestions. For service related issue please contact Elation Professional®.
Service Hours are Monday through Friday 9:00 a.m. to 5:00 p.m. Pacific Standard Time.
Voice: [phone]
Fax: [phone]
E-mail: [e-mail]
Forum: www.ElationLighting.com/forum
Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit to
rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs
yourself, doing so will void your manufactures warranty.

Design Spot 575E™
©Elation Professional® 4
Design Spot 575E™
Please do not discard the shipping carton in the trash. Please recycle whenever possible.
WARRANTY REGISTRATION: The Design Spot 575E™ carries a two year (730 days)
limited warranty. Please fill out the enclosed warranty card to validate your purchase. All
returned service items whether under warranty or not, must be freight pre-paid and
accompany a return authorization (R.A.) number. The R.A. number must be clearly written
on the outside of the return package. A brief description of the problem as well as the R.A.
number must also be written down on a piece of paper and included in the shipping
container. If the unit is under warranty, you must provide a copy of your proof of purchase
invoice. Items returned without a R.A. number clearly marked on the outside of the package
will be refused and returned at customer’s expense. You may obtain a R.A. number by
contacting customer support at [phone].
DISCHARGE LAMP WARNING: This fixture is fitted with a discharge
lamp, which is highly susceptible to damage if improperly handled. Never
touch the lamp with your bare hands, as the oil from your hands will
shorten lamp life. Also, never move the fixture until the lamps have had
ample time to cool. Remember, lamps are not covered under warranty
conditions.
This fixture emits intense UV radiation, which is harmful to the eyes and skin. The intense
luminance of the lamp can cause severe damage to the retina. Never operate this fixture
with the protective covers removed, these covers have been specially designed to shield
against UV radiation.
Epileptic Warning: Those suffering from epilepsy should avoid looking directly into the
lamp at all times.
Avoid switching the fixture on and off repeatedly in short intervals, as this will reduce lamp
life and intensity.
To achieve the intensity associated with discharge lamps, these lamps use a gas sealed in a
high-pressure environment to emit a brilliant output. Due to the high pressure involved with
the construction of the lamp, the lamp may explode during prolonged extensive use. This
risk is increased with age; added care is encouraged when dealing with older lamps. Thus,

Design Spot 575E™
©Elation Professional® 5
Design Spot 575E™
lamp should always be replaced at the end of their recommended duty cycle. Extreme
caution should be used when operated this or any fixture fitted with a gas discharge lamp.
Never open this fixture while in use!
During the initial operation of this fixture, a light smoke or smell may emit from the interior of
the fixture. This is a normal process and is caused by excess paint in the interior of the
casing burning off from the heat associated with the lamp and will decrease gradually over
time.
This device falls under protection-class 1. Therefore it is essential that the device be
grounded properly.
All electrical connections must performed by qualified personal.
Be sure the available voltage matches the voltage requirements of the unit.
Be sure the power cord is never crimped or damaged. If the power cord is damaged, replace
it immediately with a new one of similar power rating.
Always disconnect from main power before performing any type of service or any cleaning
procedure.
Only handle the power cord by the plug. Never pull out the plug by tugging the wire portion of
the cord.
Please be aware that damages caused by manual modifications to the device are not
subject to warranty.

Design Spot 575E™
©Elation Professional® 6
Design Spot 575E™
2. SAFETY INSTRUCTIONS
The Design Spot 575E™ is an extremely sophisticated piece of
electronic equipment. To guarantee a smooth operation, it is
important to follow the guidelines in this manual. The
manufacturer of this device will not accept responsibility for
damages resulting from the misuse of this fixture due to the
disregard of the information printed in this manual.
1. Always be sure that the fan and the air inlets remain clean and are never blocked.
Allow about 6” (15cm) between this fixture and other devices or a wall to allow for
proper cooling.
2. Never touch the fixture during normal operation. This can cause severe personal
injuries and/or damage to the fixture.
3. Be sure to unplug the DESIGN SPOT 575E™ from the power outlet before
performing any service related issues.
4. Lamp Replacement; Allow at least 30 minutes after disconnecting main power
before you open the DESIGN SPOT 575E™. To prevent personal injury, never
touch the lamp if you are not absolutely sure it has cooled.
5. Never look directly into the lamp beam. You risk injury to your retina, which may
induce blindness.
6. Be sure to track and record the lamp running time. The lamp should be changed at
the end of the specified lamp life, regardless of lamp output. You may also have to
change the lamp if it shows any deformations or damage. The same is with all
glass components, color filters, lenses and mirrors.
7. For safe operation, follow the Installation guide described in chapter two of this
manual. Operating the DESIGN SPOT 575E™ without suited safety aids such as
safety cables or clamps can increase the risk of damage and/or personal injury.
8. Installation should only be performed by qualified and certified personal.
9. When mounting this fixture, use only the original rigging parts included with this
fixture. Any structural modification will void the original manufactures warranty and

Design Spot 575E™
©Elation Professional® 7
Design Spot 575E™
may increase the risk of damage and/or personal injury.
10. To reduce the risk of fire or shock, do not expose this fixture to rain or moisture.
11. Do not attempt to operate this fixture if the power cord has become damaged or
frayed.
Important Notice: Damages resulting from the disregard of safety and general user
instructions found in this user manual are not subject to any warranty claims.
Never look directly into the light source,
as sensitive persons may suffer an epileptic shock.
Never touch the device during operation!
The housing may heat up

Design Spot 575E™
©Elation Professional® 8
Design Spot 575E™
3. FEATURES
•Pan 630° or 540˚(User selectable) / Tilt 265°
•Built-In Macros (Color, Gobo, Prism)
•3 operation mode: DMX Controlled, Stand-Alone or Sound Activated
•Color Wheel: 8 colors plus white (including UV filter), with rainbow effect
•CMY Variable Color Mixing
•Easy to Navigate On-Board LCD Menu (may be turned 180°)
•Animation Effect Wheel
•Two Gobos Wheels:
oRotating gobo wheel with 7 rotating gobos plus open, all gobos can be easily
replaceable and gobo indexing
oStatic gobo wheel with 7 static gobos plus open with different speed gobo
shaking and gobo indexing
•Strobe Effect: 0~10 flashes per second or random strobe
•Motorized Focus (Near to Far)
•Prism and Prism Rotation, with 16 prism macros (Indexable)
•Bright Phillips Gold MSR 575/2 SA DE Lamp (575w / 7200K / 750Hrs / 43,000Lm)
•Linear Dimmer from 0%~100%
•Electronic, Switching Power Supply (90v~240v)
•Variable, Linear Frost Filter (0% ~ 100%)
•RDMX (Remote DMX addressing from any DMX console)
•Auto test for all functions
•Automatic Pan/Tilt Correction
•Built-in Iris (5% ~ 100% - Seamless), with Iris Pulse Effect
•Motorized Linear Zoom (15˚~ 30˚)
•Glass Dichroic Reflector for Even Lamp Output
•USITT DMX-512 Complaint
o24 DMX Channels (16bit Operation)
o22 DMX Channels (8bit Operation)
•8 User Assignable Program Presets - Internal Program: Edit and save programs to
the incorporated EEPROM. Maximum of 48 scenes.

Design Spot 575E™
©Elation Professional® 9
Design Spot 575E™
4. GENERAL GUIDELINES
This fixture is a professional lighting effect designed for use on stage, in nightclubs, in
theatres, etc. Do not attempt operation or installation without a proper knowledge on how to
so.
This fixture was designed for indoor use only.
Consistent operational breaks may ensure that the fixture will function properly for may
years to come.
Do not shake the fixture around. Avoid brute force when installing or operating the device.
While choosing an installation location, please be sure that the fixture will not be exposed to
extreme heat, moisture or dust. The minimum distance between the fixture and a wall or flat
surface should be at least .5 meter (about 1.5ft).
Always install the fixture with an appropriate safety cable. When installing the fixture in a
suspended environment always be to use mounting hardware no less than M10 x 25 mm,
also be sure the hardware is insert in the pre-arranged screw holes in the base of the fixture.
When using the quick release “Omega” cam-lock system, be sure the four quick lock
fasteners are locked in the quick lock holes correctly.
Do not attempt to operate this fixture until you have familiarized yourself with its functions.
Do not permit operation by persons not qualified for operating this type of theatrical fixture,
most damages are the result of operations by nonprofessionals.
Please use the original packaging to transport the fixture in for service.

Design Spot 575E™
©Elation Professional® 10
Design Spot 575E™
5. LAMP INSTALLATION INSTRUCTIONS
For a proper and safe lamp change, please read this chapter carefully and follow all
instructions.
Safety Regulations
•Disconnect the unit’s main power supply.
•Allow the unit to cool for at least 20 minutes before attempting any type of service.
•Before you put the Design Spot 575E™ into operation be sure all covers have been
replaced, otherwise you risk damage to the retina and expose to UV radiation!
•Replace the lamp with an approved replacement type. Be sure to follow all the lamp
handleing procedures included with your new lamp. Never handle the new lamp
with your bare hands, the oils from your skin may damage the lamp. Always replace
with the lamp with a lamp that meets the orginal lamp specification, failure to do so
may damage the unit and will void your manufactures warranty.
Installation Procedure:
1. Set the fixture on a flat surface and remove the four screws labeled “A” “B,” “C,” and
“D” found on the back plate of the head assembly.
2. Gently pull out the lamp/socket assembly to access the lamp.
3. Gently remove the old lamp by grasping it by metal ends.

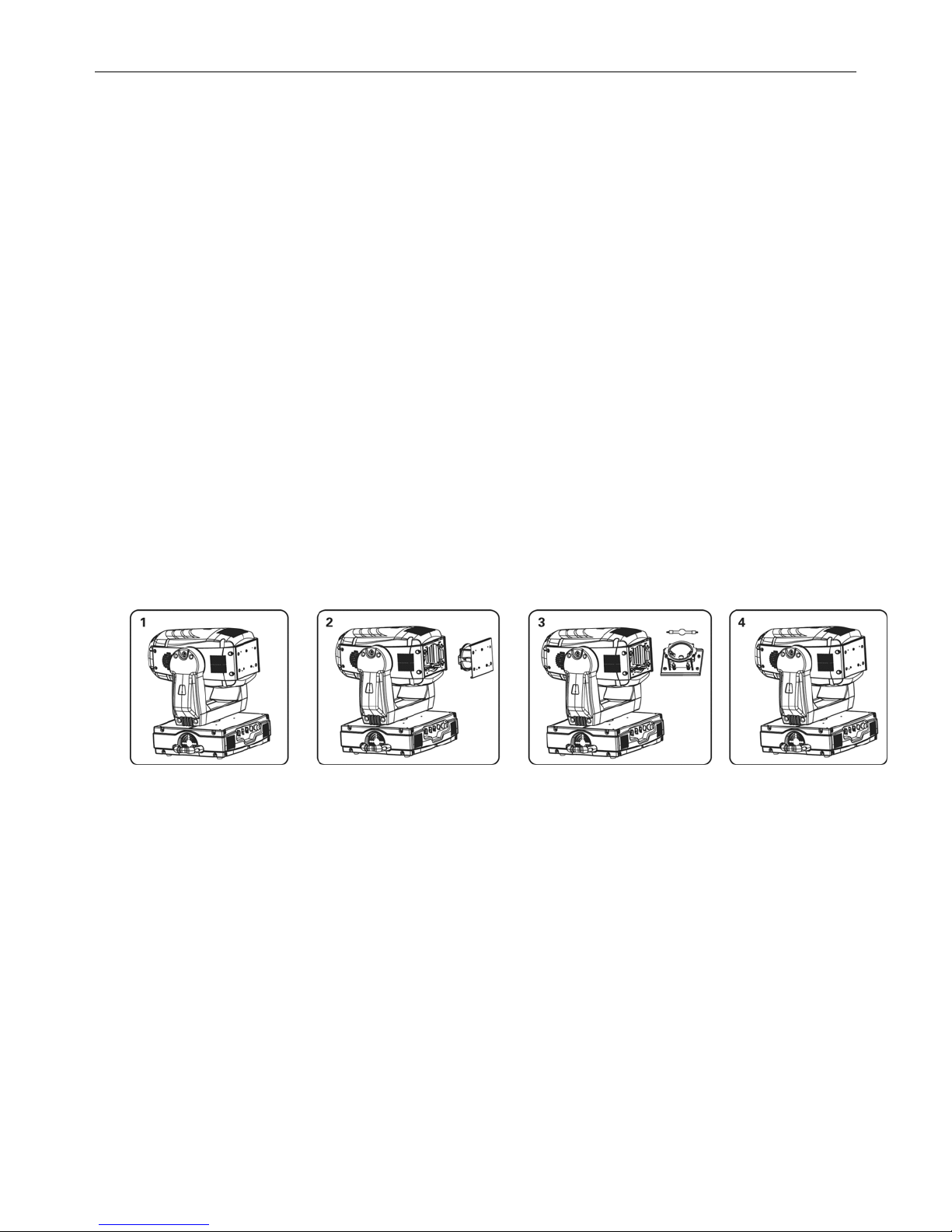

4. Insert the new lamp securely, locking the lamp in place as illustrated in the diagram
on the next page. Orientate the lamp filler tube towards the backside of the reflector.
Before reassembling the unit, be sure the new lamp is securely seated in the lamp
socket. Always be sure to only use specified lamp types! (MSR 575 SA/2 DE lamp or
equivalent).

Design Spot 575E™
©Elation Professional® 11
Design Spot 575E™
OK NO

5. Once the lamp has been inserted into the socket, gently slide the socket assembly
back into place and secure with the four retaining screws.
6. Reset the lamp run time in the system menu.
7. Always be sure to optimize the lamp after lamp replacement.
Do not operate this device with open cover
Lamp Optimization
The lamp orientation and optimization must be adjusted after every lamp change. This
procedure centers the lamp in the reflector. Proper optimization will increase lamp life and
ensure a bright, crisp, and even output. Improper optimization may add a yellow tint to the
lamp output and reduce intensity. The minimum deviation amount is 1.0mm. Running the
fixture within a lower deviation can cause damage to the lamp and/or lens.
The Design Spot 575E™ lamp holder is aligned at the factory. However, due to slight
imperfections in all lamps, fine adjustments will improve light performance. Please follow the
procedure below for proper lamp optimization:
1. Using either a DMX controller or the control panel on the unit (see “SPOT” in the
fixture menu on page 33), strike the lamp and focus the light on a flat surface (beam
open, white, no gobo, no effect).

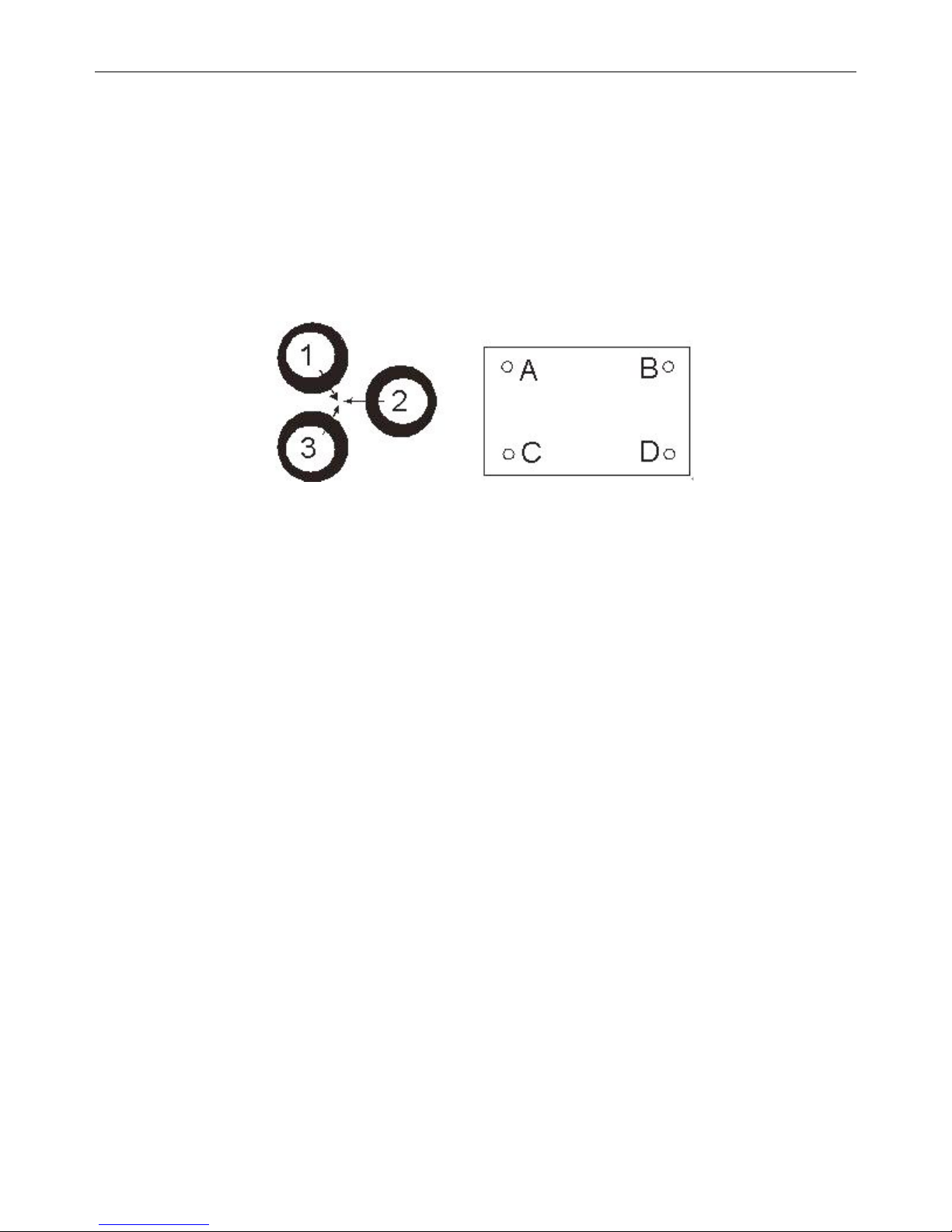

2. Center the hot-spot (the brightest part of the beam) using the 3 adjustment screws
labeled 1, 2, and 3 as illustrated on the next page. Turn one screw at a time to drag
the hot-spot diagonally across the projected image. If you cannot detect a hot-spot,
adjust the lamp until the light is even.

Design Spot 575E™
©Elation Professional® 12
Design Spot 575E™
3. To reduce a hot-spot, pull the lamp in by turning all three screws clockwise a 1/4-turn
at a time until the light is evenly distributed.
4. If the light is brighter around the edge than it is in the center, or if light output is low,
the lamp is too far back in the reflector. "Push” the lamp out by turning each of the
adjustment screws ("1, 2, 3”) counterclockwise turn until the light is bright and evenly
distributed.
Please remember that a MSR 575 SA/2 DE lamp is not a hot-restrike lamp therefore, you
must wait approximately 15 minutes before you can attempt to strike the lamp once it has
been turned off.

Design Spot 575E™
©Elation Professional® 13
Design Spot 575E™
6. MOUNTING AND INSTALLATION
Cautions:
For added protection mount the fixtures in areas outside walking paths, seating areas, or in
areas were the fixture might be reached by unauthorized personal.
Before mounting the fixture to any surface, make sure that the installation area can hold a
minimum point load of 10 times the device’s weight.
Fixture installation must always be secured with a secondary safety attachment, such as an
appropriate safety cable.
Never stand directly below the device when mounting, removing, or servicing the fixture.
Before taking into operation for the first time,
the installation has to be approved by an expert.
When installing the device, make sure there is no highly
inflammable material within a distance of min. 0,5m
Mounting
The DESIGN SPOT 575E™ is fully operational in two different mounting positions, hanging
upside-down from a ceiling, or set on a flat level surface (see illustration on next page). Be
sure this fixture is kept at least 0.5m away from any flammable materials (decoration etc.).
Always use and install the supplied safety cable as a safety measure to prevent accidental
damage and/or injury in the event the clamp fails.
Refer to regulations BGV C1 (formerly VBG 70) and DIN VDE0711-217
for proper installation in Europe To ensure proper installation, only
qualified staff should attempt installation.

Design Spot 575E™
©Elation Professional® 14
Design Spot 575E™
Mounting points
Overhead mounting requires extensive experience, including amongst others calculating
working load limits, a fine knowledge of the installation material being used, and periodic
safety inspection of all installation material and the fixture. If you lack these qualifications, do
not attempt the installation yourself. Improper installation can result in bodily injury.
CAUTION!
Be sure all electrical connections are performed by a qualified
electrician.
Be sure to complete all rigging and installation procedures before connecting the main
power cord to the appropriate wall outlet.
Clamp Mounting
The Design Spot 575E™ provides a unique mounting bracket assembly that integrates the
hanging yoke as well as the safety cable rigging point in one unit (see the illustration below).
When mounting this fixture to truss be sure to secure an appropriately rated clamp to the
hanging yoke using a M10 screw fitted through the center hole of the hanging yoke. As an

Design Spot 575E™
©Elation Professional® 15
Design Spot 575E™
added safety measure be sure to attached at least one properly rated safety cable to the
fixture using on of the safety cable rigging point integrated in the bracket assembly
Securing the DESIGN SPOT 575E™
Regardless of the rigging option you choose for your Design Spot 575E™ always be sure to
secure your fixture with a safety cable. The fixture provides a built-in rigging point for a
safety cable on the hanging bracket as illustrated above. Be sure to only use the designated
rigging point for the safety cable and never secure a safety cable to a carrying handle.

Design Spot 575E™
©Elation Professional® 16
Design Spot 575E™
7.UNDERSTANDING DMX
DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used by most
lighting and controller manufactures as a form of communication between intelligent fixtures
and controllers. A DMX controller sends DMX data instructions from the controller to the
fixture. DMX data is sent out as serial data that travels from fixture to fixture via the DATA
“IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have
a DATA “OUT” terminals). DMX Linking: DMX is a language allowing all makes and models
of different manufactures to be linked together and operate from a single controller, as long
as all fixtures and the controller are DMX compliant. To ensure proper DMX data
transmission, when using several DMX fixtures try to use the shortest cable path possible.
The order in which fixtures are connected in a DMX line does not influence the DMX
addressing. For example; a fixture assigned a DMX address of 1 may be placed anywhere in
a DMX line, at the beginning, at the end, or anywhere in the middle. Therefore, the first
fixture controlled by the controller could be the last fixture in the chain. When a fixture is
assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address
1 to that fixture, no matter where it is located in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX and Master/Slave Operation): The
Design Spot 575E™ can be controlled via DMX-512 protocol. The Design Spot 575E™ is a
24 channel DMX fixture. The DMX address is set electronically using the controls on the
LCD menu. Your fixture and your DMX controller require a standard 3-pin or 5-pin XLR
connector for data input and data output (Figure below is of a 3-Pin XLR connector). If you
are making your own cables, be sure to use standard two conductor shielded cable (This
cable may be purchased from your Elation dealer or at most professional lighting retailers).
Your cables should be made with a male and female XLR connector on either end of the
cable. Also, remember that DMX cable must be daisy chained and cannot be split. unless you
are using an approved DMX splitter such as the Elation Opto Branch 4™ or DMX
Branch/4™.

Design Spot 575E™
©Elation Professional® 17
Design Spot 575E™
Be sure to follow the pin configuration chart below when making your own cables. Do not
use the ground lug on the XLR connector. Do not connect the cable’s shield conductor to the
ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
Grounding the shield could cause a short circuit and erratic behavior.

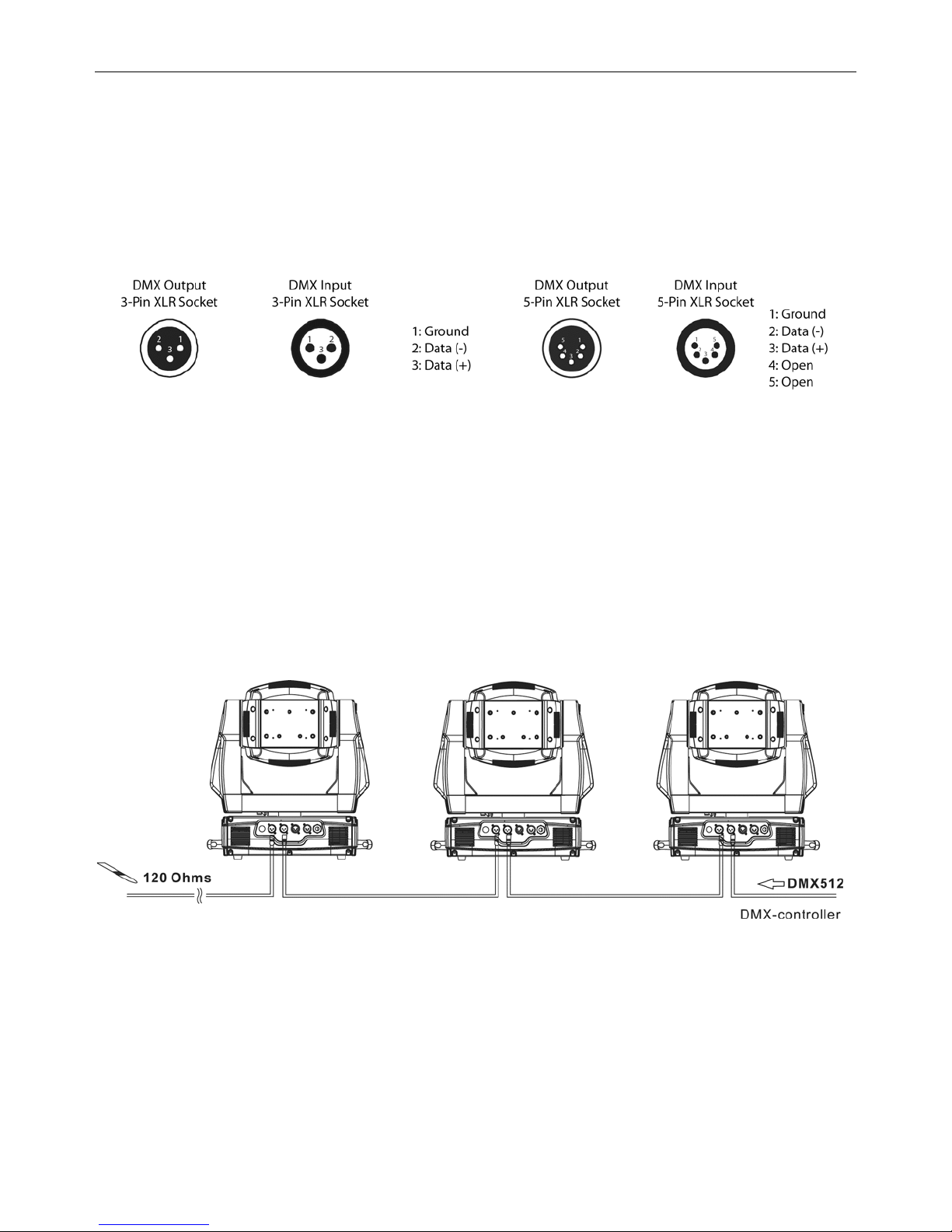

DMX-512 control connection
Connect the provided XLR cable to the female 3-pin XLR output of your controller and the
other side to the male 3-pin XLR input of the moving head (Please refer to the diagram
below.). You can chain multiple moving heads together through serial linking. Always be
sure daisy chain your in and out data connections, never split or “Y” your DMX connections
unless you are using an approved DMX splitter such as the Elation Opto Branch 4™ or DMX
Branch/4™.
DMX-512 connection with DMX terminator
When longer runs of cable are used, you may need to use a terminator on the last fixture to
avoid erratic behavior. A terminator is a 90-120 ohm 1/4 watt resistor that is connected
between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This fixture is inserted
in the female XLR connector of the last fixture in your daisy chain to terminate the line. Using

Design Spot 575E™
©Elation Professional® 18
Design Spot 575E™
a cable terminator (Elation part number Z-DMX/T) will decrease the possibilities of erratic
behavior.
Fixture DMX addressing;
All fixtures should be given a DMX starting address when using a DMX controller, so the
correct fixture responds to the correct control signal. This digital starting address is the
channel number from which the fixture starts to “listen” to the digital control information sent
out from the DMX controller. The allocation of this starting DMX address is achieved by
setting the correct DMX address on the digital display located on the head of the fixture.
You can set the same starting address for all fixtures or a group of fixtures, or set different
address for each individual fixture. Be advised that setting all you fixtures to the same DMX
address will subsequently control all fixtures in the same fashion, in other words, changing
the settings of one channel will affect all the fixtures simultaneously.
If you set each fixture to a different DMX address, each unit will start to “listen” to the
channel number you have set, based on the quantity of control channels (DMX channels) of
each fixture. That means changing the settings of one channel will only affect the selected
fixture.

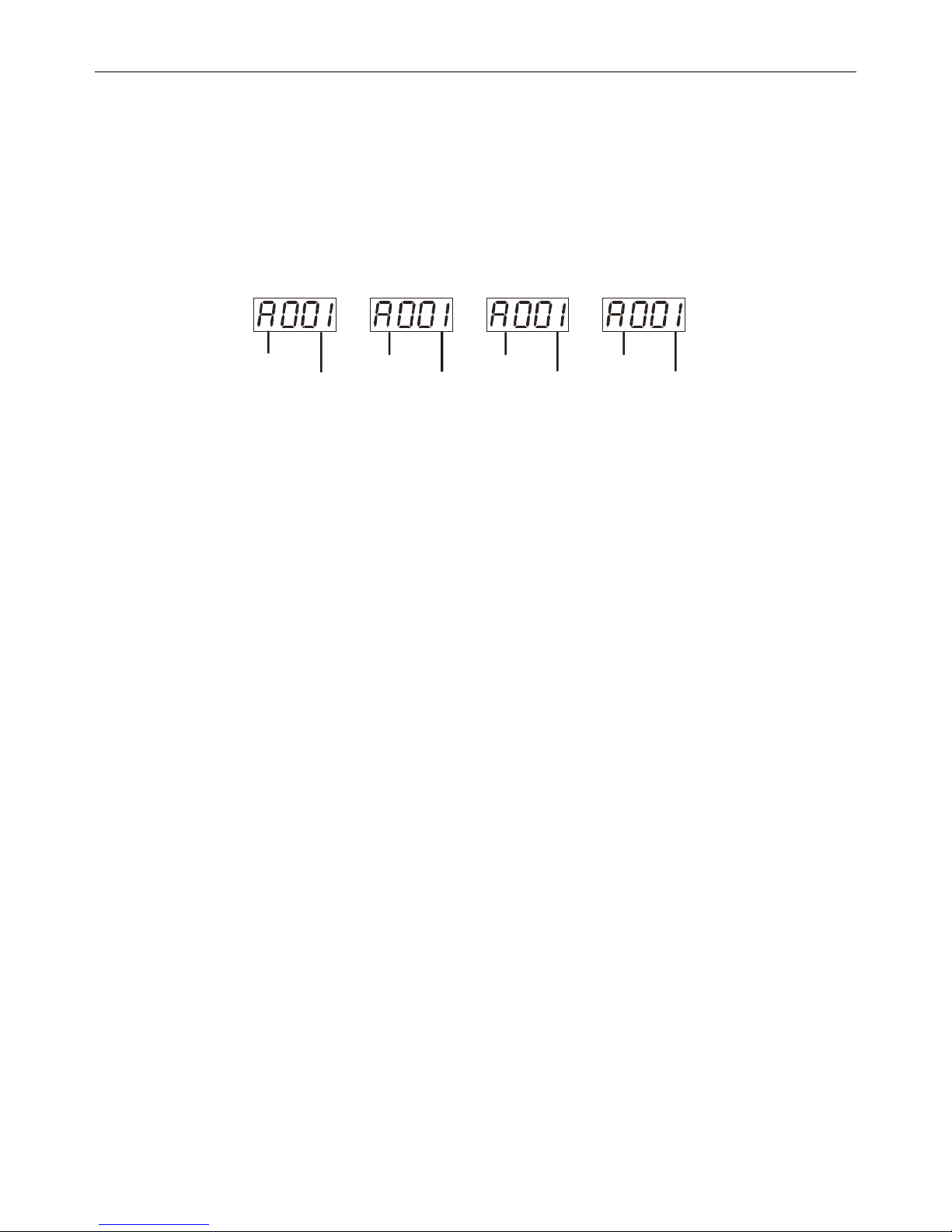

In the case of the Design Spot 575E™, which is a 24 channel fixture, you should set the
starting DMX address of the first unit to 1, the second unit to 25 (24 + 1), the third unit to 49
(24 + 25), and so on.
Note: During start-up the Design Spot 575E™ will automatically detect whether a DMX data
signal is being received or not. If DMX data signal is being received, the display will show
"A.XXX" (XXX representing the actual DMX address). If the fixture is not receiving a DMX

Design Spot 575E™
©Elation Professional® 19
Design Spot 575E™
signal the display will flash "A.XXX" (XXX representing the actual DMX address).
If your fixture is connected to a DMX controller and the display is flashing (not receiving a
DMX signal), please check the following:
- The 3 PIN XLR plug (cable with DMX signal from controller) is not connected or is not
inserted completely into the DMX input jack.
-The DMX controller is switched off or defective.
-The DMX cable or connector is defective.
-A DMX terminator has been inserted into the last fixture in your DMX chain.

Design Spot 575E™
©Elation Professional® 20
Design Spot 575E™
8. Display LED Indicators.
The Design Spot 575E™ has two LED indicators on the display. These indicators are
designed to give a quick visual indication of the fixtures’ status. The illustration below details
the functionality of the LED indicators.
... .
Lamp on Lamp on
DMX OK DMX OK
NO DMX NO DMX
Lamp off Lamp off
The first LED indicators represents DMX signal:
• If the indicators is on a clean DMX signal is present
• If the indicator is off there is no DMX signal present
The second LED indicator represents lamp condition:
• If the indicator is on the lamp is struck and in working condition
• If the LED indicator is off the lamp has not struck, has been turned off, or is bad.
