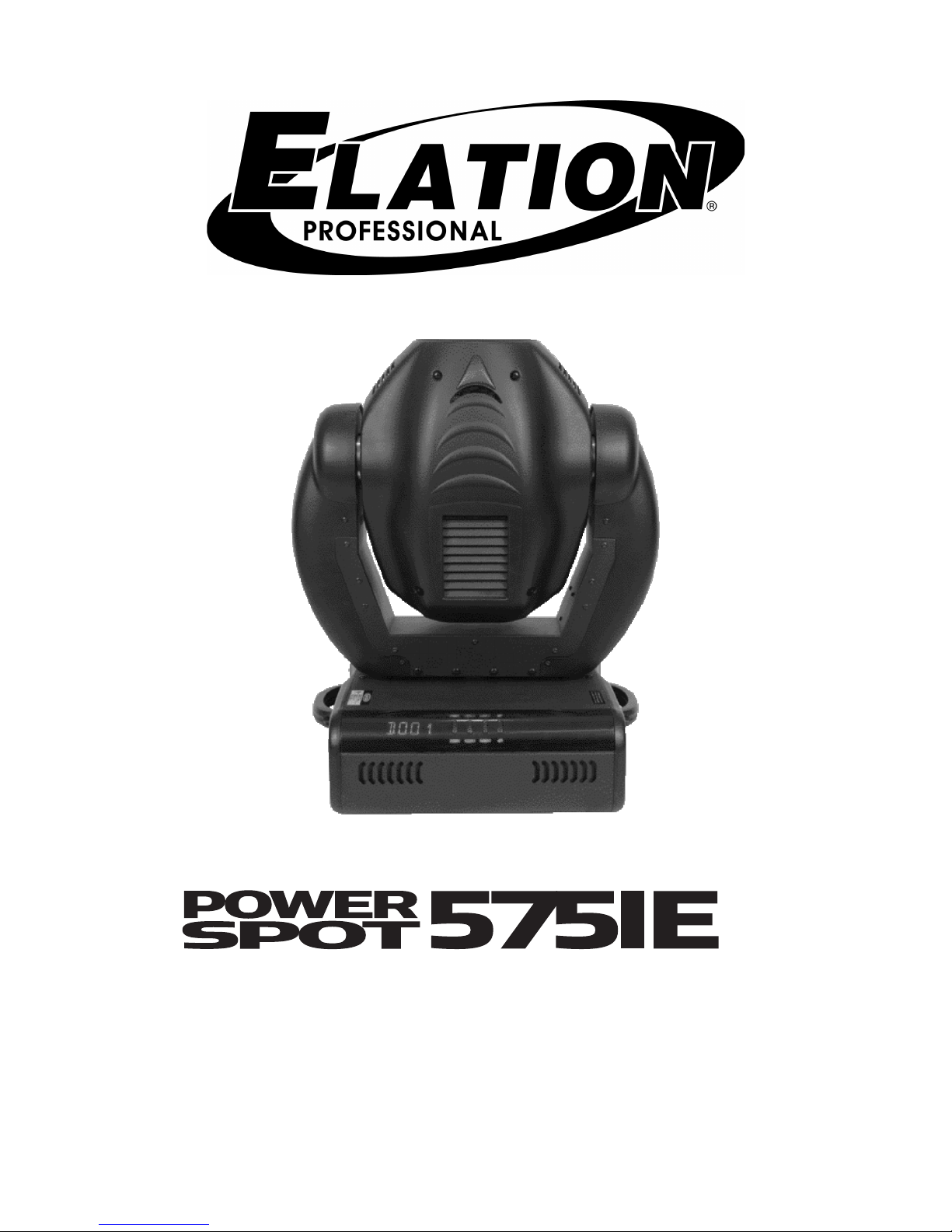

Power Spot 575IE II™
©Elation Professionals® Los Angeles, Ca. - wwww.ElationLighting.com - Page 2
2/26/2008

Power Spot 575IE II™
©Elation Professionals® Los Angeles, Ca. - wwww.ElationLighting.com - Page 3
CONTENTS
1. General Information………………………………………………………………………3
a. Introduction……………………………………………………………………….3
b. Unpacking………………………………………………………..…………..….. 3
c. Customer Support…………………………………………….………………… 3
d. Warranty Registration……………………………………………………..…….4
e. Discharge Lamp Warning……………………………………………………….4
2. Safety Instructions………………………………………………………........…………. 7
3. Fixture Layout……………………………………………………………………….........8
4. Mounting and Installation………………………………………………………….……. 11
a. Mounting Positions……………………………………………………………… 11
b. Mounting Points………………………………………………………………….12
c. Securing…………………………………………………………………………..12

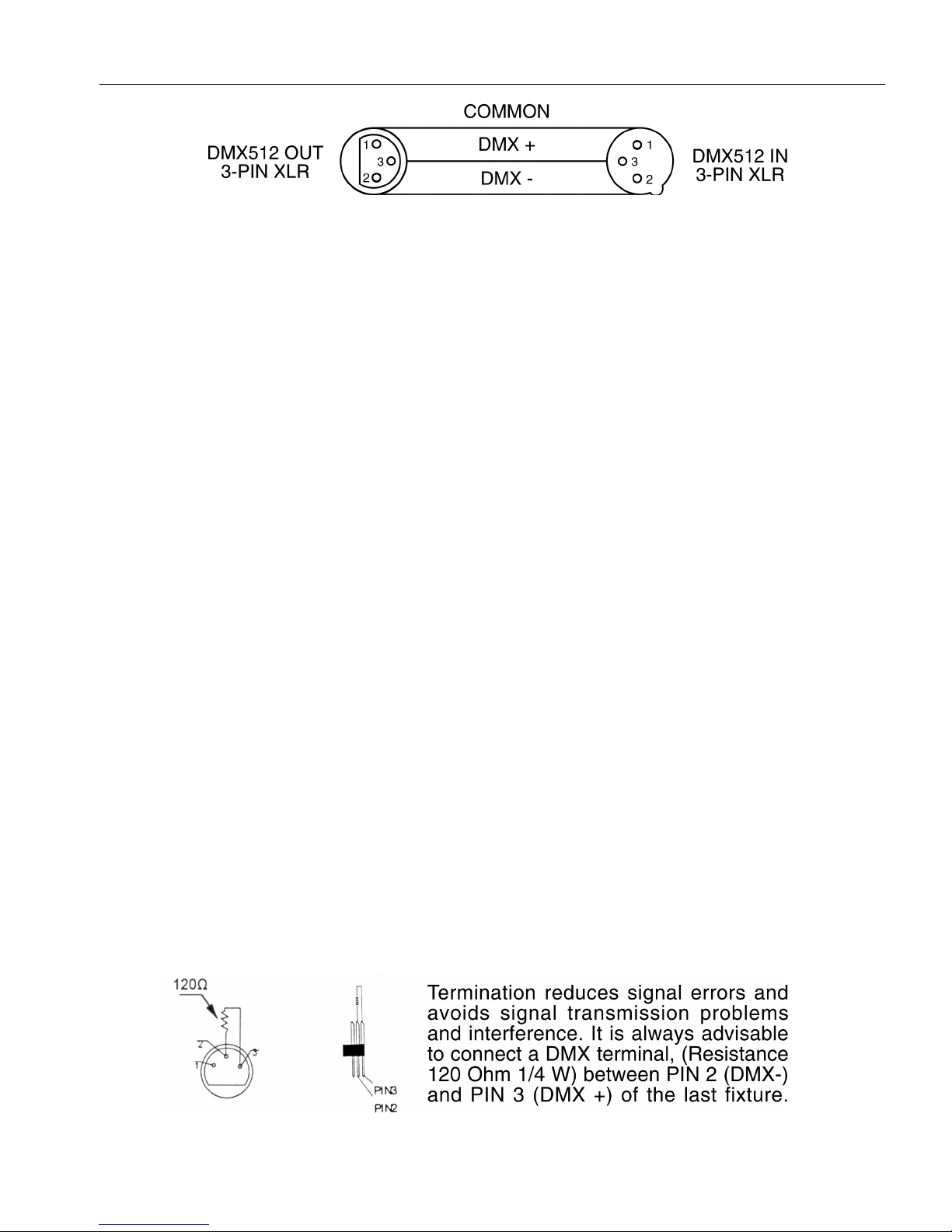

5. Understanding DMX……………………………………………………………………...14
a. DMX Cable Requirements……..………………………………………………. 14
b. DMX Terminator………………………………………………………………….16
c. 3-Pin to 5-Pin Conversion……………………………………………………….16
d. DMX Addressing…………………………………………………………………16
6. Fixture Menu………………………………………………………………………………18
a. Menu functions………………………………………………………………….. 19
7. Operation......….……………………………………………………………................... 28
8. DMX Channel Values……………………………………………………………........... 30
9. Lamp Replacement ……………………………………………………………………...35
10. Fuse Replacement.................................................................................................. 37
11. Replacing Gobos ..………………………………………………………………........... 38
12. Maintance and Cleaning…………………………………………………………………40
13. Technical Specifications…………………………………………...………….…………42
14. Warranty …………………………………………...………….……….......................…43
15. Dimensional Drawings………………………………………………….………………..45

Power Spot 575IE II™
©Elation Professionals® Los Angeles, Ca. - wwww.ElationLighting.com - Page 4
1. GENERAL INFORMATION
INTRODUCTION: Congratulations, you have just purchased one of the most innovative
and reliable lighting fixtures on the market today! The Power Spot 575IE II,™ has been
designed to perform reliably for years when the guidelines in this booklet are followed.
Please read and understand the instructions in this manual carefully and thoroughly before
attempting to operate this unit. These instructions contain important information regarding
safety during use and maintenance.
UNPACKING: Thank you for purchasing the Power Spot 575IE II™ by Elation
Professional®. Every Power Spot 575IE II™ has been thoroughly tested and has been
shipped in perfect operating condition. Carefully check the shipping carton for damage that
may have occurred during shipping. If the carton appears to be damaged, carefully inspect
your unit for damage and be sure all accessories necessary to operate the unit have
arrived intact. In the event damage has been found or parts are missing, please contact
our customer support team for further instructions. Please do not return this unit to your
dealer without first contacting customer support at the number listed below.
CUSTOMER SUPPORT: Elation Professional®provides a customer support line, to
provide set up help and to answer any question should you encounter problems during
your set up or initial operation. You may also visit us on the web at
www.elationlighting.com for any comments or suggestions. For service related issue
please contact Elation Professional®. Service Hours are Monday through Friday 9:00 a.m.
to 5:00 p.m. Pacific Standard Time.
Voice: [phone]
Fax: [phone]
E-mail: [email protected]
Forum: www.ElationLighting.com/forum
Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit to
rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs

Power Spot 575IE II™
©Elation Professionals® Los Angeles, Ca. - wwww.ElationLighting.com - Page 5
yourself, doing so will void your manufactures warranty.
Please do not discard the shipping carton in the trash. Please recycle whenever possible.
WARRANTY REGISTRATION: The Power Spot 575IE II™ carries a two year (730 days)
limited warranty. Please fill out the enclosed warranty card to validate your purchase. All
returned service items whether under warranty or not, must be freight pre-paid and
accompany a return authorization (R.A.) number. The R.A. number must be clearly written
on the outside of the return package. A brief description of the problem as well as the R.A.
number must also be written down on a piece of paper and included in the shipping
container. If the unit is under warranty, you must provide a copy of your proof of purchase
invoice. Items returned without a R.A. number clearly marked on the outside of the
package will be refused and returned at customer’s expense. You may obtain a R.A.
number by contacting customer support at [phone].
DISCHARGE LAMP WARNING: This fixture is fitted with a discharge
lamp, which is highly susceptible to damage if improperly handled.
Never touch the lamp with your bare hands, as the oil from your
hands will shorten lamp life. Also, never move the fixture until the
lamps have had ample time to cool. Remember, lamps are not
covered under warranty conditions.
UV RADIATION: This fixture emits intense UV radiation, which is harmful to the eyes and
skin. The intense luminance of the lamp can cause severe damage to the retina. Never
operate this fixture with the protective covers removed, these covers have been specially
designed to shield against UV radiation.
Epileptic Warning: Those suffering from epilepsy should avoid looking directly into the
lamp at all times.
Avoid switching the fixture on and off repeatedly in short intervals, as this will reduce lamp

Power Spot 575IE II™
©Elation Professionals® Los Angeles, Ca. - wwww.ElationLighting.com - Page 6
life and intensity.
To achieve the intensity associated with discharge lamps, these lamps use a gas sealed in
a high-pressure environment to emit a brilliant output. Due to the high pressure involved
with the construction of the lamp, the lamp may explode during prolonged extensive use.
This risk is increased with age; added care is encouraged when dealing with older lamps.
Thus, lamp should always be replaced at the end of their recommended duty cycle.
Extreme caution should be used when operated this or any fixture fitted with a gas
discharge lamp.
Never open this fixture while in use!
During the initial operation of this fixture, a light smoke or smell may emit from the interior
of the fixture. This is a normal process and is caused by excess paint in the interior of the
casing burning off from the heat associated with the lamp and will decrease gradually over
time.
This device falls under protection-class 1. Therefore it is essential that the device be
grounded properly.
All electrical connections must performed by qualified personal.
Be sure the power cord is never crimped or damaged. If the power cord is damaged,
replace it immediately with a new one of similar power rating.Always disconnect from main
power before performing any type of service or any cleaning procedure. Only handle the
power cord by the plug. Never pull out the plug by tugging the wire portion of the cord.
Please be aware that damages caused by manual modifications to the device are not
subject to warranty.

Power Spot 575IE II™
©Elation Professionals® Los Angeles, Ca. - wwww.ElationLighting.com - Page 7
2. SAFETY INSTRUCTIONS
The Power Spot 575IE II™ is an extremely sophisticated piece
of electronic equipment. To guarantee a smooth operation, it is
important to follow the guidelines in this manual. The
manufacturer of this device will not accept responsibility for
damages resulting from the misuse of this fixture due to the
disregard of the information printed in this manual.
1. Always be sure that the fan and the air inlets remain clean and are never
blocked. Allow about 6” (15cm) between this fixture and other devices or a wall to
allow for proper cooling.
2. Never touch the fixture during normal operation. This can cause severe personal
injuries and/or damage to the fixture.
3. Be sure to unplug the Power Spot 575IE II™ from the power outlet before
performing any service related issues.
4. Lamp Replacement; Allow at least 30 minutes after disconnecting main power
before you open the Power Spot 575IE II™. To prevent personal injury, never
touch the lamp if you are not absolutely sure it has cooled.
5. Never look directly into the lamp beam. You risk injury to your retina, which may
induce blindness.
6. Be sure to track and record the lamp running time. The lamp should be changed
at the end of the specified lamp life, regardless of lamp output. You may also
have to change the lamp if it shows any deformations or damage. The same is
with all glass components, color filters, lenses and mirrors.
7. For safe operation, follow the Installation guide described in chapter two of this
manual. Operating the Power Spot 575IE II™ without suited safety aids such as
safety cables or clamps can increase the risk of damage and/or personal injury.
8. Installation should only be performed by qualified and certified personal.
9. When mounting this fixture, use only the original rigging parts included with this

Power Spot 575IE II™
©Elation Professionals® Los Angeles, Ca. - wwww.ElationLighting.com - Page 8
fixture. Any structural modification will void the original manufactures warranty
and may increase the risk of damage and/or personal injury.
10. To reduce the risk of fire or shock, do not expose this fixture to rain or moisture.
11. Do not attempt to operate this fixture if the power cord has become damaged or
frayed.
Important Notice: Damages resulting from the disregard of safety and general user
instructions found in this user manual are not subject to any warranty claims.
A ttention: Lasers of class 3R may
injure your retina after a short resi-
dence time even without any optical
instrument. A v oid any direc t ex -
pos ure of y our ey es !

Power Spot 575IE II™
©Elation Professionals® Los Angeles, Ca. - wwww.ElationLighting.com - Page 9
3. Fixture Layout
1. Lens Assembly
2. DMX Input Jack
3. DMX Output Jack
4. Microphone Sensitivity
Adjustment Knob
5. Firmware Connection
6. Internal Cooling Fan
7. Base
8. Retaining Arm
9. Lamp Fuse Holder
10.Electronics Fuse Holder
11.Powercon Connector
12.Power Switch
13.Carrying Handle
14.4-Segment Menu Display
15.Mode Select Button
16.Enter Select Button
17.Down Select Button
18.Up Select Button
1
3
5
4
2
6
8
6
13
11
9
10
12
14
15
16
17
18
7

Power Spot 575IE II™
©Elation Professionals® Los Angeles, Ca. - wwww.ElationLighting.com - Page 10
1. Lens Assembly - This high quality lens is a fully focusing. Focus the lens by
manually turning the lens in a clockwise or counter-clockwise direction until the
desired effect is achieved.
2. DMX Input Jack – This 3-Pin XLR jack is used to receive an incoming DMX signal.
3. DMX Output Jack – This 3-Pin XLR jack is used to send an outgoing DMX signal.
For best results this jack should be terminated if it is the last fixture in a DMX
daisy-chain (see termination on page 14).
4. Microphone Sensitivity Adjustment Knob – This knob is used to adjust the frequency
sensitivity of the internal microphone when operating in “audio” mode. When the
knob is turned counter-clockwise the unit is less sensitive to sound. When the
knob is turned clockwise the unit is more sensitive sound.
5. Firmware Connection – This connection is designed to be used solely by an
authorized technician to upgrade the operating software and to test the fixture.
6. Internal Cooling Fan – This fixture is equipped with two high-velocity variable
speed fans mounted in the base to aid in the cooling process. These fans are
designed to vary their velocity at different operating temperatures. When the
fixture reaches a predetermined internal operating temperature the fans function
at high speeds. The higher speeds provide better cooling associated with higher
operating temperatures during long use. When the fixture is operating at a lower
temperature the fans operate at low speed. Be sure to keep all vents clean,
blocked cooling vents can shorten lamp life and reduce the fixtures reliability.
For more information on the fan functions see page 23, section 3.9.7.
7. Base – The main base holds the majority of the electronics and logic boards. The
base also provides a means to securely mount the fixture to the floor or ceiling.
8. Retaining Arm – These arm hold the head in place and provide a means of tilt
movement. These arms also provide a conduit for all the electronics traveling
from the base to the head.
9. Lamp Fuse Holder – This housing holds a 8A/250V GMA fuse. Never defeat this
fuse, this fuse is designed to protect the lamp in the event of severer power
fluctuations. In the event of fuse failure, always be sure to replace this fuse with
an exact match unless otherwise instructed by an authorized Elation technician.
10.Electronics Fuse Holder – This housing holds a 1A/250V GMA fuse. Never defeat
this fuse, this fuse is designed to protect the electronics in the event of severer
power fluctuations. In the event of fuse failure, always be sure to replace this

Power Spot 575IE II™
©Elation Professionals® Los Angeles, Ca. - wwww.ElationLighting.com - Page 11
fuse with an exact match unless otherwise instructed by an authorized Elation
technician.
11.Powercon Connector – This power jack is designed to be used only with the Neutrik
Powercon adapter included with your fixture. This jack provides main power to
your fixture.
12.Power Switch – The switch is used to control main power to fixture’s electronics.
13.Carrying Handle – The fixtures includes two built-in carrying handles. Be sure to
always handle the fixture by the built-in carrying handles. Never lift or carry the
fixture by the head or retaining arms as this could cause serious damage to the
fixture and void your manufactures warranty.
14.4-Segment Menu Display – This display details menu functions.
15.Mode Select Button – This button is used to access the fixture’s main system menu
and on-board programming functions.
16.Enter Select Button – This button is used to select and confirm a menu function
when working in the fixture’s operating system.
17.Down Select Button – This button is used to scroll backwards when navigating
through the system menu.
18.Up Select Button - This button is used to scroll forward when navigating through
the system menu.

Power Spot 575IE II™
©Elation Professionals® Los Angeles, Ca. - wwww.ElationLighting.com - Page 12
4. MOUNTING AND INSTALLATION
Mounting
The POWER SPOT 575IE™ is fully operational in two different mounting
positions, hanging upside from a ceiling or set on a flat level surface. To avoid
internal damage to the unit, never mount the unit on its side as illustrated below.
Be sure this fixture is kept at least 0.5m away from any flammable materials
(decoration etc.). Install a safety cable that can hold at least 10 times the weight of
the fixture. Never use the carrying handles for secondary attachment.
R efer to regulations B G V C 1 (form erly VB G 70) and D IN VD E
0711-217 for proper ins tallation in E urope
To ens ure proper ins tallation, only qualified s taff s hould attem pt
ins tallation.
Clamps
The PO WE R SP O T 575IE ™ has been designed to hold multiple clamps to
the bottom of the unit in several different orientations. Always use an
appropriately rated clamp to mount this unit to truss. Refer to the printed
instructions on the bottom of the fixture for proper clamp installation.
a) C am loc k S y s tem : This system allows a quick and efficient means to
secure a clamp to the unit. To attach a clamp to the unit, attach a clamp

Power Spot 575IE II™
©Elation Professionals® Los Angeles, Ca. - wwww.ElationLighting.com - Page 13
that is rated to handle the weight of the unit to your cam lock. After a
clamp has been attached to the cam lock, attach the cam locks to the
designated position on the bottom of your unit. Lock the cam locks into
position by turning the wing nuts 90°.
90°
b) Be sure to always use two cam locks mounted to the bottom of unit to
ensure safe truss mounting (each two opposite threads max. M10x20).
4x M10x20mm
4x Camlock
Secure the POWER SPOT 575IE II™
Regardless of the rigging option you choose for your PO WE R SPO T 575IE II™
always be sure to secure your fixture with a safety cable. The fixture provides a
built-in rigging point for a safety cable on the underside of the fixture, be sure to
use this point and never secure a safety cable to a carrying handle.

Power Spot 575IE II™
©Elation Professionals® Los Angeles, Ca. - wwww.ElationLighting.com - Page 14
Connections
Power s upply
• Electronic ballast with: 90~260 Volts, 50~60 Hz,
• Grounded contact type plug – Neutrik Powercon
• Connected load 780W <=> 3.8A (blind current compensation).
NOTE: The universal power supply will accept any voltage source as
detailed above without any type of internal or user modifications.
D MX -512
3-Pin XLR Input/Output. [+] = Pin 3 / [-] = Pin 2 / [Ground] = Pin 1
Fus e R equirem ents
The PO WE R S PO T 575IE electronic and lamp systems are protected by two GMA
(5x20mm) external fuses:
Lamp: 250V/8A
Electronics: 250V/1A
The fuse requirements are clearly printed on the side of the fixture.
WA R N IN G :
•A lway s dis c onnec t m ain power before c hanging the fus e!
•A lway s replac e with the ex ac t s am e ty pe fus e unles s otherwis e s pec ified
by an authorized E lation®s erv ic e tec hnic ian. R eplac ing with any thing
other than the s pec ified fus e c an s ev erely dam age y our fix ture and will
v oid y our m anufac tures warranty .
Transportation and Handling
The PO WE R SPO T 575IE ™comes with two carrying handles built into the base.
Always transport the fixture by these handles. Never lift or carry the P O WE R S PO T
575IE ™ by the yoke (head assembly) this can seriously damage the unit.

Power Spot 575IE II™
©Elation Professionals® Los Angeles, Ca. - wwww.ElationLighting.com - Page 15
5. UNDERSTANDING DMX
DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used by most
lighting and controller manufactures as a form of communication between intelligent
fixtures and controllers. DMX allows all makes and models of different manufactures to be
linked together and operate from a single controller. This is possible as long as all the
fixtures and the controller are DMX compliant. A DMX controller sends the DMX data
instructions to the fixture allowing the user to control the different aspects of an intelligent
light. DMX data is sent out as serial data that travels from fixture to fixture via data “IN” and
data “OUT” XLR terminals located on the fixtures (most controllers will only have output
jacks).
DMX Linking: To ensure proper DMX data transmission always use proper DMX cables
and a terminator. When using several DMX fixtures try to use the shortest cable path
possible. Never split a DMX line with a “Y” style connector. The order in which the fixtures
are connected in a DMX line does not influence the DMX addressing. For example; a
fixture assigned a DMX address of 1 may be placed anywhere in the DMX chain, at the
beginning, at the end, or anywhere in the middle. The DMX controller knows to send data
assigned to address 1 to that fixture no matter where it is located in the DMX chain. The
Power Spot 575IE II™ can be controlled via DMX-512 protocol. The Power Spot 575IE II™
is a 16-channel DMX fixture. The DMX address is set electronically using the controls on
the LCD menu.
Data Cable (DMX Cable) Requirements (For DMX and Master/Slave Operation): Your
fixture and your DMX controller require a standard 3-pin XLR connector for data input and
data output (the figure on the next page is of a 3-Pin XLR connector). If you are making
your own cables, be sure to use two conductor shielded digital DMX cable rated at 120
ohms; this cable is designed for DMX transmission and may be purchased from your
Elation dealer or at most professional lighting retailers. Your cables should be made with a
male and female XLR connector on either end of the cable. Also, remember that a DMX
line must be daisy chained and cannot be split, unless using an approved DMX splitter such
as the Elation Opto Branch 4™ or DMX Branch/4™.

Power Spot 575IE II™
©Elation Professionals® Los Angeles, Ca. - wwww.ElationLighting.com - Page 16
Be sure to follow the above figure when making your own cables. Do not use the
ground lug on the XLR connector. Do not connect the cable’s shield conductor to the
ground lug or allow the shield conductor to come in contact with the XLR’s outer
casing. Grounding the shield could cause a short circuit and erratic behavior.
DMX-512 control connection
Connect the provided XLR cable to the female 3-pin XLR output of your controller and the
other side to the male 3-pin XLR input of the moving head. You can chain multiple moving
heads together through serial linking. The cable needed should be two conductor, shielded
cable with XLR input and output connectors. Always be sure daisy chain your in and out
data connections, never split or “Y” your DMX connections unless you are using an
approved DMX splitter such as the Elation Opto Branch 4™ or DMX Branch/4™.
DMX-512 connection with DMX terminator
A DMX terminator should be used in all DMX lines especially in longer runs. The use of a
terminator may avoid erratic behavior in your DMX line. A terminator is a 120 ohm 1/4 watt
resistor that is connected between pins 2 and 3 of a male XLR connector (DATA + and
DATA -). This fixture is inserted in the female XLR connector of the last fixture in your
daisy chain to terminate the line. Using a line terminator (Elation part: DMX T PACK) will
decrease the possibilities of erratic behavior.

Power Spot 575IE II™
©Elation Professionals® Los Angeles, Ca. - wwww.ElationLighting.com - Page 17
5-Pin XLR DMX Connectors. Some manufactures use 5-pin XLR connectors for DATA
transmission in place of 3-pin. 5-pin XLR fixtures may be implemented in a 3-pin XLR DMX
line. When inserting standard 5-pin XLR connectors in to a 3-pin line a cable adaptor must
be used, these adaptors are readily available at most electric stores. The following chart
details a proper cable conversion.
Fixture DMX addressing;
All fixtures should be given a DMX starting address when using a DMX controller, so the
correct fixture responds to the correct control signal. This digital starting address is the
channel number from which the fixture starts to “listen” to the digital control information
sent out from the DMX controller. The allocation of this starting DMX address is achieved
by setting the correct DMX address on the digital display located on the head of the fixture.
You can set the same starting address for all fixtures or a group of fixtures, or set different
address for each individual fixture. Be advised that setting all you fixtures to the same
DMX address will subsequently control all fixtures in the same fashion, in other words,
changing the settings of one channel will affect all the fixtures simultaneously.
If you set each fixture to a different DMX address, each unit will start to “listen” to the
channel number you have set, based on the quantity of control channels (DMX channels)
of each fixture. That means changing the settings of one channel will only affect the
selected fixture.

Power Spot 575IE II™
©Elation Professionals® Los Angeles, Ca. - wwww.ElationLighting.com - Page 18
In the case of the Power Spot 575IE II™, which is a 16 channel fixture, you should set the
starting DMX address of the first unit to 1, the second unit to 17 (16 + 1), the third unit to
33 (16 + 17), and so on.
Note: During start-up the Power Spot 575IE II ™ will automatically detect whether a DMX
data signal is being received or not. If DMX data signal is being received, the display will
show "A.XXX" (XXX representing the actual DMX address). If the fixture is not receiving a
DMX signal the display will flash "A.XXX" (XXX representing the actual DMX address).
If your fixture is connected to a DMX controller and the display is flashing (not receiving a
DMX signal), please check the following:
- The 3 PIN XLR plug (cable with DMX signal from controller) is not connected
or is not inserted completely into the DMX input jack.
-The DMX controller is switched off or defective.
-The DMX cable or connector is defective.
-A DMX terminator has been inserted into the last fixture in your DMX chain.

Power Spot 575IE II™
©Elation Professionals® Los Angeles, Ca. - wwww.ElationLighting.com - Page 19
6. FIXTURE MENU
The control panel located on the side of the fixture allows you to access
the main menu and make all necessary adjustments to the POWER
SPOT 575IE II™. During normal operation, tapping the “MODE” key once
will access the fixture’s main menu. Once in the main menu you can
navigate through the different functions and access the sub-menus with
the Up and Down buttons. Once you reach a field that requires
adjusting, tap the ENTER button to activate that field and use the UP and
Down button to adjust the field. Tapping the Enter button once more will
confirm your setting. Once a setting is saved the LED will briefly
readout OK to confirm a new setting has been made and locked into
memory. You may exit the main menu at any time without making any
adjustments by tapping the MODE button.
MODEENTER
UP DOWN
MODE ENTER UPDOWN
UPMODE ENTER DOWN
Display
Level 1
Level 2
Level 3
Remark
D001
Define the DMX start address
TEST
Test program of all functions
AUDI
ASLW
Self-running audio program (slow)
AFST
Self-running audio program (fast)
MSTR
Master for the audio program
SVPT
Basic position for the audio program
SIZE
Size for the audio program (NORM-BIG-MIDL-SMAL)
LAMP
Switch on/of the lamp direct at the Power Spot 575IE
RESE
Reset
TIME
POWR
Running time of the fixture (non destructible)
LA1
Running time of the lamp (erasable)
LA2
Running time of the lamp (non destructible)
RPAN
Reverse Pan-direction
RTLT
Reverse Tilt-direction
SPEC
MANU
Manual control of all device functions
LAAU
Automatic lamp start
DLOF
Switch off lamp via DMX
DMXI
Reed out actual DMX-values
DISP
D ON
Display On/Off
REV
Flip display readout
TEMP
Displays internal temperature
FANS
HIGH
Maximum cooling fan velocity
REG
Automatic cooling fan control
LOOF
Low cooling fan speed lamp off
LOHI
Low cooling fan speed automatic
ADJU
CODE
xxxx
These menu settings are reserved for authorized
technician use only and are protected by a user code.
COLO
Calibration of the color wheel
GOB1
Calibration of gobo wheel 1
GOB2
Calibration of gobo wheel 2
SHTR
Calibration of the shutter
PRIS
Calibration of the prism wheel
IRIS
Calibration of the IRIS
POFS
Calibration of the pan-offset
DOWN - UP 
TOFS
Calibration of the tilt-offset

Power Spot 575IE II™
©Elation Professionals® Los Angeles, Ca. - wwww.ElationLighting.com - Page 20
clre
Clears internal memory (technician only)
ares
Adjust Reset (wheels static after reset)
VTIL
Software version, tilt pc-board
VTR1
Software version, driver board 1
VTR2
Software version, driver board 2
VTR3
Software version, driver board 3
DFSE
Call on the default function values
FEED
Pan/Tilt feedback (error correction) On/Off
EFLG
Correction of faults
6.1 Setting/C hanging the D MX A ddres s
After applying power to the P O WE R S PO T 575IE ™ the LED will display the fixture’s
current DMX address immediately after the reset sequence. If the fixture is not
receiving a DMX signal the display will flash continuously.
D001
To set or adjust a DMX address, please follow the procedure below:
1. Switch on the P O WE R SPO T 575IE ™ and wait for the fixture reset process to
finished ('RESE'will flash in the LED while fixture is in reset mode).
2. Press the Mode button to access the main menu. Toggle through the menu by
pressing the U p and D own buttons until the display shows D001. Tap the enter
button to make changes to the address, the current three digit address will
immediately begin to flash.
3. While the current three-digit address is flashing, use the U p and D own buttons to
select adjust the address. Lock your new address into the unit’s memory by
pressing the E nter button. After the new address has been successfully stored
into the fixture’s memory the LED will briefly readout OK.
The DMX address is non-destructible and will remain in the fixture’s memory even
when the power has been switched off. Memory is backed-up and retained by an
internal power source with a five year shelf life.
6.2 Tes t P rogram
Test
The Tes t Program engages the fixture’s internal test mode. This function runs a
complete test procedure of all functions. Press E nter to launch the self-test or the
Mode button to cancel and return to the main menu.
