Elba EGS-D7402RG(BK) User manual

TABLE GLASS STOVE
MODEL: EGS-D7402RG(BK)
EGS-D7422SG(BK)
Owner’s Manual
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate
Please read this manual carefully before
operating your set.
Retain it for future reference.
Record model number and serial number of
the set.
See the label attached on the set and quote
this information to your dealer when you
require service.

Please read this instruction carefully. It is advisable to keep this
instruction manual in a safe place for future reference.
Please consult qualified service technician or contact the service
centre if you may not solve the problem. Make sure to turn off the
main valve at the gas cylinder.
1. Keep electrical appliances out of reach from children. Do not let
them to operate the appliances without supervision.
2. This product is for household and indoor use only.
3. This product is not intended for use by person (including
children) with reduced physical, sensory or mental capabilities
unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
4. If the ignition knob or any part of the burner has damaged, it
must be replaced by the service centre or a qualified service
technician to avoid hazard.
5. Before installation, check if the gas supply pressure is matched
with the rated pressure stated on the rating plate of the appliance.
Use only the specified type of gas stated on the rating plate.
6. There must be adequate air ventilation of the room when the
product is used.
7. There is a risk of fire if cleaning is not carried out in accordance
with this instruction.
8. Do not touch the stove exterior during or after cooking with bare
hand.
9. Before maintenance, disconnect the appliance from the gas
supply and wait for it to cool down.
10. Do not store or place flammable liquids or items in the vicinity of
this appliance. Do not place the appliance near any flammable
materials.
11. Always shut off the gas supply when the appliance is not in use.
12. Do not use harsh abrasive cleaners or sharp metal scrapers to
clean the appliance as it will scratch the surface, which may result
in shattering of the glass.
SAFETY PRECAUTIONS
TROUBLESHOOTING
CAUSE SOLUTIONISSUE
After the ignition knob is
released, the flame
extinguished.
The burner does not light up.
Uneven flame.
The flame extinguished while
the unit is in use.
Abnormal sound during
combustion.
Smell of gas.
The ignition knob is not turned on
properly. Turn it counter clockwise.
Open the main valve.
Repeat turning it on for
several times.
Clean or dry up. Install the
appliance properly without
bending the rubber hose.
Replace gas cylinder.
Clean the cap.
Replace the rubber hose.
Secure the rubber hose with
the hose clamp.
Mount the burner caps in
place.
Fixed and fit the burner rings
Air is entrapped in the rubber gas
hose.
The ignition spark device is dirty
or wet.
The rubber hose is bent.
Short of gas supply.
The slits in the burner caps are
clogged.
Gas leakage from cracks of
rubber hose.
Loose connection of rubber hose.
The burner caps not mounted
properly.
The burner ring is not in a fixed
position.
6
1

2
5
.

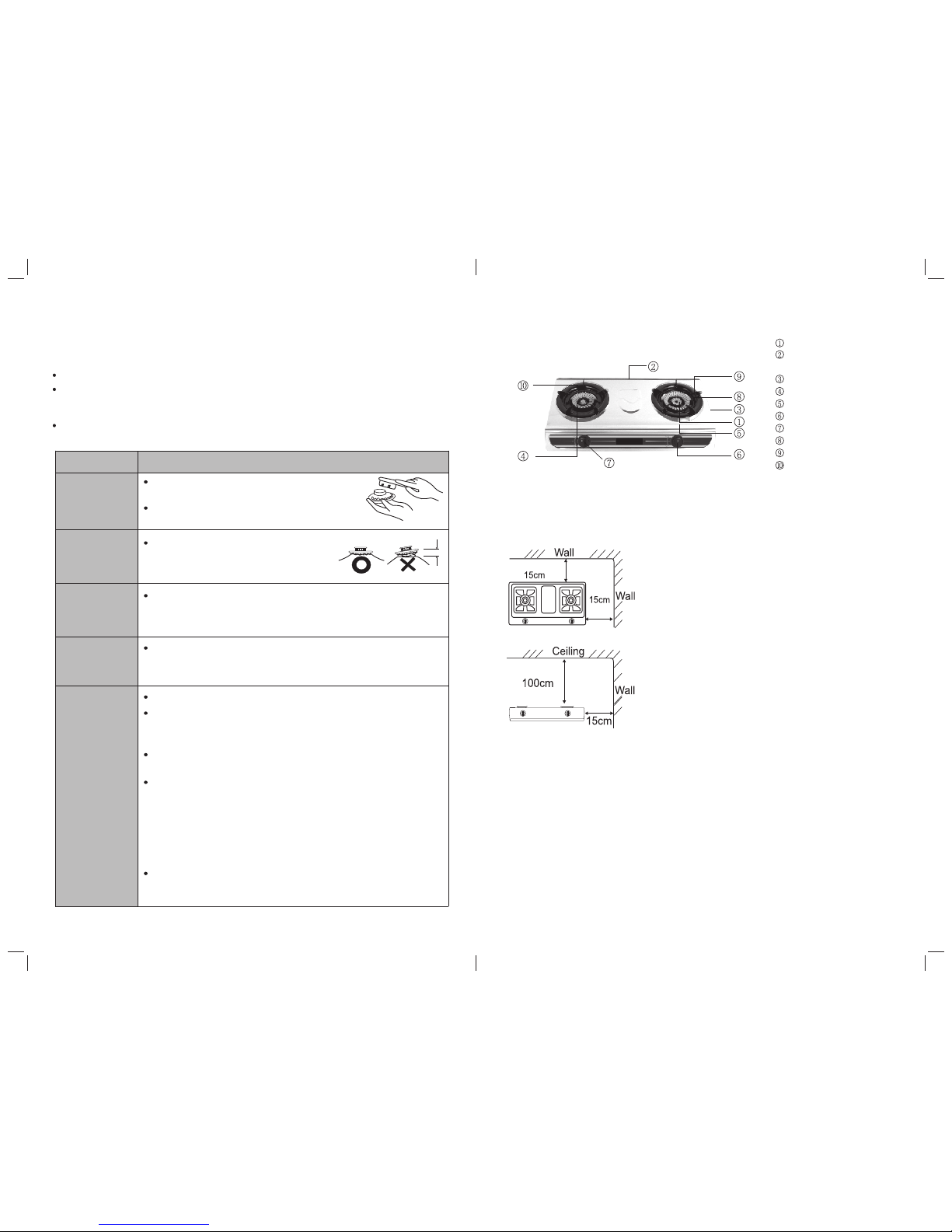

CARE OF YOUR APPLIANCE PRODUCT DESCRIPTION
INSTALLATION INSTRUCTION
CAUTIONS
PARTS MAINTENANCE
Before the maintenance, make sure the appliance is cool and the
main cock is turned off.
Perform the following maintenance periodically.
Do not use the appliance if it has damaged in any way.
Refer to the troubleshooting guide before calling service.
Do not carry out repairs on the appliance by yourself.
Check if the slits in the burner ring are clogged with
dirt. Clean them with a wire brush.
After washing the burner caps, dry them completely
before assembly.
Make sure the cap is mounted in place.
(If the ring caps are not mounted properly,
gas distribution may not be even.)
When they get dirty, use a soft cloth damped with mild detergent to wipe
off dirt. Do not use thinner or benzine for cleaning. This may damage the
appliance.
Make sure the rubber hose is tightly secured over gas supply outlet and
secure it with the hose clamp. If there are cracks in the hose, replace it.
When they get dirty, use a soft cloth to wipe off dirt.
Make sure to wipe off dirt every time when they get dirty, if they are kept
dirty for a long time (more than one week), they will become stained or it
will cause the stripping of the coating material.
If the dirt is difficult to wipe off, use a soft cloth damped with a neutral
detergent solution or water.
It is
and a white surface comes out. This will not cause any problems in your
daily use.
The coating material of the appliance is weak against a physical shock or
high temperatures. The following must be kept in mind.
a) Do not use polishing powder, cleanser, knife, alkaline detergent or
bleaching solution to wipe off the dirt.
b) Do not give a physical shock to the appliance.
c) Do not give excessive heat to the appliance by covering the burner
with a large iron plate or a large pot.
Ring Caps
Burners,
Ring Caps
Pan Support
Cook Top and
Control Panel
Rubber Hose
Cook Top
Burner Cap (right)
Gas Inlet
(At the rear of the unit)
Rating Plate (side)
Burner Cap (left)
Cook Top
Ignition Knob (right)
Ignition Knob (left)
Drip Pan
Pan Support (right)
Pan Support (left)
Remove the packaging material of the
appliance. Assemble the rubber foot to the
bottom of the appliance.
Mount the left and right burner caps and
make sure it sits properly.
Place the left and right pan support on the
appliance and fix it properly.
1) Make sure the appliance is installed in a room where no strong
airflow and away from windows.
2) Allow at least 15cm from the wall and 100cm from the ceiling.
3) Do not bend, twist or stretch the rubber hose. Fit the rubber hose
onto the gas inlet and secure it with a hose clamp.
expected that the section below the pan support will be scratched

3 4
USE THE APPLIANCE IN WELL
VENTILATED ROOM
Ensure proper ventilation. If the appliance is used in
a poor ventilated room, the air may be harmful to
health.
PREVENT GAS LEAK
Use a rubber hose of the approved type only. Do not
use a vinyl hose as it may not resist high tempera-
tures and may be softened by heat.
While using the appliance, occasionally check that
the burners are lit.
After using, turn off the burners and main cock. Make
sure the main cock is turned off before leaving the
appliance.
In any case of gas leaks, turn off the main cock imme-
diately and ventilate the room by opening window and
doors. Contact the fire rescue department if neces-
sary.
WARNING:
In case of gas leaks, DO NOT turn the fans or other electrical appliances
on or off. Do not light a match of use a lighter.
CAUTION WHEN OPERATING
1. Use the appliance for cooking purposes only. Do not use the appliance for
other purposes to prevent fire hazard.
2. Do not hang up clothes, towel, etc above the appliance to dry.
3. Do not use a large iron plate to cover the burners.
4. Do not touch the pan support. The appliance may be hot after cooking.
NOTE:
In any case with signs of abnormal combustion, including strange sound when the burners
are lit, turn off the burners and the main cock immediately and contact the service centre.
OPERATING INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
TURNING ON THE APPLIANCE
FLAME CONTROLLER
Before using the unit, make sure the ignition knob is in the “OFF”
position and turn on the main cock. After using, ensure to turn off the
ignition knob and main cock.
Turn the ignition knob counter clockwise to the “ON” position slowly.
Pressing it for a few seconds, make sure that the burner has lit.
TURNING OFF THE APPLIANCE
PRECAUTIONS
ENSURE FIRE SAFETY
Turn the ignition knob clockwise up to its original position by
pressing it. After using, make sure to turn off the main cock.
Before using the appliance be sure the type of gas supplied is
the one specified on the rating plate attached to the side of the
appliance.
Do not place the appliance near flammable materials.
E.g. curtains, cooking oil, etc.
Be sure to turn off the burners and main cock if the
appliance is not in use.
Use a heat proof panel to protect walls if required.
Remark:
When you start to use the appliance for the first time or the appliance
has not been used for long time, it happens that the burner is not
ignited for the first few attempts. It is because air has been trapped in
the rubber hose. Repeat the ignition few times until the burner is lit.
Remark:
When the burner is shut off, it will create a noise. This is normal.
Control the knob between Max and Min to regulate the flame power
output. Turn the knob counter clockwise to the minimum flame
position to set for the lowest power output level.
