ART. 42/12370-00 PAGINA 2 DI 2
Digital to Analog Audio Converter
User Manual
Table Of Contents
1.0 Introduction .......................................................................................
2.0 Features ............................................................................................
3.0 Specications ....................................................................................
4.0 Package Contents .............................................................................
5.0 Panel Descriptions ............................................................................
6.0 Connection And Operation ................................................................
Dear Customer
Thank you for purchasing this Audio Converter. For optimum performance
and safety, please read these instructions carefully before connecting,
operating or adjusting this product. Please keep this manual for future
reference.
1.0 Introduction
This Digital to Analog Audio Converter is designed for either home or
professional audio switching .It converts Coaxial or Toslink digital audio
signals to analog L/R audio and available for connection to an external
device such as an amplier via standard RCA-style jacks. This Converter
is small in size and quite easy to install.
2.0 Features
This Converter has many textures at enable it to perform in a superior
manner. Among dose features yon will nd:
* Converts Coaxial or Toslink digital audio signals to analog L/R audio
* Supports sampling rate at 32. 44.1. 48 and 96KHz
* 24-bit s/PDIF incoming bit stream on left and right channels
* Provides electromagnetic-noise-free transmission
* Easy to install and simple to operate
3.0 Specications
Note: Specications are subject to change without notice.
4.0 Package Contents
1) Main unit
2) 5V DC power Supply
3) Users Manual
6.0 Connection And Operation
Before installation, please make sure all devices you wish to connect have
been turned off
1) Connect the audio source device to the Converter using appropriate
R/L cable
2) Connect the A/V Receivers or Ampliers to the Converter using
appropriate Toslink or Coaxial cable.
3) Insert the DC side of 5v power supply into the converter and then connect
the AC side of the power supply into the wall outlet
Attention- Insert / EXTRACT cable gently

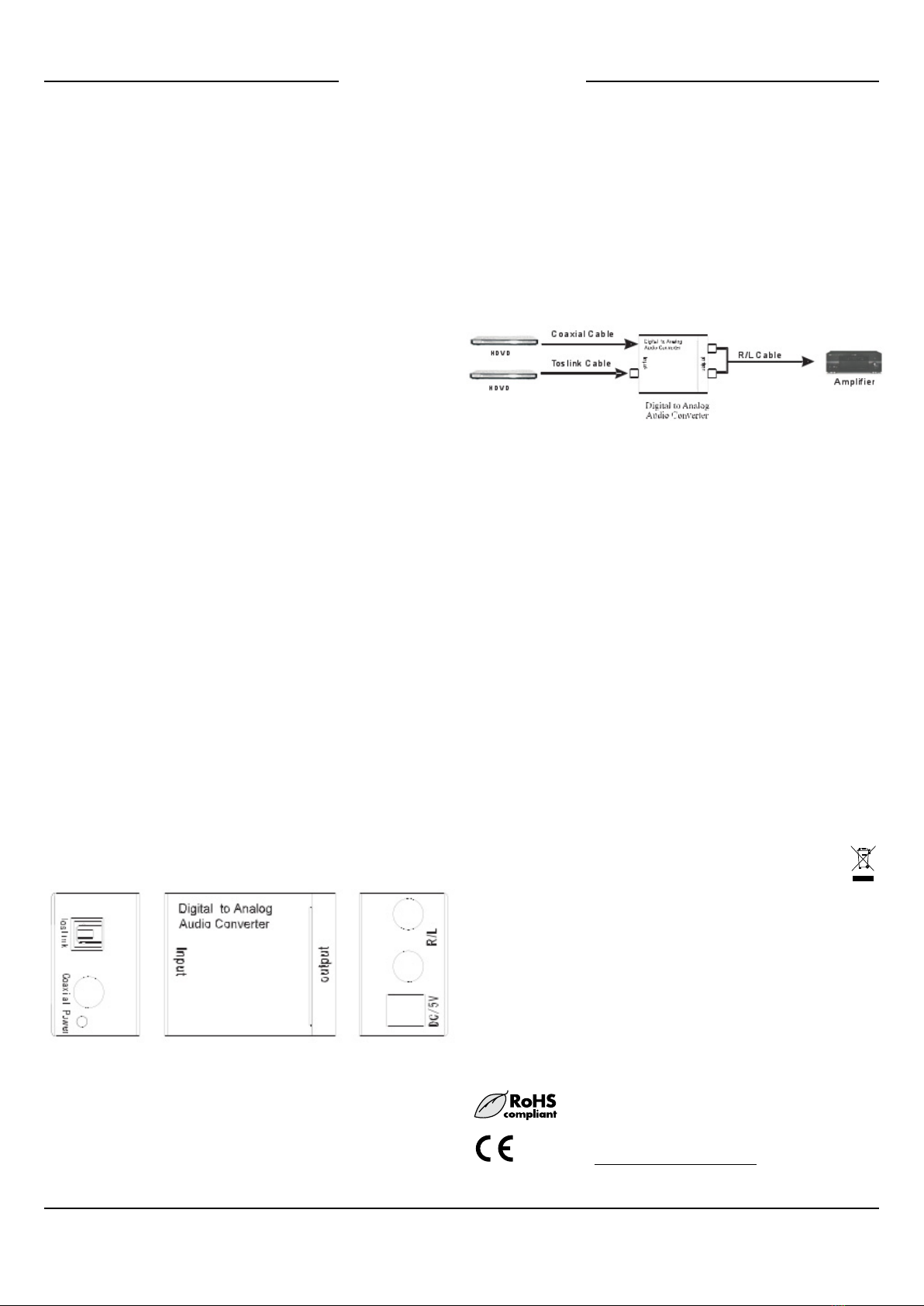

6.1 Connetion Diagram
5.0 Panel Descriptions
Signal input/output
Input audio Toslink audio and Digital audio
Output audio L/R audio
Connector
Input audio connector Toslink,1XRCA(coaxial)
Output audio connector 2XRCA(R/L)
Audio connector Toslink audio and Digital audio
Sampling rate 32,44.1,48 and 96KHz
Mechanical
Size(L-W-H) 51x41x26MM
Wight(Net) 78g
Warranty
Operating Temperature 0°C to 70°C
Operating Humidity 10% to 85% RH (no condensation)
Storage Temperature -10°C to +80°C
Storage Humidity 5% to 90% RH (no condensation)
Power requirement
External Power Supply 5V DC @1A
Power consumption 0.5 Watts (max)
Regulatory approval
User information ex art. 26 D. 49/2014
The symbol labelled on the appliance (Annex IX D. 49/2014) indicates that
the rubbish is subject to “separate collection” and it has been placed on the
Italian market after the December 31, 2010.
The user must therefore assign or (have collected) the rubbish to a
treatment facility according to indications by the local administration, or
hand it over to the reseller in exchange for an equivalent new product. The
separate collection of the rubbish and the subsequent treatment, recycling
and disposal operations encourage the production of appliances made
with recycled materials and reduce negative effects on health and the
environment caused by improper treatment of rubbish.
In the case of very small WEEE (no external dimension more than 25 cm),
the user is eligible to get free of charge assignation to retail shops with sales
areas relating to EEE of at least 400 m².
Made in China
