Eldes ESIM252 User manual

GSM CONTROL SYSTEM
ESIM252

Copyright ©“ELDES UAB”, 2009. All rights reserved.
It is strictly forbidden to copy and distribute information in this document or pass to a third party without an advanced written authorization from“ELDES
UAB”.“ELDES UAB”reserves the right to update or modify this document and/or related products without a warning. Hereby, ELDES UAB declares that this
GSM CONTROL SYSTEM Esim252 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of
conformity may be consulted at www.eldes.lt
User Manual v1.0
Safety instructions
Please read and follow these safety guidelines and assembly instructions in order to maintain safety of operators and people around:
• GSM control system Esim252 (further referenced as the system) contains an integrated radio transceiver operating in GSM
850/900/1800/1900 MHz bands.
• Don’tusethesystemwhereitcaninterferewithotherdevicesandcauseanypotentialdanger.
• Don’tmountthesystemnexttomedicalequipmentordevices,iftheyrequireso.
• Don’tusethesysteminhazardousenvironment.
• Don’texposethesystemtohighhumidity,chemicalenvironmentormechanicalimpacts.
• Don’tattempttopersonallyrepairthesystem.
• Systemlabelisonthebottomsideofthedevice.
System Esim252 is a device mounted in limited access areas. Any system repairs must be done only by qualied, safety aware
personnel.
Mains power must be disconnected before any installation or tuning work starts. The system installation or maintenance
must not be done during stormy conditions.
The system must be powered by main 10-24V 50Hz ~200mA AC or 10-24V 200mA DC power supply which must be
approved by LST EN 60950-1 standard and be easily accessible nearby the device. When connecting the power supply to the
system, switching the terminals places does not have any aect.
AnyadditionaldeviceslinkedtothesystemEsim252(computer,sensors,relaysetc.)mustbeapprovedbyLSTEN60950-1
standard.
External power supply can be connected to AC mains only inside
installation room with automatic 2-pole circuit breaker capable of
disconnecting circuit in the event of short circuit or over-current
condition. Open circuit breaker must have a gap between con-
nections of more than 3mm and the disconnection current 5A.
FuseF1modelMINISMDC050F0.5ABlownfusecannotbereplacedbytheuserandthereplacementfuseshavetobeexactlythe
same as indicated by the manufacturer.
Thedeviceisfullyturnedobydisconnecting2-poleswitchodeviceoftheexternalpowersupplyoranyotherlinked
device that the system Esim252 is powered from.
Phase
AC 230V
50 Hz/DC 24V
USB cable
Null
ESIM252
PE
AC/DC
TheWEEE(WasteElectrical andElectronicEquipment)markingonthis productorits documentation indicates thatintheEU the
product must not be disposed of together with household waste.
If you use I security class computer for setting the parameters it must be connected to earth.

Limited Liability
The buyer must agree that the system will reduce
the risk of re, theft, burglary or other dangers but
does not guarantee against such events.
“ELDES UAB” will not take any responsibility regar-
ding personal, property or revenue loss while using
the system.
“ELDES UAB” responsibility according to local laws
doesnotexceedvalueofthepurchasedsystem.
“ELDES UAB” is not aliated with GSM operators
providing cellular services therefore is not respon-
sible for the quality of cellular services.
Manufacturer Warranty
The system carries a 24-month warranty by the ma-
nufacturer “ELDES UAB”.
Warranty period starts from the day the system has
been purchased by the end user. The warranty is
valid only if the system has been used as intended,
following all guidelines listed in the manual and
within specied operating conditions. Receipt with
purchase date must be kept as a proof.
The warranty is voided if the system has been
exposed to mechanical impacts, chemicals, high
humidity, uids, corrosive and hazardous environ-
ment or other force majeure factors.
Package Content:
The system Esim252................... 1 pcs
Esim252 user manual................. 1 pcs
GSM antenna ................................ 1 pcs
Fastening holders........................ 3 pcs
About User Manual
This document describes GSM control system
Esim252, its operation and installation.
It is very important to read User Manual before
start using the system.
A quick start guide is located in rst two chapters.
Chapter 3 and 4 describe additional system capa-
bilities.
CONTENT
1. General Information
1.1 Function .......................................................................................................4
1.2 Operation Description.............................................................................4
1.3 Technical Specications .........................................................................5
1.4 Connector Functionality.........................................................................5
1.5 Connection Circuit....................................................................................6
1.6 System Installation ...................................................................................7
2. System Pre-operation and the Main Control Commands
2.1 Selecting device language
and verication of SMS central number ...........................................8
2.2 Password Change .....................................................................................8
2.3 User Numbers.............................................................................................9
2.3.1 Saving or Changing Numbers ..............................................9
2.3.2 Verication of Saved Numbers.............................................9
2.3.3 Deletion of Saved Numbers. .................................................9
2.4 Date and Time Settings ..........................................................................9
3. Additional System Capabilities
3.1 Renaming Zones and Controlled Output...................................... 10
3.2 Enabling/Disabling Zones...................................................................10
3.3 Info on Status SMS................................................................................. 11
3.4 Blocking Unknown Numbers.............................................................11
3.5 Remote Microphone Listening .........................................................12
3.6 Managing C1 and C2 Controlled Outputs. Timer .......................12
3.7 SMS Message Delivery to Multiple Users .....................................12
3.8 Calling all users ......................................................................................13
3.9 Conguration for advanced users................................................... 14
3.9.1 Additional possibilities of conguring
   zones(inputs)alarmandrestore.......................................25
3.9.2 Additional possibilities of controlling and
   conguringcontrollerC1(relayoutput) ........................ 27
3.9.2.1 Settings of the output controlled by calls........27
3.9.2.2 Settings of the output controlled
by SMS messages .....................................................28
3.9.2.3 Output control settings by event time.............. 30
4. Appendix
4.1 Restoring Default Parameters. ..........................................................32
4.2 „ELDES Conguration Tool“ software .............................................32
4.2 Technical Support.................................................................................. 32

4
1. General Information
1.1 Function
ESIM252 is a micro controller based device intended to inform users about the alarm in automatic or security systems. In addition
it can control up to two electric appliances.
1.2 Operation Description
Description of factory default settings.
GSM control system ESIM252 operates over GSM network 24/7, i. e. it always reacts to the incoming signal.
In case any input is violated, the system sends an SMS message and/or calls to the preset user phone numbers. SMS message
with the name of the violated zone will continue to be sent until successful delivery to one of the users or until it is delivered to
all users. The system continues to call until one of the ve users answers the call, rejects the call or until the call is ended by the
GSMserviceprovider.Iftheuseranswersthecall,thesystemactivatesmicrophone(mustbeconnectedtoESIM252)forlistening
on what is happening in the secured premises. When using audio feature in case of input alarm or restore event the user will be
able to listen to particular sound record uploaded to the ESIM252 device memory. After the end of the sound record, the system
activates the microphone for listening on what is happening in the secured premises. After„hanging the phone“ or after the end
ofthecall(duration-1min.),thesystemwillreturntothepreviousstate.Please,refertoELDESCongurationToolsoftwareHelp
section for more details on audio feature.
Up to 2 electric appliances connected to ESIM252 can be controlled from a mobile phone. This feature allows to turn on/o hea-
ting, lighting, lift the gates, blinds etc.
The system ignores incoming calls from unknown phone numbers and SMS messages with wrong password.
List of other congurable system possibilities.
Input types Normallyopen(NO) Operational only when the signal is transmitted.
Normallyclosed(NC) Operational only when the signal is switched.
Ways of initiating an
event
Event when an input is
violated(Alarm)
Phonecallinitiatedand/orSMSisdeliveredtouser(-s)whenthesignalis
transmitted to an input.
Event when a zone is
restored(Restore)
Phonecallinitiatedand/orSMSisdeliveredtouser(-s)whenthepreviously
transmitted input signal disappears.
Impulse counting Input is considered as violated only if the number of the preset impulses in the
inputisexceeded.Max.valueis4294967295impulses.
Ways of notifying about
an event
SMS The ways of notifying users about events occurred in the particular input can be
carried out only SMS, only a phone call or a combination of both can be chosen.
Besides, any of the users can be assigned to be informed in case a particular
input is violated or restored or both. Various combinations of informing can be
assigned for each user and input.
When features SMS All and Call All are enabled, the system sends SMS messages
and rings to all preset users starting with User1 despite the fact that the call was
answered or rejected etc.
Examples: User NR1 wants to be informed by SMS in case input Z3 is violated,
but does not want to be informed when input Z3 is restored. User NR3 wants to
be informed by SMS and phone call in case input Z2 is violated, but wants to be
informed only by SMS in case of Z2 restore event.
Phone Call
Ways of controlling
outputs(relays)
Turning on/o by SMS
The outputs can be turned on/o by sending the command by SMS message.
You can turn on/o:
1. for a permanent status
2. for a set period
3. for a set hour
4. repeating turning on/o.
Turning on/o by a call
The outputs can be turned on/o by calling. You can turn on/o:
1. for a permanent status
2. for a set period
3.toggle(outputstatuschangesaftereachcall)
Automatic turning on at
the preset hour
Outputs can be turned on for a set period at a set hour.
E. g. the relay is turned on at 18:00 and it is on for 5 hours. After 5 hours it turns
o automatically notifying the user about that.
Event log Event log feature List of occurred events by date and time - zone alarm/restore, output on/o etc.

USER MANUAL ELDES ESIM252 V1.0 5
1.3 Technical Specications
Electrical and mechanical specications
Supply voltage 10-24V50Hz~200mAmax/10-24V 200mAmax
Current used in standby mode 50mAmax
GSM modem frequency 850/900/1800/1900 MHz
Numberof“low”level(negative)inputs 4
Numberof“high”level(positive)inputs 1
Allowable„low“level(negative)inputvalues Voltage: 0... 1.6V; current: -0.8... -0.4mA
Allowable„high“level(positive)inputvalues Voltage: 5... 50V; current: 0.17.... 1.7mA
Number of outputs 2
Output type Relay.Normallyopen(NO)
Relayoutputmaximumcommutatingvalues 24V 1A / 24V 50Hz ~0,5A
Dimensions 82x63x20mm
Operating temperature range -20…+55oC
(-30...+55oCwithlimitations)
1.4 Connector Functionality
ANT
GSM
MODEM
SIM
CARD
MIC
LED1
LED2
DEFAULT D1 D2
AC/DC
F1
RELAY1 RELAY2 COM Z5 Z4 Z3 Z2 Z1
USB
Short explanation of the main units
GSM MODEM GSM network 850/900/1800/1900 MHz
modem
SIM CARD SIM card
LED Light-emitting diodes indicator
DEFAULT Connectors(D1andD2)forrestoring
default settings
ANT GSM antenna SMA type connector
USB Mini USB connector
F1 Fuse
Connector functionality
Labeling Explanation
AC/DC Power supply pins
RELAY1 Dryrelaycontact.Normallyopen(NO)
RELAY2 Dryrelaycontact.Normallyopen(NO)
COM Common pin
Z5 “Low” level input Z5
Z4 “Low“ level input Z4
Z3 “Low” level input Z3
Z2 “High”level input Z2
Z1 “Low” level input Z1
Picture 1

6
1.5 Connection Circuit
USEFUL INFORMATION
When choosing GSM provider, it is worth inquiring whether the service is used in security application assuring fast and reliable
SMS message delivery and phone call connection.
USEFUL INFORMATION
When choosing GSM cellular provider, it is worth inquiring whether the service is used in security application assuring fast and
reliable SMS message delivery and phone call connection.
Esim252 and alarm system COM must be connected.
Inputs Z1, Z3, Z4, Z5 are connected to alarm system outputs if outputs are implemented as open collector circuit or any other
circuit and if it commutes with COM.
It is also possible to connect Z1, Z3, Z4, Z5 inputs to, for instance, motion sensor or any other sensor as well as automatics device
provided the inputs are commuted with COM.
Input Z2 is commuted with a “high level” impulse. Impulse duration is >600ms.
Picture 2
Picture3 AC power supply connection circuit
AUX+AUX-
HIGH
LEVEL
Z1Z2Z3Z4Z5COMRELAY1 RELAY2AC/DC
PGM1 PGM3 PGM4 PGM5 PGM2
GSM Control System
ESIM252
Alarm system or other appliance
Fuse 500 mA
~230V 50Hz
AC/DC
~10-24V
Metal box
PE contact
LED indicators functionality
LED1 Indicates SIM card status
LED2 Indicates network status
LED1 status Meaning
OFF SIM card is working properly
ON SIM card error
LED2 status Meaning
OFF No network connection
Blinking 3 times per second Poor network connection
Blinking 1 time per second Medium network connection
ON Excellentnetworkconnection

USER MANUAL ELDES ESIM252 V1.0 7
1.6 System Installation
The system can be installed only in a metal or non-ammable plastic enclosure. If the metal enclosure and transformer is used it
isnecessarytogroundtheenclosureusingyellow/greencolourcable.Fortheconnectionof230Vtransformeruse3x0.75mm2
1 thread double isolated cable. The primary circuit of the transformer must be connected through 0.5A fuse. 230V power supply
cables cannot be grouped with low voltage cable group. For the connection of power supply and output connectors use 1 thread
2x0.75mm2cable. For the connection of input/output connectors use 0.50 mm21 thread cable.
1. Fastenthesystemintheboxusingfasteningholders.
2. PlaceSIMcardintheholderbutmakesurethatSIMcardPINcodeisdisabled.(PINcodecanbedisabledbyputtingSIMcard
intomobilephoneandfollowingpropermenus).SIMcardshouldnothaveanyremainingSMSmessages.
3. Connectthecircuitasshowning.No2.Powersupplycablesareconnectedlast).WhenconnectingEsim252toalarmsystem
power supply, usually the security system AUX output is used.
4. WhenACpowersupply(groundtransformer)isusedconnectaccordingtocircuitno.3.Inthiscaseyoudonotneedtocon-
nect any other power supplies.
5. The system will start in less than a minute. LED2 indicator should be blinking or be ON indicating connection to GSM.
Picture3 AC power supply connection circuit

8
2. System Pre-operation and
the Main Control Commands
VERY IMPORTANT!!!
Underscoresymbol‘_’inthismanualisusedtorepresentspace.WhenwritingSMSmessages,everyunderscoresymbolshouldbe
replaced by single space symbol. XXXX – means password. Do not leave any space at the beginning and the end of the message.
To set ESIM252 system parameters easier and quicker you can use the computer, USB cable or remote device conguration over
GPRS connection and conguration software„ELDES Conguration Tool“. For more details, please, refer to chapter 3.2.
2.1 Selecting device language and verication of SMS central number
The language in which the device communicates with the user can be chosen before changing factory default password. To change
thelanguageinthesystemthatisalreadyconguredresetdefaultsettingsasdescribedin3.1appendix.
Send SMS message with the required language
code to the number of the SIM card inserted in
Esim252.
E.g., if you want to set the English language send
the following SMS message: EN
30-60 seconds later you should get an SMS message:
„English language conrmed.“ Go to chapter 2.2 upon
reception of this message.
Otherwise check for network connection and call Esim252 system from your mobile and wait until the system drops the call. You
should get an SMS message asking to change default password. Otherwise check for network connection and change SMS central
number.
SMS central number is saved in SIM card, therefore if SIM card has been used to send SMS messages with a mobile phone,
thenyoudon’t’needtochangeSMScentralnumber.OftenSMScentralnumberisalreadysavedinSIMcardbycellular
operator.
Central number can be entered by sending SMS message:
XXXX – is a password. Default password is four zeros: 0000. SMS central number is provided by cellular network provider.
Example: 0000_SMS_+37069899992
Message should be sent to the number of SIM card which is placed into the system. If all went correct, the system will send a messa-
ge: SMS central number has been successfully changed to [phone]
2.2 Password Change
All SMS commands start with a password, please memorize it. Manufacturer default password is
four zeros 0000, which is necessary to change.
Manufacturer default password can be changed by sending the following SMS message to
Esim252:
To replace your password, send the following SMS message:
XXXXisanyfourdigitnumberexceptfourzeros.
Non-numerical characters like dots, colons, spaces are not allowed. YYYY is the old system password. If you forgot the password,
default manufacturer password can be restored, see chapter 4.1 for more details.
ESIM 252
0000_
PSW_XXXX
0000_PSW_XXXX
YYYY_PSW_XXXX
Language Code
lithuanian LT
english EN
russian RU
Table of
possible
languages
ESIM 252
XXXX_SMS_+37011111111

USER MANUAL ELDES ESIM252 V1.0 9
2.3 User Numbers
The system Esim252 allows to pre-program up to ve dierent mobile numbers which will have access to and control the system.
NR1 is mandatory while others can be skipped. All numbers must be entered starting with international country code, e. g. national
code for Lithuania is 370, UK – 44. By default the system starts sending all messages and in the event of alarm starts calling on the
rst number, and if the rst call is unsuccessful, it immediately tries reaching subscriber No2 etc.
2.3.1 Saving or Changing Numbers
SendSMSmessagewiththefollowingtexttoEsim252:
Ones should be replaced with user numbers.
Numbersdon’thavetobe enteredinsequential orderright away.E.g. usercan enterrstand
fourth number by sending the following SMS message:
Or individually one number at a time:
Numbers can be changed same way as described above. New number will overwrite old one, the-
refore no erasing is necessary.
2.3.2 Verication of Saved Numbers
To inquire the system about pre-programmed numbers, send the following SMS message:
The system will reply with all pre-programmed numbers.
2.3.3 Deletion of Saved Numbers
To erase NR2-NR5, send the following SMS message:
E. g. XXXX_NR3:DEL
The system will not allow erasing rst number NR1. It can only be modied.
2.4 Date and Time Settings
It is important to set correct date and time so that the system can send reports at specied times.
Date and time can be set by sending the following format SMS message:
where MMMM means year; mn - month; dd - day; va - hour; mi - minutes
E. g. XXXX_2009.01.01_14:15
ESIM 252
XXXX_
NR1:370
11111111_
NR4:370
11111111
XXXX_NR1:37011111111_NR4:37011111111
XXXX_NR1:37011111111_NR2:37011111111_NR3:37011111111_NR4:37011111111_
NR5:37011111111
ESIM 252
XXXX_
NR3:370
11111111
ESIM 252
XXXX_
HELPNR
ESIM 252
XXXX_
NR3:DEL
ESIM 252
XXXX_
2009.01.
01_14:15
XXXX_NR3:37011111111
XXXX_HELPNR
XXXX_NR2:DEL_NR3:DEL_NR4:DEL_NR5:DEL
XXXX_MMMM.mn.dd_va:mi

10
3. Additional System Capabilities
3.1 Renaming Input Alarm/Restore Texts & Оutput Нames
Manufacturer initially set the following input alarm/restore texts and output names:
inputZ1alarmtext-Zone1Alarm,restoretext-Restore1;inputZ2-Zone2Alarm,restoretext-Restore2;0inputZ3-Zone3Alarm,
restoretext-Restore3;inputZ4-Zone4Alarm,restoretext-Restore4;inputZ5-Zone5Alarm,restoretext-Restore5;outputC1
name - Controller1; output C2 name - Controller2
E. g. in case input Z1 is violated, the system sends SMS message with the text: Zone1
Input alarm text
InputalarmtextischangedbysendingthefollowingSMSmesaage:
E. G. XXXX_Z1:Intrusion though the door;Z2:Fire sensor alarm;
Textscanbechangedallatonceforallinputs,severalofthemoronebyone.Maximumtextforone
inputtextis24characters.Thespaceisequaltoonecharacter.Eachnewtextmustbefollowedbyasemi
colon.Assemicolonisusedforseparatingtextsfordierentinputs.Itcannotbeusedinthemiddleof
alarmtexts,itcanonlybeusedattheend.Textscannotbethesameascongurationandcontrolcom-
mands, such as - ON, OFF, STATUS etc.
Input restore text
If you want to be notied by an SMS message when a violated zone is restored Restore mode must be turned on.The mode is turned
on by sending a particular SMS command. Please refer to chapter 3.9 or conguration program.
InputrestoretextischangedbysendingthefollowingSMSmesaage:
Output name can be changed by sending the following SMS message:
x-outputnumber;possiblevalues1-C1 or 2 - C2.
Outputnamecannotbefollowedbyasemicolon.Youcannotchangeinputalarm/restoretextandout-
put names at the same time.
E. g. XXXX_C1:PUMP
3.2 Enabling/Disabling Inputs
NOTE
Manufacturer set all the inputs activated, i. e. in mode ON.
USEFUL INFORMATION
The inputs can be enabled/disabled together or separately one by one.
Enabling Input
Any input can be enabled by sending the following SMS message:
XXXX_Z1:NewAlarmText;Z2:NewAlarmText;Z3:NewAlarmText;Z4:NewAlarmText;Z5:NewAlarmText;
XXXX_ZR1:NewRestoreText;ZR2:NewRestoreText;ZR3:NewRestoreText;ZR4:NewRestoreT
ext;ZR5:NewRestoreText;
XXXX_Cx:NewControllerName
XXXX_Z1:ON;Z2:ON;Z3:ON;Z4:ON;Z5:ON;
ESIM 252
XXXX_Z1:
trespaced;
Z2:
triggered
re
detector;
ESIM 252
XXXX_C1:
PUMP

USER MANUAL ELDES ESIM252 V1.0 11
Disabling Input
Any input can be disabled by sending the following SMS message:
E. g. XXXX_Z2:ON; or XXXX_WINDOWS:ON; or XXXX_Z2:OFF; or XXXX_WINDOWS:OFF;
3.3 Info on Status SMS
The system ESIM252 can any time be inquired about signal strength and the status of inputs at the time when SMS message is sent.
At the same time system test is performed. If the answer to the request has been received, it means the system nely operates.
It is also useful for those using prepayment service – you can check if the credit in the account is sucient for sending an SMS
message. Send the following SMS message:
The reply SMS will have following info: e. g. 2008.08.07 11:15
Signal strength satisfactory. Z1:OK/ALARM Z2:OK/ALARM Z3:OK/ALARM Z4:OK/ALARM Z5:OK/ALARM
whereOKmeansthatthereisnoalarminaparticualinput(restored).ALARM–theparticularinputisviolated.
By default, this status SMS message will be sent daily at 11:00 in the morning. These parameters can
be congured by sending the following SMS message:
PP – message period in days, valid values [00-10].
VV - time when message is sent, valid values [00-23].
E. g. XXXX_INFO:01.10 means that status message will be sent every 1 day at 10:00.
If PP value is 0, and VV in the range of [1-23], then periodic status messages will be sent multiple times
per day, with period being specied as VV time.
E. g. XXXX_INFO:0.2 means that status message will be sent every 2 hours.
To disable periodic status messages send the following SMS message:
The status messages will not be sent until enabling or restoring default parameters or receiving previously described XXXX_
INFO:PP.VV SMS message.
3.4 Blocking Unknown Numbers
By default Esim252 system can be controlled from any of the preset users NR1 - NR5. However, the user can access the system and
control parameters and outputs from any number as long as password is known.
To enable this feature send the following SMS message:
To disable this feature send the following SMS message:
XXXX_Z1:OFF;Z2:OFF;Z3:OFF;Z4:OFF;Z5:OFF;
XXXX_INFO:PP.VV
XXXX_INFO:00.00
XXXX_STR:ON
XXXX_STR:OFF
XXXX_INFO
ESIM 252
XXXX_
WINDOWS:
OFF;
ESIM 252
XXXX_
INFO:01.
10
ESIM 252
XXXX_
INFO:0.2

12
3.5 Remote Microphone Listening
NOTE
To enable this feature it is necessary to connect microphone connector to MIC slot. The microphone is additional equipment
tha can be purchased in trading centers.
You can listen to what is going on in the secured premises by sending the following SMS message:
The system will ring the sender of the received SMS, and upon answering the call, the user can listen to any sounds in the building.
The phone call must be answered within 20 seconds otherwise the system will stop trying and return to previous state.
3.6 Managing C1 & C2 Outputs. Timer.
GSM control system ESIM252 contains two outputs C1 and C2. It can be used to control various electric appliance, such as electric
pumps,heating,lightingetc.Whentheoutput(-s)isturnedon,therelayconnectorsoftheoutputareinNCstate(normallyclosed).().
The output is turned on by sending the following SMS message:
x-outputnumber;possiblevalues1-C1 or 2 - C2.
The output is turned o by sending the following SMS message:
x-outputnumber;possiblevalues1-C1 or 2 - C2. Instead of C1 or C2 it is also possible to use real output name.
E.g.. XXXX_PUMP:ON
Timer
GSM control system ESIM252 has internal timer. This feature allows any output to be turned on or o for a specied time period.
The following SMS command should be sent:
x-outputnumber;possiblevalues1-C1 or 2 - C2. ON – output enabled. OFF – disabled
vv – hours, valid values [00-23] mm – minutes, valid values [00-59] ss - seconds, valid values [00-59]
It is not allowed to have all values equal zeros. Zeros it is not allowed to have all values equal
E. g. to switch the pump on for 01 minutes and 23 seconds, send SMS XXXX_PUMP:ON:00.01.23
If the pump was enabled before and user want to disable it for 01 minute and 23 seconds, send SMS
XXXX_PUMP:OFF:00.01.23
If you want to use more capabilities of the outputs, such as TOGGLE, automatic output control at a
particular, use conguration software„ELDES Conguration Tool“ or refer to chapter 3.9.2
3.7 SMS Message Delivery to Multiple Users
Upon activated alarm in security system, ESIM252 SMS messages are repeatedly sent until rst successful delivery to one of the
users. The system starts with NR1 and if delivery fails, it follows with NR2 etc.
It is also possible to set the system so that it sends SMS message to all preset users in the system.
XXXX_MIC
XXXX_Cx:ON
XXXX_Cx:OFF
XXXX_Cx:ON/OFF:vv.mm.ss
ESIM 252
XXXX_
PUMP:
ON
ESIM 252
XXXX_
PUMP:
OFF:00.
01.23

USER MANUAL ELDES ESIM252 V1.0 13
To enable this function send the following SMS message:
To disable this function send the following SMS message:
If you want to congure SMS message delivery only for particular users or only for particular inputs, please, refer to chapter 3.9 or
use conguration program ELDES Conguration Tool.
3.8 Calling all users
During the alarm, Esim252 system starts calling NR1. If the call to NR1 was unsuccessful or the subscriber was out of network co-
verage the call is forwarded to NR2 etc. If the user rejected the call or answered te call during the alarm the system stops calling.
However, you can set the system to call all users entered in the system regardless of the fact whether the user answered or rejected
the call, was out of network coverage or was engaged.
To turn on this feature send the following SMS message:
ATTENTION!
Whenthisfeatureisenableditwillnotbepossibletostopcallingthenextuserinthesequenceevenifthecallisanswered.
To disable this function send the following SMS message:
If you want to congure calling only to particular users or only for particular zones, refer to chapter 3.9 or use conguration program
ELDES Conguration Tool.
3.9 Conguration for advanced users
All features described in chapter 3.9 of the user manual can be congured using “ELDES Conguration Tool“ software. In
case if there is no possibility of connecting the device to the computer via USB or if you want to change the settings remotely you
can do this via remote conguration feature over GPRS using “ELDES Conguration Tool“ or via SMS messages. We recommend
changing the settings by SMS only for advanced users.
XXXX_SMSALL:ON
XXXX_SMSALL:OFF
XXXX_CALLALL:ON
XXXX_CALLALL:OFF

14
FOR ADVANCED USERS
All these features can be congured using program “ELDES Conguration Tool“
E. g. 1
TheuserwantstoconnectEsim252systemtoanexistingalarminabuildingwhereenterpriseAandandenterpriseBwork.Both
enterprises use the same alarm system that has two inputs. The alarm system has 5 outputs PGM.
Task NO1:
Conguring the system so that the director of a particular enterprise is informed about security arming depending on which enter-
priseemployeearmedthealarmsystem.ThedirectorofenterpriseA(NO1)wantstoreceiveanSMSmessageonlyanddoesnot
wanttoreceiveanycalls,thedirectorofenterpriseB(NO2)wantstoreceiveacallanddoesnotwanttoreceiveanySMSmessages.
As per factory default settings SMS message sending feature in the case of alarm is enabled for all users until the rst successful
delivery of the SMS message, it is necessary to remove the users that should not receive any alarm messages. Besides, as per factory
default settings, calling feature in the case of alarm is also enabled for all users therefore call function must be disabled for all users
exceptuserNO2.
a)FirstofallalarmsystemunitmustbeprogrammedinthewaysothatwhensecurityisarmedinoceA,outputPGM1is
turned on, and when security is armed in oce B, output PGM2 is turned on.
b)OutputPGM1isconnectedtoESIM252inputZ1,andoutputPGM2isconnectedtoESIM252inputZ2.(outputPGM2type
shouldbe“highlevel”).
c) ThefollowingtwocongurationSMSmessagesmustbesenttoEsim252system:
where SC2345 means that alarm SMS message sending to users NO2-NO5 is disabled after input Z1 is violated. CC12345 means that
alarm calls are disabled for all users NO1-NO5 after input Z1 is violated.
where SC12345 means that alarm SMS message sending is disabled for all users NO1-NO5 after input Z2 is violated. CC1345 means
that all alarm calls are disabled for users NO1, NO3-NO5 after input Z2 is violated.
XXXX_SMSEXTRA:Z1:SC2345,CC12345
XXXX_SMSEXTRA:Z2:SC12345,CC1345
Director A
NO1
Director B
NO2
Worker A
NO4
Worker B
NO5
Janitor
NO3
Janitor
Alarm
Calls
PGM1 PGM2
Enterprise A Enterprise B
Alarm system
ESIM151
GATES
PIRPIR
Alarm
SMS

USER MANUAL ELDES ESIM252 V1.0 15
FOR ADVANCED USERS
All these features can be congured using program “ELDES Conguration Tool“
Task NO2:
 Conguringthesystemsothatthejanitor(NO3)isnotiedbybySMSmessageandcallabouttheviolatedPIRmovementsensor‘s
input in the secured area; and when the sensor‘s input is restored, the janitor receives SMS message only.
As per factory default settings SMS message sending feature in the case of alarm is enabled for all users until the rst successful
delivery of the SMS message, it is necessary to remove the users that should not receive any alarm messages. Besides, as per factory
default settings, calling feature in the case of alarm is also enabled for all users therefore call function must be disabled for all users
exceptuserNO3.SMSmessagesendingfeaturemustalsobeenabledforuserNO3wheninputZ3isrestored.
a)FirstofallalarmsystemunitmustbeprogrammedinthewaysothatwhenPIRmovementsensor‘sinputisviolated,output
PGM3 is activated.
b)OutputPGM3isconnectedtoESIM252inputZ3.
c) ThefollowingcongurationSMSmessagemustbesenttoEsim252system:
where SC1245 means that alarm SMS message sending to users NO1, NO2, NO4 and NO5 is disabled after input Z3 is violated.
CC1245 means that alarm call feature is disabled for users NO1, NO2, NO4 and NO5 after input Z3 I is violated. SE3 means that SMS
message sending feature is enabled for user NO3 after Z3 input is restored.
XXXX_SMSEXTRA:Z3:SC1245,CC1245,SE3
Alarm
SMS/Calls
Restore
SMS
PGM3
Enterprise A Enterprise B
ESIM151
PIRPIR
Director A
NO1
Director B
NO2
Worker A
NO4
Worker B
NO5
Janitor
NO3
Janitor
Alarm system
GATES

16
FOR ADVANCED USERS
All these features can be congured using program “ELDES Conguration Tool“

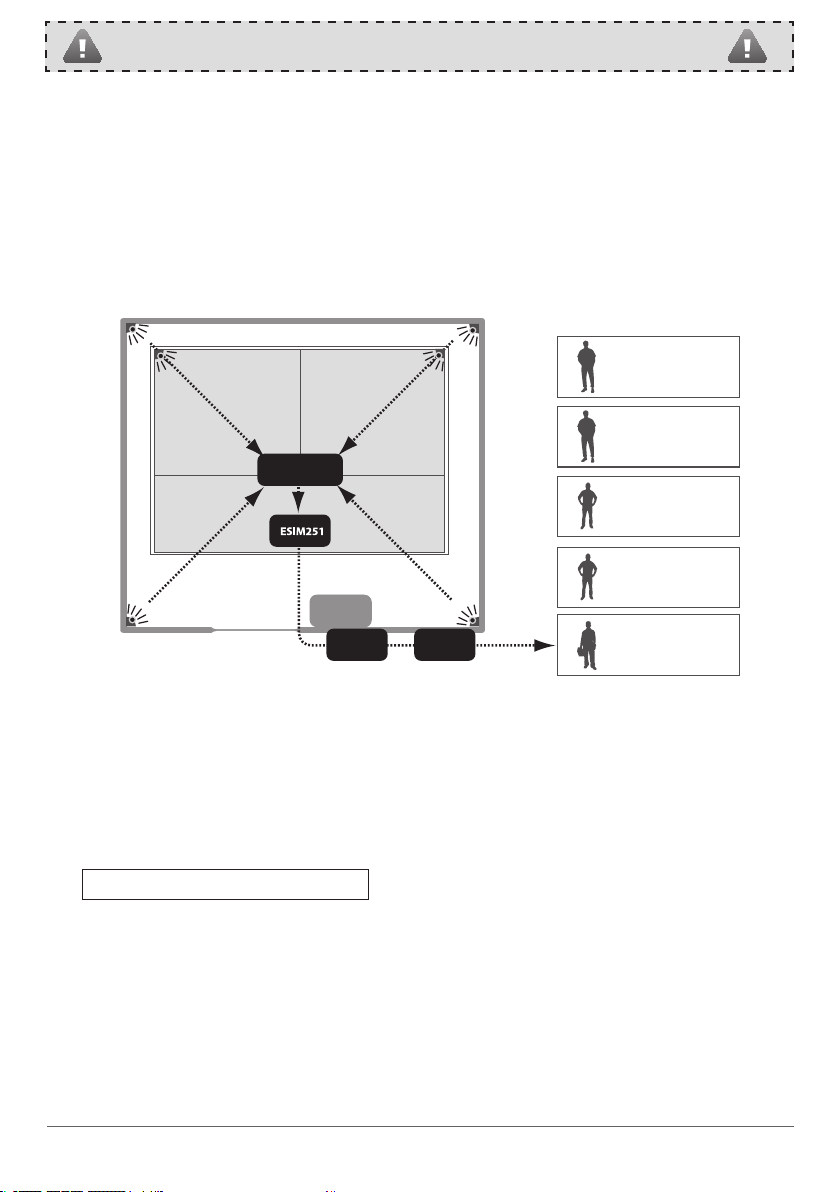

E. g. 1
TheuserwantstoconnectESIM252systemtoanexistingalarmsysteminabuildingwhereenterpriseAandenterpriseBwork.
Both enterprises use the same alarm system unit that has 2 inputs and 5 outputs PGM.
Task NO3:
 ConguringthesystemsothattheintrusiontoenterpriseApremisesisreportedtothejanitor(NO3)andenterpriseAemployee
(NO4)bySMSmessagesandcalls.EnterpriseAemployee(NO4)wantstoreceiveacallonlyinthecaseifthejanitor(NO3)doesnot
answerthecall,isoutofnetworkcoverageoratthattimethejanitor’stelephonelineisengaged.
As per factory default settings SMS message sending feature in the case of alarm is enabled for all users until the rst successful
deliveryoftheSMSmessage,itisnecessarytoenablemandatorySMSmessagedelivery(seemoreinchapter3.7)andtoremove
the users who should not receive alarm messages. Besides, as per factory default settings, calling feature in the case of alarm is also
enabledforallusersthereforecallfunctionmustbedisabledforallusersexceptusersNO3andNO4.Asperfactorydefaultsettings
in the case of alarm the system rings until the rst answered call, therefore in this case nothing should be congured.
a)FirstofallalarmsystemunitmustbeprogrammedinthewaysothatwhensecuritysensorsofenterpriseAareviolated,the
signal is transmitted to alarm system unit‘s output PGM4.
b)OutputPGM4isconnectedtoESIM252inputZ4
c) ThefollowingcongurationSMSmessagesmustbesenttoEsim252system:
where SMSALL enables mandatory SMS message delivery feature for all users.
Where SC125 means that alarm SMS message delivery feature is disabled for users NO1, NO2 and NO5 after input Z4 is violated.
CC125 means that alarm calls are disabled for users NO1, NO2 and NO5 after input Z4 is violated.
XXXX_SMSALL:ON
XXXX_SMSEXTRA:Z4:SC125,CC125
Alarm
SMS/Calls
Alarm
SMS/Calls
PGM4
Enterprise A Enterprise B
ESIM151
PIR
PIR
Director A
NO1
Director B
NO2
Worker A
NO4
Worker B
NO5
Janitor
NO3
Janitor
Alarm system
GATES

USER MANUAL ELDES ESIM252 V1.0 17
FOR ADVANCED USERS
All these features can be congured using program “ELDES Conguration Tool“

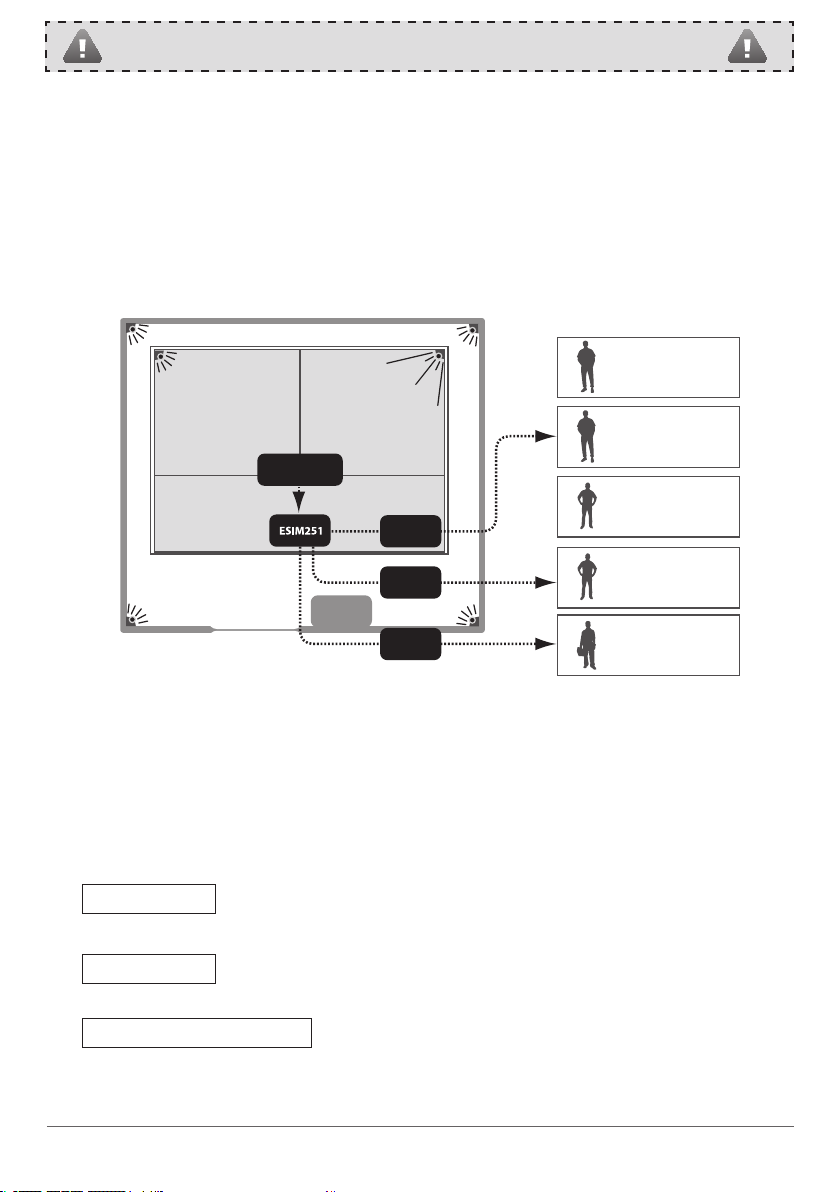

Task NO4:
 ConguringthesystemsothattheintrusiontoenterpriseBpremisesisreportedtothejanitor(NO3)andenterpriseBemployee
(NO5)bySMSmessagesandcalls,andthedirectorofenterpriseB(NO2)receivesSMSmessageonly.EnterpriseBemployee(NO5)
mustreceivethephonecalleveninthecasewhenthejanitor(NR3)answersthecall.
As per factory default settings SMS message sending feature in the case of alarm is enabled for all users until the rst successful
deliveryoftheSMSmessage,itisnecessarytoenablemandatorySMSmessagedelivery(seemoreinchapter3.7)andtoremove
the users who should not receive alarm messages. Besides, as per factory default settings, calling feature in the case of alarm is also
enabled for all users therefore call function must be disabled for users NO1, NO2 and NO4, and left enabled for users NO3 and NO5.
Also,itisnecessarytoenablemandatorycallingfeatureforallpresetusers(seemoreinchapter3.8).
a) Firstofallalarmsystemunitmustbeprogrammedinthewaysothatwhensecuritysensorsareviolatedthesignalmustbe
transmitted to alarm system unit‘s output PGM5.
b)OutputPGM5isconnectedtoESIM252inputZ5
c) ThefollowingthreecongurationSMSmessagesmustbesenttoEsim252system:
where SMSALL enables mandatory SMS message delivery feature for all users.
where CALLALL enables mandatory calling feature for all users.
where SC14 means that alarm SMS message sending feature is disabled for users NO1 and NO4 after input Z5 is violated. CC124
means that alarm calls are disabled for users NO1, NO2 and NO4 after input Z5 is violated.
XXXX_SMSALL:ON
XXXX_CALLALL:ON
XXXX_SMSEXTRA:Z5:SC14,CC124
Alarm
SMS/Calls
Alarm
SMS/Calls
Alarm
SMS
PGM5
PIR
PIR
ESIM151
Enterprise A Enterprise B
Director A
NO1
Director B
NO2
Worker A
NO4
Worker B
NO5
Janitor
NO3
Janitor
Alarm system
GATES

18

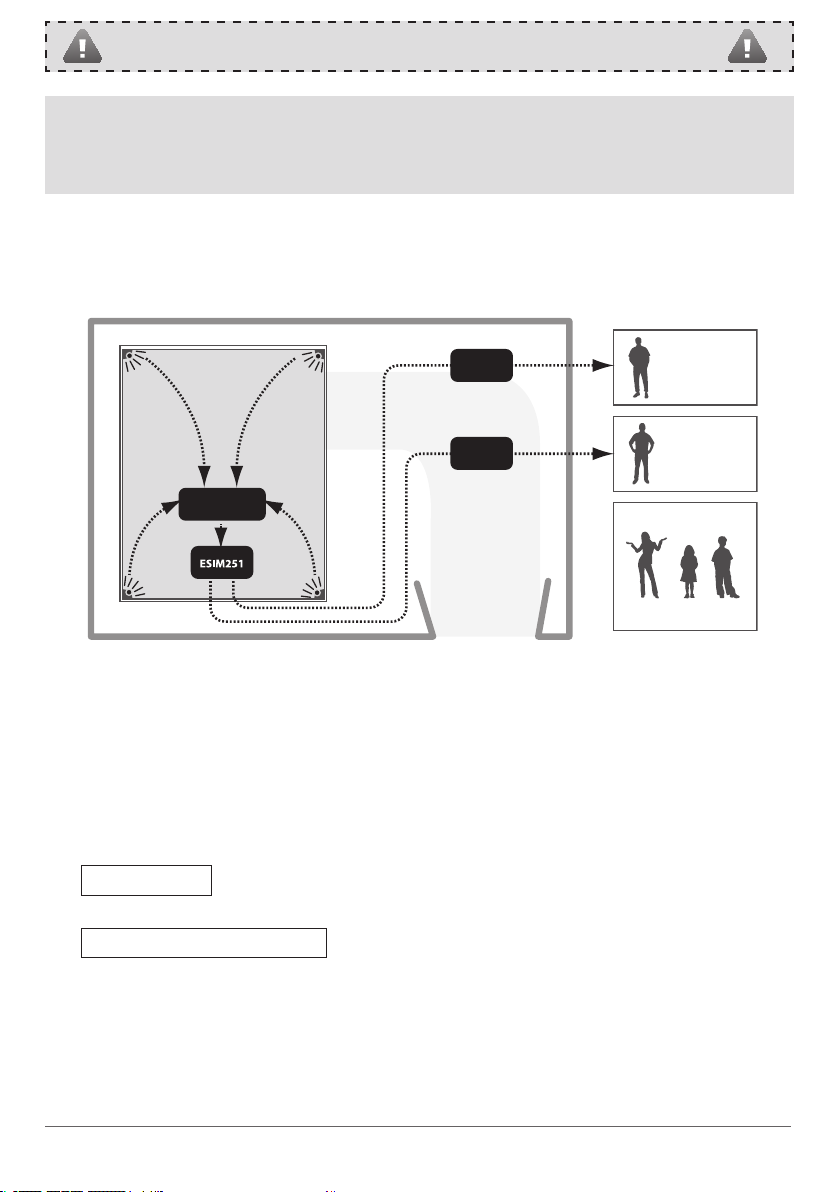

E. g. 2.
TheuserwantstoconnectESIM252systemtotheoutputsPGMofanexistingalarmsystem.Houseareaisenteredthrough
automatically controlled gates. There are 5 users in total. NO1 is the housekeeper, NO2 is a neighbour, NO3-NO5 are family
members.
As per factory default settings SMS message sending feature in the case of alarm is enabled for all users until the rst successful
deliveryoftheSMSmessage,itisnecessarytoenablemandatorySMSmessagedelivery(seemoreinchapter3.7)andtoremove
the users who should not receive alarm messages. Besides, as per factory default settings, calling feature in the case of alarm is also
enabled for all users therefore call function must be disabled for users NO2-NO5 and left enabled for NO1 only.
a)Firstofallalarmsystemunitmustbeprogrammedinthewaysothatwhensecuritysensorsareviolatedthesignalmustbe
transmitted to alarm system system unit output PGM.
b)OutputPGMisconnectedtoESIM252inputZ1
c)The following two conguration SMS messages must be sent to Esim252 system:
where SMSALL enables mandatory SMS message delivery for all users.
Where SC345 means that alarm SMS message sending is disabled for users NO3, NO4 and NO5 after input Z1 is violated.
CC2345 means that alarm calls are disabled for all users except NO1 after input Z1 zone is violated.
Task NO1:
Conguringthesystemsothathousealarmactivationisreportedtothehousekeeper(NO1)bySMSmessageandacallaswellas
totheneighbour(NO2)butbySMSmessageonly.
XXXX_SMSALL:ON
XXXX_SMSEXTRA:Z1:SC345,CC2345
Housekeeper
NO1
Neighbour
NO2
Family members:
NO3 NO4 NO5
Alarm system
ESIM151
Alarm
SMS
Alarm
SMS/Calls
PIR PIR
PIRPIR
PGM
GATES
FOR ADVANCED USERS
All these features can be congured using program “ELDES Conguration Tool“

USER MANUAL ELDES ESIM252 V1.0 19
As per factory default settings C1 output control via calls is disabled for all users, it is necessary to enable this feature and to set the
users who will be able to control the output. Besides, it is also necessary to set output status for every user when he/she makes a call
to the system. In this case the output must be turned on and the duration must be 1 second; afterwards the output returns to the
previous state. Call Back feature must be enabled for user NO5 and it is necessary to choose the length parameters for that call. Also,
conrmation SMS messages have to be enabled for user NO3.
a)FirstofallEsim252systemrelayoutputhastobeconnectedtotheconnectorsofgatecontrolunit.
b)The following conguration SMS message must be sent to Esim252 system:
where COC1 means C1 output control by call is enabled for users NO1, NO3-NO5.
CS5 means that Call Back feature is enabled for user NO5 after output C1 status changes.
CT513 means that user NO5 will receive a conrmation call when the output gets activated and call duration is 3 seconds.
SS3 means that user NO3 will be informed about output C1 status change by SMS message.
MS10 means that the output is activated when user NO1 calls the system.
MS30 means that the output is activated when user NO3 calls the system.
MS40 means that the output is activated when user NO4 calls the system.
MS50 means that the output is activated when user NO5 calls the system.
MS1T0.0.1 means that output status is changed for 1 second when user NO1 calls the system.
MS3T0.0.1 means that output status is changed for 1 second when user NO3 calls the system.
MS4T0.0.1 means that output status is changed for 1 second when user NO4 calls the system.
MS5T0.0.1 means that output status is changed for 1 second when user NO5 calls the system.
Task NO2:
Conguringthesystemsothathousegatescouldbeopenedviafreecallsbythehousekeeper(NO1)andhisfamilymembers
(NO3),(NO4)and(NO5).AftereverysuccessfulgateopeningtheuserNO5wantstoreceiveaconrmationcall(CallBack)the
duration of which is 3 seconds, and the user NO3 wants to receive a conrmation SMS message.
XXXX_SMSEXTRA:COC1:CE1345,CS5,CT513,SS3,MS10,MS30,MS40,MS50,MS1T0.0.1,MS3T0.0.1,MS4T0.0.1,MS5T0.0.1
Housekeeper
NO1
Gate controller
ESIM151
Family member
NO3
Family member
NO4
Family member
NO5
Conrmation
SMS
Control
Call
Conrmation
Call
GATES
3 sek.
FOR ADVANCED USERS
All these features can be congured using program “ELDES Conguration Tool“

20
FOR ADVANCED USERS
All these features can be congured using program “ELDES Conguration Tool“
E. g. 3.
The user wants to connect Esim252 system to the heating system of the house.
As per factory default settings C1 output control via calls is disabled for all users, it is necessary to enable this feature and to set the
users who will be able to control the output – in this case it is user NO1. Besides it is also necessary to set output status for user NO1
when he/she calls the system. In this case you must set the system so that the output is turned on after one call and turned o after
anotherone(Toggle)andsoon.UserNO1needstoenableconrmationcall(CallBack)featureandsetthelengthparametersfor
that call. To dierentiate whether the output was turned on conrmation call will be set to ring for 3 seconds and the conrmation
call will ring for 10 seconds when the output was turned o.
a)FirstofallESIM252systemoutputC1hastobeconnectedtotheconnectorsofheatingcontrollerunit.
b) ThefollowingcongurationSMSmessagemustbesenttoEsim252system:
where COC1 means C1 output control by call is enabled for users NO1.
CS1 means that conrmation call feature is enabled for user NO1 after output C1 status changes.
CT113 means that user NO1 will receive a conrmation call when the output is turned on and call duration is 3 seconds.
CT1010 means that user NO1 will receive a conrmation call when the output is turned o and call duration is 10 seconds.
MS12 means that Toggle mode is activated for user NO1 which means that output status is changed with every call.
Task No1:
 Conguringthesystemsothathouseheatingsystemisturnedonandturnedobytheuser(NO1)viafreecall.Thisusershould
also receive free information about successful turning on or turning o of the heating system.
User
NO1
User
NO2
Flood detector
Heating
Controller
ESIM151
Conrmation
Call
3sek/10sek
Control
Call
XXXX_SMSEXTRA:COC1:CE1,CS1,CT113,CT1010,MS12
