ELECAENTA LSFC-120 User manual

120W PORTABLE SOLAR PANEL
USER MANUAL
Contact Us: [email protected]
12 Months Warranty
Model: LSFC-120

Thank You for Purchasing ELECAENTA!
We focus on outdoor products of high- performance, beautiful design and flexible
usability, such as portable power stations and solar panels.
The purpose of this manual is to guide you to the proper use of this product. Please
read the contents carefully and follow the guide. Please save this manual as well, so
you can refer to it whenever you want to use it.
Product Introduction
ELECAENTA LSFC-120 120W foldable solar panel can provide clean, renewable and
economical power to your electronic devices. In addition to charging small USB
electronic devices (such as smartphones, laptops, mobile batteries and portable
fans), it can also charge DC devices such as (such as portable power stations).
Product Features
1. ELECAENTA ETFE Solar panels with monocrystalline silicon solar cells can improve
the conversion efficiency, which is much higher than ordinary PET solar panels.
2. Using ETFE thermoplastic resin film of high light transmission, it reaches 95%
transparency of top rate.
3. Each USB port has a built-in smart IC, which can automatically and quickly
recognize the current of your device to speed up the charging process.
4. The foldable and compact design is ideal for outdoor activities such as hiking,
traveling and camping.

ELECAENTA 120W Solar Panel Specifications
Model
Solar Cell Type
Panel material
Conversion Efficiency
Nominal Capacity
Voltage
Current
USB-QC 3.0 Output
PD 45W USB C Output
Folded Size
Expanded Size
Weight
Waterproof Level
Operate Temperature
LSFC-120
Monocrystalline Silicon
ETFE
Up to 24%
120W
18V (Open Circuit Voltage: 23-25V)
6.6A (Short-Circuit Current: 7.2A)
5V/3.4A、9V/2.5A、12V/2A (MAX)
5V/3A、9V/3A、12V/3A、15V/3A (MAX) PD45W
520*360*25mm
1660*520*5mm
4.6KG
IPX5
-10～65℃
What’s In the Box
1 x 120W Solar Panel 1 x 3-in-1 Cable
(DC5521 to Anderson/ XT60/ 8020)
1 x 10 DC Size Conversion Plugs

02
1 x DC5521 to MC4 Cable
4 x Climbing Hooks 1 x User Manual

45° to 90°
Operation Guidance
1.Unfold the solar panel.
Spread and stabilize it under
direct sunlight and ensure it is
facing towards the sun. When the
solar panel senses sunlight, the
red LED indicator on the junction
box will light up.
2.Elevate the solar panel above the ground by using the kickstands. This will help to
adjust to the optimal angle facing towards the sun and prevent from overheating by
increasing airflow.
03
3.Connect your electronic device to the Solar Panel with a cable with right connector.
*Please Note:
It is recommended to place the charging unit on the back of the solar panel or in a cool
place to avoid overheating.

DC Output
The product comes with a 3-meters long DC cable, and the size of this DC plug is
5.5 * 2.1mm. You can start charging by directly connecting to an electronic device
with a 5.5 * 2.1 mm DC input port.
10 DC Size Conversion Plugs
If the DC plug size of your device to be charged is different from the one of the solar
panel, you can choose 1 from the rest 10 DC size conversion plugs that come with the
product to charge the device by size conversion.
*Please contact your product supplier to obtain the size of the DC input port of the
device you want to charge.

Mark
Size
Mark
Size
K
7.9*0.9mm
H
5.0*3.2mm
I
7.4*5.0mm
E
5.5*1.7mm
A
6.5*4.2mm
D
4.8*1.7mm
C
5.5*2.5mm
S
3.5*1.35mm
B
6.3*3.0mm
G
4.0*1.7mm
04

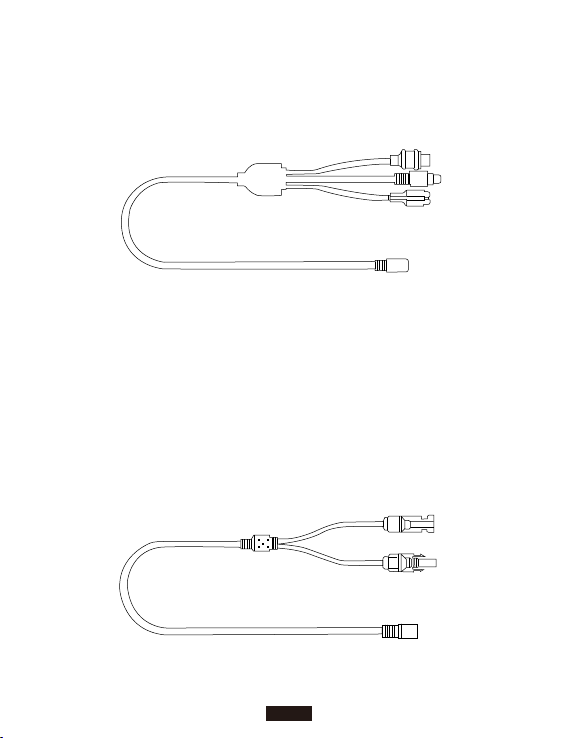

3-in-1 Cable (DC5521 to Anderson/ XT60/ 8020)
There is a 3-in-1 cable in the package for your extensive use. It has one Anderson
port, one XT60 port and one 8020 port.
DC5521 to MC4 Cable
There is a DC5521 to MC4 cable in the package, which can be connected to MC4
cable of your product to charge your device.
05

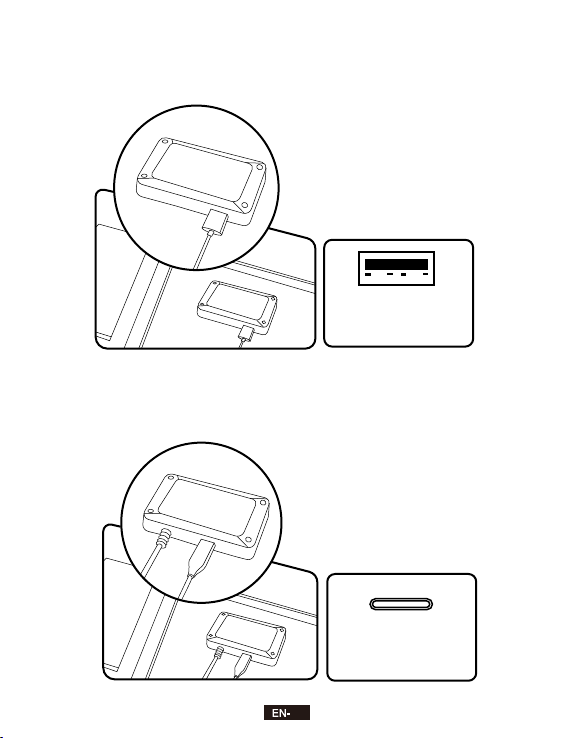

USB QC 3.0 Output for Fast Charging
There is a USB QC 3.0 output on the solar panel (5V/3.4A, 9V/2.5A, 12V/2A max)
Fast Charging
USB QC 3.0
Fast Charging
45W USB C
06
PD 45W USB C Fast Charging
There is a USB C output on the solar panel (5V/3A, 9V/3A, 12V/3A, 15V/3A max. PD 45W )

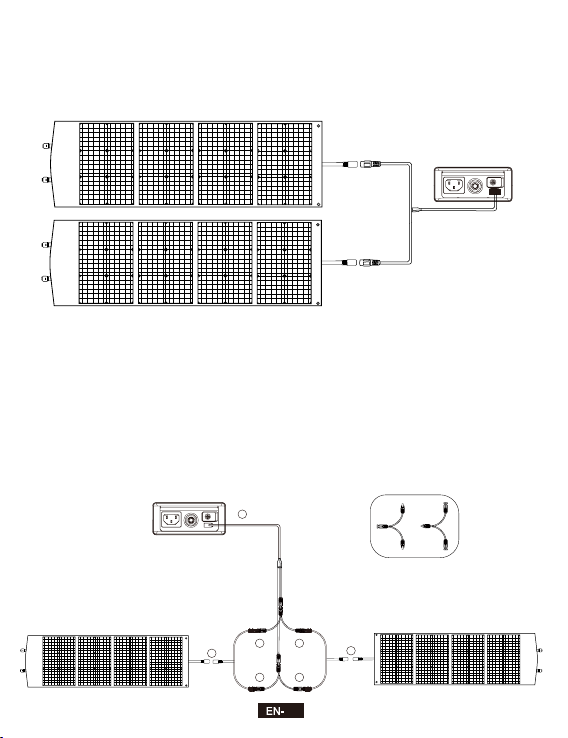

Connecting the Solar Panels in Parallel or in Series
Wire Solar Panels in Parallel
1. Paralleling directly using our DC5521 solar parallel connection cables (sold
separately);
2. If using MC4 cables for parallel connection:
(I). First, connect the DC5521 cable on the solar panel with the DC5521 to MC4 cable
(included in the package), and do the same steps for the other solar panel.
(II). Then, find the 4 poles (2 positive poles and 2 negative poles), connect them with
the MC4 Solar Connectors Y Branch Parallel Cable (sold separately);
(III). Finally, connect the Solar MC4 parallel connection cable to MC4 input cable that
can charge your unit to charge your unit.
Solar MC4 parallel connection cable
(sold separately)
II II
II II
ⅠⅠ
Ⅲ
07

Wire Solar Panels in Series
Using MC4 cables for series connection
(I). First, connect the DC5521 cable on the solar panel with the DC5521 to MC4 cable
(included in the package).
(II). Then, connect the male connector of the MC4 cable to the female connector of the
other MC4 cable;
(III). Finally, connect the MC4 input cable that can charge your unit to charge your unit.
II
Ⅰ
Ⅰ
Ⅲ
Ⅲ
08

Precautions for Use
1. When charging with solar panels, the strong sun may cause the solar panels to heat
up, so please be careful, otherwise you may get burned when you touch it.
2. This solar panel works best when it is sunny. In cloudy or shaded areas, the
operating efficiency may be reduced.
3. Do not expose the smartphone or mobile battery to direct sunlight.
4. Excessive heat may damage the equipment and cause it to burn or deform.
5. The solar panel itself has NO power storage function and can NOT be used as a
battery.
6. Always treat the monocrystalline solar panel with care. Do NOT drop or scratch the
panel and keep it away from sharp objects.
7. To prolong its service life, try to clean the solar panel with dry towel or cloth after
every use.
8.When using it outdoors, be careful to avoid dust and water entering the charging
port.
In the evening Fold the solar panel
Under the shadow Through the glass window
The following scenarios are not recommended.
09

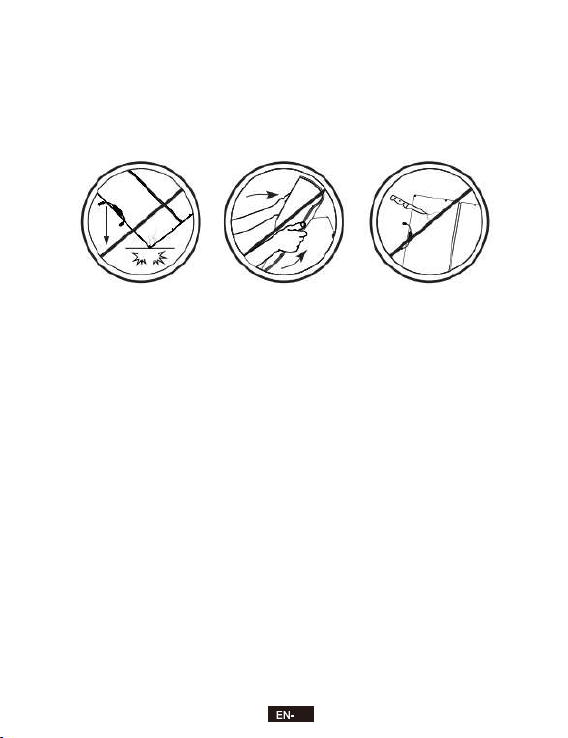

Please Do Not Do the Behavior Below
The below behavior of damaging the solar panel will cause the solar panel to crack,
reduce its efficiency, or even become unusable. The free warranty period does not
cover damage caused by improper use of the product.
FAQ:
●Why doesn’t my solar panel reach its rated 120W?
When a solar panel is actually being used, it is normal that the actual power does not
reach the rated power. Below are main factors that will cause the power to fall below
the rated power.
Sunlight Intensity: The strength of the sun's rays will cause the output power to
fluctuate. While it may be relatively close to the tested conditions at noon on a clear
day, it may be less in the morning or afternoon. Weather conditions will affect the light
conditions, and hazy, cloudy, or rainy weather will cause the actual power to be much
less than the rated power.
Surface Temperature: The surface temperature of the solar panel will affect the
power performance of the solar panel.
The Angle of the sun's rays: In good lighting angle, the solar panel can be
11
10

perpendicular to the sunlight for better performance.
Interferences: When the solar panel is in use, try NOT to have anything covering
the surface, including shadows, foreign objects, glass windows, and even dust.
If the above conditions are met, no power or the power much less than the rated
power, the product may be faulty. Please feel free to contact ELECAENTA and our
global customer service team will do their best to make you completely satisfied.
● Can I use ELECAENTA 120W solar panel to charge my power
stations?
Yes, but please confirm the input port of your power station.
The DC output size of ELECAENTA 120W solar panel is 5.5*2.1mm, and there is a
DC5521 to MC4 cable, a 3-in-1 DC5521 to Anderson/XT60/DC8020 cable, it can
compatible with most solar generators on the market.
● Can I connect ELECAENTA 120W solar panels in series?
Yes, you can. When the panels are connected in series, the output voltage is 18V +
18V = 36V, the output current is 6.66A.
a.Please make sure your series cable can support 36V, 6.66A.
b.Please purchase solar panels of the same technical size if you intend to connect
multiple panels in series.
● Can I connect ELECAENTA 120W solar panels in parallel?
Yes, you can. When the panels are connected in parallel, the output voltage is 18V, the
output current is 6.66A + 6.66A = 13.32A.
a.Please make sure your parallel cable can support 18V, 13.32A.
b.Please purchase panels of the same technical size if you intend to connect multiple
panels in parallel.
11

12
● Can I connect ELECAENTA 120W solar panel and other brand
solar panels together in parallel or in series ?
No, you can't do that. Different solar panels have different output voltages and
currents, so when the panels are connected in parallel or in series, the solar panels can
be damaged.
If you plan to connect multiple panels in parallel or in series, buy the exact same solar
panels.
Contact ELECAENTA
If you have any questions or suggestions about our products, please contact us at
[email protected]. We promise to get back to you within 12 hours.

Merci d'avoir acheté ELECAENTA !
Nous sommes spécialisés dans les produits d'extérieur performants au
design élégant et à l'utilisation flexible, tels que les centrales électriques
portables et les panneaux solaires.
Caractéristiques du produit
1.Les panneaux solaires ELECAENTA ETFE avec des cellules solaires en silicium
monocristallin peuvent améliorer l'efficacité de conversion, qui est beaucoup plus
élevée que les panneaux solaires en PET ordinaires.
2.En utilisant un film de résine thermoplastique ETFE à haute transmission lumineuse,
il atteint une transparence de 95% du taux le plus élevé..
3.Chaque port USB dispose d'un circuit intégré intelligent, qui peut reconnaître
automatiquement et rapidement le courant de votre appareil pour accélérer le
processus de charge.
4.La conception pliable et compacte est idéale pour les activités de plein air telles que
Présentation du produit
Le panneau solaire pliable ELECAENTA LSFC-120 120W peut fournir une alimentation
propre, renouvelable et économique à vos appareils électroniques. En plus de
charger de petits appareils électroniques USB (tels que des smartphones, des
ordinateurs portables, des batteries mobiles et des ventilateurs portables), il peut
également charger des appareils CC (tels que des centrales électriques portables).
la randonnée, les voyages et le camping.
FR-49

Spécifications du panneau solaire ELECAENTA 120W
Modèle
Type de cellule solaire
Matériau du panneau
Efficacité de conversion
Capacité nominale
Tension
Courant
Sortie USB QC 3.0
Sortie USB C PD 45W
Taille pliée
Taille développée
Masse
Niveau étanche
Température de
fonctionnement
LSFC-120
Silicium monocristallin
ETFE
24%
120W
18V (Tension en circuit ouvert: 23-25V)
6.6A (Courant de court-circuit: 7.2A)
5V/3.4A、9V/2.5A、12V/2A (MAX)
5V/3A、9V/3A、12V/3A、15V/3A (MAX) PD45W
520*360*25mm
1660*520*5mm
4.6KG
IPX5
-10～65℃

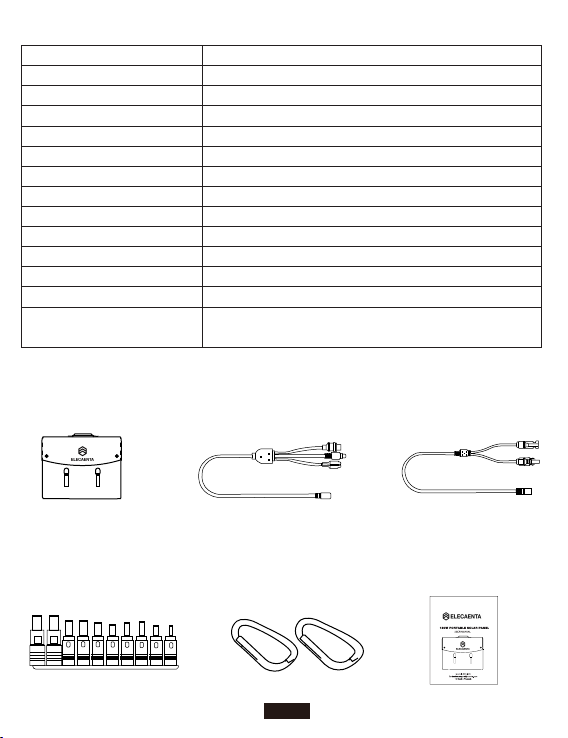

Contenu du colis
1 x Panneau Solaire 120W 1 x Câble 3 en 1
(DC5521 à Anderson/ XT60/ 8020)
1 x 10 fiches de conversion
de taille CC

02
1 x Câble DC5521 à MC4
4 xCrochets d'escalade 1 x Manuel de l'Utilisateur
FR-50

45° to 90°
Guide de fonctionnement
1.Dépliez le panneau solaire.
Étalez-le et stabilisez-le sous la
lumière directe du soleil et
assurez-vous qu'il est orienté vers
le soleil. Lorsque le panneau
solaire détecte la lumière du soleil,
le voyant LED rouge sur la boîte de
jonction s'allume.
2.Élevez le panneau solaire au-dessus du sol en utilisant les béquilles. Cela aidera à
s'adapter à l'angle optimal face au soleil et à éviter la
surchauffe en augmentant le débit d'air.
3.Connectez votre appareil électronique au panneau solaire avec un câble avec
connecteur droit.
**Veuillez noter:
Il est recommandé de placer le chargeur à l'arrière du panneau solaire ou dans un
endroit frais pour éviter la surchauffe.
02
FR-51

10 fiches de conversion de taille CC
Si la taille de la prise CC de votre appareil à charger est différente de celle du
panneau solaire, vous pouvez choisir 1 parmi les 10 autres prises de conversion de
taille CC fournies avec le produit pour charger l'appareil par conversion de taille.
*Veuillez contacter votre fournisseur de produit pour obtenir la taille du port d'entrée
Sortie CC
Le produit est livré avec un câble CC de 3 mètres de long et la taille de cette prise CC
est de 5,5 * 2,1 mm. Vous pouvez commencer à charger en vous connectant
directement à un appareil électronique avec un port d'entrée CC de 5,5 * 2,1 mm.
CC de l'appareil que vous souhaitez charger.

Marquer
Taille
Marquer
Taille
K
7.9*0.9mm
H
5.0*3.2mm
I
7.4*5.0mm
E
5.5*1.7mm
A
6.5*4.2mm
D
4.8*1.7mm
C
5.5*2.5mm
S
3.5*1.35mm
B
6.3*3.0mm
G
4.0*1.7mm
FR-52

Câble 3 en 1 (DC5521 vers Anderson/ XT60/ 8020)
Il y a un câble 3 en 1 dans l'emballage pour une utilisation intensive. Il possède un
port Anderson, un port XT60 et un port 8020.
Câble DC5521 à MC4
Il y a un câble DC5521 vers MC4 dans l'emballage, qui peut être connecté au câble
MC4 de votre produit pour charger votre appareil.
ES-29FR-53

Sortie USB QC 3.0 pour une charge rapide
Il y a une sortie USB QC 3.0 sur le panneau solaire (5V/3.4A, 9V/2.5A, 12V/2A max)
Charge rapide USB C PD 45 W
Il y a une sortie USB C sur le panneau solaire (5V/3A, 9V/3A, 12V/3A, 15V /3A max.
PD45W )
FR-54
USB QC 3.0
Charge rapide
45W USB C
Charge rapide

Connexion des panneaux solaires en parallèle ou en série
En parallèle :
Mise en parallèle directement à l'aide de nos câbles de connexion solaire parallèle
DC5521 (vendus séparément)
2. Si vous utilisez des câbles MC4 pour une connexion parallèle :
(I).Tout d'abord, connectez le câble DC5521 sur le panneau solaire avec le câble
DC5521 vers MC4 (inclus dans l'emballage), et suivez les mêmes étapes pour l'autre
panneau solaire.
(II).Ensuite, trouvez les 4 pôles (2 pôles positifs et 2 pôles négatifs), connectez-les avec
le câble parallèle MC4 Solar Connectors Y Branch (vendu séparément) ;
(III).Enfin, connectez le câble de connexion parallèle Solar MC4 au câble d' entrée MC4
qui peut charger votre appareil pour charger votre appareil.
Câble de connexion parallèle Solar MC4
(vendu séparément)
II II
II II
ⅠⅠ
Ⅲ
FR-55
