ElectrIQ eiQ52GCANOPY User manual

USER MANUAL
CANOPY COOKER HOOD
eiQ52GCANOPY
Thank you for choosing your electriQ cooker hood.
This instruction manual is designed to provide you with all required instructions
related to the installation, use and maintenance of the appliance. In order to operate
the unit correctly and safely, please read this instruction manual carefully before
installation and usage.

3
CONTENTS
SAFETY 3
INSTALLATION 8
OPERATION 10
CLEANING AND MAINTENANCE 11
FILTER INFORMATION 12
LIGHT INFORMATION 13
TROUBSLEHSOOTING 14
SUPPORT 14
PRODUCT FICHE 15

4
SAFETY PRECAUTIONS
Whilst this product is compliant with all safety requirements, incorrect or
inappropriate use can lead to both personal injury and potential damage
to property. Please read the contents of this instruction booklet
thoroughly before fitting or using this appliance.
•The cooker hood must be installed in accordance with the installation
instructions and all measurements followed.
•All installation work must be carried out by a competent person or
qualified electrician.
•The unit must be connected to an earthed power supply.
•If venting externally, make sure the ducting has no bends sharper than
90 degrees as this will reduce the efficiency of the cooker hood.
•The cooker hood is for domestic use only and is not designed for
commercial use. It should only be used for the purpose it was intended
–to extract vapours and cooking odours.
•Do not flambé or use an open flame under the cooker hood.
•Do not try to use the cooker hood without the grease filters or if the
filters are excessively greasy! They should be cleaned regularly (see
“Maintenance”) or replaced as necessary.
•The extraction fan must be level to avoid grease collection at one end,
as this could cause a potential fire risk.
•Do not leave frying pans unattended during use because overheated
fat or oils might catch fire.
•If the cooker hood is damaged, do not attempt to use it.
•If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or a similarly qualified person in order to avoid a
hazard.
•This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
•Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
•Children should be supervised to ensure that they do not play with the
appliance. It is not a toy.

5
•The plug must be accessible after installation for isolation in case of an
emergency –or an appropriate fused switch if the unit is hard-wired to
the mains via a spur.
•The minimum distance between the surface of the hob and the lowest
part of the hood should be at least 65cm. A distance of between 65cm
and 75cm gives peak efficiency.
•The air must not be discharged into a flue that is used for exhausting
fumes from appliances burning gas or other fuels.
•When the hood is vented externally and used with appliances which
burn fuel (e.g. gas, oil, wood) the area must be sufficiently ventilated to
ensure safe operation. Fresh air must be allowed to freely enter the
room to prevent a partial vacuum.
•A partial vacuum can starve the heating appliance of oxygen, impairing
combustion. It can also prevent toxic fumes from leaving the room, or
can cause fumes to be sucked into the room from outside.
•Safe operation is only possible when the partial vacuum within the
working area does not exceed 4 Pa (0.04 mbar). This can be achieved
by ensuring air is able to enter the room from outside through a suitable
sized opening which cannot be sealed during operation. A number of
alternative solutions are available to ensure this. If in any doubt,
professional advice should be sought.
•Regulations concerning the discharge of air have to be fulfilled.
•There is a potential fire risk if cleaning is not carried out in accordance
with the instructions.
•Clean your appliance periodically by following the method given in the
chapter MAINTENANCE
•If used in recirculation mode, charcoal filters (available separately) can
be used to trap odours and must be replaced at least once a year
depending on how frequently the cooker hood has been used.
•For safety reason, please use only the same size of fixing or mounting
screw, which are recommended in this instruction manual.
•Warning: Failure to install the screws or fixing device in accordance
with these instructions may result in electrical hazards
CAUTION: Accessible parts of the hood can become very hot during
use with cooking appliances, whether in use or not, due to heat rising
from the hob. Sufficient time should be allowed for the unit to cool
before touching either the housing or the grease filters.

6
V-FLAP INSTALLATION
DIMENSIONS

7
OPTIONS FOR VENTING
EXTERNAL VENTING
If you have an outlet leading outside, your
cooker hood can be connected as shown in
the diagram using a flexible exhaust hose (not
supplied). Any suitable extraction duct
(enamel, aluminium, flexible pipe or other
inflammable material with an interior diameter
of 150mm) can be used. An adaptor is also
supplied to enable you to connect your hood
to pre-existing 120mm diameter ducting.
Consideration of the route of the vent pipe
should be made prior to installation. Please
note: the performance of the hood may be
affected if the diameter of the pipe is reduced,
or if the airflow is restricted.
RECIRCULATION
The cooker hood also supports the recirculation
of air, using filters to clean the air before
expelling it through the vent holes in the side of
the chimney. When installing the unit in this
configuration, carbon filters should also be used
to remove odours from the air. Details of
sourcing and fitting the filters can be found in the
Carbon Filter section of this manual.

8
INSTALLATION
Before installation, ensure power is not connected.

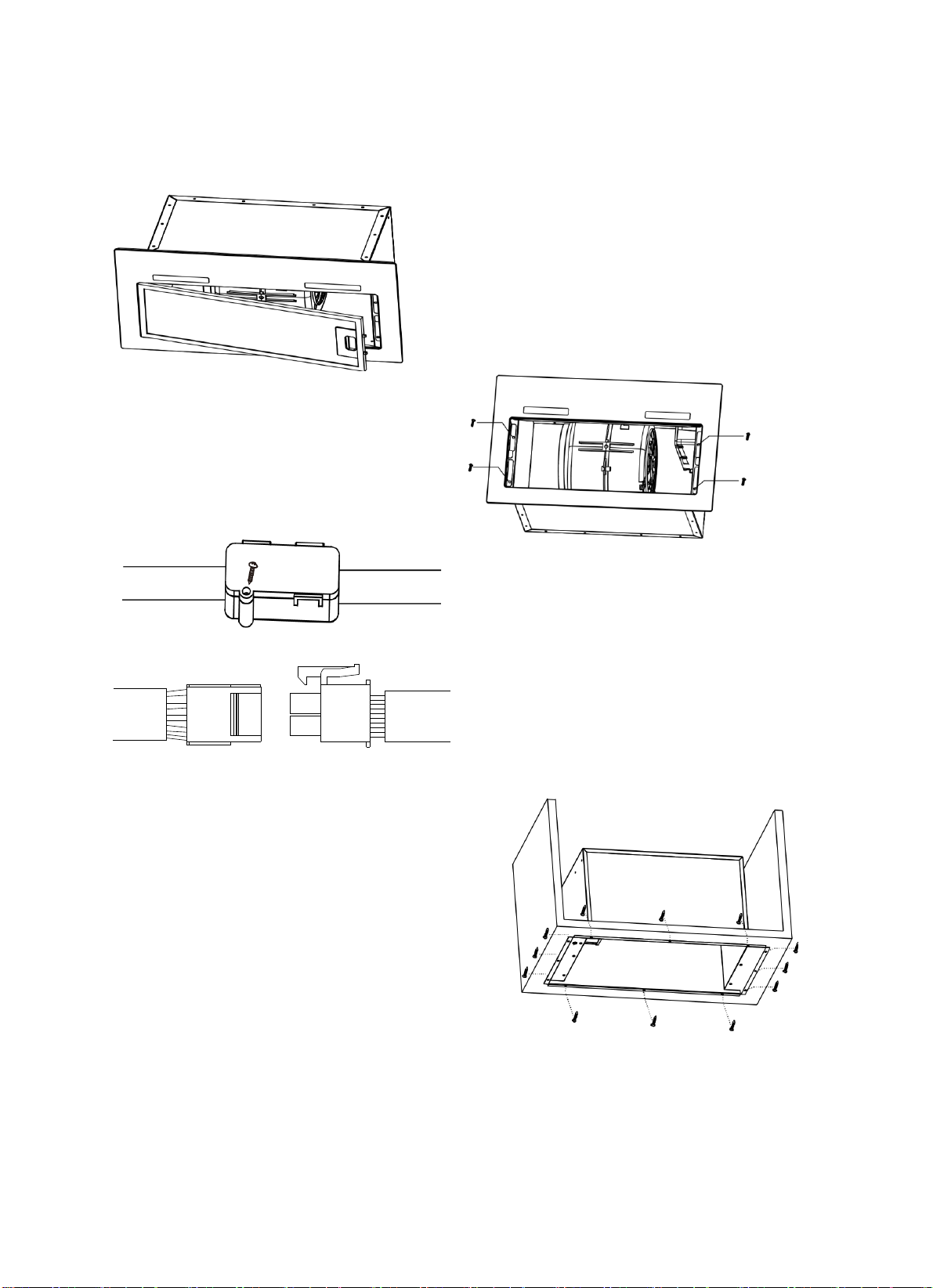

1. Open the catch of metal filter
door, remove the filter.
2. Remove the stainless-steel frame
by removing the 4 x 4x10mm
screws.
3. Remove the lid of the terminal
box and unplug the wires to the
hood controls. Then unplug the
wires to the lights.
4. Fasten the Hood into the cabinet
using the 12 x 4x18mm screws.

9
5. Screw the stainless-steel frame
back into place using the 4
screws removed as described in
step 2 above
6. Reconnect the wires to the
controls and lights.
7. Replace the metal filter, pressing
in until it clicks into place.
8. Install the air outlet pipe
(optional).

10
OPERATION
Button
Function
Remarks
Turns the lights on or off
Decreases the motor speed
When and
are on
Displays fan speed (1, 2 or 3)
When fan is running
Displays “0”
Delayed shutdown mode
or standby mode
Increases motor speed
When and are
on
Turns motor on
When is off
Automatic shutdown after 3 minutes
When is on
Turns motor off
When is flashing
Turns the motor and lights on
When is off
Cycles motor speed (1, 2, 3, 1, 2, 3)
When is on
Enters delayed shutdown mode
(automatic shutdown after 3 minutes)
When is on
Turns the motor and lights off
When is flashing

11
CLEANING AND MAINTENANCE
Before cleaning, switch the unit off and disconnect the power.
Use a soft cloth moistened with mild soapy water or household cleaning detergent.
Never use metal pads, chemicals, abrasive material or stiff brushes to clean the
unit.
NOTE: Do not use a steam cleaner to clean the hood as electrical components
could be damaged or short-circuit as a result.
MONTHLY CLEANING FOR METALLIC ANTI-GREASE FILTER
IMPORTANT NOTE: Clean the filter every month; an excessive build-up of grease
can become a fire hazard. The filter collects grease, smoke and dust, so the filter
directly affects the efficiency of the cooker hood. If it’s not cleaned, the grease
residue (potentially flammable) will saturate on the filter.
Clean it with a soft nylon brush in a mild solution of warm water and a small amount
of washing up liquid. Washing up liquid alone should not be used. After cleaning,
allow the filter to drain and then dry thoroughly.
The grease filter may also be cleaned in a dishwasher; using a 60°C program, with
the filter upright (short sides upright) in the lower basket. Please be aware some
dishwasher cleaning agents can permanently discolour the filter, though this will not
affect its performance.
Replacement grease filters are of the universal type available from many household
and DIY stores.
STAINLESS STEEL
The stainless steel must be cleaned regularly (e.g. weekly) to ensure long life
expectancy.
Dry with a clean soft cloth. A specialised stainless-steel cleaning fluid may be used.
Ensure that wiping is done along with the grain of the stainless steel to prevent any
unsightly crisscross scratching patterns from appearing.
CONTROL PANEL SURFACE
The control panel inlay can be cleaned using warm soapy water. Ensure the cloth is
clean and well wrung before cleaning. Use a dry soft cloth to remove any excess
moisture left after cleaning.
Using neutral detergents and avoid using harsh cleaning chemicals, strong
household detergents or products containing abrasives, as this will affect the
appliance appearance and potentially remove any printing of artwork on the control
panel and will void manufactures warranty.

12
GREASE MESH FILTERS
The mesh filters can be cleaned by hand. Soak them for about 3 minutes in water
with a mild detergent then brush it gently with a soft brush. Do not apply too much
pressure, or this may damage them. Leave to dry naturally out of direct sun light.
Filters should be washed separately to crockery and kitchen utensils. It is advisable
not to use rinse aid.
INSTALLING GREASE MESH FILTERS
To install filters:
1. Angle the filter into the slots at the back of
the hood.
2. Push the button on handle of the filter.
3. Release the handle once the filter fits into
position.
4. Repeat to install all filters.

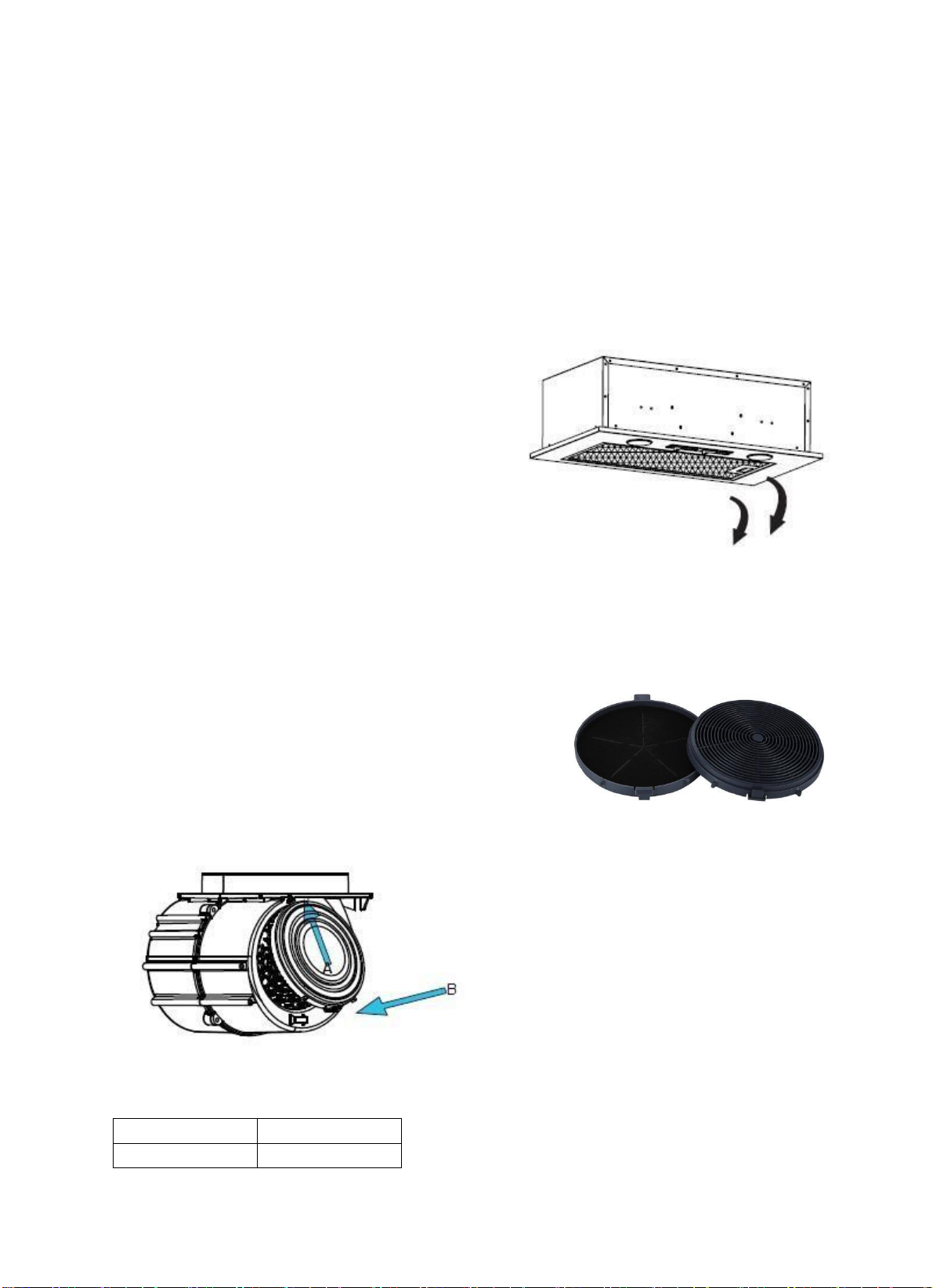

CARBON FILTER (not supplied)
Activated carbon filters can be used to trap odours. The activated carbon filter
should be changed between three and six months according to use. The installation
procedure of activated carbon filters is as below.
1. Align the protruding lug of the carbon filter with
the slot in the fan (see arrow A below)
2. Push the other side of the carbon filter toward
the fan to make it flat (see arrow B), and then
press the filter into the fan.
3. If you want to remove the filter, pull the fastener
of the filter and remove it by turning anticlockwise.
NOTE:
•Make sure the filter is
securely locked. Otherwise, it
may become loose and be
dangerous.
•With activated carbon filters
fitted you may notice is suction
power is slightly reduced.
Filters for eiQ52GCANOPY
Grease Filter
eiqgf7628
Carbon filter
eiqmidcarbon

13
BULB REPLACEMENT
The bulb must be replaced by the manufacturer, its service agent or similarly
qualified persons.
Always switch off the electricity supply before carrying out any operations on the
appliance. When handling the bulb, make sure it has completely cooled down before
making contact with the hands.
When handling bulbs hold with a cloth or gloves to ensure perspiration does not
come in contact with the bulb as this can reduce the life of the bulb.

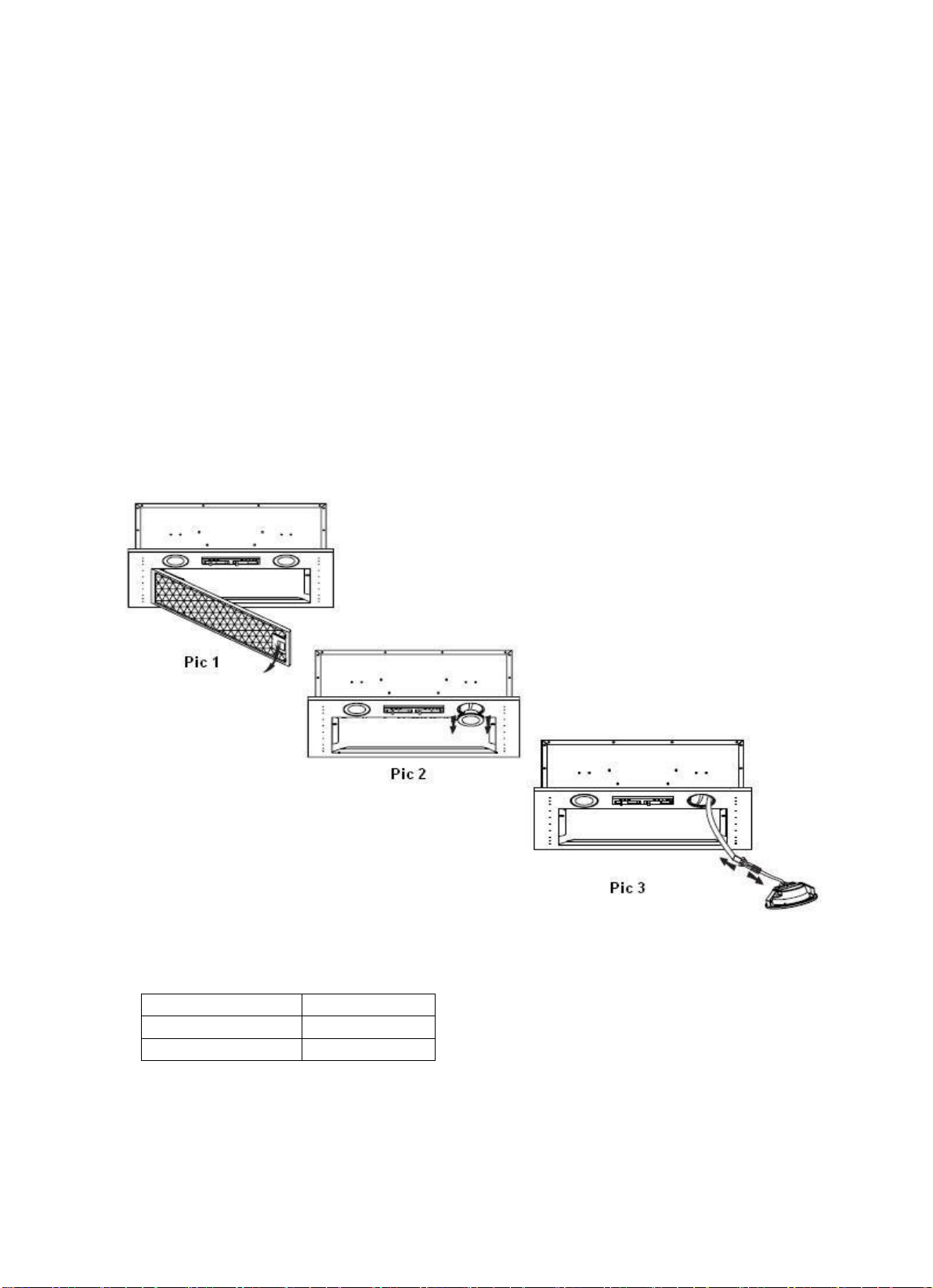

1. Remove the grease filter.
2. Put one hand into the cavity to gently push out the LED light, and use the other
hand to support the light and pull it out, then pull out the light cable.
3. After changing the lamp, plug in the lamp cable, and return the lamp into the
lamp holder.
The ILCOS D code for this lamp is: DSS-1.5-S-33.2/120
LED Modules
Round lamp
Max wattage
2 x 1.5 W
Voltage
DC 12V

14
TROUBLESHOOTING
FAULT
CAUSE
SOLUTION
Light on, but
fan does not
work
The fan blade is
jammed.
Switch off the unit. Repair to be carried
out by qualified service personnel only.
The motor is damaged.
Both light and
fan do not
work
Light bulb blown
Replace the bulb with correct rating.
Power cord loose
Plug in to the power supply again.
Excessive
Vibration
The fan blade is
damaged.
Switch off the unit. Repair to be carried
out by qualified service personnel only.
The fan motor is not
fixed tightly.
Switch off the unit. Repair to be carried
out by qualified service personnel only.
Suction
performance
reduced
Grease filters clogged
Clean or replace grease filters.
Distance between the
unit and the cooking
plane too great.
Readjust the distance to between 65cm
and 75cm.
INFORMATION FOR DISMANTLING
Do not dismantle the appliance other than shown in the user manual. The appliance
cannot be dismantled by user. At the end of life, the appliance should not be
disposed of with household waste. Check with you Local Authority for recycling
advice.
electriQ UK SUPPORT
www.electriQ.co.uk
Call: 0330 390 3061
Office hours: 9AM - 5PM Monday to Friday
Unit J6, Lowfields Business Park Lowfields Way, Elland
West Yorkshire, HX5 9DA
Recycling facilities are now available for all customers at which
you can deposit your old electrical products. Customers will be
able to take any old electrical equipment to participating sites run
by their local councils. Please remember that this equipment will
be further handled during the recycling process, so please be
considerate when depositing your equipment. Please contact the
local council for details of your local household waste recycling
centres.

15
PRODUCT FICHE
Symbol
Value
Unit
Model identification
eiQ52GCANOPY
Annual Energy Consumption
AEChood
56.0
kWh/a
Time increase factor
f
1.7
Fluid Dynamic Efficiency
FDEhood
9.3
Fluid Dynamic Efficiency
class
Class E
Energy Efficiency Index
EEIhood
86.7
Energy Efficiency class
Class D
Maximum airflow
Qmax
394.2
m3/h
Measured airflow rate at the
best efficiency
QBEP
227.1
m3/h
Measured air pressure at best
efficiency point
PBEP
128
Pa
Measured electric power
input at best efficiency point
WBEP
86.6
W
Nominal power of the lighting
system
WL
1.5 x 2
W
Average illumination of the
lighting system on the
cooking surface
Emiddle
162
lux
Measured power
consumption on off mode
PO
N/A
W
Measured power
consumption on standby
mode
PS
-
W
Sound power level
LWA
Highest setting: 64
Lowest setting: 56
dB
