ElectrIQ eiQCHB60B User manual

INSTALLATION AND
USER MANUAL
SLOPING BLACK GLASS
COOKER HOOD
eiQCHB60B
eiQCHB90B
Thank you for choosing your electriQ cooker hood.
This instruction manual is designed to provide you with all required instructions related to
the installation, use and maintenance of the appliance. In order to operate the unit correctly
and safely, please read this instruction manual carefully before installation and usage.

2
CONTENTS
SAFETY PRECAUTIONS
3
OPTIONS FOR VENTILATION
5
UNPACKING YOUR APPLIANCE
5
PRODUCT OVERVIEW
6
DIAGRAM
7
INSTALLATION
8
OPERATION
12
MAINTENANCE
14
CARBON FILTERS (OPTIONAL)
14
LIGHT BULB REPLACEMENT
15
TROUBLESHOOTING
15
TECHNICAL INFORMATION
16
SUPPORT
18

3
SAFETY PRECAUTIONS
Whilst this product is compliant with all safety requirements, incorrect or
inappropriate use can lead to both personal injury and potential damage to
property. Please read the contents of this instruction booklet thoroughly before
fitting or using this appliance.
•The cooker hood must be installed in accordance with the installation
instructions and all measurements followed.
•All installation work must be carried out by a competent person or qualified
electrician.
•The unit must be connected to an earthed power supply.
•If venting externally, make sure the ducting has no bends sharper than 90
degrees as this will reduce the efficiency of the cooker hood.
•The cooker hood is for domestic use only and is not designed for
commercial use. It should only be used for the purpose it was intended –to
extract vapours and cooking odours.
•Do not flambé or use an open flame under the cooker hood.
•Do not try to use the cooker hood without the grease filters or if the filters
are excessively greasy. They should be cleaned regularly (see
“Maintenance”) or replaced as necessary.
•The extraction fan must be level to avoid grease collection at one end, as
this could cause a potential fire risk.
•Do not leave frying pans unattended during use because overheated fat or
oils might catch fire.
•If the cooker hood is damaged, do not attempt to use it.
•If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or a similarly qualified person in order to avoid a hazard.
•This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved.
•Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
•Children should be supervised to ensure that they do not play with the
appliance. It is not a toy.
•The plug must be accessible after installation for isolation in case of an
emergency –or an appropriate fused switch if the unit is hard-wired to the
mains via a spur.
•The minimum distance between the surface of the hob and the lowest part
of the hood should be at least 65cm. A distance of between 65cm and 75cm
gives peak efficiency.

4
•The air must not be discharged into a flue that is used for exhausting fumes
from appliances burning gas or other fuels.
•When the hood is vented externally and used with appliances which burn
fuel (e.g. gas, oil, wood) the area must be sufficiently ventilated to ensure
safe operation. Fresh air must be allowed to freely enter the room to prevent
a partial vacuum.
•A partial vacuum can starve the heating appliance of oxygen, impairing
combustion. It can also prevent toxic fumes from leaving the room, or can
cause fumes to be sucked into the room from outside.
•Safe operation is only possible when the partial vacuum within the working
area does not exceed 4 Pa (0.04 mbar). This can be achieved by ensuring
air is able to enter the room from outside through a suitable sized opening
which cannot be sealed during operation. A number of alternative solutions
are available to ensure this. If in any doubt, professional advice should be
sought.
•Regulations concerning the discharge of air have to be fulfilled.
•There is a potential fire risk if cleaning is not carried out in accordance with
the instructions.
•Clean your appliance periodically by following the method given in the
chapter MAINTENANCE
•If used in recirculation mode, the charcoal filters trap odours and must be
replaced at least once a year depending on how frequently the cooker hood
has been used.
•For safety reasons, please use only the same size of fixing or mounting
screw, which are recommended in this instruction manual.
•Warning: Failure to install the screws or fixing device in accordance with
these instructions may result in electrical hazards
CAUTION: Accessible parts of the hood can become very hot during
use with cooking appliances, whether in use or not, due to heat rising
from the hob. Sufficient time should be allowed for the unit to cool
before touching either the housing or the grease filters

5
OPTIONS FOR VENTILATION
This hood can be set up for either external venting or recirculation of the air. The type of
setup should be decided before commencing installation.
EXTERNAL VENTING
If you have an outlet to the outside, your cooker hood can be
connected as shown in the diagram using the flexible exhaust
pipe (supplied). Alternatively, any suitable extraction duct
(enamel, aluminium, flexible pipe or non-flammable material
with an interior diameter of 150mm) can be used.
An adaptor is also supplied to enable you to connect your
hood to pre-existing 120mm diameter ducting.
If this is the chosen installation method consideration to the
route of the vent pipe should be made prior to installation.
RECIRCULATION
This cooker hood also supports the recirculation of air once it has
passed through the filters. The filtered air is then expelled
through the vent holes in the side of the chimney.
When setting the unit up in this configuration, carbon filters should
also be used to remove odours from the air. Details of sourcing
and fitting the filters can be found in the Carbon filter section.
When setting up for recirculation the installation instructions should
be followed, but the vent pipe should not be attached, and instead
the air can be routed back into the room through the top of the unit.
UNPACKING YOUR APPLIANCE
•Please take great care when unpacking; a sharp blade should not be used to open
the box, as it may go deep enough inside to damage components. Components
damaged or marked by careless unpacking are not covered under the guarantee.
•Carefully unpack the contents and check against the next section (Product overview
–parts supplied)
•Packaging materials should be recycled in accordance with local regulations

6
PRODUCT OVERVIEW - PARTS SUPPLIED
Description
Illustration
Qty.
Cooker hood
1
Chimney
2
Exhaust Pipe
1
Adaptor
1
cable tie
1
Plate I
1
Plate II
1
Screw
(4mm x 40mm)
4
Wall plug
8
Screw
(4mm x 8mm)
6
Screw
(4mm x 30mm)
4
Air Flaps
2

7

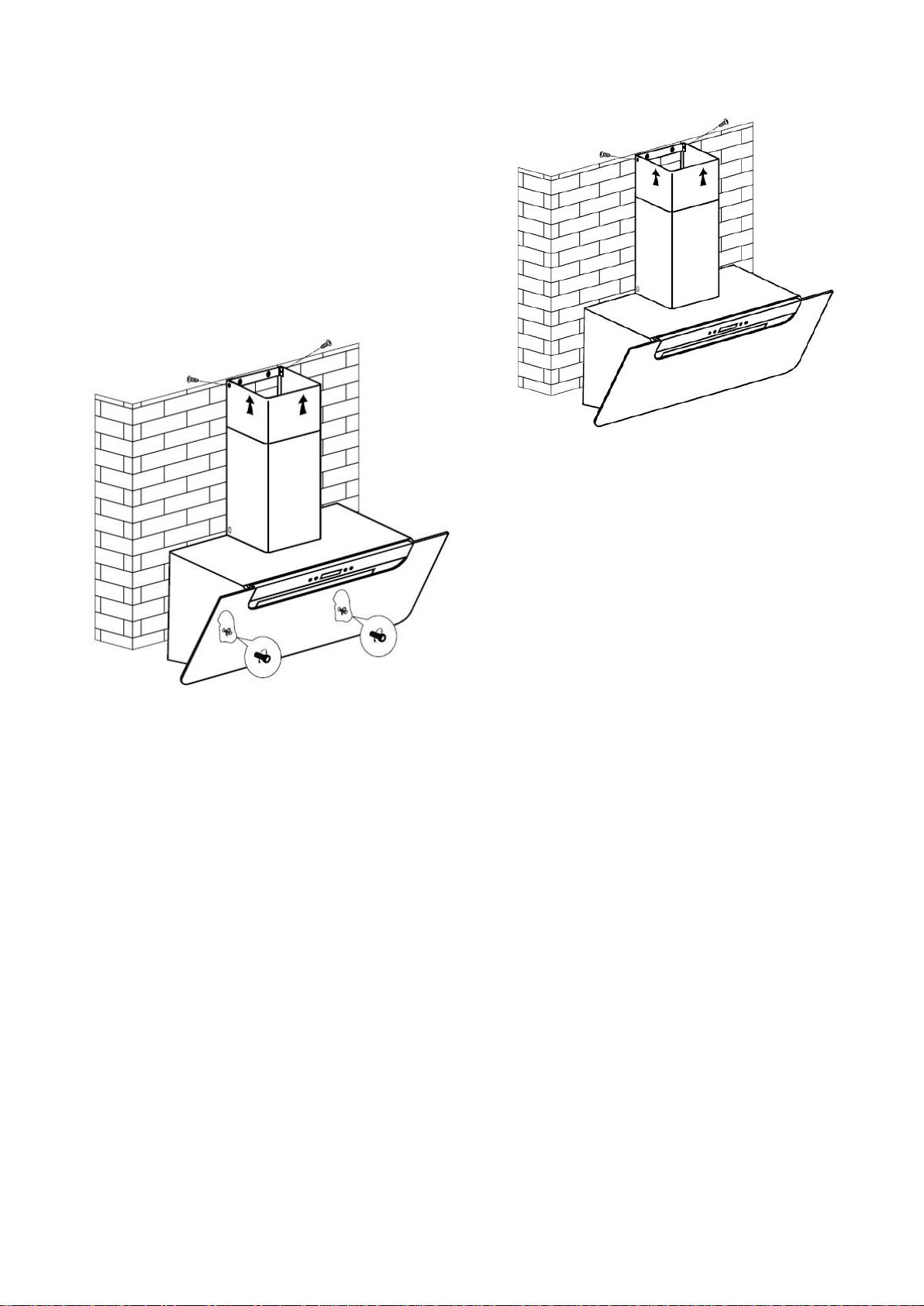

DIAGRAMS
eiQCHB60B
eiQCHB90B

8
INSTALLATION
1. Before installation, ensure you have not connected the appliance to the mains supply.
2. The base of the cooker hood should be placed at a distance of 65~75cm above the
cooking plane for best effect.
3. Install the hanging screws on a suitable wall once the
installation height is decided, ensuring they are level. The
fixed position of the inside chimney bracket is the place of
chimney. Also install the safety hole in the wall. In total 8 holes
should be drilled and wall plugs inserted.
4. Put 2 x Screws (4mm x30mm) into position to hang the
hood ensuring the heads are protruding by 3-4mm, screw
and tighten Plate II onto the wall with the screws (4mm
x 40mm) and wall plugs provided.
5. The 2 x airflaps should be installed at
this stage, as access is easier before the
unit is wall mounted. On the top of the
Hood Unit, where the air outlet vent is
located, the 2 x flaps should be carefully
installed, bending very slightly so the lugs
at each end locate into the holes, enabling
flaps to pivot upwards when the unit is in
operation, opening up the outlet fully for
the air to pass through. Please note: the
small spindles/lugs at each end of each
flap locate into the holes on the housing,
not the grooves above them.

9
6. Hang on the cooker hood on to the two screws
previously installed.
7. If venting externally attach the vent pipe onto the one-way-
valve, and fix the pipe on the valve using the cable tie. The
adaptor can be used at this stage, if you already have existing
smaller diameter venting in place to connect.
8. Adjust the length
of the chimney to
around the required height (Fine adjustment
can be done later. Then install plate I on
the chimney using two screws (4mm x
8mm). Only tighten the screws loosely to
allow the chimney height to be adjusted.
9. Fix the base of the chimney to the hood with 2 x
Screws (4mmx8mm), then fix plate I to wall with 2 x
screws (4mm x 40mm), before routing the vent
pipe to the outside. (If Recirculating no vent pipe is
required, and the air will be expelled through the
vent holes in the side of the upper chimney)

10
10. Pull up the inner chimney and fix it into inner
chimney bracket with 2 x screws (4mm x
8mm).
11. Remove the Aluminium filter and fix to
the wall with 2 x screws (4mm x30mm)
through the safety holes.
12. Before usage, read all the instructions and make sure that the voltage (V) and the
frequency (Hz) indicated on the identification plate (found inside the cooker hood) and all
the data inside the appliance are exactly the same as the voltage and frequency in your
home. Then plug the power lead into the power socket (or if connecting directly to the
main via a switched spur, ensure the work is carried out by a competent, qualified
person) and the cooker hood is then ready for use.

11
CARBON FILTER（OPTIONAL）
Activated carbon filters should be used to trap odours (optional –available from the same
stockist you purchased the hood from) and must be used if the hood is not vented to the
outside.
Reference: eIQCF160 Carbon Filter Pack
In order to install the activated carbon filters, the
aluminium filter should be removed first. Press the
lock and pull it downward as below:
Put the activated carbon filter onto the end of the
motor unit and turn it in anti-clockwise direction.
Repeat the same on the other side (see diagram)
NOTES:
•Make sure the filter is securely locked. Otherwise, it could loosen and cause damage
to the unit.
•When the activated carbon filters are attached, the suction power will be lowered.
•The charcoal filter cannot be washed or recycled. It should be changed at three or
six months according to the amount of use the hood receives. Replacements are
available from the stockist you purchased the hood from.
eIQCF160 Carbon Filter Pack

12

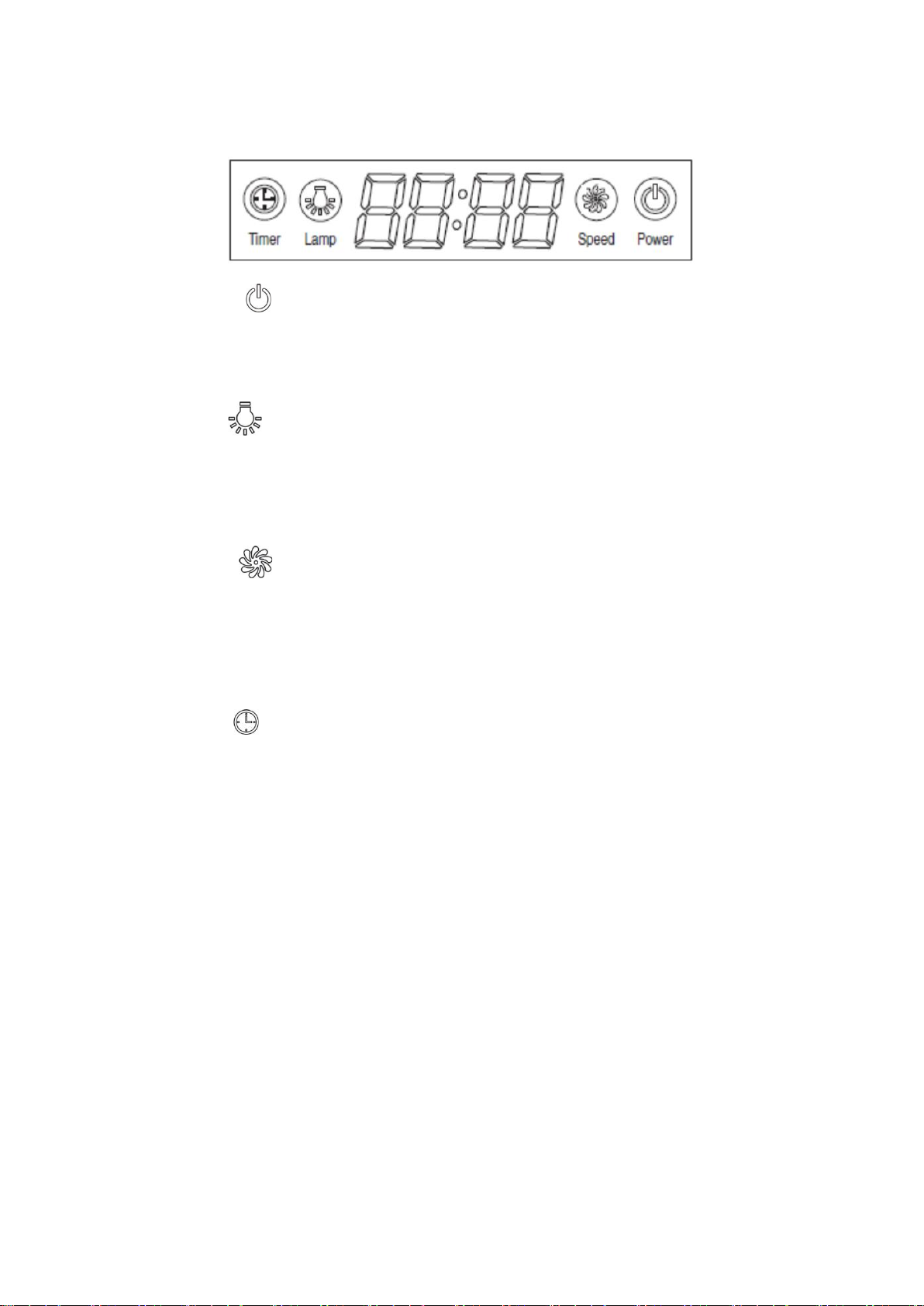

OPERATION
POWER BUTTON
While the hood is turned off, press the POWER button to start the hood at the previously
used speed.
While the hood is turned on, press the POWER button to turn the hood off.
LAMP BUTTON
Press the LAMP button to illuminate the display. Press the LAMP button again to turn off
the display.
Note: The backlight will turn off after 15 seconds without any operation.
SPEED BUTTON
With the fan funning, press the SPEED button to cycle between the three fan speeds: Low,
Medium and High.
Note: After 7 minutes of operating at High fan speed, the hood will automatically reduce the
fan speed to medium.
TIMER BUTTON
This is used to set a delay timer for the hood, which will turn off the hood after the set
period of operation. The delay timer can be set between 1 and 60 minutes.
With the fan operating, press the TIMER button, and the display will show the previously
used timer duration (or “05:00” to indicate 5 minutes if the timer has not been previously
used). Use the SPEED button to increase the timer duration and the LAMP button to
decrease the timer duration. Once the required duration is displayed, press the TIMER
button to confirm.
Notes:
•The timer does not affect the operation of the lamp, which will automatically turn off
after 15 seconds.
•If no input is received within 5 seconds of pressing the TIMER button, the timer will
automatically commence with the previously used duration.
SETTING THE CLOCK
Press and hold the TIMER button for 2-3 seconds. “12:00” will display on the screen with
“12” flashing. Press the SPEED button to increase the hour value, and the LAMP button to
reduce it. Once the correct hour value is displayed, press the TIMER button to confirm.
Adjust the minute value in the same way using the SPEED and LAMP buttons. Press the
TIMER button to confirm the minute value and start the clock.

13
REMOTE CONTROL
LAMP
Press the button to turn on the backlight.
Press the button again to turn off the backlight.
TURN ON / INCREASE FAN SPEED
With the hood turned off, press the + button to start the fan at low speed.
While the fan is running, press the + button to increase the fan speed.
TURN OFF / DECREASE FAN SPEED
While the fan is running at high or medium speed, press the - button to decrease the fan
speed.
While the fan is running at low speed, press the - button to turn off the hood.
TIMER
Press the timer button to turn the timer on or off.
BATTERY
The remote control requires a CR2025 battery. The battery can be accessed from the
bottom, as show in the below picture.

14
MAINTENANCE
Before cleaning, switch the unit off and pull out the plug, or switch off at the relevant mains
switch if the unit has been hard-wired in. Make sure the unit has no power being fed to it.
REGULAR CLEANING
Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning
detergent. Never use metal pads, chemicals, abrasive material or a stiff brush to clean the
unit.
Note! Do not use a steam-cleaner to clean the hood; electrical components could be
damaged or short-circuit as a result.
MONTHLY CLEANING FOR METALLIC ANTI-GREASE FILTER
ESSENTIAL NOTE: Clean the filter every month; an excessive build-up of grease can
become a fire hazard. The filter collects grease, smoke and dust…... so the filter directly
affects the efficiency of the cooker hood. If it’s not cleaned, the grease residue (potentially
flammable) will saturate on the filter.
Remove the filter as shown in the Installation section. Clean it with a soft nylon brush in a
mild solution of warm water and a small amount of washing up liquid. Washing up liquid
alone should not be used. After cleaning, allow the filter to drain and then dry thoroughly.
The grease filter may also be dishwasher cleaned; using a 60°C programme, with the filter
upright (short sides upright) in the lower basket. Please be aware some dishwasher
cleaning agents can permanently discolour the filter, though this will not affect its
performance.
Replacement grease filters are available from the same stockist from which you purchased
the hood:
Replacement grease filters are available:
eiQCHB60B: eiQAL03D660-T & eiQAL03D660-B
eiQCHB90B: eIQAL03D690-T & eiQAL03D690-B
REPLACEMENT OF THE ACTIVATED CARBON FILTER
These are only required in units that have been installed in recirculation mode (not vented
to the outside). This filter traps odours and must be replaced ideally every 3-6 months
depending on how frequently the cooker hood has been used. They are not washable or
reusable.
eIQCF160 Carbon Filter Pack

15
LIGHT REPLACEMENT
Important: The light fitting must be replaced by the manufacturer, its service agent or
similarly qualified persons.
Always switch off the electricity supply before carrying out any operations on
the appliance. When handling the light fitting, make sure it has completely
cooled down before any direct contact to hands.
• Switch the unit off and disconnect the power.
• Wait until the light fitting has cooled down before replacement.
• Pull out the LED light carefully with a screwdriver and replace with
the same type and rated LED light (2*2W LED light)
• Replace the front part back to the fitting with screwdriver.
• ILCOS D code for this lamp is: DBR-2/65-H-64
–LED modules, self- ballasted –round lamp
–Max wattage: 2 W
–Voltage range: AC 220-240V
–Dimensions:
TROUBLESHOOTING
Fault
Cause
Solution
Light on, but fan does
not work
The fan blade is jammed.
Switch off the unit. Repair to be
carried out by qualified service
personnel only.
The motor is damaged.
Both light and fan do
not work
Light bulb blown
Replace the bulb with correct
rating.
Power cord loose
Plug in to the power supply again.
Excessive Vibration
The fan blade is damaged.
Switch off the unit. Repair to be
carried out by qualified service
personnel only.
The fan motor is not fixed
tightly.
Switch off the unit. Repair to be
carried out by qualified service
personnel only.
The unit is not hung
properly on the bracket.
Take down the unit and check
whether the bracket is in proper
location.
Suction performance
not good
1 Grease filters clogged?
2 Distance between the
unit and the cooking plane
too great.
1 Clean or replace grease filters.
2.Adjust the distance to between
cooking surface to hood.

16
TECHNICAL INFORMATION
Symbol
Value
Unit
Model identification
eiQCHB60B
Annual Energy
Consumption
AEChood
97.3
kWh/a
Time increase factor
f
1,2
Fluid Dynamic
Efficiency
FDEhood
21.9
Energy Efficiency
Index
EEIhood
71.9
Measured airflow rate
at the best efficiency
QBEP
463.8
m3/h
Measured air pressure
at best efficiency point
PBEP
360
Pa
Maximum airflow at
boost position
Qmax
796.1
m3/h
Maximum airflow
Qmax
627.6
m3/h
Measured electric
power input at best
efficiency point
WBEP
212.2
W
Nominal power of the
lighting system
WL
6,0
W
Average illumination
of the lighting system
on the cooking
surface
Emiddle
306
lux
Measured power
consumption on
standby mode
PS
0,37
W
Measured power
consumption on off
mode
PO
-
W
Sound power level at
boost position
LWA
73
dB
Sound power level at
highest setting
LWA
71
dB
The following shows how to reduce total environmental impact (e.g. energy use) of the
cooking process).
(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.

17
Symbol
Value
Unit
Model identification
eiQCHB90B
Annual Energy
Consumption
AEChood
93.9
kWh/a
Time increase factor
f
1,1
Fluid Dynamic
Efficiency
FDEhood
24.8
Energy Efficiency
Index
EEIhood
66.5
Measured airflow rate
at the best efficiency
QBEP
537.6
m3/h
Measured air pressure
at best efficiency point
PBEP
370
Pa
Maximum airflow at
boost position
Qmax
836.4
m3/h
Maximum airflow
Qmax
632.1
m3/h
Measured electric
power input at best
efficiency point
WBEP
223.1
W
Nominal power of the
lighting system
WL
6,0
W
Average illumination
of the lighting system
on the cooking
surface
Emiddle
250
lux
Measured power
consumption on
standby mode
PS
0,37
W
Measured power
consumption on off
mode
PO
-
W
Sound power level at
boost position
LWA
74
dB
Sound power level at
highest setting
LWA
72
dB

18
INFORMATION FOR DISMANTLING
Do not dismantle the appliance in a way which is not shown in the user manual. The
appliance could not be dismantled by user. At the end of life, the appliance should not be
disposed of with household waste. Check with your Local Authority or retailer for recycling
advice.
electriQ UK SUPPORT
www.electriQ.co.uk/support
Call: 0871 984 4416
Office hours: 9AM - 5PM Monday to Friday
www.electriQ.co.uk
Unit J6, Lowfields Business Park
Lowfields Way, Elland
West Yorkshire, HX5 9DA
Recycling facilities are now available for all customers at which
you can deposit your old electrical products. Customers will be
able to take any old electrical equipment to participating sites run
by their local councils. Please remember that this equipment will
be further handled during the recycling process, so please be
considerate when depositing your equipment. Please contact the
local council for details of your local household waste recycling centers.
