ElectrIQ eiQ60touchslimhe User manual

1
USER MANUAL
COOKER HOOD
TOUCH CONTROL COOKER HOOD
eiQ60touchslimhe/eiQ90touchslimhe
Thank you for choosing electriQ
Please read this user manual before using this
product and keep it safe for future reference.
Visit our page www.electriQ.co.uk for our entire product range

2
CONTENTS
SAFETY
3
PRODUCT OVERVIEW
5
VENTILATION
6
INSTALLATION
7
OPERATION
9
FILTER CLEANING AND REPLACEMENT
10
BULB REPLACEMENT
11
CLEANING AND MAINTENANCE
11
TROUBLESHOOTING
12
SUPPORT
12
PRODUCT FICHE
14

3
SAFETY PRECAUTIONS
Whilst this product is compliant with all safety requirements, incorrect or
inappropriate use can lead to both personal injury and potential damage
to property. Please read the contents of this instruction booklet
thoroughly before fitting or using this appliance.
•The cooker hood must be installed in accordance with the installation
instructions and all measurements followed.
•All installation work must be carried out by a competent person or
qualified electrician.
•The unit must be connected to an earthed power supply.
•If venting externally, make sure the ducting has no bends sharper
than 90 degrees as this will reduce the efficiency of the cooker hood.
•The cooker hood is for domestic use only and is not designed for
commercial use. It should only be used for the purpose it was
intended –to extract vapours and cooking odours.
•Do not flambé or use an open flame under the cooker hood.
•Do not try to use the cooker hood without the grease filters or if the
filters are excessively greasy. They should be cleaned regularly (see
“Maintenance”) or replaced as necessary.
•The extraction fan must be level to avoid grease collection at one
end, as this could cause a potential fire risk.
•Do not leave frying pans unattended during use because overheated
fat or oils might catch fire.
•If the cooker hood is damaged, do not attempt to use it.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or a similarly qualified person in order
to avoid a hazard.
•This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved.
•Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
•Children should be supervised to ensure that they do not play with
the appliance. It is not a toy.
•The plug must be accessible after installation for isolation in case of
an emergency –or an appropriate fused switch if the unit is hard-
wired to the mains via a spur.

4
•The minimum distance between the surface of the hob and the lowest
part of the hood should be at least 65cm. A distance of between
65cm and 75cm gives peak efficiency.
•The air must not be discharged into a flue that is used for exhausting
fumes from appliances burning gas or other fuels.
•When the hood is vented externally and used with appliances which
burn fuel (e.g. gas, oil, wood) the area must be sufficiently ventilated
to ensure safe operation. Fresh air must be allowed to freely enter the
room to prevent a partial vacuum.
•A partial vacuum can starve the heating appliance of oxygen,
impairing combustion. It can also prevent toxic fumes from leaving
the room, or can cause fumes to be sucked into the room from
outside.
•Safe operation is only possible when the partial vacuum within the
working area does not exceed 4 Pa (0.04 mbar). This can be
achieved by ensuring air is able to enter the room from outside
through a suitable sized opening which cannot be sealed during
operation. A number of alternative solutions are available to ensure
this. If in any doubt, professional advice should be sought.
•Regulations concerning the discharge of air have to be fulfilled.
•There is a potential fire risk if cleaning is not carried out in
accordance with the instructions.
•Clean your appliance periodically by following the method given in the
chapter MAINTENANCE
•If used in recirculation mode, the charcoal filters trap odours and
must be replaced at least once a year depending on how frequently
the cooker hood has been used.
•For safety reasons, please use only the same size of fixing or
mounting screw, which are recommended in this instruction manual.
•Warning: Failure to install the screws or fixing device in accordance
with these instructions may result in electrical hazards
CAUTION: Accessible parts of the hood can become
very hot during use with cooking appliances, whether in use or
not, due to heat rising from the hob. Sufficient time should be
allowed for the unit to cool before touching either the housing or
the grease filters

5
PRODUCT OVERVIEW

6
INSTALLATION (VENT OUTSIDE)
MOUNTING OF THE V-FLAP
If the cooker hood does not have an assembled V-flap 1, you should mount the half-
parts to its body.The images only show an example of how to mount the V-flap,the
outlet may be various according to different models and configuration.
To mount the V-flap 1 you should:
1. Mount two half-parts “2” into the body “6”
2. A pin 3 should be top oriented
3. The axis “4” should be inserted in the holes “5” on body
4. Repeat all the operations for the 2nd half-part

7
OPTIONS FOR VENTILATION
This hood can be set up for either external venting or recirculation of the air. The type
of setup should be decided before commencing installation.
INSTALLATION
If you have an outlet to the outside, your cooker hood can be connected as below
picture by means of an extraction duct (enamel, aluminum, flexible pipe or non-
flammable material with an interior diameter of 150mm)
1. Before installation, turn the unit off and unplug it from the outlet.
2. The cooker hood should be placed at a distance of 65~75cm above the cooking
plane for best effect.
3. Install the hook on a suitable place once the installation height is fixed, and keep it
in line. The fixed position of the inside chimney bracket is the highest place of
chimney. See pic 2.

8
4. Put the v-flaps and converter onto the hood, fix the expansion pipe (not supplied)
with cable tie on the outlet.Then hang the hood on to the hook. See pic 3.
5. Fix the outside chimney bracket on the outside chimney with 2 pcs ST4*8mm
screws, and be sure that the inside chimney can be adjusted the height in it freely.
Afterwards, install chimneys on the cooker hood. Lay the expansion pipe to the wall
outlet. Fix the expansion pipe with the cable tie on the wall-outlet .See Pic4.
6. Adjust the height of the inside chimney to the position of the inside chimney bracket
and fix on it by 2pcs ST4*8 screws. See Pic 5.

9
HINTS FOR EXHAUST DUCT INSTALLATION
The following rules must be strictly followed to obtain optimal air extraction:
• Keep expansion pipe short and straight.
• Do not reduce the size or restrict expansion pipe.
• When using expansion pipe always install the pipe pulled taut to minimize pressure
loss.
• Failure to observe these basic instructions will reduce the performance and increase
noise levels of the cooker hood.
• Any installation work must be carried out by a qualified electrician or competent
person.
•Do not connect the ducting system of the hood to any existing ventilation system
which is being used for any other appliance ,such as warmer tube, gas tube , hot wind
tube.
•The angle of the bend of the expansion pipe should not be less than 120º; you must
direct the pipe horizontally, or, alternatively, the pipe should go up from the initial point
and should be led to an outer wall.
•After the installation ,make sure that the cooker hood is level to avoid grease
collection at on end.
•Ensure the expansion pipe selected for installation complies with relevant standards
and is fire retardant.
START USING YOUR COOKER HOOD
1. Press the “Power” button, to turn the cooker hood on and off.
2. Use the “Increase”or “Decrease” buttons to cycle between fan speeds, the LED
display will indicate the fan speed with the numbers 1, 2 and 3.
3. Press “Light” button to turn the hoods light on and off.
LIGHT DECREASE DISPLAY INCREASE POWER

10
INSTALLING GREASE MESH FILTERS
• To install filters for the following four steps.
•Angle the filter into slots at the back of the hood.
•Push the button on handle of the filter.
•Release the handle once the filter fits into a resting
position.
•Repeat to install all filters.
Replacements are available from the retailer the hood
was purchased from under reference:
60cm version eiqm60cfilter x 2
90cm version eiqmchimfilter90 x 3
CARBON FILTER-not supplied
Activated carbon filter can be used to trap odors. Normally the activated carbon filter
should be changed at three or six months according to your cooking habit. The
installation procedure of activated carbon filter is as below.
Replacements are available from the retailer the hood was purchased from under
reference: eiqmidcarbon

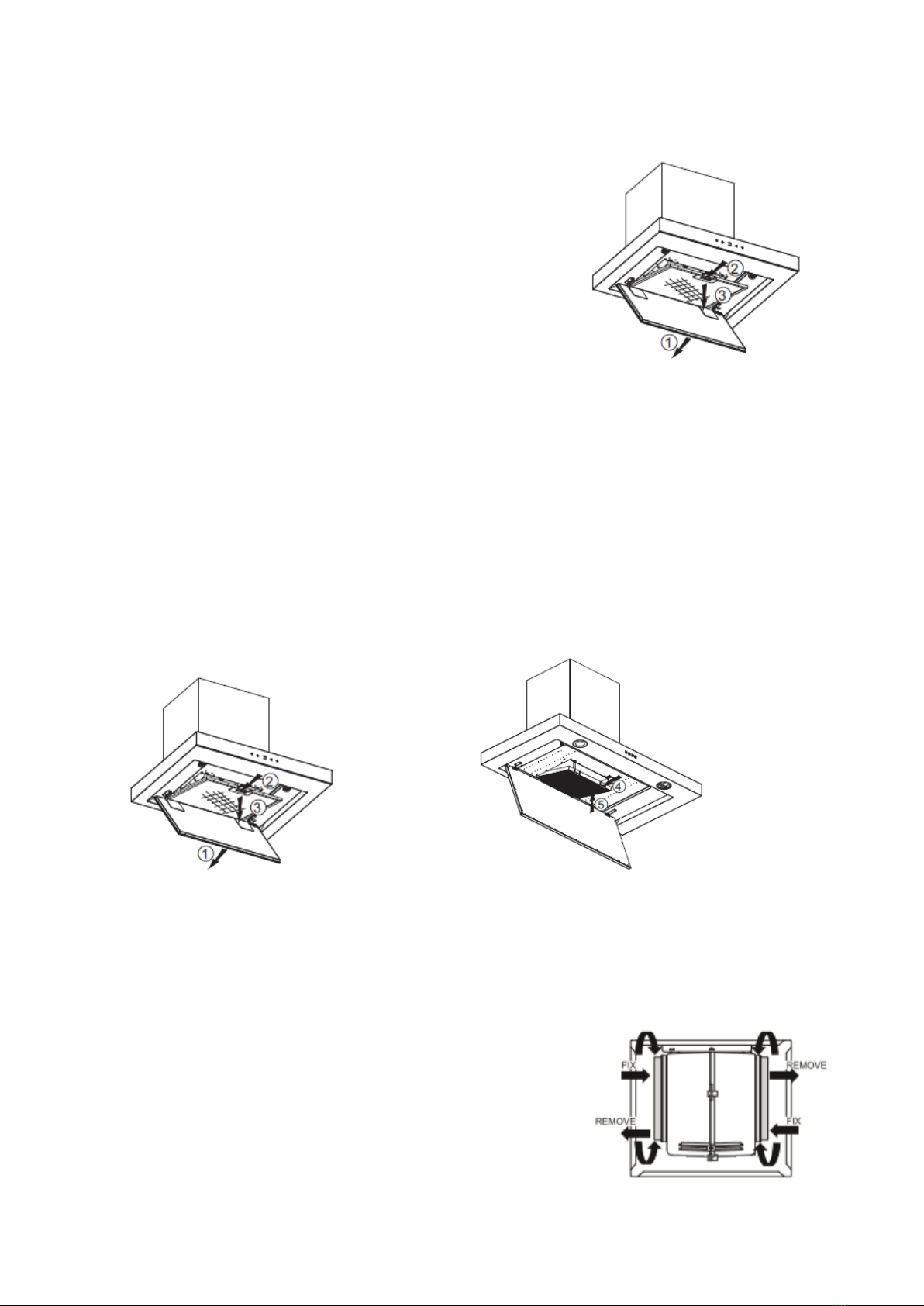

(1) The aluminum filter should be detached first. Press the lock and pull it downward.
(2) The dismantle method of carbon filter can refer to below pictures.
(3) Take out the carbon filter and change it with a new one.
(4) Apply reverse procedure to install the charcoal filter.
(5) Put the aluminium filter back.
NOTE:
•Make sure the filter is securely locked. Otherwise, it would loosen and cause
dangerous.
•When activated carbon filter attached, the suction power will be lowered.
CHARCOAL FILTER
Remove the metal grease filters. Remove the saturated
activated charcoal filter. Fit the new filters. Replace the
metal grease filters.

11
BULB REPLACEMENT
Before changing the bulb, ensure the hood is turned off and the power is
disconnected before attempting to change the bulb. Wait until the flitting has cooled
down before commencing replacement.

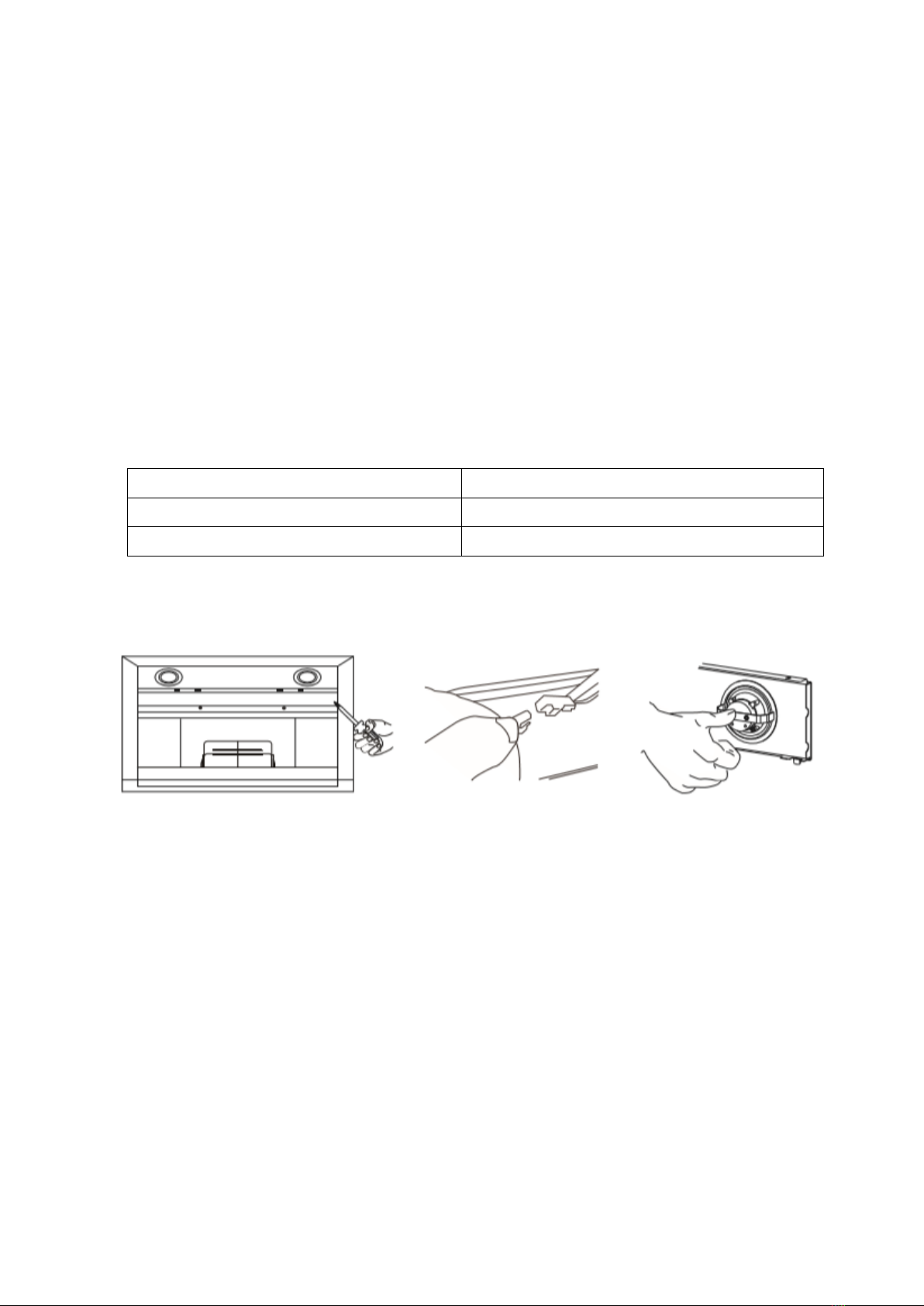

•Open the LED light plate assembly and take away the grease filter.See pic 1.
•Find the light wire at the back of the wire outlet.Then slightly pull the light connecting
wire out, and dismantle the terminal of the light connecting wire. See pic 2.
•Remove 4pcs screws on the hinge of light plate assembly,take out the light plate
assembly and pull out the light wire.If the light wire cannot be pulled out, it can be cut
directly with scissors.
•Apply the reverse procedure to install the light back.
ILCOS D code for this lamp is: DSS-1.5-S-70
MAX WATTAGE
1.5 W
VOLTAGE RANGE
DC 12V
DIMENSIONS
448×315MM
MAINTENANCE
Before cleaning, switch the unit off and pull out the plug, or switch off at the relevant
mains switch if the unit has been hard-wired in. Make sure the unit has no power being
fed to it.
REGULAR CLEANING
Use a soft cloth moistened with warm mildly soapy water or household cleaning
detergent. Never use metal pads, chemicals, abrasive material or a stiff brush to clean
the unit.
NOTE: Do not use a steam-cleaner to clean the hood; electrical components could
be damaged or short-circuit as a result.

12
TROUBLESHOOTING
NOTE:
Any electrical repairs to this appliance must conform to your local, state and federal
laws.Please contact the service centre if in any doubt before undertaking any of the
above.Always disconnect the unit from the power source when opening the unit.
Fault
Possible Cause
Solution
Light on, but motor
does not work
Fan switch turned off
Select a fan switch position.
Fan switch failed
Contact service center.
Motor failed
Contact service center.
Light does not
work, motor does
not work
House fuses blown
Reset/Replace fuses.
Power cord loose or
disconnected
Refit cord to power outlet.
Switch power outlet on.
Oil leakage
One way valve and the outlet
are not tightly sealed
Take down the one way valve
and seal with sealant.
Leakage from the connection of
chimney and cover
Take chimney down and seal.
Lights not working
Broken/Faulty globes
Replace globes as per this
instruction.
Insufficient suction
The distance between the
cooker hood and the gas top is
too far
Refit the cooker hood to the
correct distance.
The Cooker hood
inclines
The fixing screw not tight
enough
Tighten the hanging screw and
make it horizontal.

13
INFORMATION FOR DISMANTLING
Do not dismantle the appliance in a way which is not shown in the user manual. The
appliance could not be dismantled by user. At the end of life, the appliance should not
be disposed of with household waste. Check with your Local Authority or retailer for
recycling advice.
electriQ UK SUPPORT
www.electriQ.co.uk/support
Call: 0330 390 3061
Office hours: 9AM - 5PM Monday to Friday
www.electriQ.co.uk
Unit J6, Lowfields Business Park
Lowfields Way, Elland
West Yorkshire, HX5 9DA
Recycling facilities are now available for all customers at which
you can deposit your old electrical products. Customers will be
able to take any old electrical equipment to participating sites
run by their local councils. Please remember that this
equipment will be further handled during the recycling process,
so please be considerate when depositing your equipment. Please
contact the local council for details of your local household waste
recycling centers.

14
PRODUCT FICHE
Model Identification
eiQ60TOUCHSLIMHE
eiQ90TOUCHSLIMHE
Symbol
Value
Unit
Annual Energy
Consumption
AEChood
16.1
kWh/A
Standard Annual Energy
Consumption
SAEChood
51.2
kWh/a
Time increase factor
F
0.6
Fluid Dynamic Efficiency
FDEhood
37.9
Energy Efficiency Index
EEIhood
31.4
Measured air flow rate at
best efficiency point
QBEP
319.1
m3/h
Measured air pressure at
best efficiency point
PBEP
264
Pa
Maximum air flow
Qmax
480.3
m3/h
Measured electric power
input at best efficiency
point
WBEP
61.8
W
Nominal power of the
lighting system
WL
3.0
W
Measured power of the
lighting system
WL
3.5
W
Measured value of the
Lighting Efficiency
LEhood
76
Lux/W
Average illumination of the
lighting system on the
cooking surface
Emiddle
275
lux
Measured power
consumption in standby
mode
Ps
0.7
W
Measured power
consumption off mode
Po
0
W
Tested according to EN 50564:2011
Sound power level
LWA
Minimum
speed:45
Maximum
speed: 59
dB
Tested according to EN 60704-2-13:2011, EN 60704-1:2010 +
A11:2012
