Electro Boss 5310 Ice Boss Elite Black User manual

Copyright © 2014 ElectroBoss, All Rights Reserved
ElectroBoss IceBoss Elite Portable Home Ice Machine
5310 Ice Boss Elite Black
IceBoss Elite
Portable Home Ice Maker

Copyright © 2014 ElectroBoss, All Rights Reserved
1. You will need this manual for the safety warnings
and precautions, operating, inspection, maintenance
and cleaning procedures, parts list and assembly
diagram. Keep your invoice with this manual. Write
the invoice number on the inside of the front cover.
Keep this manual and invoice in a safe and dry
place for future reference.
2.The warnings, cautions and instructions discussed
in this instruction manual cannot cover all possible
conditions and situations that may occur. It must be
understood by the operator that common sense and
caution are factors which cannot be built into this
product, but must be supplied by the operator.
3. NEVER use this product for anything other than
its intended use. NEVER modify this product.
Failure to comply with the precautions, warnings
and recommendations in this manual will nullify your
warranty and may result in injury or even death.
4. BE SURE MACHINE IS PLUGGED INTO A
PROPERLY GROUNDED DEDICATED OUTLET
WHOSE ELECTRICAL OUTPUT MATCHES THE
REQUIREMENTS OF THIS MACHINE. NEVER
remove or modify grounding pin; do not use 3-prong
adapters. DO NOT use with power strips or
extension cords if possible. If using an extension
cord, use the shortest cord possible. If the use of an
extension cord cannot be avoided, use a No.14
AWG minimum size cord that is rated for no less
than 1875 watts. ElectroBoss Company is not liable
for damages or injuries resulting from the use of
extension cords or power strips.
5. DO NOT unplug the machine by pulling or
tugging on the power cord. Firmly grasp the plug
and remove from outlet.
6. MAKE SURE that the power outlet, plug and
power cords used are in good condition. Worn,
frayed or damaged plugs, cords and outlets should
be replaced or repaired by a certified electrician who
is properly qualified to meet local safety and
electrical codes. Power supply cords should be
replaced by the manufacturer. AVOID using
extension cords or 3-prong adaptors.
7. To reduce the risk of electrical shock or fire,
MAKE SURE that your unit is properly grounded.
NEVER TAMPER WITH, REMOVE OR CUT THE
GROUNDING PIN!!
8. Make sure your machine is unplugged when you
conduct any maintenance or repair. A qualified
service technician should always perform service or
repair.
9. This product is not intended for commercial use.
10. Do not cover the power cord. DO NOT immerse
cord in water or use in high traffic areas. DO NOT
run cord over carpets or heating sources of
elements. NEVER use with damaged cords or
plugs.
11. INTENDED FOR UPRIGHT, FREESTANDING
USE ONLY. Do not turn upside down.
12. DO NOT operate with missing or broken parts.
13. This product is intended for INDOOR USE
ONLY. DO NOT USE OUTDOORS.
14. Only qualified repair personnel should perform
general service. Service or maintenance performed
by unqualified personnel could result in injury.
15. Do not clean with flammable liquids or cleaners
as this may cause an explosion or fire hazard.
16. ALWAYS unplug the unit before cleaning or
repairs.
17. Use caution when operating around children.
Do not allow children to operate machine or touch
the machine when it is plugged in.
18. KEEP UPRIGHT when transporting. DO NOT
ALLOW TO TILT PAST 45 DEGREES. DO NOT
UPEND OR TURN UPSIDE DOWN.
19. Always allow the unit to warm up to room
temperature before operating.
IMPORTANT - All persons that will operate this equipment must read and
become thoroughly competent with all operating procedures and safety
precautions. Misuse of this equipment may result in death, personal injury,
property damage, fire or electric shock.

GENERAL SAFETY PRECAUTIONS

Ice Boss Elite Portable Home Ice Machine
Select From Three Ice Cube Sizes
Convenient Viewing Window
110V/60Hz
Easy to Use Control Panel with Touch Display Settings
Easy to Setup and Operate
Makes Ice in 6-12 Minutes
Weight: 26 lbs.
Internal storage for 2.2 pounds of Ice Cubes
Dimensions: 15”H x 14.5”L x 11.75”W
Power: 110V/60Hz Current: 1.25Amps
Input Power: 200W
Refrigerant: R134a/130g
Blowing gas: C5H10
Protection Type: 1
Climate Type: ST/SN/N
Made in China
Features
Specifications
Customer Service
Customer service and product support are available at [email protected] or
contact us direct at 800-665-0728.
Warranty & Return Policy
All ElectroBoss ice machines are warranted to be free from defects in materials or workmanship for one year from
the date of purchase. Within this period, ElectroBoss will, at its sole discretion, repair or replace any components
that fail during normal use. This warranty does not apply to damage caused by abnormal or unreasonable use,
including any repair or attempted repair by anyone other than a certified ElectroBoss authorized service technician,
use of replacement parts that are not OEM parts, in addition to incidental or consequential damages. Using this
product for anything other than its original intended purpose or altering this product in any way will void this warranty.
In addition, the original purchaser who has provided proper proof of the original retail purchase and all other
requested information is the holder of this warranty.
Our return policy allows 30 days from the date of delivery to return products, provided it is new, unused and in the
original packaging as received. We highly recommend that the buyer thoroughly inspect the purchased product
before using it. We charge a 20% restocking charge on all returned items. Return shipping is the responsibility of the
buyer. We cannot accept returns for any reason after 30 days from the date of delivery. A credit will be issued after
the item is inspected and accepted.
All shipping damages must be claimed with the designated shipper. Check the shipping carton for damage before
signing the bill of lading.
If an item is opened and deemed to be defective within 30 days from the date of delivery, please contact us at
www.electroboss.com for return instructions. An ElectroBoss RMA is required when returning defective merchandise.
When returning your order please include a copy of your order number with date purchased, your ElectroBoss RMA
and the reason for the return.
Warranty shall not apply to: products which are used for a purpose other than which they were designed for or which
have been altered in any way that would be detrimental to the performance or life of the product. Misapplication,
misuse or negligence will revoke the warranty.
Copyright © 2014 ElectroBoss, All Rights Reserved

Copyright © 2014 ElectroBoss, All Rights Reserved

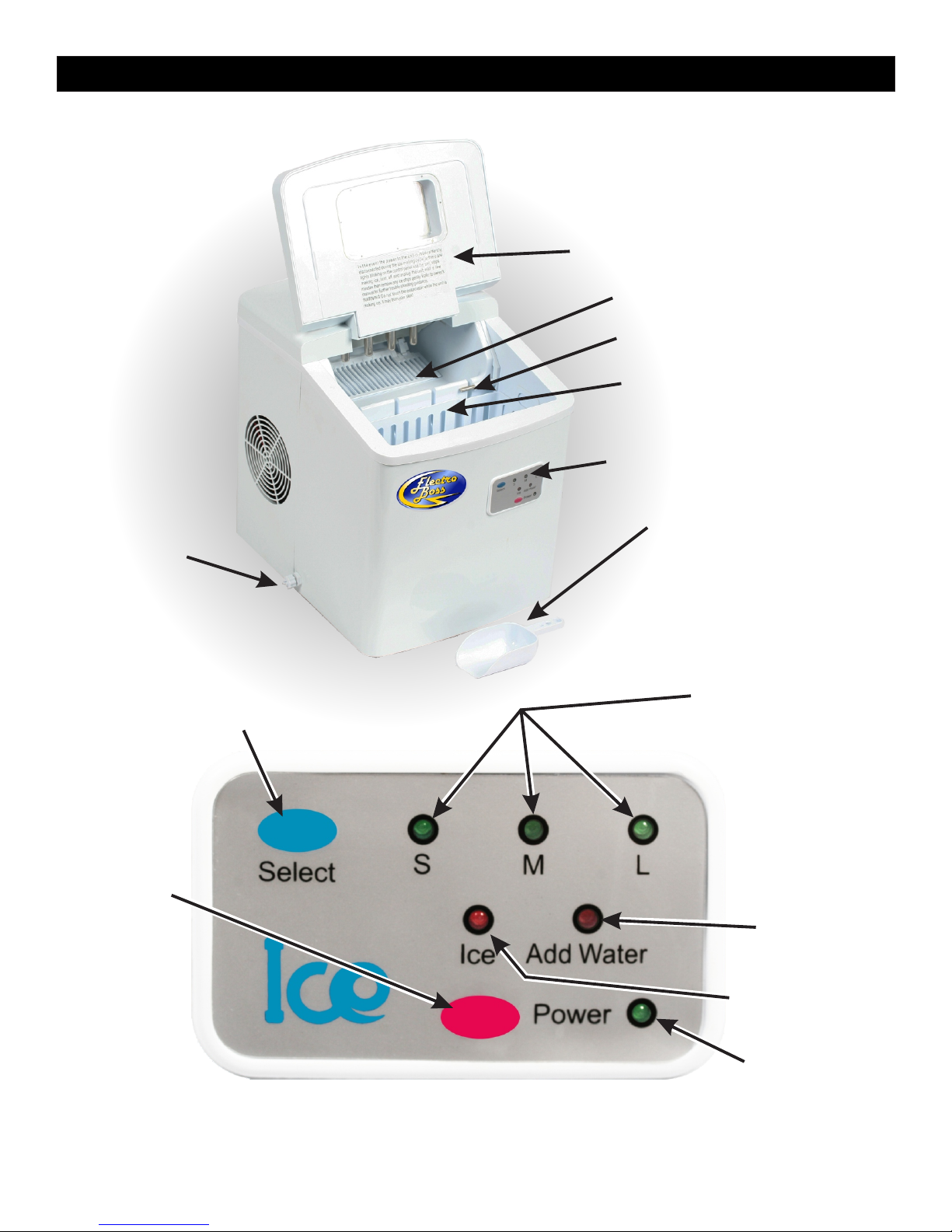

Getting To Know Your IceBoss Elite
Cover
Ice Scoop
Ice Shovel
Control Panel (See detail below)
Ice Basket
Ice Level Sensor
Water Drain Cap
Control Panel
Select Your Size: Sm, Med, Lg
Selected Size
Indicators
Power
On/Off
Button
Power Indicator
Ice Full Indicator
Add Water
Indicator
NOTE: Your IceBoss Elite color or style may vary slightly from the one pictured.

Copyright © 2014 ElectroBoss, All Rights Reserved
IMPORTANT - All persons that will operate this equipment must read and
become thoroughly competent with all operating procedures and safety
precautions. Misuse of this equipment may result in death, personal injury,
property damage, fire or electric shock.

Operation Manual
How to Use Your IceBoss Elite
UNPACKING INSTRUCTIONS AND IMPORTANT STEPS BEFORE FIRST USE!
Remove ice maker from packaging materials and verify that all parts are included. Next, clean the
interior of the machine with a soft cloth and tepid or lukewarm water. Remove the ice basket and
clean as well.
Choose a location for your machine that is well away from potential fire hazards and heat such as
stoves, furnaces, burners, radiators, etc. Make sure that a properly grounded outlet is accessible and
capable of supplying sufficient power. There should be at least 6 inches of space between the
machine and any wall or obstruction. CHOOSE A LEVEL SURFACE.
BEFORE PLUGGING IN YOUR MACHINE FOR THE FIRST TIME ALLOW AT LEAST ONE HOUR
FOR THE REFRIGERANT TO SETTLE PROPERLY.
To use your ice machine:
1. Plug in your machine and use the Select button to choose a size of ice cube.
Note: if the ambient temperature in the room is at or below 60 degrees F, choose a smaller size of
cube to prevent them from sticking together.
2. Next, open the unit and remove the ice basket. Add water up to, but not over the level marker.
3. Press the Power button to begin the 6-12 minute ice making cycle (depending upon your ice cube
size choice).
4. Periodically check to make sure that the water level is sufficient. If for some reason the water pump
cannot send water, the Water Indicator light will go on. Press the Power button again and fill the
reservoir with water. Wait at least three minutes for the refrigerant to settle. Then press the Power
button again to restart. The ice maker will stop automatically when the basket is full. Please Note: To
reduce the risk of waterborne pathogens, you should change the water in your unit every 24 hours,
and drain all water if not in use.
How to Clean & Maintain your IceBoss Elite
1. Always clean your ice maker before use with a soft damp cloth, mild detergent and lukewarm water.
Periodically clean the outside of your machine in the same way.
2. Be sure to dry inside and outside with a soft dry cloth.
3. Drain the water from the reservoir when not in use.

Copyright © 2014 ElectroBoss, All Rights Reserved
1. Outer top cover
2. Outer window
3. Inner top cover
4. Door outer cover
5. Door inner cover
6. Inner window
7. Ice scoop
8. Ice basket
9. Display circuit board
10. Control panel
11. Button
12. Operating surface
13. Front panel
14. Water filter
15. Drain fitting
16. Drain nut
17. Drain cap
18. Silicon plug
19. Water pump
20. Foot (4)
21. Front bottom panel
22. Inner shell
23. Rear bottom panel
24. Water supply pipe
25. Side brace
26. DC12V fan
27. Cable clamp
28. Condenser
29. Compressor
30. Electromagnet valve
31. Back panel
32. Power cord
33. Silicon tube
34. Back brace
35. Transformer
36. Control Box
37. Storage tube
38. Main control circuit board
39. Water sensor
40. Micro switch
41. Cam
42. Inner fixture
43. Drive motor
44. Evaporator assembly
45. Ice-making box
46. Ice shovel hinge (2)
47. Ice shovel
48. Sensor bracket
Parts Break-Down

Copyright © 2014 ElectroBoss, All Rights Reserved
Troubleshooting Guide
Use caution and common sense when attempting to diagnose any problems you might be having
with your ice maker. Please study the safety and operation precautions found earlier in this manual.
If ice cubes are sticking together:
Possible Causes:
Inner tank water temperature is too low.
Ice making cycle is too long.
Solution:
Change the inner tank’s water. Make sure the water is between 45-90 degrees F.
Stop the machine and allow the collected ice to melt. Restart the machine and set the ice size setting to
small.
Ice indicator is on:
Possible Causes:
Too much ice has collected in the machine.
Solution:
Remove the ice from the bucket.
Water indicator is on:
Possible Causes:
Machine is out of water.
Solution:
Stop the machine and fill with water. Restart.
Water indicator and ice indicator are both flashing:
Possible Causes:
Ice shovel may be jammed.
Solution:
Stop the machine and check to see that the ice is not blocking the ice shovel. If it is, move the ice away from
the shovel. If this is not the case, please consult a qualified technician for service.
Ice cycle appears normal but no ice is produced:
Possible Causes:
Room temperature or inner tank temperature is too high.
Cooling system pipe blocked.
Refrigerant liquid may be leaking.
Solution:
Fill the inner tank with colder water and make sure the machine is operating at an ambient temperature of
no more than 90 degrees F.
If this is the case, please consult a qualified technician for verification and service.
