Features
• Designed to extend WiFi communication for the Shark®
100S/Shark®200S meters and the MP200™ Metering
System.
• Mounts easily via a magnetic base.
• Kit contains everything necessary to be up and running in
minutes.
• Can be used with any wireless router to extend a WiFi
network.
• Coaxial cable for connection to meters.
General Application
The ANT18769 is designed for use with EIG's WiFi communicating
meters, in place of the standard antenna. It connects easily to the
meter's WiFi jack.
Description

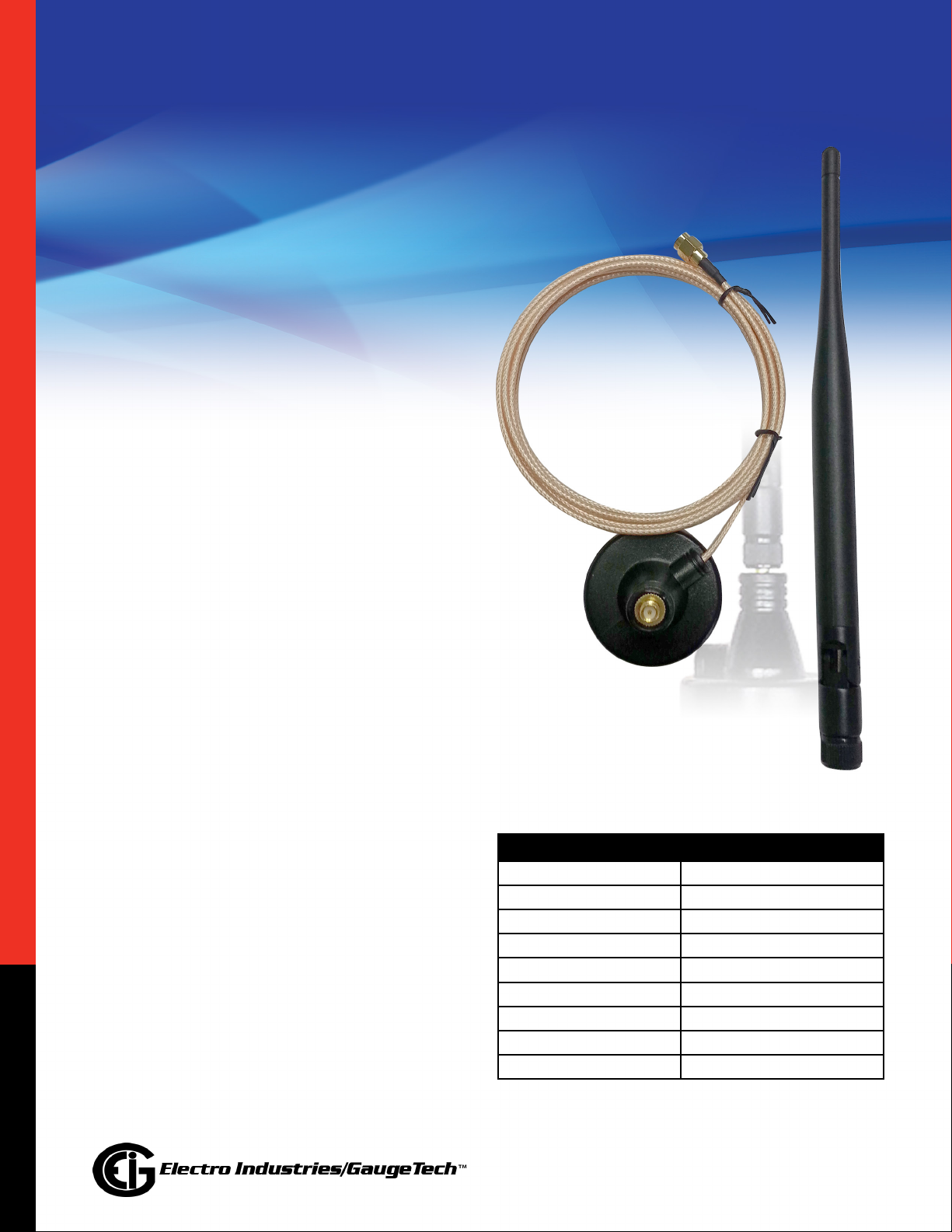

The ANT18769 comes with the antenna, the magnetic base, and a
2000 mm coaxial cable.
ANT18769 Kit
ANT18769 Specifications
Antenna type 2.4 GHz 5dBi; Monopole
Connector RP-SMA(M)
Standard IEEE 802.11b/g Wireless LAN
Operating Frequency 2.4~2.5 GHz
Polarization Type Linear
Antenna Gain 5.0 dBi Typical
Impedance 50 Ohm nominal
Antenna Swivel 90˚
Cable RG-316 Coaxial
ANT18769
Remote Mounted Wireless WiFi Antenna
Extends WiFi Network for the Shark®100S/200S
Meters and the MP200™ Metering System with WiFi

E166718 072722 V.1.02
Installation
1. Disconnect power – Turn off all power supplying the
meter before installing the ANT18769.
2. Connect the coaxial cable from the magnetic base to
the meter's WiFi jack (see figure on the right).
3. Place the magnetic base on any steel cabinet where the
antenna is not close to or surrounded by other metal or wiring.
4. Screw the antenna onto the magentic base.
5. Restore power to the meter.
ANT18769 Dimensions Base and Cable Dimensions
Shark®100S Meter's
WiFi Jack
Place antenna extension
connector here
