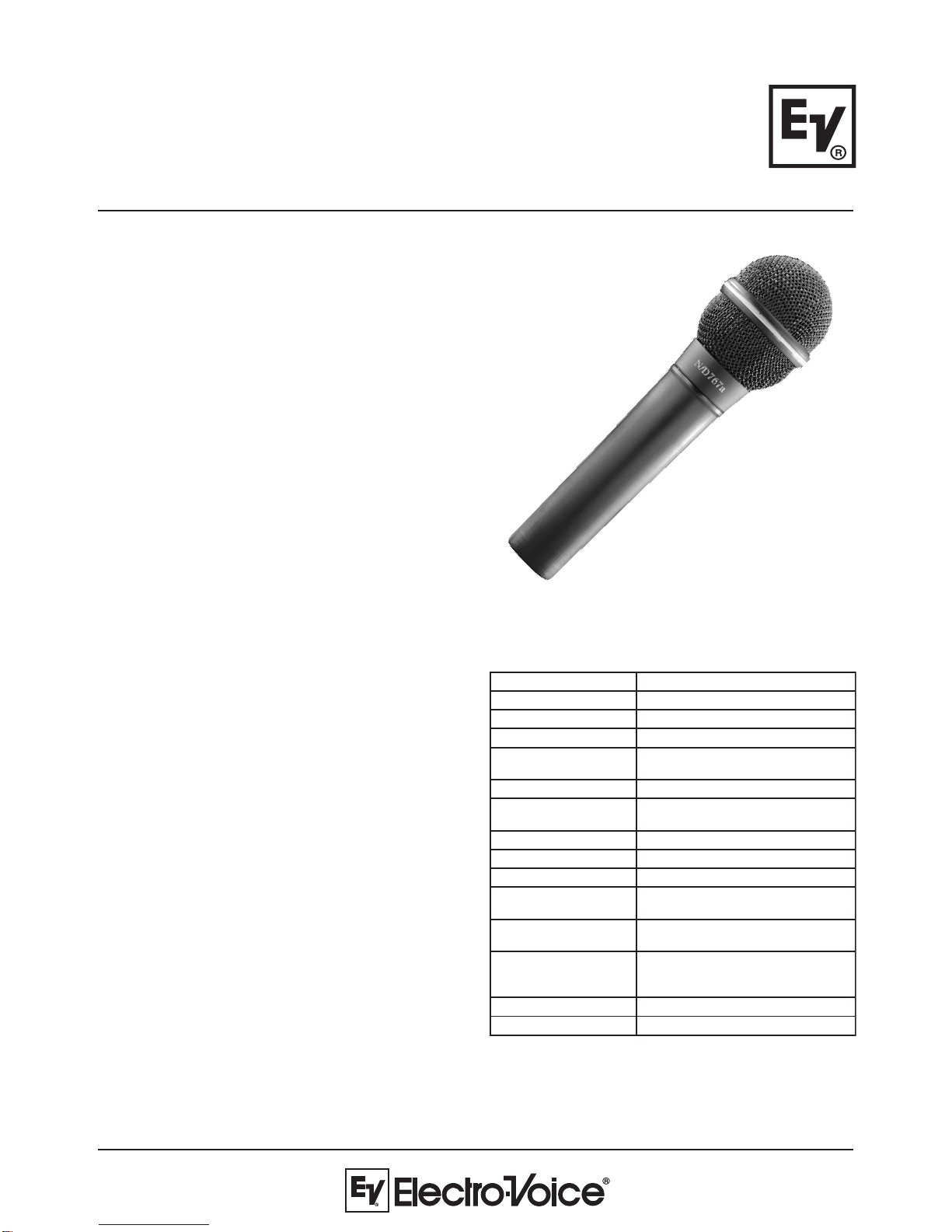

Electro-Voice N/D767a User manual

Technical Specifications:
The N/D767a presents optimal performance in a live
sound environment. The 767a vocal microphone utilizes
EV’s VOB™ (Vocally Optimized Bass) technology to
provide the performer with reduced low-end distortion
and eliminates the muddiness found in other
microphones. Combined with EV’s industry first
neodymium based magnet structure, the N/D767a
offers the power and clarity to “cut through the mix.”
Operation
The low frequency response of the N/D767a
microphone varies with the distance from the sound
source. Known as “proximity effect,” maximum bass
response is produced in “close-up” use with the
microphone 1/4 inch from the sound source. Normal
bass response is experienced with working distances
greater than 24 inches. Working close to the
microphone will produce a more robust sound. Close
up positioning of the microphone will also reduce the
potential for feedback from the sound reinforcement
system. When close-talked, the bass-boost provides an
increase in overall microphone output level. The mixer
gain may be proportionately reduced, resulting in a
reduction of the system’s sensitivity to feedback caused
by sound entering the microphone from the
loudspeakers.
:tnemelEerutcurtstengam®MYD/NcimanyD
:esolC,esnopseR.qerFzH000,22-zH53
:raF,esnopseR.qerFzH000,22-zH07
:nrettaPraloPdioidracrepuS
tiucriCnepO,ytivitisneS :zHk1@egatloV lacsap/Vm1.3
:egnaRcimanyDBd441
:ytiraloPhtiw3nipotdecnerefer,evitisop2niP mgarhpaidnoerusserpevitisop
:ecnadepmI)z-wol(decnalabsmho053
:rotcennoCenohporciMepyt-RLX,nip-3
:hsiniFkcalbgnitcelfer-noN
:slairetaMneercsellirg™xelfarmeM eldnah™pirGmraW
:dedulcnIseirosseccA)kcalB(retpadAdnatS gaB"giG"dereppiZtfoS
:htgneL,snoisnemiD :retemaiD :knahS )mm181("1.7 )mm25("1.2 )mm02("08.0
:thgieWteN)g062(zo2.9
:thgieWgnippihS)g535(zo9.81
General Description:
N/D767a
N/DYM®Dynamic Supercardioid
Vocal Microphone
Key Features:
•VOB
TM technology provides tailored bass
response
• Supercardioid pattern for exceptional acous-
tic isolation and feedback rejection
• Multistage shock mount for unmatched low-
handling noise
• Neodymium based magnet structure pro-
vides greater sensitivity and signal-to-noise
ratio
• Warm GripTM handle for more comfortable feel

12000 Portland Avenue South, Burnsville, MN 55337
Phone:[phone],Fax:[phone]
www.electrovoice.com
© Telex Communications, Inc. 6/2006
Part Number 38109-828 Rev. C
N/D767a Part Number: 16033313
Polar Response:
Frequency Response:
(5dBperdivision)
1000 Hz
U.S.A. and Canada only. For customer orders, contact Customer Service at:
800/392-3497 Fax: [phone]
Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:
+ 49 9421-706 0 Fax: + 49 9421-706 265
Other International locations. For customer orders, contact Customer Service at:
+ 1 952 884-4051 Fax: + 1 952 736-4212
For warranty repair or service information, contact the Service Repair department at:
800/553-5992 or 402/467-5321
For technical assistance, contact Technical Support at:
800/392-3497 or 952/736-4656
Specifications subject to change without notice.
Standard Placement & Use Guidelines
1.Always point the microphone at the desired source of sound, and away from any unwanted sources.
2.Themicrophoneshould be locatedclose to thesound source tominimize interference fromotherpotential soundsources.
3.Usethe 3-to-1rulewhen using multiplemicrophones. Place eachmicrophone three timesfarther from othermicrophonesas fromthe
desired sound source.
4.Minimizeover-handling ofthe microphone toreduce unwantedmechanicalnoise.
5.Working close to the microphone will increase the bass tone and also provide increased gain-before-feedback.
Microphone Use and Placement
Pleasenotethat micing techniquesare a matterof personal preference.Theseare merelyguidelinesto assistinthe placementofthe
microphoneto gainoptimalperformance.
Usage Optimal Placement
Vocals Zero to six inches from the windscreen, and on axis with the microphone.
SpokenWord Five to ten inches from the windscreen, and on axis with the microphone.
