Electro-Voice EVID C4.2D User manual


Electro-Voice
Ceiling Speaker
User Manual
EVID C4.2D
EVID C8.2D


  
  
 
 
  
  
 
 
 
  
  
  
  
  
  
  

 

Table of Contents

 
Welcome/Safety/Important Features
Welcome








Safety First














Important Features
 
 
 
 


A (x2)
C (x2)
D (x2)
F (x4)
B (x4)
G
H (x2)
E


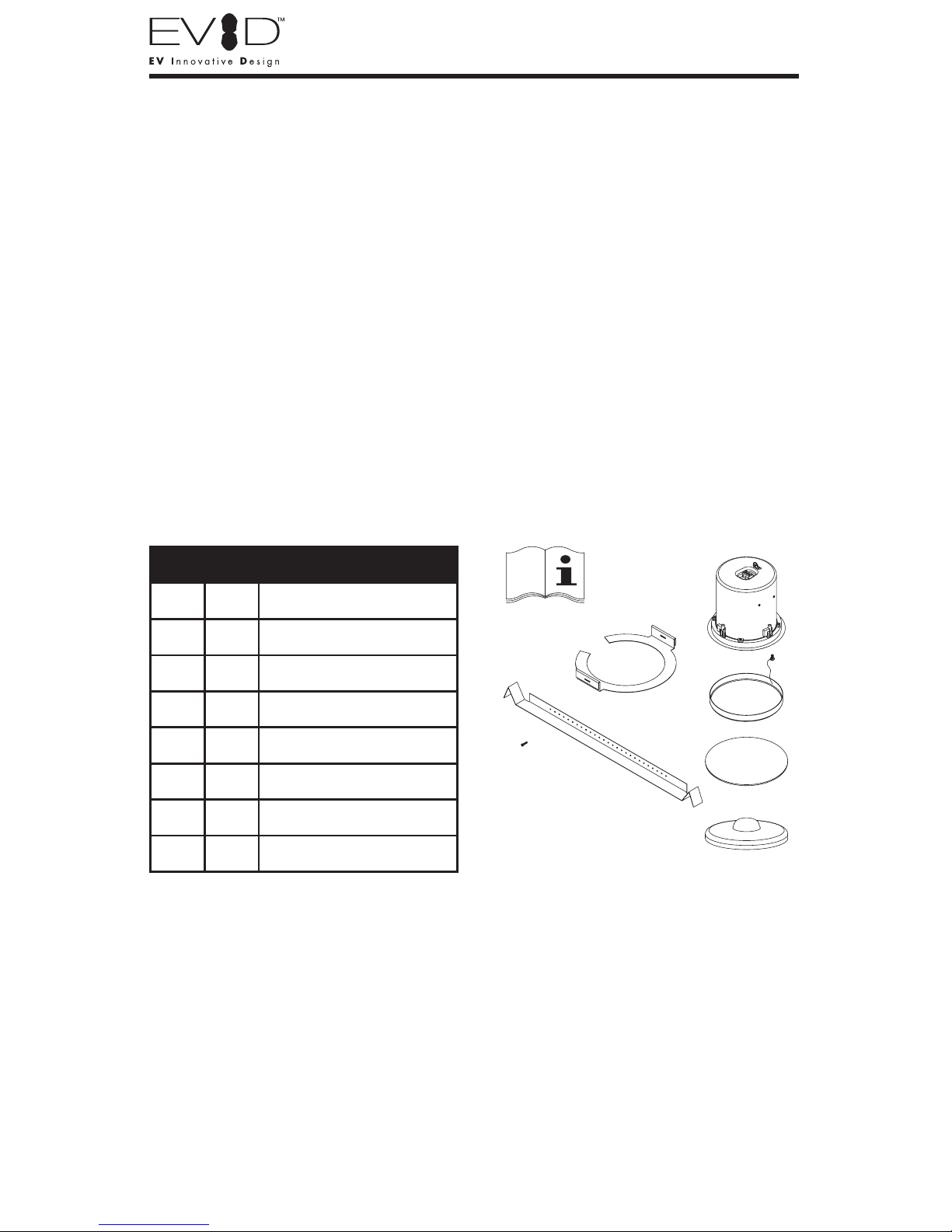

Model Summary/Packing List
Model Summary













Packing List
Figure 1:
Packing List Views
Item Qty. Description
A 2 Speaker System
B 4 Tile Rails
C 2 C-Ring Support
D 2 Grille
E 1 Owner’s Manual
F 4 Support Ring Screw
G 1 Cutout Template
H 2 Paint Shield
Table 1:
Packing List Qty. / Descriptions


Steel
backcan
Mounting
screws
Ta p
selector
Grille safety
tether hole

Product Feature Identification/Installation and Wiring
Figure 2:
Bottom of Speaker
Figure 3:
Top of Speaker
Product Feature Identification
Installation and Wiring














Figure 4:
Cut Ceiling Hole


Installation and Wiring

























Figure 5:
Secure Rails to C-Ring


Screwdriver

Installation and Wiring


















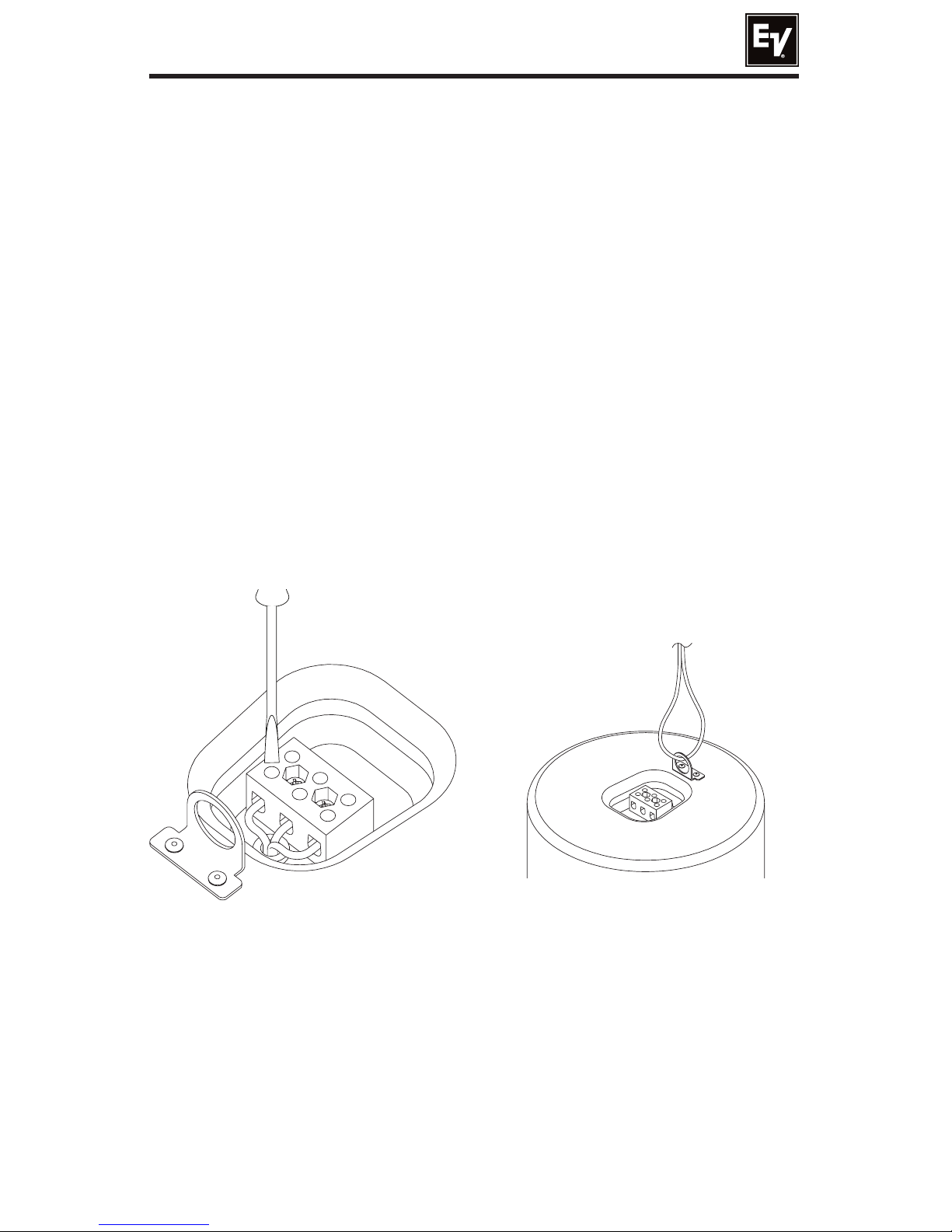

Figure 6:
Tighten with Screwdriver
Figure 7:
Attach Auxilary Support Line


Installation and Wiring
















Figure 10:
Adjust Tap Selector

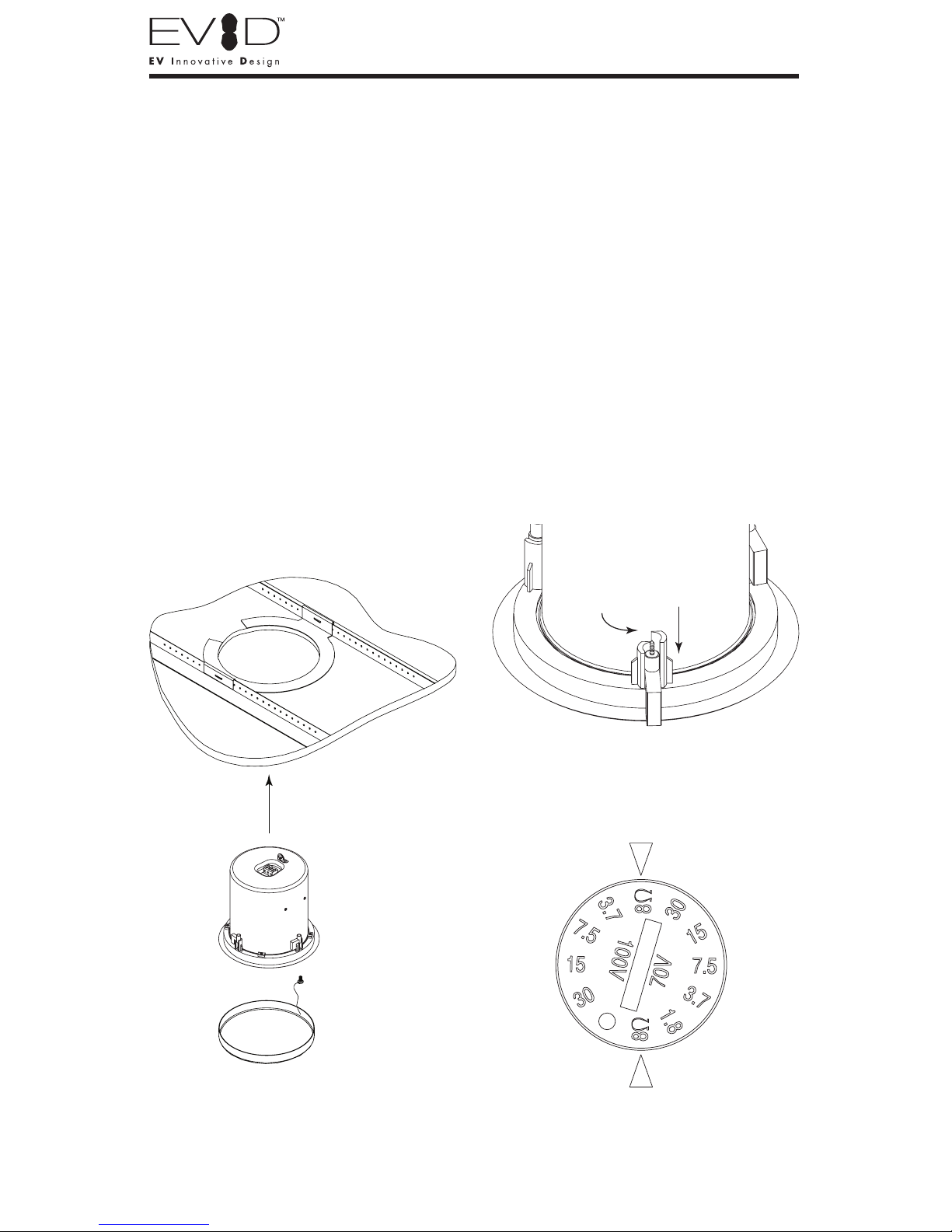

Figure 8:
Mount Speaker to Ceiling
Figure 9:
Tighten Mounting Tabs


1
2

Installation and Wiring













Figure 11:
Attach the Grille


45° 45°
180°
180°
Baffle Can
(do not
paint)

Painting the Speaker
Painting the Speaker











Figure 12:
Spray-Painting Angles








 
Specifications
Specification EVID C4.2D EVID C8.2D
Dimensions
(Depth x Diam.)
6.9” x 7.1”
[176 x 181mm]
10.0” x 10.6”
[255 x 270mm]
Bezel Diameter 8.3” [210mm] 11.8” [300mm]
Weight 6 lbs [2.7 kg] 11 lbs [5.0 kg]
Cabinet Construction Steel Enclosure and UL94V-0
Rated Baffle and Bezel
LF Transducer
4” [102mm] High-
Compliance Driver
(Weatherized Cone)
8” [205mm] High-
Compliance Driver
(Weatherized Cone)
HF Transducer 0.75” [19mm] Ti-
Coated Dome
1.00” [25.4mm] Ti-
Coated Dome
Mounting System Integrated 3-Point
Toggle Anchors
Integrated 4-Point
Toggle Anchors
Available Colors White (Paintable Surface)
Grille Construction Powder-Coated Steel
Acoustic Design Ported Cabinet, Two-Way Design,
Internally Damped w/Passive Crossover
Frequency Response 65 Hz - 20 kHz 50 Hz - 20 kHz
Power Handling (8 Ohms) 50W (with Overload
Protection)
75W (with Overload
Protection)
Coverage Pattern 130° Conical 110° Conical
Sensitivity (SPL 1W/1m) 86 dB 91 dB
Input Configuration 8 Ohms; 70V/100V
70V/100V Power Taps 1.8 (70V Only)/3.7/7.5/15/30W
Included Accessories Tile Bridge; Mounting Ring


Electro-Voice®

800/392-3497 Fax: [phone]


+ 49 9421-706 0 Fax: + 49 9421-706 265


+ 1 952 884-4051 Fax: + 1 952 887-9212


800/685-2606

866/78AUDIO



www.electrovoice.com
 
Part Number LIT000428 Rev A
