Electro-Voice ZxA 1 User manual

ZXA1 Series Loudspeaker
ZXA1‑90, ZXA1‑SUB
en User manual

ZXA1 Series Loudspeaker Table of contents | en 3
Electro-Voice User manual 2022-06 | 06 | F.01U.218.487
Table of contents
1Safety 4
1.1 Important safety instructions 4
1.2 FCC information 5
1.3 Precautions 5
2Description 6
2.1 Quick setup 6
2.2 Features 7
3Installation 8
3.1 Floor monitor, tripod and pole mount 8
3.2 Suspending the loudspeakers 10
3.3 Rotating the horn 11
3.4 Rotating the logo 12
4Amplifier controls 13
5Recommended configurations 17
5.1 Daisy-chaining full-range systems 17
5.2 Using full-range systems as monitors 18

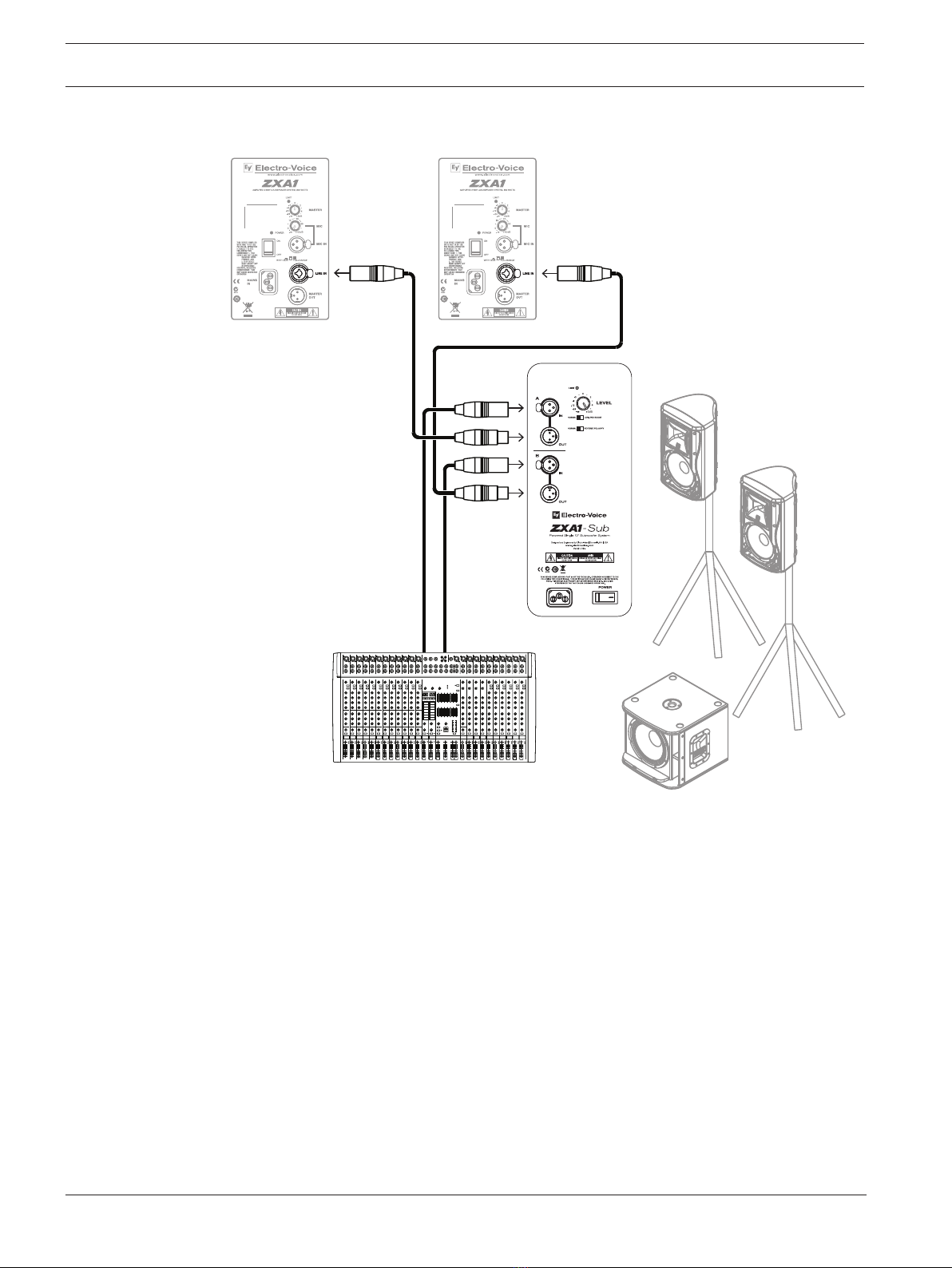

5.3 Stereo full-range systems with subwoofers 19
5.4 Stereo full-range systems with mono subwoofer 20
6Troubleshooting 21
7Technical data 23
7.1 Dimensions 24
7.2 Frequency response graphs 24
7.3 ZXA1 models and accessories 25
8Warranty information 26

4en | Safety ZXA1 Series Loudspeaker
2022-06 | 06 | F.01U.218.487 User manual Electro-Voice
1 Safety
1.1 Important safety instructions
!
Warning!
To reduce the risk of fire or electric shock, do not overexpose this appliance to rain or
moisture.
!
Warning!
Connect only to mains socket with protective earthing connection.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third prong is provided for your safety. If
the provided plug does not fit into your outlet, consult an electrician for replacement of
the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug the apparatus during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
14. To completely disconnect AC power from this apparatus, the power supply cord must be
unplugged.
15. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or
moisture. The apparatus should not be exposed to dripping or splashing. Objects filled
with liquids, such as vases should not be placed on apparatus.
16. The AC plug of the power supply cord shall remain readily operable. The plug of the
power supply cord is used as a disconnect device.

ZXA1 Series Loudspeaker Safety | en 5
Electro-Voice User manual 2022-06 | 06 | F.01U.218.487
Old electrical and electronic equipment
This product and/or battery must be disposed of separately from household waste.
Dispose such equipment according to local laws and regulations, to allow their reuse
and/or recycling. This will help in conserving resources, and in protecting human
health and the environment.
1.2 FCC information
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
1.3 Precautions
!
If an Electro-Voice loudspeaker is used outdoors on a sunny day, place the
loudspeaker in a shaded or covered area. The loudspeaker amplifiers have
protection circuits that temporarily shut the loudspeaker off when extremely
high temperatures are reached. This can happen on hot days when the
loudspeaker is in direct sunlight.
!
Do not use Electro-Voice loudspeakers in an environment where temperatures
are below 0°C (32°F) or exceed +35°C (95°F).
!
Never expose an Electro-Voice loudspeaker to rain, water, or high moisture.
!
Electro-Voice loudspeakers are easily capable of generating sound pressure
levels sufficient to cause permanent hearing damage to anyone within normal
coverage distance. Caution should be taken to avoid prolonged exposure to
sound pressure levels exceeding 90 dB.

6en | Description ZXA1 Series Loudspeaker
2022-06 | 06 | F.01U.218.487 User manual Electro-Voice
2 Description
Thank you for choosing an Electro-Voice portable loudspeaker system. Please take time to
consult the manual to understand all the features built into your EV system and fully utilize its
performance capabilities.
Only to be expected from Electro-Voice , the ZxA1 packs a big-stage punch. Electro-Voice
drivers, components, and amplifiers are legendary - all proven at the highest levels of live
performance. ZxA1 wraps Electro-Voice technology in a durable, lightweight cabinet, resulting
in the most powerful and versatile compact loudspeaker available today. Match ZxA1 with the
ZxA1-Sub to create a truly exceptional professional sound system.
2.1 Quick setup
The ZLX series loudspeakers from Electro-Voice are fully integrated audio systems with
carefully matched electronics and transducers. These products make it easy to setup a high
quality sound system quickly with a minimum amount of cables and external electronics.
To get the ZXA1 loudspeaker into operation as quickly as possible:
Step ZXA1 ZXA1-SUB
1. Turn knob to -∞.
2. Connect the AC power
cord from a grounded
line receptacle to MAINS
IN.
3. For ZXA1 , connect an
XLR Mic cable to MIC IN
or connect an audio
source to LINE IN.
OR
For ZXA1-SUB , connect
the XLR cables to IN A.
4. Switch POWER to ON.

ZXA1 Series Loudspeaker Description | en 7
Electro-Voice User manual 2022-06 | 06 | F.01U.218.487
Step ZXA1 ZXA1-SUB

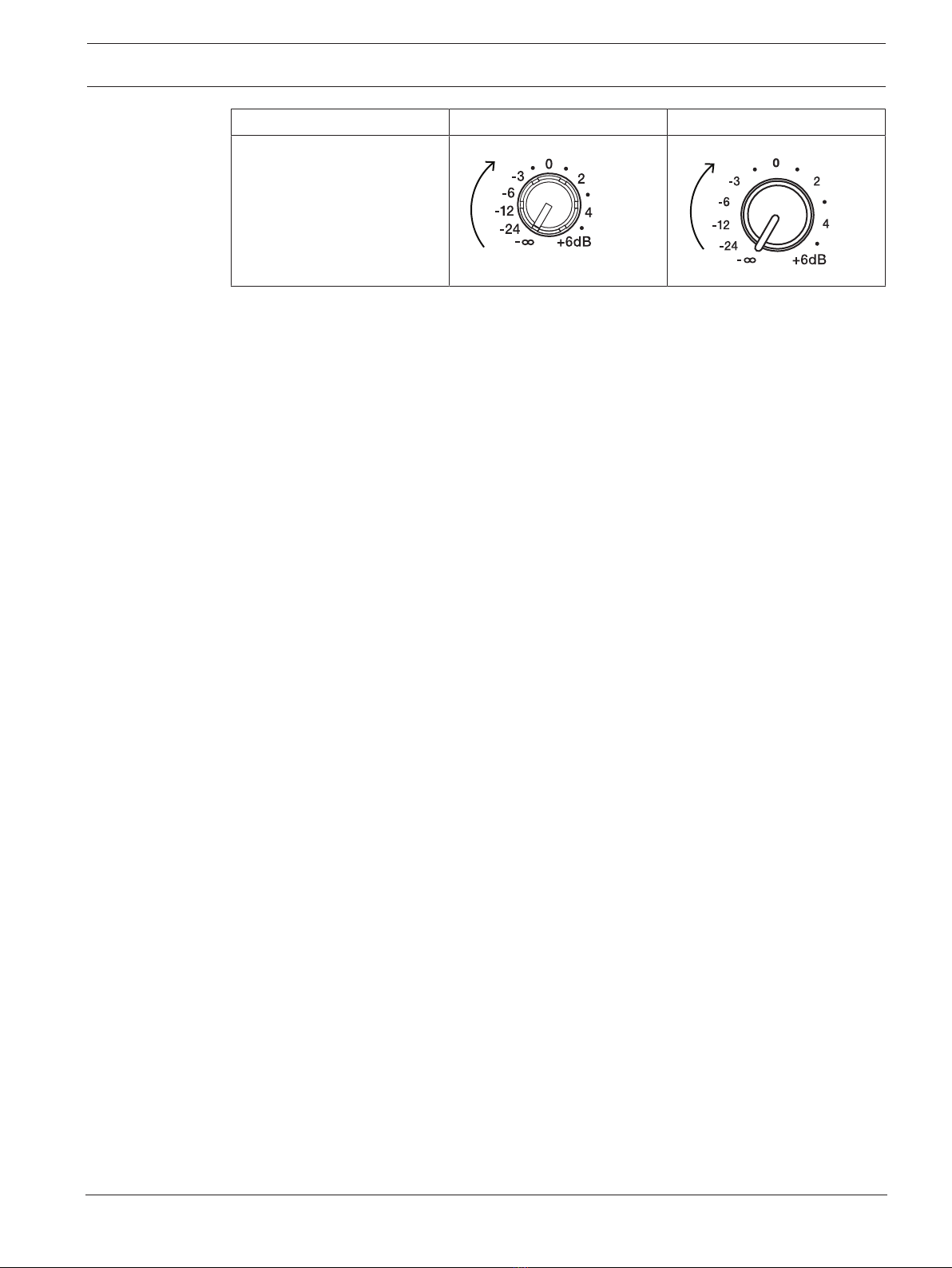

5. Slowly increase knob to
the desired level.
2.2 Features
ZXA1 8” 2-way powered speaker
The ZXA1 is a compact, powerful, and versatile choice for sound reinforcement and stage
monitoring applications, lightweight and durable, with an 800W amp.
– Lightweight and durable ABS enclosure.
– Two-way loudspeaker with EV8L 8-inch woofer and DH2005 titanium compression driver.
– Rotatable high frequency waveguide.
– Class D lightweight amplifier.
– Bi-amplified design with 24dB/octave filter slopes and transducer protection.
– Selectable 100Hz high pass filter for use with an external subwoofer.
– XLR/TRS combo line input.
– XLR microphone input with gain control.
– XLR summed output.
– LED indicators for power on and limit.
– Pole mount.
– 45° monitor angle.
ZXA1-SUB 12“ powered subwoofer
Optimized for performance with ZXA1, the ZXA1-SUB adds a deep, low-frequency, amplified
punch you can hear and feel.
– 15mm plywood enclosure, internally braced, with textured paint.
– EVS-12S 305mm (12-inch) woofer for powerful, engaging bass response.
– Class D lightweight amplifier.
– Pole mount for full-range systems.
– Dual XLR inputs and outputs.
– Switchable EQ modes for different applications.
– LED indicators for Power On and Limit.

8en | Installation ZXA1 Series Loudspeaker
2022-06 | 06 | F.01U.218.487 User manual Electro-Voice
3 Installation
3.1 Floor monitor, tripod and pole mount

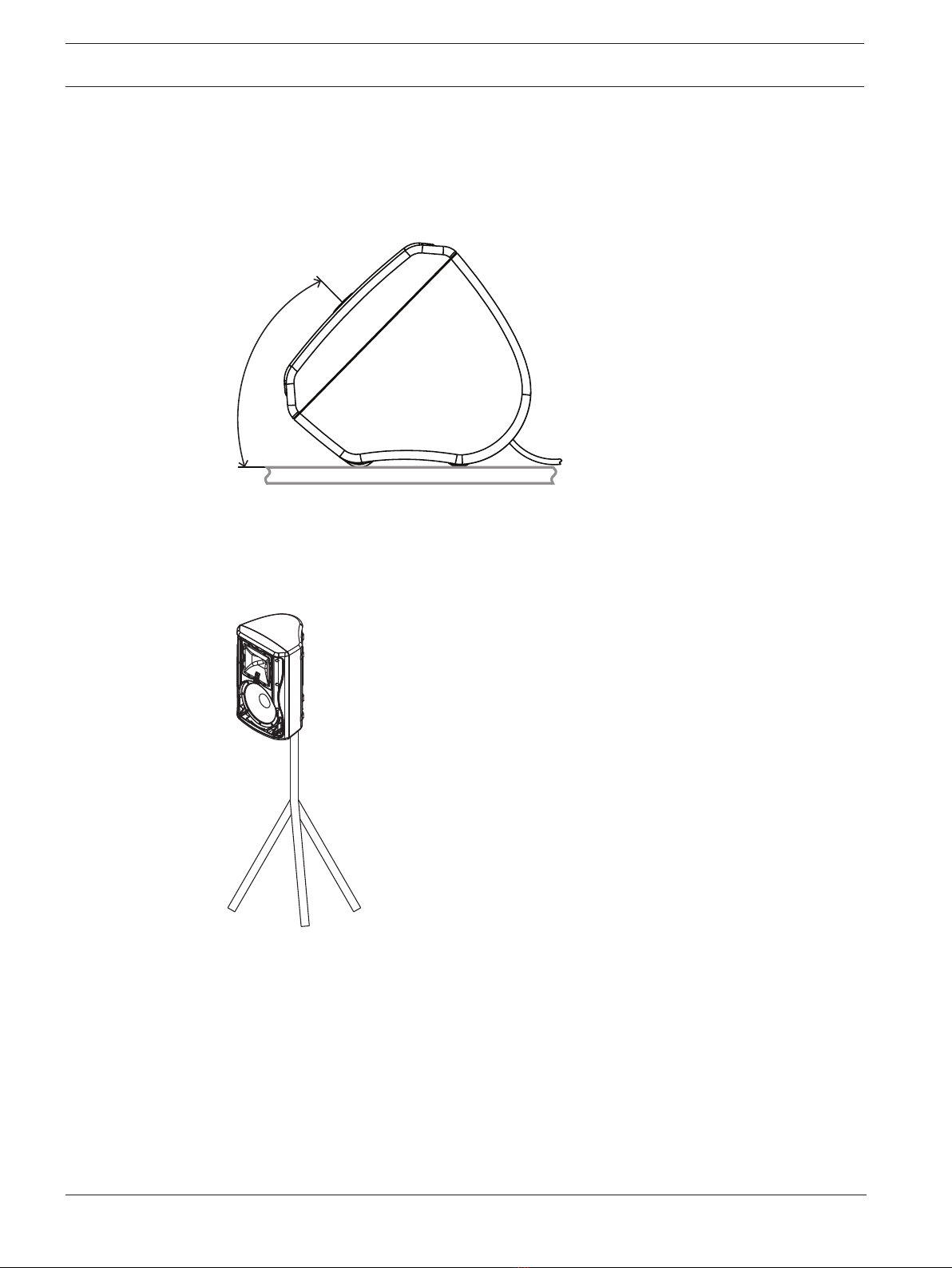

Floor monitor
45
Figure3.1: ZXA1 monitor position
Tripod
Figure3.2: ZXA1 on tripod stand

ZXA1 Series Loudspeaker Installation | en 9
Electro-Voice User manual 2022-06 | 06 | F.01U.218.487

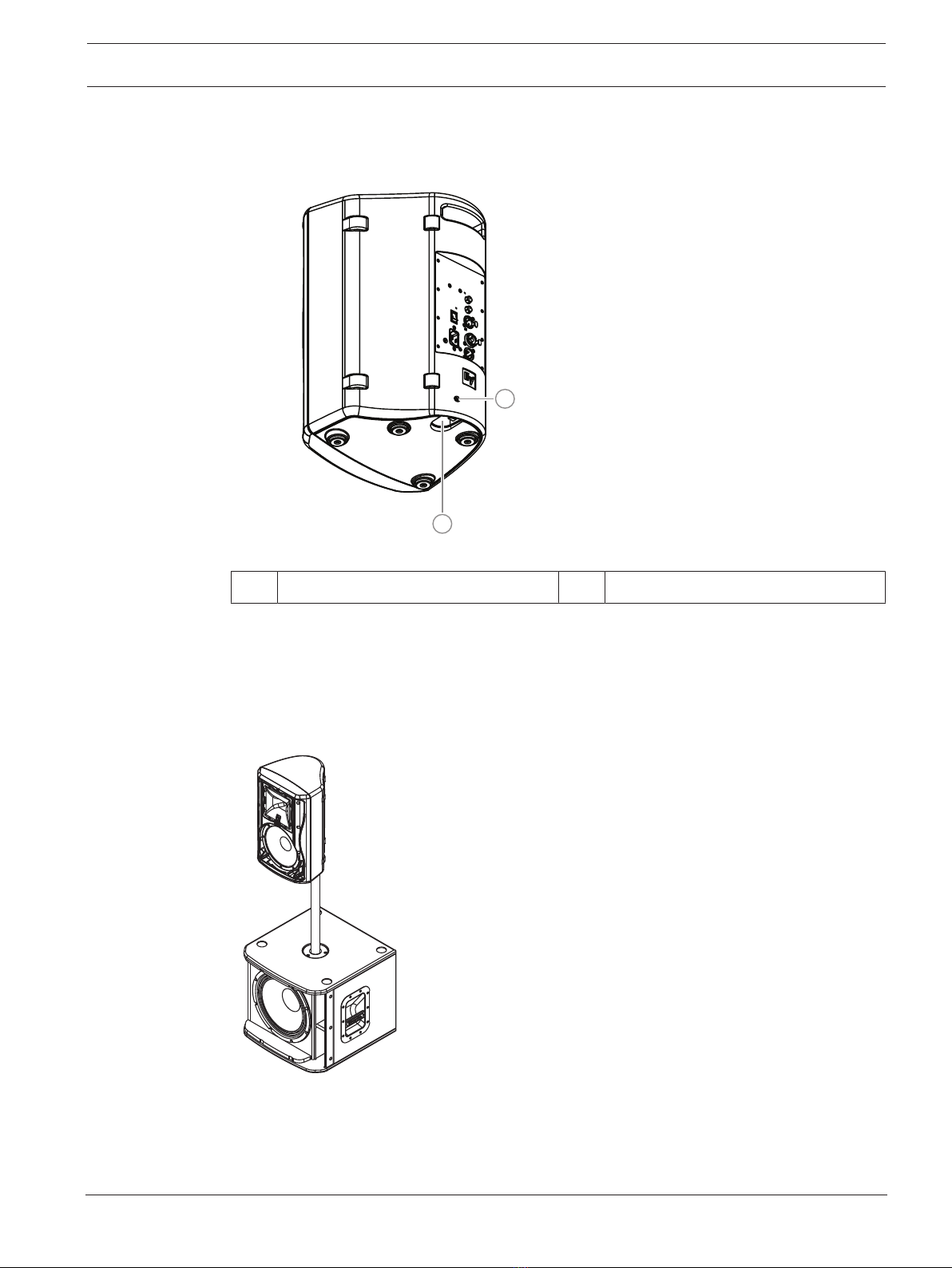

Pole mount
Electro-Voice ZXA1-SUB loudspeakers include 35mm (1-3/8inch) pole mount cups to allow
mounting a full range speaker above it.
1
2
Figure3.3: ZXA1 pole mount location
1 Set screw 2 Pole mount recess
Make sure to:
– Use a speaker pole that is no longer than 1.2m (4ft) and mount a speaker weighing no
more than 11.3kg (25lb).
– Check that the ZXA1-SUB is placed on a flat and stable surface.
Figure3.4: ZXA1 and ZXA1-SUB full-range/sub stack with pole mount

10 en | Installation ZXA1 Series Loudspeaker
2022-06 | 06 | F.01U.218.487 User manual Electro-Voice
3.2 Suspending the loudspeakers
Electro-Voice ZXA1 loudspeakers may be safely suspended with single stud fittings by using
the MP1 suspension kit, or quickly attached to a truss by using the CA-Zx truss clamp adaptor
(both sold separately). See MP1 or CA-Zx instruction sheets for proper assembly and use.
!
Warning!
Suspending any object is potentially dangerous and should only be attempted by individuals
who have a thorough knowledge of the techniques and regulations of rigging objects
overhead.
Electro-Voice strongly recommends that ZXA1 speakers be suspended taking into account all
current national, federal, state, and local regulations. It is the responsibility of the installer to
ensure that ZXA1 speakers are safely installed in accordance with all such regulations. If ZXA1
speakers are suspended, Electro-Voice strongly recommends that the system be inspected at
least once a year. If any sign of weakness or damage is detected, remedial action should be
taken immediately. There are instruction sheets for each EV Suspension and Array Kit that
should also be consulted prior to suspending speakers.
Figure3.5: MP1-B mounting plate accessory

ZXA1 Series Loudspeaker Installation | en 11
Electro-Voice User manual 2022-06 | 06 | F.01U.218.487
Figure3.6: CA-ZX truss clamp accessory
3.3 Rotating the horn
The ZXA1 allows for the horn to be rotated for more effective coverage if desired. The horn is
factory-installed with the 90° coverage in the horizontal plane and the 50° coverage in the
vertical plane.
To rotate the horn:
1. Remove the grille screws/grille assembly.
2. Remove the horn screws/horn assembly.
3. Rotate the horn assembly 90°.
4. Secure the horn assembly with the horn mounting screws.
5. Secure the grille assembly with the grille mounting screws.
90ºx 50º
1
2
3
4
Figure3.7: Rotating the ZXA1-90 horn
1 Grille mount screws 2 Grille assembly
3 Horn mount screws 4 90°x50° horn

12 en | Installation ZXA1 Series Loudspeaker
2022-06 | 06 | F.01U.218.487 User manual Electro-Voice

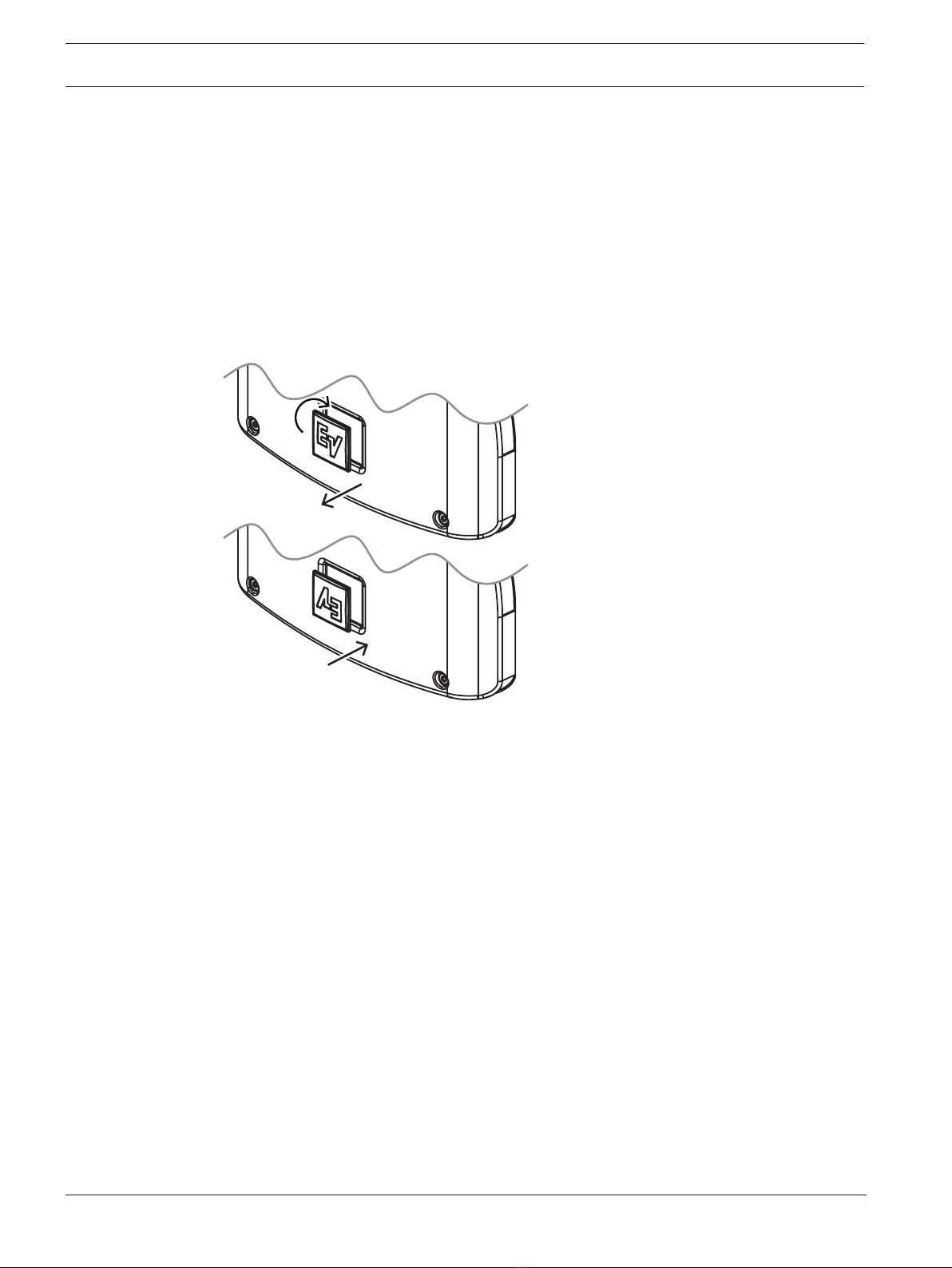

3.4 Rotating the logo
All versions of the ZXA1 (except the ZXA1-SUB) allow for the logo to be rotated, if required.
The logo badge is square and can be rotated in 90° increments.
To rotate the logo badge:
1. Using a finger or flat-edge screwdriver (using care not to scratch grille), grip under the
logo badge.
2. Pull the logo badge outwards from the logo recess until it fully clears the front surface of
the grille.
3. Rotate the logo badge, in 90° increments, to the desired orientation.
4. Release the logo badge and let it “spring” back into the logo recess.
Figure3.8: Rotating the ZXA1 logo

ZXA1 Series Loudspeaker Amplifier controls | en 13
Electro-Voice User manual 2022-06 | 06 | F.01U.218.487
4 Amplifier controls

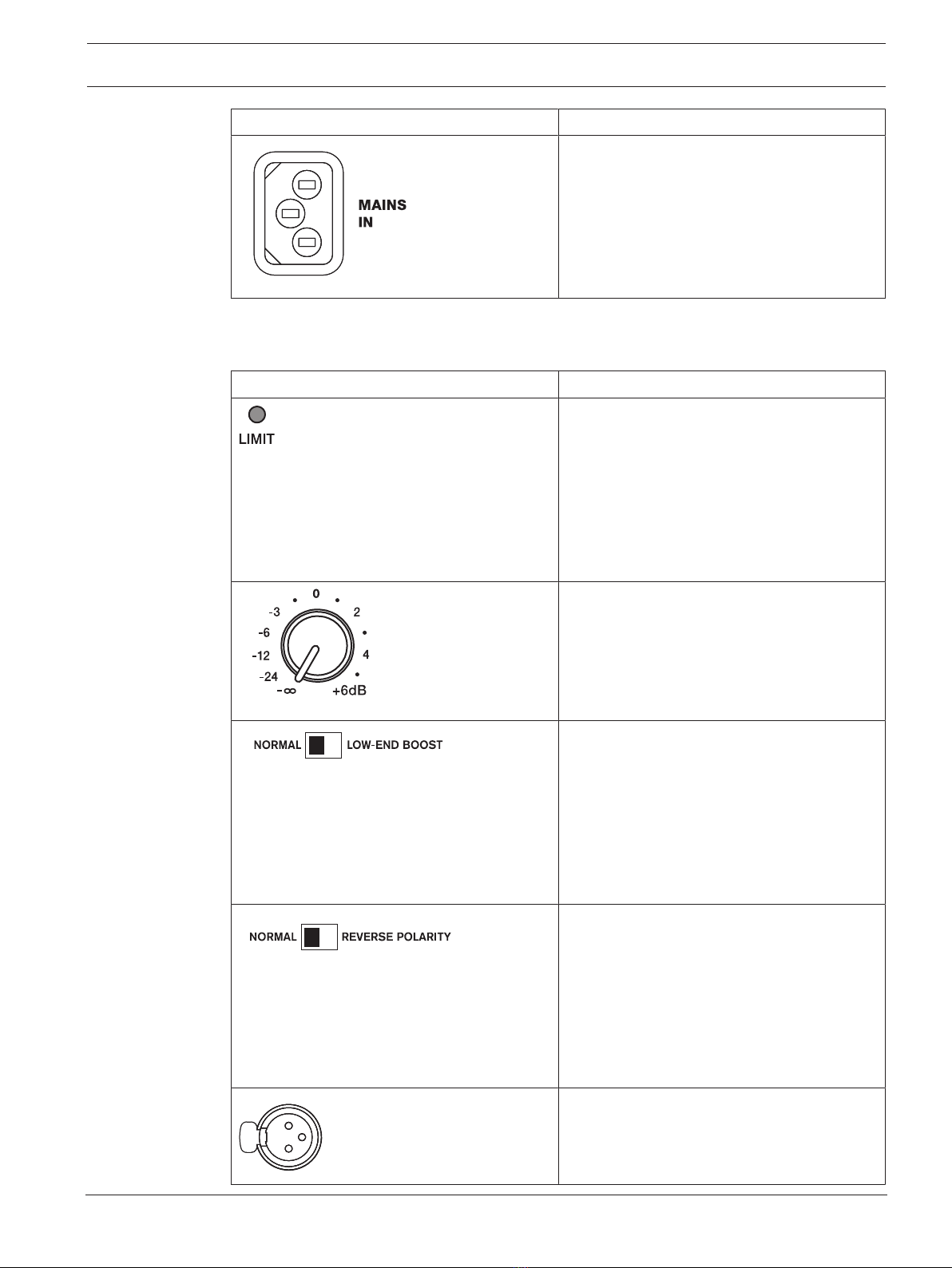

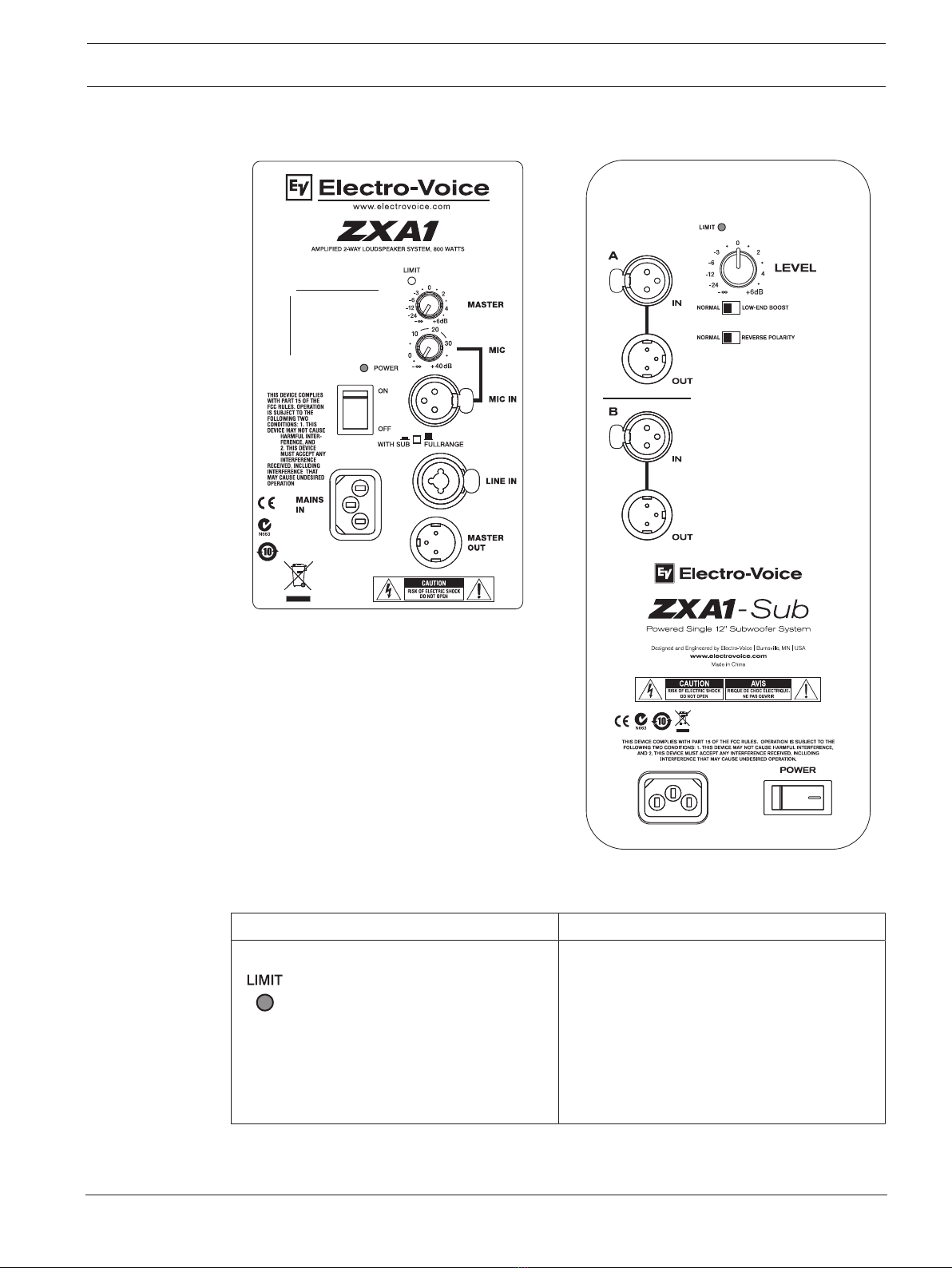

Figure4.1: ZXA1 and ZXA1-SUB amplifier panels
Control Function
LIMIT
The LED brief blinking indicates the power
amplifier is operated at its limits. Short-term
blinking is not critical because the integrated
limiter keeps distortion under control.
Constant lighting of the LED indicates the
sound is negatively affected. Reducing the
output volume is strongly recommended.

14 en | Amplifier controls ZXA1 Series Loudspeaker
2022-06 | 06 | F.01U.218.487 User manual Electro-Voice
Control Function
MASTER
Level control for adjusting the power amp’s
overall amplification. The level control affects
the volume of the line input and microphone
input. To prevent distortion and clipping of
pre-linked mixing consoles, the control
should generally be set to a value between
0dB and +6dB.
MIC
Level control for adjusting the microphone
input level independent of the master level.
MIC IN
XLR input for low level signals like
microphones. The MIC IN and LINE IN may
both be used at the same time as a 2-channel
mixer.
WITH SUB/FULL RANGE
When depressed, activates a 100Hz high
pass for use with a subwoofer, or if the ZxA1
is used as a floor monitor. A pen or paperclip
is needed to depress the switch to WITH SUB
mode.
LINE IN
Electronically balanced input for the
connection of high-level signal sources like
mixing consoles or signal processors.
Connections can be established using 1/4-
inch TRS or XLR-type connectors.
MASTER OUT
Output connector to send the signal to
another speaker or subwoofer. The output is
the sum of both the MIC IN and LINE IN.
POWER
AC switch for switching the ZxA1’s power ON
or OFF. The LED lights after turning the
power ON. If the LED is not lit upon turning
the power on, make sure the AC cord is
correctly connected and the outlet is properly
working.

ZXA1 Series Loudspeaker Amplifier controls | en 15
Electro-Voice User manual 2022-06 | 06 | F.01U.218.487
Control Function
MAINS IN
AC connection is established via an IEC-
connector. A 10ft (3m) long AC cord with
fitting IEC-plug is supplied. Locking IEC
power cords may also be used.
Table4.1: ZXA1 amplifier controls
Control Function
LIMIT
The LED brief blinking indicates the power
amplifier is operated at its limits. Short-term
blinking is not critical because the integrated
limiter keeps distortion under control.
Constant lighting of the LED indicates the
sound is negatively affected. Reducing the
output volume is strongly recommended.
LEVEL
Level control for adjusting the volume of the
subwoofer. The level control affects the
volume of both Channels A and B.
BOOST
The BOOST switch controls the low-
frequency extension of the subwoofer.
NORMAL works best when the subwoofer is
used under normal applications. LOW-END
BOOST provides additional low-frequency
extension and works best for applications
requiring enhanced bass performance.
POLARITY
The POLARITY switch controls the acoustic
polarity of the subwoofer. When using with a
ZxA1 and in most applications, the switch
should always be set to NORMAL. If the bass
output is low when using with other
loudspeaker systems and subwoofers, try
setting the switch to REVERSE POLARITY.
XLR INPUT
XLR input connector to receive the signal
from another speaker or subwoofer.

16 en | Amplifier controls ZXA1 Series Loudspeaker
2022-06 | 06 | F.01U.218.487 User manual Electro-Voice
Control Function
XLR OUTPUT
XLR output connector to send the signal to
another speaker or subwoofer.
POWER
AC switch for switching the ZxA1-Sub’s
power ON or OFF. The LED lights after
turning the power ON. If the LED is not lit
upon turning the power on, make sure the AC
cord is correctly connected and the outlet is
properly working.
MAINS IN
AC connection is established via an IEC-
connector. A 10ft (3m) long AC cord with
fitting IEC-plug is supplied.
Table4.2: ZXA1-SUB amplifier controls

ZXA1 Series Loudspeaker Recommended configurations | en 17
Electro-Voice User manual 2022-06 | 06 | F.01U.218.487
5 Recommended configurations
5.1 Daisy-chaining full-range systems
Figure5.1: Dual ZXA1s

18 en | Recommended configurations ZXA1 Series Loudspeaker
2022-06 | 06 | F.01U.218.487 User manual Electro-Voice
5.2 Using full-range systems as monitors
Figure5.2: Dual ZXA1s

ZXA1 Series Loudspeaker Recommended configurations | en 19
Electro-Voice User manual 2022-06 | 06 | F.01U.218.487
5.3 Stereo full-range systems with subwoofers
Figure5.3: Dual ZXA1s with dual ZXA1-SUBs

20 en | Recommended configurations ZXA1 Series Loudspeaker
2022-06 | 06 | F.01U.218.487 User manual Electro-Voice
5.4 Stereo full-range systems with mono subwoofer
Dual ZXA1s with a single ZXA1-SUB
