Electro-Voice Eliminator i User manual

Eliminator i™
General Product Description
The Electro-Voice Eliminator i™is a high-peak output,
high-efficiency two-way stage system. The 15-in.
low-frequency/horn-loaded constant-directivity
high-frequency system incorporates elements of Ring-Mode
Decoupling (RMDTM). RMD techniques substantially improve
vocal fundamental intelligibility and produce an “up front”
tonality capable of cutting through even difficult acoustic
environments.
The Eliminator i™enclosure has a unique design that
presents a very minimal frontal cross section while still
maintaining substantial internal volume. A newly developed
handle concept allows for extremely comfortable
transportation from any orientation.The design is light weight,
but very rugged and features a heavy metal grille and highly
stylized corner protection.
The heart of Eliminator i™’s high performance design is the
combination of a high-excursion low-frequency suspension
system with Electro-Voice’s unique Ring-Mode Decoupling.
All loudspeaker drivers exhibit mechanical resonance modes
that add their own time-domain or ringing-mode colorations.
These colorations limit and reduce overall system
intelligibility.The Eliminator i™uses RMD™to control several
fundamental mechanical ringing modes. The result is
substantially improved vocal range intelligibility and system
“openness”. When extended low-frequency operation is
required, the performance can be further enhanced with the
use of the Eliminator i™Sub, which can be used in either
biamp or full-range passive mode. Vented enclosures offer
excellent power handling and low distortion in the lowest
octave of rated operation. However, it is always advisable to
filter material below enclosure tuning to further improve
system output and headroom. The Eliminator i™should be
high-pass filtered to reduce subsonic material below 40 Hz.
Architects’and Engineers’Specifications
The loudspeaker system shall consist of a 38.1-cm (15-inch)
low-frequency transducer in a vented enclosure. The
high-frequency section shall be a compression driver with a
pure titanium diaphragm coupled to a 1-inch throat diameter
to a constant-directivity horn having a horizontal included
angle (as referenced to -6 dB) of 60° and a vertical included
angle of 40° nominal. The loudspeaker shall have a rated
frequency response of 50 Hz to 20 kHz ±3 dB and a long-term
rated average power handling of 350 watts (EIA RS-426-A).
The system sensitivity shall be 99 dB when measured in an
anechoic environment with a 1-watt input with a calibrated
measurement microphone located 1 meter from the system
axis. The nominal impedance shall be 8 ohms. The system
shall have parallel 1/4-in. phone jacks. The system shall
include a 1 3/8-in. stand-mount adapter.
Specifications:
Frequency Response, Measured at 10 feet on axis
(normalized to 1 watt/ 1 meter):
.............................................................. 50 - 20,000 Hz ±3 dB
Long-Term Average Power Handling, EIA Standard RS-426-A:
................................................................................. 350 watts
Sound Pressure Level, 1 W/1 m: ....................................... 99 dB
Dispersion Angle Included by 6-dB Down Points on Polar
Responses, Indicate One-Third-Octave Bands of Pink Noise,
2,500 Hz - 20,000 Hz, Horizontal: ................. 60° (+14°, -25°)
2,500 Hz - 20,000 Hz, Vertical: ....................... 40° (+12°, -0°)
Transducer Complement:
High Frequency:
DH2010A
HP64M constant directivity
Low Frequency:
DL15BFH
EnclosureTuning: ................................................................ 50 Hz
Crossover frequency: ...................................................... 1600 Hz
Impedance:
Nominal ...................................................................... 8 ohms
Minimum .................................................................. 5.3 ohms
Input connectors:
Parallel 1/4-inch phone jacks
Enclosure Finish:.................................................. Black carpeted
Dimensions,
Height: ..................................................... 76.8 cm (30.25 in.)
Wide: .......................................................... 42.9 cm (16.9 in.)
Depth:............................................................ 60.9 cm (24 in.)
NetWeight: ........................................................... 34.4 kg (76 lbs)
Shipping Weight:.................................................. 38.1 kg (84 lbs)
Supporting Products
100BK speaker stand
Eliminator i™Sub
Eliminator i™Amplifier
KEY FEATURES
• 15-inchTwo-way High-output Stage System
• 350Watts Continuous
•RMD
™ for Improved Clarity and Presence

© Telex Communications, Inc. 06/2001
Part Number 38109-936 Rev C
U.S.A. and Canada only.
For customer orders, contact the Customer Service department at
800/392 3497 Fax: [phone]
For warranty repair or service information, contact the Service
Repair department at 800/685 2606
For technical assistance, contact Technical Support at 866/78AUDIO
Please refer to the Engineering Data Sheet for warranty information.
Specifications subject to change without notice.

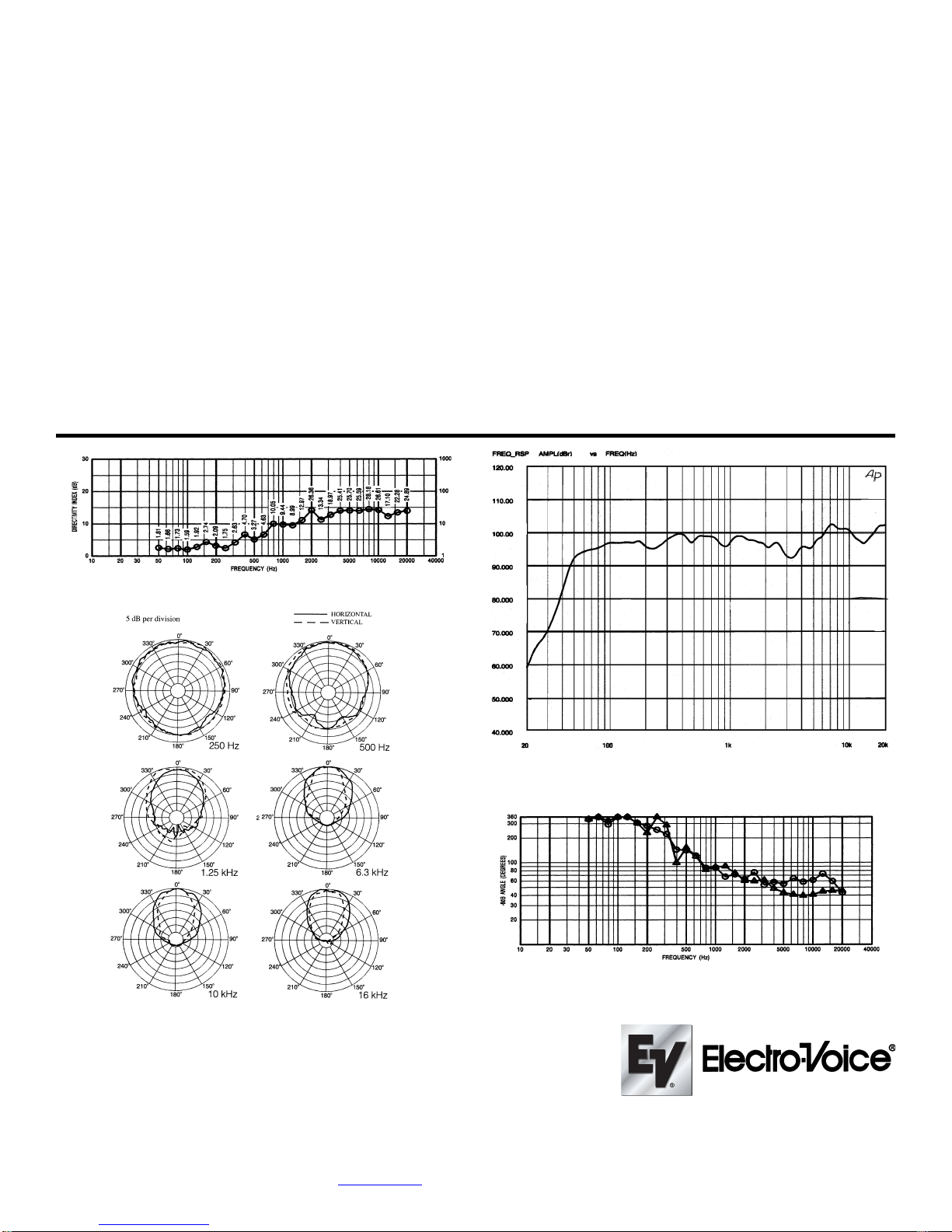

Polars
USA 12000 Portland A e South, Burns ille, MN 55337, Phone: [phone], Fax: [phone]
Canada 705 Progress A enue, Unit 46, Scarborough, Ontario, Canada, M1H2X1, Phone: [phone], Fax: [phone]
Germany Hirschberger Ring 45, D94315, Straubing, Germany, Phone: [phone], Fax: [phone]
France Parc de Courcerin, Allee Lech Walesa, Lognes, 77185 Marne la Vallee, France, Phone: [phone], Fax: [phone]
Australia Unit 23, Block C, Slough Business Park, Slough A enue, Sil erwater, N.S.W. 2128, Australia, Phone: [phone], Fax: [phone]
Hong Kong Unit E & F, 21/F, Luk Hop Industrial Bldg., 8 Luk Hop St., San PO Kong, Kowloon, Hong Kong, Phone: [phone], Fax: [phone]
Japan 5-3-8 Funabashi, Setagaya-ku, Tokyo, 156-0055 Japan, Phone: [phone], Fax: [phone]
Singapore 3015A Ubi Rd 1,05-10, Kampong Ubi Industrial Estate, Singapore 408705,Phone: [phone], Fax: [phone]
Mexico A . Parque Chapultepec #66-201, Col. EI Parque Edo. De Mexico 53390, Mexico, Phone: [phone], Fax: [phone]
UK 4, The Willows Centre, Willow Lane, Mitcham,Surrey CR4 4NX, UK, Phone: [phone], Fax: [phone]
Africa,Mid East Hirschberger Ring 45, D94315, Straubing, Germany, Phone: [phone], Fax: [phone]
Latin America 12000 Portland A e South, Burns ille, MN 55337, Phone: [phone], Fax: [phone]
www.electrovoice.com  Telex Communications, Inc.  www.telex.com
Power-Handling Capacity
Electro-Voice components and systems are manufactured to
exacting standards, ensuring they will hold up, not only through
the most rigorous of power tests, but also through continued use in
arduous, real-life conditions. The EIA Loudspeaker Power Rating
Full Range (ANSI/EIA RS-426-A 1980) uses a noise spectrum that
mimics typical music and tests the thermal and mechanical
capabilities of the components. Electro-Voice will support relevant
additional standards as and when they become available.Extreme,
in-house power tests, which push the performance boundaries of
the woofers, are also performed and passed to ensure years of
trouble-free service.
Specifically, the Eliminator i™passes ANSI/ EIA RS-426-A 1980
with the following values:
RSR = 5.175 ohms (1.15 x RE)
PE(MAX) = 350 watts
Test voltage = 42.55 volts rms,
85.10 volts peak (+6 dB)
The “peak” power-handling capacity of a woofer is determined by
the peak test voltage amount. For the Eliminator i™a 85.10-volt-
peak-test voltage translates into 1,400-watts short-term peak power-
handling capacity. This is the equivalent of four times the “average”
power-handling capacity, and is a peak that can be sustained for
only a few milliseconds. However, this sort of short duration peak is
very typical in speech and music. Provided the amplifier can
reproduce the signal accurately, without clipping, the woofer will
also perform accurately and reliably, even at these levels.
Amplifier Recommendations
The power-handling rating of the Eliminator i™is 350-watts
continuous. The specific tests used employ a crest factor (ratio of
peak energy to continuous energy of at least 6 dB). During extended
testing, the Eliminator i™is routinely subjected to peak levels far in
excess of its continuous rating of 350 watts.Many amplifier designs
are capable of producing peak power levels in excess of their ratings
as well, so exact “pairing” of loudspeaker rating and amplifier ratings
is not necessary. Amplifier continuous ratings of 250 watts to 400
watts are suggested. Larger amplifier ratings are recommended
for maximum dynamic range, but it should be recommended that
amplifier continuous levels (as opposed to peak levels) be within
the range quoted for the Eliminator i™long-term average
power-handling rating.
Stand Mounting
The Eliminator i™is equipped with an internal stand-mount adapter
that will accommodate standard 1 3/8-in. diameter speaker stands.
Frequency Response
Beamwidth Response (Anechoic)
Directivity (Anechoic)
