ELECTRO-VOICE®ZxA5 Owner’s Manual
ZxA5 Series
Loudspeaker
Owner’s Manual
ZxA5-60
ZxA5-90

ELECTRO-VOICE®ZxA5 Owner’s Manual1

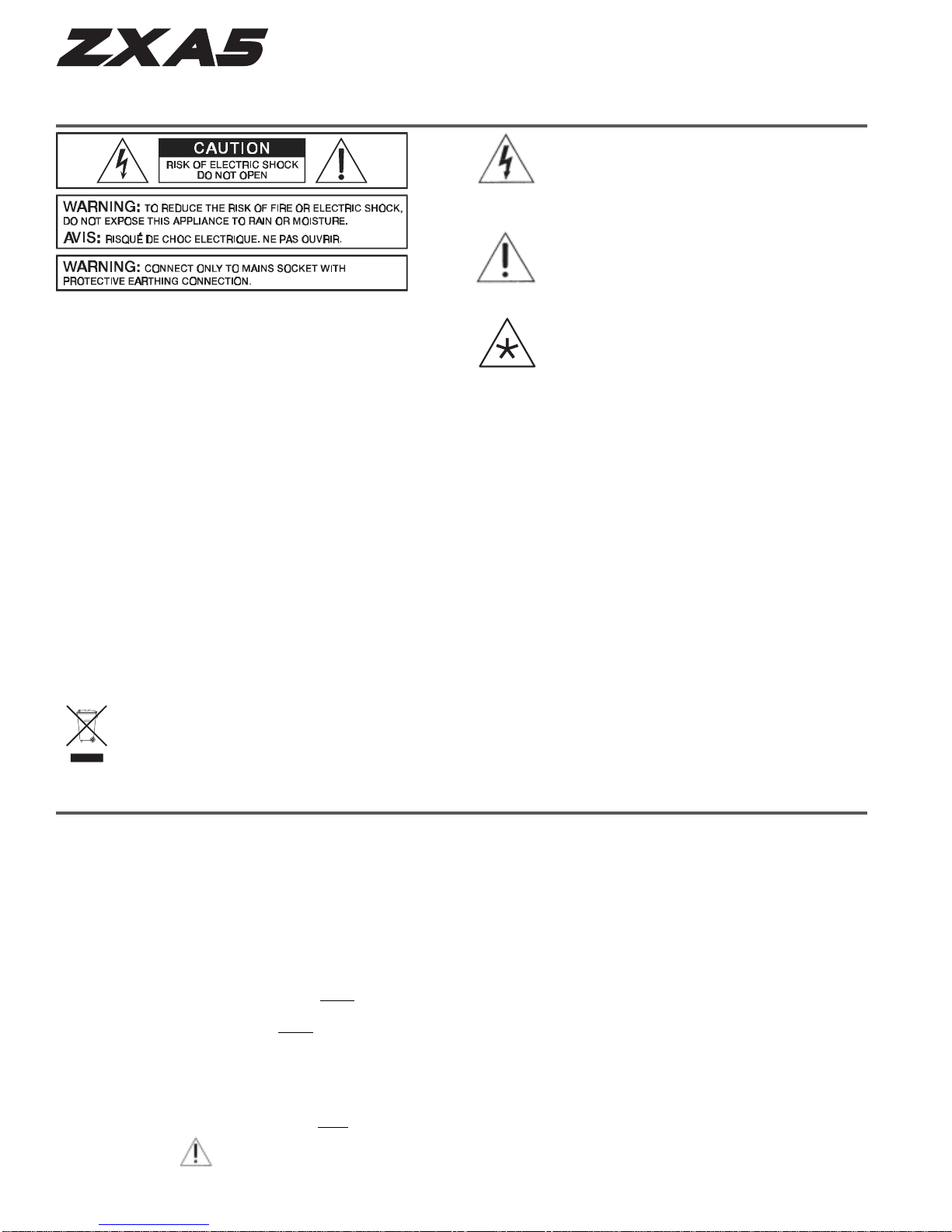

Thelightningflashwitharrowheadsymbol,withinanequilateraltriangle
is intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
Theasterisk within an equilateraltriangle is intended toinformtheuser
to necessary installation or removal instructions regarding equipment
or hardware use relating to the system.
Note: SAFETY COMPONENT (HAS TO BE REPLACED WITH ORIGINAL PART ONLY)
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturers instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce
heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrican for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit
from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug this apparatus during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed
to rain or moisture, does not operate normally, or has been dropped
14. To completely disconnectAC power from this apparatus, the power supply cord must be unplugged.
15. Do not expose this apparatus to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on this
apparatus.
16. TheAC plug of the power supply cord shall remain readily operable.
Caution: Do not exceed the marked rating of the AC Output.
Example: If each additional unit is rated 3A, a maximum of 3 units can be connected for a total of 9A.
Important Safety Instructions
CAUTION:These servicing instructions are for use by qualified personnel only.To reduce the risk of electric shock, do not
perform any servicing other than that contained in the Operating Instructions unless you are qualified to do so. Refer all
servicing to qualified service personnel.
1. Security regulations as stated in the EN 60065 (VDE 0860 / IEC 65) and the CSA E65 - 94 have to be obeyed when
servicing the appliance.
2. Use of a AC separator transformer is mandatory during maintenance while the appliance is opened, needs to be
operated and is connected to the AC.
3. Switch off the power before retrofitting any extensions, changing theAC voltage or the output voltage.
4. The minimum distance between parts carrying AC voltage and any accessible metal piece (metal enclosure),
respectively between the AC poles has to be 3 mm and needs to be minded at all times.
The minimum distance between parts carrying AC voltage and any switches or breakers that are not connected
to the AC (secondary parts) has to be 6 mm and needs to be minded at all times.
5. Replacing special components that are marked in the circuit diagram using the security symbol (Note) is only permissible
when using original parts.
6. Altering the circuitry without prior consent or advice is not legitimate.
7. Any work security regulations that are applicable at the location where the appliance is being serviced have to be strictly
obeyed. This applies also to any regulations about the work place itself.
8. All instructions concerning the handling of MOS - circuits have to be observed.
Important Service Instructions
Management of WEEE (waste electrical and electronic equipment) (applicable in Member States of the European
Union and other European countries with individual national policies on the management of WEEE) The symbol on
the product or on its packaging indicates that this product may not be treated as regular household waste, but has
to be disposed through returning it at a Telex dealer.

ELECTRO-VOICE®ZxA5 Owner’s Manual 2
Table of Contents
ImportantSafetyInstructions .......................................................................................................... 1
ZxA5SeriesOwner’sManual ........................................................................................................ 2
SafetyFirst.................................................................................................................................... 3
Description ................................................................................................................................... 4
SystemFeatures- ZxA5................................................................................................................ 4
SystemCoverage-ZxA5 .............................................................................................................. 4
SystemSetup- ZxA5..................................................................................................................... 5
ZxA5Amplifier............................................................................................................................... 5
SuspendingZxA5Speaker Systems ............................................................................................. 7
ZxA5StageMonitorPositions ..................................................................................................... 13
Specifications ............................................................................................................................. 14
Dimensions................................................................................................................................. 15
Block Diagram............................................................................................................................ 15
FrequencyResponse,Beamwidth, andDirectivity ....................................................................... 16
ZxA5RiggingAccessory ReferenceTable ................................................................................... 17
FCCInformation.......................................................................................................................... 17
PaintingZxA5Speaker Systems ................................................................................................. 18
ZxA5 Series Owner’s Manual
Thankyouforchoosing the Electro-Voice®ZxA5seriesloudspeaker system. This systemisthe
culminationofEV’sexperience in transducerdesign. Pleasetaketimeto consult thismanualsothat
youcanunderstand allthefeatures builtintoyourEVsystemandfully utilizeallits performance
capabilities.

ELECTRO-VOICE®ZxA5 Owner’s Manual3
Safety First
When setting up, installing and using the Electro-Voice®ZxA5 speaker system, there are a
number of precautions that you should follow:
·When Electro-Voice®ZxA5 speakers are used for portable applications in which they will be
positioned directly on the floor, make sure that the floor or stage is solid and secure.
·Electro-Voice®ZxA5 speakers include 1-3/8 inch stand mounts to allow mounting on tripod
stands.
Make sure to:
·Check the specifications of the speaker stand to be certain it is capable of supporting the weight
of the speaker.
·Check that the speaker stand is placed on a flat, stable surface and be sure to fully extend the
legs of the stand. Do not try to make the stand “taller” and compromise its structural integrity.
·Route cables and position the stand so that performers, production crew and audience members
will not trip over the stand or cables and pull the speaker system over. Secure cables with wire
ties or tape whenever possible.
·Do not attempt to suspend more than one speaker on a stand designed for a single speaker
·Unless you are confident that you can safely handle lifting the weight of the speaker onto the
stand, ask another person to help you place it.
·If you intend to hang or fly the ZxA5 system, only do so safely with the correct hardware and
accessories.
·Electro-Voice®does not recommend use of ZxA5 speakers outdoors without
protection from rain or in high moisture environments.
WARNING: Suspending any object is potentially dangerous and should only be
attempted by individuals who have a thorough knowledge of the techniques and
regulations of rigging objects overhead. Electro-Voice®strongly recommends that
ZxA5 speakers be suspended taking into account all current national, federal, state
and local regulations. It is the responsibility of the installer to ensure that ZxA5
speakers are safely installed in accordance with all such regulations. If ZxA5 speakers
are suspended, Electro-Voice®strongly recommends that the system be inspected at
least once a year. If any sign of weakness or damage is detected, remedial action
should be taken immediately. There are data sheets for each EV Suspension and
Array Kit that should also be consulted prior to suspending speakers.
·Electro-Voice®ZxA5 loudspeakers are easily capable of generating sound pressure
levels sufficient to cause permanent hearing damage to anyone within normal
coverage distance. Caution should be taken to avoid prolonged exposure to sound
pressure levels exceeding 90 dB.
Note:This is aClassAproduct. Inadomesticenvironment this productmaycauseradio
interferencesinwhichcase the usermayberequiredto take adequatemeasures.

ELECTRO-VOICE®ZxA5 Owner’s Manual 4
Description
The Electro-Voice®ZxA5 high powered loudspeakers are fully integrated audio systems with
carefully matched electronics and transducers. These products make it easy to setup a high
quality sound system quickly with a minimum amount of cables and external electronics. You
won’t find a speaker system available on the market that offers the unbelievable sound, incredible
flexibility and tremendous output capability of the ZxA5 anywhere near it’s size and weight.
System Features - ZxA5
·Integrated Amplifier with 1000W LF, 250W HF
·Selectable 100 Hz High Pass
·XLR and 1/4” TRS Input Connector
·XLR Output Connector
·PowerCon Connector with Slave Through
·DVX3150 15” LF Transducer with Forced Air Cooling
·ND2 2” Voice Coil, 1” Exit Neodymium Compression Driver
·Two Models: 60° x 60° or 90° x 50° Coverage Patterns
·High Sensitivity, 133 dB Maximum SPL
·Adjustable Monitor Angle (45° or 55°)
·3 Anchor Plates for Single Stud Fitings and 10 Integral Suspension Points
·Full Line of Accessories
System Coverage - ZxA5
Coverage Patterns and Applications
ZxA5-60 60° x 60° coverage for long-throw and cluster applications
ZxA5-90 90° x 50° for wider coverage or shorter distances
Figure 1a:
3D EASE Directivity Balloon,
ZxA5-60, 60° x 60° Coverage
Figure 1b:
3D EASE Directivity Balloon,
ZxA5-90, 90° x 50° Coverage

ELECTRO-VOICE®ZxA5 Owner’s Manual
System Setup - ZxA5
To get the ZxA5 into operation as quickly as possible, please observe the following steps and
precautions:
·Plug the 3-terminal PowerCon AC cable into a grounded line receptacle. Extension cords can be
used to lengthen the AC cable as necessary but make sure that they are 3-conductor 14 gauge
or greater, and that they are properly grounded to avoid electrical hazards and extraneous noise.
·Be sure that the ZxA5 is plugged into an AC power source that is capable of supplying the
correct voltage. If the line voltage drops too much, the built-in amplifiers won’t be able to
develop their rated power and sound quality will suffer. Under high signal conditions, the 120V
ZxA5 amplifier can draw 3 - 4 amps of current (2 amps at 240V). That means that no more than
(3) ZxA5 systems should be plugged into a single 15 amp electrical service. Be cautious of what
else is plugged into the same electrical service line to avoid electrical problems and poor
performance.
CAUTION: Before turning the power on, make sure that the level controls are down to
avoid transients or unexpected loud sound.
ZxA5 Amplifier
Figure 2:
Amplifier Panel, ZxA5
Input Signal Connector
Electronically balanced inputs
for the connection of high-
level signal sources such as
mixers, signal
processors, etc. Establishing
the connection is possible via
a combinaton 1/4” TRS and
XLR jack. Balanced
connection is recommended
to prevent noise or HF-
interference.
CAUTION: Before connecting or
disconnecting any plugs, make sure to set
the level control to its counterclockwise
stop, which prevents the system and
audience from contact pops and noise.
Output Signal Connector
Output is full bandwidth pass
through.
5

ELECTRO-VOICE®ZxA5 Owner’s Manual
ZxA5 Amplifier (cont’)
Crossover Mode Switch
Selects between 40 Hz highpass filter for Fullrange
use, and 100 Hz highpass filter for use with a
subwoofer. It is not recommended that you use a
ZxA5 in Fullrange mode with subwoofers.
Level
This control sets the output level of the ZxA5 in a
range between -∞dB and +6dB. The internal power
amplifier provides a nominal input sensitivity of
+6dBu.
Power Switch
AC switch for switching the ZxA5’s power ON or
OFF. The switch lights after turning the power ON.
If the switch is not lit upon turning the power on,
make sure that the AC cord is correctly connected.
If the AC cord is correctly connected and the AC
switch does not light upon power-on, please
contact your local dealer.
Mains In
AC connection is established via a PowerCon
connector. A 15’ (5m) long AC cord with PowerCon
plug is supplied.
Mains Out
The PowerCon AC out socket allows the
connection of additional ZxA5 Systems.
To prevent AC network overload, connecting more
than (3) ZxA5 Systems to a single AC outlet (10A -
16A) is not recommended.
CAUTION:This appliance has no user-serviceable parts inside. Leave any servicing
and maintenance to qualified service technicians only.
6
CAUTION: Blue and grey PowerCon power connector shall not be engaged or
disengaged when under load or live.

ELECTRO-VOICE®ZxA5 Owner’s Manual7
Suspending ZxA5 Speaker Systems
ZxA5 enclosures have 5 steel anchor points internally mounted on the top, bottom, and rear.
Single stud fittings can be attached to these anchor plates and used as suspension points. Each
of these anchor plates also has a M8 thread to accept rated forged M8 shoulder eyebolts. In
addition to these points there are five additional M8 threaded points; two on the handle side, and
three on the rear. These points can be used for suspending ZxA5s vertically, horizontally,
individually, in clusters, or to attach to EV mounting brackets. Working load limits for the ZxA5
and fittings are shown in Figure 3.
Prior to each use, inspect the grid assembly or suspension point(s) and associated hardware for
any cracks, deformations, broken welds, corrosion, missing or damaged components which could
reduce the grid assembly or suspension point(s) strength. Replace any damaged hardware. Never
exceed the limitations or maximum recommended load intended for grid assembly design or
suspension point(s). As an added safety measure, it is suggested that the user install a second
suspension point back to the grid (or building structural supports). This redundant safety point
should have as little slack as possible (less than one inch is preferable).
Prior to each use, inspect the loudspeaker enclosures for any cracks, deformations, missing or
damaged components, which could reduce enclosure strength. Inspect the bracket assembly on
the enclosures for any cracks, deformations, missing or loose screws which could reduce the
flying hardware strength. Replace any loudspeaker systems that are damaged or missing
hardware. Never exceed the limitations or maximum recommended load for the ZxA5 systems.
Figure 3:
Working Load-Limit Rating of ZxA5 Speaker System

ELECTRO-VOICE®ZxA5 Owner’s Manual 8
Suspending ZxA5 Speaker Systems (cont’)
ZxA5 M8 Suspension Points
Metric (M8) inserts are equipped on the top and bottom of the enclosure, around the handle, and
on the back of the enclosure for a total of 10 points. The inserts can be used to attach forged
eyebolts or rigging brackets.
Figure 4a:
ZxA5 M8 Suspension Points (Top, Handle, Rear)
(2) M8 Suspension Points
(Decal Removal Required)
Figure 4b:
ZxA5 M8 Suspension Points (Bottom)
(2) M8 Suspension Points
(Single-Stud Anchor Plate
Removal Required)
(2) M8 Suspension Points
(Decal Removal Required)
(2) M8 Suspension Points
(Removal of Handle Bolts
Required) (2) M8 Suspension Points
(Single-Stud Anchor Plate/
Decal Removal Required)

ELECTRO-VOICE®ZxA5 Owner’s Manual
Suspending ZxA5 Speaker Systems (cont’)
Suspending the ZxA5 using optional Electro-Voice Single-Stud Rigging Kits
The ZxA5 is shipped with three single-stud anchor plates for rigging with single-stud rigging. There
are two more locations on the bottom to mount single-stud anchor plates for flying the ZxA5
upside-downor horizontally.All of theselocations
can facilitate M8 Eyebolts if desired as well.
Figure 5:
Suspending the ZxA5 Using Included Single-Stud
Anchor Plates
Kit Used (Left View) -
SSK-1 Single-Stud Rigging Kit (x1)
Kits Used (Right View) -
SSK-1 Single-Stud Rigging Kit (x2)
EBK-3 Forged M8 Eyebolt Kit (x1)*
Figure 6:
Suspending the ZxA5 Upside-Down Using
Included Single-StudAnchor Plates and Single-
Stud Rigging Kit
Kits Used -
RK-Z Single-Stud Anchor Plate Kit (x1)
SSK-1 Single-Stud Rigging Kit (x1)
Step 1: Remove Decals Step 2: Attach Single-Stud Anchor Plates Removed from theTop of the Enclosure or
optional RK-Z Kit (shown) or Eyebolts (not
shown)
9
*EBK-3 on Bottom of Top
Enclosure
(not shown, see Figure 3b)

ELECTRO-VOICE®ZxA5 Owner’s Manual
Suspending ZxA5 Speaker Systems (cont’)
Figure 7:
Suspending the ZxA5 Downward from Rear Using
Optional Forged Eyebolt Kit*
Kit Used - EBK-3 Forged M8 Eyebolt Kit (x1)
Figure 8:
Assembling Eyebolts to Handle
for Horizontal Suspension
Figure 9:
Suspending the ZxA5 Horizontally from Handle
Using Optional Forged Eyebolt Kit
Kit Used - EBK-3 Forged M8 Eyebolt Kit (x1)
Step 1: Remove Handle Bolts Step 2: Attach Eyebolts
10
*Note - When suspending from the rear M8 suspension
points, it is recommended that the (2) left M8 suspension
points are used on the rear of the enclosure for best weight
distribution in relation to enclosure’s center of gravity.
Horizontal Suspension of the ZxA5
The ZxA5 is capable of being suspended horizontally from the side (handle) or downward from the
rear with the use of M8 Eyebolts.

ELECTRO-VOICE®ZxA5 Owner’s Manual
Suspending ZxA5 Speaker Systems (cont’)
Arraying and Suspending the ZxA5 using optional Electro-Voice Mounting or Array
Brackets
Figures 11 and 12 show several applications using EV mounting and array brackets. Carefully
follow the instructions in this manual & the user manual packaged with EV brackets, and always
use safe rigging practices when suspending ZxA5.
11
Figure 10:
Assembling HA-5Adapter for use with VSA-1 Strong-Arm Mount and TCA-1 Truss Clamp Adapter
KitUsed-
TMK-ZX Truss Mount Kit (x1)
Figure 11:
Suspending the ZxA5 Vertically from Handle Using Optional
HandleAdapterand Strong-ArmMount
KitUsed-
TMK-ZX Truss Mount Kit (x1)
Step 2: Attach HA-5 and Handle Bolts Step 3: Attach VSA-1 and TCA-1
Attach TCA-1
to Truss
*Note - Please consultTMK Series User Manual for
additional information.
HA-5 Handle Mount VSA-1 Strong-Arm
Step 1: Remove Handle Bolts
and Handle
TCA-1 Truss
Clamp Adapter

ELECTRO-VOICE®ZxA5 Owner’s Manual
Figure 12:
Arraying and Suspending the ZxA5
Kit Used - MB5Wall/Ceiling Mounting Bracket
(Wall Configuration) Kit Used - MB5Wall/Ceiling Mounting Bracket (Ceiling Configuration)
Kits Used - CB5 Array Bracket Kit (x1)*
SSK-1 Single-Stud Rigging Kit (x1) Kit Used - CB5 Array Bracket Kit (x2)*
Kits Used - CB5 Array Bracket Kit (x2)*
SSK-1 Single-Stud Rigging Kit (x2)
EBK-3 Forged M8 Eyebolt Kit (x1)
Kits Used - CB5 Array Bracket Kit (x4)*
EBK-3 Forged M8 Eyebolt Kit (x1)
*Note - CB5 Array Kits can be used for 60° or 90° Splay Angles
12
NOTE: Do not
exceed working
load limit for
individual rigging
points when
arraying the
ZxA5. (See
Figure 3,
Page 7)
Suspending ZxA5 Speaker Systems (cont’)

ELECTRO-VOICE®ZxA5 Owner’s Manual13
CAUTION:When flipped to 55° the feet protrude from the enclosure. Care should be
taken when moving the enclosure, since damage to the feet or enclosure might occur if
the system is dropped or slid across a rough surface. It is recommended that the feet
be returned to the 45° position for transport.
ZxA5 as a Monitor
By design the ZxA5 is a perfect solution for stage monitors. As different stage sizes require
different monitor angles, the ZxA5 offers two angles without any additional accessories.
Figure 14a:
ZxA5 as Monitor in 45° Position Figure 14b:
ZxA5 as Monitor in 55° Position
ZxA5 Stage Monitor Positions
Figure 13:
Switching the Monitor Feet from the 45° to 55° Positions
Step 1: Remove Monitor Foot
Screws Step 2: Rotate Monitor Feet 180° Step 3: Re-attach Monitor Feet and Screws

ELECTRO-VOICE®ZxA5 Owner’s Manual 14
Technical Specifications
1Half Space measurement.
esnopseR.qerF
1
:)Bd3-( zHk81-zH85
egnaR.qerF
1
:)Bd01- z( Hk02-zH05
:LPSdetaluclaCxa BM d331
:egarevoClatnoziro °H 06ro°09
:egarevoClacitre °V 06ro°05
:rewoPreifilpmAF SL MRW0001
:rewoPreifilpmAF SH MRW052
:recudsnarTF rL evirD)mm003(ni51,0513XVD
:recudsnarTF mH uimydoeNtixe)mm4.52(.ni1,61-2DN revirDnoisserpmoC
:ycneuqerFrevossor zC Hk5.1
:rotcennoCtupn nI oitanibmoCSRT"4/1dnaRLX
:rotcennoCtuptuO RLX
:tnemeriuqeRrewoP ro,zH06-05,CAV021 zH06-05,CAV032
:lairetaMerusolcn mE aoFlarutcurtSenelyporpyloP
:noisnepsu -S elgniS5rofsnoitacolsaherusolcnE degroF01dnasetalPtnemhctattAdutS ,mottoBno2,poTno2-stlobeyEleetS erusolcnEforaeRno4dna,ediSno2
:ellir AG G61,detaoCredwoPretseyloP leetSdezinavlaG
:)DxWxH(mi "D 61.61x"75.71x"62.72 )mm114xmm644xmm296(
:thgieWte )N gk9.22(sbl5.05
:thgieWgnippih )S gk7.62(sbl9.85

ELECTRO-VOICE®ZxA5 Owner’s Manual15
Dimensions
Block Diagram
Front View
Top View
Right View Rear ViewLeft View
Bottom View

ELECTRO-VOICE®ZxA5 Owner’s Manual
20 50 100 1000 10000 20000
70
80
90
100
110
Frequency(Hz)
Sensitivity (dB)
Full Range Mode, Full Space
High Pass Mode, Full Space
20 50 100 1000 10000 20000
70
80
90
100
110
Frequency(Hz)
Sensitivity (dB)
Full Range Mode, Full Space
High Pass Mode, Full Space
16
Frequency Response, Beamwidth, and Directivity
Frequency Response:
Beamwidth:
Directivity:
Frequency Response:
Beamwidth:
Directivity:
ZxA5-60, 60° x 60° Coverage ZxA5-90, 90° x 50° Coverage

ELECTRO-VOICE®ZxA5 Owner’s Manual17
ZxA5 Rigging Accessory Reference Table
ledoMnoitpircseD.oNtraP
B-5BChsiniFkcalB,tiKtekcarByarrA100-526103
W-5BChsiniFetihW,tiKtekcarByarrA200-526103
B-5BMhsiniFkcalB,tiKtekcarBgnitnuoMgnilieC/llaW100-626103
W-5BMhsiniFetihW,tiKtekcarBgnitnuoMgnilieC/llaW200-626103
1-KSS)3foteS(tiKgniggiRdutS-elgniS000-336103
3-KBE)3foteS(tiKtlobeyE8MdegroF000-436103
Z-KR)3foteS(tiKetalProhcnAdutS-elgniS000-218103
XZ-KMT dna,1-ACT,1-ASVsedulcnI,tiKtnuoMssurT )kcalB(5-AH 100-700000TIK
5-CDHkcalB,revoCelbakcatSytuD-yvaeH100-318103
FCC Information
FCC Information (USA)
1.IMPORTANT:Donot modifythisunit! Changesormodifications notexpresslyapprovedby the
manufacturercouldvoid theuser’sauthority,grantedbythe FCC,tooperatethe equipment.
2.NOTE:This equipmenthasbeentestedand found tocomplywiththelimits foraClassA
digitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovide
reasonableprotectionagainst harmfulinterferenceina residentialinstallation.This
equipmentgenerates,usesand canradiateradiofrequency energy and,ifnotinstalled and
usedinaccordance withtheinstructions,may causeharmfulinterferenceto radio
communications.However, thereisnoguaranteethatinterferencewill notoccurina
particularinstallation.If thisequipmentdoescause harmfulinterferencetoradio or
televisionreception,which canbedeterminedby turningtheequipmentoff andon,theuser
isencouragedtotry tocorrecttheinterferenceby oneormoreofthe followingmeasures:
• Reorientorrelocatethe receivingantenna.
• Increasetheseparation between theequipmentandreceiver.
• Connecttheequipmentinto an outletonacircuit different fromthattowhich the receiveris
connected.
• Consultthedealeror an experiencedradio/TVtechnicianforhelp.

ELECTRO-VOICE®ZxA5 Owner’s Manual 18
Painting ZxA5 Speaker Systems
Painting a ZxA5 Enclosure
The ZxA5 Loudspeaker Enclosures are made of a high performance Polypropylene material. For
best paint adhesion, we recommend a “Plastic Adhesion Promoter” be applied before any paint.
Sherwin Williams Plastic Adhesion Promoter UP07226 is a good example (See Telex document
number LIT000066-000 for further details.) Once Plastic Adhesion Promoter is applied follow the
manufacturer’s painting directions as you would normally.
Painting a ZxA5 Grille
Remove grille from loudspeaker and remove the backing material & logo from grille prior to
painting. Once the paint is dry, reapply the backing material and logo to the grille. Spray adhesive
such as 3M Super 77 may help adhere the backing material to the grille.
Additional Precautions to beTaken
Prior to painting, be sure to take precautions not to get paint into the transducers. This can be
done by masking the grille, temporarily removing the grille and masking the transducers, or by
temporarily removing the grille and temporarily removing the transducers. Precautions must also
be taken not to get paint into any exposed electrical components by masking them off prior to
painting. It is also recommended that any exposed rigging points, warning labels, or instruction
labels be masked off for ease of future operation.
Painting View:
Painting the ZxA5 Enclosure
WARNING: It is critical to the system’s operation
that all transducers and exposed electrical
components be masked off prior to painting.
Rigging Points Masked
ZxA5 Enclosure
Grille Masked

ELECTRO-VOICE®ZxA5 Owner’s Manual
 www.electrovoice.com 
Printed in U.S.A
© Telex Communications, Inc. 10/2007
Part Number 38110-444 Rev 04
Americas–
Headquarters Americas
TelexCommunications,Inc.
12000PortlandAve South,
Burnsville,MN55337, USA
USA–Ph:1-800-392-3497
Fax:[phone]
Canada–Ph:1-866-505-5551
Fax:[phone]
LatinAmerica–Ph:1-952-887-5532
Fax:[phone]
USA and Canada Warranty Service/
Repair
Ph:1-800-685-2606
USA and Canada Technical Support
Ph:1-866-78-AUDIO
Europe, Africa & Middle-East
Headquarters EAME
EVIAudio GmbH
HirschbergerRing45,
D-94315,Straubing, Germany
Phone:[phone],
Fax:[phone]
France: EVIAudio France S.A.,
ParcdeCourcerin,
Allée Lech Walesa,
F77185Lognes,France
Phone:[phone]
Fax:[phone]
Asia & Pacific Rim–
Headquarters Asia
Singapore:Telex Communications
(SEA) Pte Ltd
38CJalanPemimpin
Singapore577180
Tel:[phone]
Fax:[phone]
Japan:EVIAudio JapanLtd.
5-3-8Funabashi,Setagaya-Ku,
Tokyo,Japan156-0055
Phone:[phone],
Fax:[phone]
Hong Kong: Telex EVIAudio (HK) Ltd.
Unit 5,1/F, Topsail Plaza
11 On Shum Street
Shek Mun,Shatin HK
Phone:[phone],
Fax:[phone]
China:Telex EVIAudio(Shanghai)
Ltd.
Room3105-3109,No.1Building,
No. 218, Tian Mu West Road
Shanghai,China,PC:200070
Phone:[phone]
Fax:[phone]
Specifications subject to change without notice.
