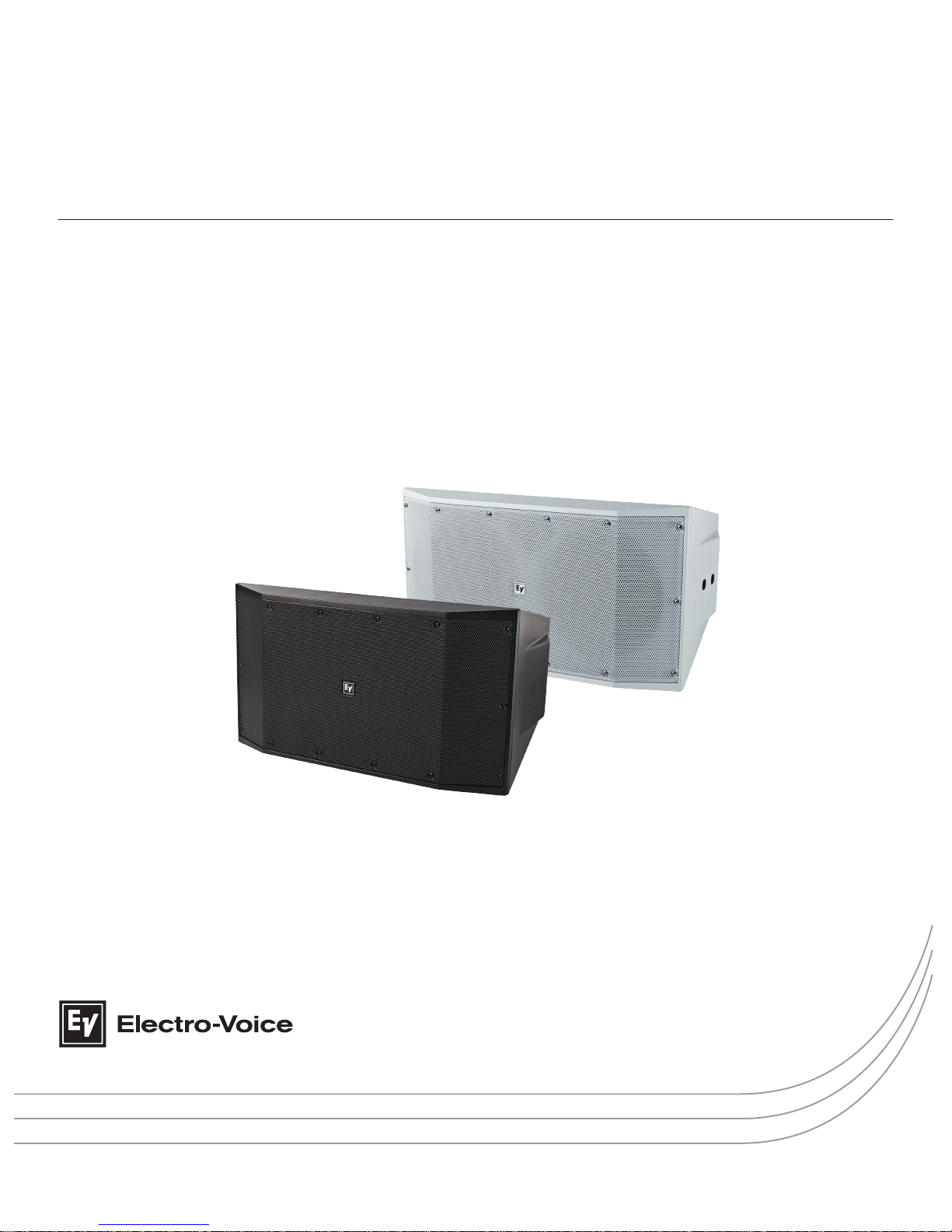

Electro-Voice EVID-S10.1DW User manual

EVID-S Surface Mount Dual 10” Subwoofers
EVID-S10.1DB | EVID-S10.1DW
en | Installation manual

Table of contents
1Safety 4
1.1 Suspension 4
1.2 Notices 4
2Short information 5
3Introduction 6
3.1 System features 6
3.2 Packing list 7
3.3 Product information 8
4Installation 9
4.1 Suspending the subwoofer 9
4.2 Replacing the logo 10
4.3 Installing the IP65 port covers 11
4.4 Installing the U-bracket - optional accessory 12
4.5 Installing the transformer input panel - optional accessory 12
4.6 Installing the crossover input panel - optional accessory 14
5Wiring 15
5.1 Standard input panel 15
5.1.1 Mono operation 15
5.1.2 Stereo operation 16
5.2 Transformer input panel - optional accessory 17
5.2.1 Mono operation 17
5.2.2 Stereo operation 19
5.3 Crossover input panel - optional accessory 20
5.3.1 Mono operation 20
5.3.2 Stereo operation 21
6Troubleshooting 23
7Technical data 24
7.1 Dimensions 25
7.2 Frequency response and impedance 25
8U-bracket dimensions - optional accessory 27
en 3
Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.359

Safety
Suspension
!
Warning!
Suspending any object is potentially dangerous and should only be attempted by individuals
who have a thorough knowledge of the techniques and regulations of suspending objects
overhead. Electro-Voice strongly recommends all loudspeakers be suspended taking into
account all current national, federal, state, and local laws and regulations. It is the
responsibility of the installer to ensure all loudspeakers are safely installed in accordance
with all such requirements. When loudspeakers are suspended, Electro-Voice strongly
recommends the system be inspected at least once per year or as laws and regulations
require. If any sign of weakness or damage is detected, remedial action should be taken
immediately. The user is responsible for making sure the wall, ceiling, or structure is capable
of supporting all objects suspended overhead. Any hardware used to suspend a loudspeaker
not associated with Electro-Voice is the responsibility of others.
Safety point
As an added safety measure, it is suggested the user install an extra suspension point back to
the building structural supports. This safety point should have as little slack as possible (less
than 1-inch is preferable).
Notices
Old electrical and electronic appliances
Electrical or electronic devices that are no longer serviceable must be collected separately and
sent for environmentally compatible recycling (in accordance with the European Waste
Electrical and Electronic Equipment Directive).
To dispose of old electrical or electronic devices, you should use the return and collection
systems put in place in the country concerned.
Copyright and disclaimer
All rights reserved. No part of this document may be reproduced or transmitted in any form by
any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior
written permission of the publisher. For information on getting permission for reprints and
excerpts, contact Electro-Voice.
The content and illustrations are subject to change without prior notice.
1
1.1
1.2
EVID-S Surface Mount Dual 10” Subwoofers
2017.08 | 01 | F.01U.345.359 Installation manual Electro-Voice

Short information
The following table lists products in a family, with CTN (Commercial Type Number) and
identifying product name DESCRIPTION.
CTN Description
EVID-S10.1DB Cabinet subwoofer 2x10" black
EVID-S10.1DW Cabinet subwoofer 2x10" white
UB-10DB U-bracket for 10" subwoofer black
UB-10DW U-bracket for 10" subwoofer white
IP-10D-TB Transformer input 10" subwoofer bk
IP-10D-TW Transformer input 10" subwoofer wh
IP-10D-CB Crossover input 10" subwoofer bk
IP-10D-CW Crossover input 10" subwoofer wh
2
en 5
Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.359

Introduction
The EVID-S10.1D subwoofer, from Electro-Voice, is a compact, high-performance, dual woofer
loudspeaker with outstanding performance for the most demanding professional and
commercial sound applications. Designed and engineered for use in background and
foreground music, and sound reinforcement applications, the EVID-S10.1D subwoofer is the
ideal solution for indoor and outdoor applications, such as restaurants, bars, patios, retail,
fitness clubs, hospitality, theme parks, leisure venues, and others. Ease of installation, and
flexible options for mounting solutions and weather resistance, the EVID-S10.1D subwoofer is
the perfect solution for a wide variety of surface mount applications.
The EVID-S10.1D subwoofer has been carefully engineered to resist outdoor environments,
without compromising on performance for indoor applications. The subwoofer is IP54 rated,
and its weather-proofing is complemented with exceptional cabinet and grille resistance
against sun, salt and moisture. For the toughest weather conditions, the IP rating of the EVID-
S10.1D subwoofer can be upgraded to IP65, using the included port plug accessory.
Read through this manual to familiarize yourself with the safety information, features, and
applications before you use these products.
System features
▪Two 10 inch high-excursion woofers
▪Carefully engineered for outdoor environments (IP54 and IP65), without compromising
performance
▪400 W power handling provides for 120 dB maximum SPL (126 dB peak)
▪70/100 V transformer input panel accessory available
▪Crossover input panel accessory available
3
3.1
EVID-S Surface Mount Dual 10” Subwoofers
2017.08 | 01 | F.01U.345.359 Installation manual Electro-Voice

Packing list
Quantity Component
A 1 Subwoofer
B 5 Mounting point covers
C 1 Logo (spare)
D 1 Allen wrench
E 1 Weather input cover
F 8 Screws for weather input cover
G 2 IP65 port covers
H 12 IP65 port cover screws
I 1 Installation manual
Table 3.1: Components list
A (x 1) C
I
EF (x 8) G (x 2) H (x 12)
D
B (x 5)
Figure 3.1: Components
3.2
en 7
Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.359

Product information
E
A
B
C
F
G
D
Figure 3.2: Product information (subwoofer on the right is shown upside down)
Item Description
A Grille
B U-bracket mounting points
C M8 flying points
D M8 safety point
E Input panel
F Subwoofer feet
G Weather input cover
Table 3.2: Product information
3.3
EVID-S Surface Mount Dual 10” Subwoofers
2017.08 | 01 | F.01U.345.359 Installation manual Electro-Voice

Installation
For safety, ensure the mounting surface supports more than the weight of the speaker. Use
only industry-accepted fasteners and mounting methods when mounting the loudspeaker.
Consult an expert if you are unsure.
!
Caution!
It is the installer's responsibility to determine and use the proper mounting hardware for
the wall construction type.
Disregarding this caution could result in damage to the product and personal injuries may
occur.
Safety point
As an added safety measure, it is suggested the user install an extra suspension point back to
the building structural supports. This safety point should have as little slack as possible (less
than 1-inch is preferable).
Suspending the subwoofer
To suspend the subwoofer, do the following:
1. Turn the subwoofer upside down.
2. Remove the two subwoofer feet with the supplied Allen wrench.
3. Attach the mounting point covers on the U-bracket mounting points.
4. Rotate the logo by replacing it, as shown in the Replacing the logo section.
4
4.1
en 9
Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.359

5. Install four 8-mm rated forged eyebolts (not included) into the threaded fly points.
6. Install an 8-mm rated forged eyebolt (not included) into the safety point.
7. Suspend the subwoofer from the eyebolts using rated fittings and steel cable.
8. Secure the subwoofer from the safety eyebolt using rated fittings and steel cable.
See also
•Replacing the logo, page 10
Replacing the logo
An additional logo is included, vertical installation is shown.
To replace the logo, do the following:
1. Remove the existing logo.
2. Clean the surface with alcohol.
3. Remove the paper backing.
4.2
EVID-S Surface Mount Dual 10” Subwoofers
2017.08 | 01 | F.01U.345.359 Installation manual Electro-Voice

4. Insert the logo.
Press firmly to ensure the logo is applied.
Installing the IP65 port covers

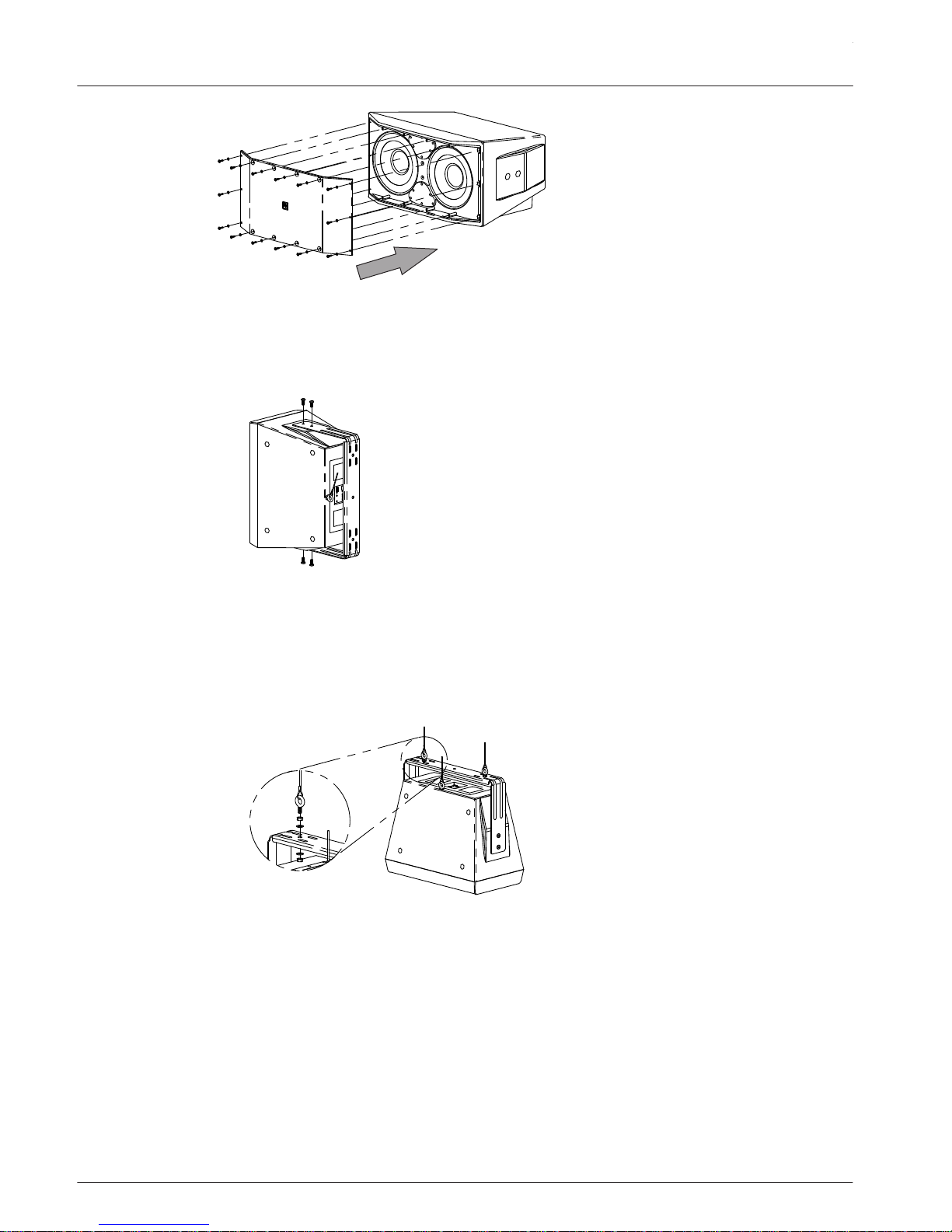

To install the IP65 port covers, do the following:
!
Caution!
Ensure you securely tighten the screws for the IP65 port cover to prevent water leaks.
If the IP65 port cover is not properly installed, you may cause damage to the subwoofer.
1. Remove the grille.
2. Install the IP65 port cover.
Repeat step this step to install the second IP65 port cover.
3. Reinstall the grille.
4.3
en 11
Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.359

Installing the U-bracket - optional accessory
To install the U-bracket, do the following:
1. Install the four screws (provided) into the U-bracket mounting points.
2. Install an 8-mm rated forged eyebolt (not included) into the safety point.
3. Secure the subwoofer from the safety eyebolt using a rated fittings and steel cable.
Suspending the subwoofer in a down-fire position using the U-bracket
To suspend the subwoofer in a horizontal down-fire position, do the following:
1. Install two 8-mm rated forged eyebolts using lock washers (eyebolts and lock washers
not included) into the fly points on the U-bracket.
2. Install an 8-mm rated forged eyebolt (not included) into the safety point.
3. Suspend the subwoofer from the eyebolts using rated fittings and steel cable.
4. Secure the subwoofer from the safety eyebolt using a rated fittings and steel cable.
Installing the transformer input panel - optional accessory

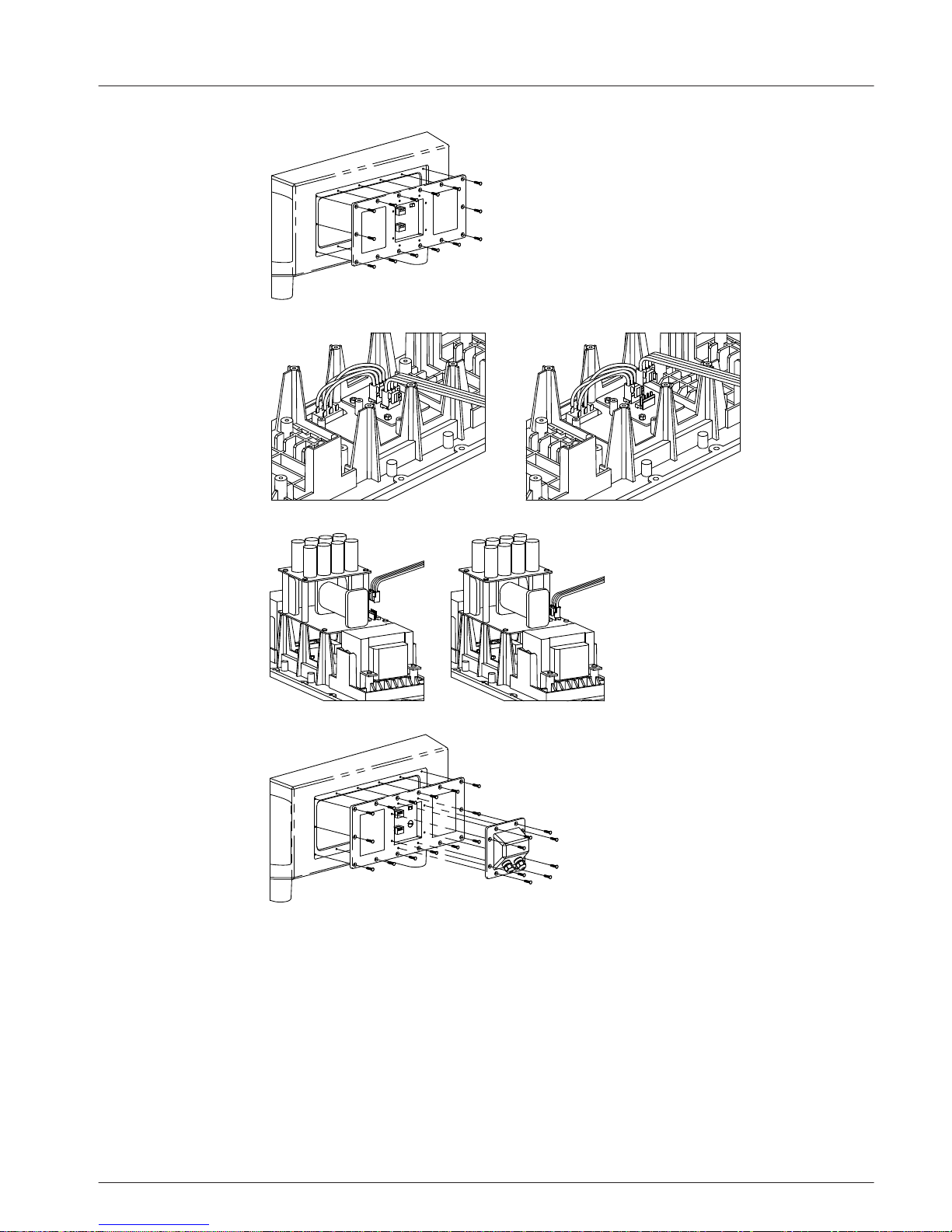

To install the transformer input panel, do the following:
4.4
4.5
EVID-S Surface Mount Dual 10” Subwoofers
2017.08 | 01 | F.01U.345.359 Installation manual Electro-Voice

1. Remove the standard input panel.
2. Disconnect the standard input panel.
3. Connect the transformer input panel.
4. Install the transformer input panel.
5. Install the weather cover, if applicable.
en 13
Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.359

Installing the crossover input panel - optional accessory

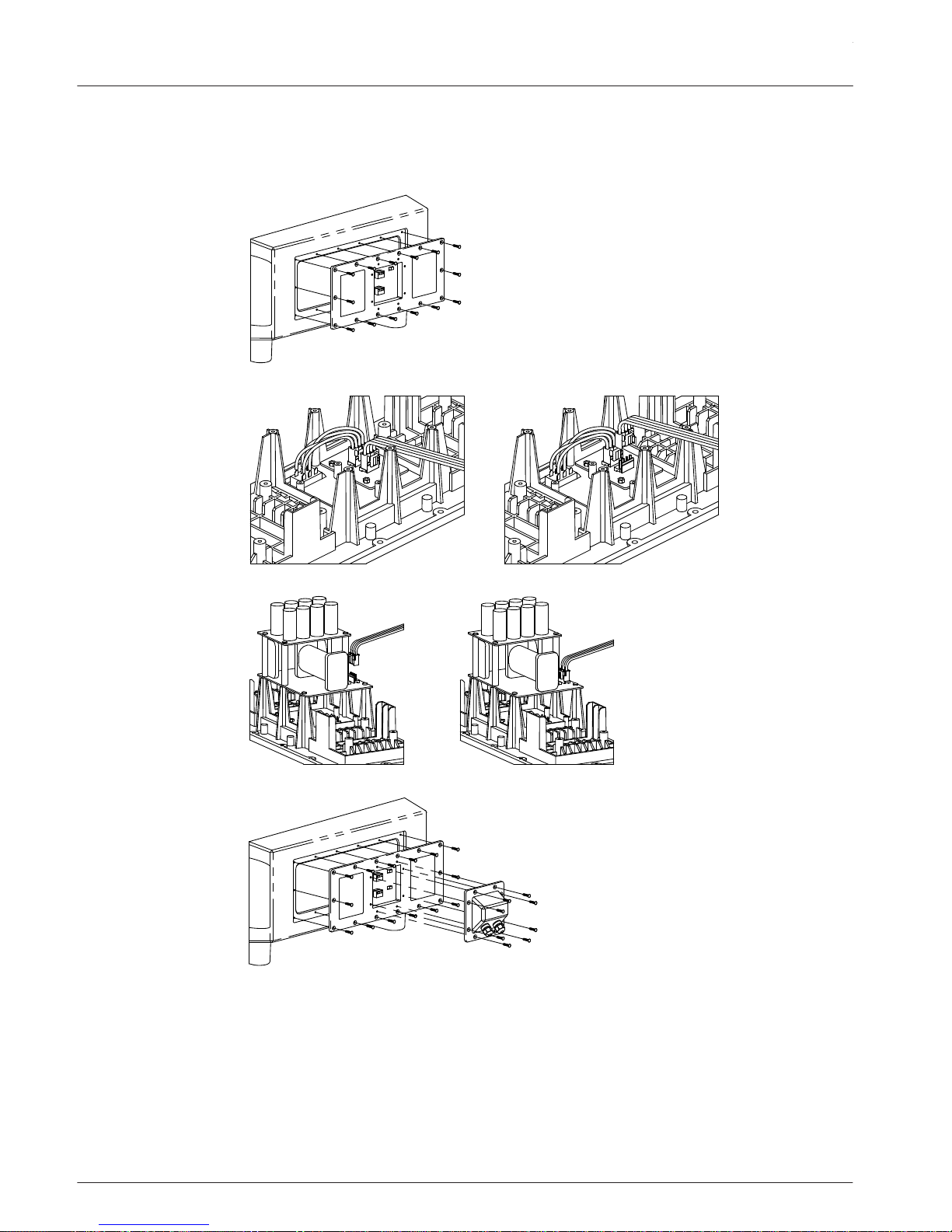

To install the crossover input panel, do the following:
1. Remove the standard input panel.
2. Disconnect the standard input panel.
3. Connect the crossover input panel.
4. Install the crossover input panel.
5. Install the weather cover, if applicable.
4.6
EVID-S Surface Mount Dual 10” Subwoofers
2017.08 | 01 | F.01U.345.359 Installation manual Electro-Voice

Wiring
Standard input panel
Mono operation
!
Caution!
For mono operation only use either the first two pins or the last two pins of the FR/IN
connector. Do not wire the amplifier to all four pins.
May cause damage to the amplifier if connected improperly.

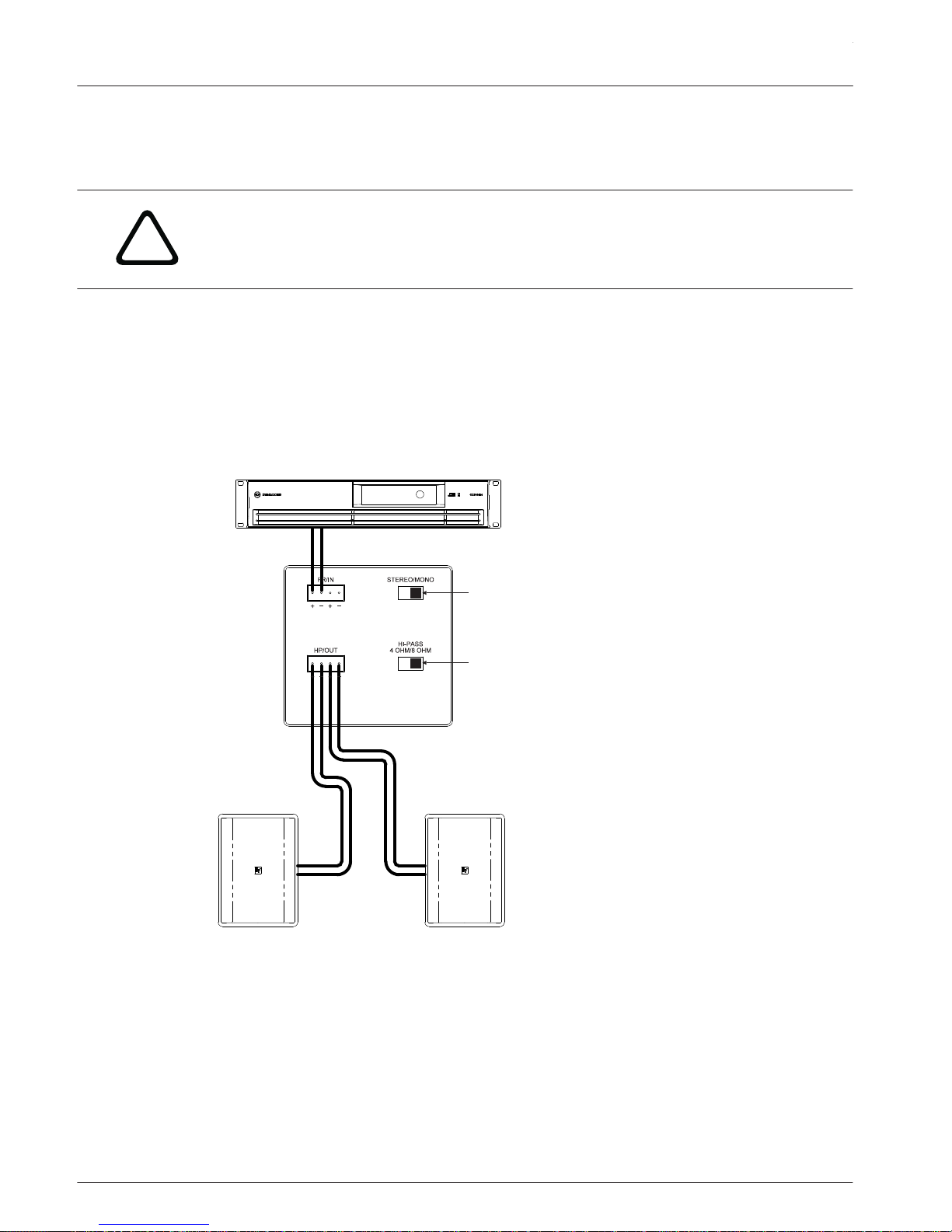

The amplifier, the subwoofer, and the speakers are wired for MONO operation. It is highly
advisable to support the unit while these connections are being made. Connect all wires to
the speaker at the back terminal plate observing proper polarity of the connections. After all
connections are made test the complete system operation.

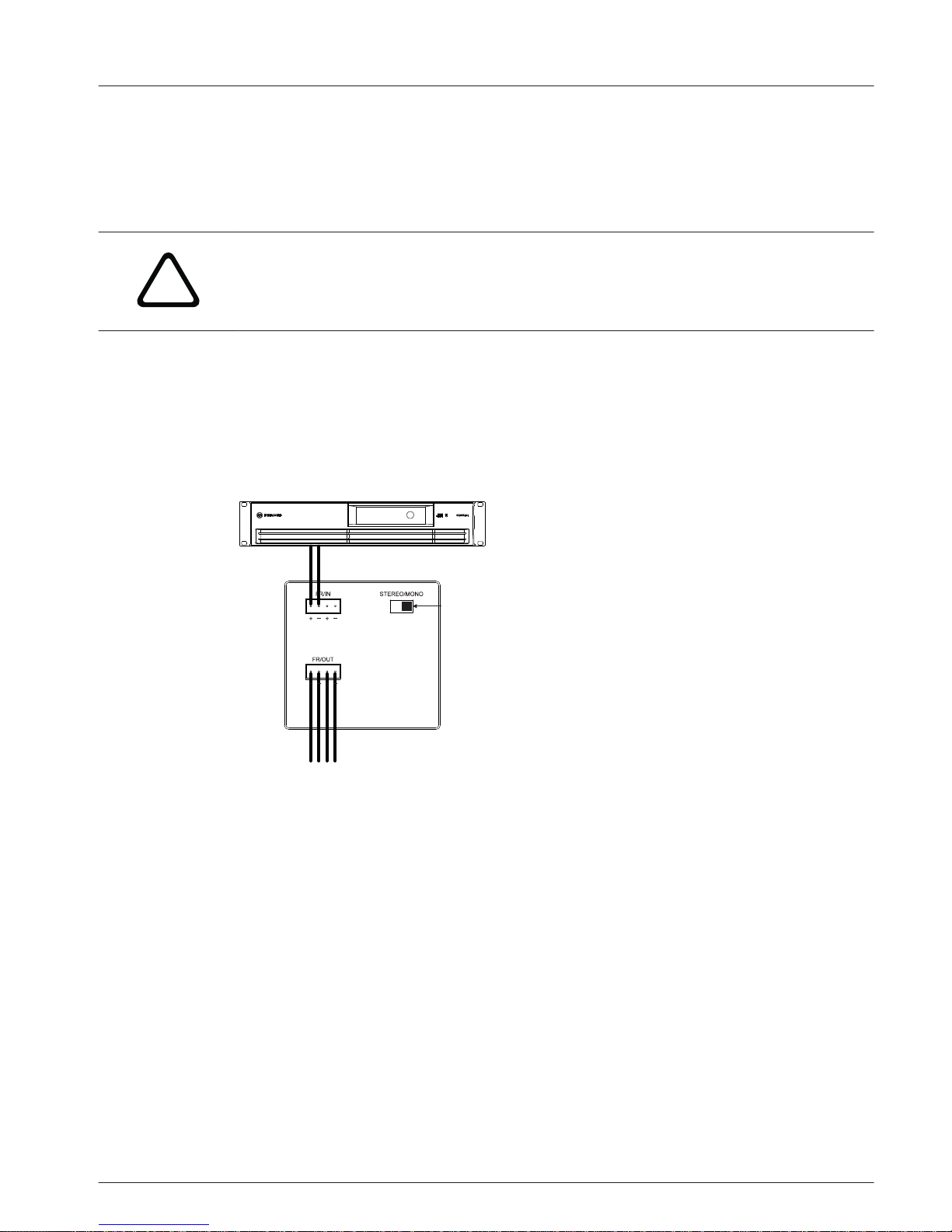

A: Full-range parallel out
B: STEREO/MONO switch set to mono.
A
B
5
5.1
5.1.1
en 15
Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.359

Stereo operation
The amplifier, the subwoofer, and the speakers are wired for STEREO operation. It is highly
advisable to support the unit while these connections are being made. Connect all wires to
the speaker at the back terminal plate observing proper polarity of the connections. After all
connections are made test the complete system operation.

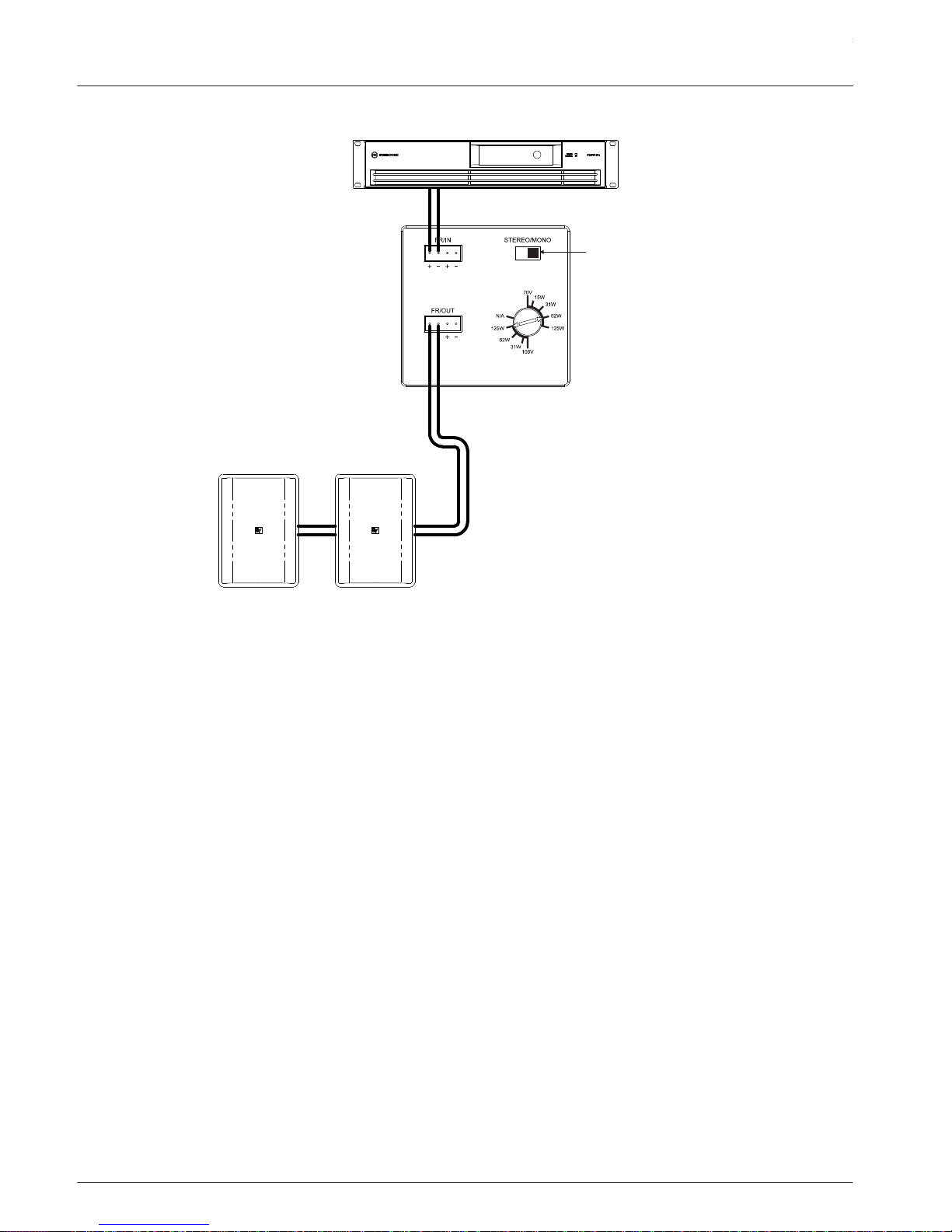

A: Full-range parallel out
B: STEREO/MONO switch set to stereo.
A
B
5.1.2
EVID-S Surface Mount Dual 10” Subwoofers
2017.08 | 01 | F.01U.345.359 Installation manual Electro-Voice

Transformer input panel - optional accessory
Mono operation
!
Caution!
For mono operation only use either the first two pins or the last two pins of the FR/IN
connector. Do not wire the amplifier to all four pins.
May cause damage to the amplifier if connected improperly.
The amplifier, the subwoofer, and the speakers are wired for MONO operation. It is highly
advisable to support the unit while these connections are being made. Connect all wires to
the speaker at the back terminal plate observing proper polarity of the connections. After all
connections are made test the complete system operation.
The speakers must be set to 70V/100V mode.
A: STEREO/MONO switch set to mono.
A
Figure 5.1: Mono configuration 1
5.2
5.2.1
en 17
Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.359

A: STEREO/MONO switch set to mono.
A
Figure 5.2: Mono configuration 2
EVID-S Surface Mount Dual 10” Subwoofers
2017.08 | 01 | F.01U.345.359 Installation manual Electro-Voice

Stereo operation
The amplifier, the subwoofer, and the speakers are wired for STEREO operation. It is highly
advisable to support the unit while these connections are being made. Connect all wires to
the speaker at the back terminal plate observing proper polarity of the connections. After all
connections are made test the complete system operation.
The speakers must be set to 70V/100V mode.
A: STEREO/MONO switch set to stereo.
A
5.2.2
en 19
Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.359

Crossover input panel - optional accessory
Mono operation
!
Caution!
For mono operation only use either the first two pins or the last two pins of the FR/IN
connector. Do not wire the amplifier to all four pins.
May cause damage to the amplifier if connected improperly.
The amplifier, the subwoofer, and the speakers are wired for MONO operation. It is highly
advisable to support the unit while these connections are being made. Connect all wires to
the speaker at the back terminal plate observing proper polarity of the connections. After all
connections are made test the complete system operation.
The option shown is using 8 ohm speakers.
A: STEREO/MONO switch set to mono.
B: HI-PASS 4 OHM/8 OHM switch set to 8 ohm.
A
B
5.3
5.3.1
EVID-S Surface Mount Dual 10” Subwoofers
2017.08 | 01 | F.01U.345.359 Installation manual Electro-Voice
