WINSTON™RETRO TURNTABLE
STEREO SYSTEM
INSTRUCTION MANUAL

- 2 -
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET
UNLESSTHE BLADES CAN BE FULLY INSERTEDTO PREVENT BLADE EXPOSURE.TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSETHIS APPLIANCE TO RAIN OR MOISTURE.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers)
that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or
the third prong is provided for your safety. If the provided plug does not t into you outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and point
where they exit from the apparatus.
11. Only use attachments / accessories specied by the manufacturer.
12. Unplug this apparatus during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
14. This appliance shall not be exposed to dripping or splashing water and no object lled with liquids such as vases shall
be placed on the apparatus.
15. Do not overload wall outlet. Use only power source as indicated.
16. Use replacement parts as specied by the manufacturer.
17. The product may be mounted to a wall only if recommended by the manufacturer.
18. Upon completion of any service or repairs to this product, ask the service technician to perform safety checks.
The lightning ash with arrowhead
symbol within an equilateral triangle
is intended to alert the user to the
presence of uninsulated dangerous
voltage within the product’s enclosure
that may be of sucient magnitude
to constitute a risk of electric shock to
persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing) instructions
in the literature accompanying the
appliance.
WARNING:TO REDUCETHE RISK OF
ELECTRIC SHOCK DO NOT REMOVE
COVER (OR BACK), NO USER
SERVICEABLE PARTS INSIDE REFER
SERVICINGTO QUALIFIED SERVICE
PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
IMPORTANT SAFETY INSTRUCTIONS

- 3 -
IMPORTANT SAFETY INSTRUCTIONS
CLASS 1
LASER PRODUCT
APPAREIL À LASER DE CLASSE 1
PRODUCTO LASER DE CLASE 1
CAUTION
INVISIBLE LASER RADIATION
WHEN OPEN AND INTERLOCKS DEFEATED.
AVOID EXPOSURETO BEAM
• Avoid installing this unit in places exposed to direct sunlight or close to heat radiating appliances such as electric
heaters, on top of other stereo equipment that radiates too much heat, places lacking ventilation or dusty areas,
places subject to constant vibration and/or humid or moist areas.
• Do not attempt to clean this unit with chemical solvents as this might damage the nish. Use a clean dry cloth.
• Operate controls and switches as described in the manual. Before turning on the power, make certain that power
cord is properly installed.
• Store your CDs in a cool area to avoid damage from heat.
• When moving the set, be sure to rst disconnect the power cord.
FCC INFORMATION:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential
installation.This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Re-orient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference that may cause undesired operation.
IMPORTANT
Since digital circuitry may cause interference to other radio or television tuners nearby, switch this unit o when not in
use or move it away from the aected radio/television tuner.
NOTE: This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set
out in the Radio Interference Regulations of Industry Canada.These limits are designed to provide reasonable protection
against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television operation (which can be determined by turning the
equipment o), the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
IMPORTANT SAFETY INSTRUCTIONS

- 4 -
Important Safety Instructions .......................................................................................................................................2
What’s Included .............................................................................................................................................................4
Features .........................................................................................................................................................................4
Buttons and Connections ...............................................................................................................................................5
Preparation for Use ........................................................................................................................................................7
Unpacking and Setup............................................................................................................................................7
Power Source.........................................................................................................................................................7
Raising and Lowering the Lid................................................................................................................................8
Protect Your Furniture............................................................................................................................................8
Headphones..........................................................................................................................................................8
Operation.......................................................................................................................................................................8
Listening to the Radio ...........................................................................................................................................8
AUX IN Operation...................................................................................................................................................9
Inserting and Playing a CD ....................................................................................................................................9
Random Playback..................................................................................................................................................9
Repeat Playback................................................................................................................................................. 10
Programmed Playback ....................................................................................................................................... 10
Playing Records.................................................................................................................................................. 11
Changing the Stylus ........................................................................................................................................... 11
Care and Maintenance................................................................................................................................................. 13
Tone Arm Adjustment ................................................................................................................................................. 14
ElectrohomeWarranty ................................................................................................................................................ 15
WHAT’S INCLUDED
• Winston™ RetroTurntable Stereo System
• Instruction Manual
• 1YearWarranty
• Live Customer Support
TABLE OF CONTENTS
FEATURES
• PlaysVinyl Records, CDs & MP3s via AUX Input
• High Performance Dynamic Speakers
• Full Size 3-Speed Record Player
• Elegant RealWood Finish
• Vintage RotaryTuning Dial for AM/FM Radio
BUTTONS AND CONNECTIONS

- 5 -
WHAT’S INCLUDED
TABLE OF CONTENTS
FEATURES

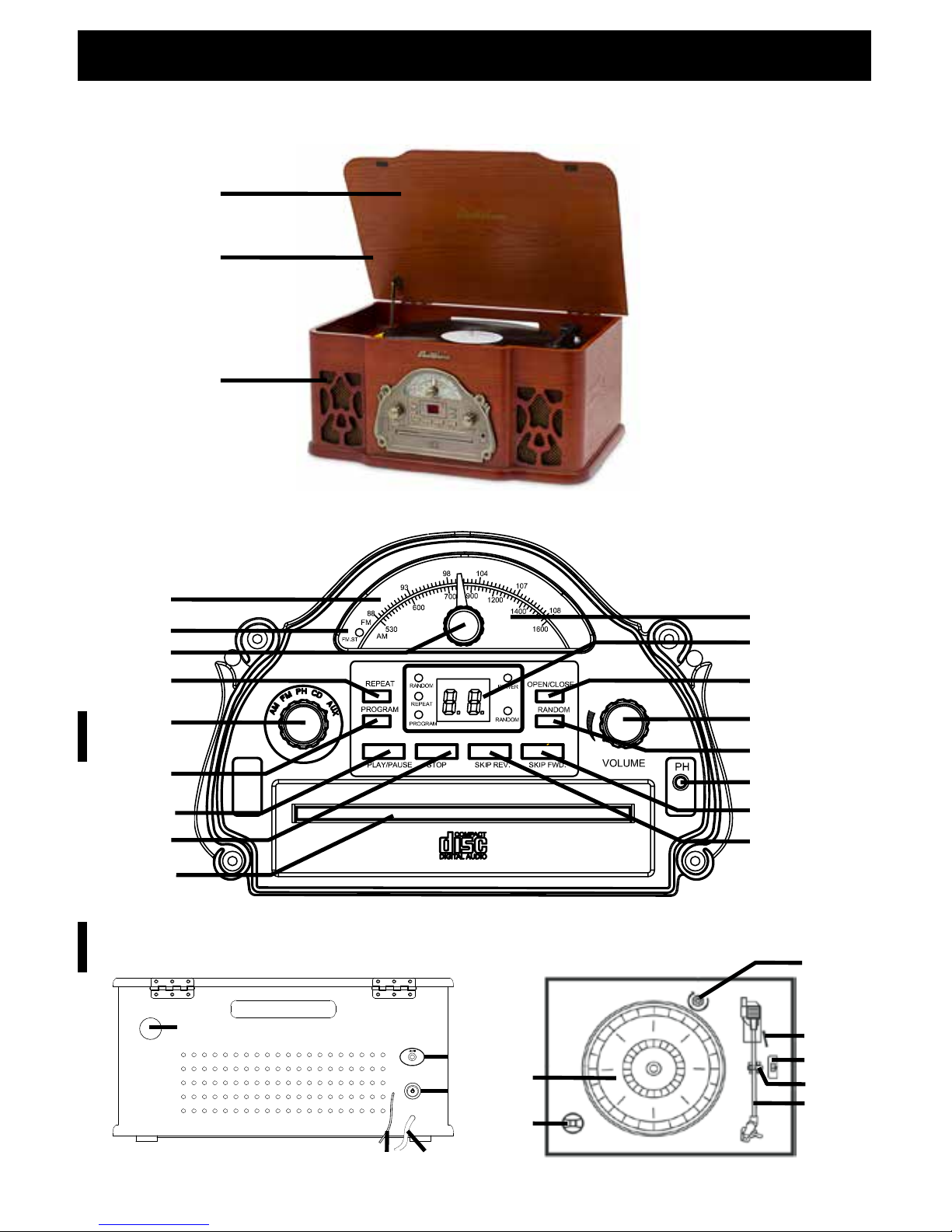

Main Unit
Control Panel
Back of Unit Turntable
1
2
3
26
27
29
24
30
25
31
32
28
BUTTONS AND CONNECTIONS
4
5
6
7
12
8
11
9
10
13
14
15
16
17
20
18
19
22
23
21

- 6 -
1. Phonograph Lid
Lift to reveal turntable
2. Phonograph Lid Support Stand
Lift and clip into place to hold
up lid
3. Speakers
Plays sounds from radio, cd,
or record
4. FM Dial Scale
Indicates the FM channels
5. FM Stereo Indicator
Indicates FM stereo is ON
6. Tuning Control
Indicates which station is
being played
7. Repeat Button
Repeat 1 or all songs on a CD
8. AM-FM-PH-CD-AUX Function Switch
Changes the player function
9. Program Button
Program a set of songs to play
10. Play/Pause Button
Plays/Pauses playback
11. Stop Button
Stops playback
12. CD Disc Tray
Holds the CD in the unit
13. AM Dial Scale
Shows the AM stations
14. CD Track Display
Displays the track currently being played
15. Open/Close Button
Opens and closes the CD tray
16. Volume Control
Control the volume of playback
17. Random Button
Shue and play songs randomly
18. Headphone Jack
Plug your headphones in here
19. Skip Forward Button
Skip to next track
20. Skip Reverse Button
Skip back one track
21. Service Sticker
Allows access to adjustment screw
22. AUX IN Input
Connect your MP3 player
or smartphone to play to music
23. ON/OFF Switch
Turns power ON and OFF
24. FM Antenna Wire
Improves FM reception
25. AC Power Cord
Plug AC power cord into any wall outlet
26. Turntable
Place vinyl record here
27. 45 RPM Adapter
Place in centre of turntable to accomodate
45 RPM records
28. Transit Screw
Tighten during transportation
29. Cue Lever
Raise or lower tone arm
30. Speed Selector (33/45/78 RPM)
Select speed record should be played at
31. Tone Arm Lock
Locks stylus arm
32. Tone Arm with Stylus
Plays records
BUTTONS AND CONNECTIONS PREPARATION FOR USE

- 7 -
BUTTONS AND CONNECTIONS
Transit Screw
UNPACKING AND SETUP
• Carefully remove the unit from the display carton
and remove all packing material from the unit
• Unwind the AC power cord and extend it to its full
length
• Unwind the FM Antenna wire and extend it to its
full length
• Place the unit on a stable, level surface, close to
an AC outlet, out of direct sunlight, and away from
sources of excess heat, dust, moisture, humidity, or
strong magnetic elds
• Raise the lid to expose the phonograph.The phonograph has been secured for shipment with a transit
screw. Use a coin or screwdriver toTURNTHETRANSIT SCREW CLOCKWISE.This will allow the turntable
to“oat”and turn freely.
• Remove the opaque white plastic stylus cover from the
phonograph stylus by sliding it in the direction of the
arrow.
• Discard the stylus cover.
• Remove the twist-tie that was used to secure the tone
arm during shipment.
• Release the tone arm lock lever.
• Connect the plug to your AC outlet, as shown below.
POWER SOURCE
This system is designed to operate on normal 120V
60Hz AC only. Attempting to operate this system
from any other power source may cause damage to
the system, and such damage is not covered by your
warranty.
Note:This system is equipped with a polarized AC power plug having one blade wider than the other.
This is a safety feature. If this plug does not t into your existing AC outlet, do not try to defeat this safety
feature by altering the wide blade to make it t into your outlet. If this plug will not t into your outlet,
you probably have an outdated non-polarized AC outlet. Have the obsolete outlet changed by a qualied
licensed electrician.
PREPARATION FOR USE
Tone Arm
Lock Lever
Stylus Cover

- 8 -
RAISING AND LOWERING THE LID IMPORTANT:
To open the lid, raise it as far as it will go until the lid support bracket‘locks’in the open position. To close the
lid, lift it upward slightly until the lid support bracket‘unlocks’, and then gently lower the lid.
TO AVOID DAMAGING THE CABINET OR THE LID, NEVER FORCE THE LID CLOSED. ALWAYS RAISE
THE LID TO RELEASE THE LID SUPPORT BRACKET.
PROTECT YOUR FURNITURE
This model is equipped with non-skid rubber‘feet’to prevent the product from moving when you operate
the controls.These‘feet’are made from non-migrating rubber material specially formulated to avoid
leaving any marks or stains on your furniture. However, certain types of oil based furniture polishes, wood
preservatives, or cleaning sprays may cause the rubber‘feet’to soften, and leave marks or a rubber residue
on the furniture.To prevent any damage to your furniture we strongly recommend that you purchase small
self-adhesive felt pads, available at hardware stores and home improvement centers everywhere, and
apply these pads to the bottom of the rubber‘feet’before you place the product on ne wooden furniture.
HEADPHONES
For private listening, plug headphones (not included) into the headphone jack on the front panel of the
player. The speakers will be disconnected when headphones are plugged in.
LISTENING TO THE RADIO
1. Flip the ON/OFF switch to the“–”position to turn the unit on.The LED power
indicator will light.
2. Rotate the AM-FM-PH-CD-AUX switch to the AM or FM position as desired.
The backlight behind the AM/FM dial will light.
3. Rotate the tuning control to select a station. If tuned to a strong FM station,
the FM Stereo indicator will light and the sound will be in stereo.
4. Rotate theVOLUME control to set the volume as desired.
5. To turn the unit OFF, ip the switch to the“o”position.
AM Note:
The AM antenna is inside the cabinet. If reception is unsatisfactory try repositioning the cabinet
slightly for the strongest signal.
FM Note:
The wire antenna is located on the back cabinet. If necessary adjust the position and direction of this
antenna for the best reception.
PREPARATION FOR USE
EANOS501/EANOS502 OPERATION DIFFERENCE
POWER ON/OFF
1, Press the power ON/OFF button on the back
of the unit to the position’-’ to
turn on the unit;
2, Press the power ON/OFF button on the back
of the unit to the poistion’0’to
turn off the unit;
AUX IN OPERATION
Rotate the AM/FM/CD/PH/AUX to ‘AUX’
position and connect your MP3 player
or smartphone with the ‘AUX IN’ input
at the back side of the unit via an aux in
cable.
ON - OFF
OPERATION
OPERATION

- 9 -
PREPARATION FOR USE
OPERATION
OPERATION
AUX IN OPERATION
Listen to music via the AUX IN input by connecting your MP3 player or smartphone. Rotate the AM-FM-PH-
CD-AUX switch to AUX mode. Insert the 3.5mm Aux cable (not included) into the corresponding AUX IN Input
at the back of your system. Connect the other end of the cable to your device (item A). Adjust the volume
using the VOLUME CONTROL knob on the system’s control panel.
Navigate your music les using your device.
Disconnect your device when not in use.
INSERTING AND PLAYING A CD
1. Flip the ON/OFF switch to the“–”position to
turn the unit on.The LED power indicator will light..
2. Rotate the AM-FM-PH-CD-AUX switch to the CD position.‘- -’will appear in the display.
3. Press the OPEN/CLOSE button to open the CD tray. Place a CD in the tray, with the printed label facing up.
Press the OPEN/CLOSE button again to close the CD tray.
4. The disc will spin for a few seconds while the player is reading the disc and the total track number will
appear in the display. Press the PLAY/PAUSE button to start playing the rst track of the disc. Adjust the
VOLUME control to set the volume as desired.
5. To skip forward or backward through the tracks on the disc, press the SKIP REV or SKIP FWD buttons.To
search forward or backward through the tracks, press and hold the SKIP REV or SKIP FWD button.
6. Press the PLAY/PAUSE button to pause playback.The PLAY/PAUSE indicator will blink in the display. Press
again to resume playback.When the disc is through playing, it will stop rotating.
7. To stop playback entirely, press the STOP button.
• As each track is played, the track number is shown in the display.
• The PLAY/PAUSE indicator will appear in the display when CD is playing.
RANDOM PLAYBACK
During CD-R/RW stop mode, press the RANDOM button once; the random indicator will light and the unit will
then play the tracks in a random order. Press the STOP button to cancel the random setting and the random
indicator will turn o.
• During RANDOM playback, press the REPEAT button once to activate repeat 1 playback. The REPEAT
LED indicator will blink and the RANDOM LED indicator will light solid.
• The player will play your selected track repeatedly until you cancel the REPEAT function by pressing
the REPEAT button twice, the repeat LED indicator will go out.
• RANDOM function cannot be used during repeat 1 mode.

- 10 -
REPEAT PLAYBACK
1. To repeat a single track, press the REPEAT button once, the repeat LED indicator will blink, press the
SKIP REV button or SKIP FWD button to select the desired track, press the PLAY/PAUSE button to begin
repeat playback of the selected track.
2. To repeat all of the tracks on a disc continuously, press the REPEAT button twice, the repeat LED
indicator will light solid. Press the PLAY/PAUSE button to begin repeat playback of the entire disc.
3. To cancel repeat playback, press the REPEAT button until the repeat LED indicator turns o.
4. Repeat playback is also canceled by pressing the STOP button, or setting the AM-FM-PH-CD-AUX switch
the to the AM, FM or PH position.
PROGRAMMED PLAYBACK
The CD player in this unit has a 20 - track programmable memory that allows you to program the disc to
playback songs in any desired order.
1. While in STOP mode of CD playback, press the PROGRAM button;“0”will appear in the display and the
program LED indicator will blink.
2. Select the rst track to be programmed using the SKIP REV or SKIP FWD button.
3. Press the PROGRAM button again to conrm it, when the desired track appears in the display. Repeats
steps 2 and 3 to program up to 20 tracks.You may program the same track more than once.
4. Press the PLAY/PAUSE button to begin programmed playback; the program LED indicator will blink.
Player will begin with the rst track you programmed and will continue until the last programmed
track has played.
5. Press the SKIP REV or SKIP FW button to select a specic track in the programmed tracks. After the last
track has played, the player will stop. However, the program sequence remains in the memory. The
program indicator will turn o.
6. To repeat the programmed sequence, press the PROGRAM button and then press the PLAY/PAUSE
button.The programmed sequence may be cancelled by pressing the STOP button while in stop mode.
• Programming is the ability to pre-select the order in which a series of tracks will be played
• The CD player will stop after all programmed tracks have been played or the STOP button is pressed
• “--“ and the program indicator will blink when you have programmed 20 tracks
• During PROGRAMMED playback, press REPEAT button twice to activate repeat all feature.
The REPEAT inidcator will light and all tracks in your programmed sequence will be repeated
continuously. To cancel programmed repeat playback press the STOP button until both the program
and repeat LED indicator go out
OPERATION OPERATION

- 11 -
OPERATION
PLAYING RECORDS
This system includes a full-size, 3-speed, belt-drive turntable that plays 33,45 and 78 RPM records.
Be sure to disconnect any devices (MP3 player or smartphone) before using the Record player.
1. With the unit on, rotate the AM-FM-PH-CD-AUX switch to the PH position. Make sure that you have
removed the stylus cover from the stylus and have released theTone Arm Lock (See Page 7)
2. Set the turntable speed switch to the appropriate speed: 33, 45, or 78 RPM. Set the record onto the
turntable. If you are playing 45 RPM singles, place the 45 RPM adapter on the center spindle.
3. Raise the cue lever to lift the tone arm o its rest. Move the tone arm to the outer-edge of the record.
The turntable will start automatically. Use the cue lever to gently lower the tone arm onto the record.
• Adjust theVOLUME control to set the volume as desired.
• IMPORTANT: Make sure that you have removed the stylus cover from the stylus and have released
theTone Arm Lock (see page 7).
• Do not turn or stop the turntable manually. Moving or jarring the turntable without securing the
tone arm clamp could result in damage to the tone arm or stylus.
CHANGING THE STYLUS
The jeweled stylus that was installed in your turntable at the time of purchase will last for up to 300 hours
of playback with 33 RPM albums or 45 RPM singles. If you are playing older 78 RPM records, which are made
from a much harder material, the stylus life expectancy may be reduced.
When the playback sound becomes distorted and unsatisfactory, rst check to see if any dust or lint has
accumulated on the stylus. If you see any visible matter on the tip of the stylus, remove it very carefully with
a soft stylus-cleaning brush.
If there is no visible foreign matter on the stylus and the sound is still unsatisfactory, the stylus is worn and
needs to be replaced. If you continue playing your records with a worn stylus, you may eventually cause
damage to the records themselves.
OPERATION

- 12 -
OPERATION

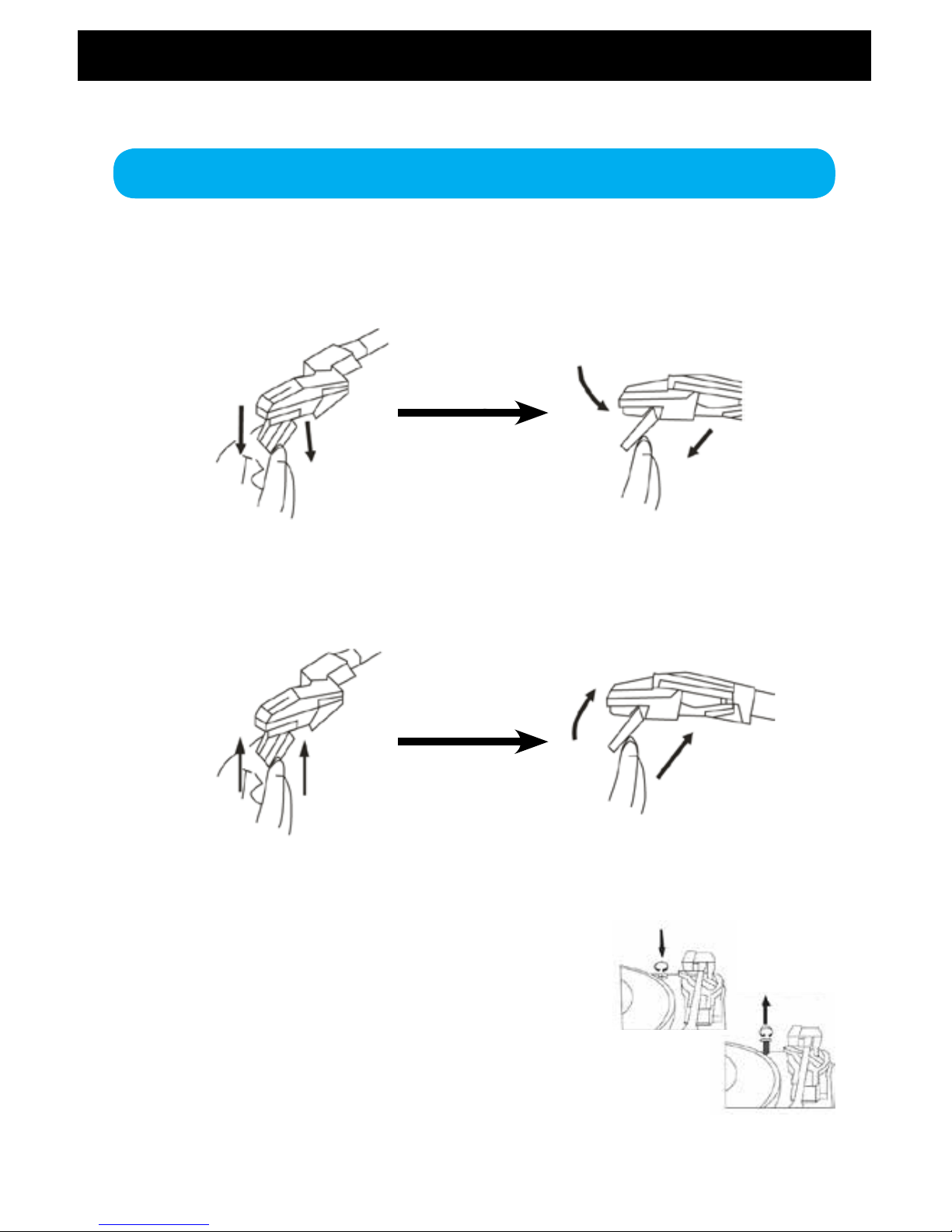

Replacing the stylus:
IMPORTANT: Avoid touching the stylus itself.
1. Lift the tone arm o the tone arm rest.
2. At the front end of the tone arm, place the tip of your ngernail between the red stylus holder and
the black cartridge housing as shown, press down on the red stylus holder until it separates from the
cartridge housing.
3. Completely remove the red stylus holder with worn stylus and discard it.
4. Place the new red stylus holder with stylus under the cartridge housing. First, press upward on the back
side of the stylus holder, and then press up on the front edge of the stylus holder until it snaps into place
on the cartridge housing.
IMPORTANT!
To protect the turntable from damage during transportation, a silver transit screw is located at
the upper right of the turntable platform.
1. Before playing, please use a screwdriver to turn the transit screw in
clockwise direction (screw going down) completely to unlock
the turntable.
2. To lock the turntable again for transportation, please turn screw in
counter-clockwise direction.
CARE AND MAINTENANCE

- 13 -
OPERATION
TO REPLACE THE CARTRIDGE FROM TONE ARM PLEASE FOLLOW THE PROCEDURES BELOW:
1. Gently lift the tone arm from the tone arm rest.
2. By using your left hand to hold the tone
arm and using your right hand to hold the rear
portion of the cartridge.Then push the cartridge
backwards and downwards according to the
direction as shown to the left to separate the
cartridge from the tone arm.
3. Using either a tweezer or your ngers, carefully
unplug the terminals from the cartridge.
4. Carefully connect the terminals to the new
cartridge (not included).
5. To re-install the new cartridge to the tone
arm. First please lock the front end of the new
cartridge on the hook of the tone arm.
6. Press the rear side of the new cartridge upwards
to lock it on to the tone arm.
CAUTION: Please do not damage the stylus when installing the new cartridge.
CARING FOR COMPACT DISCS
• Treat the compact disc carefully. Handle the compact disc only by its edges. Never allow your ngers to
come in contact with the shiny, unprinted side of the compact disc.
• Do not attach adhesive tape, stickers, etc. to the compact disc label.
• Clean the compact disc periodically with a soft, lint-free, dry cloth. Never use detergents or abrasive
cleaners to clean the compact disc. If necessary, use a CD cleaning kit.
• If a disc skips or gets stuck on a section of the compact disc, it is probably dirty or damaged (scratched).
• Wipe in straight lines from the center of the compact disc to the outer edge of the compact disc. Never
wipe in circular motions.
• Compact Discs should be stored in their cases after each use to avoid damage.
• Do not expose compact discs to direct sunlight, high humidity, high temperatures or dust, etc. Prolonged
exposure or extreme temperatures can warp the compact disc.
• Do not stick or write anything on either side of the compact disc. Sharp writing instruments, or the ink,
may damage the surface.
CARE AND MAINTENANCE

WARRANTY
- 14 -
CARE AND MAINTENANCE
TONE ARM ADJUSTMENT
The auto-return point of the tone arm has been preset by the factory, however, if the tone arm auto-returns before
the end of the album please make the following adjustments. You will need a small Phillips screwdriver.Turn the
adjustment screw clockwise ¼ turn and test auto-return. Please make further adjustments as needed.
MAKING THE ADJUSTMENT
Clockwise turn = MovesTone Arm to center of album Counter-clockwise turn = MovesTone Arm to
outer-edge of album
Turn unit ON
Peel o the Service sticker
EANOS501/EANOS502 OPERATION DIFFERENCE
POWER ON/OFF
1, Press the power ON/OFF button on the back
of the unit to the position’-’ to
turn on the unit;
2, Press the power ON/OFF button on the back
of the unit to the poistion’0’to
turn off the unit;
AUX IN OPERATION
Rotate the AM/FM/CD/PH/AUX to ‘AUX’
position and connect your MP3 player
or smartphone with the ‘AUX IN’ input
at the back side of the unit via an aux in
cable.
EANOS501/EANOS502 OPERATION DIFFERENCE
POWER ON/OFF
1, Press the power ON/OFF button on the back
of the unit to the position’-’ to
turn on the unit;
2, Press the power ON/OFF button on the back
of the unit to the poistion’0’to
turn off the unit;
AUX IN OPERATION
Rotate the AM/FM/CD/PH/AUX to ‘AUX’
position and connect your MP3 player
or smartphone with the ‘AUX IN’ input
at the back side of the unit via an aux in
cable.
ON - OFF
MARCHE - ARRÊT
EANOS501/EANOS502 OPERATION DIFFERENCE
POWER ON/OFF
1, Press the power ON/OFF button on the back
of the unit to the position’-’ to
turn on the unit;
2, Press the power ON/OFF button on the back
of the unit to the poistion’0’to
turn off the unit;
AUX IN OPERATION
Rotate the AM/FM/CD/PH/AUX to ‘AUX’
position and connect your MP3 player
or smartphone with the ‘AUX IN’ input
at the back side of the unit via an aux in
cable.
Adjustment screw
Plug in unit
EANOS501/EANOS502 OPERATION DIFFERENCE
POWER ON/OFF
1, Press the power ON/OFF button on the back
of the unit to the position’-’ to
turn on the unit;
2, Press the power ON/OFF button on the back
of the unit to the poistion’0’to
turn off the unit;
AUX IN OPERATION
Rotate the AM/FM/CD/PH/AUX to ‘AUX’
position and connect your MP3 player
or smartphone with the ‘AUX IN’ input
at the back side of the unit via an aux in
cable.
EANOS501/EANOS502 OPERATION DIFFERENCE
POWER ON/OFF
1, Press the power ON/OFF button on the back
of the unit to the position’-’ to
turn on the unit;
2, Press the power ON/OFF button on the back
of the unit to the poistion’0’to
turn off the unit;
AUX IN OPERATION
Rotate the AM/FM/CD/PH/AUX to ‘AUX’
position and connect your MP3 player
or smartphone with the ‘AUX IN’ input
at the back side of the unit via an aux in
cable.
Service
sticker
1
Raise the lid to expose the record player LockTone Arm
2

Thank you for choosing ELECTROHOME® Consumer Electronics Products!
ELECTROHOME gives the following express warranty to the original consumer purchaser or gift recipient for this ELECTROHOME
product, when shipped in its original container and sold or distributed by ELECTROHOME or by an Authorized ELECTROHOME Dealer:
ELECTROHOME warrantsthatthis productisfree,under normaluseand maintenance,fromanydefectsinmaterialand workmanship.
If any such defects should be found in this product within the applicable warranty period, ELECTROHOME shall, at its option, repair or
replace the product as specied herein. Replacement parts furnished in connection with this warranty shall be warranted for a period
equal to the unexpired portion of the original equipment warranty.
This warranty shall not apply to:
A. Any defects caused or repairs required as a result of abusive operation, negligence, accident, improper installation or
inappropriate use as outlined in the owner’s manual.
B. Any ELECTROHOME product tampered with, modied, adjusted or repaired by any party other than BlueTronics Group or
ELECTROHOME’s Authorized Service Centres.
C. Damage caused or repairs required as a result of the use with items not specied or approved by ELECTROHOME, including
but not limited to head cleaning tapes and chemical cleaning agents.
D. Any replacement of accessories, glassware, consumable or peripheral items required through normal use of the product
including but not limited to earphones, remote controls, AC adapters, batteries, stylus, trays, lters, cables, paper, cabinet,
cabinet parts, knobs, buttons, baskets, stands and shelves.
E. Any cosmetic damage to the surface or exterior that has been defaced or caused by normal wear and tear.
F. Any damage caused by external or environmental conditions, including but not limited to transmission line/power line
voltage or liquid spillage.
G. Any product received without appropriate model, serial number and CSA /cUL /cULus /cETL /cETLus markings.
H. Any products used for rental or commercial purposes.
I. Any installation, setup and/or programming charges.
Should this ELECTROHOME product fail to operate during the warranty period, warranty service may be obtained upon delivery
of the ELECTROHOME product together with proof of purchase and a copy of this LIMITED WARRANTY statement to an Authorized
ELECTROHOME Service Centre. In-home warranty service may be provided at ELECTROHOME’s discretion on any ELECTROHOME
television with the screen size of 40”or larger. This warranty constitutes the entire express warranty granted by ELECTROHOME and
no other dealer, service centre or their agent or employee is authorized to extend, enlarge or transfer this warranty on behalf of
ELECTROHOME.To the extent the law permits, ELECTROHOME disclaims any and all liability for direct or indirect damages or losses or
for any incidental, special or consequential damages or loss of prots resulting from a defect in material or workmanship relating to
the product, including damages for the loss of time or use of this ELECTROHOME product or the loss of information.The purchaser will
be responsible for any removal, reinstallation, transportation and insurance costs incurred. Correction of defects, in the manner and
period of time described herein, constitute complete fulllment of all obligations and responsibilities of ELECTROHOME Electronics to
the purchaser with respect to the product and shall constitute full satisfaction of all claims, whether based on contract, negligence,
strict liability or otherwise.
1 YEAR PARTS & LABOUR WARRANTY PERIODS
TO OBTAINTHE NAME AND ADDRESS OFTHE NEAREST AUTHORIZED ELECTROHOME SERVICE CENTRE OR FOR MORE
INFORMATION ON THISWARRANTY
Contact ELECTROHOME Support by:
• Support: www.electrohome.com/support
• Website: www.electrohome.com
• By mail: ELECTROHOME Customer Service, 4080 Montrose Road, Niagara Falls, ON L2H 1J9
ELECTROHOME is a registered trade-mark of CircusWorld Displays Limited 04.2013
WARRANTY
- 15 -
CARE AND MAINTENANCE

- 16 -
NOTES NOTES

- 17 -
NOTES NOTES
- 16 -

- 15 -
Merci d’avoir choisi un produit électronique grand public ELECTROHOME!
ELECTROHOME accorde la garantie expresse suivante à l’acheteur original de cet appareil ELECTROHOME ou à la personne qui l’a reçu en
cadeau, pourvu qu’il ait été expédié et vendu ou distribué par ELECTROHOME ou un détaillant ELECTROHOME autorisé dans son emballage
original.ELECTROHOME garantit que cetappareilest exempt de toutdéfautde matériau et defabrication dans desconditions d’utilisation
et d’entretien normales. Si un défaut est décelé dans ce produit pendant la période de cette garantie, ELECTROHOME s’engage à le réparer
ou, le cas échéant et à son entière discrétion, le remplacer. Les pièces de rechange qui sont fournis dans l’exécution de cette garantie sont
aussi couvertes par la garantie pendant une période égale à la portion non échue de la garantie originale de l’appareil.
Cette garantie ne couvre pas :
A. Les défectuosités ni les réparations résultant d’un usage abusif, d’une négligence, d’un accident ou d’une installation inadéquate
ou un usage inapproprié selon les directives fournies dans le guide d’utilisation accompagnant l’appareil.
B. Les appareils de marque ELECTROHOME traqués, modiés, réglés, ajustés ou réparés par une entité autre que ELECTROHOME ou
un centre de réparation autorisé par ELECTROHOME.
C. Les dommages causés ni les réparations requises à l’appareil résultant de son usage avec des composantes ou accessoires non
recommandés ni approuvés par ELECTROHOME, incluant, sans en exclure d’autres, les cassettes et/ou produits chimiques de
nettoyage.
D. Le remplacement d’accessoires ou de pièces de verre, consommables ou des éléments périphériques nécessaires à une utilisation
normale du produit, y compris mais pas limité aux écouteurs, télécommandes, adaptateurs CA, piles, pointes de lecture, stylets,
plateaux, ltres, câbles, papier, boîtier, composantes de boîtiers, boutons, paniers, supports et tablettes.
E. Tout dommage apparent à la surface ou au boîtier extérieur de l’appareil et attribuable à la détérioration ou à l’usure résultant
d’un usage normal.
F. Tout dommage causé par des conditions externes ou environnementales, y compris mais pas limité aux lignes de transmission ou
de transport d’énergie ou le renversement de liquide.
G. Tout appareil ne portant pas les identications appropriées quant aux numéros de modèle et de série ni les étiquettes et
attestations de l’ACNOR, de l’ULC, de l’ULI, de l’ETL au Canada et aux États-Unis.
H. Tout appareil utilisé à des ns commerciales ou de location.
I. Tous les frais d’installation, d’ajustement et/ou de programmation.
Si cet appareil de marque ELECTROHOME devient défectueux au cours de la période de garantie, une réparation peut être obtenue,
conformément aux termes de cette garantie, en présentant cet appareil ELECTROHOME avec la preuve d’achat originale et une copie
de cette GARANTIE LIMITÉE à un centre de service autorisé par ELECTROHOME. Le service à domicile est eectué, à la discrétion de
ELECTROHOME, aux téléviseurs de marque ELECTROHOME dotés d’un écran de 40 pouces et plus. Cette garantie constitue la garantie
expresse entière accordée par ELECTROHOME et aucun autre détaillant, centre de service ni leur agent ou employé est autorisé à
prolonger, étendre ou transférer cette garantie au nom de ELECTROHOME. Dans la mesure où la loi le permet, ELECTROHOME désavoue
toute responsabilité pour des dommages ou pertes directs et indirects, tous dommages accessoires, particuliers ou consécutifs ou perte
de prots résultant d’un défaut de matériel ou de fabrication de cet appareil, incluant les dommages attribuables à la perte de temps
ou perte de l’utilisation de cet appareil ELECTROHOME ou de la perte de données. Il incombe à l’acheteur de défrayer les coûts encourus
pour l’enlèvement, la réinstallation, le transport et l’assurance de cet appareil. La correction de toute défectuosité, de la manière et
dans les délais indiqués dans la présente, constitue l’exécution complète de toutes les obligations et les responsabilités contractés par
ELECTROHOME envers l’acheteur à l’égard du produit et constituera un acquittement complet de toutes les réclamations contractuelles ou
attribuables à la négligence, et la responsabilité absolue ou autre.
GARANTIE D’UN ANS POUR LES PIÈCES ET LA MAIN D’OEUVRE
POUR OBTENIR LE NOM ET L’ADRESSE DU CENTRE DE SERVICE ELECROHOME AUTORISÉ LE PLUS PRÈS DE CHEZVOUS OU POUR PLUS
DE RENSEIGNEMENTS SUR CETTE GARANTIE :
• Contactez le service de soutient ELECTROHOME par:
• Soutien: www.electrohome.com/support
• SiteWeb: www.electrohome.com
• Par la poste à: Service à la clientèle ELECTROHOME, 4080 Montrose Road, Niagara Falls, ON L2H 1J9
ELECTROHOME est une marque déposée de Circus World Displays Limited. 04.2013
GARANTIE
- 15 -
SOIN ET ENTRETIEN

- 19 -
GARANTIE
- 14 -
RÉGLAGE DU BRAS DE LECTURE
Le point de retour automatique du bras de lecture a été préréglé en usine par contre, si le bras de lecture
revient automatiquement avant la n de l’album, veuillez suivre les mises au point suivantes.Vous
aurez besoin d’un petit tournevis cruciforme. Tournez la vis de réglage dans le sens horaire ¼ de tour et
réessayez le retour automatique.Veuillez eectuer d'autres ajustements si nécessaire.
FAIRE L’AJUSTEMENT
Levez le couvercle an d’exposer le tourne-disque Verrouillez le bras de lecture
Tour sens horaire = Déplace bras de lecture vers le
centre de l’album
Tour sens anti-horaire = Déplace bras de lecture
vers le le bord extérieur de l’album
Alimentez l’appareil
Décollez l’autocollant pour le service
EANOS501/EANOS502 OPERATION DIFFERENCE
POWER ON/OFF
1, Press the power ON/OFF button on the back
of the unit to the position’-’ to
turn on the unit;
2, Press the power ON/OFF button on the back
of the unit to the poistion’0’to
turn off the unit;
AUX IN OPERATION
Rotate the AM/FM/CD/PH/AUX to ‘AUX’
position and connect your MP3 player
or smartphone with the ‘AUX IN’ input
at the back side of the unit via an aux in
cable.
EANOS501/EANOS502 OPERATION DIFFERENCE
POWER ON/OFF
1, Press the power ON/OFF button on the back
of the unit to the position’-’ to
turn on the unit;
2, Press the power ON/OFF button on the back
of the unit to the poistion’0’to
turn off the unit;
AUX IN OPERATION
Rotate the AM/FM/CD/PH/AUX to ‘AUX’
position and connect your MP3 player
or smartphone with the ‘AUX IN’ input
at the back side of the unit via an aux in
cable.
ON - OFF
MARCHE - ARRÊT
EANOS501/EANOS502 OPERATION DIFFERENCE
POWER ON/OFF
1, Press the power ON/OFF button on the back
of the unit to the position’-’ to
turn on the unit;
2, Press the power ON/OFF button on the back
of the unit to the poistion’0’to
turn off the unit;
AUX IN OPERATION
Rotate the AM/FM/CD/PH/AUX to ‘AUX’
position and connect your MP3 player
or smartphone with the ‘AUX IN’ input
at the back side of the unit via an aux in
cable.
Vis de réglage
Branchez l’appareil
EANOS501/EANOS502 OPERATION DIFFERENCE
POWER ON/OFF
1, Press the power ON/OFF button on the back
of the unit to the position’-’ to
turn on the unit;
2, Press the power ON/OFF button on the back
of the unit to the poistion’0’to
turn off the unit;
AUX IN OPERATION
Rotate the AM/FM/CD/PH/AUX to ‘AUX’
position and connect your MP3 player
or smartphone with the ‘AUX IN’ input
at the back side of the unit via an aux in
cable.
EANOS501/EANOS502 OPERATION DIFFERENCE
POWER ON/OFF
1, Press the power ON/OFF button on the back
of the unit to the position’-’ to
turn on the unit;
2, Press the power ON/OFF button on the back
of the unit to the poistion’0’to
turn off the unit;
AUX IN OPERATION
Rotate the AM/FM/CD/PH/AUX to ‘AUX’
position and connect your MP3 player
or smartphone with the ‘AUX IN’ input
at the back side of the unit via an aux in
cable.
Service
sticker
1
SOIN ET ENTRETIEN
2

- 20 -
SOIN ET ENTRETIEN
VERROU
APPUYEZ VERS LE HAUT
POUR VERROUILLER
CROCHET
CARTOUCHE NEUVE
POUR REMPLACER LA CARTOUCHE DU BRAS DE LECTURE, S’IL VOUS PLAÎT SUIVRE LA PROCÉDURE
CI-DESSOUS.
1. Soulevez délicatement le bras de lecture
du support.
2. En utilisant votre main gauche pour tenir le
bras et à l’aide de votre main droite pour tenir
la partie arrière de la cartouche, poussez la
cartouche vers l’arrière et vers le bas selon
le sens indiqué à la gauche, pour séparer la
cartouche du bras de lecture.
3. En utilisant une pince à épiler ou vos doigts, débranchez
soigneusement les bornes de la cartouche.
4. Branchez soigneusement les bornes à la nouvelle
cartouche (non inclus).
5. Pour réinstaller la nouvelle cartouche pour le bras de
lecture, tout d’abord, verouillez l’extrémité avant de la
nouvelle cartouche sur le crochet du bras de lecture.
6. Appuyez sur le côté arrière de la nouvelle cartouche vers le
haut pour le verrouiller sur le bras de lecture.
AVERTISSEMENT: Prenez garde de ne pas endommagez le
stylet lors de l’installation de la nouvelle cartouche.
PRENDRE SOIN DE DISQUES COMPACTS
• Traiter le disque compact avec soin. Manipulez le disque compact que par ses bords. Ne touchez jamais avec vos
doigts le côté brillant, non imprimé du disque compact.
• Ne xez pas de ruban adhésif, autocollants, etc, à l’étiquette de disques compacts.
• Nettoyez le disque régulièrement avec un chion doux, non pelucheux et sec. N’utilisez jamais de détergents ou
de nettoyants abrasifs pour nettoyer le disque compact. Si nécessaire, utilisez un kit de nettoyage CD.
• Si un disque saute ou se coince sur une section du disque compact, il est probablement sale ou
endommagé (rayé).
• Lorsque vous nettoyez le disque compact, essuyez-le dans des lignes droites du centre du disque jusqu’au bord
extérieur du disque compact. N’essuyez-le jamais avec des mouvements circulaires.
• Les disques compacts doivent être rangés dans leurs étuit après chaque utilisation pour éviter des dommages.
• N’exposez pas les disques compacts en plein soleil, beaucoup d’humidité, des températures élevées ou à la
poussière. Une exposition prolongée ou des températures extrêmes peuvent déformer le disque compact.
• Ne pas coller ni écrire quoi que ce soit de chaque côté du disque compact. Des instruments d’écriture pointues,
ou de l’encre, peuvent endommager la surface.
FIL BLANC
G
FIL ROUGE
D
FIL NOIR
- 13 -
UTILISATION
