Electrolux Professional WH6-14LAG User manual

User manual
Washer extractor
WH6–14LAG
Clarus Vibe
Type W3....
Original instructions
438921390/EN
2023.10.16

Contents
Contents
1 Safety Precautions ..............................................................................................................................5
1.1 General safety information..........................................................................................................6
1.2 Commercial use only..................................................................................................................6
1.3 Symbols....................................................................................................................................6
2 Warranty terms and exclusions.............................................................................................................7
3 General ..............................................................................................................................................8
4 Handling.............................................................................................................................................9
4.1 Load .........................................................................................................................................9
4.2 Detergent..................................................................................................................................9
4.3 To start a wash program ...........................................................................................................10
4.4 When program has ended ........................................................................................................12
5 Menus and functions .........................................................................................................................13
5.1 Main menu ..............................................................................................................................13
5.1.1 Edit programs ................................................................................................................14
5.1.2 Statistics........................................................................................................................18
5.1.3 Pumps...........................................................................................................................19
5.1.4 Settings .........................................................................................................................20
5.1.5 Service ..........................................................................................................................23
5.1.6 Transfer.........................................................................................................................24
6 Maintenance .....................................................................................................................................25
6.1 General...................................................................................................................................25
6.2 Time for maintenance...............................................................................................................25
6.3 Every day................................................................................................................................25
6.4 Detergent container .................................................................................................................26
6.4.1 Deliming ........................................................................................................................26
6.5 Drain.......................................................................................................................................26
6.6 Water inlet...............................................................................................................................27
6.7 Cleaning the mop elements ......................................................................................................27
6.8 Maintenance to be carried out by qualified service personnel ......................................................27
7 Disposal information..........................................................................................................................28
7.1 Disposal of appliance at end of life ............................................................................................28
7.2 Disposal of packing..................................................................................................................28
The manufacturer reserves the right to make changes to design and component specifications.

User manual 5
1 Safety Precautions
• Servicing shall be carried out only by authorized personnel.
• Only authorized spare parts, accessories and consumables shall be used.
• Only use detergent intended for water-wash of textiles. Never use dry cleaning agents.
• The machine shall be connected with new water hoses. Re-used water hoses must not
be used.
• The machine's door lock must under no circumstances be bypassed.
• If the machine develops a fault, this must be reported to the person in charge as soon
as possible. This is important both for your safety and that of others.
• DO NOT MODIFY THIS APPLIANCE.
• When performing service or replacing parts, the power must be disconnected.
• When the power is disconnected, the operator must see that the machine is discon-
nected (that the plug is removed and remains removed) from any point to which he has
access. If this is not possible, due to the construction or installation of the machine, a
disconnection with a locking system in the isolated position shall be provided.
• In accordance with the wiring rules: mount a multi-pole switch prior to the machine to
facilitate installation and service operations.
• If different rated voltages or different rated frequencies (separated by a /) are stated at
the machine data plate, instructions for adjusting the appliance for operation at the re-
quired rated voltage or rated frequency are stated in the installation manual.
• Stationary appliances not fitted with means for disconnection from the supply mains
having a contact separation in all poles that provide full disconnection under overvolt-
age category III, means for disconnection must be incorporated in the fixed wiring in
accordance with the wiring rules.
• The openings in the base, shall not be obstructed by a carpet.
• Maximum mass of dry cloth: WH6–14LAG: 14.5 kg.
• A-weighted emission sound pressure level at working stations:
– Wash: WH6–14LAG: <70 dB(A).
– Extraction: WH6–14LAG: <70 dB(A).
• Maximum inlet water pressure: 1000 kPa
• Minimum inlet water pressure: 50 kPa
• Additional requirements for the following countries; AT, BE, BG, HR, CY, CZ, DK, EE,
FI, FR, DE, GR, HU, IS, IE, IT, LV, LT, LU, MT, NL, NO, PL, PT, RO, SK, SI, ES, SE, CH,
TR, UK:
– The appliance can be used in an area open to the public.
– This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not be made by chil-
dren without supervision.
• Additional requirements for other countries:
– This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, un-
less they have been given supervision or instruction concerning use of the appliance

6User manual
by a person responsible for their safety. Children should be supervised to ensure
that they do not play with the appliance.
– This appliance is intended to be used in household and similar applications such as:
(IEC 60335-2-7) staff kitchen areas in shops, offices and other working environ-
ments, farm houses, by clients in hotels, motels and other residential type environ-
ments, bed and breakfast type environments, areas for communal use in blocks of
flats or in launderettes.
1.1 General safety information
The machine is only intended for water-wash use.
Do not hose down the machine with water.
In order to prevent damage to the electronics (and other parts) that may occur as the result of condensation, the ma-
chine should be placed in room temperature for 24 hours before being used for the first time.
1.2 Commercial use only
The machine/machines covered by this manual is/are made for commercial and industrial use only.
1.3 Symbols
Caution
Caution, high voltage
Read the instructions before using the machine

User manual 7
2 Warranty terms and exclusions
If the purchase of this product includes warranty coverage, warranty is provided in line with local regulations and sub-
ject to the product being installed and used for the purposes as designed, and as described within the appropriate
equipment documentation.
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance
in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec-
tronic format.
Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling
agents to obtain optimal results and maintain product efficiency over time.
The Electrolux Professional warranty does not cover:
• service trips cost to deliver and pick up the product;
• installation;
• training on how to use/operate;
• replacement (and/or supply) of wear and tear parts unless resulting from defects in materials or workmanship re-
ported within one (1) week from the failure;
• correction of external wiring;
• correction of unauthorized repairs as well as any damages, failures and inefficiencies caused by and/or resulting
from;
– insufficient and/or abnormal capacity of the electrical systems (current/voltage/frequency, including spikes and/
or outages);
– inadequate or interrupted water supply, steam, air, gas (including impurities and/or other that does not comply
with the technical requirements for each appliance);
– plumbing parts, components or consumable cleaning products that are not approved by the manufacturer;
– customer’s negligence, misuse, abuse and/or non-compliance with the use and care instructions detailed within
the appropriate equipment documentation;
– improper or poor: installation, repair, maintenance (including tampering, modifications and repairs carried out
by third parties not authorized third parties) and modification of safety systems;
– Use of non-original components (e.g.: consumables, wear and tear, or spare parts);
– environment conditions provoking thermal (e.g. overheating/freezing) or chemical (e.g. corrosion/oxidation)
stress;
– foreign objects placed in- or connected to- the product;
– accidents or force majeure;
– transportation and handling, including scratches, dents, chips, and/or other damage to the finish of the product,
unless such damage results from defects in materials or workmanship and is reported within one (1) week of
delivery unless otherwise agreed;
• product with original serial numbers that have been removed, altered or cannot be readily determined;
• replacement of light bulbs, filters or any consumable parts;
• any accessories and software not approved or specified by Electrolux Professional.
Warranty does not include scheduled maintenance activities (including the parts required for it) or the supply of
cleaning agents unless specifically covered within any local agreement, subject to local terms and conditions.
Check on Electrolux Professional website the list of authorized customer care.

8User manual
3 General
There are a large number of wash programs for different business segments available in the machine but only the
wash programs suitable for the business segment selected are visible on the program selection screen.
It is possible to create new wash programs directly on the user interface.
A wash program created in one model/size of machine can be transferred to another model/size without changing
any parameters.
The wash programs controls the whole wash process including chemical dosing.
Dosing pumps are fully managed and controlled from the machine, including calibration and low level alarms.
All machines have automatic saving of water, chemicals and energy. The water levels and the chemical dosing are
adapted to the weight of the load.
Optional there is an integrated weighing system that can prevent over- and under-loading.
Gestures
Tap
Touch one finger lightly on the screen.
Swipe
Move one finger across the screen quickly.
Scroll
Move one finger across the screen without lifting. Drag a list up or down to see more. Swipe to scroll quickly.

User manual 9
4 Handling
4.1 Load
Load the goods into the machine according to recommendations and close the door.
Recommended maximum load Lagoon programs
Wet-cleaning load (Wool, Silk etc)
General programs
Normal load
7 kg 14 kg
4.2 Detergent
Add the correct amount of detergent, bleach and softener according to recommendations.
(Not valid if automatic dosing is used).
fig.X00963
Softener, liquid.
Main wash, liquid chemicals.
Alt. for mop machines, liquid mop chemicals in last rinse.
Pre-wash, powder or liquid detergent.
Main wash, powder detergent.

10 User manual
4.3 To start a wash program
Tap to select a program from the list.
Depending on machine set up the programs are displayed as a list or as a grid.
fig.X01573A
fig.X01573
In list view you can get a quick view of the main parameters in the wash program: the calculated program duration,
the highest programmed temperature and the final extraction speed in G.
The program duration is calculated based on full load in the machine and that the water pressure is not lower than
what is specified in the Installation manual. Also, the inlet water temperature affects the calculated program time on
heated machines. The inlet water temperature value that is used in the formula can be changed in the settings menu.
When a program is selected, a start screen is shown. The appearance of this screen depends on the choices made
in the installation wizard and in the settings menu.

User manual 11
Activate the information menu for more details about selected program.
Information about the different program parameters are shown on the screen.
i
Information
The actual temperature
The highest programmed temperature
If there is a Cool down module in the program or not
Thermal disinfection (maintain temperature)
Remaining time in the current program module
Duration of the program

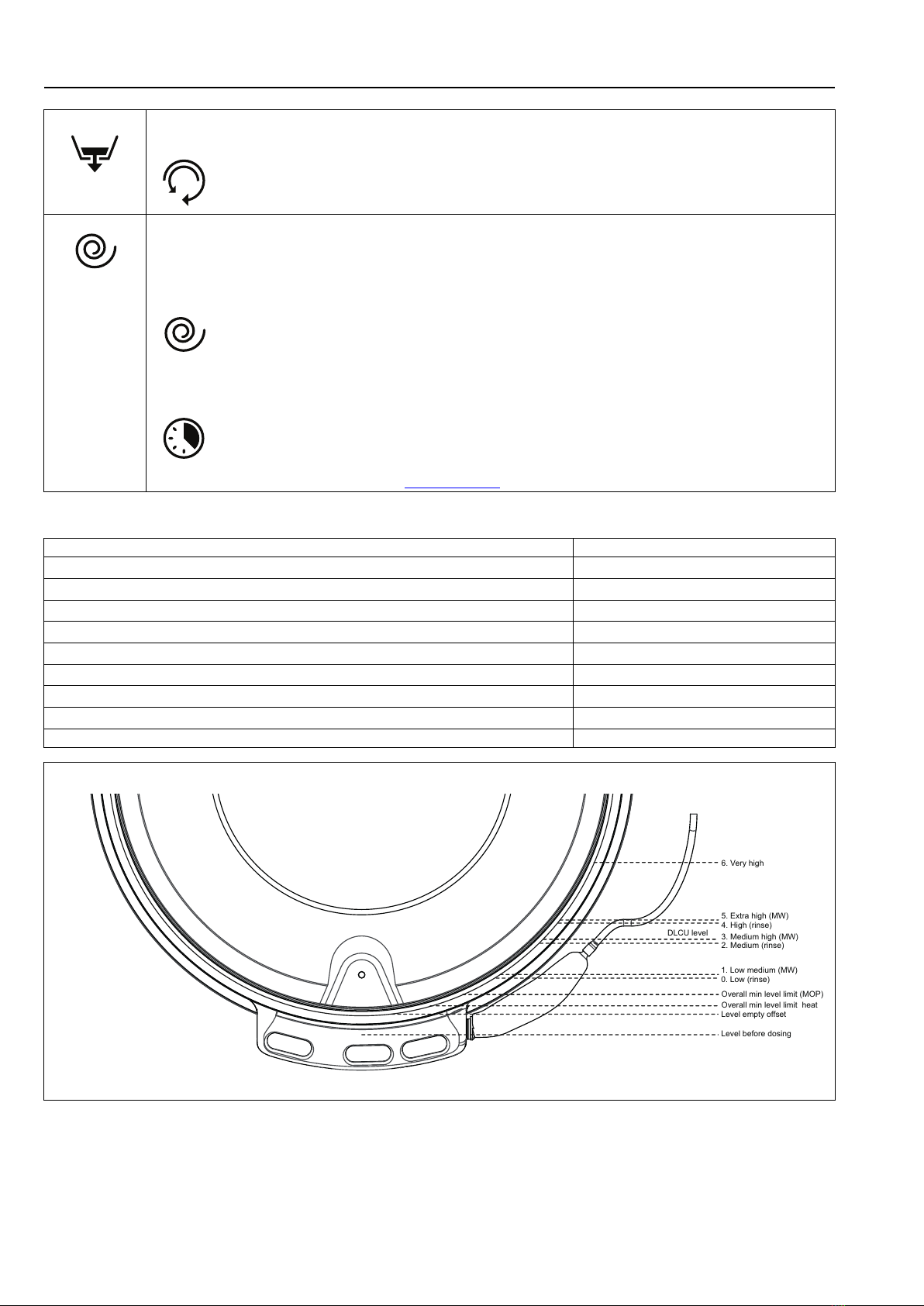

Indication of the water levels used in the program
Lowest level = 0
Highest level = 6
Indication of the drum action (rotation time/no rotation time) used in the program
No rotation = 0
Normal rotation = 1
Mildest rotation = 5
Indication of final extraction speed
Highest speed = 10
Dosing pumps used in the program
The calculated time when the wash cycle will be ready if it is started at the actual time.
It is possible to set a delayed start. Tap on the date/time field and set the desired finish time. Confirm with the start button.
The start button will twinkle until the program starts. If the door is opened before the program starts by the delayed start func-
tion the delayed start will be cancelled. In case you want to start the program before the delayed start function starts it you
can tap on start again.

12 User manual
Before start it is possible to add information about the wash load to be run. The menu items are selected in the Set-
tings menu. Follow the on screen instructions for each menu item. This information will be shown at the end of the
wash cycle and will also be stored in Statistics and be included in reports.
Operator ID input
Batch number input
Customer name input
Delivery day input
Tap on the start button to start the program.
During program run it is possible to pause, stop and rapid advance if allowed according to the settings.
Coin operated machines
Insert correct amount of coins to start the machine. Depending on the settings, you may also need to tap the start
button to start the program.
4.4 When program has ended
When a wash program has ended or been stopped it is possible to get a report on the screen.
Click on the report icon before opening the door to show a detailed report for the last program on the screen.
If this icon appears or not depends on which segment is selected. This function can be deactivated in the settings menu.
Leave the door open when ready. This is to prevent that moisture stays in the machine and develop bacteria and
mould.

User manual 13
5 Menus and functions
5.1 Main menu
Enter a password to access the Main menu.
There are different passwords for different levels of access.
Default passwords set from factory are:
• 0000: Manager: Chemical dosing (Used to edit pump settings)
• 1111: Manager: (Used to edit programs, change settings etc.)
Passwords can be changed in Settings.
When activating the Main menu the following menus are shown on the screen:
Programs
Shows the programs available. See section “To start a wash program”.
Edit programs
This menu is used to copy and duplicate wash programs.
Graphs
This menu shows process graphs.
Statistics
This menu shows statistics of the machine.
Pumps
This menu is used for managing the dosing pumps.
Settings
This menu is used for different settings of the machine.
Service
This menu is used for trouble shooting.
Transfer
This menu is used for transferring wash programs to/from the machine with USB connection.
Different sub menus are visible depending on machine set up.
Always follow the instructions on the screen.

14 User manual
5.1.1 Edit programs
In this menu it is possible to change settings for any selected program.
When activating this menu all available wash programs are listed.
For factory made programs it is however only possible to change the amount of chemicals.
Copy/duplicate a program by a long press. In the copy, all parameters can be changed. It is possible to copy a mod-
ule from one program and paste it into another.
Header module: General
The parameters that are valid for the whole wash program are set in the header module.
• Start pumps at
– Set the temperature at which dosing pumps should start in case “start at temperature” is selected in the wash module.
• Safe disinfection
– Set if validation of temperature and time is needed.
• Max load
– Set the maximum allowed load weight.
• Min load
– Set the minimum allowed load weight.
• Residual moisture*
– Use when washing garments that are humid when loaded into the machine Set the known residual moisture of the load
that is going to be weighed.
• Use calculated weight*
– Select if the dosing of chemicals and the water levels should be related to the calculated weight of dry load instead of
the measured load. (Mainly used for cleaning mops).
• Water reduction
– Select if water levels should be adjusted to the weight of the load.
* Tip: Wash programs for floor cleaning mops should start with pre rinse(s) followed by an extraction before the
weighing module. Run the program with dry, clean mops with known weight and abort the program after the extrac-
tion. Measure the weight of the damp mops and calculate the residual moisture. Select “Use calculated weight”.
Parameters in main wash, pre wash, rinse, pre rinse and soaking modules:
Temperature settings
• Filling with pre heating
– Set if the water shall be heated to max; “Filling max. temperature”, during the filling phase. Can be used to shorten the
total program time.
• Filling max. temperature
– Set the max water temperature during the filling phase. The temperature will be adjusted by opening and closing the
hot/cold water valves and/or turning on/off heating.
• Wash temperature
– Set the wash temperature between 10–95℃.
• Maintain temperature
– Set if the set wash temperature shall be maintained during the whole washing time. This is mainly used for thermal
disinfection.
Tip: In a main wash, following a pre wash, the “Filling max. temperature” can normally be set as high as the “Wash
temperature”.
Time settings
The times are set in hours/minutes/seconds.
• Filling
– Set the absorbing/wetting/soaking time. Time starts to count down when set level is reached. During this phase the tex-
tile will absorb water and the water valves will open to refill up to the set level.
• Washing
– Set the washing time. Time starts to count down when set level and temperature conditions are fulfilled.
• Start washing timer at
– Select from a drop down list if the washing time should start counting down when the set level is reached or when the
set wash temperature is reached.
Tip: In a main wash, following a pre wash, the time in the filling phase can normally be shortened since the textile al-
ready has absorbed water in the pre wash.
Water level settings
• Level
– Select water level from the drop down list. The relationship between drum diameter and level in mm is not linear.
Therefore, there is a list of proven levels that are adapted to give the same results regardless of drum size.
• Smart filling
– Select smart filling to get the most accurate water level.
Note!
If smart filling is selected the drum rotation will be stopped at the end of the filling.
For water level settings, please refer to section “Water level”.

User manual 15
Action and speed settings
Select drum rotation action during the different steps from the drop down list with predefined and tested rotation and standing
still times.
Select drum speed during the different steps. The value is set between 0–1.00G.
For action and speed settings, please refer to section “Drum filling action”.
Dosing of chemicals
For each of the chemicals the following can be set:
• At temperature
– Set if the dosing of the selected chemical should start before or after the dosing temperature that is set in header mod-
ule is reached.
• Load
– Set the amount of chemical(s) that shall be dosed in the step/module. The amount is set in ml/kg of load. The same
dosage amount per kg load gives different dosing times depending on how much load there is in the machine and not
depending of the machine capacity.
The amount of chemicals will however never be less than the % in the settings “Min. chemical dosing” even if the
weight of the load is very small.
Example: Min. chemical dosing: 30%, weight of the load is 20% of machine capacity. Dosing will be according to 30%
of machine capacity.
If the program does not have a weighing module the dosing will be according to the machines max. load.
1 2
3 4
Flushing in detergent box compartments
Select which compartment(s) in the detergent box that shall be flushed in the module. The front mounted box has 6 compart-
ments but 1a and 1b are flushed in parallel and this also applies to 2a and 2b. The top mounted box has 4 compartments.
In factory made programs the compartments are used like below:
• 1, 1b, 1a = Pre wash
• 2, 2b, 2a = Main wash
• 3 = Last rinse
• 4 = Main wash (pre wash/first rinse/last rinse)
1 2
3 4
Tip: If liquid bleach chemicals that become aggressive in high temperatures are used it is recommended to flush
compartment 4 in a program step with lower wash temperature for instance the first rinse.
Cool down module
A controlled cool down is necessary to avoid permanent wrinkles when washing synthetic materials in a temperature above
their glass-transition temperatures (Tg).
Cool down can also be used to avoid too hot water to be drained.
End temperature: Set the desired temperature that the water should reach.
Max temperature decrease: Set how fast the temperature decrease is allowed to be.
Action and speed during cool down.

16 User manual
Drain module
Action and speed during drain.
Extraction module
• Speed
– Select extraction speed from the drop down list with predefined and tested G-forces.
The same rotation speed in different sizes of drum diameters gives different dewatering. Therefore, the speed is speci-
fied in G instead of revolutions per minute (rpm).
• Time
– Set the total extraction time.
For extraction settings, please refer to section “Drum extraction”.
Water level
Water level in mm
0.Low (rinse) 97
1.Low Medium (MW) 100
2.Medium (rinse) 157
3.Medium High (MW) 158
4.High (rinse) 173
5.Extra High (MW) 174
6. Very High 203
Level Empty/offset* 35
Overall min level limit heat* 38
6. Very high
5. Extra high (MW)
4. High (rinse)
3. Medium high (MW)
2. Medium (rinse)
DLCU level
1. Low medium (MW)
0. Low (rinse)
Overall min level limit (MOP)
Overall min level limit heat
Level empty offset
Level before dosing
fig.X01712

User manual 17
Drum filling action
Drop down list Action Rotation in sec. No rotation in sec.
None None 0 0
Normal 15s rotation/4s still. Fast acceleration. 15 4
Mild 8s rotation/7s still. Slow acceleration. 8 7
Delicate 6s rotation/18s still. Very slow acc. 6 18
Delicate Wool 6s rotation/ 50s still. Slow acc. 6 50
Delicate Care 6s rotation/ 30s still. Slow acc. 6 30
Drum extraction
Drop down list
Min (45) 352
90 498
175 694
230 796
265 854
300 909
350 982
400 1050
420 1075
450 1113
G RPM
To duplicate and edit a program
Activate the program you wish to duplicate with a long press. An extra menu with options will appear on the screen.
Press the duplicate symbol to duplicate the program.
The copy will be added after the original program in the program selection list with the same name and “*” at the end
of the program name.
It is now possible to edit and rename the copy.
To copy a program parameter
Open the program you wish to copy a program parameter from. In the program parameter list; press and hold to acti-
vate the extra menu and press the copy symbol to copy the program parameter. Exit when ready.
Open the program where the copy of the program parameter shall be pasted. In the program parameter list; press
and hold to activate the extra menu and press the paste symbol to paste the program parameter. The program pa-
rameter will automatically be added in the correct position in the program set up.
To rename a program
Activate the program you wish to rename with a long press. An extra menu with options will appear on the screen.
Press the symbol with letters. It is now possible to enter a new name for the program.
Press the enter symbol to save the new name.
Note!
Factory made programs can not be renamed.

18 User manual
5.1.2 Statistics
This function is used to check the statistics of the machine. For example total program run hours, used chemicals,
power fails etc.

User manual 19
5.1.3 Pumps
In this menu you can manage dosing systems/pumps such as Dosave, Jetsave or other pumps connected to the
machine.
Pumps
Select pump type connected
• Select “Peristaltic” for Dosave (or any other dosing system or pumps connected to the digital (relay) outputs).
• Select “Venturi” for Jetsave.
– Set desired flush time.
– Set the desired clean flush time.
• Select “Manifold” for Dosave (or any other dosing system or pumps connected to the digital (relay) outputs) in combina-
tion with flush manifold.
– Set desired flush time.
Tip: Needed flush time can be calculated if you know the tube length, diameter and the flow rate.
Example:
• Flow rate: 2.2 l/min
• Tube diameter: 10 mm
• Tube length: 4.5 m
• Calculated needed flush time: 10 seconds
Note!
Check that the flush time is long enough by disconnecting the tube from the machine and make sure that water
comes at the end of the flush time. If chemicals still come at the end of the flush time the flush time must be
increased.
Chemicals
In this menu you can change the allocation of chemicals to pumps.
Tap on the chemical type (detergent/softener/bleach and so on). A drop-down list with chemical types will appear. Select the
chemical type you want to connect to the pump.
It is also possible to add branded name and a picture to each chemical type. The name and picture will then be visible under
chemicals in the “Edit program” menu and on the start program screen if selected in the settings menu.
Note!
In the “Transfer menu”, you can upload branded chemical images.
$
Cost
In this menu you can set the price of the chemicals for cost calculations and reports.
Priming
You must make sure that the tubes are filled with chemicals before the calibration is done. Follow the instructions on the
screen.
Calibration
Follow the instructions on the screen.
It is also possible to type in the flow rate by a long press on the value.
Tube change
Here you can note the date when the tubes have been changed.
Note!
This menu item is not active in all software versions.

20 User manual
5.1.4 Settings
In this menu, different settings to the machine can be made. The table show some of the settings that can be
changed/set.
Language
• Default language
– Choose from the drop down list which language that shall be used as default language on the machine.
• Timeout to default
– Set the time, after which the machine returns to the set default language from any other language selected during
operation.
18
Date
Used to change displaying of the date.
Time
Used to change displaying of the time.
Display / Sleep timeout
The display will either be dimmed to a lower brightness or a “Welcome screen” will be shown after the set time of inactivity.
Select if the “Welcome screen” should be shown.
Note!
In the “Transfer menu”, you can upload your own welcome screen.
Programs
• Arrange
– Make programs active or inactive by dragging and dropping them between the different columns Active and Inactive. It
is only the programs listed in the column Active that will be shown in the program selection screen.
• View mode
– Select if the programs shall be displayed as a list or as a grid on the program selection screen.
– Select if the following fields shall be visible or not on the screen at the start of a program.
– Info
– Operator ID
– Batch ID
– Customer ID
– Delivery date
• End-washing consumptions
– Select if utility consumption data should be shown at the end of a wash cycle.
• Program screen timeout
– If the user has selected a program but not yet started the program, the user interface will go back to the program selec-
tion screen after the time set in this menu.
• Max pause time
– Select if the time a program can be paused should be limited and in that case, set the maximum pause time.
• Region/Country and Business segment
– Select the country and one or more business segments where the machine will be used. These selections will create
an active program list with suitable factory-made programs.
Note!
If any self-service segment is selected, some of the parameters that affect how the user interface looks will
change.
• Pause, Stop and Skip / Rapid advance buttons
– Select for each button, if it should be visible during the whole program (always on), only during the regret time or if it
should not be visible at all during the program (always off).
• Regret time
– This time is counted down from the start of a program. Before this time is up it is possible to go back to the program se-
lection screen without loosing paid money (valid for coin-operated machines).
