Electrolux EKC 603505 User manual

Ceramic free-standing
electric cooker
Отдельно стоящая
электрическая плита
со стеклокерамической
варочной панелью
EKC 603505
Instruction booklet
Руководство по
эксплуатации

2electrolux

electrolux 3
Welcome to the world of Electrolux
Thank you for choosing a first class product from Electrolux, which hopefully
will provide you with lots of pleasure in the future.
The Electrolux ambition is to offer a wide variety of quality products that make
your life more comfortable.
You find some examples on the cover in this manual.
Please take a few minutes to study this manual so that you can take advantage
of the benefits of your new machine.
We promise that it will provide a superior User Experience delivering Ease-of-
Mind.
Good luck!

4electrolux
Important safety information .............................................................................. 2
Control panel ..................................................................................................... 4
Operation .......................................................................................................... 5
Using the ceramic glass hob ............................................................................ 6
Electric oven...................................................................................................... 7
Before the first use of the appliance ................................................................... 8
Using the oven .................................................................................................. 9
Hints and tips for using the oven ..................................................................... 10
Cooking Chart - Conventional and fan cooking ................................................ 11
Cooking Chart - Grilling ................................................................................... 12
Cleaning the Ceramic Hob .............................................................................. 13
Cleaning the oven ........................................................................................... 14
Something not working ................................................................................... 17
Service and Spare Parts .................................................................................. 29
European guarantee ...........................................................................................
For the Installer
Instructions for the Installer .............................................................................. 19
Technical data ................................................................................................. 19
Electrical connections ...................................................................................... 20
For the User
Contents
The following symbols will be found in the text to guide you throughout the
Instructions:
Safety Instructions
Step by step instructions for an operation
Hints and Tips
Environmental Information
)
Guide to Use the instructions
This appliance is manufactured according to the following EEC directives:
2006/95 EEC - 93/68 EEC - 89/336 EEC current edition.

electrolux 5
Installation
• The work of installation must be
carried out by competent and
qualified installers according to the
regulations in force.
• Any modifications to the domestic
electrical mains which may be
necessary for the installation of the
appliance should be carried out only
by competent personnel.
• Check your appliance for any trans-
port damage. Never connect a dam-
aged appliance. If your appliance is
damaged, contact your supplier.
• It is dangerous to modify, or attempt
to modify, the characteristics of this
appliance.
• Avoid installation of the appliance
near inflammable material (e.g.
curtains, tea towels, etc.).
• This appliance is heavy. Take care
when moving it.
• This appliance cannot be positioned
on a base.
• Remove all packaging before using
the appliance.
• Some parts have a shock-resistant
plastic film protection. Be sure to
remove this plastic film before you
start operating the appliance and
clean the parts involved using a soft
cloth wrung out in warm water to
which a little washing up liquid has
been added.
• Ensure that the electrical supply
complies with the type stated on the
rating plate.
You MUST read these warnings carefully before installing or using the hob. If
you need assistance, contact our Customer Care Department.
Important safety information
ENGLISH
People safety
• This appliance is not intended for
use by children or other persons
whose physical, sensory or mental
capabilities or lack of experience and
knowledge prevents them from
using the appliance safely without
supervision or instruction by a
responsible person to ensure that
they can use the appliance safely.
• This appliance is designed to be
operated by adults. Do not allow
children to play near or with the
appliance.
• The appliance gets hot when it is in
use. Children should be kept away
until it has cooled.
• Children can also injure themselves
by pulling pans or pots off the
appliance.
During use
• This appliance is intended for
domestic cooking only. It is not
designed for commercial or
industrial purposes.
• Do not use this appliance if it is in
contact with water.
• Do not operate the appliance with
wet hands.
• Ensure the control knobs are in the
‘OFF’ position when not in use.
• During use the appliance becomes
hot. Care should be taken to avoid
touching heating elements inside the
oven.

6electrolux
•Always stand back from the oven
when opening the oven door, to
allow any build-up of steam or
heat to release.
• When using other electrical
appliances, ensure the cable does
not come into contact with the hot
surfaces of the appliance.
• Never use the ceramic hob as a
working space. Do not store things
on the ceramic hob.
• Never use plastic or aluminium foil
dishes on the ceramic hob.
• Never use plastic dishes in the oven.
Never line any part of the oven with
aluminium foil.
• Unstable or misshapen pans should
not be used on the cooking zones as
unstable pans can cause an
accident by tipping or spillage.
• The ceramic hob is shockproof, but
not unbreakable! Hard or pointed
objects falling from a height can
damage the hob. If scratches or
cracks are noticed, disconnect the
cooker from the electrical supply
and call you nearest Service Force
Centre.
• Never leave the appliance unattend-
ed when cooking with oil and fats.
• This appliance should be kept clean
at all times. A build-up of fats or
foodstuffs could result in a fire.
• Always ensure that the oven vent
which is located at the centre back
of the hob is left unobstructed to
ensure ventilation of the oven cavity.
• Perishable food, plastic items and
areosols may be affected by heat
and should not be stored above the
appliance.
• Only heat-resistant plates may be
placed in the drawer situated under
the oven. Do not put combustible
materials there.
• Never use steam or high pressure
steam cleaners to clean the
appliance.
• Do not use harsh abrasive cleaners
or sharp metal scraper to clean the
oven door glass since they can
scratch the surface, which may
result in shattering of the glass.
Service
• This appliance should only be repaired
or serviced by an authorised Service
Engineer and only genuine approved
spare parts should be used.

electrolux 7
Keep this instruction book for future reference and ensure it is passed
on to any new owner.
These instruction are only valid in the countries whose symbols appear
on this booklet’s cover.
Environmental information
• After installation, please dispose of
the packaging with due regard to
safety and the environment.
• When disposing of an old appliance,
make it unusable, by cutting off the
cable.
• The symbol on the product or
on its packaging indicates that this
product may not be treated as
household waste. Instead it shall be
handed over to the applicable collec-
tion point for the recycling of electri-
cal and electronic equipment. By en-
suring this product is disposed of
correctly, you will help prevent po-
tential negative consequences for
the environment and human health,
which could otherwise be caused by
inappropriate waste handling of this
product. For more detailed informa-
tion about recycling of this product,
please contact your local city office,
your household waste disposal ser-
vice or the shop where you pur-
chased the product.

8electrolux
Control panel
1. Front left cooking zone control knob
2. Back left cooking zone control knob
3. Back right cooking zone control knob
4. Front right cooking zone control knob

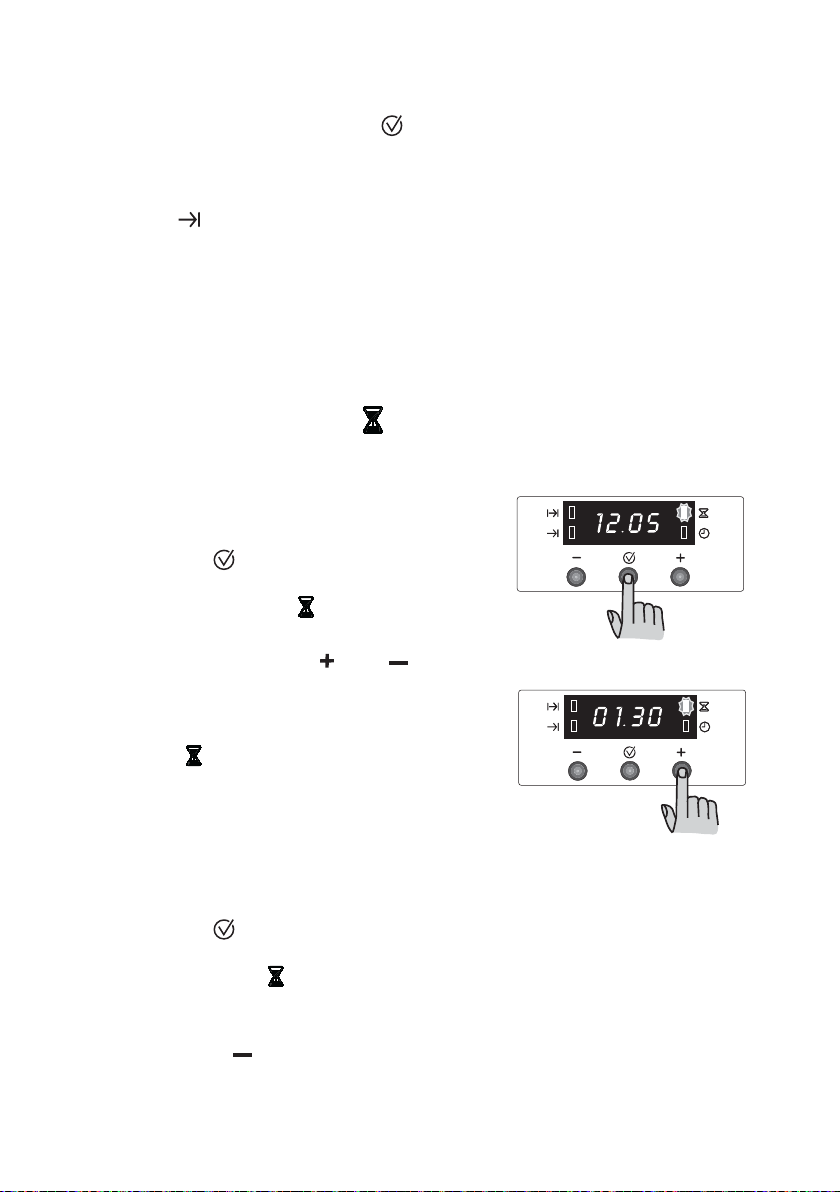

5. Electronic programmer
The oven cavity
Accessoires
Oven Shelf Baking Tray Dripping Pan

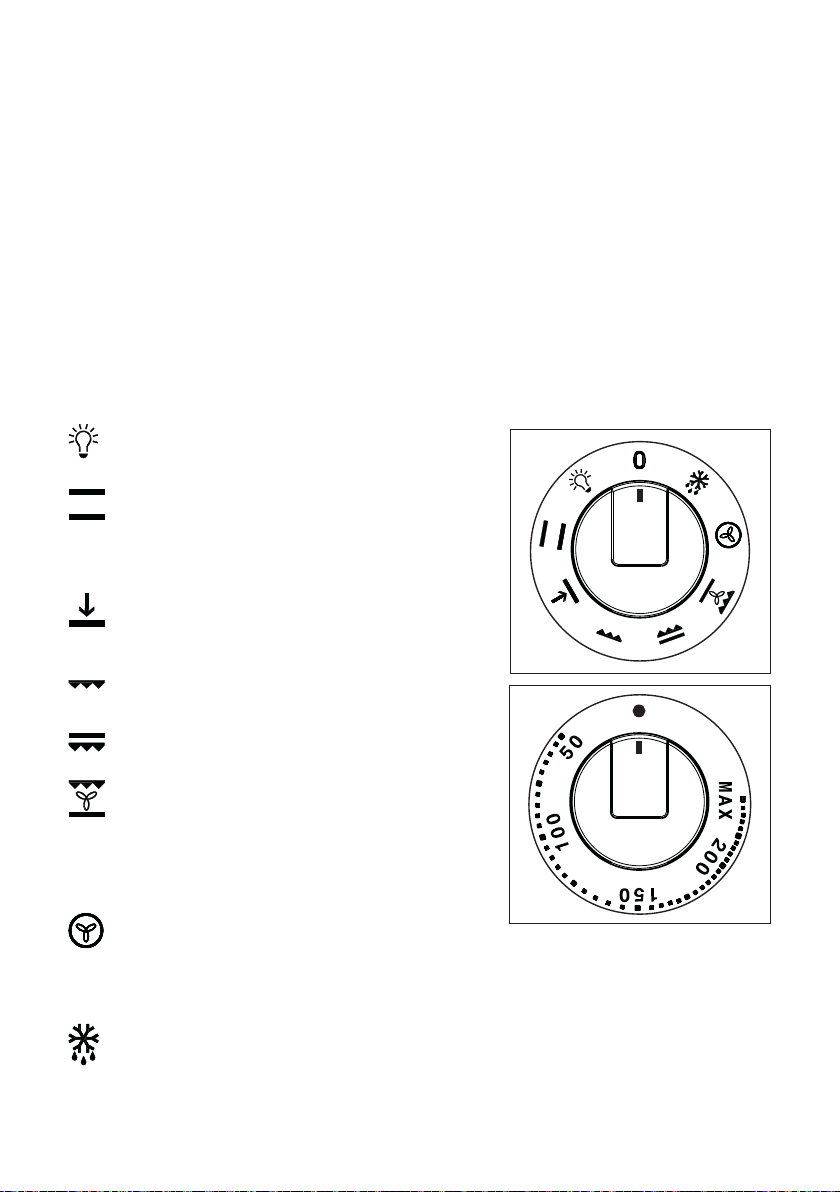

6. Oven function control knob
7. Mains on light
8. Oven thermostat pilot light
9. Oven thermostat control knob
6543821 9
Storage drawer
The storage drawer is located underneath
the oven cavity.
During cooking the storage drawer
may become hot if the oven is on
high for a long period of time,
therefore flammable materials such
as oven gloves, tea towels, plastic
aprons etc. should not be stored
in the drawer.
Oven accessories such as baking
sheets, will also become hot,
therefore care should be taken
when removing these items from
the drawer whilst the oven is in use
or still hot.
7
Grill element Oven light
Oven fan
Telescopic
shelf
supports

electrolux 9
Operation
Ceramic hob cooking zones
To switch on a cooking zone, turn
the relevant control knob clockwise to
the required heat setting.
The control knob is numbered 0 - 9.
0- OFF
9- Maximum
The hob has two types of cooking
zones:
2 normal cooking zones (back left
and front right)
We recommend the plates are
switched to maximum (9) for a short
while to boost the cooking zone, and
then adjusted to the required setting.
2 double circuit cooking zones (front
left and back right)
The front left cooking zone has two
heating elements.
- To switch on the smaller circular
cooking zone, turn the relevant
control knob clockwise to the
required heat setting.
- To switch on both heating elements,
turn the control knob clockwise to
maximum heat setting (9) then turn
the knob further to nearly reach the
"0" symbol. You will hear a "click"
and the wider cooking zone will
switch on. Then turn back the knob
to position 9 and adjust it to the
required heat setting.
Please be aware that the two heat-
ing elements will now operate together,
giving a higher power output than a nor-
mal cooking zone.

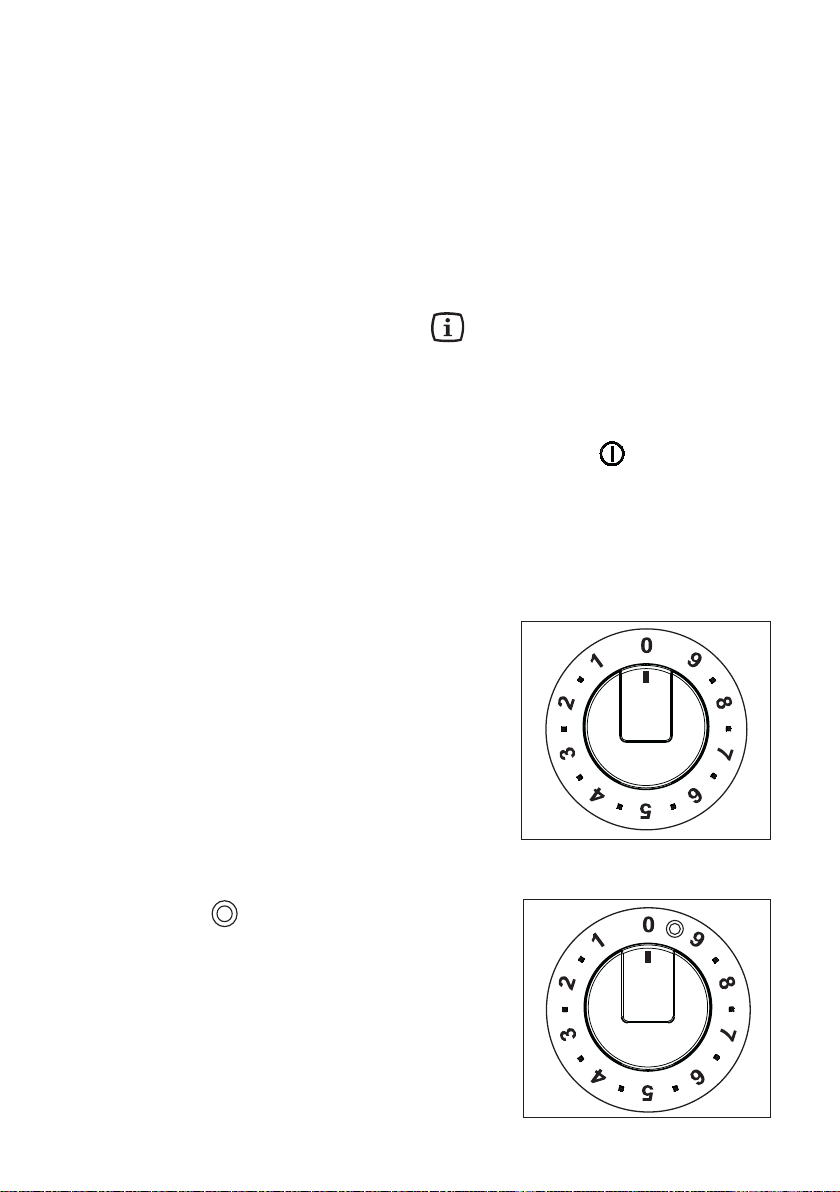

Control knob for double circuit
cooking zone
Control knob for normal cooking
zone
Residual heat indicators
The hob is fitted with four residual
heat indicators corresponding to each
cooking zone. The corresponding indi-
cator will remain on until the temperature
falls below 30°C, even after the cooking
zone is switched off.
When a cooking zone is switched
on, a short buzzing may be
heard. This is quite normal and
does not affect the hob operation
in any way.
Mains on light
The mains on light will come on when
the oven function control knob and/or
the cooking zone control knob are set.

10 electrolux
Using the ceramic glass hob
Ceramic hob cooking zones
Ceramic glass surface
The glass is hard, and has been tem-
pered to withstand heat, cold and tem-
perature shocks. But like all glass it is
sensitive to impact. Do not stand on the
ceramic glass surface.
If scratches or cracks are noticed,
disconnect the cooker from the electri-
cal supply to avoid the possibility of elec-
tric shock and call you nearest Service
Force Centre.
Keep all objects and materials which
can melt away from the cooking surface,
e.g. plastics, aluminium foil.
Care should be taken when prepar-
ing food or drinks containing sugar. If
anything of this nature accidentally
comes into contact with the ceramic
surface it must be scraped off immedi-
ately while still hot and wiped away to
avoid damage to the surface.
Energy consumption
To save energy, you should:
- use only cooking and frying utensils
with smooth, flat bases.
- place pots and pans in position be-
fore switching on the cooking zone.
- wherever possible, cover pots and
pans with a lid.
- switch off the cooking zone a few
minutes before the end of the cook-
ing time, in order to make use of the
residual heat.
- use the residual heat of the cooking
zones for keeping food warm or for
melting.
- position pots and pans centrally on
the cooking zones.

electrolux 11

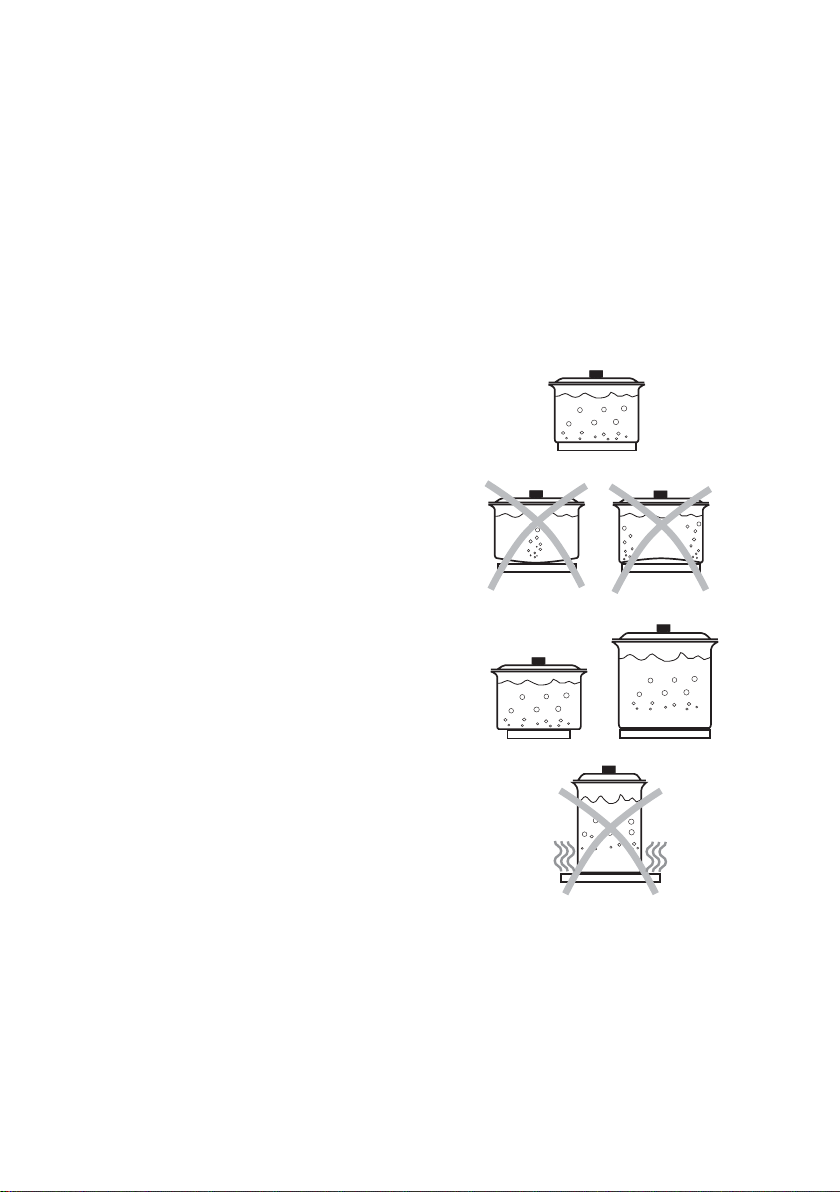

Saucepans and frying pans
Saucepans and frying pans should
not be smaller than the cooking zone,
and preferably not more than 10-15 mm
larger than the diameter of the cooking
zone.
Always use cooking and frying uten-
sils with smooth, flat bases.
The bases should always be clean
and dry. Cook with a lid in place.
Check that the bases of utensils are
smooth and undamaged; bases with
burrs and sharp edges will scratch the
ceramic glass surface.
To avoid scratching or damaging the
ceramic cooking surface, pots and pans
should be moved on the plate by lifting
them, and not by sliding.
Utensils with aluminium and copper
bases can leave behind metallic
discolourations which can only be re-
moved with difficulty or sometimes not
at all.
Take care when frying food in
hot oil or fat, as the overheated
splashes could easily ignite.

12 electrolux
Electric oven
Oven function and thermostat
control knobs
They enable to select the most appro-
priate type of heating for the different
cooking requirements by appropriately
connecting the heating elements and ad-
justing temperature to the required level.
Turn the thermostat control knob
clockwise to select temperatures be-
tween 50°C and 230°C (MAX).
0The oven is off.
Oven Light - The oven light will be
on without any cooking function
Conventional cooking - The heat
comes from both the top and bot-
tom element, ensuring even heating
inside the oven.
Bottom heating element - The
heat comes from the bottom of the
oven only.
Inner grill - It can be used for grill-
ing small quantities.
Full Grill - The full grill element will
be on.
Pizza - The bottom element pro-
vides direct heat to the base of piz-
zas, quiches or pies, while the fan
ensures air is circulated tocook the
pizza toppings or pie fillings.
Fan cooking - This allows you to
roast or roast and bake simoultane-
ously using any shelf, without flavour
transference.
Defrost Setting - This setting is in-
tended to assist in thawing of frozen
food.

electrolux 13
Mains on light
The mains on light will come on when
the oven function control knob and/or the
cooking zone control knob are set.
Thermostat control light
The thermostat control light will come
on when the thermostat control knob is
turned. The light will remain on until the
correct temperature is reached. It will then
cycle on and off to show the temperature
is being maintained.
The safety thermostat
This oven is provided with a safety
thermostat. In case of malfunctioning of
the main thermostat, and consequential
over-heating, the safety device will stop
the power supply to the appliance. If this
happens, call your local Service Force
Centre. Under no circumstances should
you attempt to repair the appliance
yourself.

14 electrolux
Before the first use of the appliance
Before using the appliance,
remove all packaging, both inside
and outside the appliance,
including the advertising labels
and any protective film.
Using the oven for the first time
Before cooking for the first time,
carefully wash the oven
accessories.
Before first use, the oven should be
heated without food. During this time, an
unpleasant odour may be emitted. This
is quite normal.
The oven will work only if theThe oven will work only if the
The oven will work only if theThe oven will work only if the
The oven will work only if the
time of day has been set.time of day has been set.
time of day has been set.time of day has been set.
time of day has been set.
1. Set the time of day with the
electronic programmer (see
chapter "Electronic program-
mer").
2. Switch the oven function con-
trol knob to conventional
cooking function .
3. Set the thermostat control
knob to MAX.
4. Open a window for ventilation.
5. Allow the oven to run empty
for approximately 45 minutes.
This procedure should be repeated
with the full grill cooking function
and the fan cooking function for ap-
proximately 5-10 minutes.
Once this operation is carried out,
let the oven cool down, then
clean the oven cavity with a soft
cloth soaked in warm water to
which a little mild washing-up liq-
uid has been added.
))
))
)

electrolux 15
Using the ceramic hob for the
first time
The cooking surface should be
cleaned before use to remove any traces
of the production process.
Wipe the ceramic surface and frame
with a damp cloth using warm water to
which a little washing up liquid has been
added, and wipe dry.
Heating up for the first time
When using the hob for the first
time:
1. place on all the cooking zones a pan
filled with some water;
2. switch the cooking zones on for
about 10 minutes at “maximum” po-
sition until water inside the pans
boils;
3. open a window for ventilation;
4. then, let the cooking zones to cool
down.
During this time, the cooking
zones may smoke a little and an
unpleasant odour may be emit-
ted. This is absolutely normal and
is caused by residues of manu-
facturing.
Once this operation is carried out, let
the cooking zones to cool down, then
clean them with a soft cloth soaked in
warm water.
))
))
)

16 electrolux
The oven will only work if the time
of day has been set.
However, the oven can also be
operated without any programme.
Setting the time of day
When the power supply is switched
on, or after a power failure, the “Time of
day” pilot lamp will flash on the
display.
To set the correct time of day:To set the correct time of day:
To set the correct time of day:To set the correct time of day:
To set the correct time of day:
1. Press button or .
2. After the setting is carried out, wait
for 5 seconds: the “Time of day” pilot
lamp will go out and the display
will show the set time. The appliance
is ready for use.
To reset the correct time of day:To reset the correct time of day:
To reset the correct time of day:To reset the correct time of day:
To reset the correct time of day:
1. Press button repeatedly to select
the “Time of day” function. The rel-
evant pilot lamp will start flashing.
Then proceed as described above.
The time of day can only be reset if
no automatic function (cook duration
or end of cooking ) has been
set .
Electronic programmer
1. Push button for selecting a function
2. Decreasing control button “ ”
3. Increasing control button “ ”
4. Display
5. “Cooking Duration” pilot lamp
6. “End of cooking” pilot lamp
7. “Minute minder” pilot lamp
8. “Time of day” pilot lamp
In the event of a power failure, all
the settings (time of day,
programme setting or programme
in operation) will be cancelled.
When the power is restored, the
numbers in the display will flash,
and the clock/timer has to be
reset.
5
1
23
6
7
8
4

electrolux 17
“Cooking Duration” function
This function allows the oven to
automatically switch off at the end of a
programmed cooking duration time.
Place food in the oven, select a cooking
function and adjust the cooking tempe-
rature. Press button repeatedly to
select the “Cooking Duration” function.
The relevant pilot lamp will start
flashing. Then, proceed as follows:
To set the duration time:To set the duration time:
To set the duration time:To set the duration time:
To set the duration time:
1. Press button or .
2. After the setting is carried out, wait
for 5 seconds: the "Cooking Duration"
pilot lamp will come on and the
display will revert to the time of day.
3. When cooking time is over, the oven
will be switched off automatically and
an acoustic alarm will be heard, while
the pilot lamp will start flashing. Turn
the oven function and the thermostat
control knob to zero.
To switch off the acoustic alarm, press
any button.
NOTE:NOTE:
NOTE:NOTE:
NOTE: turning the acoustic alarm off
will reset the oven to manual, and if
the oven function and the thermostat
knobs are not set to zero the oven
will start to heat again.
To cancel the duration time:To cancel the duration time:
To cancel the duration time:To cancel the duration time:
To cancel the duration time:
1. Press button repeatedly to select
the “Cooking Duration” function. The
relevant pilot lamp will flash and
the display will show the remaining
cooking time.
2. Press button until the display
shows “0:00”. After 5 seconds the
pilot lamp will go out and the display
will revert to the time of day.

18 electrolux
“End of cooking” function
With this function, you can set the oven to
switch off automatically when a programmed
end of cooking time is over. Place food in the
oven, select a cooking function and adjust the
cooking temperature. Press button repeat-
edly to select the “End of cooking” function. The
relevant pilot lamp will start flashing. Then, pro-
ceed as follows:
To set the End of cooking time:To set the End of cooking time:
To set the End of cooking time:To set the End of cooking time:
To set the End of cooking time:
1. Press button or .
2. After the setting is carried out, wait for 5
seconds: the “End of cooking” pilot lamp
will come on and the display will revert to the
time of day.
3. When cooking time is over, the oven will be
switched off automatically and an acoustic
alarm will be heard, and the pilot lamp will
start flashing. Turn the oven function and the
thermostat control knob to zero.
To switch off the acoustic alarm, press any
button. NOTE: turning the acoustic alarm off
will reset the oven to manual, and if the oven
function and the thermostat knobs are not
set to zero the oven will start to heat again.
To cancel the End of cooking time:To cancel the End of cooking time:
To cancel the End of cooking time:To cancel the End of cooking time:
To cancel the End of cooking time:
1. Press button repeatedly to select the “End
of cooking” function. The relevant pilot lamp
will flash and the display will show the pro-
grammed end of cooking time.
2. Press button until the display shows the cur-
rent time of day. The programmer will beep and
the pilot lamp will go out.
“Cooking duration” and “End of
cooking time” combined
The functions “Cooking duration” and “End
of cooking time” can be used simultaneously to
set the oven to switch on and off automatically
at a later time.
1. With the “Cooking duration” function (carry
out the cooking duration setting as described

electrolux 19
in the relevant chapter) set the
duration time. Then, press button :
the display will show the
programmed setting.
2. With the “End of cooking time”
function (carry out the End of
cooking setting as described in the
relevant chapter) set the end of
cooking time.
The relevant pilot lamps will come on
and the display will show the time of
day. The oven will switch on and off
according to the set programmes.
“Minute minder” function
The minute minder alarm will sound
at the end of a timed period, but the
oven will remain on, if it is in use.
To set the minute minder:
1. Press button repeatedly to select
the “Minute minder” function. The
relevant pilot lamp will start
flashing.
2. Then, press button or
(maximum: 2 hours, 30 minutes).
3. After the setting is carried out, wait
for 5 seconds: the “Minute minder”
pilot lamp will come on.
4. At the end of the timed period, the
pilot lamp will start flashing and an
acoustic alarm will be heard. To
switch off the acoustic alarm, press
any button.
To cancel the minute minder:
1. Press button repeatedly to select
the “Minute minder” function. The
relevant pilot lamp will flash and
the display will show the remaining
time.
2. Press button until the display
shows “0:00”. After 5 seconds the
pilot lamp will go out and the display
will revert to the time of day.

20 electrolux
How to switch off the display
1. Press two programmer push buttons
simoultaneously and keep them
pressed for about 5 seconds. The dis-
play will switch off.
2. To switch on the display, press any but-
ton.
The display can be switched off
only if no other functions have
been set.
