Electrolux EKM9682X User manual

000000000-R-WWYYYY
2
20
37
55
EKG9686X
EKG9688X
EKM9689X
User manual
Petunjuk Penggunaan
คู่มือการใช้งาน
EN Freestanding Cooker
ID Kompor Gas (Freestanding)
TH เตาแก๊ ส-เตาอบตั�งพื�น
CN 独立式烤箱炉灶 使用手册
Depdag no. : I.45.EI14.01201.1216
EKM9682X
Depdag no. : I.45.EI1.00511.0418

1
CONTENTS
Specification 1
Important safety information 2
Installation 3
Using cooker for the first time 7
Using the Gas hob burners 10
Using the Gas Oven 12
Using the electric oven and grill 14
Using the mechanical timer 16
Using the Turnspit 17
Tips for oven cooking 18
Cooking Time chart 20
Maintenance & Cleaning 21
Trouble Shooting 22
Guarantee and Service 23
Consumer Service Center 24
SPECIFICATION
ELECTROLUX MODEL COLOUR
NO.GAS BURNER
POWER OVEN TYPE
BURNER (kW)
90CM
EKG9686X STAINLESS
STEEL 5 4.5+3+2x2+1 62L GAS + GAS GRILL
EKG9688X STAINLESS
STEEL 5 4.5+2x2+1+ 3 130L GAS + GAS GRILL
EKM9689X STAINLESS
STEEL 5 4.5+3+2x2+1 130L ELECTRIC
EKM9682X STAINLESS
STEEL 462L GAS + GAS
GRILL
3.4+2x2+1

2
ELECTROLUX MODEL
NO. NO. GAS COOKER
IGNITION
GAS CYLINDER
COMPART MENT
OVEN FAN OVEN
LAMP
90CM
EKG9686X 1 1 ELECTRIC YES
EKG9688X 2 2 ELECTRIC NO
EKM9689X 2 2 ELECTRIC NO
Dimension W x D x H: 900W x 600D x 860H (EKG9686X,EKG9688X,EKM9689X)
Weight Net / Gross:
EKG9686X: 62Kg / 68Kg
EKG9688X: 75Kg / 81Kg
EKM9689X: 72Kg / 78Kg
Oven Capacity Gross: 130Litre/ 62Litre (with gas bottle compartment)
Heat Input Gas Burners:
Wok Burner 4.5 kW
Rapid Burner 3.0 kW
Fish Burner 3.0kW
Semi Rapid Burner 2.0 kW
Auxiliary Burner 1.0 kW
Pressure: LPG / 30 mbar
This manual is prepared for more than one model. Your appliance may not have some of
the features outlined in this manual. Please read this manual carefully and pay attention to
the figures and information that relates to your model.
IMPORTANT SAFETY INFORMATION
It is very important that this instruction book should be kept safely for the future
consultation. If the appliance should be sold or given to another person, please
ensure that the booklet goes together with it, so that the new owner can know
functions of this appliance and also be aware of the necessary precautions.
NOTE –Product warnings have been given for the safety of you and other users. We
therefore ask you to read carefully the procedures of installing and using this cooker.
EKM9682X 01ELECTRIC
EKM9682X: 60Kg / 66Kg
Triple Burner 3.4 kW
YES
900W x 550D x 860H (EKM9682X)

3
INSTALLATION
The work on installation must be carried out by competent and qualified
installers according to the local regulation in force.
Any modifications to the domestic electrical main which maybe necessary for the
installation of the appliance should be carried out only by a qualified technician.
It is dangerous to modify, the characteristics of this appliance.
Avoid installation of the cooker near flammable material ( e.g. curtains, tea
towels, etc. )

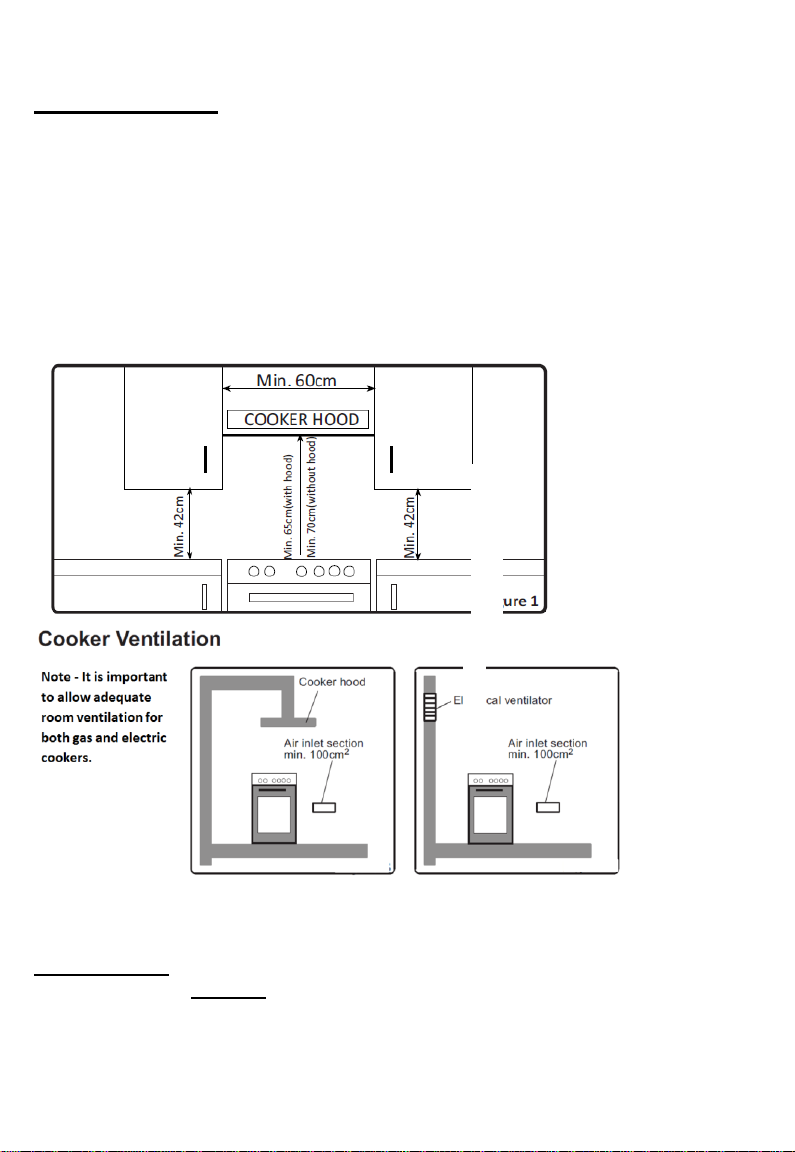

If installing the cooker with a cooker hood ensure there is a minimum of 65cmto
the underside of the hood ...see Figure 1

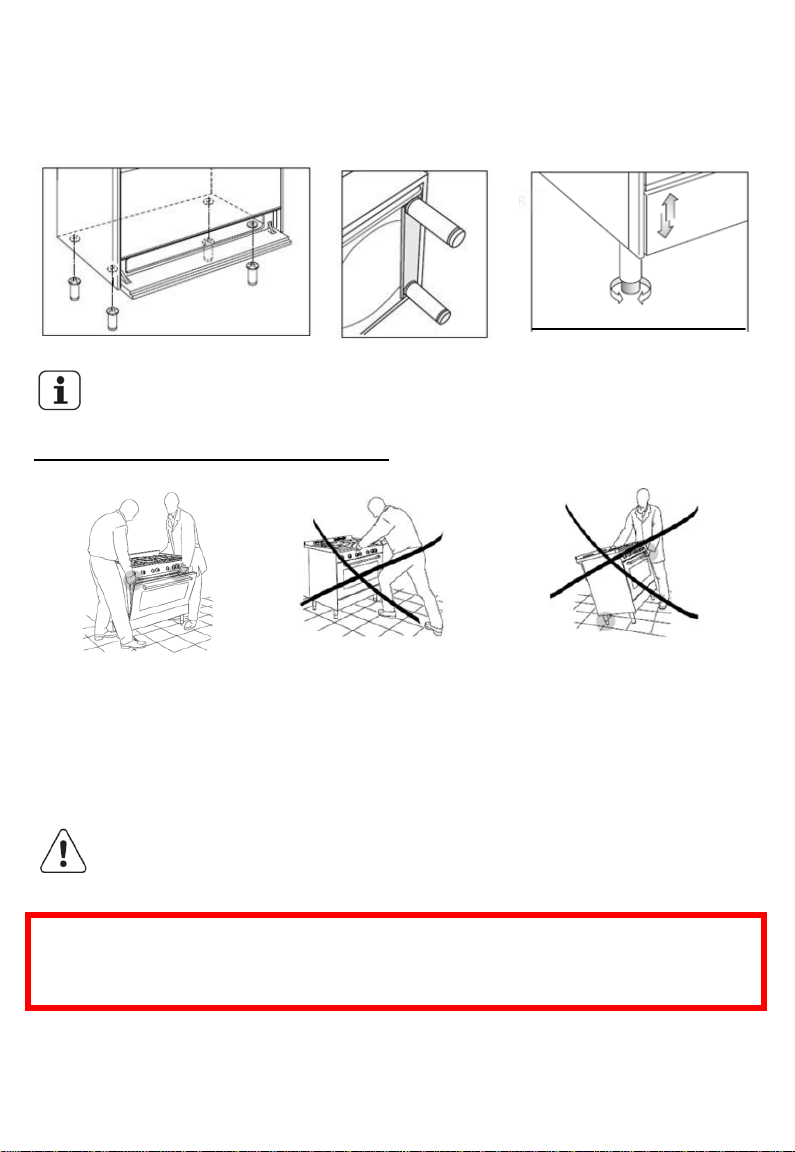

Where supplied you must use the adjustable feet.
The cooker chassis must not sit directly on the floor, a plinth or support surface.
To fit adjustable feet.-

4
1. Place the cooker on a piece of polystyrene packaging or similar exposing the
base for fitting the feet.
2. Fit the 4 feet by screwing them tightly into the base as shown below.
3. Level the cooker by screwing the feet in or out.
To prevent damaging the adjustable feet, ensure the cooker is always lifted by
two people. DO NOT DRAG the cooker. Lift the feet clear of the floor.
Do not lift the cooker by the door handles
The following instructions are meant for a qualified installer, in order that the operations
of installation, regulation, and service are executed according to the existing regulations.
Whenever changes are made involving the disconnection of the machine it is necessary to
proceed with maximum caution.

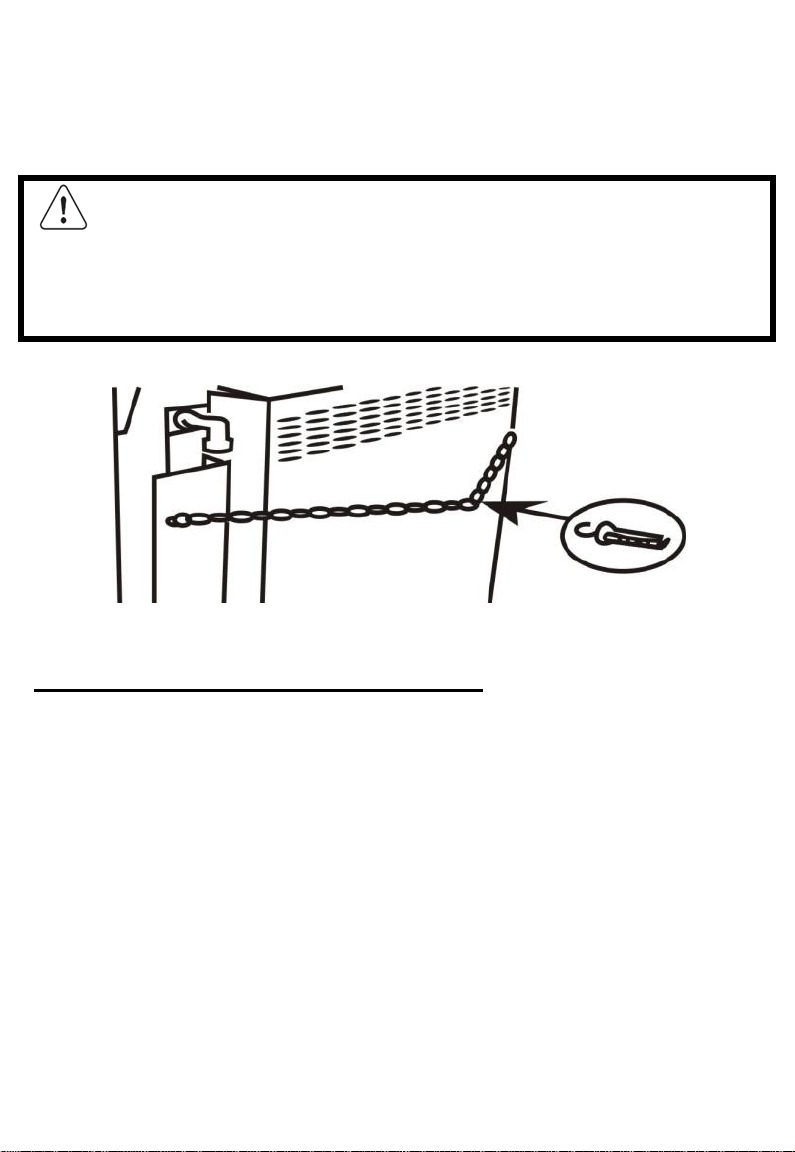

WARNING –The anti-tip chain must be installed and fixed securely to a wall
behind the cooker to prevent accidental tipping of the cooker. ( See Page 6)
THE MANUFACTURING COMPANY DECLINES ANY RESPONSIBILITY FOR
POSSIBLE DAMAGES RESULTING FROM AN INSTALLATION WHICH
DOESN'T COMPLY WITH THE RULES IN FORCE.
Correct Incorrect

5
INSTALLATION ENVIRONMENT
WARNING - This unit can be installed and can work only in constantly
ventilated rooms, according to the national rules in force.
In order for the gas cooker to work properly, it is necessary that sufficient air for gas
combustion can flow naturally into the room.
The air flow into the room must come directly through openings of external walls.
These openings must have a free passage of at least 100cm²(one or more openings can be
made).
These openings (or opening) should be realized in such a way not to be obstructed both
from inside and outside and preferably positioned near the floor, opposite the combustion
products discharge. In case these systems can't be realized in the room where the unit is
installed, the necessary air can come from a room nearby, provided that this room is not a
bedroom or a dangerous environment and it is ventilated as requested, from national rule
in force.
Combustion Products Discharge
Gas cooking units must discharge combustion products through hoods directly connected
to flues or outside. In case the hood can't be installed, it is recommended to use an electric
fan applied to the external wall or to the window of the room, with condition that
openings to let air flow in the room are realized.
This electric fan must be powerful enough to ensure in a kitchen an air replacement of 3 to
5 times its volume per hour.
WARNING - If the oven touches the side of other pieces of the kitchen
furniture, ensure they can withstand a temperature of 75℃.
ELECTRICAL CONNECTION
Before you connect the gas cooker, please check that the voltage indicated on the rating
plate to ensure that it corresponds to the mains power supply available. Appliance must be
connected with mains supply outlet. The ground wires are easily recognized by its green
and yellow colour. Make sure that the "line" and "neutral" wires are installed into their
correct terminals. The installation must be carried out by an authorized electrician only.
Before connecting to the electric supply, make sure that:

6
1. The protection fuse and the domestic wiring are suitable to carry the total electric
load of the cooker.
2. The electricity supply network (mains) has an efficient earth connecting
according to the established rules and existing regulations.
3. The cooker wire is long enough to reach the socket from where your cooker is
situated.
THE MANUFACTURER WILL NOT BE RESPONSIBLE FORANY ACCIDENT
CAUSED BY NON OBSERVANCE OFSAFETY INSTRUCTION.
GAS HOSE CONNECTION
First connect one end of the rubber hose to the gas regulator and tighten it with a hose
clamp. The other end should be pushed tightly into the gas hose connector. Tighten it with
a hose clamp, make sure that both ends are tighten otherwise gas might leak and this could
be dangerous. Make sure all the control knobs are in the "off" position before connecting
the gas supply. Connect the gas regulator to the LPG tank and your units ready for use.
Whenever connecting the hose to the cooker please ensure:
1. The hose does not exceed a length of 1 meter.
2. The hose must not be very tight or twisted and must not show any sharp bends or
kinks. If there is a leak don't repair but replace it.
3. The hose must not touch the back of the cooker.
Upon completing the installation, check and make sure that all pipes and hoses
are connected correctly. Always use soapy water to check gas leaking. For safety
reasons we would advise you to inspect and change the rubber hose for the gas
connection yearly.
WARNING - USE THE CORRECT DOMESTIC GAS REGULATOR.
DO NOT USE AN INDUSTRIAL GAS REGULATOR.
DOMESTIC GAS REGULATOR FOR LPG 30mbar.
CHILD SAFETY
This appliance has been designed for use by adults. Take care, therefore that
children do not attempt to play with it.

7
The appliance will become hot during operation and can remain hot for a long
time after being switched off.
Supervise children and pay attention that they do not touch surfaces or remain in
the vicinity of the appliance when in use or when not completely cooled.
WARNING - Ensure the anti-tip chain is installed correctly to avoid the
possibility of the cooker falling over and injuring children.
The chain must be firmly secured to the wall behind the cooker by fitting a wall plug
and hook to the wall at the same height as chain
USING COOKER FOR THE FIRST TIME
We recommend that before you cook in your new cooker you heat the oven to 180℃for
2hrs to run in your new oven. After the oven cools wipe it out with hot water and a mild
detergent. We also recommend cleaning the racks and shelves before use.
When using the cooker for the first time you may notice the following……
There may be a smell. This is quite normal when the cooker is first heated as
residual oil from production of parts will be burnt off quickly.
There may be noises. This is also quite normal as new parts move and settle into
place during the initial heating process.

8
DURING USE
This product is intended for the cooking of food and must not be used for other
purposes.
Unstable or deformed pans should not be placed on the burners or hot plates in
order to avoid accidents caused by spill over. Particular care should be taken
when cooking with oil or fat.
If the appliance is fitted with a cover, its function is to protect burners from dust
when closed and when open is to protect kitchen wall from splashes of grease.
Do not use the lid for other purposes. Always clean the cover before closing.
All the glass covers are removable to facilitate cleaning.

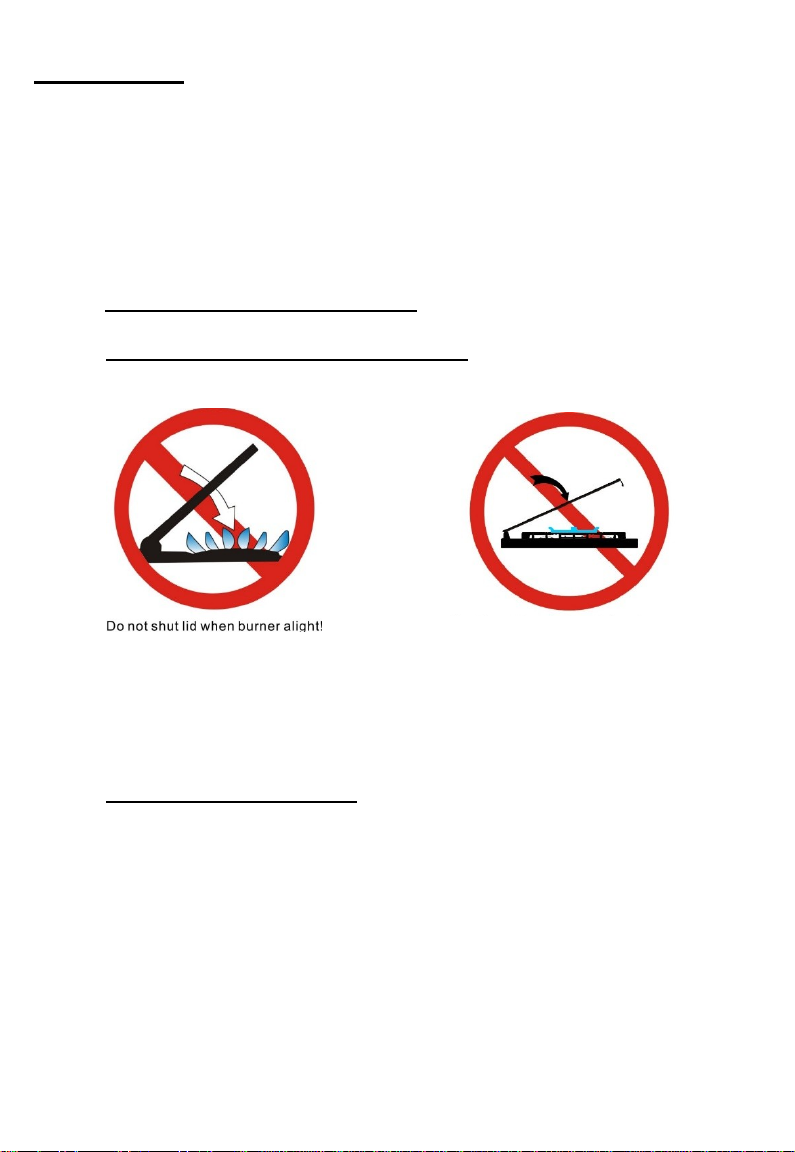

Glass or Metal covers should not be closed when the cooker hob is operating.
Before close the cover please make sure to take out the wok adaptor.
Always ensure that the knobs are in the "O" Off or Stop position when the
appliance is not in use.
Always insert the dripping pan when using the grill or when or cooking meat on
the grid. We recommend you pour a little water into the dripping pan to avoid
grease burning and creating unpleasant smell.
Clean dripping pan regularly to ensure food, fat and grease do not build up and
create a fire hazard.
Before maintenance and cleaning, disconnect the appliance and allow cooling
down. For reasons of hygiene and safety this appliance must always be kept
clean.
Take care when using cleaning products in spray form: never direct the spray
onto the electrical wiring, thermostat and bulb.
When placing food in the oven, or when removing a large quantity of oil, juice,
etc., any spills onto the bottom of the oven must be cleaned before starting to
Must take out the wok adaptor before close cover!

9
cook to avoid unpleasant smoke and also the possibility of these substances
catching fire.
Ensure that air can circulate around the gas appliance. Poor ventilation can result
in lack of oxygen and extinguish the flame.
The use of a gas cooking appliance produces heat and humidity in the room
where it is installed.
Ensure good ventilation of the room, keep adequate natural ventilation or install
an extractor hood with a discharge tube.
In case ofdoubt ask installer for advice.
Supply the appliance with the type of gas stamped on the relevant label situated
in the immediate vicinity of the gas connection tube.
Ensure that the oven grids are inserted correctly.(See instruction as below.)
Correct Incorrect
The gas oven becomes hot with the movement of air. The holes on the bottom
of the oven must never be obstructed.
Do not cover the sides of the oven with aluminum foil, particularly the lower part
of the opening at the base of the gas oven.

10
The appliance is heavy, move it carefully.
To facilitate ignition, light the burners before placing pans on the grid. Check
that the flame is regular.
Always lower the flame or turn it off before removing the pan.
Ensure burner caps are installed correctly
USING THE GAS HOB BURNERS
Make sure that burners are always in position and located correctly.
Fish burner and griddle (EKG9688X)

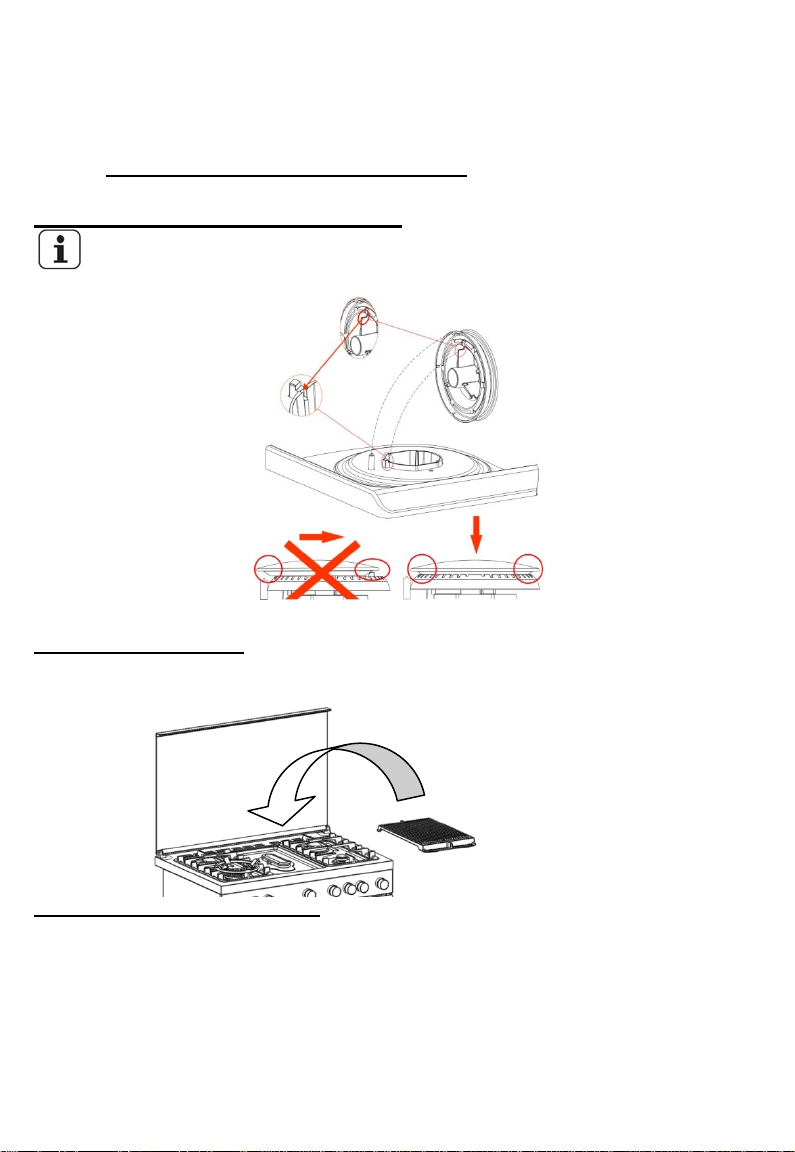

Before using the fish burner, you need to install tray as shown in the figure below.
Control knobs on the gas burners
The knobs for the gas burners of the cooker are found on the control panel. The regulating
knobs should be turned in anti-clockwise direction until the small flame symbol, vice-
versafor the larger flame symbol.

11

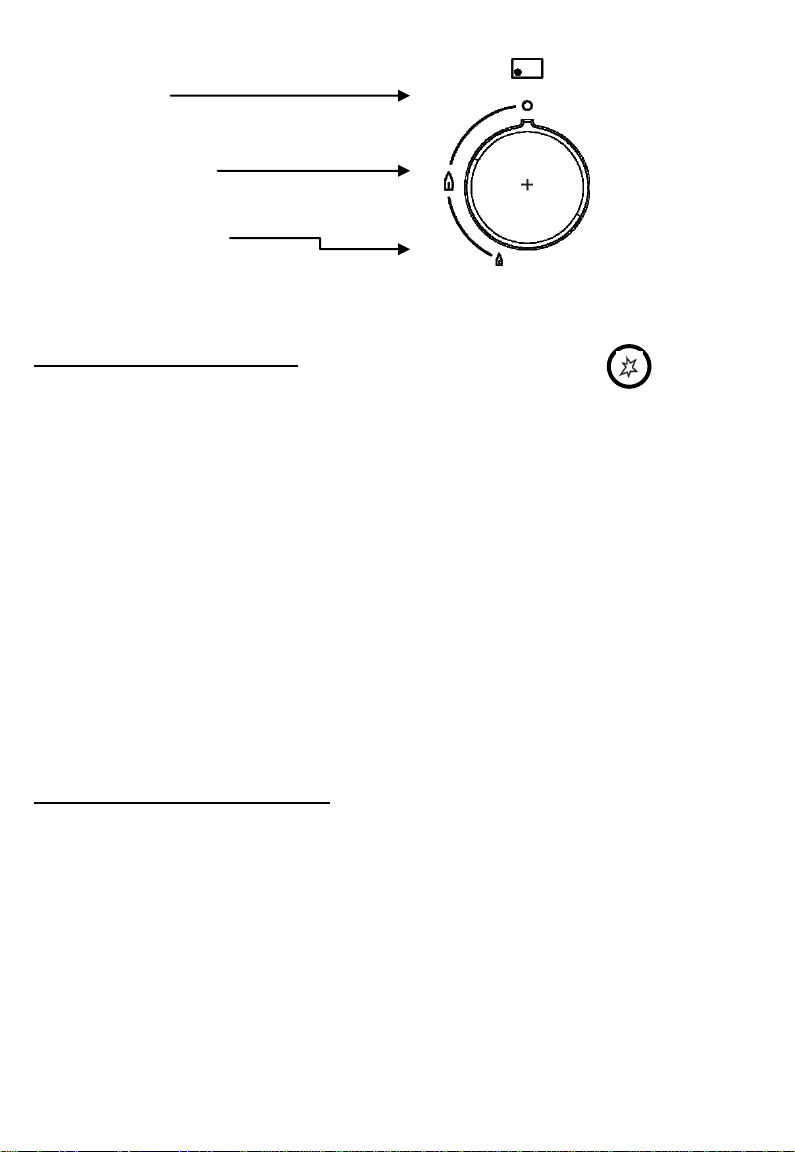

No gas supply
Maximum gas supply
Minimum gas supply
Ignition of the hob gas burners
To light up the burner, keep pushing the ignition button as indicated by
Then push in the knob and turn it anti-clockwise to maximum, and hold it for 3 to 5
seconds.
The ignition will spark and ignite the burner. At this position the gas supply is at the
maximum and the flame also at its maximum.
You can reduce the flame size by turning the knob in anti-clockwise direction to achieve
your requirements.
Should the burner fail to light up, turn the knob to its original position and try again.
Your burner flame should be blue in colour.
NOTE -When first used, the gas burner will not ignite immediately.
Time is required for the LPG to fully fill the operating system.
For 90cm ovens with bottle compartment, this same symptom will also be present
when the gas cylinder has emptied and a new cylinder installed.
Air adjustment of the burner body
The mixing ratio of LPG and air is important to provide complete combustion of gas and
to obtain a blue flame. The adjustment and nozzle used for each individual burner body on
your cooker has been designed so as to achieve this requirement.

12
USING THE GAS OVEN
Manual ignition of the Oven burner
Open the oven door, then push and turn the oven knob in an anti-clockwise direction to
the maximum position, introduce a small flame or spark lighter to the small ignition hole
located in the front of the oven burner cover on the bottom of your oven.
Manual ignition of the Grill burner
Open the oven door, then push and turn the oven knob in anticlockwise direction to the
maximum position and hold a flame near the gas grill burner holes. Check if the burner is
lighted.
IMPORTANT SAFETY: Do not slam the oven door when closing.
Gently close the oven door, and then check if the burner is lighted by
looking through the window at the ignition hole. If flame has extinguished,
immediately re-light the oven.
After few minutes, check the temperature and adjust the oven control knob
if necessary to obtain the required level.
EKG9688X EKG9686X
Maximum gas supply

13
IMPOTRANT SAFETY: Apply knob protection plate when using gas
grill burner.
(Knob protection plate is stored at the compartment.)
After a few minutes check the temperature and adjust the grill control if necessary to
obtain the required level.
IMPORTANT SAFETY:
In the event the flame in the oven extinguishes by itself, please take the following
steps below:
1) SHUT OFF THE OVEN CONTROL KNOBON GAS OVEN MODEL ALSO
SHUT OFF THEGASCYLINDER VALVE.
2) DO NOT RE-IGNITE THE OVEN IMMEDIATELY.
3) OPEN THE OVEN DOOR TO LET OUT UNBURNTGASFOR AT LEAST 15
MINUTES.
4) AFTER COMPLETING STEPS 1 TO 3, RE-IGNITE THEOVEN BURNER
CAREFULLY WITH A SPARK GUN.
If the oven flame continues to go out or the similar phenomen on happens, please contact
your nearest Service Centre.
USING THE ELECTRIC OVEN

14

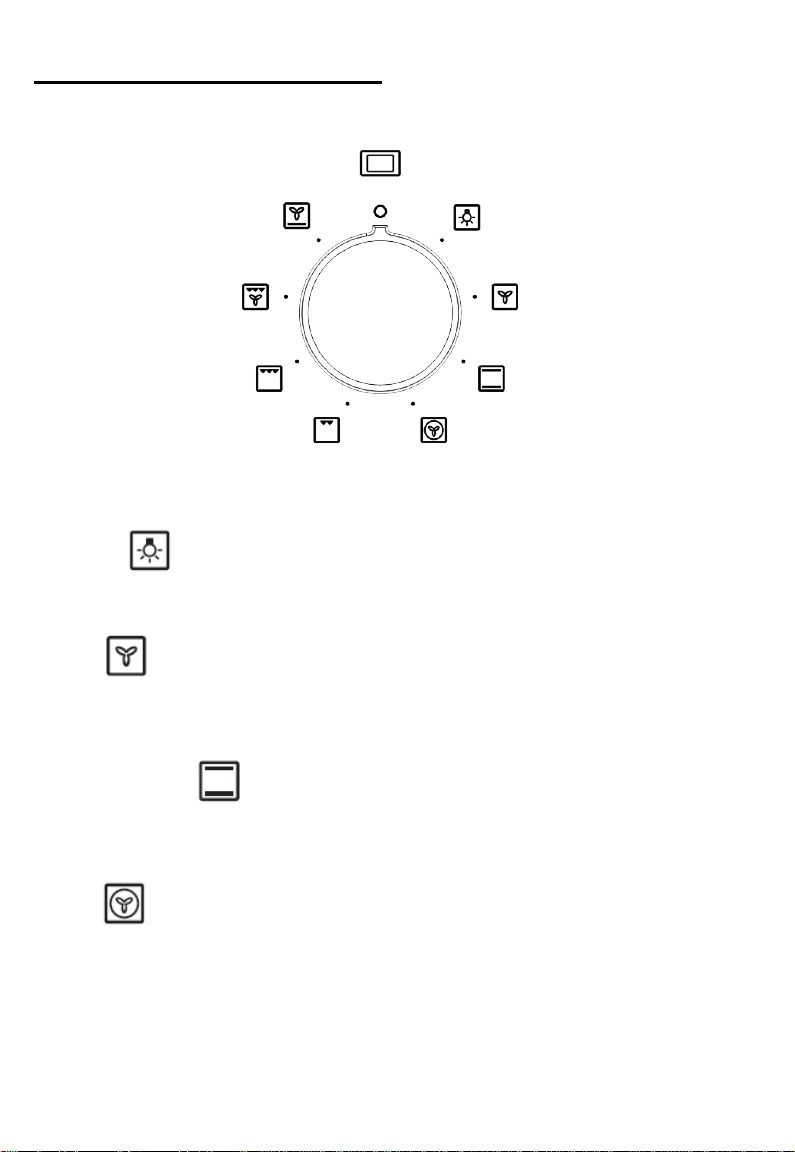

ELECTRIC OVEN FUNCTIONS
Our oven functions allow the user to have flexibility in the method of cooking and provide
heating alternatives to suit a wide variety of dishes. The oven light stays lit in all selector
positions.
EKM9689X
Oven light
The oven light and general pilot light come on and will remain on as long as the oven is in
use.
Defrost
No heat is emitted. Uses low temperature air that is circulated by the fan for easy
defrosting, reducing the time normally required by about 1/3.
Conventional Heat
Heat comes from two elements - top and bottom. Bake and roast on one level. Suitable for
cakes, muffins, pizzas, roasts and delicate egg dishes.
Hot Air
Heat comes from the element surrounding the fan for faster heat-up and shorter cooking
times at lower temperatures. Evenly circulates the hot air around the oven cavity for even
cooking results. Ideal for baking or cooking on up to 3 levels.

15
Grill
This cooking mode is used for grilling small amounts of food such as steak, chops,
sausages and fish (low energy consumption). Heat comes from the top grill element which
directs radiant heat onto the food.
Fast Grill
Heat comes from 2 powerful top grill elements which direct radiant heat onto the food.
Used for grilling large quantities of food and cooks faster than the normal grill.
Turbo Grill
Heat comes from two powerful top grill elements and is spread evenly around the oven by
the fan, allowing for faster and more precise cooking results. Used for roasting larger
joints of meat or poultry on one level. Suitable for browning.

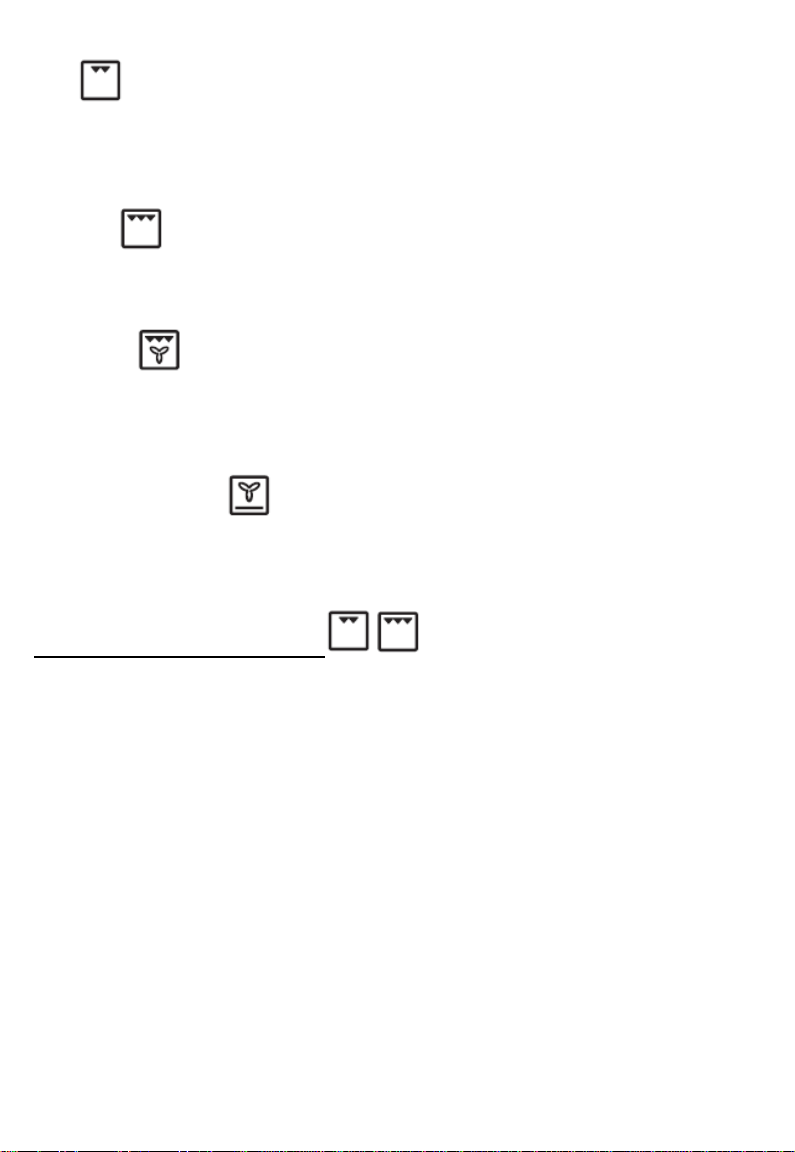

Bottom Heat with Fan
Heat comes from bottom elements, fan assists to evenly distribute the heat around the
oven, good for extra browning the bottom of pastries.
USING ELECTRIC GRILL
The electric grill is operated by the selector switch on the control panel that marked with
the grill symbol.
IMPORTANT -Before Grilling, hook the knob protection plate to the bottom of the
front control panel. (For fitment of knob protection plate see illustration on P10.)
When cooking with the electric grill, you are advised to leave the oven door half open and
to fit the knob protection plate.
1) Place the oven drip pan on the runner position under the grid rack on which you want to
grill.
2) Close the oven door until it touches the knob protection plate.
3) Switch on the grill button to start grilling operation.

16
NOTE –Before placing food into the oven for grilling, it is advisable to preheat the
grill for at least 10 minutes)
USING THE OVEN LIGHT
For gas ovens the light is controlled by a push switch on the control panel.
For electric oven, this light continuously illuminates the oven when in use.
The light switch is on the function selector.
The light can be used while cooking or cleaning the oven.
USING MECHANICAL TIMER
Some models are fitted with a mechanical 60min timer.
To use the timer, turn the control knob clockwise to full setting first ( step1 ), then slowly
turn it backwards to the position of the time required ( step 2 ) . The timer will ring once
the pre-set indicated time is reached, however the oven will remain on.
USING TURNSPIT
First, insert the forked branch into the spindle of motor. Then take out the hook
according to the direction of the figure below. Next, put the turnspit in which it
has a slot hang on the hook. (While removing in reverse order.)
NOTE - If you don't turn the control
knob clockwise to full setting, the timer
will ring for a shorter period than
normal, and maybe rang faster than the
actual setting.

17
When you use the turnspit, you need to screw out the forks of the rotisserie spit,
and take out the insulating handle. Then put the food on the forked branch and
use the forks to clamp the food. After finished using the turnspit, please clear
with detergent and dry with a cloth.
When carrying turnspit with food on it, please hold the turnspit with two hands,
one at each side.
Turnspit can hold the weight up to 2.5kg of food.

18
TIPS FOR OVEN COOKING
For baking cakes:
Pre-heat the oven for at least 10minutes before use.
Do not open the oven door when baking. The jet of cold air will block the raising
block the raising process of some cakes, pastries and soufflés.
To check if your cake is baked, insert a toothpick into the mixture; if it comes out
clean, the cake is ready. Wait until at least 3/4 of the cooking time has passed
before doing this check.
As a general rule remember that:
A dish which is well - cooked on the outside but not sufficiently cooked inside would
have required a lower temperature and longer cooking time.
On the contrary, a "dry" texture would have required a shorter time and higher cooking
temperature.
For cooking meat:
Meat to be cooked in the oven should weigh at least 1 kilogram to avoid
becoming too dry. If you want to roasts with a good colour, use very little oil.
If the piece of meat is lean, use oil or butter or a little of both.
Butter or oil on the other hand unnecessary if the piece as a strip of fat. If the
piece has a strip of fat on one side only, put it in the oven with this side upwards:
When melting the fat will grease the lower side sufficiently.
Red meat should be removed from the fridge one hour before cooking otherwise
the sudden change of temperature could cause it to become tough. A roast,
especially for red meat, must not be salted at the beginning of cooking as salt
causes juices and blood to seep out of the meat, thus preventing the formation of
a well - browned crust. If is advisable to salt the outside of the meat after just
over half the cooking time.
Place the roast in the oven in a dish having a low rim; a deep dish shields heat.
Meat can be placed on an oven proof dish or directly on the grill, under which the
dripping pan will be inserted to collect juice. Ingredients for gravy should only
be put in the dish immediately if cooking time is brief, otherwise they should be
added during the last half hour. Begin cooking raw meat at a high temperature,
reducing the temperature to finish cooking the inside. The cooking temperature
for white meat can be mode-rate throughout.
The degree of cooking can be checked by pressing the meat with a fork, if it
penetrates easily then it is cooked. At the end of cooking it is advisable to wait at
least 15 minutes before cutting the meat in order that the juices are not lost.
Before serving, plates can be kept warm in the oven at minimum temperature.

19
For cooking fish:
Cook small fish from start to finish at a high temperature. Cook medium-sized
fish initially at a high temperature and then gradually lower the temperature.
Cook large fish at a moderate temperature from start to finish.
To check that baked fish is cooked by gently lifting one side of the gut; the meat
must be white and opaque throughout, except in the case of salmon, trout or
similar.
For Grilling:
The following types of meat are suitable for grilling. Mostly meat or offal cut in
slices or pieces of various sizes, but not very thick, poultry cut in half and
flattened, fish, some vegetables (e.g Courgettes, aubergines, tomatoes,etc.),
skewers of meat or fish and seafood. Meat and fish to be grilled should be lightly
brushed with oil and always placed on the grill; meat should be salted upon
completion of cooking; whereas fish should be salted into before cooking. The
grill should be positioned in the guides nearest or furthest from the grill element
according to the thickness of the meat, In order to avoid burning the surface and
having the inside insufficiently cooked.
The formation of smoke caused by drops of juice and fat can be avoided by
pouring 1or2 glasses of water into the dripping pan.
The grill can also be used to brown, toast bread and grill certain types of fruit,
such as bananas, halved grapefruit , slices of pineapple, apple, etc. Fruit should
not be placed too near the source of heat.
The "TIPS FOR OVEN COOKING" relating to cooking in the oven and by grill is
provided as a guide. Experience will show possible variations to the values set out in
the table.
NOTE –If in doubt, always carefully follow the indications given in the in the recipes
you intend to follow.
Do not place any utensils such as dripping pan, cake tins, casseroles, pyrex
dishes, aluminium foil or others on the base of the oven when the oven is in use.
Accumulation of heat might affect the cooking results and also damage the oven
enamel.
