2
Welcome to the world of Electrolux
You've chosen a first class product from
Electrolux, which hopefully will provide
you with lots of pleasure in the future.
Electrolux ambition is to offer a wide variety
of quality products that would make your
life even more comfortable. You can look at
some examples on the cover in this manual.
But now it's time to study this manual and
start using and enjoying the benefits from
your new machine. We promise that it'll
make your life a little easier. Good luck!

3
Contents
Safety ..................................................................................... 4
Installation ............................................................................. 6
Changing plinth height............................................. 6
Adjusting the level .................................................... 7
Anti-tip guard .......................................................... 8
Electrical connections............................................... 9
Base trim ................................................................. 9
Safety functions ..................................................................10
Child safety features .............................................10
Function lock...........................................................10
The cooling fan.......................................................11
The door lock..........................................................11
Description of product ...................................................12
The cooker .............................................................12
The oven ................................................................12
Before using for the first time ........................................13
Setting the clock ....................................................13
Heat the oven emty...............................................14
Removable telescopic runners .............................15
Using the ceramic hob......................................................17
Touch panel ...........................................................22
Touch panel functions ..........................................23
Timer ......................................................................28
Automatic safety switch-off ..................................28
Signal clock .............................................................30
Locking/unlocking the touch area .......................31
Using the oven....................................................................32
The oven functions.................................................32
Oven display ..........................................................33
Choice of oven functions ......................................34
Other functions .....................................................40
Oven safety switch-off ..........................................40
Practical use............................................................43
Cleaning and care ..............................................................50
Cleaning the cooker...............................................50
Cleaning the ceramic glass plate .........................51
Cleaning the oven .................................................53
Technical data ....................................................................61
European Guarantee .............................................62
Practical advice and tips ...................................................64
Problems and remedies....................................................66
Disposal................................................................................67

4
Safety
Cooker development has progressed rapidly. You cannot always use your new cooker in the
same way as your old one. For this reason, you should read the instructions carefully and
familiarise yourself with your new cooker and what it can do. The cooker is intended for
normal household use. Please let us know if you have views or questions about your cooker
and its use. You can find our address and telephone number in the “Service” chapter.
Text marked with a WARNING TRIANGLE concerns safety. READ THIS TEXT VERY
CAREFULLY , so that you do not injure yourself or others, or damage the cooker.
Unpacking
Check that the cooker is in perfect
condition and not damaged. You must
notify the dealer immediately of any
damage that has occurred during
transport. For direct deliveries, any
transport damage must be notified to
Customer Services within seven days
according to the freight note.
The packaging can be recycled. Contact
your local authority if you do not know
where you can deposit it.
Do not forget to remove packing material
from inside the oven before it is used.
Installation
Any work required on the cooker must be
carried out by a
QUALIFIED EXPERT . Any
work carried out by non-qualified people
can mean poorer cooker performance and
result in personal injury and/or damage to
property.
For cookers with a plug: Make sure
that the plug is completely pushed into
the mains socket.
The cooker is heavy. Edges and
corners with which you do not normally
come into contact, can be sharp. Use
gloves when moving the cooker.
THE ANTI - TIP GUARD must be fitted so
that you avoid the cooker tipping when
subjected to abnormal loading.
IMPORTANT! Do not place the cooker
on an extra plinth or other height-
increasing unit. This meansmore risk that
the cooker will tip over!
Children and the cooker
Children are by nature curious and
interested in most things, even cookers.
In the interests of safety, we should like to
mention a few things that you should
think about if you have children or
children come to visit:
There must bea clear surface of at least
40 cm (16") on both sides of the cooker.
If you have a
HEATING PLATE GUARD for
your cooker, then this must be fitted.
THE
DOOR LOCK must also function properly.
Never allow children to use the blade-
scraper.
Let children help you at the cooker,
but teach them that pots and pans, hobs
and ovens become very hot and retain
heat for some time after use.
TOUCHING
THEM CAN RESULT IN BURNS .
How to use
The appliance get hot during use. Do not
touch the hob or the heatingelements
inside the oven when the appliance is in
use. Never use a cracked ceramic glass
plate. Liquids could, if they boil over, or
during cleaning, penetrate down into the
live electrical components. Switch off the

5
power supply to the cooker and contact
Service for repairs.
Never place metal objects such as
lids, knives and spoons on the hob. They
become hot if a heating zone is switched
on by mistake.
Never leave a deep fat fryer, melting
fat, paraffin or other easily flammable
substance unattended. In the event of fire,
turn off the cooker knobs and switch off
the fan.
EXTINGUISH THE FIRE WITH A POT
LID , never use water.
Use only pans intended for use with
an induction hob or oven.
Check the bottoms of pots and pans.
Pans which bulge outwards tend to swivel
easily on the ceramic glass hob.
Check that the cooker is switched off
when not in use. All the knobs should be
turned to zero.
Warning! Alcohol and similar
substances, which can form explosive
gases,or othersubstances that cancause a
fire or explosion must not be used in the
oven.
The ceramic glass plate must be used
with the greatest care. For example,
flaming with brandy or other forms of
alcohol can result in traces of fat in the
fan igniting and causing serious fires.
Similarly, flames and burning fat spills
can cause injury to people.
Do not keep chemicals or cleaning
agents in the storage drawer.
Cleaning
Keep the ceramic glass hob and oven
clean. Fat and spilled material can cause
much smoke when heated and are also a
possible fire hazard.
Immediately after use (while the plate
is still hot) clean with the blade scraper to
remove sugar and spills with a high sugar
content, such as marmalade, and also any
melted plastic or foil, in order to avoid
damage to the hob. Be careful, the blade
scraper is extremely sharp.
Maintenance and service
Turn all knobs to zero before replacing a
defective oven light bulb.
Service and repairs should only be
carried out by a repair company approved
by the supplier. Use only genuine spare
parts.
At the end of the appliances
life
The symbol on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead
it shall be handed over to the applicable
collection point for the recycling of
electrical and electronic equipment.
By ensuring this product is disposed
of correctly, you will help prevent
potential negative consequences for the
environment and human health, which
could otherwise be caused by
inappropriate waste handling of this
product.
For more detailed information about
recycling of this product, please contact
your local city office, your household
waste disposal service or the shop where
you purchased the product.

6
Installation
Any work required on the cooker
must be carried out by a
QUALIFIED
EXPERT . The cooker is heavy. Edges
and corners, with which you do not
normally come into contact, can be
sharp.
U SE GLOVES WHEN MOVING
THE COOKER .
When delivered, the cooker is adjusted to a
bench height of 900 mm (35.4"). The cooker
has a telescopic plinth. You can change the
height so that the cooker suits a bench height
from 848 mm (33.4") up to 933 mm (36.7").
Take care when positioning the cooker
that you do not block the ventilation outlets
(behind the cooker and at the top behind the
hood), the cooker must not be pushed in
under a tiled edge or similar.
The cooker must have a clearance on both
sides (see Safety).
Make sure that the cooker cable does not
get crushed when moving the cooker.

7
Adjusting the height of the base
If you wish to adjust the height, please read
the following points before you start.

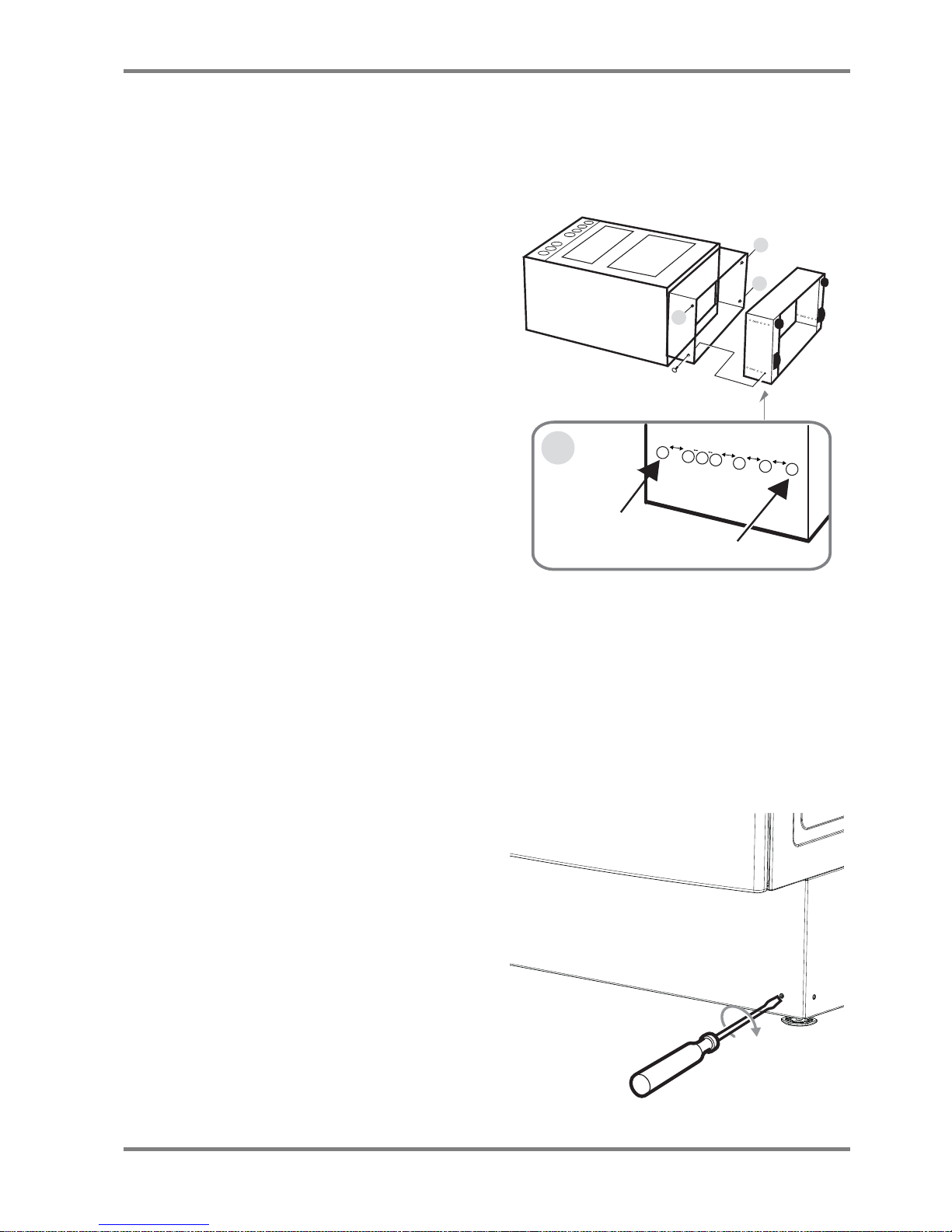

1Lay down the cooker gently
(
SEE ILLUSTRATION ). Use, for example,
the polystyrene from the packaging
between the cooker and the floor as
protection. Remember to locate a
protective layer under the lower rear
corners of the cooker sides to protect
the floor.
2Unscrew the screws A (4
SCREWS , SEE
ILLUSTRATION ). Pull out the inner base
slightly if you only wish to change the
height. Pull the brackets on which the
wheels and feet are fitted. NOTE! Be
careful, there are sharp edges underthe
cooker.
3Screw in the screws again A in one of
the holes for a bench height of 850 to
920 mm (33.4" to 36.2"). The distance
between the holes varies between
7 mm (0.28") and 14 mm (0.51")
(see illustration a).
4Lift the cooker upright and connect it
up to the mains. Push the cooker back
into position and make sure that it is
absolutely level before fitting the
safety equipment.
Horizontal adjustment
The cooker must be level so that, for
example, fat spreads evenly in the frying pan.
Place a spirit level or a frying pan containing
water on the ceramic glass plate when you
want to check whether the cooker is level.
If necessary, from the front of the plinth,
you can adjust the cooker wheels and feet by
15 mm (0.6"). Use a screwdriver to adjust the
rear wheels and a Polygrip for the front feet.
A
A
A
A
A
14 7714 14 14
920
850

8
The anti-tip guard
The anti-tip guard must be fitted to
prevent the cooker from tipping over
with abnormal loads.
The anti-tip guard only works
when the cooker has been pushed
into place.
HOW YOU FIX THE ANTI - TIP GUARD
TO THE COOKER :
1Before fitting the anti-tip guard,
make surethat the cooker has been
adjusted to the correct height and
is standing level (see page 7).
2The attachment (B) is fitted to the
left side when delivered. Measure
out where the anti-tip guard (A) is
to be located, 60 mm (2.4") down
from the edge of the ceramic glass
plate and 50 mm (2.0") from the
wall(cupboard). Screw it firmly
into solid material or use suitable
reinforcement. The entire anti-tip
guard (A+B) can also be located
on the right-hand side (
SEE F IG . 1).
Make sure that the surface
behind the cooker is smooth.
If there are tiles or a moulding
behind the edge of the ceramic
glass plate then there must be a
space with the same dimension
between the anti-tip guard and
the wall. This is so that the anti-
tip guard is firmly attached to
the cooker and functions
correctly.
Check that the anti-tip guard
projects at least 20 mm (0.8")
into the hole in the back of the
cooker (B) when the cooker is
pushed in (
SEE F IG . 2).
NOTE! If the space between the bench
cupboards is greater than the width of the
cooker, then you must adjust the side
measurement if you want to centre the
cooker..
2
1

9
Electrical connections
Any work required on the cooker must
be carried out by a
QUALIFIED EXPERT .
Any work carried out by non-qualified
people can mean poorer cooker
performance and result in personal
injury and/or damage to property.
The electrical installation is to include a
device whereby it is possible to separate all
the poles of the equipment from the power
supply, with a contact opening of at least
3 mm.
This requirement must be satisfied for
safety reasons.
The connected rating and voltage are
shown on the data plate. There is a wiring
diagram on the back of the cooker.
Decor plinth (optional accessory)
NOTE! Take due care when fitting
the base trim to the cooker. Edges
with which you do not normally come
into contact with can be sharp.
NOTE ! ONLY FITS COOKERS WITH A HEIGHT
OF 900 MM (35.5").
Remove the protective plastic before use.

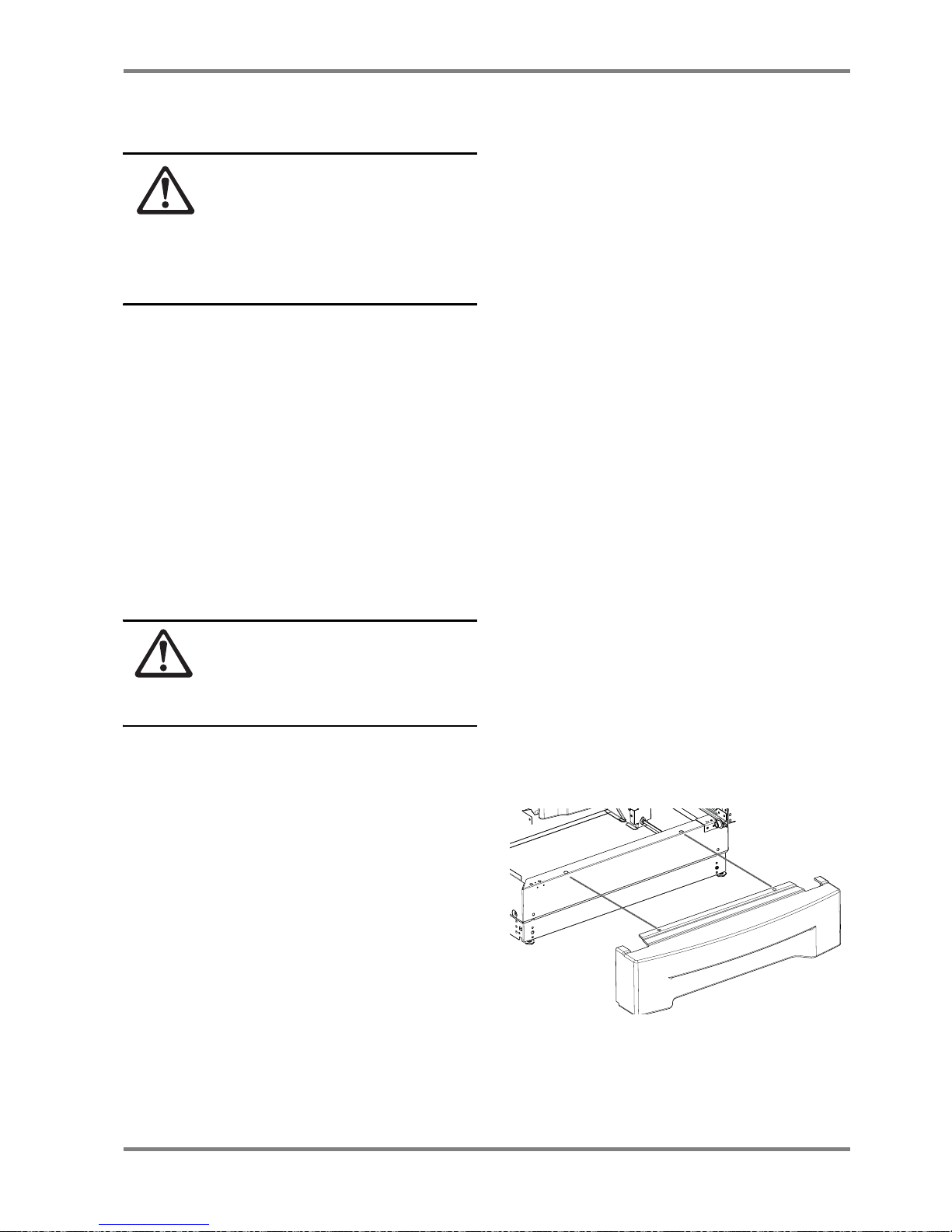

1Remove the drawer from the cooker by
lifting it diagonally upwards and then
pulling it all the way out.
2 Fit the base trim by pressing it firmly
onto the base (snap fastener, no tools
needed).
3 Re-fit the storage drawer.
Bild 5

10
Safety features
Function lock
As security to prevent unauthorised use of the hob.

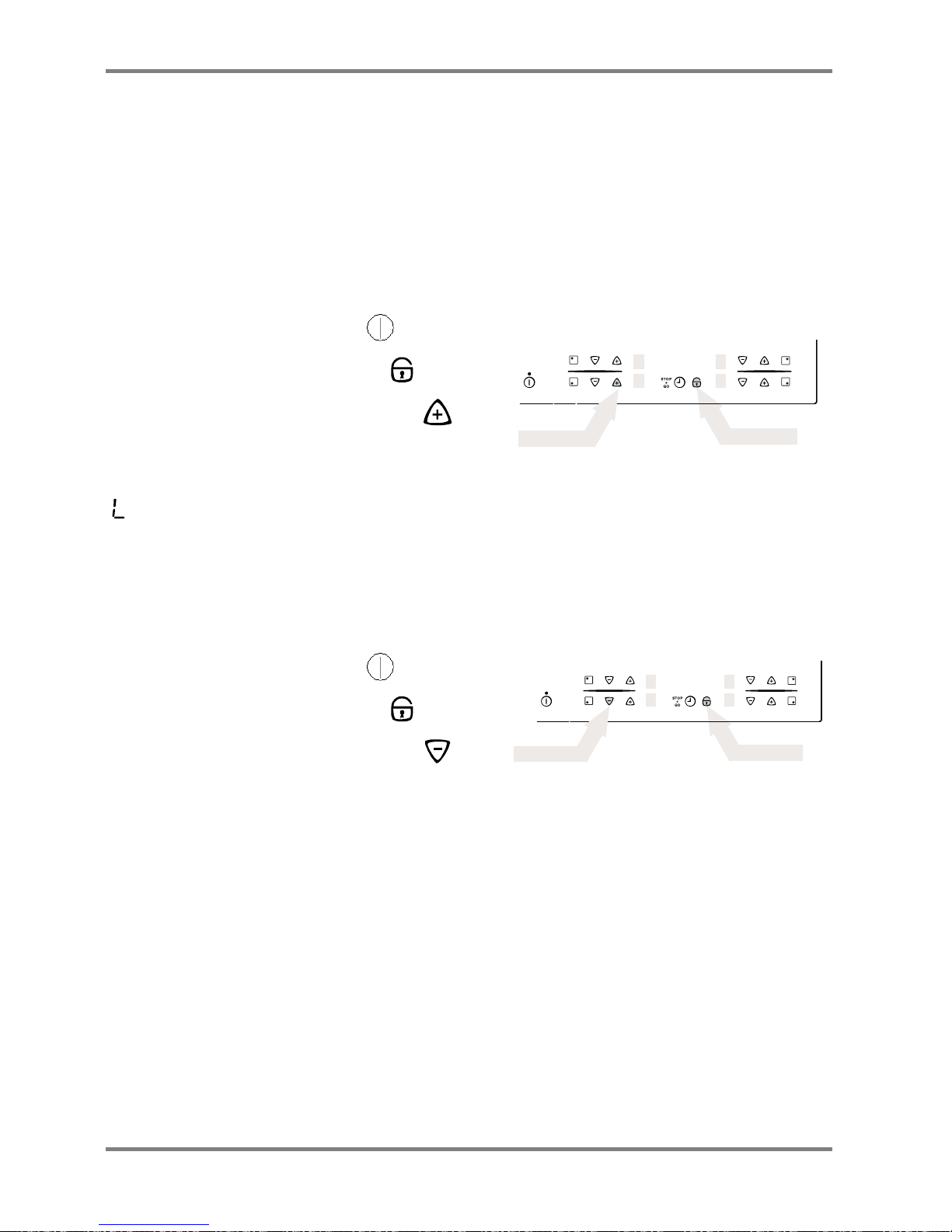

ENGAGING THE FUNCTION LOCK
1. Press the On/Off button .
2. Press until a signal sounds .
3. Then press an optional symbol .
The function lock is now engaged.
is shown in the display if the hob turns
on. SAFE is shown in the ovendisplay if the
oven turns on.
DISENGAGING THE FUNCTION LOCK
1. Press the On/Off button .
2. Press until a signal sounds .
3. Then press an optional symbol .
The display goes out and the function lock is
disengaged. The hob is automatically
switched off after a few seconds.

11
The cooling fan
The cooker is fitted with a cooling fan.
The purpose of the fan is to keep the
appliance cool.
The cooling fan starts automaticallywhen
the oven is used. When only the hob is used,
the fan has a delayed start.
When the cooker is switched off, the fan
stops automatically when oven temperature
has decreased to 120
o
C.
The door lock
The door lock makes it more difficult for
children to open the door. The lock is
engaged when the cooker is delivered, but
can be disconnected as necessary.
TO OPEN THE DOOR
Move the lock to the right when you
want to open the door.
DISCONNECTING THE LOCK
Check that the oven is not hot!
Move the lock to the right, lift up and
move it further slightly to the right,
then lift the left-hand edge of the
button.
CONNECTING THE LOCK
Move the lock to the right and down.

12
Description of product
Cooker
1 Ceramic hob
2 Control panel
3Oven
4 Storage drawer
5 Plinth
Oven
1 Top heat element
2 Heating element
3 Oven lighting, 40W
4 Meat probe socket
5 Fan cover
6 Oven lighting, 25W
7 Fan heating element
8 Bottom heat
9 Oven shelf runners, removable
10 Shelf positions
1
2
3
4
5
1
3
4
5
6
7
10
9
8
2

13
Before using for the first time
Setting the clock

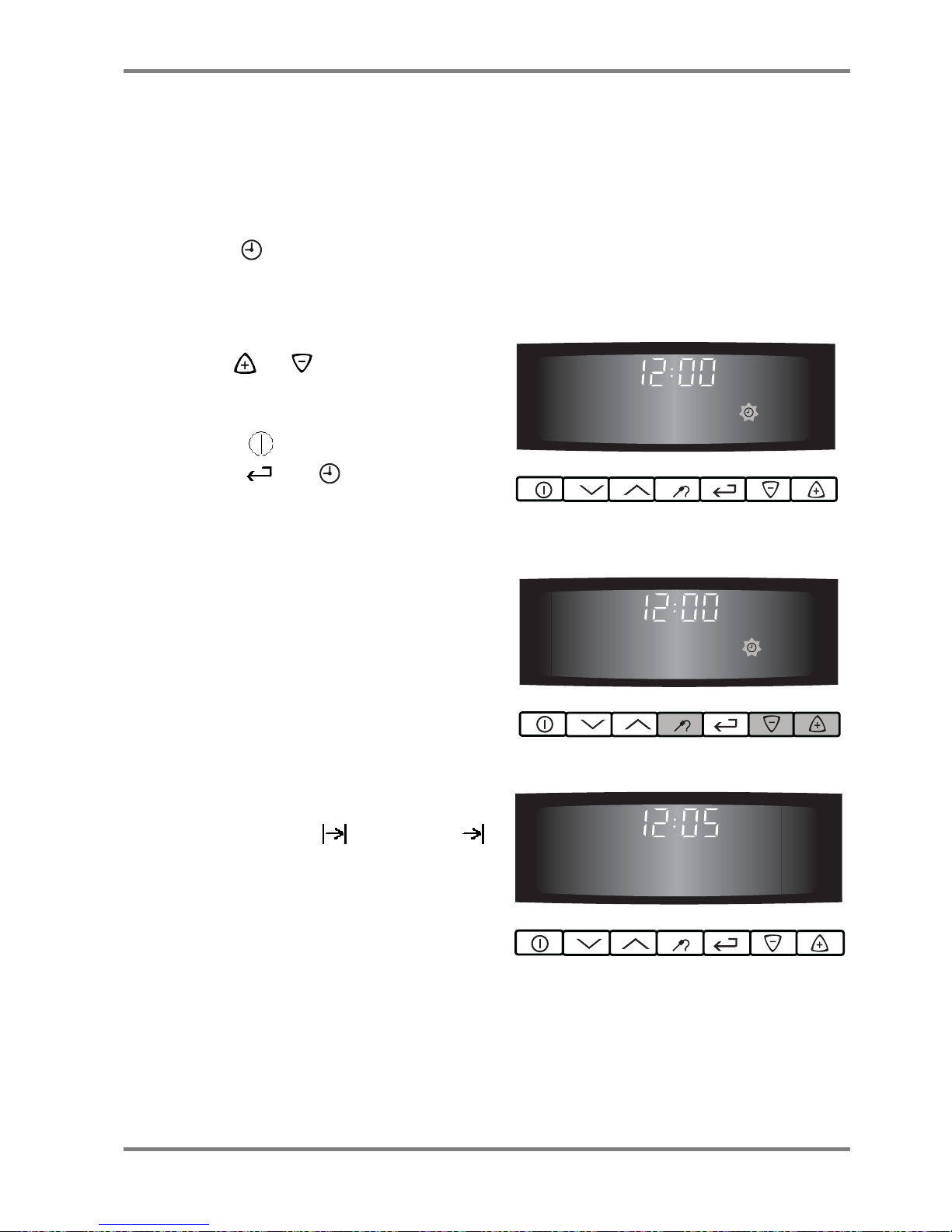

When the power to the oven is connected, a
clock symbol flashes until you have set
the time on the clock.
SET THE TIME LIKE THIS :
1 Press or to set the right time.
2 To change time already set, press
On/Off . Then press until
flashes. tills Follow the
instructions in alternative 1.
After about 5 seconds the clock stops
flashing and the time is shown in the
display.
Now you can use the cooker.
The clock can only be changed if the child
proof lock is not activated, none of the clock
functions Cooking time or Stop time
or any other oven function is set.

14
Heat the oven emty
Keep children under supervision!
The cooker becomes very hot.
Do not forget to remove all packing
material from inside the oven.

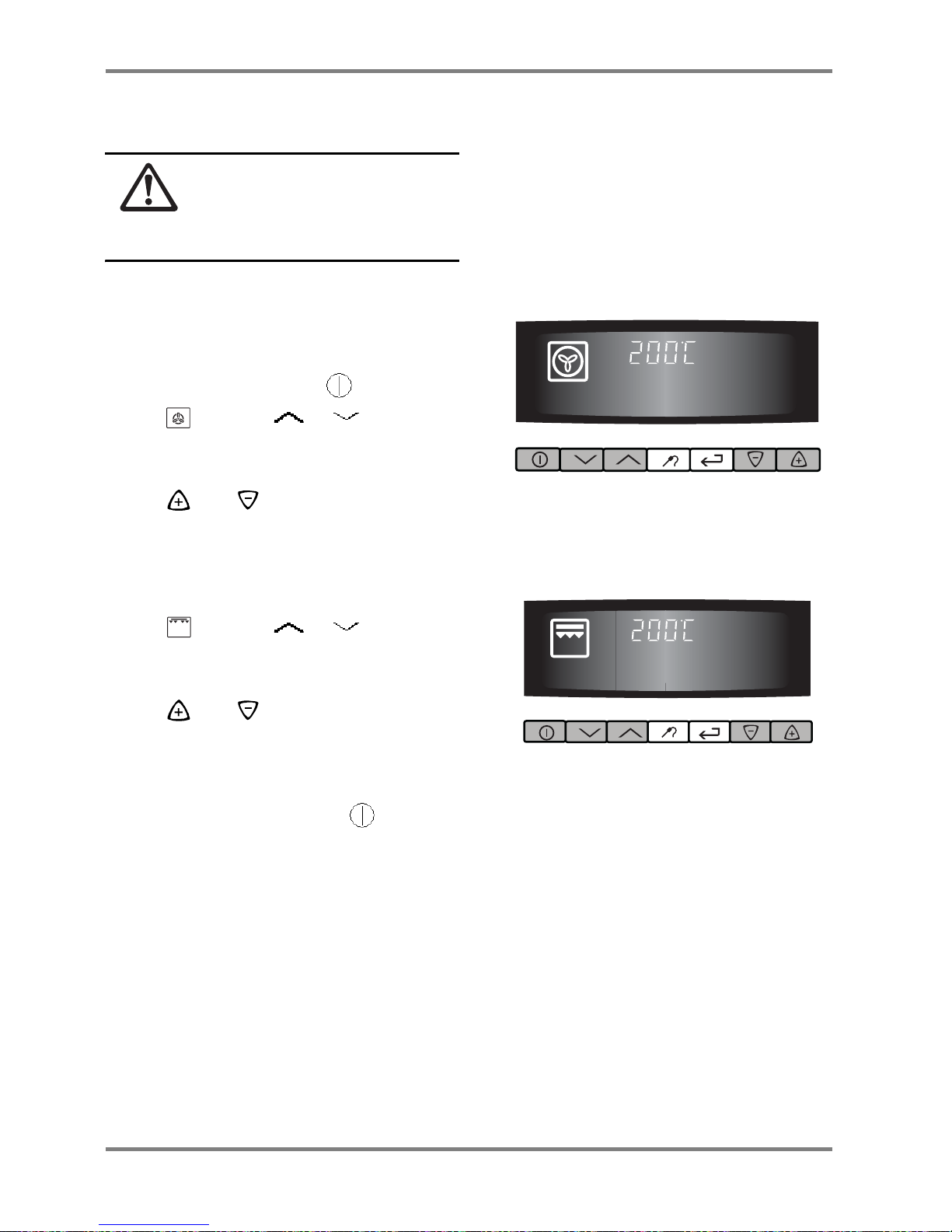

The oven must be burnt off before it is used for
the first time. This is done as follows:
1Open the oven door and remove all
the accessories from the oven cavity.
2Switch on the oven . Select hot air
by using or . Select a
temperature of 200
o
C. The
temperature can be changed by using
and . The oven door must be
closed.
3Leave the oven at this setting for
about one hour.
4Move over to the Max. grill function
by using or . Select a
temperature of 200
o
C. The
temperature can be changed by using
and . The oven door must be
closed.
5Leave the oven at this setting for
about 30 minutes.
6Switch off the cooker .
7Then leave the oven door open for
about two hours and air out the
kitchen.
8Clean the oven, the door and the
oven-step units with hot water and
washing-up liquid. Dry the oven
The first time an oven is used, there may still
be a slight smell. This will not affect the
food in any way and is not a health-hazard.
Clean the accessories
Wash the shelves, roasting pan, etc. in hot
water and washing-up liquid. Rinse and dry.

15
Telescopic runners
To prevent scratches during transport,
the telescopic runners are covered
with a protective coating when
delivered. This coating must be
removed from the runners before they
are used, otherwise it can burn fast
and damage the rails.
Note! Make sure that the cooker anti-
tip guard is fitted, see page 8
The telescopic runners replace the ordinary
oven step units that are fitted in the cooker
when it is delivered. They consist of two
rails that can be pulled out. The shelves, the
roasting pan and the grid are laid on top of
the rails. A locating pin keeps the shelf in
position (see the illustration).
Use of the telescopic runners for facilitates
cooking. For example, when steak or chips
are to be basted, the roasting pan is easily
pulled out on the rails.
Fitting the rails
First remove the oven step units that are
fitted (see page 57). When fitting, the rails
are first inserted in the inner hole (1) and
then in the outer (2). Push into position.
MAKE SURE THAT THE LOCATING PIN IS
TURNED OUTWARDS TOWARDS THE OVEN DOOR .
The rails must be pushed in when the
oven door is closed.

16
Using grids, baking plates and roasting pan
It is important for the oven grid, the shelves
and the roasting pan to be fixed between the
stops in the front and rear edges of the rails
to prevent them from falling off the rails.
Place the baking plate/roasting pan/grid in
the rear edge and fix against the front edge.
The locating pin fits into a slot under the
edge of the baking plate/roasting pan, which
means that the baking plate/roasting pan is
held in position.The rails must be in their
pushed-in position when the grid/baking
plate/roasting pan is inserted. For the best
shelf stability, make sure that the bevelled
edge is inwards in the oven. Pull the
accessories carefully when using them so
that the plate/pan/grid does not fall off the
rails. Maximum load 20kg (44 lb.).
Using the oven grid
The locating pin is not needed when using
the grid. The oven grid shelf has a mark on
its upper surface. This marking must be at
the front (towards the oven door) when in
use. Make sure that food placed on the grid
is positioned behind the marking. Otherwise
there is a risk that it will not be cooked
properly at the front. The grid can be placed
in the roasting pan. The maximum weight to
be placed on the grid is 10kg (22 lb.).
NOTE! Make sure that the locating
pin hooks in under the baking plate
edge/roasting pan and that the baking
plate/roasting pan rests on the rails,
otherwise it can falloff the rails in the
pulled-out position. When the baking
plate/roasting pan is removed in the
pulled-out position, the rails must be
pushed back again so that the oven
door can be closed. Use oven gloves
because the rails are hot.

17

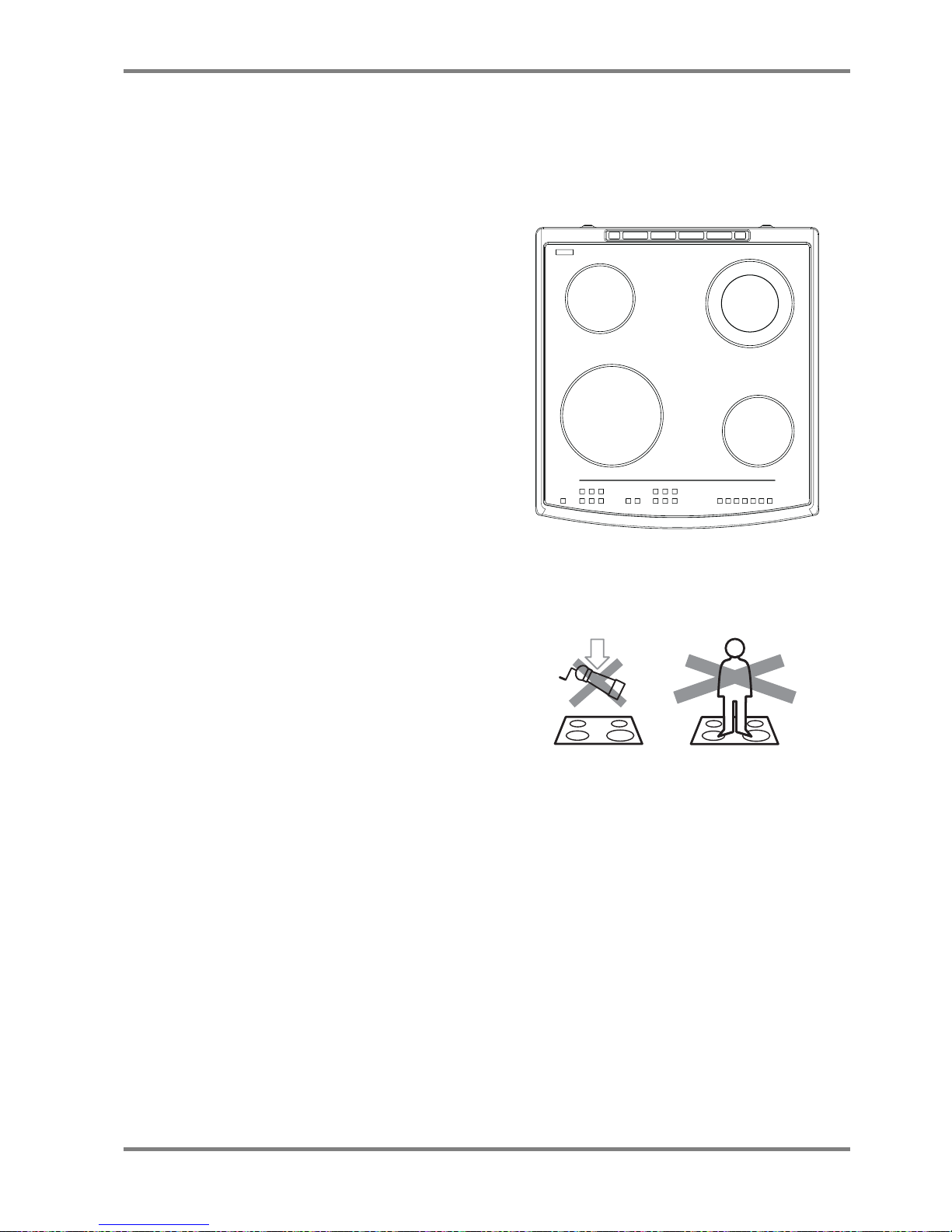

Using the ceramic hob
The hob can not be used if the oven is not switched on, see page 33.
The hob has four heating zones with:
•
MIN ./ MAX . SIZE on the right rear zone.
•
A SWIVEL WINDOW which provides
information about the zone.
•
AUTOMAX , an automatic heater-
whereby the zone heats up rapidly to
the heating level you need (for
cooking/roasting) without it being
necessary to change the knob setting.
•
HEAT WARNER . When you have
switched off a zone, the swivel
window lights up
H as long as the
zone is hotter than about 55°C.
•
AUTOMATIC SWITCH - OFF after a time.
The higher the heating level, the
earlier the zone is switched off.
The glass in the hob tolerates, heat, cold and
temperature shocks, but is sensitive to
impact. A spice jar or grinder falling onto the
plate could crack it. Never use the hob to
stand on, off-load materials onto or use as a
storage area.

18
Never use a cracked plate or an oven
with a cracked timer glass.
Liquids could, if they boil over, or
during cleaning, penetrate down into the
live electrical components. Turn off the
power supply to the cooker and contact
Service for repairs. Never lay metal
objects such as lids, knives and spoons
on the hob. They become hot if a
heating zone is switched on by mistake.
Immediately after use (while the hob
is still hot) clean with the blade
scraper to remove sugar and spills
with a high sugar content, such as
marmalade, and also any melted
plastic or foil, in order to avoid
damage to the plate.
Never leave a deep fat fryer, melting
fat, paraffinor other easily flammable
substance unattended. In the event of
fire, turn off the cooker knobs and
switch off the cooling fan.
EXTINGUISH A FIRE WITH A POT
LID , never use water.
Make sure that there is no sand, sugar
or salt on pots and pans. Sand can
cause scratches, while sugar and salt
can ruin the ceramic glass plate.
Always dry pots and pans before
placing them on the ceramic glass
plate. The coloured decor on the
ceramic glass plate can become worn
and scratched as it is used.

19
Changing zone size
M IN .
Press for the cookingzone you want to
use and choose the disered heating setting
with or .
M AX .
1Press for the cookingzone you
want to use, the indication lamp for
the doublezone function lights.
2Choose desired setting between 1 and
9. After being zeroed, the zone
automatically retains the setting latest
used.
Safety switch-off of the cooking zones
If one of the cooking zones is not switched
off after a certain time or the heating setting
is not changed, the cooking zone concerned
is switched off automatically.
Residual heating is shown by (“hot”) in
the digital display for the cooking zone
concerned.
The cooking zones are switched off
automatically in accordance with the
following timetable:
• Setting , , after 6 hours
• Setting , after 5 hours
• Setting after 4 hours
• Setting , , , after 1.5 hours
If one or more of the cooking zones should
shut off before the expiration of the stated
time, see the chapter “Problems and remedies”
