Electrolux LKI64400NW User manual

LKI64400NW
EN User Manual | Cooker

Welcome to Electrolux! Thank you for choosing our appliance.
Get usage advice, brochures, trouble shooter, service and repair information:
www.electrolux.com/support
Subject to change without notice.
CONTENTS
1. SAFETY INFORMATION................................................................................ 2
2. SAFETY INSTRUCTIONS.............................................................................. 5
3. INSTALLATION...............................................................................................7
4. PRODUCT DESCRIPTION............................................................................. 9
5. BEFORE FIRST USE....................................................................................10
6. HOB - DAILY USE.........................................................................................11
7. HOB - HINTS AND TIPS............................................................................... 16
8. HOB - CARE AND CLEANING..................................................................... 18
9. OVEN - DAILY USE ..................................................................................... 18
10. OVEN - HINTS AND TIPS...........................................................................21
11. OVEN - CARE AND CLEANING................................................................. 33
12. TROUBLESHOOTING................................................................................ 36
13. ENERGY EFFICIENCY...............................................................................37
14. ENVIRONMENTAL CONCERNS................................................................39
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
for any injuries or damage that are the result of incorrect
installation or usage. Always keep the instructions in a safe
and accessible location for future reference.
1.1 Children and vulnerable people safety
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved. Children of less than 8 years of age and
persons with very extensive and complex disabilities shall
be kept away from the appliance unless continuously
supervised.
2 ENGLISH

• Children should be supervised to ensure that they do not
play with the appliance.
• Keep all packaging away from children and dispose of it
appropriately.
• WARNING: The appliance and its accessible parts become
hot during use. Keep children and pets away from the
appliance when in use and when cooling down.
• If the appliance has a child safety device, it should be
activated.
• Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
1.2 General Safety
• This appliance is for cooking purposes only.
• This appliance is designed for single household domestic
use in an indoor environment.
• This appliance may be used in, offices, hotel guest rooms,
bed & breakfast guest rooms, farm guest houses and other
similar accommodation where such use does not exceed
(average) domestic usage levels.
• Only a qualified person must install this appliance and
replace the cable.
• This appliance is intended for use up to an altitude of 2000
m above sea level.
• This appliance is not intended to be used on ships, boats or
vessels.
• Do not install the appliance behind a decorative door in
order to avoid overheating.
• Do not install the appliance on a platform.
• Do not operate the appliance by means of an external timer
or separate remote-control system.
• WARNING: Unattended cooking on a hob with fat or oil can
be dangerous and may result in fire.
• Never use water to extinguish the cooking fire. Switch off
the appliance and cover flames with e.g. a fire blanket or lid.
ENGLISH 3

• CAUTION: The cooking process has to be supervised. A
short term cooking process has to be supervised
continuously.
• WARNING: Danger of fire: Do not store items on the
cooking surfaces.
• Do not use a steam cleaner to clean the appliance.
• Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the glass door or the glass of hinged lids of the hob
since they can scratch the surface, which may result in
shattering of the glass.
• Metallic objects such as knives, forks, spoons and lids
should not be placed on the hob surface since they can get
hot.
• If the glass ceramic surface / glass surface is cracked,
switch off the appliance and unplug it from the mains. In
case the appliance is connected to the mains directly using
junction box, remove the fuse to disconnect the appliance
from power supply. In either case contact the Authorised
Service Centre.
• After use, switch off the hob element by its control and do
not rely on the pan detector.
• WARNING: The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching
heating elements.
• Always use oven gloves to remove or insert accessories or
ovenware.
• Before maintenance, cut the power supply.
• WARNING: Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric shock.
• If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service Centre
or similarly qualified persons to avoid an electrical hazard.
• Be careful when you touch the storage drawer. It can get
hot.
4 ENGLISH

• To remove the shelf supports first pull the front of the shelf
support and then the rear end away from the side walls.
Install the shelf supports in the opposite sequence.
• WARNING: Use only hob guards designed by the
manufacturer of the cooking appliance or indicated by the
manufacturer of the appliance in the instructions for use as
suitable or hob guards incorporated in the appliance. The
use of inappropriate guards can cause accidents.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must install this
appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions supplied
with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use safety
gloves and enclosed footwear.
• Do not pull the appliance by the handle.
• The kitchen cabinet and the recess must
have suitable dimensions.
• Keep the minimum distance from other
appliances and units.
• Install the appliance in a safe and suitable
place that meets installation requirements.
• Parts of the appliance carry current. Close
the appliance with furniture to prevent
touching the dangerous parts.
• The sides of the appliance must stay next
to appliances or units with the same
height.
• Do not install the appliance adjacent to a
door or under a window. This prevents hot
cookware to fall from the appliance when
the door or the window is opened.

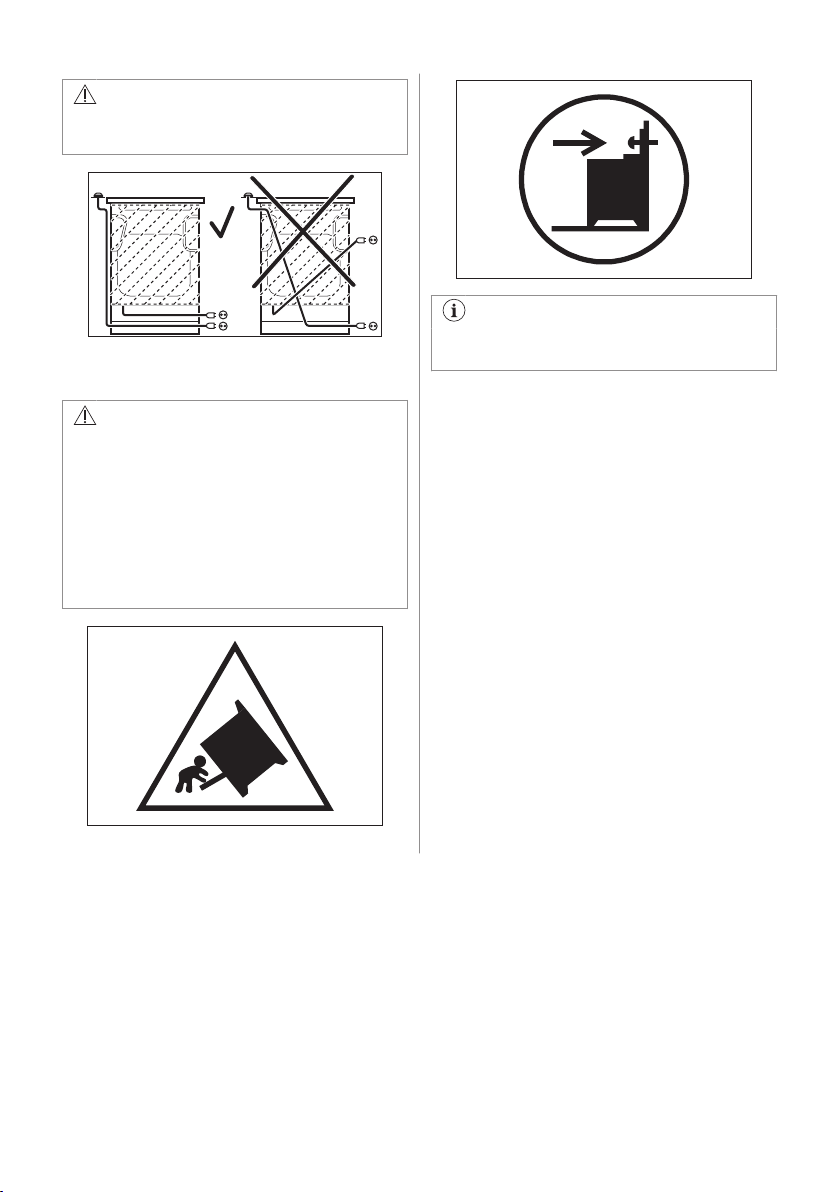

• Make sure to install a stabilizing means in
order to prevent tipping of the appliance.
Refer to Installation chapter.
2.2 Electrical Connection
WARNING!
Risk of fire and electric shock.
• All electrical connections should be made
by a qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Do not let mains cables touch or come
near the appliance door or the niche below
the appliance, especially when it operates
or the door is hot.
• The shock protection of live and insulated
parts must be fastened in such a way that
it cannot be removed without tools.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you disconnect
ENGLISH 5

the appliance from the mains at all poles.
The isolation device must have a contact
opening width of minimum 3 mm.
• Fully close the appliance door before you
connect the mains plug to the mains
socket.
2.3 Use
WARNING!
Risk of injury and burns.
Risk of electrical shock.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay unattended
during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance
door while the appliance is in operation.
Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not use the appliance as a work
surface or as a storage surface.
• Users with a pacemaker must keep a
distance of minimum 30 cm from the
induction cooking zones when the
appliance is in operation.
• Do not use aluminum foil or other
materials between the cooking surface
and the cookware, unless otherwise
specified by the manufacturer of this
appliance.
• Use only accessories recommended for
this appliance by the manufacturer.
• Always use glass and jars approved for
preserving purposes.
WARNING!
Risk of fire and explosion.
• Fats and oil when heated can release
flammable vapours. Keep flames or
heated objects away from fats and oils
when you cook with them.
• The vapours that very hot oil releases can
cause spontaneous combustion.
• Used oil, that can contain food remnants,
can cause fire at a lower temperature than
oil used for the first time.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
• Do not let sparks or open flames to come
in contact with the appliance when you
open the door.
• Open the appliance door carefully. The
use of ingredients with alcohol can cause
a mixture of alcohol and air.
WARNING!
Risk of damage to the appliance.
• To prevent damage or discoloration to the
enamel:
– do not put ovenware or other objects
in the appliance directly on the bottom.
– do not put aluminium foil directly on
the bottom of cavity.
– do not put water directly into the hot
appliance.
– do not keep moist dishes and food in
the appliance after you finish the
cooking.
– be careful when you remove or install
the accessories.
• Discoloration of the enamel or stainless
steel has no effect on the performance of
the appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• Do not keep hot cookware on the control
panel.
• Do not let cookware boil dry.
• Be careful not to let objects or cookware
fall on the appliance. The surface can be
damaged.
• Do not activate the cooking zones with
empty cookware or without cookware.
• Cookware made of cast iron, aluminium or
with a damaged bottom can cause
scratches. Always lift these objects up
when you have to move them on the
cooking surface.
2.4 Care and Cleaning
WARNING!
Risk of injury, fire, or damage to the
appliance.
6 ENGLISH

• Before maintenance, deactivate the
appliance.
Disconnect the mains plug from the mains
socket.
• Make sure the appliance is cold. There is
the risk that the glass panels can break.
• Replace immediately the door glass
panels when they are damaged. Contact
the Authorised Service Centre.
• Be careful when you remove the door from
the appliance. The door is heavy!
• Fat and food remaining in the appliance
can cause fire.
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Make sure the cavity and the door are
wiped dry after each use. Steam produced
during the operation of the appliance
condensates on cavity walls and can
cause corrosion. To decrease the
condensation operate the appliance for 10
minutes before cooking.
• Clean the appliance with a moist soft
cloth. Use only neutral detergents. Do not
use abrasive products, abrasive cleaning
pads, solvents or metal objects.
• If you use an oven spray, follow the safety
instructions on the packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
2.5 Internal lighting
WARNING!
Risk of electric shock.
• Concerning the lamp(s) inside this product
and spare part lamps sold separately:
These lamps are intended to withstand
extreme physical conditions in household
appliances, such as temperature,
vibration, humidity, or are intended to
signal information about the operational
status of the appliance. They are not
intended to be used in other applications
and are not suitable for household room
illumination.
• This product contains a light source of
energy efficiency class G.
• Use only lamps with the same
specifications.
2.6 Service
• To repair the appliance contact the
Authorised Service Centre.
• Use original spare parts only.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Contact your municipal authority for
information on how to dispose of the
appliance.
• Disconnect the appliance from the mains
supply.
• Cut off the mains electrical cable close to
the appliance and dispose of it.
3. INSTALLATION
WARNING!
Refer to Safety chapters.
3.1 Technical data
Dimensions
Height 850 - 936 mm
Width 596 mm
Depth 600 mm
3.2 Electrical installation
WARNING!
The manufacturer is not responsible if
you do not follow the safety precautions
from Safety chapters.
This appliance is supplied with a main cable
and without a main plug.
ENGLISH 7

WARNING!
The power cable must not touch the part
of the appliance shaded in the illustration.
3.3 Anti-tilt protection
CAUTION!
Install the anti-tilt protection to prevent
the appliance from falling under incorrect
loads. The anti-tilt protection only works
when the appliance is put in a correct
area.
Your appliance has the symbols shown
on the pictures (if applicable) to remind
you about the installation of the anti-tilt
protection.
Make sure you install the anti-tilt
protection at the correct height.
For more information about the installation of
the appliance refer to a separate installation
booklet
8 ENGLISH

4. PRODUCT DESCRIPTION
4.1 General overview
7
5
4
3
2
1
5
8
9
1 2 3
4
6
1Knob for the heating functions
2Control knob (for the temperature)
3Temperature indicator / symbol
4Knobs for the hob
5Heating element
6Lamp
7Shelf support, removable
8Fan
9Shelf positions
4.2 Hob overview
1 1
11
2
1Induction cooking zone
2Control Panel
4.3 Accessories
•Wire shelf
For cookware, cake tins, roasts.
•Baking tray
For cakes and biscuits.
•Grill- / Roasting pan
To bake and roast or as pan to collect fat.
•Storage drawer
The storage drawer is below the oven
cavity.
To open the drawer, push the drawer. The
drawer comes out.
ENGLISH 9

5. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
5.1 Initial Cleaning
Remove all accessories and removable shelf
supports from the oven.
Refer to "Care and cleaning" chapter.
Clean the oven and the accessories before
the first use.
Put the accessories and the removable shelf
supports back to their initial position.
5.2 Using the sensor fields
To activate the function press and hold the
selected symbol on the display for at least 1
second.
5.3 Preheating
Preheat the empty oven before first use.
1. Set the function . Set the maximum
temperature.
2. Let the oven operate for 1 hour.
3. Set the function . Set the maximum
temperature.
4. Let the oven operate for 15 minutes.
5. Set the function . Set the maximum
temperature.
6. Let the oven operate for 15 minutes.
7. Turn off the oven and let it cool down.
Accessories can become hotter than usual.
The oven can emit an odour and smoke.
Make sure that the airflow in the room is
sufficient.
5.4 Opening and closing the door
with the mechanical door lock
The mechanical door lock is activated by
default.
To open the door move the lock to the right.
Close the door without pressing the lever.
5.5 Deactivating the mechanical
door lock - in the main oven
1. Press the door trim B at each side. The
seal releases.
1
2
B
2. Pull the door trim up and remove it.
3. Remove the lever 1, move it to the right 2
and put it back in.
1
2
4. Hold the door trim B at each side and
position it on the inner edge of the door.
Put the door trim into the top edge of the
door.
10 ENGLISH

B
Activating the mechanical door lock
Do the above procedure again and move the
lever back to the left.
Deactivating the appliance does not
deactivate the mechanical door lock.
6. HOB - DAILY USE
WARNING!
Refer to Safety chapters.
6.1 Hob control panel
321
4
8
9
5
7
6
Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which
functions operate.
Sensor
field
Function Comment
1- Heat setting display To show the heat setting.
2- Timer indicators of cooking zones To show for which zone you set the time.
3- Timer display To show the time in minutes.
4- To select the cooking zone.
5 / - To increase or decrease the time.
ENGLISH 11

Sensor
field
Function Comment
6Hob²Hood To activate and deactivate the manual mode of the
function.
7Lock / Child Safety Device To lock / unlock the control panel.
8Pause To activate and deactivate the function.
9PowerBoost To activate and deactivate the function.
6.2 Heat setting displays
Display Description
The cooking zone is deactivated.
- / - The cooking zone operates.
The dot means a change by half of a heating level.
Pause operates.
Automatic Heat Up operates.
PowerBoost operates.
+ digit There is a malfunction.
/ / OptiHeat Control (3 step Residual heat indicator): continue cooking / keep warm / resid‐
ual heat.
Lock / Child Safety Device operates.
Incorrect or too small cookware or no cookware on the cooking zone.
Automatic Switch Off operates.
6.3 OptiHeat Control (3 step
Residual heat indicator)
WARNING!
/ / As long as the indicator is
visible, there is a risk of burns from
residual heat.
The induction cooking zones produce the
heat necessary for the cooking process
directly in the bottom of the cookware. The
glass ceramic is heated by the heat of the
cookware.
The indicators appear when a cooking zone
is hot. They show the level of the residual
heat for the cooking zones you are currently
using:
- continue cooking,
- keep warm,
- residual heat.
The indicator may also appear:
• for the neighbouring cooking zones even if
you are not using them,
• when hot cookware is placed on cold
cooking zone,
12 ENGLISH

• when the hob is deactivated but the
cooking zone is still hot.
The indicator disappears when the cooking
zone has cooled down.

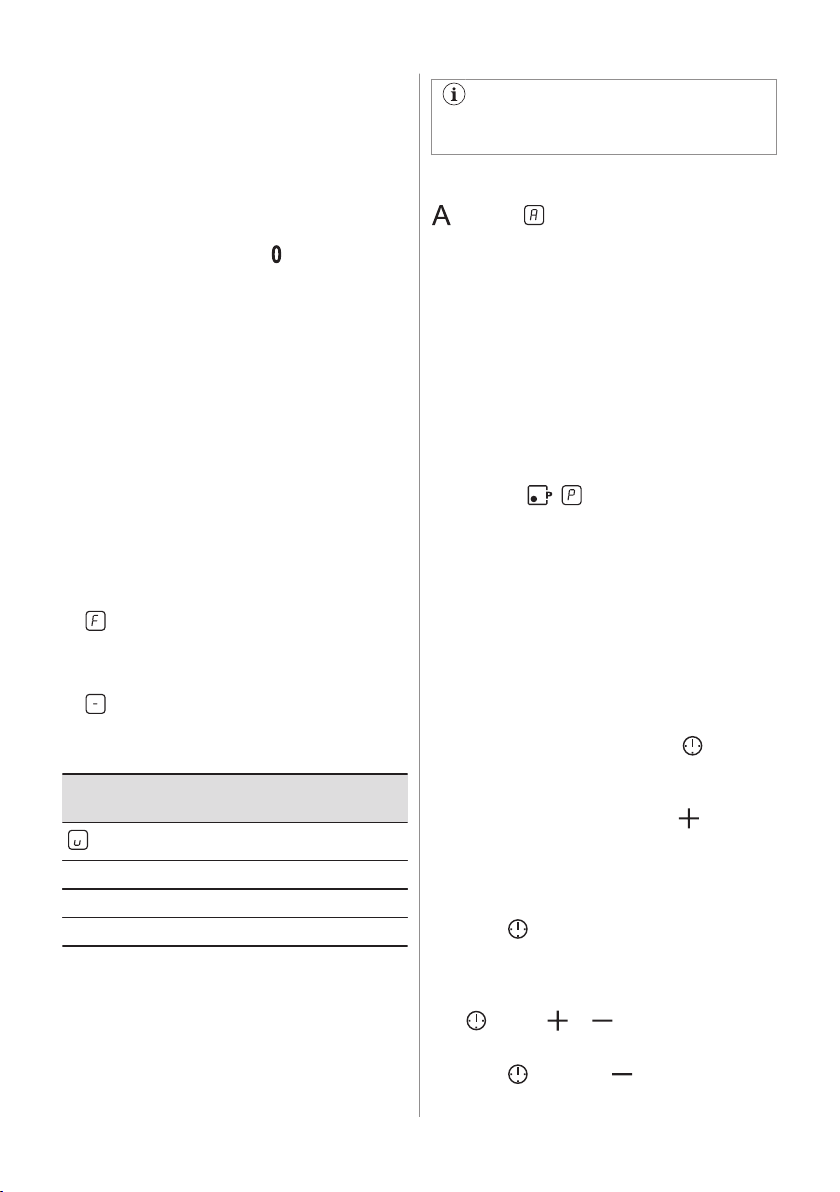

6.4 The heat setting
Turn the knob for the heating functions to
select a heating function. To deactivate it turn
the knob to the off position .
6.5 Automatic Switch Off
The function deactivates the hob
automatically if:
• all cooking zones are deactivated,
• you do not set the heat setting after you
activate the hob,
• you spill something or put something on
the control panel for more than 10
seconds (a pan, a cloth, etc.). An acoustic
signal sounds and the hob deactivates.
Remove the object or clean the control
panel.
• the hob gets too hot (e.g. when a
saucepan boils dry). Let the cooking zone
cool down before you use the hob again.
• you use incorrect cookware. The symbol
comes on and the cooking zone
deactivates automatically after 2 minutes.
• you do not deactivate a cooking zone or
change the heat setting. After some time
comes on and the hob deactivates.
The relation between the heat setting and
the time after which the hob deactivates:
Heat setting The hob deactivates
after
, 1 - 2 6 hours
3 - 4 5 hours
5 4 hours
6 - 9 1.5 hour
6.6 Automatic Heat Up
If you activate this function you can get a
necessary heat setting faster. The function
sets the highest heat setting for some time
and then decreases to the correct heat
setting.
To activate the function a cooking zone
must be cold.
To activate the function for a cooking
zone: turn the knob for a cooking zone to the
position. shows on the display.
Immediately set the correct heat setting.
To deactivate the function: turn the knob to
the off position.
6.7 PowerBoost
This function makes more power available to
the induction cooking zones. The function can
be activated for the induction cooking zone
only for a limited period of time. After this time
the induction cooking zone automatically sets
back to the highest heat setting.
To activate the function for a cooking
zone: touch . comes on.
To deactivate the function: change the heat
setting.
6.8 Timer
Count Down Timer
You can use this function to set how long the
cooking zone should operate for a single
cooking session.
First set the heat setting for the cooking zone
then set the function.
To set the cooking zone: touch again
and again until the indicator of a necessary
cooking zone comes on.
To activate the function: touch of the
timer to set the time (00 - 99 minutes). When
the indicator of the cooking zone starts to
flash slowly the time counts down.
To see the remaining time: set the cooking
zone with . The indicator of the cooking
zone starts to flash quickly. The display
shows the remaining time.
To change the time: set the cooking zone
with . Touch or .
To deactivate the function: set the cooking
zone with and touch . The remaining
ENGLISH 13

time counts back to 00. The indicator of the
cooking zone goes out.
When the time comes to an end, the
sound operates and 00 flashes. The
cooking zone deactivates.
To stop the sound: touch .
CountUp Timer
You can use this function to monitor how long
the cooking zone operates.
To set the cooking zone: touch again
and again until the indicator of a necessary
cooking zone comes on.
To activate the function: touch of the
timer. comes on. When the indicator of the
cooking zone starts to flash slowly the time
counts up. The display switches between
and counted time (minutes).
To see how long the cooking zone
operates: set the cooking zone with . The
indicator of the cooking zone starts to flash
quickly. The display shows how long the zone
operates.
To deactivate the function: set the cooking
zone with and touch or . The
indicator of the cooking zone goes out.
Minute Minder
You can use this function as a Minute
Minder when the hob is activated and the
cooking zones do not operate. The heat
setting display shows .
To activate the function: touch . Touch
or of the timer to set the time. Cooking
zones display deactivates automatically after
10 seconds. When the time comes to an end,
the sound operates and 00 flashes.
To stop the sound: touch .
To deactivate the function: activate for a
short time and deactivate left front cooking
zone.
The function has no effect on the
operation of the cooking zones.
6.9 Pause
This function sets all operating cooking zones
to the lowest heat setting.
The function does not stop the timer
functions.
1. To activate the function: press .
comes on. The heat setting is lowered to
1.
2. To deactivate the function: press .
The previous heat setting appears.
If you change the heat setting, the
function stops and the display shows the
new heat setting.
6.10 Lock
You can lock the sensors on the hob while
cooking zones operate.
Set the heat setting first.
To activate the function: touch .
comes on for 4 seconds. The Timer stays on.
To deactivate the function: touch . The
previous heat setting comes on.
When you deactivate the hob, you also
deactivate this function.
6.11 Child Safety Device
This function prevents an accidental
operation of the hob.
To activate the function: the hob must be
deactivated. Touch for 4 seconds until
flashes. Touch . comes on for 4
seconds.
To deactivate the function: the hob must be
deactivated. Touch for 4 seconds until
flashes. Touch . comes on for 4
seconds.
14 ENGLISH

To override the function for only one
cooking time: activate a cooking zone.
comes on. Touch for 4 seconds until
comes on for all zones. Set the heat setting
in 4 seconds. You can operate the hob.
When you deactivate the appliance the
function operates again.
6.12 OffSound Control (Deactivation
and activation of the sounds)
Deactivate the hob. Touch for 3 seconds.
Touch for 3 seconds. or comes on.
Touch of the timer to choose one of the
following:
• - the sounds are off
• - the sounds are on.
To confirm your selection wait until the hob
deactivates automatically.
When the function is set to you can hear
the sounds only when:
• Minute Minder comes down
• Count Down Timer comes down
• you put something on the control panel.
6.13 Hob²Hood
It is an advanced automatic function which
connects the hob to a special hood. Both the
hob and the hood have an infrared signal
communicator. Speed of the fan is defined
automatically on basis of mode setting and
temperature of the hottest cookware on the
hob. You can also operate the fan from the
hob manually.
For most of the hoods the remote system
is originally deactivated. Activate it before
you use the function. For more
information refer to hood user manual.
Operating the function automatically
To operate the function automatically set the
automatic mode to H1 – H6. The hob is
originally set to H5. The hood reacts
whenever you operate the hob. The hob
recognizes temperature of the cookware
automatically and adjusts the speed of the
fan.
Automatic modes
Automat‐
ic light Boiling1) Frying2)
Mode H0 Off Off Off
Mode H1 On Off Off
Mode H2 3) On Fan speed
1
Fan speed
1
Mode H3 On Off Fan speed
1
Mode H4 On Fan speed
1
Fan speed
1
Mode H5 On Fan speed
1
Fan speed
2
Mode H6 On Fan speed
2
Fan speed
3
1) The hob detects the boiling process and activates
fan speed in accordance with automatic mode.
2) The hob detects the frying process and activates fan
speed in accordance with automatic mode.
3) This mode activates the fan and the light and does
not rely on the temperature.
Changing the automatic mode
1. Deactivate the appliance.
2. Press until you hear a beep and keep
it pressed until you hear the second beep.
3. Press for 3 seconds until or
comes on.
4. Press until H and a digit (0 - 6) comes
on. H5 is the default setting.
5. Press of the Timer to select the
desired mode (H0 - H6). The chosen
mode activates automatically after 10
seconds.
To operate the hood directly on the hood
panel deactivate the automatic mode of
the function.
ENGLISH 15

When you finish cooking and deactivate
the hob, the hood fan may still operate
for a certain period of time. After that time
the system deactivates the fan
automatically and prevents you from
accidental activation of the fan for the
next 30 seconds.
Operating the fan speed manually
You can also operate the function manually.
To do that touch when the hob is active.
This deactivates automatic operation of the
function and allows you to change the fan
speed manually. When you press you
raise the fan speed by one. When you reach
an intensive level and press again you will
set fan speed to 0 which deactivates the hood
fan. To start the fan again with fan speed 1
touch .
To activate automatic operation of the
function, deactivate the hob and activate
it again.
Activating the light
You can set the hob to activate the light
automatically whenever you activate the hob.
To do so set the automatic mode to H1 – H6.
The light on the hood deactivates 2
minutes after deactivating the hob.
6.14 Power management function
• All cooking zones are connected to one
phase. See the illustration.
• The phase has a maximum electricity
load.
• The function divides the power between
cooking zones.
• The function activates when the total
electricity load of the cooking zones is
exceeded.
• The function reduces the power of the
other cooking zones.
• The heat setting display of the reduced
zones changes between two levels.
7. HOB - HINTS AND TIPS
WARNING!
Refer to Safety chapters.
7.1 Cookware
For induction cooking zones a strong
electro-magnetic field creates the heat in
the cookware very quickly.
Use the induction cooking zones with
suitable cookware.
Cookware material
•correct: cast iron, steel, enamelled steel,
stainless steel, multi-layer bottom (with a
correct marking from a manufacturer).
•not correct: aluminium, copper, brass,
glass, ceramic, porcelain.
Cookware is suitable for an induction hob
if:
• water boils very quickly on a zone set to
the highest heat setting.
• a magnet pulls on to the bottom of the
cookware.
16 ENGLISH

The bottom of the cookware must be as
thick and flat as possible.
Ensure pan bases are clean and dry
before placing on the hob surface.
Cookware dimensions
Induction cooking zones adapt to the
dimension of the bottom of the cookware
automatically.
The cooking zone efficiency is related to the
diameter of the cookware. The cookware with
a diameter smaller than the minimum
receives only a part of the power generated
by the cooking zone.
7.2 Minimum cookware diameter
Cooking
zone
Cookware diam‐
eter (mm)
Power (W)
Left rear 125 - 140 1400/2500
Right rear 145 - 180 1800/2800
Right front 145 - 180 1800/2800
Left front 180 - 210 2300/3600
7.3 Noises during operation
If you can hear:
• crack noise: cookware is made of different
materials (a sandwich construction).
• whistle sound: you use a cooking zone
with a high power level and the cookware
is made of different materials (a sandwich
construction).
• humming: you use a high power level.
• clicking: electric switching occurs.
• hissing, buzzing: the fan operates.
The noises are normal and do not indicate
any malfunction.
7.4 Öko Timer (Eco Timer)
To save energy, the heater of the cooking
zone deactivates before the count down timer
sounds. The difference in the operation time
depends on the heat setting level and the
length of the cooking operation.
7.5 Simplified cooking guide
The correlation between the heat setting of a
zone and its consumption of power is not
linear. When you increase the heat setting, it
is not proportional to the increase of the
consumption of power. It means that a
cooking zone with the medium heat setting
uses less than a half of its power.
The data in the table is for guidance only.
Heat setting Use to: Time
(min)
Hints
- 1 Keep cooked food warm. as neces‐
sary
Put a lid on the cookware.
1 - 2. Hollandaise sauce; melt: butter, choco‐
late, gelatine.
5 - 25 Mix from time to time.
2. Solidify: fluffy omelettes, baked eggs. 10 - 40 Cook with a lid on.
2. - 3. Simmer rice and milk-based dishes,
heat up ready-cooked meals.
25 - 50 Add at least twice as much liquid as
rice, mix milk dishes halfway through
the procedure.
3. - 4. Stew vegetables, fish, meat. 20 - 45 Add a few tablespoons of water.
Check the water amount during the
process.
ENGLISH 17

Heat setting Use to: Time
(min)
Hints
4. - 5. Steam potatoes and other vegetables. 20 - 60 Cover the bottom of the pot with 1-2
cm of water. Check the water level
during the process. Keep the lid on the
pot.
4. - 5. Cook larger quantities of food, stews
and soups.
60 - 150 Up to 3 l of liquid plus ingredients.
5. - 7 Gentle fry: escalope, veal cordon bleu,
cutlets, rissoles, sausages, liver, roux,
eggs, pancakes, doughnuts.
as neces‐
sary
Turn over when needed.
7 - 8 Heavy fry, hash browns, loin steaks,
steaks.
5 - 15 Turn over when needed.
9 Boil water, cook pasta, sear meat (goulash, pot roast), deep-fry chips.
Boil large quantities of water. PowerBoost is activated.
8. HOB - CARE AND CLEANING
WARNING!
Refer to Safety chapters.
8.1 General information
• Clean the hob after each use.
• Always use cookware with a clean base.
• Scratches or dark stains on the surface
have no effect on how the hob operates.
• Use a special cleaning agent suitable for
the surface of the hob.
• Always use a scraper recommended for
hobs with a glass surface. Use the scraper
only as an additional tool for cleaning the
glass after the standard cleaning
procedure.
WARNING!
Do not use knives or any other sharp,
metal tools to clean the glass surface.
8.2 Cleaning the hob
•Remove immediately: melted plastic,
plastic foil, salt, sugar and food with sugar,
otherwise, the dirt can cause damage to
the hob. Take care to avoid burns. Use a
special hob scraper on the glass surface
at an acute angle and move the blade on
the surface.
•Remove when the hob is sufficiently
cool: limescale rings, water rings, fat
stains, shiny metallic discoloration. Clean
the hob with a moist cloth and a non-
abrasive detergent. After cleaning, wipe
the hob dry with a soft cloth.
•Remove shiny metallic discoloration:
use a solution of water with vinegar and
clean the glass surface with a cloth.
9. OVEN - DAILY USE
WARNING!
Refer to Safety chapters.
18 ENGLISH

9.1 Oven functions
WARNING!
Do not pour any liquids into the cavity
embossment before and during the
cooking process. There is a risk of
damage.
Symbol Oven function Application
Off position The oven is off.
Conventional To bake and roast food on one shelf position.
Circulated cooking To roast or roast and bake food with the same cooking tempera‐
ture on more than one shelf position, without flavour transfer‐
ence.
Hot Air To bake on up to two shelf positions at the same time and to dry
food.
Set the temperature 20 - 40 °C lower than for Conventional.
Pie / Pizza To bake food on one shelf position for a more intensive browning
and a crispy bottom.
Drying To dry sliced fruit, vegetables and mushrooms.
Max Grill To grill flat food in large quantities and to toast bread.
Turbo Grilling To roast larger meat joints or poultry with bones on one shelf po‐
sition. Also to make gratins and to brown.
Moist Fan Baking This function was used to comply with the Energy Efficiency
Class and Ecodesign Regulations (according to EU 65/2014 and
EU 66/2014). Tests according to: IEC/EN 60350-1.
The oven door should be closed during cooking so that the func‐
tion is not interrupted and to ensure that the oven operates with
the highest energy efficiency possible.
When you use this function, the temperature in the cavity may dif‐
fer from the set temperature. The heating power may be reduced.
For general energy saving recommendations refer to "Energy Ef‐
ficiency" chapter, Energy Saving.
This function is designed to save energy during cooking. For the
cooking instructions refer to "Hints and tips" chapter, Moist Fan
Baking.
When you use this function the lamp automatically turns off.
Function Lock To lock oven functions.
ENGLISH 19

You can defrost food by choosing Moist
Fan Baking function without setting the
temperature.
9.2 Activating and deactivating the
oven
It depends on the model if your
appliance has knob symbols,
indicators or lamps:
• The indicator comes on when the
oven heats up.
• The lamp comes on when the oven
operates.
• The symbol shows whether the knob
controls one of the cooking zones, the
oven functions or the temperature.
1. Turn the knob for the oven functions to
select an oven function.
2. Turn the knob for the temperature to
select a temperature.
3. To deactivate the oven turn the knobs for
the oven functions and temperature to the
off position.
9.3 Locking the oven
The knob for the oven functions has a built-in
Function lock.
The Function lock does not deactivate
the main power supply of the cooker.
Turn the knob to the symbol .
The knob comes out approximately 2 mm.
Unlocking the oven: Press the knob and
turn it to the necessary position.
9.4 Cooling fan
When the oven operates, the cooling fan
turns on automatically to keep the surfaces of
the oven cool. If you turn off the oven, the
cooling fan stops.
9.5 Inserting the oven accessories
Deep pan:
Push the deep pan between the guide bars of
the shelf support.
Wire shelf:
Push the shelf between the guide bars of the
shelf support.
• All accessories have small
indentations at the top of the right and
left side to increase safety. The
indentations are also anti-tip devices.
• The high rim around the shelf is a
device which prevents cookware from
slipping.
20 ENGLISH
