Electrolux DC6-4 User manual

Installation manual
Drying Cabinet
DC6-4
Original instructions
427001179/EN
2022.02.10

Contents
Contents
1 Safety Precautions ..............................................................................................................................5
1.1 General safety information..........................................................................................................5
1.2 Symbols....................................................................................................................................5
2 Technical data.....................................................................................................................................6
3 Installation kit......................................................................................................................................7
4 Installation ..........................................................................................................................................8
4.1 Unpacking.................................................................................................................................8
4.2 Recycling instruction for packaging .............................................................................................9
4.3 Placement.................................................................................................................................9
4.4 Mechanical installation .............................................................................................................10
5 Evacuation system ............................................................................................................................ 11
5.1 Fresh air.................................................................................................................................. 11
5.2 Evacuation connection ............................................................................................................. 11
5.2.1 Draft stabilizer................................................................................................................12
5.2.2 Permanently installed and connected to the ventilation duct...............................................13
6 Reversing the door ............................................................................................................................15
7 Electrical connection..........................................................................................................................19
8 Function check..................................................................................................................................20
9 Disposal information..........................................................................................................................21
9.1 Disposal of appliance at end of life ............................................................................................21
9.2 Disposal of packing..................................................................................................................21
The manufacturer reserves the right to make changes to design and component specifications.

Installation manual 5
1 Safety Precautions
This appliance can be used in public areas.
Remove all objects from pockets such as lighters and matches.
WARNING. This appliance is intended only for drying textiles washed in water.
DO NOT MODIFY THIS APPLIANCE.
Servicing shall be carried out only by authorized personnel.
Only authorized spare parts shall be used.
When performing service or replacing parts, the power must be disconnected.
A-weighted emission sound pressure level at workstations: <70 dB
Additional requirements for the following countries: AT, BE, BG, HR, CY, CZ, DK, EE, FI,
FR, DE, GR, HU, IS, IE, IT, LV, LT, LU, MT, NL, NO, PL, PT, RO, SK, SI, ES, SE, CH, TR,
UK:
• This appliance can be used in public areas.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction con-
cerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by children without supervision.
Additional requirements for other countries:
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental ca-
pabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do
not play with the appliance.
1.1 General safety information
Do not hose down the machine with water.
In order to prevent damage to the electronics (and other parts) that may occur as the result of condensation, the ma-
chine should be placed in room temperature for 24 hours before being used for the first time.
1.2 Symbols
Caution
Caution, hot surface
Read the instructions before using the machine.
Be careful. The drying cabinet is top heavy and can tip over easily.

6Installation manual
2 Technical data
2
A
BE
C D
I
J
F
G
H
K
1
fig.W01253
1 Control panel
2 Air outlet* ⌀100 mm
A B C D E F G H I J K
mm 595 606 1901 1915 15 60 255 1089 300 100 850
* Connected with supplied draft stabilizer and hose.
Net weight: 56 kg.

Installation manual 7
3 Installation kit
A x1
B x1
C x1
D x2
E x4
F x1
G x2
H x2
J x4
K x1
fig.W01507
A Draft stabilizer
B Hose
C Spigot
D Fixing screw for spigot
E Cover plug for adjustable feet
F Allen key
G Screw TRX 5x70 zinc-plated
H Washer N8 5x25
J Wall plug
K Spacer 8.2x12x15

8Installation manual
4 Installation
Place the drying cabinet on its final position.
Level the drying cabinet with the adjustable feet. Use the supplied Allen key (A) and adjust all four of the feet through
the holes in the base plate of the drying cabinet. Once the drying cabinet is level, press the four cover plugs (B) down
firmly into the holes.
A
B
fig.W01508
4.1 Unpacking
Unpack the drying cabinet and check that it has not been damaged in transit. Any damage to the drying cabinet and/
or the packaging must be reported within 7 days.

Installation manual 9
4.2 Recycling instruction for packaging
fig.X02425
Fig. Description Code Type
1 Wrapping film LDPE 4 Plastics
2 Cardboard packaging top PAP 20 Paper
3 Wooden bars FOR 50 Wood
4 Protection film LDPE 4 Plastics
5Cardboard side protection PAP 20 Paper
6 Wooden bars FOR 50 Wood
7Support bar PS 6 Plastics
8 Corner protection PS 6 Plastics
9 Undercarriage protection PS 6 Plastics
10 Pallet FOR 50 Wood
11 Plastic bag LDPE 4 Plastics
4.3 Placement
The drying cabinet should be positioned so that there is plenty of room for working, both for the user and service
personnel.

10 Installation manual
4.4 Mechanical installation
The drying cabinet must be secured to the wall to prevent it from tipping over. (Kit for this included upon delivery.)
Once the drying cabinet is in its final position, open the door and slide out the upper hanger section.
Drill 8 mm holes in the wall through the two predrilled holes in the rear of the drying cabinet (F).
Insert the plastic plugs (C) into the holes in the wall (D). Place a spacer (E) on the screw (G) and install with a washer
as shown in the figure.
C D E
F
G
fig.W01509

Installation manual 11
5 Evacuation system
5.1 Fresh air
When the drying cabinet is running, about 50 m3of moist air is evacuated per hour. This air is taken from the room
where the drying cabinet is situated.
It is therefore important to ensure that fresh air can enter the room from the outside to replace the humid air that is
vented out.
The recommended fresh air intake should be 5 times larger than the recommended shared exhaust air duct.
5.2 Evacuation connection
The drying cabinet should be connected to a standard exhaust ventilation unit.
There are two possible ways to connect the drying cabinet to a ventilation duct – either with a draft stabilizer or with a
permanent connection to an exhaust air system. If the drying cabinet is being connected to an existing ventilation
system, a draft stabilizer must always be used so that the general ventilation in the room is not affected.
Permanent connection is only permitted if a drying cabinet comes with a separate exhaust air duct.

12 Installation manual
5.2.1 Draft stabilizer
The drying cabinet has been tested and set at factory for connection with a draft stabilizer. (Kit for this included upon
delivery.)
Place the spigot (A) over the hole in the top of the cabinet. Insert the screws and secure the spigot.
A
fig.W01510
Connect the flexible hose (B) to the spigot. Connect the other end of the hose to the draft stabilizer (C), and then
press the draft stabilizer securely into the exhaust air vent in the room.
C
1
2
B
3
4
fig.W01511
1 Humid air out
2 Ventilation from the room
3 Nipple
4 Air intake

Installation manual 13
5.2.2 Permanently installed and connected to the ventilation duct
When the drying cabinet is permanently connected to the ventilation duct, the whole room is ventilated through the
drying cabinet. (A kit for this is included with the drying cabinet, except for the insert).
Place the spigot (A) over the hole in the top of the cabinet. Insert the screws and secure the spigot.
A
fig.W01510
Connect the flexible hose (B) to the spigot. Connect the other end of the hose to the insert (C) (the insert is not in-
cluded), and then press the insert securely into the exhaust air vent in the room.
1
B
2
C
3
fig.W01512
1 Humid air out
2 Nipple
3 Air intake

14 Installation manual

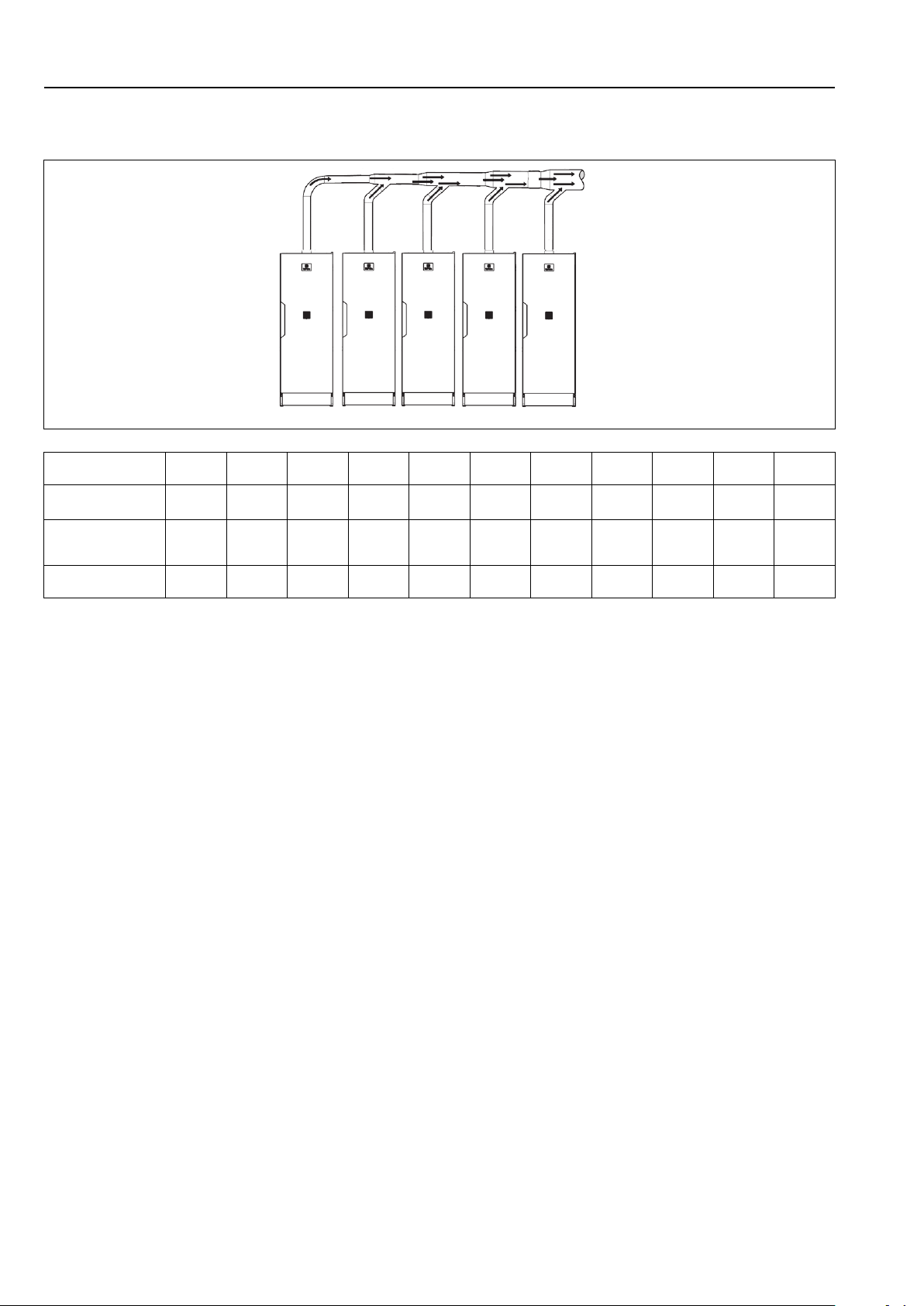

If multiple drying cabinets or dryers are connected to the same air duct, a non-return valve must be installed on each
appliance to prevent cold air from entering or the air pressure of one appliance affecting the other.
fig.W01513
Number of
cabinets 1 2 3 4 5 6 7 8 9 10
Evacuation pipe
dia.
[mm] 100 100 100 125 125 160 160 160 200 200
Recommended
area for fresh air
intake [m2]0,039 0,039 0,039 0,061 0,061 0,101 0,101 0,101 0,157 0,157
Minimum area for
fresh air intake [m2]0,009 0,017 0,026 0,035 0,043 0,052 0,061 0,069 0,078 0,087

Installation manual 15
6 Reversing the door
Note!
The left and right upper hinges are not interchangeable. When rehanging, a new upper hinge must be or-
dered from the supplier.
Disconnect the power to the appliance.
Carefully lay the drying cabinet on its back.
Remove the cover on the upper part of the drying cabinet (A) and the protection plate (B) above the control cable
from the door’s membrane panel (C). Arrows in the figure indicate the location of the fastening screws for each part.
Disconnect the door cable from the control unit in the upper part of the cabinet using the fast coupling (D). Note how
the cables are connected!
Unscrew the lower hinge pin (E).
D
A
C
B
E
fig.W01255

16 Installation manual
Lift up the door a bit from the bottom edge and remove it from the upper hinged joint, far enough so that the hinge pin
is exposed. The pin has a groove for the control cable.
Pull the door cable (F) with its connecting contact out of the slot in the hinge. The door cable is bared so that it can
be pulled through the slot. Use this part when pulling the cable out.
The door (G) is now free and can be put aside.
Detach the upper hinge (H) with the hinge plate (I). Discard the hinge and plate.
Fit the new replacement hinge with hinge plate on the opposite side. (The hinge and hinge plate must be ordered
from the supplier).
F
H
G
I
fig.W01256
Remove the fan unit (J). The torque screws are located on the interior surface on the top of the drying cabinet. The
screws will become accessible if the hanger section is pulled out a bit.
J
fig.W01257

Installation manual 17
Remove the cover from the fan unit. The cover is attached with one screw on each short and long side.
Move the control cable (K) over to the other side and pull it through the predrilled holes in the side.
Reinstall the cover and securely fasten the fan unit again.
K
fig.W01258
Turn the door so that the inside becomes accessible.
Loosen the upper inner plate (L). The plate is secured with five screws (three screws under the magnetic strip and
one screw on each end).
Loosen and move the two hinge bushings in the door to the opposite side. In the figure, the upper one is labeled (M).
Move the door cable (N) to the other side. Pull it through the hinge bushing that was moved.
Reattach the inner plate.
N
L
M
fig.W01259

18 Installation manual
Attach the door.
Insert the door cable through the slot in the new upper hinge. (Use the bared part of the cable).
Slide the door up onto the hinge pin.
Attach the lower hinge pin.
Connect the door cable to the fan unit in the upper part of the drying cabinet using the fast coupling.
Make sure the cables are connected in the same way as before.
Reinstall protective cover over the cable and refit the cap over the drying cabinet.
Move the door handle to the other side. Torque tighten to 2.5 Nm.

Installation manual 19
7 Electrical connection
The electrical installation may only be performed by qualified personnel.
The drying cabinet is supplied ready for connection with a cable with a grounded plug.
Heating options Mains voltage Hz Heat output
kW
Total output
kW
Recommended fuse
A
Electrically heated 230V 1~ 50/60 1.5 1.5 10
We recommend that the mains cable be equipped with a ground fault interrupter.
The electrical outlet must be in a location that makes it easy to unplug the cabinet if necessary.

20 Installation manual
8 Function check
May only be performed by qualified personnel.
A function check must be performed when the installation is finished and before the appliance can be used.
Whenever a repair has been made, a function check must be performed before the appliance can be used again.
• Select any program and check that the drying cabinet is heating and that there are no odd noises.
Ready for use
If all tests are OK the appliance is now ready for use.
If any of the tests fail, or deficiencies or faults are detected, please contact your local service organization or supplier.
