Electrolux DC6-8HP Q Series User manual

Installation manual
Drying Cabinet
DC6-8HP_Q
Original instructions
427001229/EN
2022.05.25

Contents
Contents
1 Safety Precautions ..............................................................................................................................5
1.1 General safety information..........................................................................................................5
1.2 Symbols....................................................................................................................................5
2 Technical data.....................................................................................................................................6
2.1 Dimensions drawing...................................................................................................................6
2.2 Technical data ...........................................................................................................................7
3 Delivery ..............................................................................................................................................8
4 Dehumidifier unit ................................................................................................................................9
4.1 Unpacking.................................................................................................................................9
4.2 Installation kit ............................................................................................................................9
4.3 Installation of upper part ...........................................................................................................10
5 Positioning/Attachment ......................................................................................................................12
5.1 Ventilating the room .................................................................................................................12
5.2 Attachment to the wall ..............................................................................................................13
6 Electrical connection..........................................................................................................................14
6.1 Network Functions ...................................................................................................................15
7 Connection to floor drain ....................................................................................................................17
8 Function check..................................................................................................................................18
9 Disposal information..........................................................................................................................19
9.1 Disposal of appliance at end of life ............................................................................................19
9.2 Disposal of packing..................................................................................................................19
The manufacturer reserves the right to make changes to design and component specifications.

Installation manual 5
1 Safety Precautions
This appliance can be used in public areas.
Remove all objects from pockets such as lighters and matches.
WARNING. This appliance is intended only for drying textiles washed in water.
DO NOT MODIFY THIS APPLIANCE.
Servicing shall be carried out only by authorized personnel.
Only authorized spare parts shall be used.
When performing service or replacing parts, the power must be disconnected.
A-weighted emission sound pressure level at workstations: <70 dB
Additional requirements for the following countries: AT, BE, BG, HR, CY, CZ, DK, EE, FI,
FR, DE, GR, HU, IS, IE, IT, LV, LT, LU, MT, NL, NO, PL, PT, RO, SK, SI, ES, SE, CH, TR,
UK:
• This appliance can be used in public areas.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction con-
cerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by children without supervision.
Additional requirements for other countries:
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental ca-
pabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do
not play with the appliance.
1.1 General safety information
Do not hose down the machine with water.
In order to prevent damage to the electronics (and other parts) that may occur as the result of condensation, the ma-
chine should be placed in room temperature for 24 hours before being used for the first time.
1.2 Symbols
Caution
Caution, hot surface
Read the instructions before using the machine.
Be careful. The drying cabinet is top heavy and can tip over easily.

6Installation manual
2 Technical data
2.1 Dimensions drawing
K
D
C
F
G
E
A
1
H
J
I
2
B
fig.W01385
A B C D E F G H I J K
mm 1195 673 2061 424 1080 90 2079 436 452 809 850
1 Control panel
2 Condensation nipple ⌀18 mm. 3 m hose included.

Installation manual 7
2.2 Technical data
Capacity: kg of laundry 6 - 8
Drainage capacity: g/min* 70
Electrical connection: 400V 3N AC 50Hz
Traditional threaded fuse: A 13A
Automatic fuse: A 13A
Power: kW 3.5
Hanging length: meters 18
Weight: kg 189
Sound pressure level: A-weighted emission sound pressure level <70 dB (A)
Average heat emission per drying cycle used
to assess ventilation need**:
kW 2.0
* 6 kg dry weight cotton, 50% residual moisture. At room temperature 30°C, max. 3% residual humidity.
** For assistance with dimensioning necessary ventilation needs, contact authorized ventilation technician. For suffi-
cient ventilation all sources introducing heat need to be taken into account plus all other parameters effecting the
ventilation need. Climate zone, building parameters, room size, etc.
Connections
Connection, condensation Plastic hose dim ⌀18 mm. 3 m hose included.
Heat pump
Type of refrigerant R134A
Amount of refrigerant kg 1.0
Fluorinated greenhouse gases
This product contains fluorinated greenhouse gases.
GWP: 1430
CO2equivalent: 1.43 t
Leak test: 28 bar
Hermetically sealed.
Energy consumption and drying times
Drying of centrifuged laundry **)
Programs: Normal drying
Energy consumption: kWh / kg of laundry 0.33
Energy dried water: kWh / liter 0.66
Drying time ***): minutes 42
**) The values may vary depending on:
• speed during spin cycle
• temperature, humidity in the room
• air circulation in the room (supply air, exhaust air)
• settings in the parameter list regarding moisture sensor and time for the BUTTERFLY program
The values relate to a 6 kg load with 50% residual moisture.
***) The drying cabinet reconditions 5 minutes after the textiles have dried

8Installation manual
3 Delivery

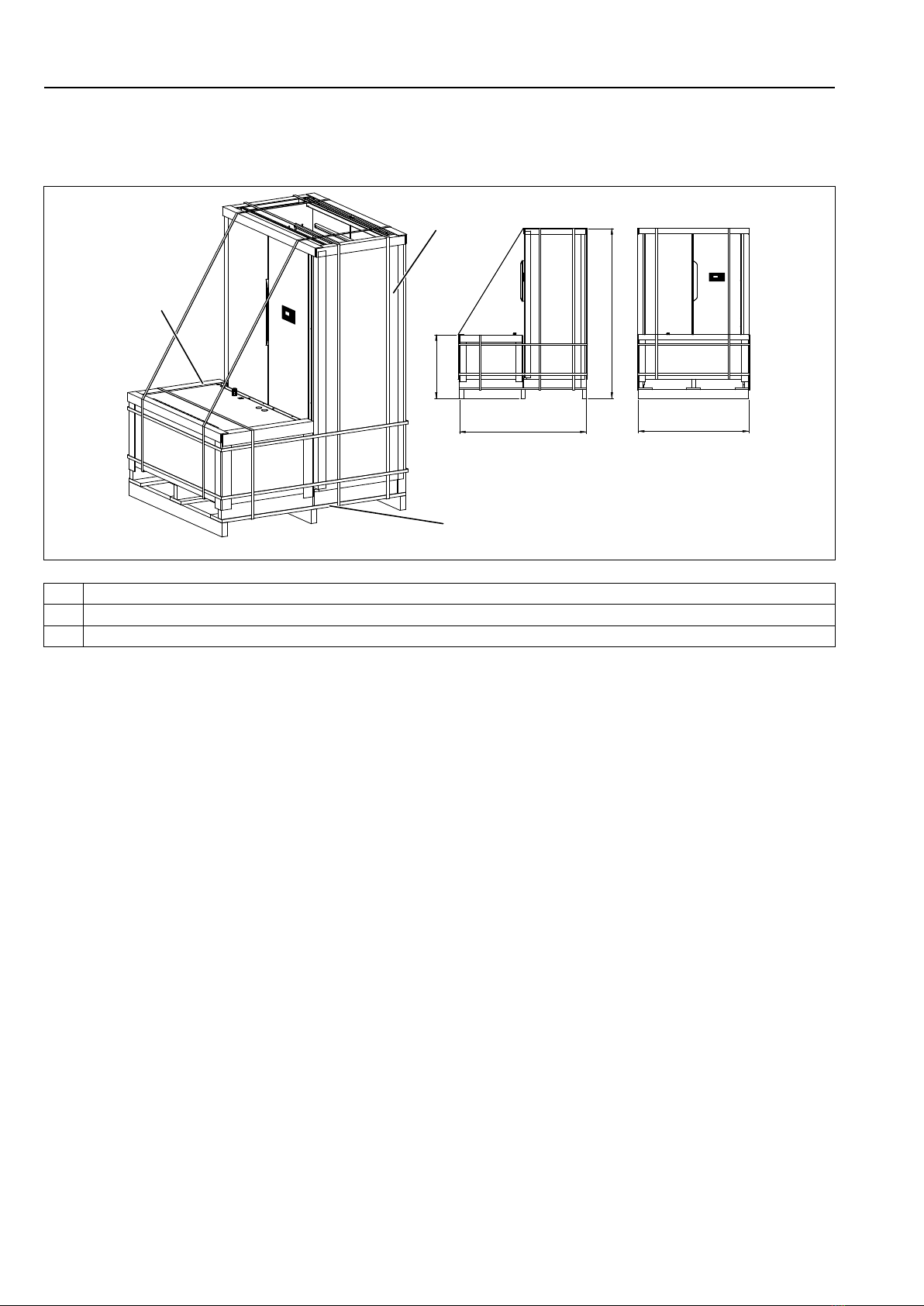

The cabinet is delivered as two units on the same pallet, one upper part that includes the dehumidifier unit and one
fully-assembled cabinet frame.
1
3
180 kg
1400 1220
1877
704
2
fig.W01386
1 Transport pallet
2 Packaging, upper part
3 Packaging, frame

Installation manual 9
4 Dehumidifier unit
4.1 Unpacking
Removal all packing materials. Do not use sharp objects, as this could damage the product. Unpacked, the dehu-
midifier unit weighs 82 kg.
Packaging materials such as plastic and styrofoam should be kept out of reach of children.
4.2 Installation kit
1
2
3
4
5
6
7
8
fig.W01372
1 Screw M8x20 (4). See page 10
2 Screw 4x9.5 SHEETtracs (2). See page 10
3 Screw M8x16 (2). See page 12
4 Angle bracket (2). See page 12
5Lifting tube (4). See page 10
6 Fastening screw for wall (2), washer (2), plastic plug (2). See page 12
7Condensation hose in roll (1). See page 14
8 Brush (1)

10 Installation manual
4.3 Installation of upper part
Before lifting the upper part into place
• Unscrew the lamp lens and the lamp from the upper part to prevent these from being damaged during setup.
• Turn the hose nipple 90 degrees to protect this during setup as well.

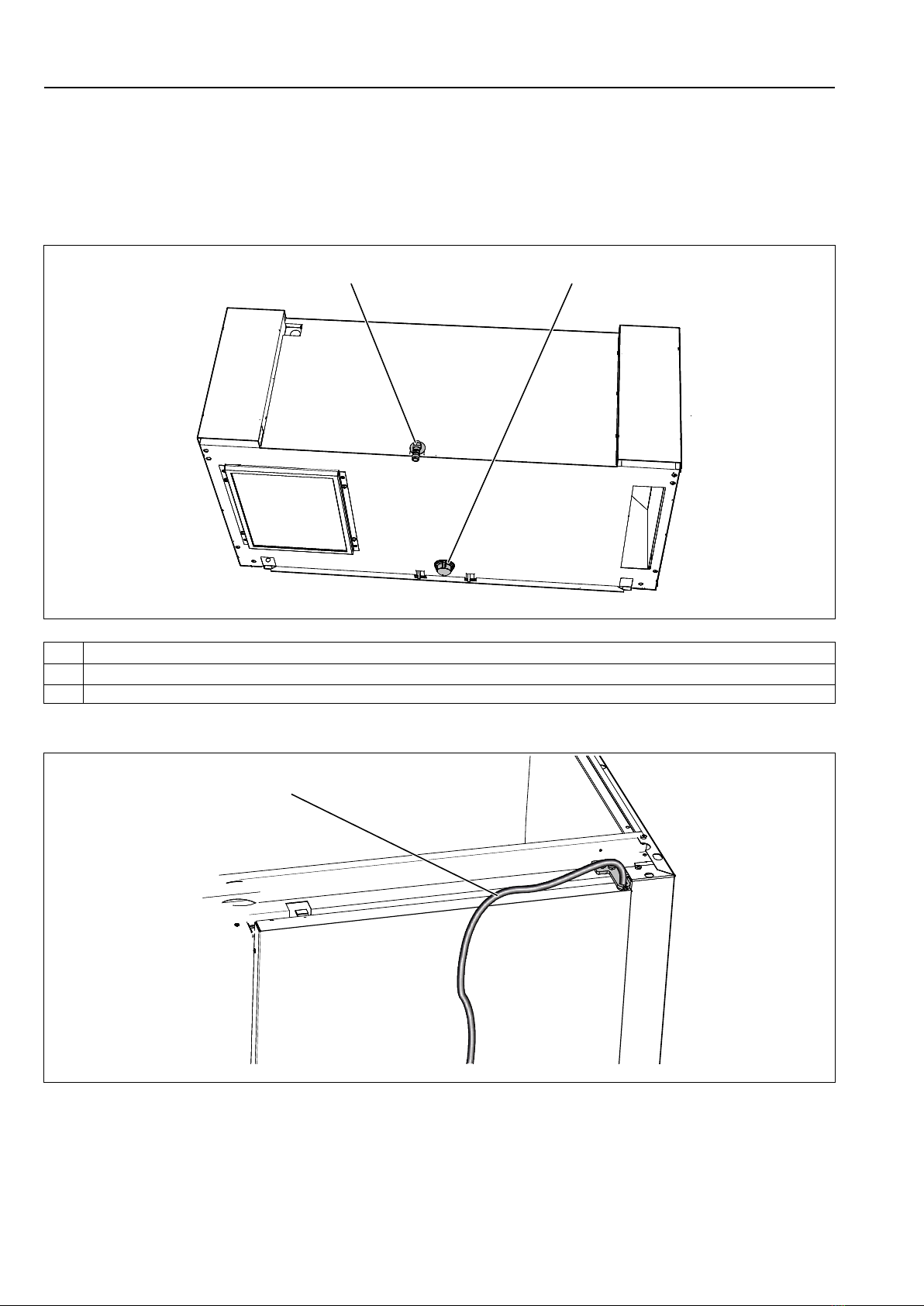

Upper part as seen from behind
21
fig.W01387
1 Hose nipple
2 Lamp
3 Door cable
Lower part with door cable connected
3
fig.W01374A
The fully assembled right door has an installed door cable (3) connected to the control panel in the door.
Bend it away so it is not damaged when the upper part is placed on the lower part.
The cable is connected to the terminal block as described in the "Electrical connection" section later in this manual.

Installation manual 11
The installation kit contains four air tubes that are used when installing the upper part.
• Remove the cover plugs (A) and insert the air tubes (B) at the ends. Twist the air tubes so they lock into place.
• Carefully lift the upper part onto the lower part and secure it with the four provided M8x20 screws and the two 4 x
9.5 SHEETtracs screws for the air duct as illustrated.
• Pull out the air tubes and refit the cover plugs.
• Reinstall the lamp and lamp lens.
After setup, store the air tubes at a suitable spot for future use.
2
3
4
A
A
B
B
1
fig.W01375A
1 Fastening screw for upper part M8x20 (4)
2 Fastening screw 4x9,5 SHEETtracs for air duct (2)
3 Sealing strip
4 Air duct

12 Installation manual
5 Positioning/Attachment
The drying cabinet is only intended for placement indoors in a dry place
The drying cabinet may not be placed in an environment where high-pressure water is used for cleaning

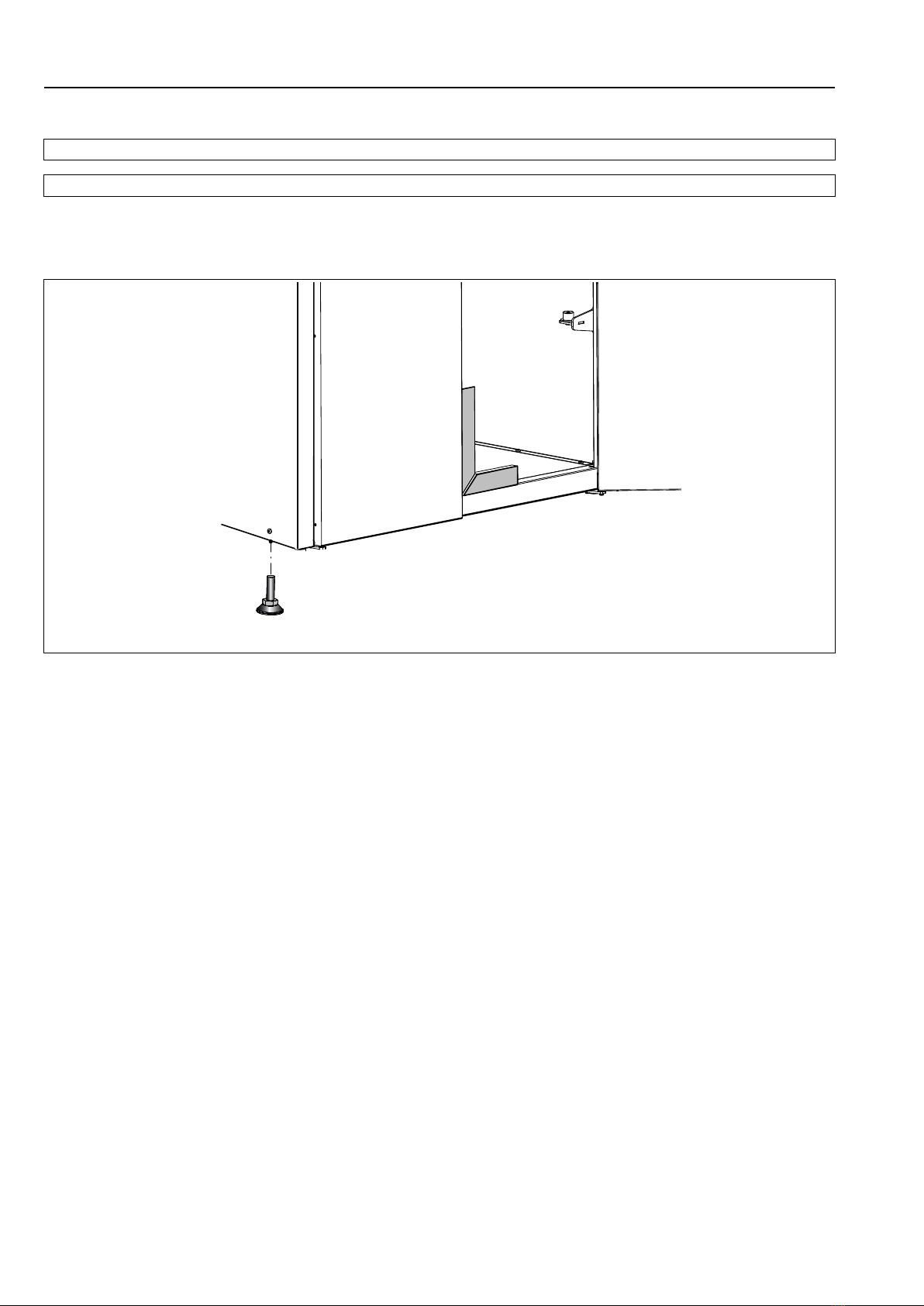

The drying cabinet must stand level on a flat surface, resting on all four feet.
Adjust the feet from the outside using a hex key. Check that the top edge of the doors match and are aligned.
The adjustable feet have hexagonal grips, size 17.
fig.W01388
5.1 Ventilating the room
When the machine is in operation, the room temperature increases. Due to this, the room must have sufficient
ventilation.
All sources introducing heat into the same room requires to be considered when dimensioning the ventilation. Heat
sources could for example be: more tumble dryers, drying cabinets, washers, ironers, radiators, etc. The combination
of several sources for heat introduction leads to an increased need for ventilation flow. Other factors may also influ-
ence the needed ventilation flow, such as climate zone, building parameters, room size, etc. For assistance with di-
mensioning necessary ventilation needs, contact authorized ventilation technician.

Installation manual 13
5.2 Attachment to the wall
The cabinet must be attached to the wall to prevent tipping.

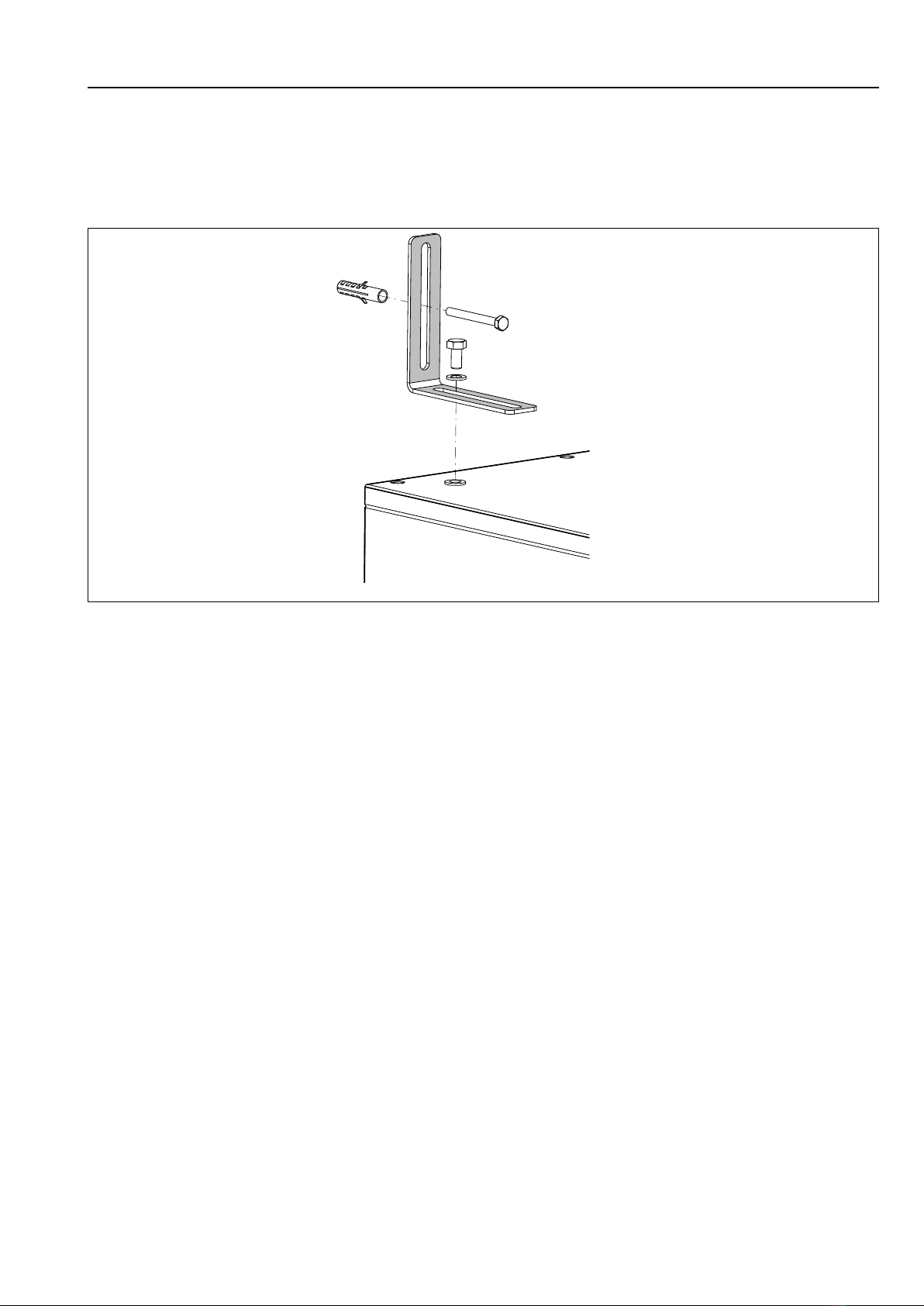

The installation kit contains two angle brackets that are mounted on the upper part of the drying cabinet as illustrated.
Use the provided screws. The brackets have grooves for adjustment to the wall.
Secure the cabinet to the wall. The installation kit contains a fastening screw and plastic plugs.
fig.W01389

14 Installation manual
6 Electrical connection
The electrical installation may only be performed by qualified personnel.
Electrical connection of the appliance must be done in accordance with electrical safety regulations.
We recommend that the mains cable be equipped with a ground fault interrupter.
The manufacturer disclaims all liability if the electrical connection is not done in the manner prescribed in this
User Manual.
Connection to the mains must be via an all-pole switch to 400V 3N AC.
Connection is only permitted to a mains with maximum impedance of 0.239 ohm.
Total power 3.5 kW.
Fuse 13 A.

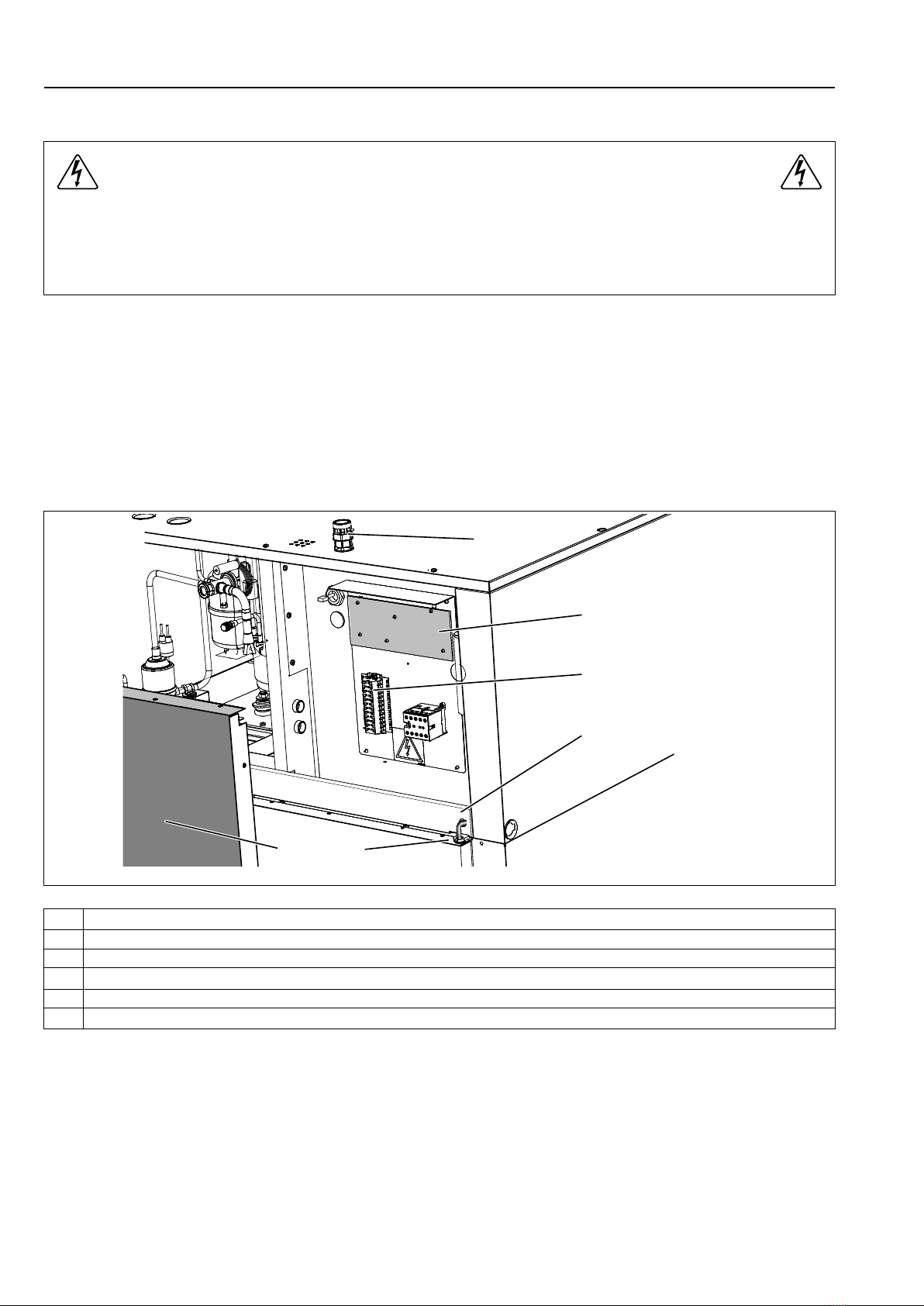

• Remove the front plate. The front plate is secured with four screws at the top and four screws at the bottom.
• Install a 5-wire connecting cable to the terminal block on the PCB as indicated in the wiring diagram. Route the ca-
ble to and through the marked bushing in the roof plate.
• Thread the door cable through the hole (see figure) and connect as indicated in the wiring diagram.
• Reinstall the front plate.
1
2
3
4
6 5
fig.W01377
1 Bushing in roof plate for feed cable
2 Circuit board
3 Terminal block
4 Thread the door cable through the hole
5 Door cable
6 Front plate

Installation manual 15
6.1 Network Functions
Note!
Can only be used on premium products.
This product can be connected to ELS VISION or to an external payment system.
fig.W01529
Connecting to ELS Vision
Connect the network cables GND, RX, TX, 24V to the terminal block as illustrated.
Connect the neutral position switch to terminal block positions 1 and 2, as illustrated.
Activate the connection to ELS Vision as follows:
Press and hold the Stop button, and then press both program buttons.
ACCESS 0000 is shown in the display.
Enter the code 9191.
Enter the numbers using the program buttons; press Stop.
Use the program buttons to move to Parameter 117, and enter the parameter using the Stop button.
Select the baud rate that matches the setting in ELS Vision:
0: off, 1: 2400 bps, 2: 4800 bps, 3: 9600 bps.
Use the Stop button to exit the parameter.
Then access parameter 118 and set network address 1–127.
To confirm the new settings: Press the Stop button and then Butterfly.
Connecting to an external payment system
Connect the cables from the external payment system to terminal block positions 1 and 2 "EXT SW".
Activate the connection to the external payment system as follows:
Press and hold the Stop button, and then press both program buttons.
ACCESS 0000 is shown in the display.
Enter the code 9191.
Enter the numbers using the program buttons; press Stop.

16 Installation manual
Use the program buttons to move to Parameter 117, and enter the parameter using the Stop button.
Set the parameter value to 1. This will activate the cabinet for network use. Use the Stop button to exit the parameter.
To confirm the new settings: Press the Stop button and then Butterfly.
Restore factory settings
To restore the electronics to factory settings:
Press the Stop button, and then press both program buttons. The display shows FACT DEFS.

Installation manual 17
7 Connection to floor drain
1
2
3
fig.W01390
Cabinet as view from behind with condensation hose attached
1 Hose nipple
2 Hole for hose in both sides of the cabinet
3 Alternative hole for hose in both sides of the cabinet
The cabinet is delivered from the factory with a condensation drain connection on the rear of the cabinet. Thread the
supplied condensation hose on the hose nipple and route it to the floor drain. Thread on the hose without hose clip. A
3 m hose is found in the installation kit.
In the rear edge of the cabinet’s sides, there are 2 holes on each side. Choose a suitable hole for routing the hose so
that it forms a smooth arch and there are no kinks.

18 Installation manual
8 Function check
May only be performed by qualified personnel.
A function check must be performed when the installation is finished and before the appliance can be used.
Whenever a repair has been made, a function check must be performed before the appliance can be used again.
• Select any program and check that the drying cabinet is heating and that there are no odd noises.
Ready for use
If all tests are OK the appliance is now ready for use.
If any of the tests fail, or deficiencies or faults are detected, please contact your local service organization or supplier.

Installation manual 19
9 Disposal information
9.1 Disposal of appliance at end of life
Before disposing of the machine, make sure to carefully check its physical condition, and in particular any parts of
the structure that can give or break during scrapping.
The machine’s parts must be disposed of in a differentiated way, according to their different characteristics (e.g. met-
als, oils, greases, plastic, rubber, etc.).
Different regulations are in force in the various countries, therefore comply with the provisions of the laws and com-
petent bodies in the country where scrapping takes place.
In general, the appliance must be taken to a specialised collection/scrapping centre.
Dismantle the appliance, grouping the components according to their chemical characteristics, remembering that the
compressor contains lubricant oil and refrigerant fluid which can be recycled, and that the refrigerator and heat pump
components are special waste assimilable with urban waste.
The symbol on the product indicates that this product should not be treated as domestic waste, but must be correctly disposed
of in order to prevent any negative consequences for the environment and human health. For further information on the recy-
cling of this product, contact the local dealer or agent, the Customer Care service or the local body responsible for waste
disposal.
Note!
When scrapping the machine, any marking, this manual and other documents concerning the appliance
must be destroyed.
9.2 Disposal of packing
The packing must be disposed of in compliance with the current regulations in the country where the appliance is
used. All the packing materials are environmentally friendly.
They can be safely kept, recycled or burned in an appropriate waste incineration plant. Recyclable plastic parts are
marked as following examples.
PE
Polyethylene:
• Outer wrapping
• Instructions bag
PP
Polypropylene:
• Straps
PS
Polystyrene foam:
• Corner protectors

Electrolux Professional AB
341 80 Ljungby, Sweden
www.electroluxprofessional.com
