INSTALLATION AND INSTRUCTION MANUAL
NÁVOD NA INSTALACI A POUZITÍ
NÁVOD NA OBSLUHU
HASZNÁLATI ÚTMUTATÓ
INSTRUKCJA OBSLUGI
TUMBLE DRYER EDE 403 M
SUSICKA EDE 403 M
SUSICKA EDE 403 M
SZÁRÍTÓGÉP EDE 403 M
SUSZARKA DO BIELIZNY EDE 403 M

2
CONTENTS
Technical specifications .....................Page 2
Warnings ..........................Page 3
Installation .........................Page 4
Positioning..........................Page 4
Levelling ..........................Page 5
Electrical connection ......................Page 5
Door reversal ........................Page 5
Use ...........................Page 6
Control panel .........................Page 6
Use of controls ........................Page 6
Drying Times .........................Page 7
Drying ..........................Page 8
Useful hints .........................Page 8
Maintenance .........................Page 9
External cleaning .......................Page 9
Cleaning the door .......................Page 9
Cleaning the filter .......................Page 9
Servicing ..........................Page 9
TECHNICAL SPECIFICATIONS
DIMENSIONS Height 85 cm
Width 60 cm
Depth 57 cm
ELECTRICAL CONNECTION Voltage 220-230 V/50 Hz
Max. power absorbed 2200 W (10A)
DRYING CAPACITY Cotton, linen 5 kg
Synthetics 2.5 kg
This appliance complies with the following E.E.C. Directives:
- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;
- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.
Stacking kit
A special stacking kit is available through your dealer, to enable the mounting of the dryer on top of your washing
machine.

3
ENGLISH
WARNINGS
It is most important that this instruction book
should be retained with the appliance for future
reference. Should the appliance be sold or trans-
ferred to another owner, or should you move
house and leave the appliance, always ensure that
the book is supplied with the appliance in order
that the new owner can get to know the function-
ing of the appliance and the relevant warnings.
These warnings have been provided in the interest
of safety. You MUST read them carefully before
installing or using the appliance.
INSTALLATION
■Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
■Make sure that the appliance does not stand on its
electrical supply cable.
■If the machine is situated on a carpeted floor,
please adjust the feet in order to allow air to
circulate freely.
■This tumble dryer is designed to be vented through
to the open air. It should have its own ventilation
system which should not be joined with any other
ventilation system connected to any other appli-
ance.
USE
■Always unplug the appliance after use.
■Clothes which are dripping wet should not be
placed in the dryer.
Always load well spun laundry. The higher the
spin speed, the lower the electricity consumption
and the shorter the drying times.
■Never tumble dry items that have been in contact
with chemicals such as dry cleaning fluid. These
are of a volatile nature and could cause an explo-
sion.
■As some bulky items such as duvets and eider-
downs should be dried in large commercial
machines because of their bulk, check with the
manufacturer of the item if it is suitable for drying in
a domestic machine, even if the dry weight of the
item is within the limit advised.
■Always check that no cigarette lighters have been
left in pockets.
■Leave the porthole door slightly ajar when not in
use to preserve the door seal.
■The fluff filter must be cleaned after every use.
■Do not operate the appliance with a damaged filter
as this may cause a fire.
■Do not overload the appliance.
■ Do not allow fluff to accumulate around the dryer.
SERVICE/REPAIR
■Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out by
inexperienced persons may cause injury or serious
malfunctioning. Refer to your local Electrolux Ser-
vice Centre. Always insist on genuine Electrolux
spare parts.
GENERAL SAFETY
■It is dangerous to modify or try to modify the speci-
fications of this appliance in any way.
■This appliance is designed to be used by adults.
Children should not be allowed to touch the con-
trols or play with the product.
■Pets and small children may climb into tumble dry-
ers. Check your appliance each time before use.
ENVIRONMENT PROTECTION
■The materials used on this appliance marked with
the symbol are recyclable.
This means that they can be recycled by disposing
of them properly in appropriate collection contain-
ers.
■If you take your appliance to a refuse disposal
site, cut off the power cable flush with the appli-
ance to avoid the danger of the appliance being re-
used, and disable the door catch to prevent chil-
dren becoming trapped inside.

4
INSTALLATION
Positioning
The appliance may be placed in any room, provided
the following precautions are taken.
The appliance expels hot, very moist air. The rest of
the house must be able to easily absorb this moisture.
Normally, absorption is only possible in houses where
there is very little humidity. Otherwise, the room must
have ventilation towards the outside; generally, an
open door or window is enough.
The capacity of the venting circuit must be at least
150 m3/hour. Check that the air inlet and outlet vents
are unobstructed.
The best way of evacuating the moisture is through a
vent hose to the outside of the building. Use a special
100 mm diametre flexible hose, available through
your dealer, connected to one of the air outlet vents
with the collar supplied.
The unused outlets must be covered.
Advice: If the hose is long and the room temperature
low, the moisture might condense to water inside the
hose. This is an unavoidable natural phenomenon.
To prevent this water from Iying in the hose or flowing
back into the tumble dryer, it is advisable to drill a
small hole (dia. 3 mm) in the lowest point of the hose
and to place a small container below it.(See picture,
point A).
Connect the other end of the hose to an opening in a
door or window. Fit a suitable shield or point the hose
downwards to prevent any rain water and wind from
getting in.
Rain and wind shields for placing over openings usu-
ally consist of valves or movable flaps. Periodically
check the shield since strong winds and other factors
(rust, dirt) can sometimes prevent it from opening, so
causing problems with air venting.
If you use a rain shield, check that the openings in it
are large enough to allow air to escape. Openings
which are too small restrict the flow of air.
Problems can be encountered in rooms fitted with a
very powerful central extractor fan. If you find that dry-
ing times are too long, switch off the extractor or close
its grille whilst the tumble dryer is in use.
A highly effective solution is to simply poke the vent
hose through a window or skylight. This might how-
ever cause problems in winter because the dryer will
draw in very cold (and often also very damp) air
through the open window, so increasing drying times
and leading to very high energy consumption.
If the dryer is fitted next to kitchen units, make
sure that the vent hose is not squashed. It the
hose is partially squashed, drying efficiency will
be reduced, resulting in longer drying times and
higher energy consumption.
If the hose is completely squashed, the safety cut-
outs with which the machine is fitted may operate.
Condensation discharge through the vent
hose
Condensation may be discharged either through a
vent outlet provided at the back or through the left or
right side outlet.
The vent hose collar is placed in the rear vent outlet.
Remove the collar by
pulling it out of the vent
outlet. Screw the collar to
the vent hose.
Fit the hose into the
required vent outlet and
stop the unused outlets
with the covers provided
for such a purpose.
The vent hose must not
contain more than two
bends when it is placed in
position for operation.
You should NOT con-
nect the flexible vent
hose to, for example, a
chimney or flue pipe
designed to carry the
exhaust from a fuel burn-
ing heating appliance.
P0751
A
P0330
P0279
P0055

5
ENGLISH

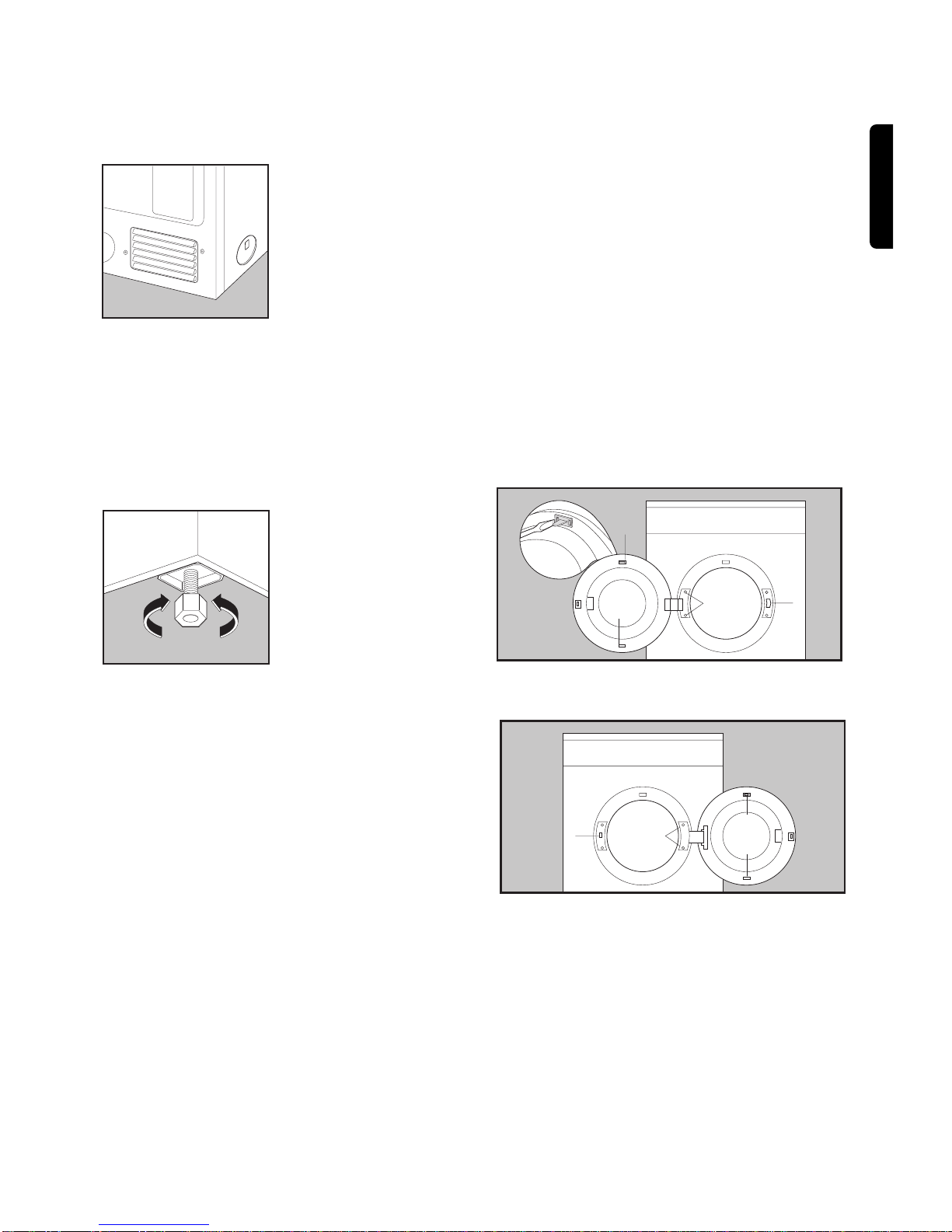

The tumble dryer must be installed in a clean place,
where dirt does not build up.
Make sure there are no
obstructing items or
material near the air-in-
take louvres provided at
the back (e.g. paper,
rags etc.).
Important
When operating the tumble dryer, the room tempera-
ture must not exceed 35°C, as it may affect the perfor-
mance of the appliance.
To save energy, the room temperature should not be
lower than +15°C.
Levelling
Level the tumble dryer
into place by screwing or
unscrewing the front feet
as required.
Accurate levelling will
keep vibration and
noise to a minimum
when the dryer is in
use.
Electrical connection
This machine is designed to operate on a 220-230 V,
single-phase, 50 Hz supply.
Check that your domestic electrical installation can
take the maximum load required (2.2 kW), also taking
into account any other appliances in use.
Connect the machine to an earthed socket, in accor-
dance with current wiring regulations.
The manufacturer declines any responsibility for
damage or injury through failure to comply with
the above safety precaution.
Door reversal
To make it easier to load or unload the laundry the
door can be reversed.
This operation must be carried out by qualified
personnel.
Operate as follows:
- Remove the door by unscrewing the two screws (1)
fastening the hinge to the cabinet (Fig. A).
- Remove the safety catch (2) and the plug (3) by
bending the two fastening tags (Fig. A).
- Refit the safety catch (2) and plug (3) on the door by
reversing their positions (Fig. B).
- Remove the plastic plate (4) by unscrewing the two
fastening screws (Fig. A).
- Refit the plastic plate (4) on the opposite side
(Fig. B).
- Refit the door by screwing in the two screws (1)
which fasten the door to the cabinet (Fig. B).
P0281
P0046
P0283 A
2
34
1
P0748 B
1
42
3

6
USE
USE OF CONTROLS
1 Programme Chart
This will help you to select the correct time for drying.
2 Low Temperature Button
Press this button to reduce the temperature when dry-
ing particularly delicate cotton or linen items.
In this case you should select a longer drying time.
On the programmes for synthetics the temperature is
automatically reduced.
Therefore it is not necessary to depress this button.
3 Refresh Button
By depressing this button the heat is cut off. This is
particularly useful to freshen the laundry (e.g. to
remove a persistent odour of moth-balls).
4 Mains-On Light
This lights up when the machine starts operating and
goes out at the end of the programme.
5 Drying Time Selector Dial
The selector dial incorporates two drying cycles, one
of up to 120 minutes at a high temperature for cotton
and linen, and one of up to 80 minutes at a low tem-
perature for synthetic fabrics.
To set the machine to the selected time, turn the dial
clockwise until the time you want coincides exactly
with the pointer.
NEVER attempt to turn the dial in an anticlockwise
direction.
When selecting the drying time, you should remember
that it includes a 8 minute cooling phase (position
on the dial).
This phase should not be shortened, stopped or
avoided, as this could cause skin burns or damages
to the laundry.
Additional drying
If at the end of the programme the laundry is still too
damp, set the dial for a further period of drying
(remembering to take into account the cooling period).
Control panel
EDE 403 M
145
23

7
ENGLISH
Synthetics
Selector dial: up to 80 minutes
Degree of drying required Degree of spin given
rpm Quantity kg Drying times mins
650
2.5 50-60
1 30-35
0.5 25-30
Store dry
Never overfill the drum (do not load large quilts, for example).
The laundry must be suitably spin dried in your washing machine before being placed in the tumble dryer (500rpm
minimum).
Drying times vary according to:
- The type of laundry
- The size of the load
- The degree of spinning prior to drying
Drying times are given as a guide only. Experience will soon enable you to estimate the drying time needed for
your usual laundry loads.
Do not start by selecting a long drying time. It is better to determine the required degree of dryness by gradually
increasing the drying time.
For a mixed load (cotton and resistant synthetics, for example) select the time for the most delicate fibres and
increase it by 10 mins.
DRYING TIMES
Cotton and Linen
Selector dial: up to 120 minutes
Degree of drying required Degree of spin given
rpm Quantity kg Drying times mins
Store dry
Iron dry
800-1000
5 85-105
2.5 60-75
5 75-95
2.5 40-55
800-1000
Iron dry 650 2.5 40-50

8
Drying
1 Load the laundry Open the door by pulling
it outward.
Load the items one at a
time, shaking them out
loosely and close the
door.
Please check the laundry
does not get caught
between the door and
filter.
2 Select the required option
Depress Low Temperature or Refresh button, if
desired.
3 Select time Turn the selector dial
clockwise to the required
minute setting (in the
high or low temperature
range, according to the
fabric): the mains-on light
illuminates and the ma-
chine starts operating.
4 When drying is completed
The machine stops automatically, the mains-on light
goes out.
If the laundry is still too damp, select a further brief
drying time, bearing in mind that during the last 8 min-
utes the dryer carries out the cooling and anti-crease
treatment phase.
Clean the filter after every drying programme. A
clean filter ensures correct functioning of the
appliance.
P0305
P0964
60
Useful hints
■Try to load to the maximum capacity of the
machine as small loads are uneconomical.
For information, here is a list of the average
weights of some common laundry items.
Sheet 700 - 1000 g
Tablecloth 400 - 500 g
Kitchen towel 70 - 120 g
Table napkin 50 - 100 g
Towelling hand towel 150 - 250 g
Bathrobe 1000 - 1500 g
Man’s shirt 200 - 300 g
Pillowcase 100 - 200 g
Man’s pyjamas 400 - 500 g
Ladies’ nightdress 200 - 250 g
■Never tumble dry the following:
Particularly delicate items such as net curtains,
woollen, silk, fabrics with metal trim, nylon tights,
bulky materials such as anoraks, blankets, eider-
downs, sleeping bags, feather quilts and any items
containing rubber foam or materials similar to rub-
ber foam.
■Always follow the instructions on garment labels.
tumble dry normal (high temperature)
tumble dry delicate (low temperature)
do not tumble dry
■Close pillowcases and covers with fasteners to
prevent small laundry items getting tangled inside
them. Close press studs, zips and hooks and tie
belts and apron strings.
■Sort laundry according to type and degree of dry-
ing required.
■Do not over-dry laundry, this avoids creasing and
saves energy.
■Avoid drying dark clothes with light coloured fluffy
items such as towels as they could attract the fluff.
■ Remove the laundry when the dryer has finished
drying.
■ To avoid a static charge when drying is completed,
use either a fabric softener when you are washing
the laundry or a fabric conditioner specifically for
tumble dryers.

9
ENGLISH

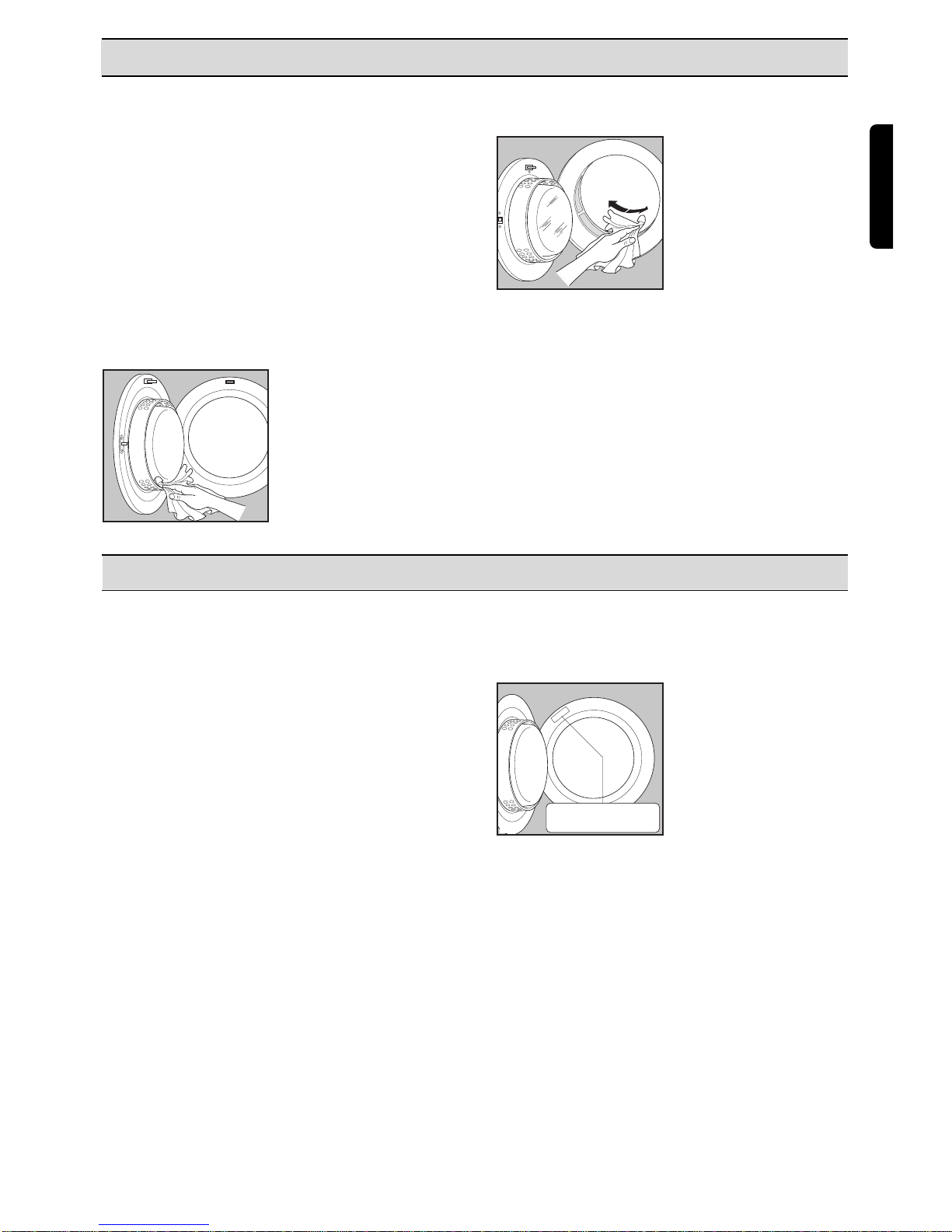

MAINTENANCE
Important
You must disconnect the appliance from the electrici-
ty supply, before you can carry out any cleaning or
maintenance work.
External cleaning
Use only soap and water and then dry thoroughly.
From time to time, apply a little wax furniture cream
with a soft cloth.
Important: do not use methylated spirit, diluents or
similar products.
Cleaning the door Clean periodically the
interior part of the door to
remove any fluff.
Accurate cleaning en-
sures correct drying.
Cleaning the filter Your dryer will only func-
tion well if the filter is
clean.
The filter collects all the
«fluff» which accumu-
lates during drying and it
must therefore be
cleaned at the end of
each programme with a
damp cloth.
The filter cannot be removed.
It is perfectly normal for fluff to accumulate in the filter
during drying. In fact, even fabrics dried in the open
air lose their fibres, but we do not notice it.
P0328
P0767
SERVICING
Before contacting your local Electrolux
Service Centre, please make the following
checks:
The dryer does not start up
■The door is open
■The plug is not fitted into the wall socket
■There is no electricity supply from the wall socket
■The time selector dial is not set correctly
The dryer does not dry properly
■The filter is clogged
■Insufficient drying time
■Excessive laundry load
■The dryer is not correctly installed
If, after the above checks, there is still a fault, call your
local Electrolux Service Centre.
Please make sure you give the model and serial num-
ber of the appliance. This information can be
found on the rating plate
(see picture) or on the
guarantee card.
P0307
Mod. ...
Prod. No. ........ Ser. No. ............
