Electrolux EW7H558E2 User manual

EW7H558E2
EN Tumble Dryer User Manual

CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................6
3. PRODUCT DESCRIPTION................................................................................ 8
4. CONTROL PANEL............................................................................................. 9
5. PROGRAMME TABLE..................................................................................... 10
6. OPTIONS..........................................................................................................11
7. SETTINGS........................................................................................................12
8. BEFORE FIRST USE....................................................................................... 14
9. DAILY USE....................................................................................................... 15
10. HINTS AND TIPS........................................................................................... 17
11. CARE AND CLEANING..................................................................................17
12. TROUBLESHOOTING....................................................................................21
13. TECHNICAL DATA.........................................................................................23
14. QUICK GUIDE................................................................................................25
15. PRODUCT INFORMATION SHEET IN REFERENCE TO E.U. REGULATION
1369/2017.............................................................................................................27
16. ENVIRONMENTAL CONCERNS................................................................... 28
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website to:
Get usage advice, brochures, trouble shooter, service and repair information:
www.electrolux.com/support
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2

1. SAFETY INFORMATION
Before beginning the installation and use of this
appliance, carefully read the supplied instructions.
The manufacturer is not responsible for any injuries or
damage that are the result of incorrect installation or
usage. Always keep the instructions in a safe and
accessible location for future reference.
Warning: Risk of fire / Flammable materials.
The appliance contains flammable gas, propane (R290),
a gas with a high level of environmental compatibility.
Keep fire and ignition sources away from the appliance.
Be careful not to cause damage to the refrigerant circuit
containing propane.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent
disability.
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away from the appliance unless continuously
supervised.
•Children of less than 3 years of age should be kept
away from the appliance unless continuously
supervised.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of
it appropriately.
•Keep detergents away from children.
ENGLISH 3

•Keep children and pets away from the appliance when
the door is open.
•If the appliance has a child safety device, it should be
activated.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•This appliance is for drying domestic-type, machine-
dryable laundry only.
•Do not use the dryer function if laundry has been
soiled with industrial chemicals.
•This appliance is designed for single household
domestic use in an indoor environment.
•This appliance may be used in, offices, hotel guest
rooms, bed & breakfast guest rooms, farm guest
houses and other similar accommodation where such
use does not exceed (average) domestic usage levels.
•Do not change the specification of this appliance.
•If the tumble dryer is put on top of a washing machine,
use the stacking kit. The stacking kit, available from
your authorized vendor, can be used only with the
appliance specified in the instructions supplied with
the accessory. Read it carefully before installation
(refer to the Installation leaflet).
•The appliance can be installed as freestanding or
below a kitchen counter with correct space (refer to
the Installation leaflet).
•Do not install the appliance behind a lockable door, a
sliding door or a door with a hinge on the opposite
side, that would prevent the appliance door from being
fully open.
•The ventilation opening in the base must not be
covered by a carpet, mat, or any floor covering.
•WARNING: The appliance must not be supplied
through an external switching device, such as a timer,
or connected to a circuit that is regularly switched on
and off by a utility.
www.electrolux.com4

•Connect the mains plug to the mains socket only at
the end of the installation process. Make sure that the
mains plug is accessible after installation.
•Ensure good air ventilation in the room where the
appliance is installed to avoid the backflow of
unwanted gases into the room from appliances
burning gas or other fuels, including open fires.
•WARNING: Do not install the appliance in an
environment with no air exchange.
The appliance contains flammable gas, propane
(R290), a gas with a high level of environmental
compatibility. Keep fire and ignition sources away from
the appliance. Be careful not to cause damage to the
refrigerant circuit containing propane.
•WARNING: In the appliance enclosure or in the built -
in structure, keep ventilation opening clear of
obstruction.
•WARNING: Do not damage the refrigerant circuit.
•If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
•Do not exceed the maximum load of 8 kg (refer to the
"Programme chart" chapter).
•Wipe away lint or packaging debris that has
accumulated around the appliance.
•Do not run the appliance without a filter. Clean the lint
filter before or after each use.
•Do not dry unwashed items in the tumble dryer.
•Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers
should be washed in hot water with an extra amount of
detergent before being dried in the tumble dryer.
•Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes
or pillows fitted with foam rubber pads should not be
dried in the tumble dryer.
ENGLISH 5

•Fabric softeners, or similar products, should only be
used as specified by the product manufacturer’s
instructions.
•Remove all objects from items that could be a source
of fire ignition such as lighters or matches.
•WARNING: Never stop a tumble dryer before the end
of the drying cycle unless all items are quickly
removed and spread out so that the heat is dissipated.
•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
2. SAFETY INSTRUCTIONS
2.1 Installation
Warning: Risk of fire / Flammable
materials.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Do not install the appliance in an
environment with no air exchange
The appliance contains flammable
gas, propane (R290), a gas with a
high level of environmental
compatibility. Keep fire and ignition
sources away from the appliance. Be
careful not to cause damage to the
refrigerant circuit containing propane.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use the appliance
where the temperature can be lower
than 5°C or higher than 35°C.
• The floor area on which the appliance
is to be installed must be flat, stable,
heat resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• Always keep the appliance vertical
when it is being moved.
• The rear surface of the appliance
must be put against a wall.
• When the appliance is in its
permanent position, check if it is
levelled correctly with the aid of a
spirit level. If it is not, adjust the feet
accordingly.
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• WARNING: This appliance is
designed to be installed / connected
to a grounding connection in the
building.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Do not touch the mains cable or the
mains plug with wet hands.
www.electrolux.com6

2.3 Use
WARNING!
Risk of injury, electric shock,
fire, burns or damage to the
appliance.
Warning: Risk of fire / Flammable
materials. The appliance contains
flammable gas, propane (R290), a gas
with a high level of environmental
compatibility. Keep fire and ignition
sources away from the appliance. Be
careful not to cause damage to the
refrigerant circuit containing propane.
• This appliance is for household
(indoors) use only.
• Do not dry damaged (torn, frayed)
items that contain padding or fillings.
• If laundry has been washed with a
stain remover, carry out an additional
rinse cycle before starting a drying
cycle.
• Dry only fabrics that are suitable to
dry in the appliance. Follow the
cleaning instruction on the item label.
• Do not drink or prepare food with the
condensed water/distilled water. It can
cause health problems to people and
pets.
• Do not sit or stand on the open door
of the appliance.
• Do not dry dripping wet clothes in the
appliance.
2.4 Internal lighting
WARNING!
Risk of injury.
• Visible LED radiation, do not look
directly into the beam.
• To replace the internal lighting,
contact the Authorised Service
Centre.
2.5 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
Warning: Risk of fire / Flammable
materials. The appliance contains
flammable gas, propane (R290), a gas
with a high level of environmental
compatibility. Keep fire and ignition
sources away from the appliance. Be
careful not to cause damage to the
refrigerant circuit containing propane.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Use only neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal
objects.
• Be careful when you clean the
appliance to prevent damage to the
cooling system.
2.6 Compressor
WARNING!
Risk of damage to the
appliance.
• The compressor and its system in the
tumble dryer is filled with a special
agent which is free from fluoro-chloro-
hydrocarbons. This system must stay
tight. The damage of the system can
cause a leakage.
2.7 Service
• To repair the appliance contact the
Authorised Service Centre.
• Use original spare parts only.
• Concerning the lamp(s) inside this
product and spare part lamps sold
separately: These lamps are intended
to withstand extreme physical
conditions in household appliances,
such as temperature, vibration,
humidity, or are intended to signal
information about the operational
status of the appliance. They are not
intended to be used in other
applications and are not suitable for
household room illumination.
2.8 Disposal
WARNING!
Risk of injury or suffocation.
ENGLISH 7

Warning: Risk of fire / Risk of
material damage and damage to the
appliance.
• Disconnect the appliance from the
mains electrical and water supplies.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• The appliance contains flammable
gas (R290). Contact your municipal
authority for information on how to
discard the appliance correctly.
• Remove the door catch to prevent
children or pets from becoming
trapped in the drum.
• Dispose of the appliance in
accordance with local requirements
for the disposal of Waste Electrical
and Electronic Equipment (WEEE).

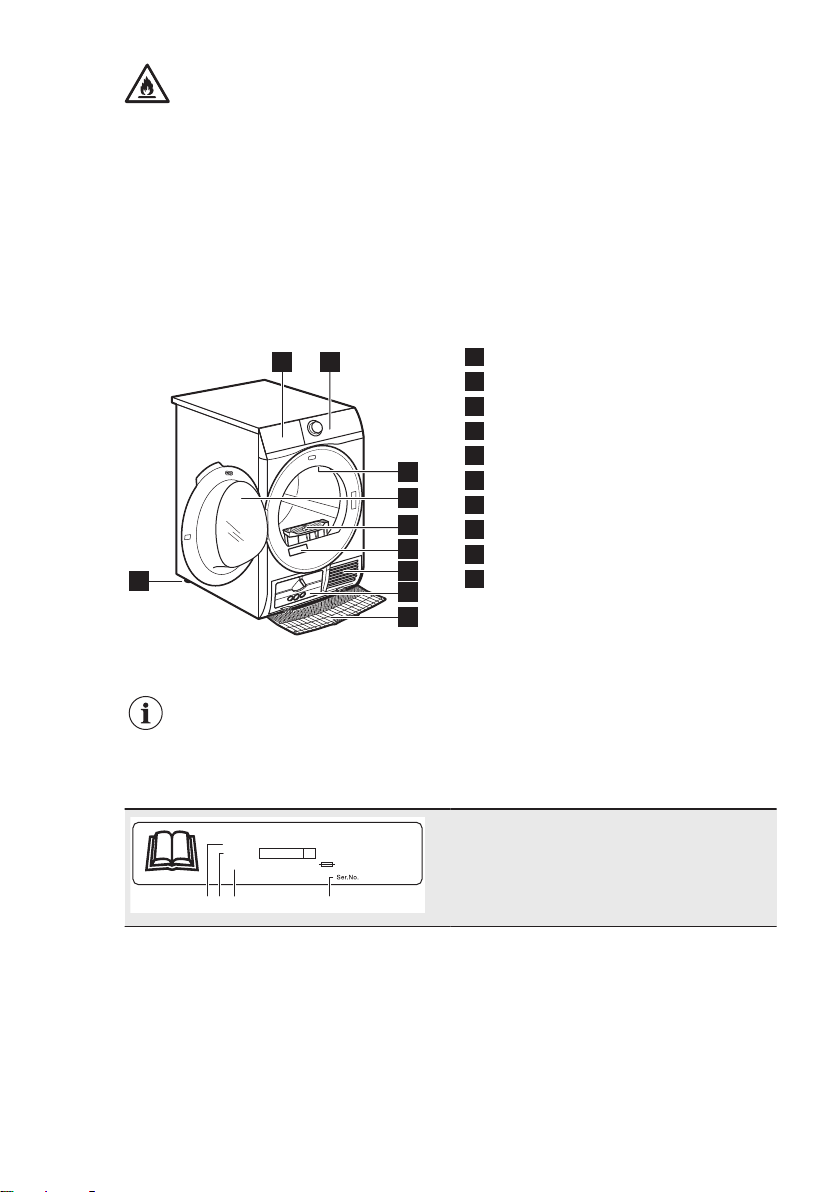

3. PRODUCT DESCRIPTION
1 2
6
3
4
5
7
8
9
10
1Water container
2Control panel
3Internal light
4Appliance door
5Filter
6Rating plate
7Airflow slots
8Heat Exchanger lid
9Heat Exchanger cover
10 Adjustable feet
For ease of loading laundry
or ease of installation the
door is reversible (see the
separate leaflet).
00000000
00A
Mod. xxxxxxxxx
000V ~ 00Hz 0000 W
910000000 00
Prod.No.
A B C D
The rating plate reports:
A. model name
B. product number
C. electrical ratings
D. serial number
www.electrolux.com8

4. CONTROL PANEL
1
89 7 6
3
5
4
2
1Programme knob and RESET
switch
2Display
3Time Dry touch button
4Start/Pause touch button
5Delay Start touch button
6Extra Anticrease touch button
7Reverse Plus touch button
8Dryness Level touch button
9On/Off button
Press the touch buttons with
your finger in the area with
the symbol or name of the
option. Do not wear gloves
when you operate the
control panel. Make sure
that the control panel is
always clean and dry.
4.1 Display
Symbol on the display Symbol description
time drying option on
delay start option on
indicator: check Heat Exchanger
indicator: clean filter
indicator: drain the water container
ENGLISH 9

Symbol on the display Symbol description
child lock on
wrong selection or knob is in the "Reset" po‐
sition
programme duration
- time Drying duration
- delay start duration
5. PROGRAMME TABLE
Programme Load 1) Properties / Fabric type2)
3) Cottons Eco 8 kg
Cotton fabrics programme de‐
signed for maximum energy sav‐
ing. /
Cottons 8 kg
Cycle defined to dry cottons
items of different size / different
weaving altogether. /
Synthetics 3,5 kg
Blended garments containing
mostly synthetic fibres like poly‐
ester, polyamide, etc. /
Delicates 4 kg
Recommended for generic deli‐
cate fabrics such as viscose,
rayon, acrylic and their blends. /
Bed Linen 3kg
Bed linen such as single and
double sheets, pillowcases, du‐
vet cover. /
Duvet 3 kg
Ensures proper drying of inner
parts through single or double
duvets, pillows, and padded
blankets.
/
Refresh 1kg
Short low temperature cycle that helps in re‐
moving odours from a small amount of gar‐
ments. Indicated also for dry clothes that were
in storage for long time.
Silk 1 kg Silk suitable for tumble drying. /
Wool 1 kg
Woollen fabrics. Gentle drying of washable
woollens. Remove items immediately when
the programme is completed.
www.electrolux.com10
