Electrolux EDH903R9WB User manual

EDH903R9WB
EN Tumble Dryer User Manual

CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. CONDITIONS OF USE.......................................................................................7
3. SAFETY INSTRUCTIONS..................................................................................7
4. PRODUCT DESCRIPTION................................................................................ 9
5. CONTROL PANEL............................................................................................. 9
6. WI-FI - CONNECTIVITY SETUP.............................................................. 11
7. PROGRAM TABLE...........................................................................................13
8. OPTIONS..........................................................................................................14
9. SETTINGS........................................................................................................16
10. BEFORE FIRST USE..................................................................................... 18
11. DAILY USE..................................................................................................... 18
12. HINTS AND TIPS........................................................................................... 20
13. CARE AND CLEANING..................................................................................20
14. TROUBLESHOOTING....................................................................................23
15. TECHNICAL DATA.........................................................................................26
16. WARRANTY .................................................................................................. 26

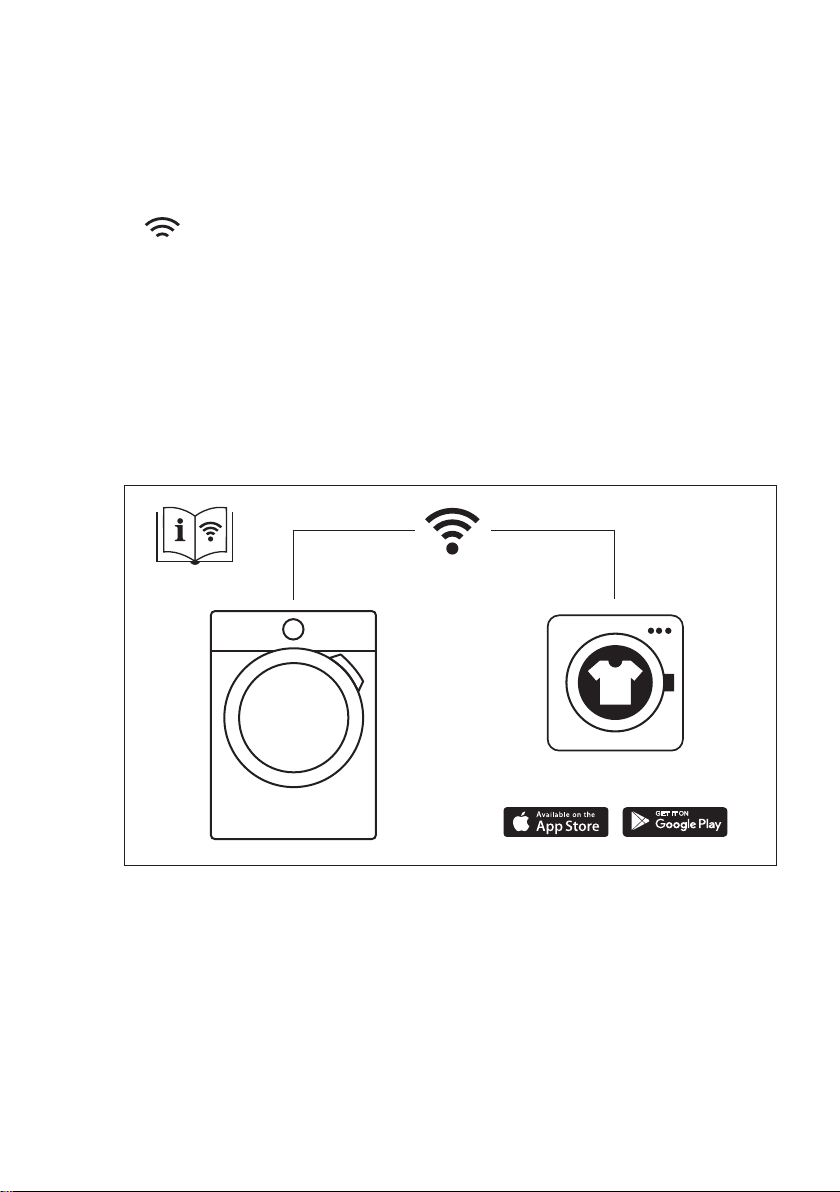

My Electrolux Care app
www.electrolux.com2

IMPORTANT INFORMATION THAT MAY IMPACT
YOUR MANUFACTURER'S WARRANTY
Adherence to the directions for use in this manual is extremely important for
health and safety. Failure to strictly adhere to the requirements in this manual
may result in personal injury, property damage and affect your ability to make a
claim under the Electrolux manufacturer’s warranty provided with your product.
Products must be used, installed and operated in accordance with this manual.
You may not be able to claim on the Electrolux manufacturer’s warranty in the
event that your product fault is due to failure to adhere to this manual.
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time. Welcome to
Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.registerelectrolux.com
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes
injuries and damage. Always keep the instructions with
the appliance for future reference.
- Read the supplied instructions.
Warning: Risk of fire / Flammable materials.
ENGLISH 3

The appliance contains flammable gas, propane (R290),
a gas with a high level of environmental compatibility.
Keep fire and ignition sources away from the appliance.
Be careful not to cause damage to the refrigerant circuit
containing propane.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent
disability.
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away from the appliance unless continuously
supervised.
•Children of less than 3 years of age should be kept
away from the appliance unless continuously
supervised.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of
it appropriately.
•Keep detergents away from children.
•Keep children and pets away from the appliance when
the door is open.
•If the appliance has a child safety device, it should be
activated.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•Do not change the specification of this appliance.
www.electrolux.com4

•The appliance can be installed as freestanding or
below a kitchen counter with correct space (refer to
the Installation leaflet).
•Do not install the appliance behind a lockable door, a
sliding door or a door with a hinge on the opposite
side, that would prevent the appliance door from being
fully open.
•The ventilation opening in the base must not be
covered by a carpet, mat, or any floor covering.
•WARNING: The appliance must not be supplied
through an external switching device, such as a timer,
or connected to a circuit that is regularly switched on
and off by a utility.
•Connect the mains plug to the mains socket only at
the end of the installation process. Make sure that the
mains plug is accessible after installation.
•Ensure good air ventilation in the room where the
appliance is installed to avoid the backflow of
unwanted gases into the room from appliances
burning gas or other fuels, including open fires.
•WARNING: Do not install the appliance in an
environment with no air exchange.
The appliance contains flammable gas, propane
(R290), a gas with a high level of environmental
compatibility. Keep fire and ignition sources away from
the appliance. Be careful not to cause damage to the
refrigerant circuit containing propane.
•WARNING: In the appliance enclosure or in the built -
in structure, keep ventilation opening clear of
obstruction.
•WARNING: Do not damage the refrigerant circuit.
•If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
•Do not exceed the maximum load of 9,0 kg (refer to
the "Programme chart" chapter).
ENGLISH 5

•Do not use the appliance if items have been soiled
with industrial chemicals.
•Wipe away lint or packaging debris that has
accumulated around the appliance.
•Do not run the appliance without a filter. Clean the lint
filter before or after each use.
•Do not dry unwashed items in the tumble dryer.
•Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers
should be washed in hot water with an extra amount of
detergent before being dried in the tumble dryer.
•Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes
or pillows fitted with foam rubber pads should not be
dried in the tumble dryer.
•Fabric softeners, or similar products, should only be
used as specified by the product manufacturer’s
instructions.
•Oil-affected items can ignite spontaneously, especially
when exposed to heat sources such as in a tumble
dryer. The items become warm, causing an oxidation
reaction in the oil. Oxidation creates heat. If the heat
cannot escape, the items can become hot enough to
catch fire. Piling, stacking or storing oil-affected items
can prevent heat from escaping and create a fire
hazard.
•If it is unavoidable that fabrics that contain vegetable
or cooking oil or have been contaminated by hair care
products be placed in a tumble dryer they should first
be washed in hot water with extra detergent -this will
reduce, but not eliminate, the hazard.
•Remove all objects from items that could be a source
of fire ignition such as lighters or matches.
•WARNING: Never stop a tumble dryer before the end
of the drying cycle unless all items are quickly
removed and spread out so that the heat is dissipated.
www.electrolux.com6

•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
2. CONDITIONS OF USE
This appliance is intended to be used in
household and similar applications such
as:
• farm houses;
• by clients in hotels, motels, bed &
breakfast and other residential type
environments;
• areas for communal use in blocks of
flats or in launderettes.
3. SAFETY INSTRUCTIONS
3.1 Installation
Warning: Risk of fire / Flammable
materials.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Do not install the appliance in an
environment with no air exchange
The appliance contains flammable
gas, propane (R290), a gas with a
high level of environmental
compatibility. Keep fire and ignition
sources away from the appliance. Be
careful not to cause damage to the
refrigerant circuit containing propane.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use the appliance
where the temperature can be lower
than 5°C or higher than 35°C.
• The floor area on which the appliance
is to be installed must be flat, stable,
heat resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• Always keep the appliance vertical
when it is being moved.
• The rear surface of the appliance
must be put against a wall.
• When the appliance is in its
permanent position, check if it is
levelled correctly with the aid of a
spirit level. If it is not, adjust the feet
accordingly.
3.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Do not touch the mains cable or the
mains plug with wet hands.
3.3 Use
WARNING!
Risk of injury, electric shock,
fire, burns or damage to the
appliance.
ENGLISH 7

Warning: Risk of fire / Flammable
materials. The appliance contains
flammable gas, propane (R290), a gas
with a high level of environmental
compatibility. Keep fire and ignition
sources away from the appliance. Be
careful not to cause damage to the
refrigerant circuit containing propane.
• This appliance is for household
(indoors) use only.
• Do not dry damaged (torn, frayed)
items that contain padding or fillings.
• If laundry has been washed with a
stain remover, carry out an additional
rinse cycle before starting a drying
cycle.
• Dry only fabrics that are suitable to
dry in the appliance. Follow the
cleaning instruction on the item label.
• Do not drink or prepare food with the
condensed water/distilled water. It can
cause health problems to people and
pets.
• Do not sit or stand on the open door
of the appliance.
• Do not dry dripping wet clothes in the
appliance.
3.4 Internal lighting
WARNING!
Risk of injury.
• Visible LED radiation, do not look
directly into the beam.
• To replace the internal lighting,
contact the Authorised Service
Centre.
3.5 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
Warning: Risk of fire / Flammable
materials. The appliance contains
flammable gas, propane (R290), a gas
with a high level of environmental
compatibility. Keep fire and ignition
sources away from the appliance. Be
careful not to cause damage to the
refrigerant circuit containing propane.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Use only neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal
objects.
• Be careful when you clean the
appliance to prevent damage to the
cooling system.
3.6 Compressor
WARNING!
Risk of damage to the
appliance.
• The compressor and its system in the
tumble dryer is filled with a special
agent which is free from fluoro-chloro-
hydrocarbons. This system must stay
tight. The damage of the system can
cause a leakage.
3.7 Service
• To repair the appliance contact the
Authorised Service Centre.
• Use original spare parts only.
3.8 Disposal
WARNING!
Risk of injury or suffocation.
Warning: Risk of fire / Risk of
material damage and damage to the
appliance.
• Disconnect the appliance from the
mains electrical and water supplies.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• The appliance contains flammable
gas (R290). Contact your municipal
authority for information on how to
discard the appliance correctly.
• Remove the door catch to prevent
children or pets from becoming
trapped in the drum.
• Dispose of the appliance in
accordance with local requirements
for the disposal of Waste Electrical
and Electronic Equipment (WEEE).
www.electrolux.com8

4. PRODUCT DESCRIPTION
1 2
6
3
4
5
7
8
9
10
1Water container
2Control panel
3Internal light
4Appliance door
5Filter
6Rating plate
7Airflow slots
8Heat Exchanger lid
9Heat Exchanger cover
10 Adjustable feet
For ease of loading laundry
or ease of installation the
door is reversible. (see
separate leaflet).
5. CONTROL PANEL
1
1112 10 9 8
5
7
6
432
1Program knob
2Extra Anticrease touch button
3Dryness Level touch button
4Display
5Time Dry touch button
6Start/Pause touch button
7Delay Start touch button
8 Remote touch button
9End Alert touch button
10 Reverse Plus touch button
11 Extra Silent touch button
12 On/Off button
ENGLISH 9

Press the touch buttons with
your finger in the area with
the symbol or name of the
option. Do not wear gloves
when you operate the
control panel. Make sure
that the control panel is
always clean and dry.
5.1 Display
Symbol on the display Symbol description
laundry dryness option: iron dry, cupboard dry,
extra dry
time drying option on
delay start option on
indicator: Wi-Fi connection
remote start option on
indicator: check Heat Exchanger
indicator: clean filter
indicator: drain the water container
child lock on
wrong selection
indicator: drying phase
indicator: cooling phase
indicator: anti-crease phase
program duration
, , , extension of default anti-crease phase:
+30min, +60min, +90min, +2h)
www.electrolux.com10

Symbol on the display Symbol description
- time drying selection (10min-2h)
- delay start selection (1h-20h)
6. WI-FI - CONNECTIVITY SETUP
This chapter describes how to connect
the smart appliance to the Wi-Fi network
and to link it to a mobile devices.
By this functionality you can receive
notifications, monitor and control your
tumble dryer from your mobile devices.
To connect the appliance to enjoy the full
range of features and services you need:
• Wireless network at home with
internet connection enabled.
• Mobile device connected to wireless
network.
Frequency Wi-Fi: 2.4 - 5GHz
Bluetooth Low Ener‐
gy 5.0: 2 GHz
Protocol 802.11 abgn, WEP,
WPA, WPA2
Max power Wi-Fi: <23 dBm
(200mW)
Bluetooth Low Ener‐
gy 5.0: <20 dBm
(100mW)
Minimum requirements:
Operating system
compatibility iOS 9.3/Android
5.1 and above. Install the
Electrolux Life app, create
an account and accept the
Terms and Conditions and
Electrolux's Privacy Policy to
use the connected features.
Stable Internet and good Wi-
Fi connection with 2.4GHz or
5 GHz wireless frequency is
required. Minimum
requirements, apps and
services are subject to
change without notice.
6.1 Installing and configuring
Electrolux Life
When connecting the tumble dryer to the
application, stand near it with Your smart
device.
Make sure that your smart device is
connected to the wireless network.
1. Go to the App Store on your smart
device.
2. Download and install App Electrolux
Life .
3. Make sure you started a Wi-fi
connection in the dryer. If not go to
the section below.
4. Start the application. Select the
country and language and login with
Your email and password. If you do
not have an account, create a new
one following the instructions in
Electrolux Life.
5. Follow the instructions on the App for
the appliance registration and
configuration.
A message appears on the appliance
display to confirm that the configuration
was successful.
6.2 Configuring the dryer
wireless connection
Have Electrolux Life downloaded and
installed on your smart device.
1. Press the on/off button for a few
seconds to activate the appliance.
2. Select a program by turning the
program dial.
3. Press and hold Remote touch
button for 3 seconds.
The text pop up for about 5 seconds
and the icon starts flashing and
wireless module begins starting up. It
may takes about 10 seconds before it is
ENGLISH 11

ready. When the wireless module is
ready, the text (Access Point) is on
to inform you, that the access point will
be open for about 3 minute.
4. Configure the Electrolux Life app on
your smart device.
5. If the connectivity is configured,
(Access Point) symbol is off and the
icon will stop blinking and lit
steadily to confirm that the
configuration was successful.
Every time you switch
the appliance on, the
appliance takes about 10
seconds to connect to
the network
automatically. When the
indicator stops
blinking the connection
is ready.
To switch the wireless connection
off,Press and hold Remote touch
button for 3 seconds until the first
acoustic signal: appears on the
display.
If you switch the appliance
off and on again, the
wireless connection is
automatically off.
To remove the wireless
credentials,Press and hold Remote
touch button for 10 seconds until the
second acoustic signal:
appears on the display.
6.3 Remote Start
Electrolux Life allows you to
control your laundry through
a mobile device.
It contains a large number of
programs, useful features
and product information
tailored perfectly to the
appliance.
Through the app you can
select the programs already
available from the appliance
control panel, plus unlock
additional programs
available only from a mobile
device.
Additional programs can
change over the time along
with new versions of the
app.
It's personalized laundry
care - all from your mobile
device.
When the App is installed and the
wireless connection is complete, you can
start and stop a drying program remotely
by activate remote start.
The Remote Control
activates automatically when
you press the Start/Pause
button to start the program,
but it is also possible to start
a drying program.
Activate Remote Start
1. Press the Remote button and the
indicator appears on the
display.
2. Press the Start/Pause button to
activate the Remote Start.
The indicators appears on the
display. Now it is possible to start the
program remotely.
Deactivate Remote Start
Press the Remote touch button and
confirm by pressing the Start/Pause
button.
www.electrolux.com12

The icon is off and the remote start is
deactivated.
If the door is open, the
Remote Start is
deactivated.
6.4 Over-the-air update
WARNING!
During the update it is highly
recommended to not turn off
or unplug the appliance.
The App may propose an update for
downloading new features.
The update is accepted via App only.
If a program is running, the App notifies
that the update will start at the end of the
program.
During the update, the appliance shows
in the display.
The appliance will usable again at the
end of the update, without any
notification about successful update.
If an error occurs, the appliance shows
in the display: just press any
buttons or turn the knob to return to
normal use.
7. PROGRAM TABLE
Program Load 1) Properties / Fabric type2)
Favourite
The load
depends
on a mem‐
orised pro‐
gram
You can do your configuration of program and
options and memorise in the appliance mem‐
ory (See chapter " Settings - Favourite ").
Cottons 9,0 kg Cotton fabrics. /
Mixed + 6 kg
Mix of garments made of cotton,
cotton-synthetic blend and syn‐
thetic fabric. /
Bedding + 4,5 kg Up to three bed linen sets, one
of which can be double size. /
Energy Saver3) 9,0 kg
Cycle to be used to dry cotton
with "cotton cupboard" dryness
level, with maximum energy sav‐
ing.
/
Refresh 1kg Refreshing textiles that were in storage.
App Program
The load
depends
on a selec‐
ted pro‐
gram in the
app
App Program gives you additional programs
that you can select from the App (see chapter
"WI-FI - CONNECTIVITY SETUP" to connect
the smart appliance to the Wi-Fi network and
to link it to a mobile devices).
Drying Rack4)
1kg (or 1
pair of
sport
shoes)
For drying sport shoes only with Drying Rack
(see separate user manual provided with Dry‐
ing Rack).
ENGLISH 13

Program Load 1) Properties / Fabric type2)
Hygienic care 3 kg
Dries and adds a hygienic treat‐
ment to your garments maintain‐
ing a higher temperature phase
over time that reduces the pres‐
ence of micro-organisms.
Program to treat wet clothes. Not
suitable for delicate garments.
/
Silk 1 kg Gentle drying of hand-washable
silks.
Duvet 3 kg
Single or double duvets and pil‐
lows (with feather, down or syn‐
thetic fillings). /
Wool 1 kg
The wool drying cycle of this machine has
been approved by The Woolmark Company
for the drying of wool garments labelled as
"hand wash" provided that the garments are
dried according to the instructions issued by
the manufacturer of this machine. Follow the
garment care label for other laundry instruc‐
tions. M2001
Delicates 4 kg Delicate fabrics such as viscose,
rayon, acrylic, and their blends. /
1) The maximum weight refers to dry items.
2) For fabric mark meaning see chapter
HINTS AND TIPS: Preparing the laundry.
3) Energy Saver program is the reference program for Energy Label, tested according to
AS/NZS2442.2.
4) Only with the Drying Rack (standard accessory or optional, depending on model).
8. OPTIONS
8.1 Extra Anticrease
Extends the anti-crease phase by 30,60,
90 or 2 hours at the end of the drying
cycle. This function reduces creases.
The laundry can be removed during the
anti-crease phase.
8.2 Dryness Level
This function helps to increase dryness
of the laundry. There are 3 options:
• Extra Dry
• Cupboard Dry
• Iron Dry
www.electrolux.com14

8.3 Time Dry
You can set the program duration, from a
minimum of 10 minutes to a maximum of
2 hours. The required duration is related
to the quantity of laundry in the
appliance.
We recommend that you set
a short duration for small
quantities of laundry or for
only one item.
TIME DRYING RECOMMENDATION
10 - 20 min
action of cool
air only (no
heater).
20 - 40 min
additional dry‐
ing to improve
dryness after
previous dry‐
ing cycle.
>40 min
full drying of
the small laun‐
dry loads up to
4 kg, well spun
(>1200 rpm).
8.4 Time Dry on Wool program
Option suitable for Wool program to
adjust final dryness level.
8.5 Time Dry on Drying Rack
program
Option suitable for Drying Rack
program .
You can set the program duration, from a
minimum of 10 minutes to a maximum of
2 hours. The setting of the duration is
related to the quantity of laundry in the
appliance.
We recommend that you set a short
duration for small quantities of laundry or
for only one item.
8.6 End Alert
The buzzer sounds at the:
• cycle end
• start and end of the anti-crease phase
• cycle interruption
The buzzer function is by default always
on. You can use this function to activate
or deactivate the sound.
You can activate the End
Alert option with all program.
8.7 Reverse Plus
Increase drum reversing frequency to
reduce items twisting and entanglement.
To increase uniformity of drying result
and help reduce creases. Recommended
for large or long items (e.g. sheets,
trousers, long dresses)"
8.8 Extra Silent
The appliance operates with low noise
without effect on the drying quality. The
appliance operates slowly with longer
cycle time.
8.9 Options table
Programs1) Dryness Level
Extra
Anti‐
crease
Extra
Silent
Re‐
verse
Plus
Time
Dry
Favourite Depends on a memorised program
Cottons ■ ■ ■ ■ ■ ■ ■
Mixed +■ ■ ■ ■ ■
ENGLISH 15

Programs1) Dryness Level
Extra
Anti‐
crease
Extra
Silent
Re‐
verse
Plus
Time
Dry
Bedding +■ ■ ■ ■ ■
Energy Saver ■ ■
Refresh ■
App Program Depends on a selected program in the app
Drying Rack ■ 2)
Hygienic care ■
Silk ■ ■
Duvet ■
Wool ■ 3)
Delicates ■ ■
1) Together with the program you can set 1 or more options. To activate or deactivate them,
press the related touch button.
2) See chapter OPTIONS: Time Dry on Drying Rack program
3) See chapter OPTIONS: Time Dry on Wool program
9. SETTINGS
A B C
EDFGHI
A. Time Dry touch button
B. Start/Pause touch button
C. Delay Start touch button
D. Remote touch button
E. End Alert touch button
F. Reverse Plus touch button
G. Extra Silent touch button
H. Extra Anticrease touch button
I. Dryness Level touch button
9.1 Child lock function
This option prevents children playing with
the appliance while a program is
operating. The touch buttons are locked.
Only the on/off button is unlocked.
Activating the child lock option:
1. Press the on/off button to activate the
appliance.
2. Press and hold touch button (E) for a
few seconds.
The child lock indicator comes on.
It is possible to deactivate
the child lock option while a
program operates. Press
and hold the same touch
buttons until the child lock
indicator goes off. The Child
Lock function isn't available
for 8 s after switching on the
appliance.
9.2 Favourite
App Program cycle cannot
be saved as a Favourite on
the appliance.
www.electrolux.com16

You can do your configuration of
program and options and memorise in
the appliance memory.
To memorise your
configuration:
1. Press the on/off button to activate the
appliance
2. Set the program and available
options.
3. Press the (F) button for some
seconds.
The sound and the message on the
display confirm that the configuration is
memorised.
To activate your memorised
configuration:
1. Press the on/off button to activate the
appliance.
2. Use the program knob to set
Favourite position.
Previously memorised configuration of
program and options will be restore.
9.3 Adjustment of the remaining
moisture
The appliance allows you to chose
between 3 levels corresponding to
different ranges of water hardness.
Dryness
level ppm
the results
from the inclu‐
ded water
hardness kit.
< 150 C01-C03
150 - 300 C04-C05
> 300 C06-C07
Depending on the country, the water
hardness is expressed in equivalent
scales: e.g. French degrees (°f), German
degrees (°d), English degrees (°e),
mmol/l and ppm
If necessary, please contact your local
water authority to check the water
hardness in your area.
Every time you enter in the
"Adjustment of remaining
laundry moisture" mode,
previously set degree of
remaining moisture will
change into next value ( e.g
previously set will
change into ).
To change the default degree of
remaining moisture:
1. Press the on/off button to activate the
appliance.
2. Use the program knob to set any
program.
3. Wait approximately 8 seconds.
4. Press and hold buttons (F) and (E) at
the same time.
One of these indicators comes on:
• maximum dryness
• more dry laundry
• standard dry laundry
5. Press and hold buttons (F) and (E)
again until the indicator of the correct
level comes on.
If the display returns to
the normal mode (the
time of the selected
program from step 2. will
be displayed), while
setting the degree of
remaining moisture,
press and hold buttons
(F) and (E) once again to
enter to the "Adjustment
of remaining laundry
moisture" mode
(previously set degree of
remaining moisture will
change into next value).
6. To accept the selected degree of
remaining moisture, wait 5 s and the
display returns to the normal mode.
Dryness level Display symbol
maximum
dryness
ENGLISH 17

more dry
laundry
standard
dry laundry
9.4 Water container indicator
By default, the water container indicator
is on. It comes on when the program is
completed or when it is necessary to
empty the water container.
If a draining kit is installed
(additional accessory), the
appliance automatically
drains the water from the
water container. In this case
we recommend that you
deactivate the indicator of
the water container.
Deactivating the water
container indicator:
1. Press the on/off button to activate the
appliance.
2. Wait approximately 8 seconds.
3. Press and hold touch buttons (A) and
(C) at the same time.
The display shows one of these 2
configurations:
• The display shows "Off". After 5 s
the display returns to normal
mode.
• The display shows "On". After 5 s
the display returns to normal
mode.
10. BEFORE FIRST USE
Rear drum locks are
removed automatically when
dryer is activated for the first
time. Possible to hear some
noise.
To unlock the rear drum locks:
1. Switch on the appliance.
2. Set any program.
3. Press the Start/Pause button.
Drum starts to rotate. Rear drum locks
are automatically deactivated.
Before you use the appliance to dry
items:
• Clean the tumble dryer drum with a
moist cloth.
• Start a 1 hour program with moist
laundry.
At the beginning of the
drying cycle (first 3-5 min)
there could be a slightly
higher sound level. This is
due to the compressor
starting up. This is normal
for compressor powered
appliances such as
refrigerators and freezers.
11. DAILY USE
11.1 Start a program without
delay start
1. Prepare the laundry and load the
appliance.
www.electrolux.com18

CAUTION!
Make sure that when
you close the door, the
laundry does not get
caught between the
appliance door and the
rubber seal.
2. Press the on/off button to activate the
appliance.
3. Set the correct program and options
for the type of load.
The display shows the program duration.
Real drying time will depend
on type of the load (quantity
and composition), the room
temperature and the
humidity of your laundry
after spin drying phase.
4. Press the Start/Pause touch button.
The program starts.
11.2 Starting the program with
delay start
1. Set the correct program and options
for the type of load.
2. Press the delay start button again
and again until the display shows the
delay time you want to set.
You can delay the start
of a program from a
minimum of 30 minutes
to a maximum of 20
hours.
3. Press the Start/Pause touch button.
The display shows the countdown of the
delay start.
When the countdown is completed, the
program starts.
11.3 Change a program
1. Press the on/off button to deactivate
appliance
2. Press the on/off button to activate the
appliance.
3. Set the program.
11.4 At the end of the program
When the program is completed:
• An intermittent acoustic signal
operates.
• The display shows
• The indicator is on.
• The indicators Filter and Tank
may come on.
• The Start/Pause indicator is on.
The appliance continues to operate with
the anti-crease phase for approximately
30 minutes or more if Extra Anticrease
option was set (see chapter Option -
Extra Anticrease ).
The anti-crease phase reduces creasing.
You can remove the laundry before the
anti-crease phase is completed. We
recommend, for better results, that you
remove the laundry when the phase is
almost completed.
When the anti-crease phase is
completed:
• The display still shows
• The indicator is off.
• The indicators Filter and Tank
remain on.
• Start/Pause indicator goes off.
1. Press the on/off button to deactivate
the appliance.
2. Open the appliance door.
3. Remove the laundry.
4. Close the appliance door.
Possible causes of unsatisfactory drying
results:
• Inadequate default dryness level
settings. See chapter
Adjustment of
default dryness level
• Room temperature is too low or too
high. Optimal room temperature is
between 18°-25°C.
Always clean the filter and
empty the water container
when a program is
completed.
11.5 Stand-by function
To reduce energy consumption, this
function automatically deactivates the
appliance:
• After 5 minutes if you do not start the
program.
• After 5 minutes from the end of the
program.
ENGLISH 19

12. HINTS AND TIPS
12.1 Preparing the laundry
Very often the clothes after
washing cycle are kneaded
and tangled altogether.
Drying kneaded and tangled
clothes is inefficient.
To assure proper air flow
and even drying it is
recommended to shake and
load one by one the clothes
to the tumble dryer.
To assure proper drying process:
• Close the zips.
• Close the fasteners of duvet covers.
• Do not dry ties or ribbons loose (e.g.
apron ribbons). Tie them before you
start a program.
• Remove all items from pockets.
• Turn items with the internal layer
made of cotton inside out. Cotton
layer must be faced outwards.
• Always set the program suitable for
the type of laundry.
• Do not put light and dark colours
together.
• Use suitable program for cottons,
jersey and knitwear to reduce
shrinkage.
• Do not exceed the maximum load
stated in the programs chapter or
shown on the display.
• Dry only the laundry that is suitable
for tumble drying. Refer to the fabric
label on the items.
• Do not dry large and small items
together. Small items can be trapped
inside the large items and remain wet.
• Shake the large clothes, fabrics
before placing in the tumble dryer. It is
to avoid moist places inside the fabric
after the drying cycle.
Fabric label Description
Laundry is suitable for tumble drying.
Laundry is suitable for tumble drying at higher temperatures.
Laundry is suitable for tumble drying at low temperatures only.
Laundry is not suitable for tumble drying.
13. CARE AND CLEANING
13.1 Cleaning the filter
CAUTION!
Avoid the use of water to
clean the filter. Instead throw
away lint in the dustbin
( avoid dispersion of plastic
fiber in water ambient).
To achieve the best drying
performances clean the filter
regularly , clogged filter lead
to longer cycles and energy
consumption increase.
Use your hand to clean the
filter , and if necessary , a
vacuum cleaner .
www.electrolux.com20
