Electrolux EDE 37100W User manual

user manual
Tumble Dryer
EDE 37100W

Electrolux. Thinking of you.
Share more of our thinking at www.electrolux.com
Contents
Important safety information 2
Product description 4
Control Panel 4
Before first use 5
Sorting and preparing laundry 5
Programme chart 6
Daily use 6
Cleaning and maintenance 8
What to do if ... 9
Machine settings 9
Technical data 10
Installation 10
Environment 13
Service 14
Subject to change without notice
Important safety information
Important! In the interest of your safety
and to ensure the correct use, before
installing and first using the appliance,
read this user manual carefully,
including its hints and warnings. To
avoid unnecessary mistakes and
accidents, it is important to ensure that
all people using the appliance are
thoroughly familiar with its operation
and safety features. Save these
instructions and make sure that they
remain with the appliance if it is moved
or sold, so that everyone using it through
its life will be properly informed on
appliance use and safety.
General safety
• It is dangerous to alter the specifications or
attempt to modify this product in any way.
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use
of the appliance by a person responsible
for their safety.
• Make sure that small pets do not climb into
the drum. To avoid this, please check into
the drum before using.
• Any objects such as coins, safety pins,
nails, screws, stones or any other hard,
sharp material can cause extensive dam-
age and must not be placed into the ma-
chine.
• In order to avoid danger of fires caused by
excessive drying, do not use appliance to
dry the following items: Cushions, quilts
and the like (these items accumulate heat).
• Items such as foam rubber (latex foam),
shower caps, waterproof textiles, rubber
backed articles and clothes or pillows fit-
ted with foam rubber pads should not be
dried in the tumble dryer.
• Always unplug the appliance after use,
clean and maintenance.
• Under no circumstances should you at-
tempt to repair the machine yourself. Re-
pairs carried out by inexperienced persons
may cause injury or serious malfunction-
ing. Contact your local Service Centre. Al-
ways insist on genuine spare parts.
• Items that have been soiled with substan-
ces such as cooking oil acetone, petrol,
kerosene, spot removers, turpentine, wax-
es and wax removers should be washed in
hot water with an extra amount of deter-
gent before being dried in the tumble dry-
er.
•Danger of explosion: Never tumble dry
items that have been in contact with in-
flammable solvents (petrol, methylated
spirits, dry cleaning fluid and the like). As
these substance are volatile, they could
cause an explosion. Only tumble dry items
washed with water.
•Risk of fire: items that have been spotted
or soaked with vegetable or cooking oil
constitute a fire hazard and should not be
placed in the tumble dryer.
• If you have washed your laundry with stain
remover you must execute an extra rinse
cycle before loading your tumble dryer.
2 electrolux

• Please make sure that no gas lighters or
matches have accidentally been left in
pockets of garments to be loaded into ap-
pliance
Warning! Never stop a tumble dry
before the end of the drying cycle
unless all items are quickly removed
and spread out so that the heat is
dissipated. Risk of fire!
•Risk of electric shock! Do not spray
down the appliance with jets of water.
• The final part of a tumble dryer cycle oc-
curs without heat (cool down cycle) to en-
sure that the items are left at a temperature
that ensures that items will not be dam-
aged.
• Ensure you have adequate ventilation in
the installation room to avoid the back flow
of gases into the room from appliances
burning other fuels, including open fires.
Installation
• This appliance is heavy. Care should be
taken when moving it.
• When unpacking the appliance, check that
it is not damaged. If in doubt, do not use it
and contact the Service Centre.
• All packing and transit bolts must be re-
moved before use. Serious damage can
occur to the product and to property if this
is not adhered to. See relevant section in
the user manual.
• Any electrical work required to install this
appliance should be carried out by a quali-
fied electrician or competent person.
• Care must be taken to ensure that the ap-
pliance does not stand on the electrical
supply cable.
• If the machine is situated on a carpeted
floor, please adjust the feet in order to al-
low air to circulate freely.
• After having installed the appliance, check
that it is not pressing or standing on its
electrical supply cable or/and inlet hose.

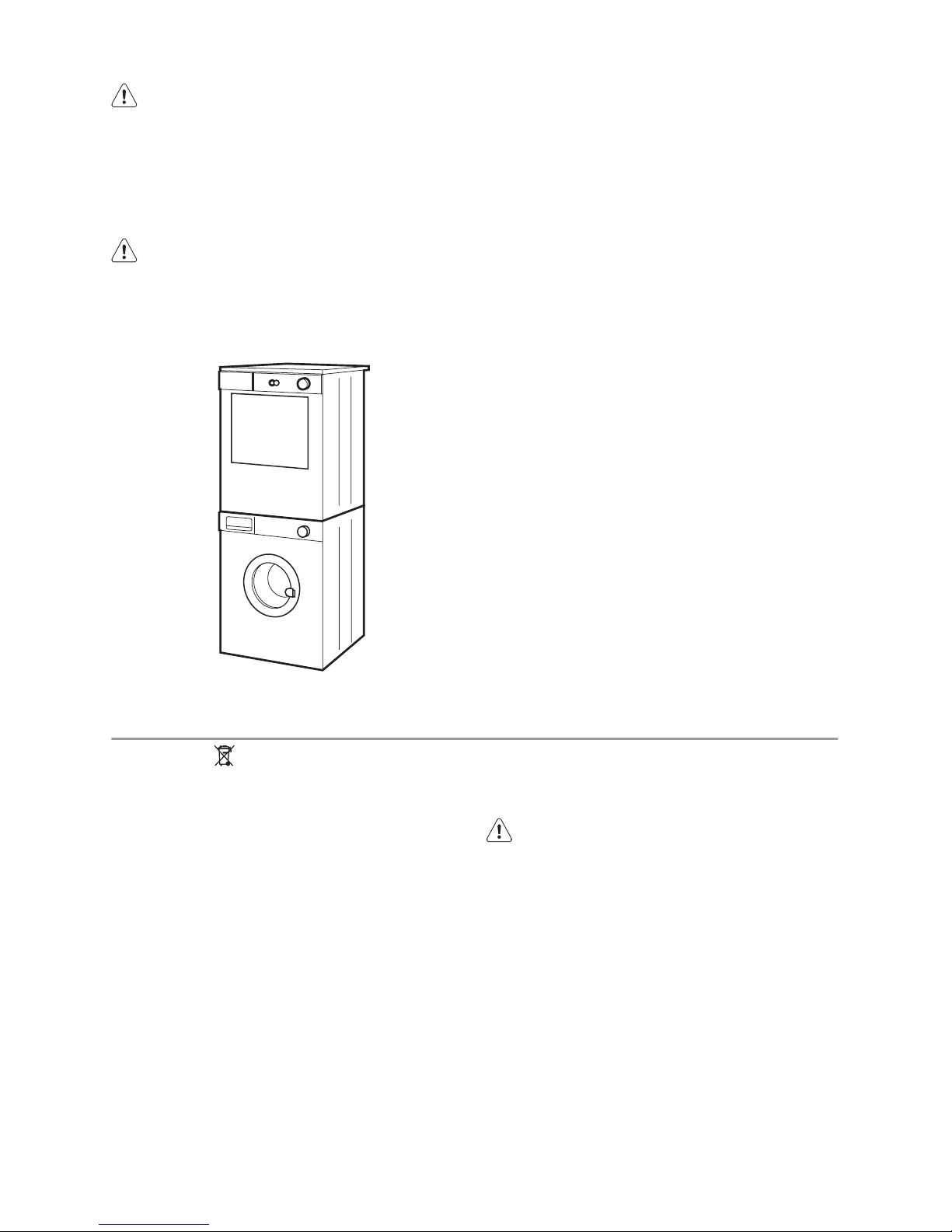

• If the tumble dryer is placed on top of a
washing machine, it is compulsory to use
the stacking kit (optional accessory).
Use
• This appliance is designed for domestic
use. It must not be used for purposes other
than those for which it was designed.
• Only wash fabrics which are designed to
be machine dried. Follow the instructions
on each garment label.
• Do not dry unwashed items in the tumble
dryer.
• Do not overload the appliance. See the
relevant section in the user manual.
• Clothes which are dripping wet should not
be placed in the dryer.
• Garments which have been in contact with
volatile petroleum products should not be
machine dried. If volatile cleaning fluids are
used, care should be taken to ensure that
the fluid is removed from the garment be-
fore placing in the machine.
• Never pull the power supply cable to re-
move the plug from the socket; always
take hold of the plug itself.
• Never use the tumble dryer if the power
supply cable, the control panel, the work-
ing surface or the base are damaged so
that the inside of the tumble dryer is ac-
cessible.
• Fabric softeners, or similar products
should be used as specified by the fabric
softener instructions.
•Caution - hot surface : Do not touch the
door light cover surface when the light is
switched on.
1)
•Hot surface: Do not touch the back
of the appliance while it is operating!
Child safety
• This machine is not intended for use by
young children or infirm persons without
supervision.
• Children often do not recognise the haz-
ards associated with electrical appliances.
Children should be supervised to ensure
that they do not play with the appliance.
• The packaging components (e.g. plastic
film, polystyrene) can be dangerous to chil-
dren - danger of suffocation! Keep them
out of children’s reach.
• Keep all detergents in a safe place out of
children’s reach.
• Make sure that children or pets do not
climb into the drum.
1) Only dryers equipped with internal drum light.
electrolux 3

Product description
1
3
4
2
5
6
7
1Control panel
2Door
3Fluff filter
4Rating plate
5Adjustable feet
6Sideways vent outlets / back vent outlet
7Ring nut
Control Panel
2 3 41
1Programme knob and (OFF) switch
2Function buttons
3Function lights from up to down:
DRYING , COOLING , END
4START PAUSE button
4 electrolux

Before first use
In order to remove any residues which may
have been produced during production, wipe
the dryer drum with a damp cloth or carry out
a brief drying cycle (ca. 30 min.) with damp
cloths in the machine.
Sorting and preparing laundry
Sorting laundry
• Sort by fabric type:
– Cotton/linen for programmes in COT-
TONS programme group.
– Mixtures and synthetics for pro-
grammes in SYNTHETICS programme
group.
• Sort by care label: The care labels mean:
Drying in the tumble dryer possible in
principle
Drying at normal temperature
Drying at reduced temperature (press
DELICATE button!)
Drying in the tumble dryer not possible
Important! Do not place in the appliance any
wet laundry which is not specified on the care
label as being suitable for tumble-drying.
This appliance can be used for all wet laundry
items which are labelled as suitable for tum-
ble-drying.
• Do not dry new, coloured textiles together
with light-coloured laundry items. Textile
colours may bleed.
• Do not dry cotton jersey and knitwear with
the EXTRA DRY programme. Items may
shrink!
• Wool and wool-like textiles can be dried
using the WOOL CARE programme.
Preparing laundry
• To avoid laundry becoming tangled: close
zips, button up duvet covers and tie loose
ties or ribbons (e.g. of aprons).
• Empty pockets. Remove metal items (pa-
per clips, safety pins, etc).
• Turn items with double-layered fabrics in-
side out (e.g. with cotton-lined anoraks,
the cotton layer should be outermost).
These fabrics will then dry better.
Important! Do not overload the appliance.
Observe max. loading volume of 7kg.
Laundry weights
Type of laun-
dry
Weight
Bathrobe 1200 g
Napkin 100 g
Quilt cover 700 g
Sheet 500 g
Pillow case 200 g
Tablecloth 250 g
Towelling tow-
el
200 g
Tea cloth 100 g
Night dress 200 g
Ladies' briefs 100 g
Man's work
shirt
600 g
Man's work
shirt
200 g
Man's pyja-
mas
500 g
Blouse 100 g
Men's under-
pants
100 g
electrolux 5

Programme chart
Programmes
max. load (weight when dry)
Time in min.
(approx.) Application/properties
Care mark
COTTON EXTRA
DRY 7 kg 140 Thorough drying of thick or multi- layered fabrics, e.g. terry towelling items, bathrobes.
COTTON STRONG
DRY 7 kg 130 Thorough drying of thick or multi- layered fabrics, e.g. terry towelling items, bathrobes.
COTTON CUP-
BOARD DRY
1)
7 kg 120
Thorough drying of fabrics of even thick-
nesses, e.g. terry towelling items, knitwear,
towels.
COTTON DAMP 7 kg 105 For thin textiles which are still to be ironed,
e.g. knitted items, cotton shirts.
COTTON IRON
DRY 7 kg 90 For thin fabrics which are also to be ironed, e.g. knitwear, cotton shirts.
SYNTHETICS EX-
TRA DRY 3 kg 45 Thorough drying of thick or multi-layered fabrics, e.g. pullovers, bedding, table linen.
2)
SYNTHETICS CUP-
BOARD DRY 3 kg 35
For thin fabrics which are not ironed, e.g.
easy care shirts, table linen, baby clothes,
socks, lingerie with bones or wires.
2)
SYNTHETICS IRON
DRY 3 kg 25 For thin fabrics which are also to be ironed, e.g. knitwear, cotton shirts.
2)
JEANS 7 kg 125
For leisure clothing, such as jeans, sweat-
shirts, etc., of different material thicknesses
(e.g. at the neck, cuffs and seams).
1) In accordance with IEC61121
2) select DELICATE option
Daily use
Switching machine on
Turn the programme selector to any pro-
gramme. The machine has been switched
on.
Door opening and laundry loading
1. Open loading door:
Push against the loading door (push
point)
6 electrolux

2. Load your laundry (do not force it in).
Caution! Do not jam laundry in between
the loading door and rubber seal.
3. Close loading door securely. Lock must
audibly lock.
Selecting the programme
Use the programme selector to set the pro-
gramme you require.
Selecting additional functions
You can choose from the additional functions
(only with time programmes ) :
button 1 -DELICATE
button 2 -TEXTILE
DELICATE
Pressing this button allows drying to be per-
formed at a lower temperature, for delicate
items. The corresponding pilot light comes
on. This option can also be used for time
controlled drying.
TEXTILE
Press the Textile button repeatedly, to select
the desired option. The relevant light will light
up. You can select 2 different options: COT-
TON cycle: to be used for cotton, and SYN-
THETICS : to be used for synthetic or delicate
items.
Starting the programme
Press the START PAUSE button 3. The pro-
gramme is started.
The programme phase is shown by appro-
priate lights; light 7 DRYING ,light 6 COOL-
ING, light 5END .
Changing programme
To change a programme which has been se-
lected by mistake once the programme has
started, first turn the programme selector to
"O" (OFF) position. The programme is can-
celled.
The programme can no longer be
changed directly once the programme
has started. If nevertheless there is an
attempt to change the programme on
the programme knob or if an function
button is pressed, led START PAUSE
starts flashing temporarily in yellow. The
drying programme is not however affec-
ted by this (laundry protection).
1 2 3
57 46
electrolux 7

Drying cycle complete / removing
laundry
Once the drying cycle is complete, the lights
END and FILTER (light 4) are on. If the buzzer
function is active, an acoustic signal will
sounds intermittently for about one minute.
The drying cycles are automatically fol-
lowed by an anti-crease phase which
lasts around 30 minutes. The drum ro-
tates at intervals during this phase. This
keeps the laundry loose and free of crea-
ses. The laundry can be removed at any
time during the anti-crease phase. (The
laundry should be taken out towards the
end of the anti-crease phase at the latest
to prevent creases from forming.)
1. Open door.
2. Remove laundry.
3. Remove filter after clothes has been re-
moved. Clean the filter.
Warning! Before You place the filter,
please check it there is nothing inside the
filter seat.
4. Turn the programme selector to "O"
(OFF).
Important! Clean the filter after each drying
cycle.
5. Close the door.
Cleaning and maintenance
Warning! The tumble dryer is not to be
used if industrial chemicals have been
used for cleaning!
Cleaning fluff filter
The filter collect all the fluff which accumu-
lates during drying. To ensure that the dryer
works perfectly, the fluff filter must be
cleaned after every drying cycle.
The warning light FILTER , is on to remind
you this operation.
Caution! Never operate the dryer
without fluff filter or with damaged or
blocked fluff filter.
1.
Open loading door and remove laundry.
2. Remove the filter which is built into the
lower part of the loading aperture.
3.
Open the filter pressing the button,
among two slots on fingers. Clean the fil-
ter using dump hand or cloth. After a pe-
riod of time, a patina due to detergent
residue on laundry forms on the filters.
When this occurs, clean the filter with
warm water using a brush.
Close the filter and do not forget to put it
back.
Warning! Before You place the filter,
please check it there is nothing inside the
filter seat.
4. The filter can be positioned only to one
side. If position is wrong, the filter over-
hangs.
If the filter will not snap into place, the
loading door cannot be closed.
8 electrolux

Cleaning the door
Clean periodically the interior part of the door
to remove any fluff. Accurate cleaning en-
sures correct drying.
Cleaning the drum
Caution! Do not use abrasives or steel
wool to clean the drum.
Lime in the water or cleaning agents may
form a barely visible lining on the inside
of the drum. The degree to which the
laundry has been dried is then no longer
detected reliably. The laundry is damper
than expected when removed from the
dryer.
Use a standard domestic cleaner (e.g.
vinegar-based cleaner) to wipe down the
inside of the drum and drum ribs.
Clean operating screen and housing
Caution! Do not use furniture cleaners
or aggressive cleaning agents to clean
the machine.
Use a damp cloth to wipe down the op-
erating screen and housing.
What to do if ...
Problem Possible cause Remedy
Dryer does not work.
Mains plug is not plugged in or
fuse is not working correctly.
Plug in at mains socket. Check
fuse in fuse box (domestic in-
stallation).
Loading door is open. Close loading door.
Have you pressed the START
PAUSE button?
Press the START PAUSE button
again.
Drying results unsatisfactory.
Wrong programme selected.
Select a different programme
the next time you dry (see “Pro-
gramme chart” chapter).
Fluff filter clogged. Clean fluff filter.
Overloading of laundry. Observe recommended loading
volumes.
Ventilation slots covered up. Uncover ventilation slots.
Residue on inside surface of
drum or drum ribs.
Clean inside surface of drum
and drum ribs.
Conductance of water at instal-
lation site differs from standard
setting of machine.
Re-programme standard setting
for degree of drying (see ‘Pro-
gramming options’ chapter).
Loading door does not close. Filter not in place. Install filter into place.
Drying cycle ends shortly after
programme starts.
Not enough washing loaded or
washing loaded is too dry for se-
lected programme.
Select time programme or high-
er drying level (e.g. EXTRA DRY
instead of CUPBOARD DRY).
Drying cycle lasts an unusually
long time. Note: After around 5
hours the drying cycle ends au-
tomatically.
Filter clogged. Clean filter.
Load volume too big. Reduce load volume.
Laundry insufficiently spun. Laundry must be adequately
spun.
Machine settings
BUZZER SIGNAL permanent on/off
1. Turn the programme selector to any pro-
gramme.
2. Press simultaneously theDELICATE and
TEXTILE buttons and hold down for ap-
prox. 5 seconds.
electrolux 9

3. The buzzer is by default always off.
Technical data
Technical data
Height x width x depth 85 x 60 x 58 cm
Drum volume 108 l
Depth with loading door open 109 cm
Height can be adjusted by 1.5 cm
Weight when empty approx. 32,5 kg
Loading volume (depends on programme)
1)
max. 7kg
Voltage 230V
Required fuse 16 A
Total power 2200 W
Energy efficiency class C
Energy consumption (7 kg of cotton, pre-drained
at 1000 rpm)
2)
3.9 kWh
Average annual energy consumption 263.1kWh
Use Domestic
Permissible ambient temperature + 5°C to + 35°C
Consumption values
The consumption values have been established under standard conditions. They may deviate when
the machine is operated in domestic circumstances.
Programme Energy consumption in kWh / average drying
time in min.
COTTONS CUPBOARD DRY
2) 3)
3.9/ 95 (7kg load pre-drained at 1000 rpm)
COTTONS IRON DRY
2)
3.05/ 75 (7kg load pre-drained at 1000 rpm)
SYNTHETICS CUPBOARD DRY
2)
1.15 / 30 (3 kg load pre-drained at 1200 rpm)
1) Different loading volume data may be needed in some countries as a result of different measuring
methods.
2) in accordance with EN 61121
Installation
Important! The appliance must be moved in
vertical position for transport.
Appliance positioning
• It is recommended that, for your conven-
ience, the machine is positioned close to
your washing machine.
• The tumble dryer must be installed in a
clean place, where dirt does not build up.
• Air must be able to circulate freely all round
the appliance. Do not obstruct the front
ventilation grille or the air intake grilles at
the back of the machine.
• To keep vibration and noise to a minimum
when the dryer is in use, it should be
placed on a firm, level surface.
• Once in its permanent operating position,
check that the dryer is absolutely level with
the aid of a spirit level. If it is not, raise or
lower the feet until it is.
• The feet must never be removed. Do not
restrict the floor clearance through deeply
carpets, strips of wood or similar. This
might cause heat built-up which would in-
terfere with the operation of the appliance.
10 electrolux

Important! The hot air emitted by the tumble
dryer can reach temperatures of up to 60°C.
The appliance must therefore not be installed
on floors which are not resistant to high
temperatures.
When operating the tumble dryer, the room
temperature must not be lower than +5°C
and higher than +35°C, as it may affect the
performance of the appliance.
Warning! Should the appliance be
moved, it must be transported vertically.
Warning! The appliance must not be
installed behind the lockable door, a
sliding door or a door with a hinge on the
opposite side to that of the appliance.
Removing transport safety packaging
Caution! Before use all parts of the
transport packaging must be removed.
1. Open loading door.
2. Pull off adhesive strips from inside ma-
chine on top of drum.
3. Remove foil hose and polystyrene padding
from the machine.

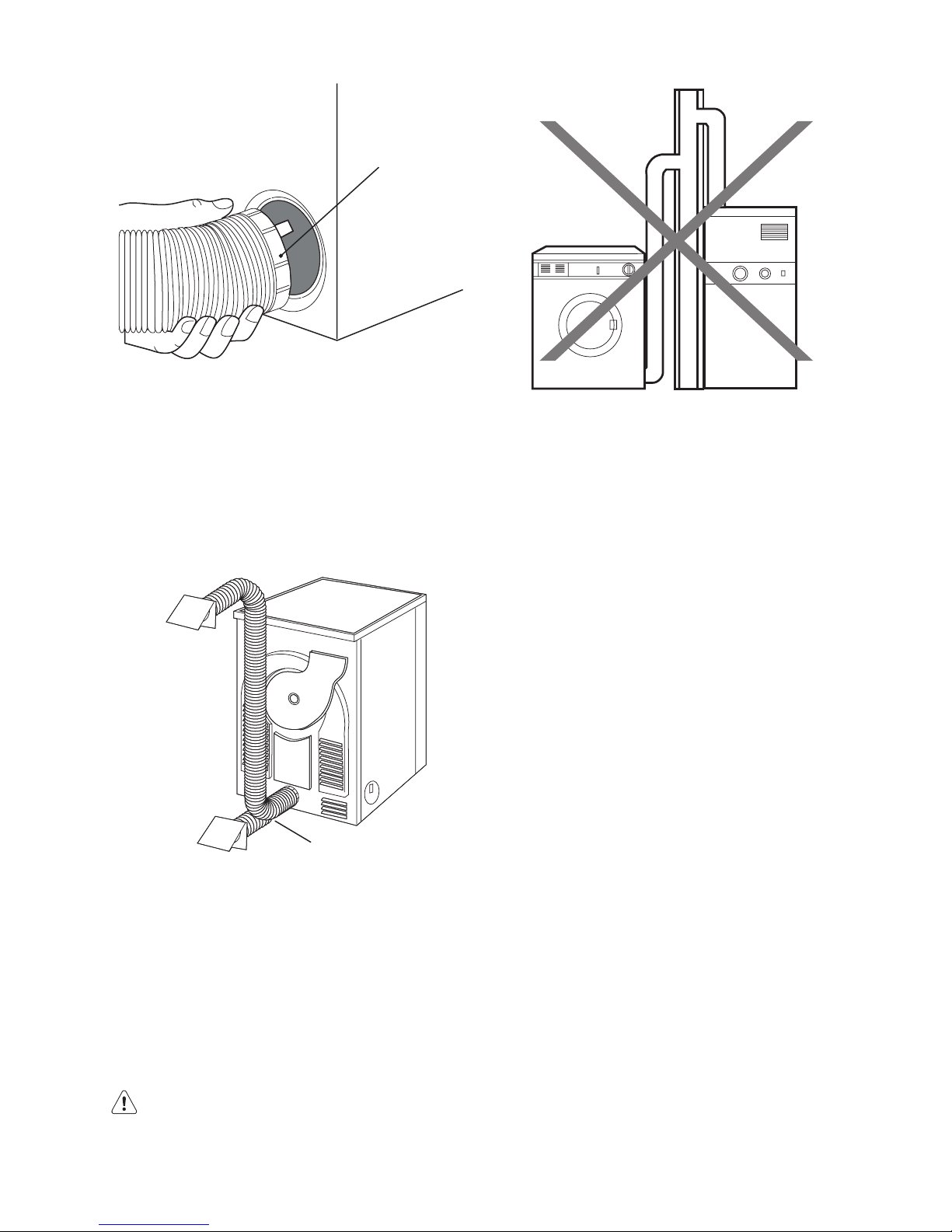

Fitting the vent hose
To simplify the installation, there is a choice
of vent outlets: one at the back, the others in
the left and right-hand side. Connect the
hose to whichever is the more convenient by
pulling the ring nut (A) from the vent outlet at
the back, screwing it on to the hose and
pushing it firmly back into place. The unused
vents should now be sealed with the special
snap covers provided.
A
electrolux 11

If the hose is long and the room temperature
low, the moisture might condense to water
inside the hose. This is an unavoidable nat-
ural phenomenon. To prevent this water from
Iying in the hose or flowing back into the tum-
ble dryer, it is advisable to drill a small hole
(via. 3 mm) in the lowest point of the hose and
to place a small container below it. (See pic-
ture, point B).
Once connected to the dryer, run the vent
hose to the desired outlet point, ensuring that
the run’s overall length is less than 2 m, and
that it contains no more than two bends. As
to the outlet itself, if you have decided on a
fixed wall/window grille, a good local build-
er’s merchant should be able to supply you
with the necessary fittings and installation
advice.
Warning! It is important not to connect
the vent hose to, for example, a cooker
hood, or a chimney or flue pipe designed
to carry the exhaust from a fuel burning
appliance.
A
B
Note that to avoid condensation problems, it
is essential that the dryer be fitted with the
flexible hose to carry its “exhaust” at least
beyond the kitchen units; preferable outside
the kitchen. In order to prevent the appliance
from overheating, it is important that the
steam exhaust is unobstructed. Therefore, in
case of a permanent hose fitted to an exterior
wall or ceiling, it must be ensured an exhaust
capacity of at least 150 m3/h. If the dryer is
fitted next to kitchen units, make sure that the
vent hose is not squashed. If the hose is par-
tially squashed, drying efficiency will be re-
duced, resulting in longer drying times and
higher energy consumption. If the hose is
completely squashed, the safety cut-outs
with which the machine is fitted may operate.
When operating the tumble dryer, the room
temperature must not be lower than +5°C
and higher than +35°C, as it may affect the
performance of the appliance.
Door reversal
To make it easier to load or unload the laun-
dry, the door can be reversed. The door must
only be reversed by an authorised service
engineer. Please contact your local Service
Force Centre. The engineer will carry out the
door reversal at your cost.
Electrical connection
Details on mains voltage, type of current and
the fuses required should be taken from the
type plate. The type plate is fitted near the
loading aperture (see “Product description”
chapter).
Connect the machine to an earthed
socket, in accordance with current wir-
ing regulations.
12 electrolux

Warning! The manufacturer declines
any responsibility for damage or
injury through failure to comply with
the above safety precautions.
Should the appliance power supply
cable need to be replaced, this must
be carried out by our Service Center.
Warning! The plug must be
accessible after installing the
machine.
Special accessories
Stacking kit
A special stacking kit is available through
your dealer, to enable the mounting of the
dyer on top of a front loading washing ma-
chine with cover’s depth between 48 and 60
cm. Read carefully the instructions supplied
with the kit.
Environment
The symbol on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead
it should be taken to the appropriate
collection point for the recycling of electrical
and electronic equipment. By ensuring this
product is disposed of correctly, you will help
prevent potential negative consequences for
the environment and human health, which
could otherwise be caused by inappropriate
waste handling of this product. For more
detailed information about recycling of this
product, please contact your local council,
your household waste disposal service or the
shop where you purchased the product.
Packaging material
The packaging materials are environmentally
friendly and can be recycled. The plastic
components are identified by markings, e.g.
>PE<, >PS<, etc. Please dispose of the
packaging materials in the appropriate con-
tainer at the community waste disposal fa-
cilities.
Warning! When disposing of old
appliances, remove the mains cable and
dispose of together with the plug.
Remove the door hook and ensure it is
no longer lockable to prevent young
children being trapped inside.
Environmental tips
• In the dryer, laundry becomes fluffy and
soft. Fabric softeners are not therefore
needed when washing.
electrolux 13

• Your dryer will function most economically
if you:
– always keep the ventilation slots on the
base of the dryer unobstructed;
– use the loading volumes specified in the
programme overview;
– clean the filter after each drying cycle;
– spin the laundry well before drying. Ex-
ample: Consumption data – depending
on spinning speed – for 7 kg of laundry,
dried using the COTTON CUPBOARD
DRY programme.
Pre-draining Drying cycle
Revolutions per minute Residual dampness Energy in kWh
in litres as a %
1000 4.20 60 3,9
1400 3.64 52 3,7
Service
In the event of technical faults, please first
check whether you can remedy the problem
yourself with the help of the operating in-
structions - see chapter What to do if….
If you were not able to remedy the problem
yourself, please contact the Customer Care
Department or one of our service partners.
In order to be able to assist you quickly, we
require the following information:
– Model description
– Product number (PNC)
– Serial number (S No. is on rating plate stuck
to the product - to find it see chapter Product
description ))
– Type of fault
– Any error messages displayed by the ap-
pliance
So that you have the necessary reference
numbers from your appliance at hand, we
recommend that you write them in here:
Model descrip-
tion:
PNC:
S No:
14 electrolux
