Electrolux TE1120 User manual

TE1120
EN User Manual Tumble Dryer
CAUTION: Read the instructions before
using the appliance.
Original Instructions.

CONTENTS
1. SAFETY INFORMATION...................................................................................... 2
2. PRODUCT DESCRIPTION................................................................................... 8
3. ACCESSORIES....................................................................................................9
4. CONTROL PANEL............................................................................................. 10
5. COIN OPERATED MACHINES...........................................................................11
6. PROGRAMME TABLE....................................................................................... 11
7. OPTIONS...........................................................................................................12
8. BEFORE FIRST USE..........................................................................................13
9. DAILY USE........................................................................................................ 13
10. HINTS AND TIPS............................................................................................. 15
11. CARE AND CLEANING....................................................................................15
12. TROUBLESHOOTING......................................................................................18
13. TECHNICAL DATA...........................................................................................20
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can be
safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Read the instructions before using the appliance
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes
injuries and damages. Always keep the instructions with
the appliance for future reference.
www.electrolux.com2

1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent disability.
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
•Do not let children play with the appliance.
•Children of less than 3 years should be kept away
unless continuously supervised.
•Keep all packaging away from children.
•Keep all detergents away from children.
•Keep children and pets away from the appliance door
when it is open.
•If the appliance has a child safety device, we
recommend you activate it.
•Cleaning and user maintenance shall not be made by
children without supervision.
1.2 Installation
•Follow the installation instruction supplied with the
appliance.
•Make sure that the appliance is stable during
transportation.
•Remove all the packaging.
•Do not install or use a damaged appliance.
•Always be careful when you move the appliance
because it is heavy. Always wear safety gloves.
•Always move the appliance vertically.
•The appliance can be installed as freestanding or below
the kitchen counter with correct space (Refer to the
Installation leaflet).
•If the tumble dryer is put on top of a washing machine,
use the stacking kit. The stacking kit, available from
your authorized vendor, can be used only with the
ENGLISH 3

appliance specified in the instructions, supplied with the
accessory. Read it carefully before installation (Refer to
the Installation leaflet).
•Do not install or use the appliance where the
temperature is less than 5°C or higher than 35°C.
•Do not install the appliance behind a lockable door, a
sliding door or a door with a hinge on the opposite side,
where the appliance door can not be fully opened.
•Make sure that the floor where you install the appliance
is flat, stable, heat resistant and clean.
•Make sure that there is air circulation between the
appliance and the floor.
•The rear surface of the appliance must be put against
the wall.
•When the appliance is put in its permanent position,
check if it is fully level with the aid of a spirit level. If it is
not, adjust the feet until it is.
•Make sure that the appliance is disconnected from the
electricity supply during installation, maintenance and
repairs and cannot be reconnected until all work has
been carried out.
•Connect the mains plug to the mains socket only at the
end of the installation. Make sure that there is access to
the mains plug after the installation.
•Ensure you have good ventilation in the installation room
to avoid the back flow of gases into the room from
appliances burning other fuels, including open fires.
•Exhaust air must not be discharged into a flue which is
used for exhausting fumes from appliances burning gas
or other fuels. (if applicable)
•The ventilation openings in the base (if applicable) must
not be obstructed by a carpet.
1.3 Electrical connection
WARNING!
Risk of fire and electrical shock.
www.electrolux.com4

•The appliance must be correctly earthed. The
manufacturer is not responsible for the consequences
of an inadequate earthing system.
•Make sure that the electrical information on the rating
plate agrees with the power supply. If not, contact an
electrician.
•Always use a correctly installed shockproof socket.
•Do not use multi-plug adapters and extension cables.
•Do not pull the mains cable to disconnect the appliance.
Always pull the mains plug.
•Do not touch the mains cable or the mains plug with
wet hands.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
•Only for UK and Ireland. The appliance has a 13 amp
mains plug. If it is necessary to change the fuse in the
mains plug, use a 13 amp ASTA (BS 1362) fuse.
•This appliance complies with the E.E.C. Directives.
1.4 Use
WARNING!
Risk of injury, electrical shock, fire, burns or
damage to the appliance.
•Obey the maximum load volume of 8kg (refer to the
“Programme chart” chapter).
•Do not use the appliance if industrial chemicals have
been used for cleaning.
•Wipe away lint that has accumulated around the
appliance.
•Do not run the appliance without a filter. Clean the lint
filter before or after each use.
•Do not dry unwashed items in the tumble dryer.
•Items that have been soiled with substances such as
cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers should
ENGLISH 5

be washed in hot water with an extra amount of
detergent before being dried in the tumble dryer.
•Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes
or pillows fitted with foam rubber pads should not be
dried in the tumble dryer.
•Fabric softeners, or similar products, should be used as
specified by the fabric softener instructions.
•Remove all objects from pockets such as lighters and
matches.
•Never stop a tumble dryer before the end of the drying
cycle unless all items are quickly removed and spread
out so that the heat is dissipated.
•The final part of a tumble dryer cycle occurs without
heat (cool down cycle) to ensure that the items are left
at a temperature that ensures that the items will not be
damaged.
•Do not dry the damaged items which contain padding
or fillings.
•Only dry fabrics which are applicable to dry in the
tumble dryer. Follow the instructions on the fabric label.
•If you have washed your laundry with a stain remover
start an extra rinse cycle before you start the dryer.
•Do not drink or prepare food with the condensed water/
distilled water. It can cause health problems to people
and pets.
•Do not sit or stand on the open door.
•Do not dry dripping wet clothes in the tumble dryer.
1.5 Internal light
WARNING!
Risk of injury.
•Visible LED radiation, do not look directly into the beam.
•The type of light bulb or halogen lap used in this
appliance is not suitable for house lighting.
•To replace the internal light, contact the Authorised
Service Centre.
www.electrolux.com6

1.6 Care and cleaning
WARNING!
Risk of injury or damage to the appliance.
•Do not use water spray and steam to clean the
appliance.
•Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
1.7 Disposal
WARNING!
Risk of injury or suffocation.
•Disconnect the appliance from the mains supply.
•Cut off the mains cable and discard it.
•Remove the door catch to prevent children and pets to
get closed in the appliance.
1.8 Service
•Only original spare parts can ensure the safety
standards of the appliance.
•Only repairs undertaken by an Electrolux approved
service technician are covered by the guarantee.
ENGLISH 7

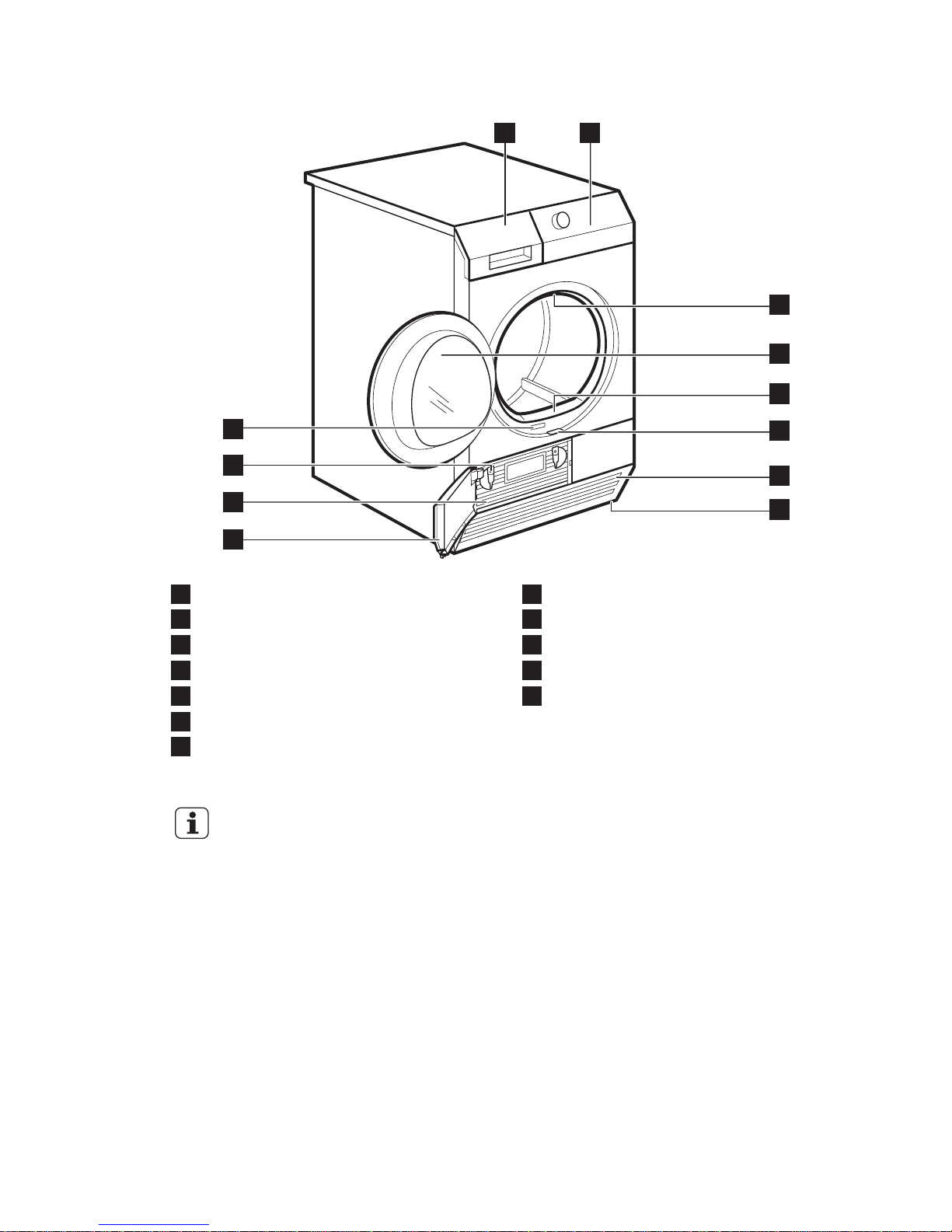

2. PRODUCT DESCRIPTION
1 2
7
3
4
5
6
9
10
11
12
8
1Water container
2Control panel
3Internal light
4Appliance door
5Filter
6Button for condenser door
7Airflow slots
8Adjustable feet
9Condenser door
10 Condenser cover
11 Locks for condenser cover
12 Rating plate
The load door can be
installed by the user in the
opposite side. It can help to
easily put and remove the
laundry or if there is a limit to
install the appliance (see
separate leaflet).
www.electrolux.com8

3. ACCESSORIES
3.1 Stacking kit
Available from your author-
ized vendor.
Stacking kit can be used
only with the washing ma-
chines specified in the leaf-
let. See the leaflet attached.
Read carefully the instruc-
tions supplied with the ac-
cessory.
3.2 Draining kit
It is available from your authorized vendor
(can be attached to some types of the
tumble dryers)
The accessory for through draining of the
condensed water into a basin, siphon,
gully, etc. After the installation, the water
container is drained automatically. The
water container must stay in the
appliance.
The installed hose must be on the height
from minimum of 50 cm to maximum of 1
m from floor level. The hose cannot be in
loop. Decrease the length of the hose if
necessary.
Read carefully the instructions supplied
with the accessory.
3.3 Pedestal with the drawer
It is available from your authorized vendor.
To put the appliance higher at the level
what helps to easy load and remove the
laundry.
The drawer can be used for laundry
storage e.g. : towels, cleaning products
and more.
Read carefully the instructions supplied
with the accessory.
ENGLISH 9

3.4 Coin operated machine If the appliance is set in a public place, it
can be connected to a coin operated
machine.
4. CONTROL PANEL
1 2
356 4
1Programme dial
2Display
3 Start/Pause button
4Options buttons
5Programme indicators
6 ON/OFF button with the Auto Off
function
4.1 Display
www.electrolux.com10

Symbol on the display Symbol description
half load
dryness - extra dry
dryness - cupboard dry
dryness - iron dry
indicator: drain the water container
indicator: clean filter
indicator: do the check of the heat exchanger
indicator: drying phase
indicator: cooling phase
indicator: crease guard phase
time dry option on
cycle time indication
time selection (5 min. steps)
5. COIN OPERATED MACHINES
1. Insert correct amount of coins. When
inserting coins, the display on the coin
meter will count down to “00” and the
machine will be ready to start.
2. Push Start/Pause button to start the
machine
6. PROGRAMME TABLE
There are two types of programmes,
automatic programmes and time
programmes.
Automatic programmes has moisture
detection and will stop when selected
dryness is achieved.
Time programmes has no moisture
detection and will stop when the preset or
selected time has ended.
The following table shows the available
programmes and a short description of
those:
ENGLISH 11

Automatic pro-
grammes Load1) Description
Eco 2) 8 kg
Cotton and terry - most efficient in terms of
energy consumption.
Normal/medium temperature.
The programme will stop when preset dry-
ness/selected option is achieved (Extra
dry, Cupboard dry, Iron dry).
Normal 8 kg
Cotton and terry.
Normal/medium temperature.
The programme will stop when preset dry-
ness/selected option is achieved (Extra
dry, Cupboard dry, Iron dry).
Low 3,5 kg
Synthetic (example of synthetic fabrics:
polyester, polyamide, polyacrylic and ela-
stan),viscose, polycotton and delicate fab-
rics.
Low temperature.
The programme will stop when preset dry-
ness/selected option is achieved (Extra
dry, Cupboard dry, Iron dry).
1) The maximum weight refers to dry items.
2) The Cotton Eco programme is the “Standard cotton programme” and it is suitable to
dry normal wet cotton laundry and it is the most efficient programme in terms of energy con-
sumption for drying wet cotton laundry.
Time programmes Description
Normal
Cotton and terry.
Different drying times can be selected.
The programme will stop when the time is up.
Low
Synthetic (example of synthetic fabrics: polyester, polyamide,
polyacrylic and elastan),viscose, polycotton and delicate fabrics.
Different drying times can be selected.
The programme will stop when the time is up.
Airing
Airing bedspreads, duvets and bedclothes.
The programme will stop when the time is up.
7. OPTIONS
7.1 Half load
Use this option if you dry half load of the
laundry .
7.2 Extra dry
This option helps to get the laundry extra
dried.
7.3 Cupboard dry
This option assure that the laundry after
drying process is ready to store.
7.4 Iron dry
This option assure that the laundry after
drying process is suitable to iron.
www.electrolux.com12

7.5 Care
Extends anti-crease phase (30 minutes) at
the end of the drying cycle to 90 minutes.
This option prevents laundry from creases.
Laundry can be removed during the anti-
crease phase.
7.6 Time
Lets the user to increase time of drying in
5 min. steps.
8. BEFORE FIRST USE
Before you use the appliance for the first
time do these operations:
• Clean the tumble dryer drum with a
moist cloth.
• Start a short programme (e.g. 30
minutes) with moist laundry.
9. DAILY USE
9.1 Preparing the laundry
• Close the zippers.
• Close the fasteners of the duvet
covers.
• Do not keep ties or ribbons loose (e.g.
apron ribbons). Tie them before you
start a programme.
• Remove all items from the pockets.
• If an item has the internal layer made of
cotton, turn it inside out. Make sure
that the cotton layer is always external
• We recommend that you set the
correct programme applicable for the
type of fabrics that are in the appliance.
• Do not put fabrics with strong colours
together with fabrics with light colours.
Strong colours can bleed.
• Use an applicable programme for
cotton jersey and knitwear to prevent
the items to shrink.
• Make sure that the laundry weight is
not more than the maximum weight
that is in the programme table.
• Dry only the laundry that is applicable
for tumble dryer. Refer to the fabric
label on the items.
Fabric label Description
Laundry that is applicable for tumble drying.
Laundry that is applicable for tumble drying and resists higher drying
temperature.
Laundry that is applicable for tumble drying but only with low drying
temperature.
Laundry that is not applicable for tumble drying.
9.2 Loading the laundry
CAUTION!
Do not lock the laundry in
between the appliance door
and rubber seal.
1. Pull the appliance door.
2. Load loosely the laundry.
3. Close the appliance door.
9.3 Turning on the appliance
To turn on the appliance:
Push the ON/OFF button.
If the appliance is on, some indications
come in to the view on the display.
ENGLISH 13

9.4 Auto Off function
To decrease the energy consumption, the
Auto Off function turns off automatically
the appliance:
• if the Start/Pause button was not
pressed in the time of 5 minutes.
• after 5 minutes from the programme
end.
Push the ON/OFF button to turn on the
appliance.
If the appliance is on, some indications
come in to the view on the display.

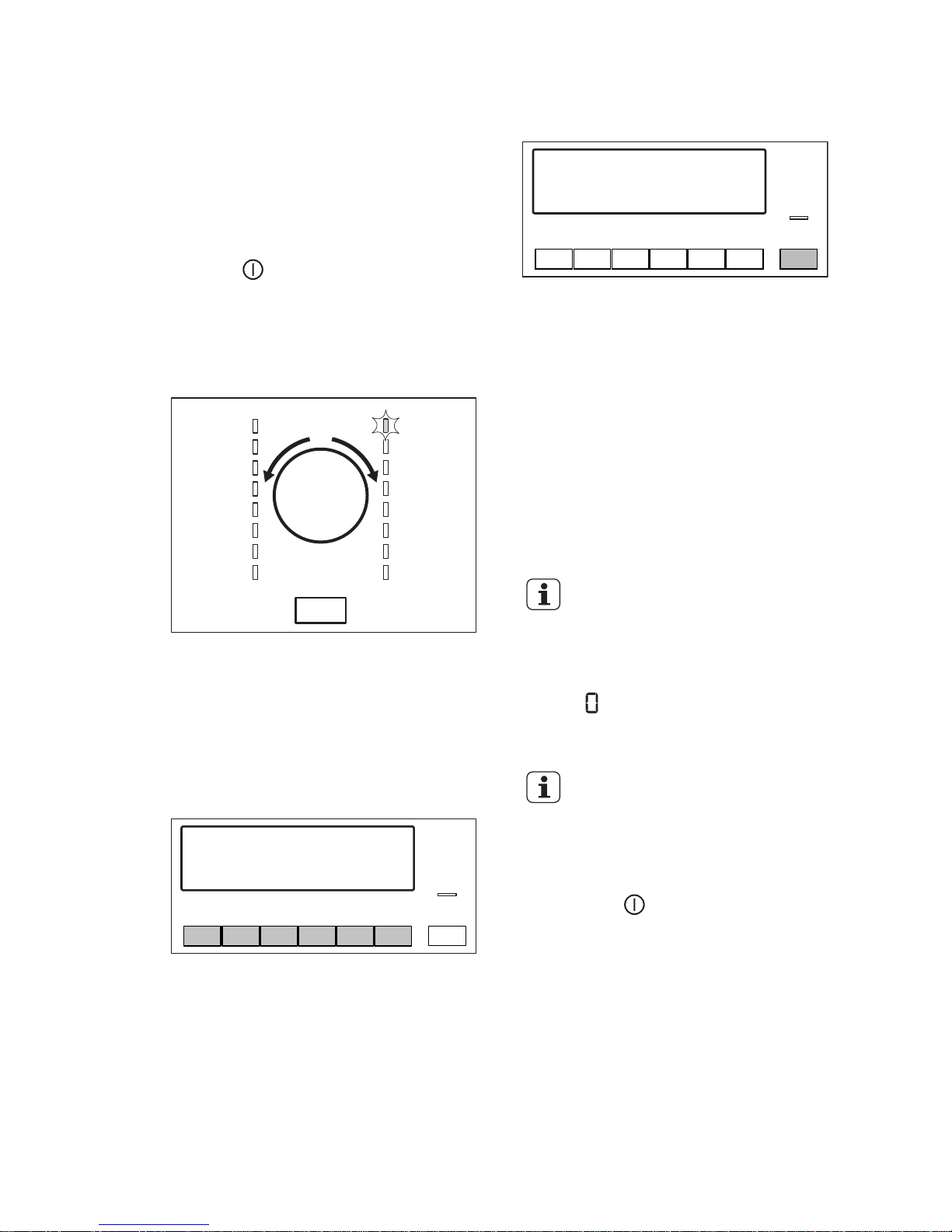

9.5 Setting a programme
Use the programme dial to set the
programme.
The time to the programme end comes
into the view on the display.
9.6 Options
Together with the programme you can set
1 or more special options.
To activate or deactivate the option push
the applicable button .
When the option is activated the LED
above the button or symbol on the display
comes into the view.
9.7 Starting a programme
To start the programme:
Push the Start/Pause button.
The appliance starts and the LED above
the button does not flash but is stable.
9.8 Programme change
To change a programme:
1. Push the ON/OFF button to turn off
the appliance.
2. Push again the ON/OFF button to turn
on the appliance.
3. Set a new programme.
9.9 Programme end
Clean the filter and drain the
water container after each
drying cycle. (See chapter
CARE AND CLEANING.)
If the drying cycle is completed, the
symbol flashes on the display and the
acoustic signal sounds intermittently for 1
minute.
If you do not turn off the
appliance, the crease guard
phase starts. Laundry can be
removed during this phase.
To remove the laundry:
1. Push the ON/OFF button for 2
seconds to turn off the appliance.
2. Open the appliance door.
3. Remove the laundry.
4. Close the appliance door.
www.electrolux.com14

10. HINTS AND TIPS
10.1 Ecological hints
• Spin good the laundry before drying.
• Use the load volumes which are
specified in the programme chart.
• Clean the filter after each drying cycle.
• Do not use fabric softener to wash and
then dry. In the tumble dryer laundry
becomes soft automatically.
• Use the condensate as distilled water,
e.g. for steam ironing. If it is necessary
clean the condensate before (e.g. with
a coffee filter) to remove possible small
pieces of fluff.
• Always keep the airflow slots on the
bottom of the appliance clear.
• Make sure that is good airflow in the
appliance installation position.
10.2 Adjustment of the
remaining laundry moisture
degree
To change the default degree of the
remaining moisture of the laundry:
1. Turn on the appliance.
2. Wait approximately 8 seconds.
3. Select 1 of available programmes.
4. Push at the same time and hold down
the Half load and Cupboard dry
buttons.
One of the symbols goes into the view on
the display:
- the maximum dry laundry
- the more dry laundry
- the standard dry laundry
5. Push the Start/Pause button
again and again until you set
necessary degree.
6. To memorise the setting, push at the
same time the Half load and
Cupboard dry buttons for
approximately 2 seconds.
10.3 Deactivating the Reservoir
indicator
The water container indicator is by default
on. It starts to light at the end of the drying
cycle or during the cycle if the water
reservoir is full. If the draining kit is installed
the water container is drained
automatically and indicator can be
permanently off.
To deactivate the indicator:
1. Turn on the appliance.
2. Wait approximately 8 seconds.
3. Select 1 of available programmes.
4. Push at the same time and hold down
the Half load and Iron dry buttons.
One of 2 configurations is possible:
• the Reservoir indicator: is on
and the symbol goes into
the view - the water container
indicator is permanently on
• the Reservoir indicator: is off
and the symbol goes into
the view - the water container
indicator is permanently off
11. CARE AND CLEANING
11.1 Cleaning the filter
At the end of each cycle the symbol
Filter is on the display and you must clean
the filter.
The symbol flashes on the
display - the filter is missing.
The tumble dryer cannot
start.
The filter collects the fluff. The
fluff occurs while the clothes
are dried in the tumble dryer.
To clean the filter:
1. Open the door. Pull the filter.
ENGLISH 15

2. Push the button.
3. Open the filter.
4. Use a moist hand to clean the filter.
5. If necessary clean the filter with the
brush under warm tap water and/or a
vacuum cleaner. Close the filter.
6. If necessary remove fluff from the filter
socket and gasket. You can use a
vacuum cleaner. Put the filter inside
the filter socket.
11.2 Draining the water
container
Drain the condensed water container after
each drying cycle.
If the condensed water container is full,
the programme breaks off automatically.
The symbol Reservoir is on the display
and you must drain the water container.
To drain the water container:
1. Pull the water container and keep it in
horizontal position.
2. Move the plastic connection out and
drain the water into a basin or
www.electrolux.com16

equivalent receptacle.
3. Move plastic connection in and install
water container.
4. To continue the programme press the
Start/Pause button.
11.3 Cleaning the condenser
If the symbol Condensor flashes on the
display, the condenser and its
compartment must be cleaned.
To clean the condenser and its
compartment:
1. Open the door.
2. Move the release button on the
bottom of the door to open the
condenser door.
3. Turn 2 blockages to unlock the
condenser cover.
4. Lower the condenser cover.
5. Catch the handle and pull the
condenser out from the bottom
compartment. Move condenser
horizontally to do not spill remaining
water.
6. Clean the condenser in vertical
position over a basin or paddling.
Rinse through with a hand shower.
7. Put the condenser back inside the
bottom compartment.
8. Close the condenser cover.
9. Lock 2 blockages until they snap.
10. Close the condenser door.
11.4 Cleaning the drum
WARNING!
Disconnect the appliance
before you clean it.
ENGLISH 17

Use a standard neutral soap detergent to
clean the inner surface of the drum and
drum ribs. Dry the cleaned surfaces with a
soft cloth.
CAUTION!
Do not use abrasive materials
or steel wool to clean the
drum.
11.5 Cleaning the control panel
and housing
Use a standard neutral soap detergent to
clean the control panel and housing.
Use a moist cloth to clean. Dry the
cleaned surfaces with a soft cloth.
CAUTION!
Do not use furniture cleaning
agents or cleaning agents
which can cause corrosion to
clean the appliance.
11.6 Cleaning the airflow slots
Use a vacuum cleaner to remove the fluff
from the airflow slots.
12. TROUBLESHOOTING
Problem 1) Possible cause Remedy
The tumble dry-
er does not op-
erate.
The tumble dryer is not connec-
ted to mains supply.
Connect in at mains socket.
Check fuse in fuse box (domestic
installation).
The loading door is opened. Close the loading door.
The ON/OFF button was not
pushed.
Push the ON/OFF button.
The Start/Pause button
was not pushed.
Push the Start/Pause but-
ton.
The appliance is in the standby
mode. Push the ON/OFF button.
The filter is missed or in wrong
position.
Insert the filter in the right posi-
tion.
The E59 error code on the display
- dryer overloaded.
Unload part of the laundry. Obey
the maximum load.
www.electrolux.com18

Problem 1) Possible cause Remedy
Unsatisfactory
drying result.
Incorrect programme selection. Do the selection of the applicable
programme. 2)
The filter is clogged. Clean the filter. 3)
Too high volume of the load. Obey the maximum load volume.
The airflow grill is clogged. Clean the airflow grill in the bot-
tom of the appliance.
Dirt on the humidity sensor in the
drum.
Clean the front surface of the
drum.
Incorrect remaining laundry mois-
ture degree.
Adjust remaining laundry moisture
degree. 4)
The condenser is clogged. Clean the condenser. 3)
The loading
door does not
closed
The filter not locked in the posi-
tion.
Put the filter in the correct posi-
tion.
The laundry is locked between
the door and the seal.
Put the load correctly in the drum.
Err (Error) on
the display.
You try to change the programme
or the option after the start of the
cycle.
Turn the tumble dryer off and on.
Make the new selection.
The option you try to activate is
not applicable with the selected
programme.
Turn the tumble dryer off and on.
Make the new selection.
No drum light Defective drum lamp. Contact the service centre to re-
place the drum lamp.
Abnormally
elapsing time
on the display.
The time to end is calculated on
the basis of the volume and
dampness of the laundry.
The automatic procedure — this
is not the appliance malfunction.
Programme in-
active.
The water container is full. Drain the water container, push
the Start/Pause button. 3)
Drying cycle too
short.
Too small laundry volume. Do the selection of time pro-
gramme. The time value must be
related to the load. To dry 1 item
or small quantities of the laundry
we recommend to use short
times.
The laundry is too dry. Do the selection of the time pro-
gramme with longer time.
ENGLISH 19

Problem 1) Possible cause Remedy
Drying cycle too
long 5)
The filter is clogged. Clean the filter.
Too high the laundry load. Obey the maximum load.
The laundry not spun sufficiently. Spin correctly the laundry.
Very high room temperature - this
is not the appliance malfunction.
If possible, lower the room tem-
perature.
1) If there is an error message on the display (e.g. E51): Turn the tumble dryer off and on.
Make a selection of the new programme. Push the Start/Pause button. Does not oper-
ate? - contact the service centre and give the error code.
2) Follow the programme description — see PROGRAMME TABLE
3) See chapter CARE AND CLEANING
4) See HINTS AND TIPS chapter
5) Note: After maximum 5 hours the drying cycle ends automatically.
13. TECHNICAL DATA
Height x Width x Depth 850 x 600 x 605 mm (maximal 648 mm)
Max. depth with the appliance door open 1072 mm
Max. width with the appliance door open 950 mm
Adjustable height 850 mm (+ 15 mm - feet regulation)
Drum volume 118 l
Maximum load volume 8 kg
Emission sound pressure level in accord-
ance with EN ISO 11204/11203
<70 dB
Voltage 230-240 V
Frequency 50 Hz
Necessary fuse 13 A
Total power 2800 W
Energy efficiency class B
Energy consumption1) 4,77 kWh
Annual energy consumption2) 560 kWh
Left—on mode power absorption 0,12 W
Off mode power absorption 0,12 W
Permitted ambient temperature + 5°C to + 35°C
www.electrolux.com20
