Electrolux T4300S User manual

Operating manual
T4300S
Selecta Control
487 05 45 31/EN
08.38

Safety Precautions
Safety Precautions
Do not dry unwashed items in the machine
The machine is not to be used if industrial chemicals have been used for cleaning.
Do not allow minors to use the machine.
Do not hose down the machine with water.
The machine's door lock must under no circumstances be bypassed.
Items that have been soiled with substances such as cooking oil, acetone, alcohol,
petrol, kerosene, spot removers, turpentine, waxes and wax removers should be
washed in hot water with an extra amount of detergent before being dried in the
machine.
Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber
backed articles and clothes or pillows fitted with foam rubber pads should not be
dried in the machine.
Fabric softeners or similar products should be used as specified by the fabric
softener instructions.
The machine may not be used to dry floor mops that contain polypropylene.
The final part of a drying cycle occurs without heat (cool down cycle) to ensure that
the items are left at a temperature that ensures that the items will not be damaged.
WARNING. Never stop the machine before the end of the drying cycle unless all items
are quickly removed and spread out so that the heat is dissipiated.
Remove garments from the machine as soon as they are dried. This prevents them
from becoming creased and reduces the risk of spontaneous ignition.
If the machine develops a fault, this must be reported to the person in charge as soon
as possible. This is important both for your safety and that of others.
The machine must not be located where a door, sliding door, etc., can block the
machine's door
The machine is not intended to be used by people (including minors) with reduced
physical or mental capacity or lack of experience and knowledge. Such people must
be instructed in the use of the machine by a person who has responsibility for their
safety. Minors must be supervised to ensure that they do not play with the machine.
Adequate ventilation has to be provided to avoid the back flow of gases into the room
for appliances burning other fuels, including open fires.
Gas heated tumble dryer:
The machine is not to be installed in rooms containing cleaning machines with
perchloroethylene, TRICHLOROETHYLENE or CHLOROFLUOROCONTAINING
HYDROCARBONS as cleaning agents.
If you can smell gas,
• Do not switch on any equipment
•Do not use electrical switches
• Do not use telephones in the building
• Evacuate the room, building or area
•Contact the person responsible for the machine

Operating manual 5
Contents
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Diagram of tumble dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Instruction signs/operating panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Operating panels - buttons and symbols . . . . . . . . . . . . . . . . . . . . . . . . .9
Programmes - Coin-operated laundries . . . . . . . . . . . . . . . . . . . . . . . . .10
Coin-operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Programmes - OPL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Tumble dryer with manual operation - OPL . . . . . . . . . . . . . . . . . . . . . .13
Programmes - AHL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Tumble dryer with manual operation - AHL. . . . . . . . . . . . . . . . . . . . . . .15
Error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Maintenance.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
The manufacturer reserves the right to modify design, material and
specifications without notice.
Textiles as silk and wool must not be overdried
to avoid the risk of creasing.

Operating manual
6
Glossary
Auto Stop
The tumble dryer stops automatically when the clothes are dry.
AHL (Apartment House Laundry)
Example: Communal laundries / Housing block laundries.
OPL (On Premises Laundry)
Example: Institutional laundries.
RMC (Residual Moisture Control)
The tumble dryer has residual moisture control.

Operating manual 7

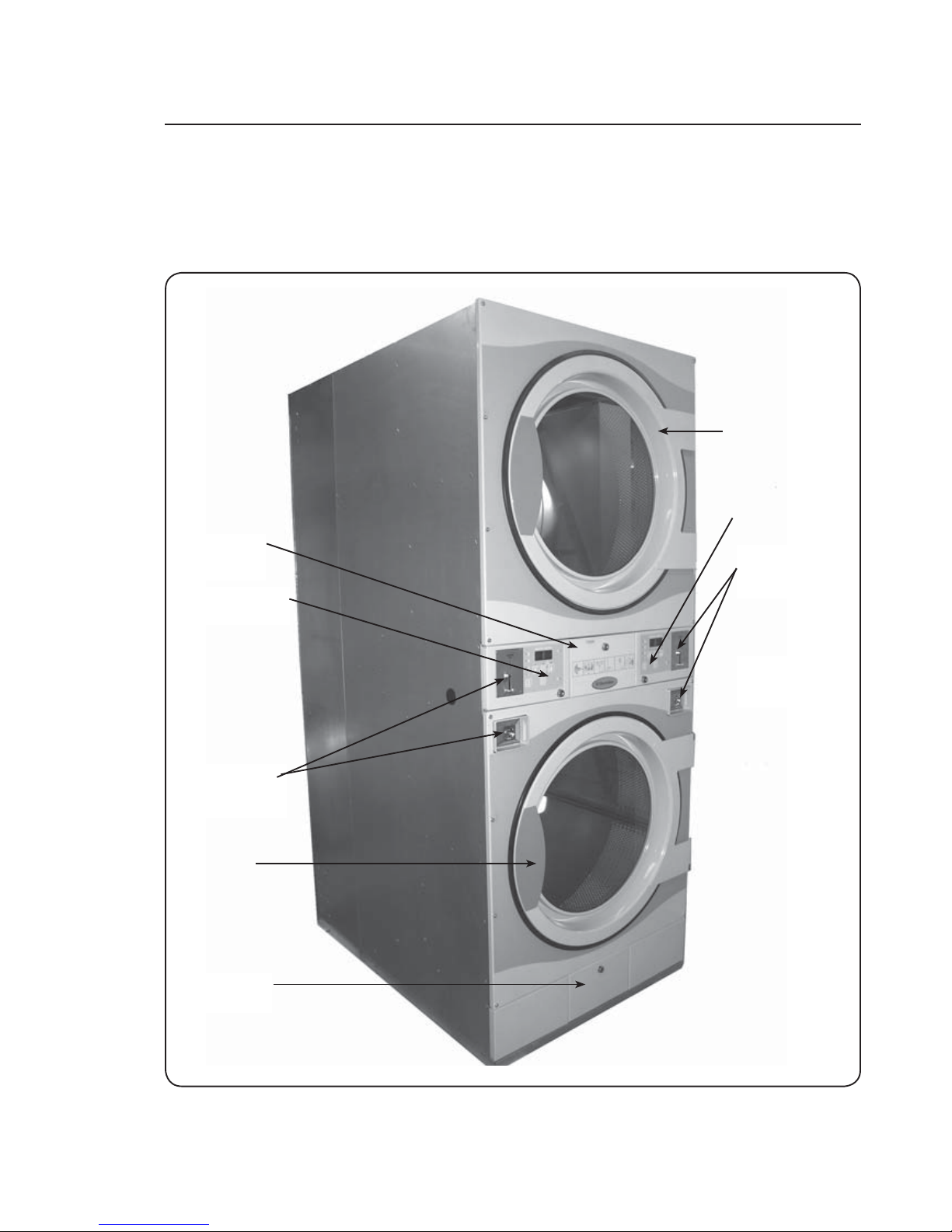

Diagram of tumble dryer
Bottom drum
coin insert and
coin drawer
Upper drum
coin insert and
coin drawer
Instruction sign
Upper drum door
Upper drum
lint drawer
Bottom drum
operating panel
Upper drum
operating panel
Bottom drum
door
Bottom drum
lint drawer

Operating manual
8
Coin-operated laundries
487 09 10 01.00
SELECTA CON TROL
487 09 10 01.00
SELECTA CON TROL
487 09 11 06.00
P
SELECTA CON TROL
487 09 11 05.00
P
SELECTA CON TROL
P1
P2
P3
P4
P5
P6
P7
P8
P9
P1
P2
P3
P4
P5
P6
P7
P8
P9
OPL - Dryer with manual operation

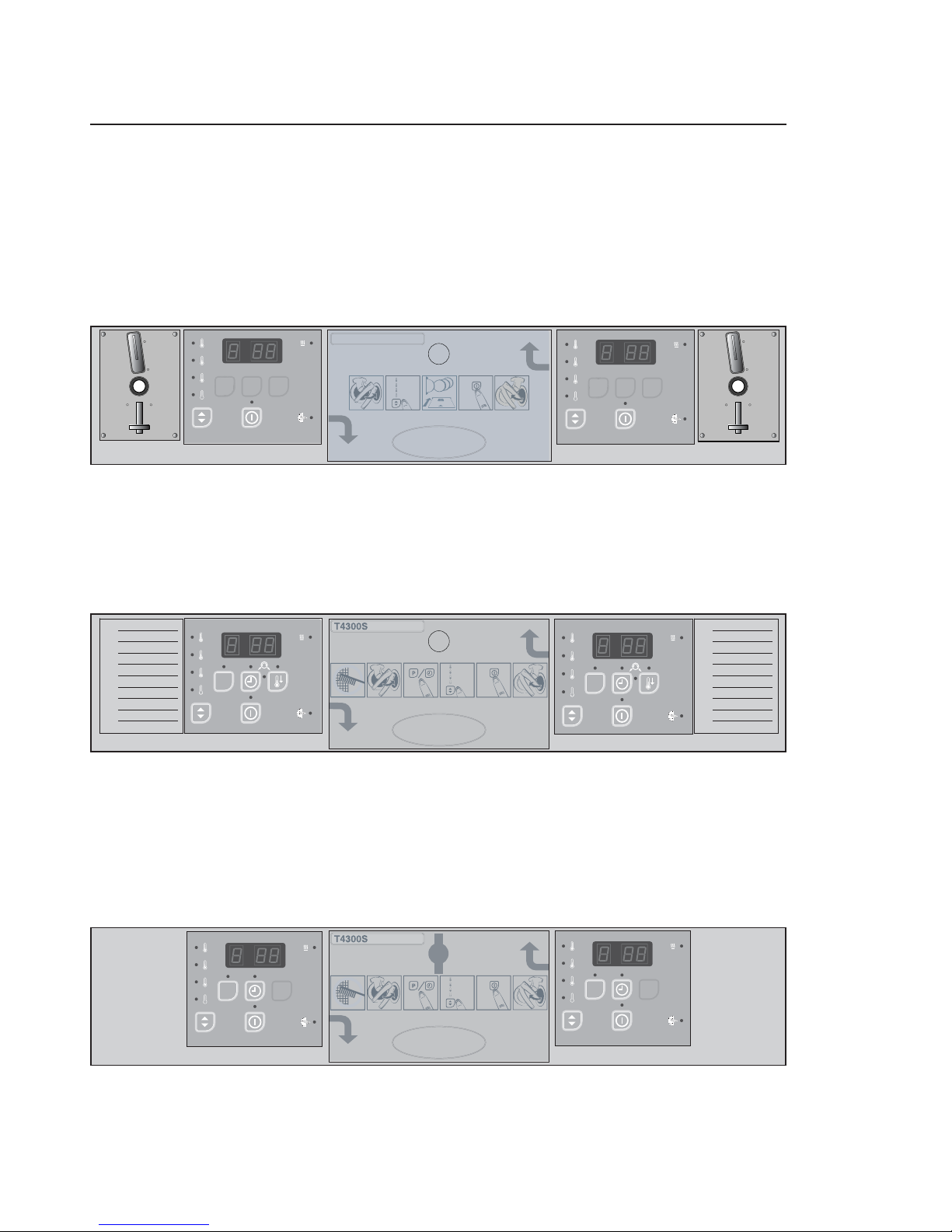

Instruction signs/operating panels
P
4
8
7 22
93
4
0
.
00
SELECTA CON TROL
487 09 10 00.00
P
4
8
7 22
93
4
0
.
00
SELECTA CON TROL
487 09 10 00.00
487 09 11 05.00
AHL - Dryer with manual operation

Operating manual 9
P
P button
Program selection button.
Not active on pay machines.
With RMC: Push button during
operation, display shows: the
residual moisture in the clothes.
Cool-down time
Setting of cool-down time.
OPL laundries only.
Heat
When light-emitting diode is lit
the heat is on.
Filter
When light-emitting diode is lit
filter door/ filter drawer is open.
Time button
Setting of drying time.
Not active on pay machines.
Program status
“d xx” = Time controlled drying - xx indicates the time.
“c xx” = Time controlled cool-down - xx indicates the time.
“c - -” = Temperature controlled cool-down.
“ 00” = Standby. An anti-crease program runs for 120 minutes or
until the door is opened.
Start/stop button
Start: Push button.
Stop: Push button or open
door.
Reversing
Reversing on/off.
OPL laundries only.

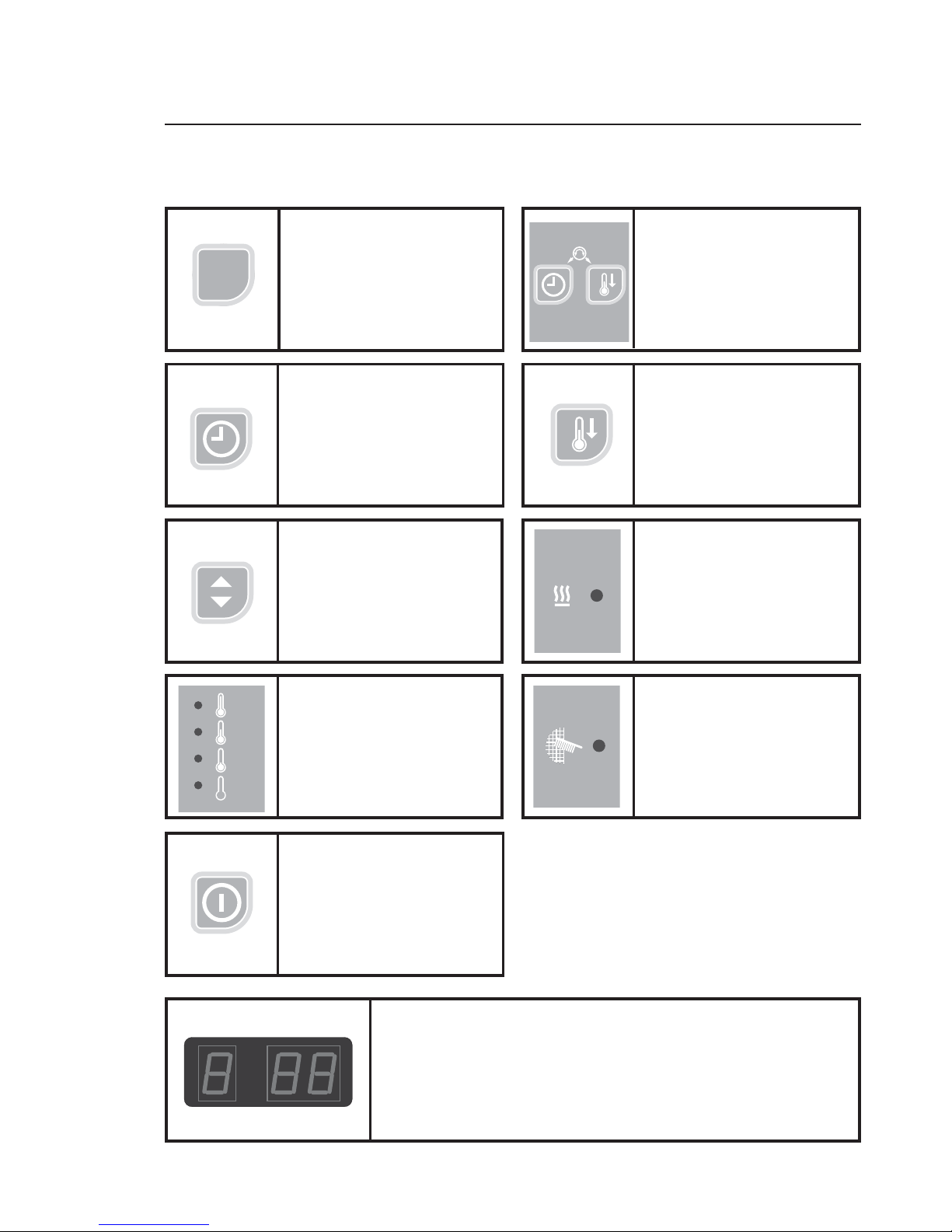

Operating panel - buttons and symbols
Selected temperature
Light-emitting diode is lit at
selected temperature.
Temperature button
Temperature selection.
Push button during operation,
display shows: the outlet
temperature.

Operating manual
10
Temperature
High Non-iron/normal wash Cotton and mixed fabrics
Medium Non-iron/normal wash Cotton and mixed fabrics
Low Fine wash/mild wash Delicate fabrics,
No heat Airing bedspreads, duvets and bedclothes
Load
Full loads are recommended in order to achieve the best result.
Full load is indicated in kilos of dry textile.
Dryer type 4300S = 2 x 13.6 kg
Programmes - Coin-operated laundries

Operating manual 11
Fill garments into
the drum.
Close the door
To prevent
wrinkling:
Empty the dryer as
soon as the program
has ended.
If the dryer is not emptied
immediately after the drying time has
ended, an anti-wrinkle program is
automatically engaged.
This means that the drum rotates at
short intervals.

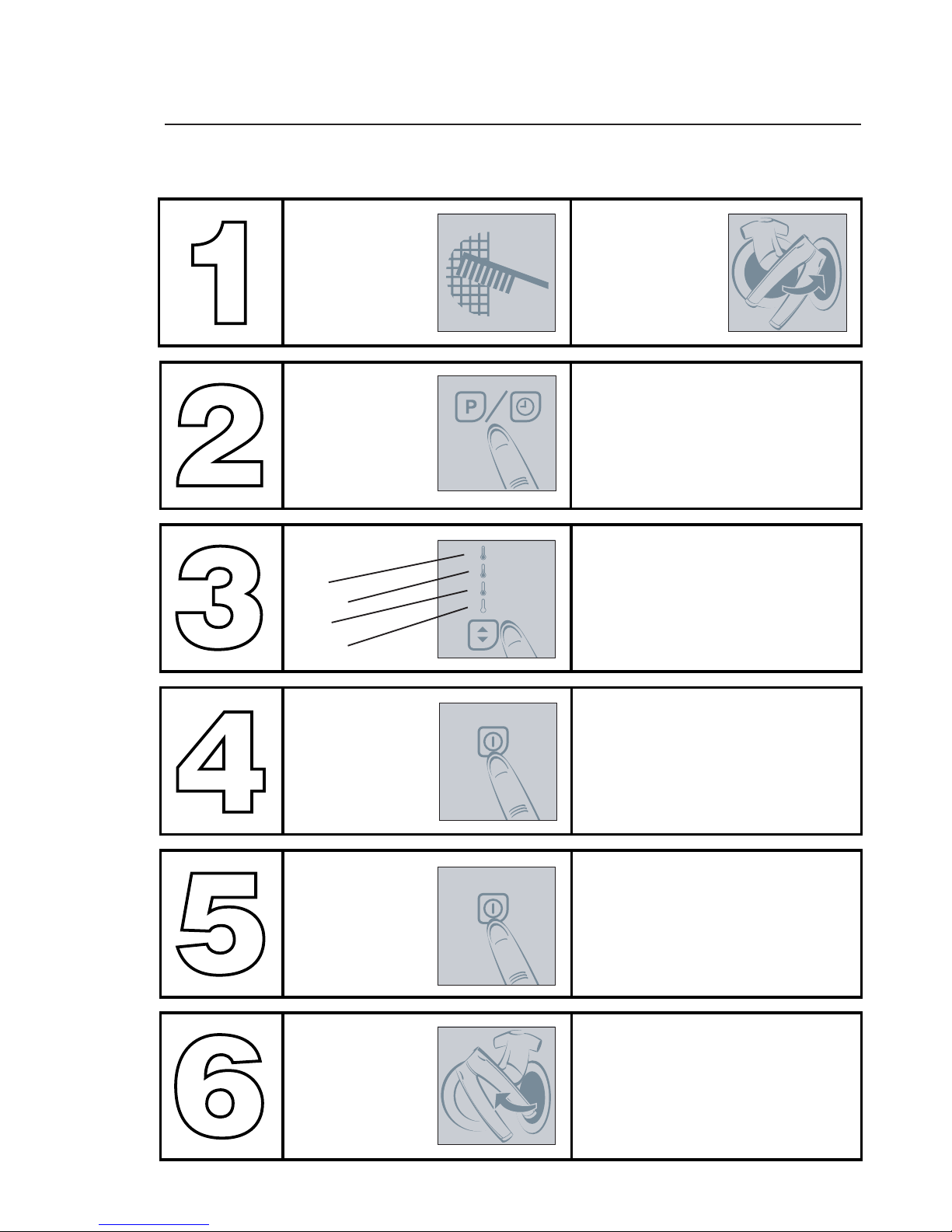

Coin-operation
Select temperature
No heat
High
Medium
Low
Pay with coins / card
Press start
Wait for the dryer to
stop or press stop.

Operating manual
12
Programmes P 01 - P 09 on dryers with RMC
Program Process Textiles
P 01 Extra dry Denim
P 02 Ready to put away 100% cotton / poly cotton mixture / terry
P 03 Ironing dry (5% moisture) Polyester / nylon
P 04 Ironing dry (10% moisture) Wool / silk
P 05 Ironing dry (15% moisture) Viscose / acetate
P 06 Ironing dry (20% moisture Mixed textiles
P 07 10 min. drying All textiles
P 08 20 min. drying All textiles
P 09 30 min drying All textiles
Programmes P 01 - P 05 on dryers with Auto Stop
Program Process Textiles
P 01 Extra dry All textiles
P 02 Dry All textiles
P 03 10 min. drying All textiles
P 04 20 min. drying All textiles
P 05 30 min drying All textiles
Temperature
High Non-iron/normal wash Cotton and mixed fabrics
Medium Non-iron/normal wash Cotton and mixed fabrics
Low Fine wash/mild wash Delicate fabrics,
No heat Airing bedspreads, duvets and bedclothes
Load
Full loads are recommended in order to achieve the best result.
Full load is indicated in kilos of dry textile.
Dryer type 4300S = 2 x 13.6 kg
Programmes - OPL

Operating manual 13
Tumble dryer with manual operation - OPL
Fill garments into
the drum
Close the door
Select programme
or
set the drying
time
Press start
Wait for the dryer
to stop or press
stop.
Restart
Close the door and press start.
To prevent
creasing:
Empty the tumble
dryer as soon
as the program
has ended.
If the tumble dryer is not emptied
immediately after the drying time has
ended, an anti-crease programme is
automatically engaged.
This means that the drum rotates at
short intervals, thereby almost
completely avoiding creasing.
Clean filter
The tumble dryer stops
Automatically when the clothes are dry.
or
when the selected time has expired.
P 01 Extra dry
P 02 Ready to put away
P 03 Ironing dry (5% moisture)
P 04 Ironing dry (10% moisture)
P 05 Ironing dry (15% moisture)
P 06 Ironing dry (20% moisture)
P 07 10 min. drying
P 08 20 min. drying
P 09 30 min. drying
Select temperature
High
Medium
Low
No heat

Operating manual
14
Programmes P 01 - P 02
Program Process Textiles
P 01 Extra dry Denim
P 02 Ready to put away 100% cotton / poly cotton mixture / terry
Programmes P 01 - P 03 on dryers with RMC
Program Process Textiles
P 01 Extra dry Denim
P 02 Ready to put away 100% cotton / poly cotton mixture / terry
P 03 Ironing dry (15% moisture) All textiles
Temperature
High Non-iron/normal wash Cotton and mixed fabrics
Medium Non-iron/normal wash Cotton and mixed fabrics
Low Fine wash/mild wash Delicate fabrics
No heat Airing bedspreads, duvets and bedclothes
Load
Full loads are recommended in order to achieve the best result.
Full load is indicated in kilos of dry textile.
Dryer type 4300S = 2 x 13.6 kg
Programmes - AHL

Operating manual 15
Tumble dryer with manual operation - AHL
Fill garments into
the drum
Close the door
Select temperature
Select programme
or
set the drying
time
Press start
Wait for the dryer
to stop or press
stop.
Restart
Close the door and press start.
To prevent
creasing:
Empty the tumble
dryer as soon
as the program
has ended.
If the tumble dryer is not emptied
immediately after the drying time has
ended, an anti-crease programme is
automatically engaged.
This means that the drum rotates at
short intervals, thereby almost
completely avoiding creasing.
Clean filter
No heat
High
Medium
Low
P 01 Extra dry
P 02 Ready to put away
P 03 Ironing dry (15% moisture)
The tumble dryer stops
Automatically when the clothes are dry
or
when the selected time has expired.

Operating manual
16
Error codes
The tumble dryer has automatic error indication.
Error indication is displayed as a flashing code.
Please refer to the manual Selecta Control from ver. 4.xx for an explanation of error
codes.
A service technician must be contacted should an error be displayed.
The user can, however, try to correct some error codes himself.
Error code E05 or E06
When the error code E05 or E06 is displayed,this can be due to the motor being too hot.
Stop the dryer and wait for 5 minutes. Start again and choose a program. If this does not
help and the error code reappears a service technician must be contacted.
Error code E12
When the error code is displayed this can be due to the user having overfilled the dryer
with clothes that are too wet.
Remove some of the clothes, close the door, and press the start button. If this does not
help and the error code reappears a service technician must be contacted.
Error code E14
When resetting gas error the dryer must be in operation on a program with heat, and the
heat indicator must be on.
The dryer must only be reset three times.
If the dryer, however, has to be reset more than three times it has to be put out of order
and a service technician must be called.
Error code E15
When the error code is displayed this can be due to the user having overfilled the dryer.
Remove some of the clothes, close the door, and press the start button. If this does not
help and the error code reappears a service technician must be contacted.
Error code E16
The error code is displayed if the user presses the start button while the air pressure
switch is already activated.
Resetting by opening / closing the door and pressing start button.

Operating manual 17
Maintenance
The following should be carried out at regular
intervals, depending on machine usage.
Daily
• Check that the drum stops when either the loading
door or the lint drawer is opened.
If the dryer operates with the loading door or lint
drawer open, the machine must be placed out of
order until repairs are made.
NOTE Contact a qualified service personnel to
disconnect power from the affected dryer.
• Check that the machine does not start until the start
button is pressed.
• Check that the loading door and lint drawer gasket
are clean, and in good condition. (clean with a damp
cloth).
• Keep the dryer area clear and free from combustible
materials, gasoline and other flammable vapours
and liquids.

Operating manual
18
Maintenance
Quarterly
Check that the following are not clogged by lint and dust or
otherwise blocked:
• The area surrounding the dryer
• Exhaust duct
• Fresh-air intake to the room
Check that the exhaust system connections are tight.
Quarterly, dryer with RMC
Wipe off/clean drum and lifters with citric acid (Acidum
citricum). If soap/softener residue remains, it is
recommended also to use a coarse sponge.
Lack of cleaning the lifters can reduce the automatic residual
moisture control in the clothes resulting in the clothes being
moister than requested when the program has ended.
Internal wearing parts
At least once a year, the internal wearing parts of the
machine should be checked by a competent, skilled person,
cleaned of lint, and repaired or replaced as necessary.
