Use _ Care Guide
_Q-Touch TMFro_3t-Load Gas _ Electric [)_y'er
Guide d'utilisation et d'entretien
S_cheuse 5 gaz et 5 ]_]ectr_cit_ 5 chargeme_3t fro_3ta] _Q-Touch Mc
Guia de Uso y Cuidado
Secadora eKctr_ca y a gas de carga fro_3ta] _Q-Touch Mc

Finding Information
Please read and save this guide
Thank you for choosing Electrolux, the new premium brand in home appliances. This Use & Care Guide
is part of our commitment to customer satisfaction and product quality throughout the life of your new
appliance.
We view your purchase as the beginning of a relationship. To ensure our ability to continue serving you,
please use this page to record important product information.
Keep a record for quick reference
Purchase date
Electrolux model number
Electrolux serial number
For toll-free telephone support in the U.S. and Canada: 1-877-4ELECTROLUX {1-877-435-3287)
For online support and product information visit http://www.electroluxappliances.com
Table of contents
Finding information ......................................................... 2
SAFETY ..................................................................... 3-5
Features .......................................................................... 6
Operating instructions ............................................... 7-18
• Getting Started ........................................................... 7
Normal Operating Sounds .......................................... 7
Operating Your Dryer ............................................... 8-9
Cycle Selection .................................................... 10-12
Drying Temperature .................................................. 13
Dryness Level ........................................................... 14
Options ................................................................ 15-16
Dryer Features .......................................................... 17
Dryer Settings Chart ................................................. 18
Care & Cleaning ............................................................ 19
Solutions to Common Problems ............................. 20-21
Common Drying Problems ....................................... 20
Service Prevention Checklist .................................... 21
Warranty information .................................................... 22
©2008 Electrolux Major Appliances All rights reserved.

Safety
ImpoAant Safety Instructions
Recognize safety symbols, words and
labels
Your safety and the safety of others is very
important.
We have provided many important safety
messages in the Use and Care Guide, Installation
Instructions and on your appliance. Always read
and obey all safety messages.
Safety items throughout this manual are labeled
with a WARNING or CAUTION based on the risk
type as described below:
ik WARNING This symbol alerts you to situa-
tions that may cause serious body
harm, death or property damage.
/_k CAUTION This symbol alerts you to situa-
tions that may cause bodily injury
or property damage.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
,, Do not try to light any appliance.
,, Do not touch any electrical switch; do
not use any phone in your building.
,, Clear the room, building or area of all
occupants.
,, Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
,, If you cannot reach your gas supplier,
call the fire department.
Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
Save these instructions for future reference.
240 v Electric Dryer
I0-30R I_ _
3-wire
(fused 30 amp)
14-30R
4-wire
120 v Gas Dryer
(fused 30 amp)
Grounding type
wall receptacle
UL-approved service Do no[. under
any circumstances,
cord must be installed _
on electric dryers [no[ _/-_i[_.J cUt,orbypassrem°ve'the
provided with unit
except those ,,_'_'_q grounding prong.
manufactured for sale
in Canada], _j
L_
Power cord with
3-prong grounded plug
Avoid fire hazard or electrical shock. Do not use an adaptor plug or extension cord
or remove grounding prong from electrical power cord. Failure to follow this warning
can cause serious injury, fire or death.

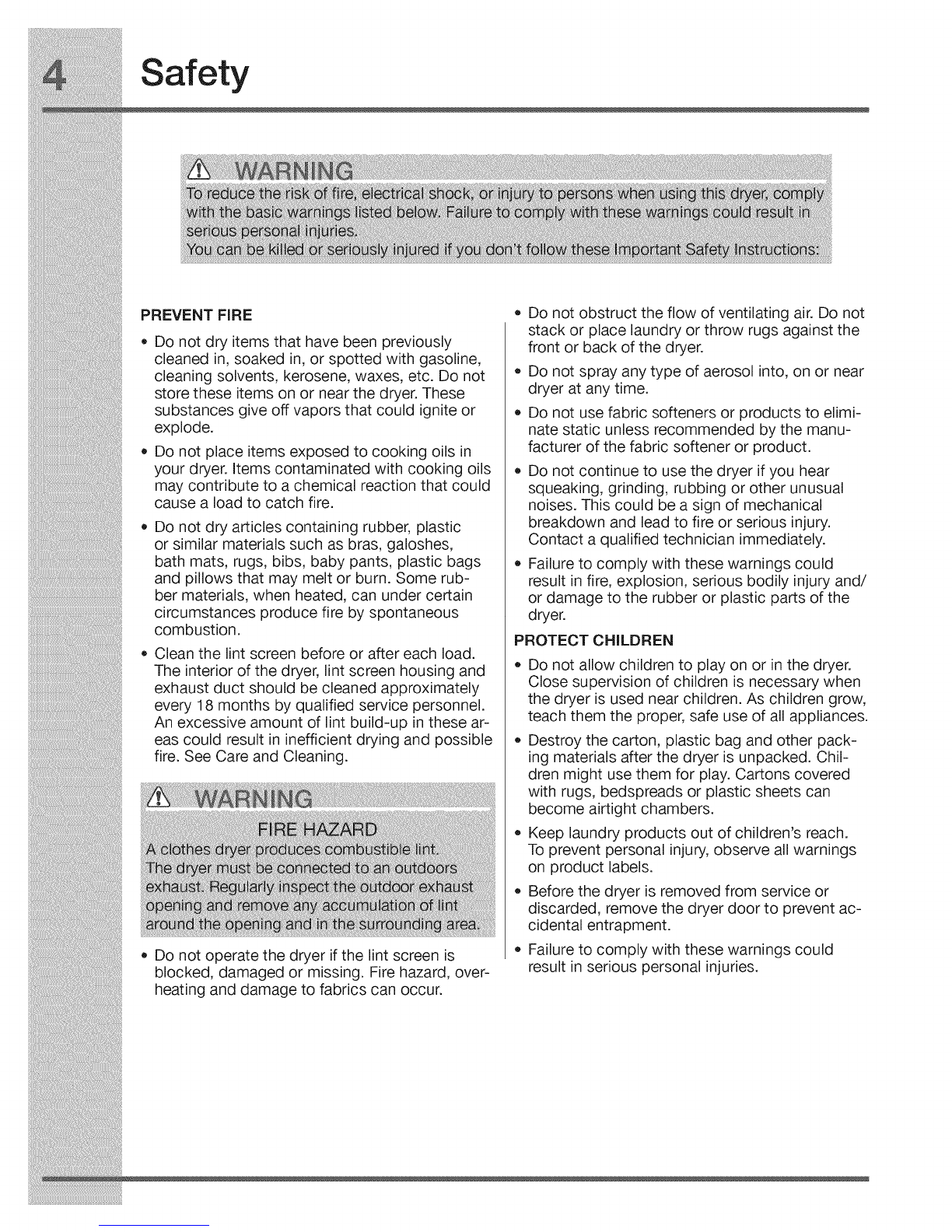

Safety
PREVENT FiRE
• Do not dry items that have been previously
cleaned in, soaked in, or spotted with gasoline,
cleaning solvents, kerosene, waxes, etc. Do not
store these items on or near the dryer. These
substances give off vapors that could ignite or
explode.
Do not place items exposed to cooking oils in
your dryer. Items contaminated with cooking oils
may contribute to a chemical reaction that could
cause a load to catch fire.
Do not dry articles containing rubber, plastic
or similar materials such as bras, galoshes,
bath mats, rugs, bibs, baby pants, plastic bags
and pillows that may melt or burn. Some rub-
ber materials, when heated, can under certain
circumstances produce fire by spontaneous
combustion.
Clean the lint screen before or after each load.
The interior of the dryer, lint screen housing and
exhaust duct should be cleaned approximately
every 18 months by qualified service personnel.
An excessive amount of lint build-up in these ar-
eas could result in inefficient drying and possible
fire. See Care and Cleaning.
• Do not operate the dryer ifthe lint screen is
blocked, damaged or missing. Fire hazard, over-
heating and damage to fabrics can occur.
Do not obstruct the flow of ventilating air. Do not
stack or place laundry or throw rugs against the
front or back of the dryer.
Do not spray any type of aerosol into, on or near
dryer at any time.
Do not use fabric softeners or products to elimi-
nate static unless recommended by the manu-
facturer of the fabric softener or product.
Do not continue to use the dryer if you hear
squeaking, grinding, rubbing or other unusual
noises. This could be a sign of mechanical
breakdown and lead to fire or serious injury.
Contact a qualified technician immediately.
Failure to comply with these warnings could
result in fire, explosion, serious bodily injuryand/
or damage to the rubber or plastic parts of the
dryer.
PROTECT CHILDREN
Do not allow children to play on or in the dryer.
Close supervision of children is necessary when
the dryer is used near children. As children grow,
teach them the proper, safe use of all appliances.
Destroy the carton, plastic bag and other pack-
ing materials after the dryer is unpacked. Chil-
dren might use them for play. Cartons covered
with rugs, bedspreads or plastic sheets can
become airtight chambers.
Keep laundry products out of children's reach.
To prevent personal injury, observe all warnings
on product labels.
Before the dryer is removed from service or
discarded, remove the dryer door to prevent ac-
cidental entrapment.
Failure to comply with these warnings could
result in serious personal injuries.

Safety
important Safety instructions, continued
PREVENTINJURY
*To prevent shock hazard and assure stability
during operation, the dryer must be installed
and electrically grounded by a qualified service
person in accordance with local codes. Installa-
tion instructions are packed in the dryer for the
installer's reference. Refer to INSTALLATION
INSTRUCTIONS for detailed grounding proce-
dures. If the dryer is moved to a new location,
have it checked and reinstalled by a qualified
service person.
*To prevent personal injuryor damage to the
dryer, the electrical power cord of a gas dryer
must be plugged into a properly grounded and
polarized 3-prong outlet. The third grounding
prong must never be removed. Never ground
the dryer to a gas pipe. Do not use an extension
cord or an adaptor plug.
*ALWAYS disconnect the dryer from the electrical
supply before attempting any service or clean-
ing. Failure to do so can result in electrical shock
or injury.
*Do not use any type spray cleanser when clean-
ing dryer interior. Hazardous fumes or electrical
shock could occur.
•To prevent injury,do not reach intothe dryer
if the drum is moving. Wait until the dryer has
stopped completely before reaching into the
drum.
PREVENT iNJURY AND DAMAGE TO THE
DRYER
®
®
All repairs and servicing must be performed by
an authorized servicer unless specifically rec-
ommended in this Use & Care Guide. Use only
authorized factory parts.
Do not tamper with controls.
Do not install or store the dryer where it will be
exposed to the weather.
A thermal limiter switch automatically turns off
the motor in the unlikely event of an overheated
situation (electric dryers only). A service techni-
cian must replace the thermal limiter switch after
correcting the fault.
Failure to comply with these warnings could
result in serious personal injuries.

Touch=2=OpenTM
Cycle Selector LCD Display Control Lock
Dual Stage,
Wide-Angle
Door Hinge
Theater=Style,
Luxury=LightingTM
ystem
Large Surface
Moisture Sensor
Door Strike
Reversible, Open TM
Door System
/---
ExhaustChannel
Outlet
Gentle Tumble
Drying System
Touch-2=Open T_
Door Latch
Adjustable
Leveling Legs
Lint
Stacking Kit for Mounting
on Matching Washer
Touch.2.OpenTM
Latch Indicator
Collapsible
Drying Rack

Operating instructions
Getting Started
normal casual
towels _ c C_(_) fast
,dry
mixed _[_O O I_ delicate
Joad
heavy _ _ C _-_- touch
duty _' up
bulky/ _o _ time
bedding dry
,@
my time control
favorite dry lock
Temperature Dryness Options
O high
@ medium/high () max
O medium @ normal
C> low © less
© air O damp
add stearn _
1_) sanitize
This manual covers many models and not all cycles, options, or features listed are available on every model. Console shown
above for reference only. Your model may differ.
To operate your dryer, follow these basic steps:
1. Check and clean the lint screen. (See page 9.) 4. Select desired settings and options. (See page
2. Load the dryer. (See page 9.) 9, page 13, page 14 and pages 15-16.)
5. Start the dryer. (See page 9.)
3. Select the desired cycle. (See page 9, pages
10-12 and page 18.)
Normal Operating Sounds
You may or may not hear the following sounds
from your new dryer: O
A. WATER VALVE (Steam models only.) The flow of
water iscontrolled by electric solenoids. During
operation there may be a clicking sound as the
valve opens and closes to control the water flow.
B. SUSPENSION ROLLERS The dryer drum
is supported by a set of suspension rollers.
At times there may be a thumping or rolling
sound when the dryer starts. This may happen
if the dryer has not been in use for a period of
time, or after a heavy load has remained inthe
dryer drum for an extended period, creating
a temporary flat spot on the edge of the
roller. The noise should dissipate as the dryer
operates and the flat spots smooth out. fk
C. AIR FLOW SYSTEM Your dryer is equipped
with a high volume air handling system. In
some installations there may be some sounds
associated with air movement throughout
the dryer, including the air duct, blower, and
exhaust system. This is normal and can vary
with load size and type.
D. GAS VALVE (Gas models only.) The flow of gas is
controlled by electric solenoids. During operation
there may be a clicking sound as the valve opens
and closes to control the gas flow.
E. GAS BURNER (Gas models only.) When the
burner isoperating, there may be sounds
generated as the air flow mixes with the gas
flame. This noise is normal and will only occur
when the gas is ignited inthe combustion tube.

Operatin instructions
Operating Your Dryer
BEFORE USING YOUR DRYER
Read the important instructions in this section of
the Use and Care Guide before operating your
dryer.
OPERATING YOUR DRYER
1. Prepare load for drying.
Dry items of similar fabric, weight and con-
struction in the same load.
Separate dark items from light-colored items.
Separate items that shed lint from those that
attract lint.
=
3.
Check for stains which may not have been
removed in washing. Repeat stain removal
process and wash again before drying. Dryer
heat may permanently set some stains.
Place delicate or small items in a mesh bag.
Be sure buckles, buttons and trim are heat-
proof and won't damage the drum finish. Close
zippers; fasten hooks and Velcro®-Iike fasten-
ers. Tie strings and sashes to prevent snag-
ging and tangling.
Check that the lint filter is clean and
in place.
Load the dryer and close the door.
Load items loosely. The average wet load will
fill the drum 1/3 to 1/2 full. items need room to
tumble freely for even drying and less wrin-
kling.
If desired, place a dryer fabric softener sheet
on top of the load at the beginning of the
cycle.
To save energy and time and avoid uneven
drying and wrinkling, do not overload the dryer.
When drying large items, dry only two or three
items at a time. Fill out the load with small and
medium sized items.
For delicate or very small loads, add two or
three similar items to improve tumbling action.
Mesh bag not included.)

Operating Instructions
.Select the appropriate cycle and
settings for each load.
Turn the cycle selector knob in either direction
to select the cycle desired. The estimated dry-
ing time for Auto Dry cycles or the actual dry-
ing time for Time Dry cycles will be displayed.
A suitable drying temperature, dryness level
and options will automatically be indicated for
the cycle selected. See the "Dryer Settings
Chart" for more details.
To change the drying temperature and dryness
level, press the temperature and dryness but-
tons to scroll to the desired settings.
To select or delete an option, press the button
for that option. The indicator will be illuminated
when the option has been selected. The indi-
cator will no longer be lighted when the option
has been deleted.
Temperature Dryness Options
O high
@ medium/high O max
O medium @ normal
() low C) less
O air O damp
,_ damp alert
extended tumble
add steam d_
delicate heat
sanitize
chime
::;'02..... !if:
.
Adjustments made to a cycle will be remembered
and recalled each time that cycle isselected in
the future.
To return to factory settings, press the tern=
perature and dryness buttons at the same
time and hold for 5 seconds.
Start the cycle.
Close the door and press start to begin the
cycle. The dryer will not operate with the door
open. To interrupt the cycle, press pause;
press start to resume the cycle. Press cancel
to stop the cycle.
If changes to the cycle, temperature, dryness
level or options are attempted after the cycle
starts, the lights will blink and a signal will beep.
To change the cycle once the cycle has be-
gun, press cancel and select a new cycle. To
change the temperature, dryness level or op-
tions once the cycle has begun, press pause
and make the new selections.
A signal will sound at the end of the cycle if
the chime option has been selected. When the
cycle ends, remove the items promptly and
hang or fold.
my time control
favorite dry lock
start
pause

Operatin Instructions
Cycle Selection
Turn the cycle selector in either direction to the
cycle desired. The indicator for that cycle will be
illuminated. Press on the cycle selector knob to
extend it or return it flush to the console.
For best results
Follow the fabric care label instructions
on items to be dried.
To change the cycle once it has begun, press the
cancel button before selecting a new cycle. Just
turning the cycle selector knob to another selec-
tion will not change the cycle.
AUTO DRY CYCLES
Auto Dry cycles take the guesswork out of select-
ing the correct drying time for each load. Moisture
sensing bars at the back of the dryer drum sense
the moisture level of the load as it tumbles through
the heated air. With Auto Dry cycles, the load will
automatically be dried at the selected temperature
to the desired dryness level.
Auto Dry cycles save time and energy and protect
fabrics. When the load has reached the selected
dryness level, it will continue to tumble, unheated,
during a cool down period. This helps reduce
wrinkling and makes items easier to handle during
unloading.
Drying time varies depending on size and damp-
ness of load and fabric type. If the load is too small
or almost dry, the moisture sensing bars may not
detect enough moisture to continue the cycle and
the cycle may end after a few minutes. If this oc-
curs, then select the time dry cycle to dry such
loads.
Room temperature and humidity, type of installa-
tion and electrical voltage or gas pressure can also
affect drying time.
casual
o
rh
bulky/_ '_
bedding
l
Temperature Dryness
O high
@ medium/high () max
O medium @ normal
O low O less
O air O damp
Options
damp alert
extended tumble
add steam
delicate heat
sanitize
chime J
' i_©o 6 6 _::::::
