Electrolux FM 4500 FR-A User manual

FM 4500 FR-A
User manual Grill/Deep fat fryer

2
Dear Customer
Thank you for choosing one of our high-quality products.
With this appliance you will experience the perfect combination of functional
design and cutting edge technology.
Convince yourself that our appliances are engineered to deliver the best per-
formance and control - indeed we are setting the highest standards of excel-
lence.
In addition to this you find environmental and energy saving aspects as an inte-
gral part of our products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfect-
ly and most efficiently.
To refer to this manual any time you need to, we recommend you to keep it in a
safe place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
Th
e
f
o
ll
ow
i
ng sym
b
o
l
s are use
d
i
n t
hi
s user
i
n
f
ormat
i
on:
1
Warning! This must be read! Important advice for the safety of persons and
information on avoiding damage to the appliance
3General information and advice
2Information on environmental protection
zDangerous voltage

3Contents
Contents
Operating Instructions 4
Safety instructions 4
Description of the Appliance 6
Grill/Deep fat fryer layout 6
Control panel layout 7
Touch Control sensor fields 7
Displays 8
Residual heat indicator 8
Preparation of the appliance 9
Using grilling 9
Using deep fat fryer 10
Operating the appliance 11
Switching the appliance on and off 11
Setting grill setting / temperature for the deep fat fryer 11
Using the child safety device 13
Using the timer 14
Automatic switch off 16
Tips on Cooking and Frying 17
Frying frozen food 17
Grill and deep fat fryer in combination 18
Cleaning and Care 19
Glass ceramic 19
Grill 20
Deep fat fryer 21
What to do if … 22
Disposal 23
Installation Instructions 24
Safety instructions 24
Assembly 26
Installing more than one Frontline hob 30
Rating Plate 34
Guarantee/Customer Service 35
Service 38

Operating Instructions4
Operating Instructions
1Safety instructions
Please comply with these instructions. If you do not, any damage resulting is not
covered by the warranty.
Correct use
•This appliance is not intended for use by children or other persons whose
physical, sensory or mental capabilities or lack of experience and knowledge
prevents them from using the appliance safely without supervision or instruc-
tion by a responsible person to ensure that they can use the appliance safely.
•Do not leave the appliance unattended during operation.
•This appliance should be used only for the normal domestic grilling and frying
of food.
•The appliance must not be used as a work surface or as a storage surface.
•Additions or modifications to the appliance are not permitted.
•Do not place or store flammable liquids, highly inflammable materials or fusi-
ble objects (e.g. plastic film, plastic, aluminium) on or near the appliance.
Children’s safety
•Small children must be kept away from the appliance.
•Only let bigger children work on the appliance under supervision.
General safety
•The appliance may only be installed and connected by trained, registered
service engineers.
•Built-in appliances may only be used after they have built in to suitable built-
in units and work surfaces that meet standards.
•In the event of faults with the appliance or damage to the glass ceramic
(cracks, scratches or splits), the appliance must be switched off and discon-
nected from the electrical supply, to prevent the possibility of an electric
shock.
•Repairs to the appliance must only be carried out by trained registered service
engineers.

5Safety instructions
Safety during use
•Remove stickers and film from the glass ceramic.
•There is the risk of burns from the appliance if used carelessly.
•Cables from electrical appliances must not touch the hot surface of the appli-
ance.
•Overheated fats and oils can ignite very quickly. Warning! Fire hazard!
•Smother fire using a cover, never use water to put out.
•In the case of fire, set all switches to zero and switch off any extractor.
•Switch off the appliance after each use.
Safety when cleaning
•For cleaning, the appliance must be switched off and cooled down.
•For safety reasons, the cleaning of the appliance with steam jet or high-pres-
sure cleaning equipment is not permitted.
How to avoid damage to the appliance
•The glass ceramic can be damaged by objects falling onto it.

Description of the Appliance6
Description of the Appliance
Grill/Deep fat fryer layout
Grill shelf Grill insert
with lava stones
Heating element
Drain filter Safety catch
for drain tap
Deep fat fryer plugFryer basket
Frontline strip
Control panel
Socket
Oil cavity

7Description of the Appliance
Control panel layout
Touch Control sensor fields
The appliance is operated using Touch Control sensor fields. Functions are con-
trolled by touching sensor fields and confirmed by displays and acoustic signals.
Touch the sensor fields from above, without covering other sensor fields.
Sensor field Function
On / Off To switch the appliance on and off
Increase settings To increase grill setting / temperature
Reduce settings To reduce grill setting / temperature
Timer Timer selection
Increase settings To increase Timer time
Reduce settings To reduce Timer time
Child lock Locking control panel for children
Child lock pilot
light
Temperature
indicator
Grill power indicator
Deep fat fryer
power indicator
Grill setting
indicator
Child lock
Temperature
setting
On/Off pilot light
Timer indicator
Timer selection Grill setting
selection
Deep fat fryer Timer Grill On/Off
Grill indicator
timer function
Deep fat fryer
indicator
timer function

Description of the Appliance8
Displays
Residual heat indicator
1Warning! Risk of burns from residual heat. After being switched off, the appli-
ance needs some time to cool down. Look at the residual heat indicator .
3When the grill is operated, the deep fat fryer heats up. The residual heat of
the deep fat fryer is displayed.

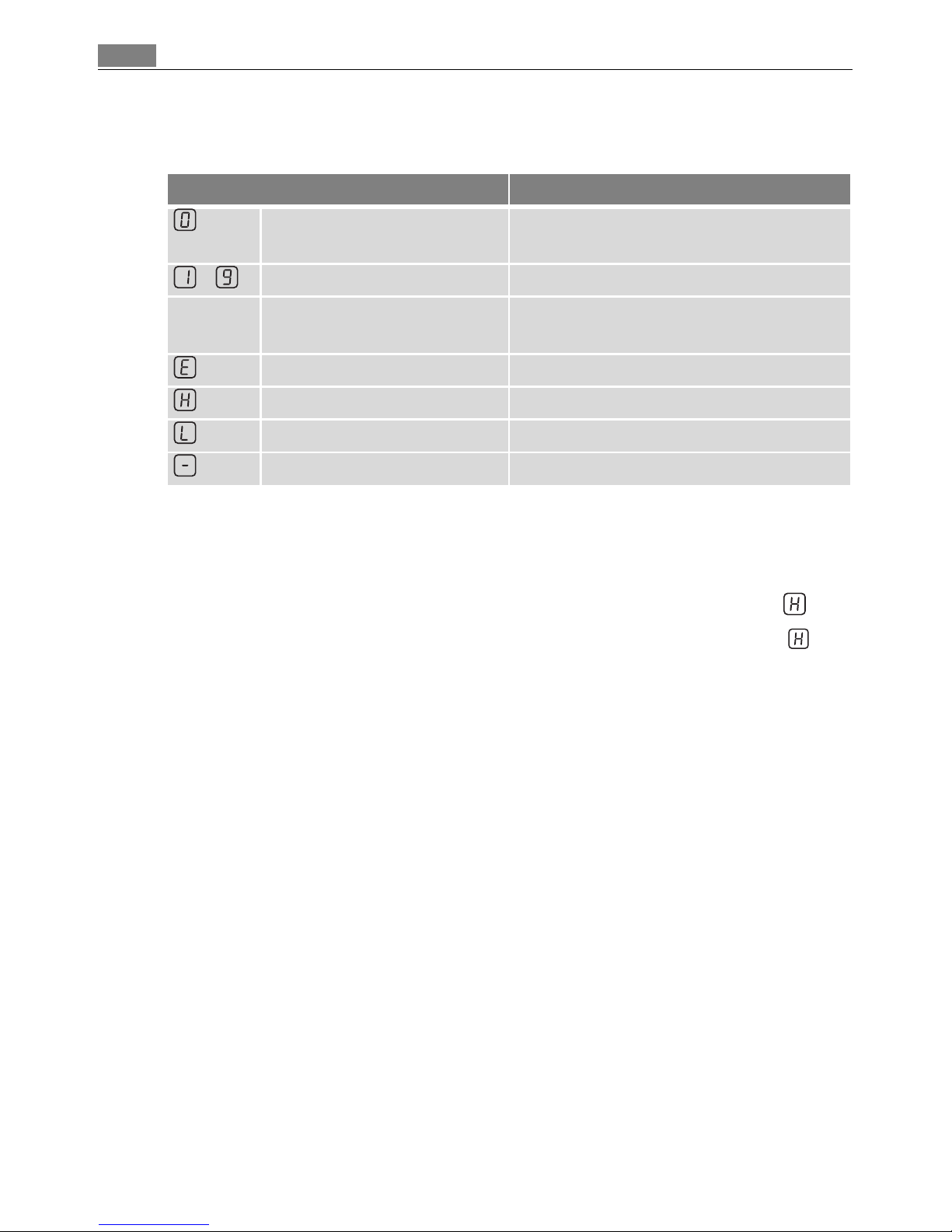

Display Description
No grill setting / temperature
set
- Grill settings Grill setting is set
120-
190
Temperature in °C Temperature for the deep fat fryer is
set.
Fault Malfunction has occurred
Residual heat Appliance is still hot
Child safety device Child safety device is engaged
Automatic switch off Switch off is active.

9Preparation of the appliance
Preparation of the appliance
Using grilling
1The grill may only be used with the grill insert inserted.
1. Insert grill insert with lava stones in the grill.
The lava stones absorb fat that comes out of the food when grilling.
2. Take hold of grill shelf firmly with both
hands and tilt it backwards until it is in the
fixture (A).
3. Lower grill shelf and insert the plug in the
socket (B).
3With very fatty foods the lava stones can
be replaced with water.
A sufficient amount of water is important.
zSocket has live parts and must be protected
from moisture.
Only fill up with water when deep fat fryer
plug is inserted in the socket.
AA
A
B

Preparation of the appliance10
Using deep fat fryer
1. Remove grill shelf and grill insert.
2. Close drain tap and replace safety catch.
3The deep fat fryer’s oil cavity must be filled
with oil between the marks MIN (1.5 litres)
and MAX (3 litres).
3. Insert deep fat fryer plug in the socket.
4. Fill deep fat fryer oil cavity with oil.
3Frying fat can also be used instead of oil.

11Operating the appliance
Operating the appliance
Switching the appliance on and off
Important: Socket has live parts.
Only operate appliance with dry socket.
3After switching on, within approx. 10 seconds a function must be set, otherwise
the appliance automatically switches itself off.
Setting grill setting / temperature for the deep fat fryer
3If a grill setting/temperature is selected, the indicator flashes until the grill set-
ting/temperature is reached. When the grill setting/temperature selected is
reached, an acoustic signal sounds.
3If the deep fat fryer plug or grill shelf is not inserted properly, the appliance does
not heat up.
3A temperature from 170°C to 180°C is suitable for deep fat frying.
Control panel Display Pilot light
Switch on Touch for 2 seconds / lights up
Switch off Touch for 1 second / none goes out
Control panel Grill setting
indicator
Temperature
indicator
To increase Touch to 120 to190
To decrease Touch to 190 to120
To switch off Touch and at
the same time
z

Operating the appliance12
Deep frying
1. Fill fryer basket with food to be fried outside of the deep fat fryer and shake.
Ice and small pieces of food to be fried can fall through the fryer basket into the
hot oil.
2. Wait until oil has reached the selected temperature.
Temperature indicator no longer flashes and acoustic signal sounds.
3. Fry food until it has taken on the appropriate colour.
4. After deep frying lift the fryer basket out of the oil.
5. Carefully shake fryer basket to remove excess oil.
6. Hang fryer basket on the hanger to allow further draining.
3When dealing with larger quantities of food to be fried, take the fryer basket out
of the oil after 1-2 minutes and heat the oil up again.
When the oil is heated up again, continue deep frying.
3If using frying fat, cut this into pieces and melt at 120°C.

13Operating the appliance
Using the child safety device
The child safety device prevents unintentional use of the appliance.
Activating the child safety device
Deactivating the child safety device
Overriding the child safety device
The child safety device can be released in this way for a single cooking session; it
remains activated afterwards.
Step Control panel Indicator/Signal
1. Switch on the appliance
(Do not set a heat setting)
2. Touch
Appliance switches off. The child safety device is activated.
Step Control panel Indicator/Signal
1. Switch on the appliance
2. Touch 0lights up
Appliance switches off. The child safety device is deactivated.
Step Control panel Display/Signal
1. Switch on the appliance
2. Touch and at the same time / acoustic signal
Until the appliance is next switched off, it can used as normal.

Operating the appliance14
Using the timer
After the time set has elapsed, an acoustic signal sounds and lights up in the
display.
Setting the time
Step Control panel Indicator
1. Touch Power indicator flashes
2. Touch or 0to 99 minutes
After a few seconds the power indicator flashes more slowly.
The time is set.
The time counts down.

15Operating the appliance
Switching off the timer function
Changing the time
Displaying the time remaining
Switching off the acoustic signal
Step Control panel Indicator
1. Touch Power indicator flashes more quickly.
Remaining time is displayed
2. Touch The remaining time counts down to 0.
The power indicator goes out.
The timer function is switched off.
Step Control panel Indicator
1. Touch Power indicator flashes more quickly.
Remaining time is displayed
2. Touch or 01 to 99 minutes
After a few seconds the power indicator flashes more slowly.
The time is set.
The time counts down.
Step Control panel field Indicator
1. Touch Power indicator flashes more quickly.
Remaining time is displayed
After a few seconds the power indicator flashes more slowly.
Step Control panel field Acoustic signal
1. Touch Acoustic signal to acknowledge.
Acoustic signal stops.

Operating the appliance16
Automatic switch off
•If one or more sensor fields are covered for longer than approx. 10 seconds,
e.g. by a pan cloth lying on it, a signal sounds and the appliance switches off
automatically.
•If the appliance is not switched off after 90minutes or the grill setting or tem-
perature is not altered, the appliance automatically switches itself off. is
displayed.
Control panel
3Moisture (e.g. a wet cloth) or liquid boiling over on the control panel immediate-
ly switches the appliance off.

17Tips on Cooking and Frying
Tips on Cooking and Frying
3Information on acrylamides
According to the latest scientific knowledge, intensive browning of food, espe-
cially in products containing starch, can constitute a health risk due to acryla-
mides. Therefore we recommend cooking at the lowest possible temperatures
and not browning foods too much.
Frying frozen food
Deep frozen foods for frying absorb a lot of oil and cook more slowly.
3Defrost frozen food to room temperature before drying.
3Observe the amount and temperature given in the following table or on the
packet.
Examples of deep fat frying
The information given in the following table is for guidance only.
Tempe-
rature Suitable for
fresh deep frozen
Quantity Duration Quantity Duration
160 °C Chips, homemade
(first frying) 600 g 4-5 mins. - -
170 °C
Chips, homemade
(second frying) 600 g 3-4 mins. - -
Chips, frozen - - 550 g 5-6 mins.
Vegetables
(broccoli, mushrooms) 12 pieces 2-3 mins. - -
180 °C
Prawns 10-12 piec-
es 1-2 mins. 12 pieces 2 mins.
Mussels 15-20 piec-
es 3-4 mins. 15 pieces 3-4 mins.
Small meatballs 8-10 pieces 2-3 mins. - -
190 °C Croquettes 5 pieces 4-5 mins. 4-5 6-7 mins.
Wiener Schnitzel 2 pieces 3-4 mins. - -

Tips on Cooking and Frying18
Grill and deep fat fryer in combination
Example: steak and chips
1. Fill deep fat fryer with oil and set temperature.
2. Fry chips until they are almost ready.
3. Switch deep fat fryer off.
4. Insert grill insert and grill shelf, set grill setting.
5. Grill steaks and keep warm on a plate.
6. Switch grill off.
7. Set temperature for the deep fat fryer.
8. Finish frying chips.
1Take care! Risk of burns from hot parts.
When changing between frying and grilling use an oven glove.

19Cleaning and Care
Cleaning and Care
1Take care! During cleaning the appliance must be switched off. Let the appli-
ance cool down until all parts can safely be touched.
1Important: Sharp objects and abrasive cleaning materials will damage the ap-
pliance. Clean with water and washing up liquid.
1Important: Residues from cleaning agents will damage the appliance. Remove
residues with water and washing up liquid.
Glass ceramic
zImportant: Socket has live parts.
Clean appliance with deep fat fryer plug inserted.
1. Wipe the appliance with a damp cloth and a little washing up liquid.
2. Rub the appliance dry using a clean cloth.
Removable Frontline strip
The aluminium Frontline strip fastens on by means of magnets. It is easy to re-
move by hand and can be cleaned with detergent. Please do not use any scour-
ing agents or sponges that scratch. Do not clean the strip in the dishwasher.

Cleaning and Care20
Grill
Grill shelf and grill insert
Clean grill shelf and grill insert after each use.
The heating element can be removed for the cleaning of the grill shelf.
1Important: The heating element's plug must not be immersed in water.

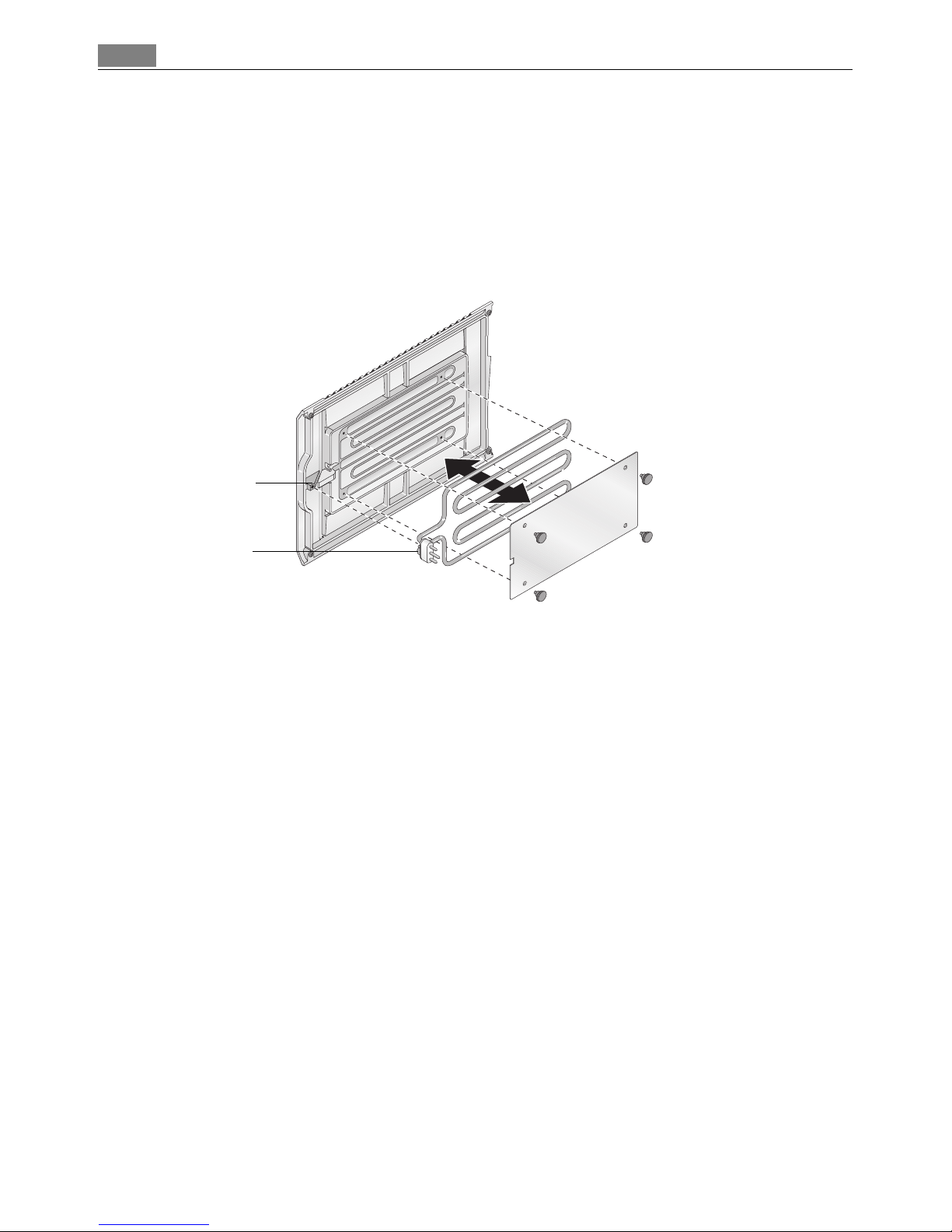

Removing heating element
1. Remove grill shelf from the appliance.
2. Undo screws on the bottom on the grill shelf
3. Remove plate.
4. Remove heating element.
Cleaning grill shelf and grill insert
Remove residues using a brush.
Soak off stubborn residues in hot washing up water.
3If grey discolorations appear, occasionally oil the grill shelf
Inserting heating element
1. Insert centring pin on the heating element in the grill shelf and reposition plate.
2. Replace screws and tighten.
3The grill temperature sensor is located in front of the socket. The sensor’s con-
tact surface to the grill shelf is always to be kept clean.
Lava stones
As soon as a lot of fat has collected on the lava stones, the lava stones must be
cleaned.
Clean lava stones in a basket that is dishwasher-safe or in hot washing up water.
Hole
Centring pin
