Electrolux EHH3920BOK User manual

EHH3920BOK
................................................ .............................................
EN HOB USER MANUAL

CONTENTS
1. SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3. PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4. DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5. HELPFUL HINTS AND TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
6. CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
7. TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
8. INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
9. TECHNICAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
10. ENVIRONMENT CONCERNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it
decades of professional experience and innovation. Ingenious and stylish, it has been designed
with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great
results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.electrolux.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
2www.electrolux.com

1. SAFETY INSTRUCTIONS
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes in-
juries and damages. Always keep the instructions with
the appliance for future reference.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they are supervised by an adult or a per-
son who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when
it operates or when it cools down. Accessible parts are
hot.
• If the appliance has a child safety device, we recom-
mend that you activate it.
• Cleaning and user maintenance shall not be made by
children without supervision.
1.2 General Safety
• The appliance and its accessible parts become hot
during use. Do not touch the heating elements.
• Do not operate the appliance by means of an external
timer or separate remote-control system.
• Unattended cooking on a hob with fat or oil can be
dangerous and may result in fire.
ENGLISH 3

• Never try to extinguish a fire with water, but switch off
the appliance and then cover flame e.g. with a lid or a
fire blanket.
• Do not store items on the cooking surfaces.
• Do not use a steam cleaner to clean the appliance.
• Metallic objects such as knives, forks, spoons and lids
should not be placed on the hob surface since they
can get hot.
• If the glass ceramic surface is cracked, switch off the
appliance to avoid the possibility of electric shock.
2. SAFETY INFORMATION
2.1 Installation
WARNING!
Only a qualified person must in-
stall this appliance.
• Remove all the packaging.
• Do not install or use a damaged appli-
ance.
• Obey the installation instruction sup-
plied with the appliance.
• Keep the minimum distance from the
other appliances and units.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Seal the cut surfaces with a sealant to
prevent moisture to cause swelling.
• Protect the bottom of the appliance
from steam and moisture.
• Do not install the appliance adjacent to
a door or under a window. This pre-
vents hot cookware to fall from the ap-
pliance when the door or the window is
opened.
• If the appliance is installed above draw-
ers make sure that the space, between
the bottom of the appliance and the up-
per drawer, is sufficient for air circula-
tion.
• Make sure that the ventilation space of
5 mm, between the worktop and the
front of the below unit, is free. The war-
ranty does not cover damages caused
by the lack of an adequate ventilation
space.
• The bottom of the appliance can get
hot. We recommend to install a non-
combustile separation panel under the
appliance to prevent access to the bot-
tom.
Electrical connection
WARNING!
Risk of fire and electrical shock.
• All electrical connections must be made
by a qualified electrician.
• The appliance must be earthed.
• Before carrying out any operation make
sure that the appliance is disconnected
from the power supply.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable
tangle.
• Make sure the mains cable or plug (if
applicable) does not touch the hot ap-
pliance or hot cookware, when you
connect the appliance to the near sock-
ets
• Make sure the appliance is installed
correctly. Loose and incorrect electricity
mains cable or plug (if applicable) can
make the terminal become too hot.
• Make sure that a shock protection is in-
stalled.
• Use the strain relief clamp on cable.
4www.electrolux.com

• Make sure not to cause damage to the
mains plug (if applicable) or to the
mains cable. Contact the Service or an
electrician to change a damaged mains
cable.
• The electrical installation must have an
isolation device which lets you discon-
nect the appliance from the mains at all
poles. The isolation device must have a
contact opening width of minimum 3
mm.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
2.2 Use
WARNING!
Risk of injury, burns or electric
shock.
• Use this appliance in a household envi-
ronment.
• Do not change the specification of this
appliance.
• Do not use an external timer or a sepa-
rate remote-control system to operate
the appliance.
• Do not let the appliance stay unatten-
ded during operation.
• Do not operate the appliance with wet
hands or when it has contact with wa-
ter.
• Do not put cutlery or saucepan lids on
the cooking zones. They can become
hot.
• Set the cooking zone to “off” after each
use. Do not rely on the pan detector.
• Do not use the appliance as a work
surface or as a storage surface.
• If the surface of the appliance is
cracked, disconnect immediately the
appliance from the power supply. This
to prevent an electrical shock.
• Users with a pacemaker must keep a
distance of minimum 30 cm from the
induction cooking zones when the ap-
pliance is in operation.
WARNING!
Risk of fire or explosion.
• Fats and oil when heated can release
flammable vapours. Keep flames or
heated objects away from fats and oils
when you cook with them.
• The vapours that very hot oil releases
can cause spontaneous combustion.
• Used oil, that can contain food rem-
nants, can cause fire at a lower temper-
ature than oil used for the first time.
• Do not put flammable products or items
that are wet with flammable products
in, near or on the appliance.
• Do not try to extinguish a fire with wa-
ter. Disconnect the appliance and cover
the flame with a lid or a fire blanket.
WARNING!
Risk of damage to the appliance.
• Do not keep hot cookware on the con-
trol panel.
• Do not let cookware to boil dry.
• Be careful not let objects or cookware
fall on the appliance. The surface can
be damaged.
• Do not activate the cooking zones with
empty cookware or without cookware.
• Do not put aluminium foil on the appli-
ance.
• Cookware made of cast iron, aluminium
or with a damaged bottom can cause
scratches on the glass ceramic. Always
lift these objects up when you have to
move them on the cooking surface.
2.3 Care and Cleaning
WARNING!
Risk of damage to the appliance.
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal ob-
jects.
2.4 Disposal
WARNING!
Risk of injury or suffocation.
ENGLISH 5

• Contact your municipal authority for in-
formation on how to discard the appli-
ance correctly.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
3. PRODUCT DESCRIPTION
3.1 Cooking surface layout
1
2
180 mm
140 mm
4
3
1Rear cooking zone 1800 W
2Front cooking zone 1400 W
3Power indicator
4Control knobs
3.2 Electric cooking zones
control knobs
Symbol Function
0off position
Symbol Function
1minimum heat
9maximum heat
4. DAILY USE
WARNING!
Refer to "Safety information"
chapter.
To switch on and increase the heat set-
ting turn the knob clockwise. To decrease
the heat setting turn the knob counter-
clockwise. To switch off turn the knob to
the 0.
When a cooking zone operates, it
hums for a short time. This is typi-
cal of all ceramic glass cooking
zones and does not show that the
appliance operates incorrectly.
Power indicator is activated when either
of the zones are turned on, and will stay
on until the cooking zones are switched
off. When you turn a cooking zone, a sin-
gle beep indicates that the appliance is
working properly.
4.1 Before, first use
Set the maximum position and operate
the appliance for 10 minutes. This is to
burn off the residue in the appliance. After
that, operate the appliance at minimum
position for 20 minutes. During this peri-
od, an odour and smoke can occur. This
is normal. Make sure that the airflow is
sufficient.
4.2 Automatic switch off
The hob deactivates automatically if:
• All cooking zones are deactivated.
• You use incorrect cookware.
• You do not deactivate a cooking zone
or change the heat setting.
Before you use the hob again, the control
knob must be set to the off position.
6www.electrolux.com

Heat set-
ting
Automatic switch off
timer
1 - 2 6 hours
3 - 4 5 hours
Heat set-
ting
Automatic switch off
timer
54 hours
6 - 9 1.5 hours
5. HELPFUL HINTS AND TIPS
WARNING!
Refer to "Safety information"
chapter.
INDUCTION COOKING ZONES
For induction cooking zones a strong
electro-magnetic field creates the heat in
the cookware very quickly.
5.1 Cookware for induction
cooking zones
Use the induction cooking zones
with correct cookware.
Cookware material
•correct: cast iron, steel, enamelled
steel, stainless steel, the bottom made
of multi-layer (with correct mark from a
manufacturer).
•not correct: aluminium, copper, brass,
glass, ceramic, porcelain.
Cookware is correct for an induction
hob if …
• ... some water boils very quickly on a
zone set to the highest heat setting.
• ... a magnet pulls on to the bottom of
the cookware.
The bottom of the cookware
must be as thick and flat as possi-
ble.
Cookware dimensions: induction cook-
ing zones adapt to the dimension of the
bottom of the cookware automatically to
some limit.
Cookware dimensions: induction cooking
zones adapt to the dimension of the bot-
tom of the cookware automatically to
some limit. But the minimum diameter of
the magnetic part of the bottom of the
cookware is in relation to the diameter of
the cooking zone:
Cooking
zone
Minimum diameter
of cookware
Front 120 mm
Rear 145 mm
5.2 The noises during operation
If you can hear
• crack noise: cookware is made of dif-
ferent materials (Sandwich construc-
tion).
• whistle sound: you use one or more
cooking zones with high power levels
and the cookware is made of different
materials (Sandwich construction).
• humming: you use high power levels.
• clicking: electric switching occurs.
• hissing, buzzing: the fan operates.
The noises are normal and do not re-
fer to appliance malfunction.
5.3 Energy saving
• If it is possible, always put the
lids on the cookware.
• Put cookware on a cooking
zone before you start it.
• Stop the cooking zones before
the end of the cooking time to
use residual heat.
• The bottom of pans and cook-
ing zones must have the same
dimension.
5.4 The Examples of cooking
applications
The data in the table is for guidance only.
ENGLISH 7

Heat
set-
ting
Use to: Time Hints
1Keep warm the food you cooked as re-
quired
Put a lid on a cookware
1-2 Hollandaise sauce, melt: butter,
chocolate, gelatine
5-25
min
Mix from time to time
1-2 Solidify: fluffy omelettes, baked
eggs
10-40
min
Cook with a lid on
2-3 Simmer rice and milkbased
dishes, heating up ready-cooked
meals
25-50
min
Add the minimum twice as
much liquid as rice, mix milk
dishes part procedure
through
3-4 Steam vegetables, fish, meat 20-45
min
Add some tablespoons of liq-
uid
4-5 Steam potatoes 20-60
min
Use max. ¼ l water for 750 g
of potatoes
4-5 Cook larger quantities of food,
stews and soups
60-150
min
Up to 3 l liquid plus ingredi-
ents
6-7 Gentle fry: escalope, veal cordon
bleu, cutlets, rissoles, sausages,
liver, roux, eggs, pancakes,
doughnuts
as
neces-
sary
Turn halfway through
7-8 Heavy fry, hash browns, loin
steaks, steaks
5-15
min
Turn halfway through
9Boil large quantities of water, cook pasta, sear meat (goulash, pot roast),
deep-fry chips
Information on acrylamides
Important! According to the newest
scientific knowledge, if you brown food
(specially the one which contains starch),
acrylamides can pose a health risk. Thus,
we recommend that you cook at the
lowest temperatures and do not brown
food too much.
6. CARE AND CLEANING
WARNING!
Refer to "Safety information"
chapter.
Clean the appliance after each use.
Always use cookware with clean bottom.
WARNING!
Before any maintenance or clean-
ing can be carried out, you must
disconnect the hob from the elec-
tricity supply.
The hob is best cleaned while it is
still warm, as spillage can be re-
moved more easily than if it is left
to cool.
WARNING!
The sharp objects and abrasive
cleaning agents can cause dam-
age to the appliance.
For your safety, do not clean the
appliance with steam cleaners or
high-pressure cleaners.
8www.electrolux.com

The stainless steel can become dirty if the
temperature is too high. Because of this
do not cook with the stone pots, earthen-
ware pans or cast iron plates. Do not use
the aluminium foil to prevent damage to
the top during operation.
The Stainless steel parts wash with water,
and then dry with a soft cloth.
Scratches or dark stains on the
glass-ceramic cause no effect on
how the appliance operates.
To remove the dirt:
1. –Remove immediately: melted
plastic, plastic foil, and food with
sugar. If not, the dirt can cause
damage to the appliance. Use a
special scraper for the glass . Put
the scraper on the glass surface at
an acute angle and move the blade
on the surface .
–Remove after the appliance is
sufficiently cool: limescale rings ,
water rings, fat stains, shiny metal-
lic discolorations. Use a special
cleaning agent for glass ceramic or
stainless steel.
2. Clean the appliance with a moist cloth
and some detergent.
3. At the end rub the appliance dry
with a clean cloth.
7. TROUBLESHOOTING
Problem Possible cause and remedy
The appliance does not
operate.
• Examine the fuse in the electrical system of the
house in the fuse box. If the fuses blow time after
time, speak to an authorised electrician.
The cooking zone does
not heat up.
• Make sure that the appliance is plugged in and the
electrical supply is switched on.
• Make sure that you turn the correct control knob.
• Examine the fuse in the electrical system of the
house in the fuse box. If the fuses blow time after
time, speak to an authorised electrician.
Acoustic warning (double
acoustic signal) sounds.
• The pot is not suitable. Use suitable cookware.
• No cookware on the cooking zone. Place cook-
ware on the cooking zone.
• The diameter of the bottom of the cookware is too
small for the cooking zone Move onto a smaller
cooking zone. Use suitable cookware.
The effectiveness of the
hob is not satisfactory.
• Make sure that the hob is clean and dry.
• Make sure that the cookware is the correct size for
the cooking zone.
• Make sure that the cookware has a flat bottom.
• Make sure that the heat setting is correct for this
type of cooking.
If there is a fault, first try to find a solution
to the problem yourself. If you cannot find
a solution to the problem yourself, speak
your dealer or the local Service Force
Centre.
If you operated the appliance in-
correctly, or the installation was
not carried out by a registered en-
gineer, the visit from the customer
service technician or dealer may
not take place free of charge,
even during the warranty period.
ENGLISH 9

These data are necessary to help you
quickly and correctly. These data are
available on the supplied rating plate.
• Model description .................
• Product number (PNC) .................
• Serial Number (S.N.) .................
Use the original spare parts only. They are
available at Service Force Centre and ap-
proved spare parts shops.

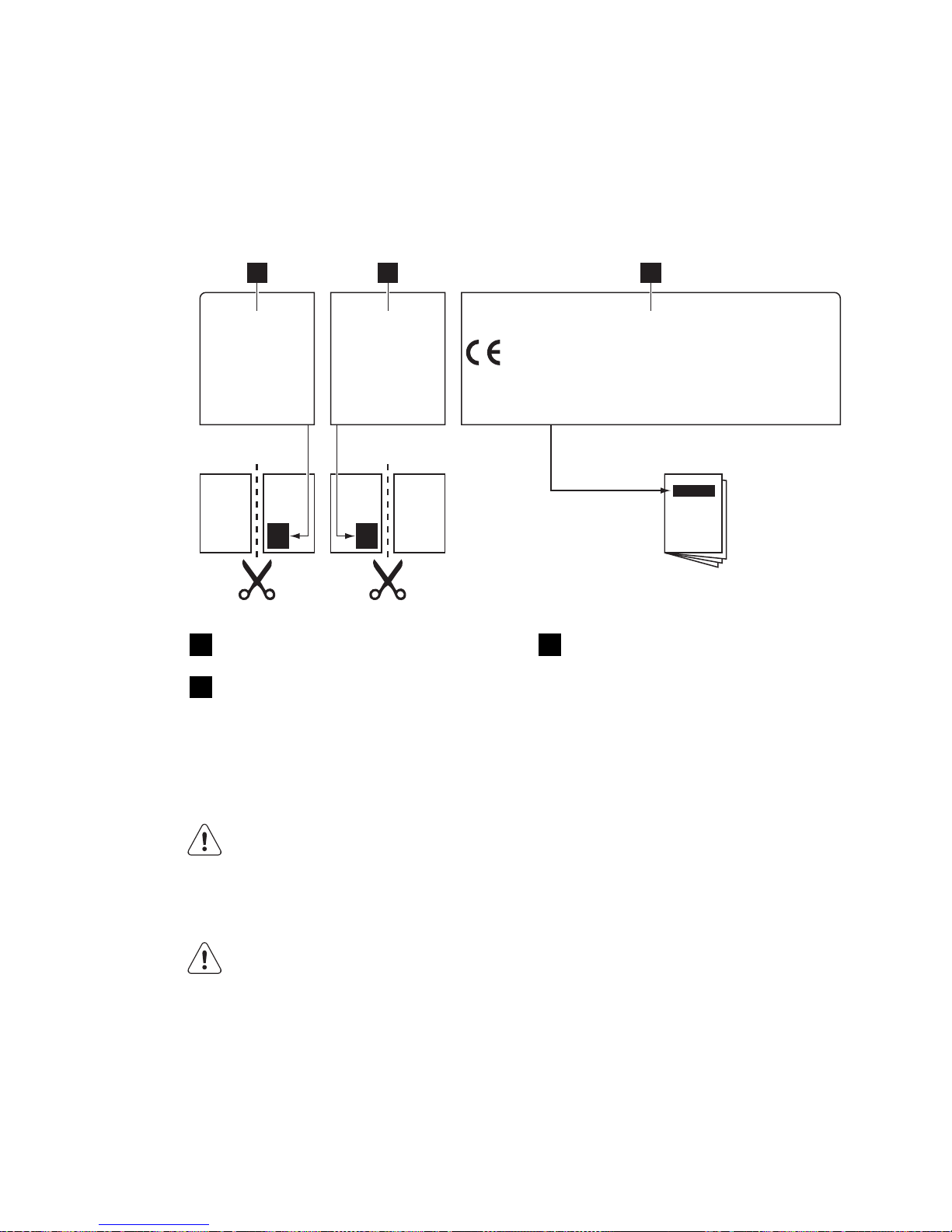

7.1 Labels supplied with the
accessories bag
Stick the adhesive labels as indicated be-
low:
MOD.
PROD.NO.
SER.NO
DATA
MOD.
PROD.NO.
SER.NO
DATA
MODELMODEL
MOD.
PROD.NO.
SER.NO.
03 IT
MADE IN ITALY
TYPE
230V-50Hz
IP20
0049
1 2 3
1Stick it on Guarantee Card and send
this part
2Stick it on Guarantee Card and keep
this part
3Stick it on instruction booklet
8. INSTALLATION
WARNING!
Refer to "Safety information"
chapter.
8.1 Installation
WARNING!
Read and follow the instructions
carefully. There is a risk of injury or
damage to the appliance.
• Make sure that the appliance is not
damaged because of transportation.
Do not connect a damaged appliance.
If it is necessary, speak to the supplier.
•Installation and connection of the
appliance to the power supply must
only be done by qualified personnel.
• Only use built-in appliances after you
assemble the appliance into correct
built-in units and work surfaces that
obey the standards.
• Do not change the specifications or
modify this product. There is a risk of
injury or damage to the appliance.
• Fully obey the laws, ordinances, direc-
tives and standards in force in the
country where you use the appliance
(safety regulations, recycling regula-
tions, electrical safety rules etc.).
• Keep the minimum distances to other
appliances and units.
• Install anti-shock protection, for exam-
ple install the drawers only with a pro-
tective panel directly below the appli-
ance.
10 www.electrolux.com

• If the fixing bracket is near to the termi-
nal block, always make sure the con-
nection cable does not come in contact
with the edge of the bracket.
• Prevent damage of the cut surfaces of
the worktop against moisture with a
correct sealant!
• Seal the appliance to the worktop with
no space left with a correct sealant.
• Prevent damage of the bottom of the
appliance from steam and moisture,
e.g. from a dishwasher or oven.
• Do not install the appliance adjacent to
doors and below windows. Hot cook-
ware can be hit off the hob when you
open doors or windows.
•Disconnect the appliance from the
electrical supply, before you do
maintenance work or cleaning.
WARNING!
Risk of injury from electrical cur-
rent. Carefully obey the instruc-
tions for electrical connections.
• The electrical mains terminal is live.
• Make the electrical mains terminal free
of voltage.
• Install correctly to give anti-shock pro-
tection.
• Loose and incorrect mains plug and
socket connections can make the ter-
minal become too hot.
• A qualified electrician must install the
clamping connections correctly.
• Use a strain relief clamp on cable.
• Use the correct mains connection cable
and replace the damaged mains cable
with the proper cable type. Speak to
your local Service Centre.
The appliance must have the electrical in-
stallation which lets you disconnect the
appliance from the mains at all poles with
a contact opening width of minimum 3
mm. You must have correct isolation devi-
ces: line protecting cut-outs, fuses (screw
type fuses removed from the holder),
ground leakage trips and contactors.
The manufacturer is not responsible
for any injury to persons and pets or
damage to property caused by failure
to obey these requirements.
8.2 Electrical connection
• Ground the appliance according to
safety precautions.
• Make sure that the rated voltage and
type of power on the rating plate agree
with the voltage and the power of the
local power supply.
• This appliance is supplied with a mains
cable. It has to be supplied with a cor-
rect plug, able to support the load
marked on the rating plate. The plug
has to be fitted in a correct socket.
• Any electrical component must be in-
stalled or replaced by the Service Force
Centre technician or qualified service
personnel.
• Always use a correctly installed shock-
proof socket.
• Make sure that there is an access to
the mains plug after installation.
• Do not pull the mains cable to discon-
nect the appliance. Always pull the
mains plug.
• The appliance must not be connected
with an extension cable, an adapter or
a multiple connection (risk of fire).
Check that the ground connection is in
conformity with the standard and regu-
lations force.
• The power cable must be placed in
such a way that it does not touch any
hot part.
• Connect the appliance to the mains
with a device that lets to disconnect the
appliance from the mains at all poles
with a contact opening width of mini-
mum 3 mm, eg. automatic line protect-
ing cut-out, earth leakage trips or fuse.
• None of a parts of the connection cable
can not get a temperature 90 °C. The
blue neutral cable must be connected
to the terminal block label with "N". The
brown (or black) phase cable (fitted in
the terminal block contact marked with
"L") must always be connected to the
live phase.
8.3 Replacement of the
connection cable
To replace the connection cable use only
H05V2V2-F T90 or equivalent type. Make
sure that the cable section is applicable to
the voltage and the working temperature.
ENGLISH 11

The yellow/green earth wire must be ap-
proximately 2 cm longer than the brown
(or black) phase wire.
8.4 Building in
40-50 mm
55 mm
30 mm
min. 650 mm 490 mm
270 mm
If several 30 cm hobs are to be installed
side by side into the same cut out, an as-
sembly kit including a support side brack-
et and supplementary seals is available at
our Service Centres. The relevant installa-
tion instructions are supplied within the kit
package.
490+1mm270+1mm
R 5mm
55mm
8.5 Possibilities for insertion
Kitchen unit with door
The panel installed below the hob must
be easy to remove and let an easy access
in case a technical assistance intervention
is necessary.
min 20 mm
(max 150 mm)
30 mm
60 mm
B
A
A) Removable panel
B) Space for connections
Kitchen unit with oven
The hob recess dimensions must obey
the indication and the kitchen unit must
be equipped with vents to let a continu-
ous supply of air. The electrical connec-
tion of the hob and the oven must be in-
stalled separately for safety reasons and
to let easy remove oven from the unit.
50 cm2
360 cm2180 cm2
120 cm2
12 www.electrolux.com

9. TECHNICAL INFORMATION
Hob dimensions
Width: 290 mm
Length: 520 mm
Hob recess dimensions
Width: 270 (0/+1) mm
Length: 490 (0/+1) mm
Hot plate rating
Rear cooking
zone 180 mm
1.8 kW
Front cooking
zone 140 mm
1.4 kW
Total rating 3.2 kW
Electric supply 230 V ~ 50 Hz
10. ENVIRONMENT CONCERNS
Recycle the materials with the symbol
. Put the packaging in applicable
containers to recycle it.
Help protect the environment and human
health and to recycle waste of electrical
and electronic appliances. Do not dispose
appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
ENGLISH 13

14 www.electrolux.com

ENGLISH 15

www.electrolux.com/shop
892953005-B-252012
