Electrolux COMPETENCE E1100-4 Operation manual

COMPETENCE E1100-4
Built-In Electric Oven
User information

2
Dear customer,
Please read this User Information carefully and keep it to refer to at a
later date.
Pass this User Information on to any subsequent owner of the appli-
ance.
The following symbols are used in the text:
1Safety instructions
Warning: Notes that concern your personal safety.
Attention: Notes that show how to avoid damage to the appliance.
3Useful tips and hints
2Environmental information

3
Contents
Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Description of the Appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
General Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Oven Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Oven accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Before Using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Setting and changing the time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Initial Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Using the Rings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Setting the heat setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Using the Oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Switching the Oven On and Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Oven Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Inserting the Oven Shelf and the Baking Tray . . . . . . . . . . . . . . . . . . . . . . . . 16
Clock Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Switching Off the Time Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Uses, Tables and Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Cooking table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Baking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Baking table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Roasting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Roasting table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Grill Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Grilling table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Making Preserves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

4
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Outside of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Oven interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Shelf Support Rails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Oven Lighting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Oven Ceiling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Oven door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Oven door glass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Safety information for the installer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Guarantee Conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Customer Service Centres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

5
Operating Instructions
1Safety instructions
5This appliance conforms with the following EU Directives:
–73/23/EEC dated 19.02.1973 Low Voltage Directive
–89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending
Directive 92/31/EEC
–93/68/EEC dated 22.07.1993 CE Marking Directive
Electrical safety
•This appliance must be only connected by a registered electrician.
•In the event of a fault or damage to the appliance: Take the fuses out
or switch off.
•Repairs to the appliance must only be carried out by qualified serv-
ice engineers. Considerable danger may result from improper repairs.
If repairs become necessary, please contact our Customer Services or
your dealer.
Child Safety
•Never leave children unsupervised when the appliance is in use.
Safety whilst Using
•This appliance is intended to be used for cooking, roasting and baking
food in the home.
•Take care when connecting electric appliances to sockets nearby. Do
not allow connecting leads to come into contact with or to catch be-
neath the hot oven door.
•Warning: Risk of burns! The interior of the oven becomes hot dur-
ing use.
•Using ingredients containing alcohol in the oven may create an alco-
hol-air mixture that is easily ignited. In this case, open the door care-
fully. Do not have embers, sparks or naked flames in the vicinity when
opening the door.
3Information on acrylamides
According to the latest scientific knowledge, intensive browning of
food, especially in products containing starch, can constitute a health
risk due to acrylamides. Therefore we recommend cooking at the lowest
possible temperatures and not browning foods too much.

6
How to avoid damage to the appliance
•Do not line the oven with aluminium foil and do not place baking
trays, pots, etc. on the oven floor, as the heat that builds up will dam-
age the oven enamel.
•Fruit juices dripping from the baking tray will leave stains, which you
will not be able to remove. For very moist cakes, use a deep tray.
•Do not put any strain on the oven door when open.
•Never pour water directly into the oven when it is hot. This could
cause damage to or discoloration of the enamel.
•Rough handling, especially around the edges of the front panel, can
cause the glass to break.
•Do not store any flammable materials inside the oven. These could ig-
nite when the oven is switched on.
•Do not store any moist foods inside the oven. This could damage the
oven enamel.
3Note on enamel coating
Changes in the colour of the oven’s enamel coating as a result of use do
not affect the appliance’s suitability for normal and correct use. They
therefore do not constitute a defect in the sense of the warranty law.

7
Disposal
2Packaging material
The packaging materials are environmentally friendly and can be recy-
cled. The plastic components are identified by markings, e.g. >PE<,
>PS<, etc. Please dispose of the packaging materials in the appropriate
container at the community waste disposal facilities.
2Old appliance
The symbol Won the product or on its packaging indicates that this
product may not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of elec-
trical and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed infor-
mation about recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you
purchased the product.
1Warning: So that the old appliance can no longer cause any danger,
make it unusable before disposing of it.
To do this, disconnect the appliance from the mains supply and re-
move the mains cable from the appliance.

8
Description of the Appliance
General Overview
Control Panel
Full glass
door
Control panel
Door
handle

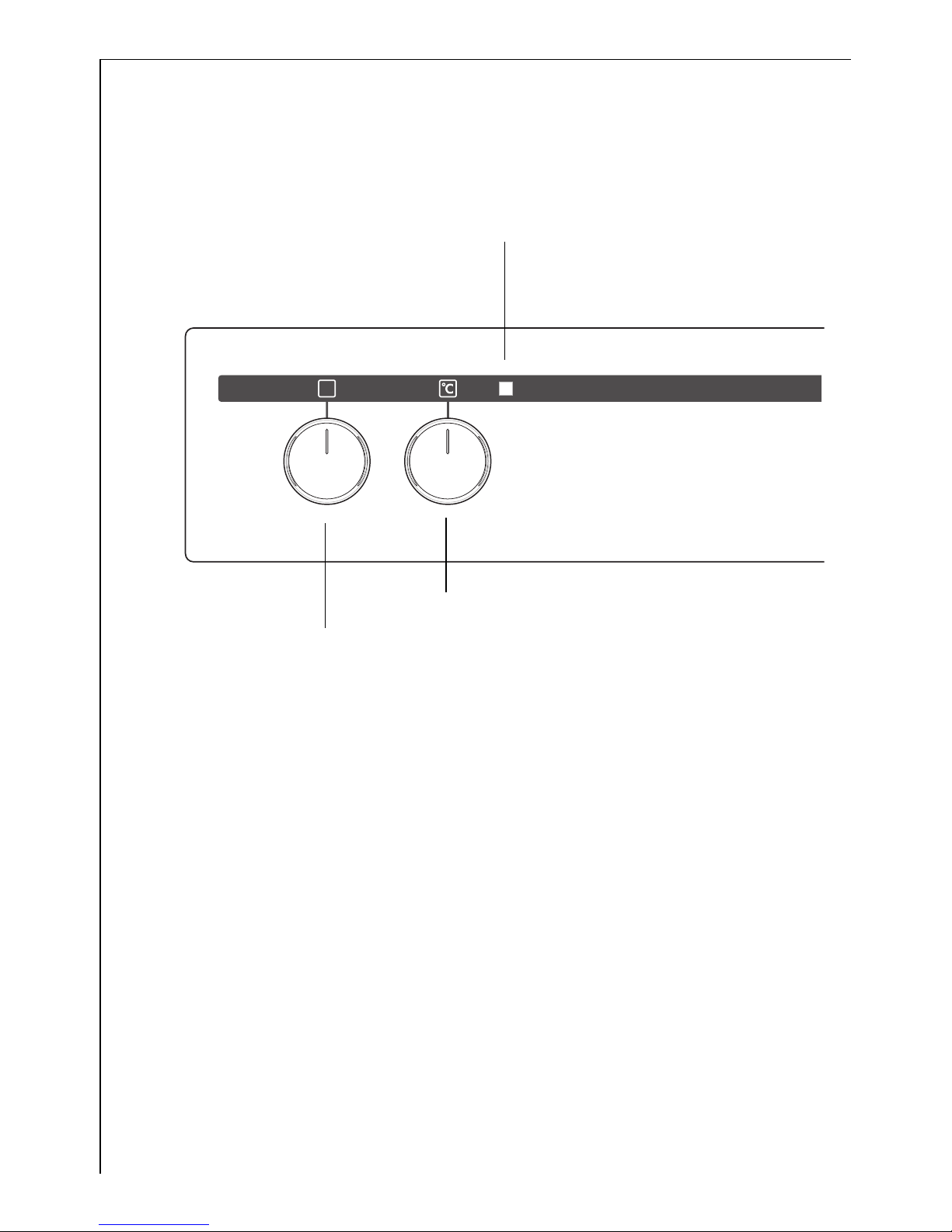

Temperature Pilot Light
Oven Functions
Temperature selector
Hob Cooking Zone Control Knobs
Clock function buttons
Time display

9
Oven Features
Oven steam vent
The steam from the oven is fed di-
rectly upwards via the duct in the
rear of the cooking surface.
Oven accessories
Oven shelf
For cookware, cake tins, roasts and
grilled foods.
Baking tray
For cakes and biscuits.
Top heat and heating elements
Oven lighting
Bottom Heat
Shelf positions
Oven shelf runners,
removable

10
Before Using for the first time
Setting and changing the time
3The oven only operates when the time has been set.
When the appliance has been con-
nected to the electrical supply or
when there has been a power cut,
the function indicator Time
flashes automatically.
1. To change a time that has already
been set, press the Selection but-
ton repeatedly until the function
indicator Time flashes.
2. Using the or button, set the
current time.
After approx. 5 seconds, the flash-
ing stops and the clock displays the
time set.
The appliance is now ready to use.
3The time can only be changed if no
automatic function (Cook time
or End time ) has been set.

11
Initial Cleaning
Before using the oven for the first time you should clean it thoroughly.
1Caution: Do not use any caustic, abrasive cleaners! The surface could
be damaged.
3To clean metal fronts use commercially available cleaning agents.
1. Turn the oven function switch to oven lighting .
2. Remove all accessories and the shelf support rails and wash them with
warm water and washing up liquid.
3. Then wash out the oven with warm water and washing-up liquid, and
dry.
4. Wipe the front of the appliance with a damp cloth.

12
Using the Rings
3Also refer to the operating instructions for your built-in hob. It con-
tains important information on ovenware, operation, cleaning and care.
Heat settings
•You may select the heat settings within the range of settings 1-9.
•Intermediate positions may be selected between settings 2 and 7.
1 = lowest heat setting
9 = highest heat setting
2Switch the cooking zone off approx. 5-10 minutes before cooking is
finished to make use of the residual heat. This saves electricity.
Hob Cooking Zone Control Knobs
front left rear left rear right front right

13
Setting the heat setting
1. Select the heat setting.
2. To end the cooking process, turn back
to the Off position.

14
Using the Oven
Switching the Oven On and Off
1. Turn the oven functions dial to the desired function.
2. Turn the temperature selector to the desired temperature.
The temperature pilot light is lit as long as the oven is heating up.
3. To turn the oven off, turn the oven functions dial and the temperature
selector to the OFF position.
3Cooling fan
The fan switches on automatically in order to keep the appliance’s sur-
faces cool. When the oven is switched off, the fan continues to run to
cool the appliance down, then switches itself off automatically.
Temperature Pilot Light
Oven Functions
Temperature selector

15
Oven Functions
The oven has the following functions:
Oven function Application Heating element/
fan
Light Using this function you can light
up the oven interior, e.g. for
cleaning.
---
Conventional For baking and roasting on one
oven level.
Top heat,
bottomheat
Top heat For browning bread, cakes and
pastries and for bakes.
Top heat
Bottom heat For baking cakes with crispy or
crusty bases.
Bottom heat
Grill For grilling flat foodstuffs placed
in the middle of the grill and for
toasting.
Grill
Dual gril For grilling flat foodstuffs in
large quantities and for toasting.
Grill, top heat

16
Inserting the Oven Shelf and the Baking Tray
3Shelf runner safety and anti-tip device
As a shelf runner safety device, all insertable components have a small
curved indentation at the bottom on the right and left-hand edge.
Always insert insertable components so that this indentation is at the
back of the oven interior. This indentation is also important for pre-
venting the insertable components from tipping.
Inserting the baking tray
Push the baking tray between the
guide bars of the selected oven lev-
el.
Inserting the oven shelf:
Insert the oven shelf so that the
feet point downwards.
Push the oven shelf between the
guide bars of the selected oven lev-
el.
3The high rim around the oven shelf
is an additional device to prevent
cookware from slipping.
Inserting the oven shelf and the
baking tray together:
Lay the oven shelf on the baking
tray.
Push the baking tray between the
guide bars of the selected oven lev-
el.

17
Clock Functions
Countdown
To set a countdown. A signal sounds after the time has elapsed.
This function does not affect the functioning of the oven.
Cook time
To set how long the oven is to be in use.
End time
To set when the oven is to switch off again.
Time
To set, change or check the time
(See also section “Before Using for the First Time”).
Selector Button Button
Button
Time display Function IndicatorsFunction Indicators

18
3How to use the clock functions
•After a function has been selected, the corresponding function indi-
cator flashes for about 5 seconds. During this period, the desired
times can be set using the or button.
•When the desired time has been set, the function indicator continues
to flash for approx. 5 seconds. After that the function indicator is
then lit. The set time begins to run.
•Press any of the buttons to stop the audible signal.
•The desired oven function and temperature can be selected before or
after the clock functions Cook time and End time are set.
•When the cooking process is completed, turn the oven function dial
and the temperature selector back to the OFF position.
2Switching Off the Time Display
By switching off the time display you can save energy.
Switching off the time display
Press and hold down any two buttons until the display becomes dark.
Switching on the time display
Hold down any button until the time reappears in the display.
3The display can only be switched off if none of the clock functions
Cook time , End time or Countdown is in use.

19
Countdown
1. Press the Selection button re-
peatedly until the function indica-
tor Countdown flashes.
2. Using the or button set the
desired Countdown (max. 2 hours
30 minutes).
After approx. 5 seconds the display
shows the time remaining.
The function indicator
Countdown lights up.
When the time has elapsed, the
function indicator flashes and an
audible signal sounds for 2 minutes.
The signal can be stopped by press-
ing any button.

20
Cook time
1. Press the Selection button re-
peatedly until the function indica-
tor Cook time flashes.
2. Using the or button set the
desired cooking time.
After approx. 5 seconds the display
returns to showing the current time.
The function indicator Cook time
lights up.
When the time has elapsed, the
function indicator flashes, an audi-
ble signal sounds for 2 minutes and
the oven switches itself off.
3. The signal and the programme can
be stopped by pressing any button.
