Dear Customer
Thank you for choosing one of our highquality products.
With this appliance you will experience the perfect combination of functional
design and cutting edge technology.
Convince yourself that our appliances are engineered to deliver the best per
formance and control  indeed we are setting the highest standards of excel
lence.
In addition to this you find environmental and energy saving aspects as an inte
gral part of our products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfect
ly and most efficiently.
To refer to this manual any time you need to, we recommend you to keep it in a
safe place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
The following symbols are used in this user manual:
1
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
3General information and tips
2Environmental information

3Contents
Contents
Operating Instructions 5
Safety instructions 5
Description of the Appliance 7
General Overview 7
The electronic oven controls 8
Indicators 8
Buttons 9
Oven Features 10
Oven accessories 11
Before Using for the first time 12
Setting the language 12
Setting the clock 13
Initial cleaning 13
Using the Rings 14
Setting the heat setting 15
Cooking with the automatic warm up function 15
Safety cutout function for the rings 16
Using the Oven 17
Menu operation in overview 17
The Oven Functions menu 18
The Options menu 19
Use of the oven functions 20
Switching the Oven On and Off 22
Inserting the Combination Shelf, Baking Tray and Roasting Pan 25
Inserting/Removing the Grease Filter 26
Nonstick accessories 26
Meat Probe 27
Setting meat probe core temperature 28
Automatic programmes 30
Meat programmes with weight input 30
Meat programmes with meat probe 31
Options 32
RECIPE MENU in overview 32
MEMORY MENU 36
SETTINGS MENU 38
Clock Functions 39

Contents4
CHILD LOCK for the oven 44
BUTTON LOCK 45
Oven safety cutout 45
Mechanical Door Lock 46
Cleaning and Care 47
Outside of the appliance 47
Oven interior 47
Accessories 47
Fat Filter 48
Nonstick accessories 48
Cleaning function for oven cleaner spray 49
Performing Pyroluxe cleaning 50
Oven Shelf Runner 52
Cleaning the Oven Shelf Runner 53
Oven Lighting 53
Oven door 54
Oven door glass 56
What to do if … 59
Disposal 60
Installation Instructions 61
Safety information for the installer 61
Guarantee/Customer Service 66
Index 69
Service 71
Additional functions 44

5Operating Instructions
Operating Instructions
1Safety instructions
5This appliance conforms with the following EU Directives:
–73/23/EEC dated 19.02.1973 Low Voltage Directive
–89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Directive
92/31/EEC
–93/68/EEC dated 22.07.1993 CE Marking Directive
Electrical safety
•This appliance must be only connected by a registered electrician.
•In the event of a fault or damage to the appliance: Take the fuses out or
switch off.
•Repairs to the appliance must only be carried out by qualified service engi
neers. Considerable danger may result from improper repairs. If repairs be
come necessary, please contact our Customer Services or your dealer.
Child Safety
•Never leave children unsupervised when the appliance is in use.
•The appliance is fitted with a child safety device.
Safety whilst Using
•This appliance is intended to be used for cooking, roasting and baking food in
the home.
•Take care when connecting electric appliances to sockets nearby. Do not allow
connecting leads to come into contact with or to catch beneath the hot oven
door.
•Warning: Risk of burns! The interior of the oven becomes hot during use.
•Using ingredients containing alcohol in the oven may create an alcoholair
mixture that is easily ignited. In this case, open the door carefully. Do not have
embers, sparks or naked flames in the vicinity when opening the door.
3Information on acrylamides
According to the latest scientific knowledge, intensive browning of food, espe
cially in products containing starch, can constitute a health risk due to acryla
mides. Therefore we recommend cooking at the lowest possible temperatures
and not browning foods too much.

Safety instructions6
How to avoid damage to the appliance
•Do not line the oven with aluminium foil and do not place baking trays, pots,
etc. on the oven floor, as the heat that builds up will damage the oven enamel.
•Fruit juices dripping from the baking tray will leave stains, which you will not
be able to remove. For very moist cakes, use a deep tray.
•Do not put any strain on the oven door when open.
•Never pour water directly into the oven when it is hot. This could cause dam
age to or discoloration of the enamel.
•Rough handling, especially around the edges of the front panel, can cause the
glass to break.
•Do not store any flammable materials inside the oven. These could ignite
when the oven is switched on.
•Do not store any moist foods inside the oven. This could damage the oven
enamel.
•After switching off the cooling fan, do not keep uncovered dishes in the oven.
Moisture may condense in the oven interior or on the glass doors and may get
into the units.
3Note on enamel coating
Changes in the colour of the oven’s enamel coating as a result of use do not af
fect the appliance’s suitability for normal and correct use. They therefore do not
constitute a defect in the sense of the warranty law.

7Description of the Appliance
Description of the Appliance
General Overview
Full glass door
Oven displays
and buttons
Door
handle
Hob Cooking Zone Control Knobs Hob Cooking Zone Control Knobs

Description of the Appliance8
The electronic oven controls
Indicators
Menu status bar
In the menu status bar the current position within a menu is shown by a flash
ing bar.
When the menu status bar can no longer be seen in the display, the oven begins
to heat or the time set begins to count down.
Symbol status bar
Symbol Function
Door lock Door is locked, PYROLUXE in operation.
RAPID HEAT UP RAPID HEAT UP is in operation.
MEATPROBE MEATPROBE is plugged in.
PROFI HOT AIR
150ûc 12.05 00.06
___________________
Symbol status bar Menu status bar Text line
Temperature Time
Meat core temperature
Clock functions
Period of operation
Heat indicator Shelf positions

9Description of the Appliance
Buttons
Button Function
w
To select oven functions.
To move down and up in the menu.
m
¸To open the Options menu.
To close the Options menu (press and hold button).
¹Confirm, change to the submenu.
ºTo switch appliance on or off.
»Switch RAPID HEAT UP on or off.
¼Select between clock functions and MEATPROBE.
-
To set temperature, time, weight or degree of cooking.
+
wm¸¹º»¼-+

Description of the Appliance10
Oven Features
Oven steam vent
The steam from the oven is fed directly up
wards via the duct in the rear of the cook
ing surface.
Top heat and heating elements
Oven lighting
Meat probe socket
Fat Filter
Oven lighting
Fan heating element
Fan
Bottom Heat
Shelf positions
Oven shelf runners,
removable

11Description of the Appliance
Oven accessories
Combination shelf for telescopic
runners
For cookware, cake tins, roasts and grilled
food.
Oven shelf for nonstick
For cookware, cake tins, roasts and grilled
foods.
Baking tray
For cakes and biscuits.
Nonstick baking tray
For cakes and biscuits.
Nonstick roasting tray
For baking and roasting or as a tray for col
lecting fat.
Meat probe
For determining exactly how far joints of
meat are cooked.

Before Using for the first time12
Before Using for the first time
Setting the language
1. When the appliance has been con
nected to the electrical supply,
SPRACHE EINSTELLEN  LANGUAGE
MENU is shown in the display.
2. Using the arrow buttons or
select the desired language.
3. Confirm selected language with the
OK button.
From now on the texts in the dis
play appear in the language set.
LANGUAGE MENU
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
888ûcþ þüþ1ü2.0ü0
ý88.8ú8
wm¸¹º»¼-+
ENGLISH
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
888ûcþ þüþ1ü2.0ü0 ý88.8ú8
wPmP¸¹º»¼-+
TIME OF DAY
ý ý ý ýþ ýþ ý ý ý
ýý ý ò
888ûcþ þüþ1ü2.0ü0 ý88.8ú8
wm¸¹Pº»¼-+

13Before Using for the first time
Setting the clock
1. TIME OF DAY lights up.
In the clock display you see 12.00.
2. Using the or button, set
the current time.
3. Confirm using the SELECTION
button.
The appliance switches itself off
and is now ready for use.
3If you would like to change one of
these base settings at a later date, please refer to the chapter SETTINGS MENU.
Initial cleaning
Clean the oven before using it for the first time.
1Important: Do not use caustic or abrasive cleaning agents! These can damage
the oven surfaces.
3For the metal surfaces, use commercially available cleaning agents.
1. Open the oven door.
The oven light is lit.
2. Remove all oven accessories, and clean them with warm water and a scouring
agent.
3. Wash the oven in the same way, and wipe dry.
4. Wipe the front of the appliance with a damp cloth.
TIME OF DAY
ý ý ý ýþ ýþ ý ý ý
ýý ý ò
888ûcþ þüþ1ü2.2ü5 ý88.8ú8
wm¸¹º»¼-P+P
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
888ûcþ þüþ1ü2.2ü5
ý88.8ú8
wm¸¹º»¼P-+

Using the Rings14
Using the Rings
3Also refer to the operating instructions for your builtin hob. It contains impor
tant information on ovenware, operation, cleaning and care.
The following description does not apply to induction cooking zones.
Heat settings
•You can set the heat settings from 1 9.
•You can set intermediate settings between 2 and 7.
•In addition each of the ring switches is fitted with an automatic warm up
function.
u =Keep warm setting
1 = lowest power
9 = highest power
A = Automatic warm up function
2Switch the cooking zone off approx. 510 minutes before cooking is finished to
make use of the residual heat. This saves electricity.
3The cooker has popup ring switches.
Press the ring switch to use it. The switch will then pop up.

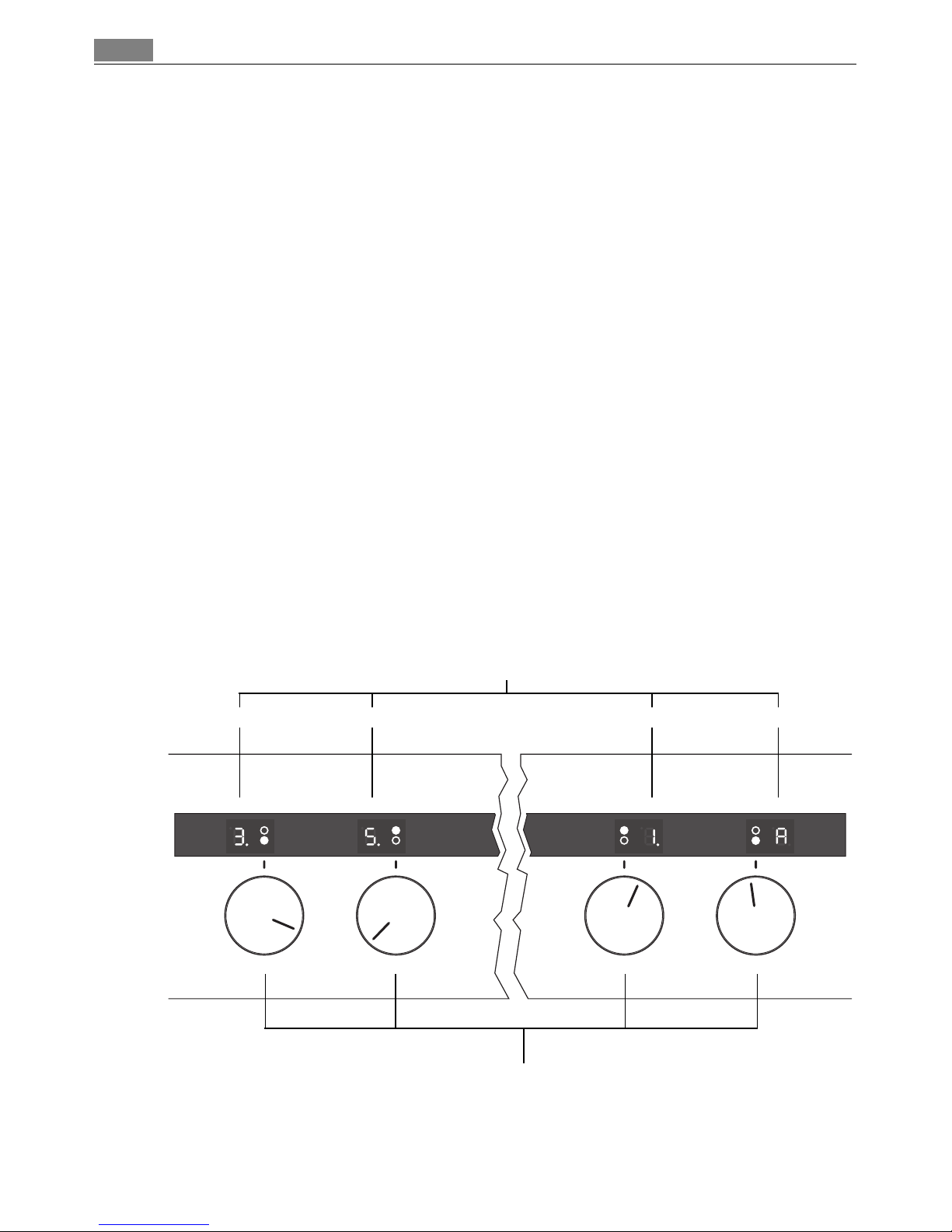

Hob Cooking Zone Control Knobs
front left rear left rear right front right
Ring displays

15Using the Rings
Setting the heat setting
1. Switch on the appliance with the ON/OFF button.
2. When getting up to heat/searing food, se
lect a high heat setting.
3. To end the cooking process, turn back to
the Off position.
Cooking with the automatic warm up function
When cooking with the automatic warm up function, the cooking zone works
with full power for a certain amount of time and then switches back to the heat
setting set to continue cooking.
1. To switch on the automatic warm up period, turn the ring switch clockwise as
far as it will go.
2. Then turn the ring switch back to the desired heat setting for the continuing
cooking period.
3. To end the cooking process, turn back to the “O” position.
3If you select a higher heat setting during the warming up time, e. g. turning
from “3” up to “6”, the time that has already elapsed for the warming up period
is taken into consideration. If you select a lower heat setting, the warm up peri
od will end immediately.
3You can end the automatic warm up function early by turning the ring switch
back to the Off position and then setting the required heat setting for the con
tinuing cooking period again.

Using the Rings16
Warming up times when cooking with the automatic warm
up function
3When cooking with the appliance for the first few times, take careful note of
how it performs. This will help you decide which heat settings are best for “your
cookware” and “your recipes and quantities”.
Safety cutout function for the rings
If one of the rings is not switched off after a certain period of time or the cook
ing setting is not altered, the ring will automatically switch itself off.
The ring switch light is switched off.
The rings switch themselves off for:
•Heat settings .1  .2 after 6 hours
•Heat settings .3  .4 after 5 hours
•Heat settings .4  .5 after 4 hours
•Heat settings .6  .9 after 1.5 hours
Starting up after a safety cutout
To start up again after a safety cutout, turn the ring switch that is turned on to
the Off position.
After that the ring is ready to use again.
Switch setting: Warming up time with the automatic
warm up function
A and 9 no automatic warm up function
Aand8 4.5minutes
Aand7 3.5minutes
A and 6.3minutes
Aand6 2minutes
A and 5.12.5 minutes
A and 5 10 minutes
A and 4.8minutes
Aand4 6.5minutes
A and 3.5.5 minutes
Aand3 5minutes
A and 2.3minutes
Aand2 2minutes
Aand1 1minutes
Aandu 0.5minutes

17Using the Oven
Using the Oven
Menu operation in overview
3The display only offers setting options that are possible with the current func
tion after each operational step.
PROFI HOT AIR
AL GUSTO HOT AIR
CONVENTIONAL
ROTITHERM
DUAL GRILL
SINGLE GRILL
KEEP WARM
DEFROST
BOTTOM HEAT
SLOW COOK ONE
POULTRY
PORK
BEEF
VEAL
GAME
RECIPE MENU
MEMORY MENU
CLEANING MENU
SETTINGS MENU
RAPID HEAT UP MENU
RESIDUAL HEAT MENU
DISPLAY MENU
SOUND MENU
LANGUAGE MENU
FACTORY SETTINGS
Oven
Functions Menu
¸
w
m
w
m
w
m
¹
Menu
Options

Using the Oven18
The Oven Functions menu
•When you switch the appliance on, you find yourself in the Oven Functions
menu.
•Select the desired oven function using the arrow buttons or . In the
menu status bar, the currrent position within the menu is shown.
Setting an example oven function
1. Switch on the appliance using
the ON/OFF button.
2. Using the arrow buttons or
select the oven function.
A suggested temperature appears in
the temperature display.
The oven starts to heat up.
3. With the or button, the
temperature can be raised or low
ered.
3When the temperature set is
reached, an audible signal sounds.
–—OVEN FUNCTIONS
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
280ûcþ þüþ1ü2.2ü5 ý88.8ú9
wm¸¹ºP»¼-+
____________________
CONVENTIONAL
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
200ûcþÝÜÜÜþ1ü2.2ü5
ý00.0ü1
wPm¸¹º»¼-+
CONVENTIONAL
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
180ûcþÝÜÜÜþ1ü2.2ü5 ý00.0ü1
wm¸¹º»¼-P+P

19Using the Oven
The Options menu
•Using the OPTION button, open the Options menu.
•Select the desired option using the arrow buttons or . In the menu
status bar, the current position within the menu is shown.
•Use the OK button to change to the menu of the selected option.
The submenus
•Select the desired setting using the arrow buttons or or change to
other submenus using the OK button.
3At the end of every menu there is the menu option BACK.
You use this to go back to the higher menu.
You can cancel a setting procedure by pressing and holding down the
OPTION button.
You will then find yourself back in the Oven functions menu.

Using the Oven20
Use of the oven functions
The oven has the following functions:
Oven function Application Heating
element/fan
PROFI HOT AIR For baking on up to three oven lev
els at the same time.
Set the oven temperatures
2040 °C lower than when using Con
ventional.
Top heat, bottom heat,
rear wall heating
element, fan
AL GUSTO HOT AIR For baking on one oven level dishes
that require more intensive brown
ing and a crispy base.
Set the oven temperatures 2040 °C
lower than when using Conventional.
Bottom heat, rear wall
heating element, fan
CONVENTIONAL For baking and roasting on one oven
level.
Top heat, bottomheat
ROTITHERM For roasting larger joints of meat or
poultry on one level.
The function is also suitable for grati
nating and browning.
Grill, top heat, fan
DUAL GRILL For grilling flat foodstuffs in large
quantities and for toasting.
Grill, top heat
SINGLE GRILL For grilling flat foodstuffs placed in
the middle of the grill and for toast
ing.
Grill
KEEP WARM To keep dishes warm. Top heat, bottom heat
DEFROST For defrosting e. g. flans and gateaux,
butter, bread, fruit or other frozen
foods.
Fan
BOTTOM HEAT For baking cakes with crispy or
crusty bases.
Bottom heat
SLOW COOK For preparing especially tender, succu
lent roasts.
Top heat, bottom heat,
rear wall heating
element, fan
