Electrolux EOB3434BAX User manual

EOB3434BAX
EOB3434FOX
EN Oven User Manual 2
DE Backofen Benutzerinformation 31

CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................4
3. PRODUCT DESCRIPTION................................................................................ 7
4. BEFORE FIRST USE......................................................................................... 7
5. DAILY USE......................................................................................................... 8
6. CLOCK FUNCTIONS....................................................................................... 10
7. USING THE ACCESSORIES........................................................................... 12
8. ADDITIONAL FUNCTIONS.............................................................................. 13
9. HINTS AND TIPS............................................................................................. 13
10. CARE AND CLEANING..................................................................................23
11. TROUBLESHOOTING....................................................................................26
12. INSTALLATION.............................................................................................. 28
13. ENERGY EFFICIENCY.................................................................................. 29
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2

1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the
result of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of
it appropriately.
•Keep children and pets away from the appliance when
it operates or when it cools down. Accessible parts are
hot.
•If the appliance has a child safety device, this should
be activated.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
•Children aged 3 years and under must be kept away
from this appliance when it is in operation at all times.
1.2 General Safety
•Only a qualified person must install this appliance and
replace the cable.
•WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements. Children less than 8 years
of age shall be kept away unless continuously
supervised.
ENGLISH 3

•Always use oven gloves to remove or put in
accessories or ovenware.
•Before carrying out any maintenance, disconnect the
appliance from the power supply.
•Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric
shock.
•Do not use a steam cleaner to clean the appliance.
•Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door since they can
scratch the surface, which may result in shattering of
the glass.
•If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.

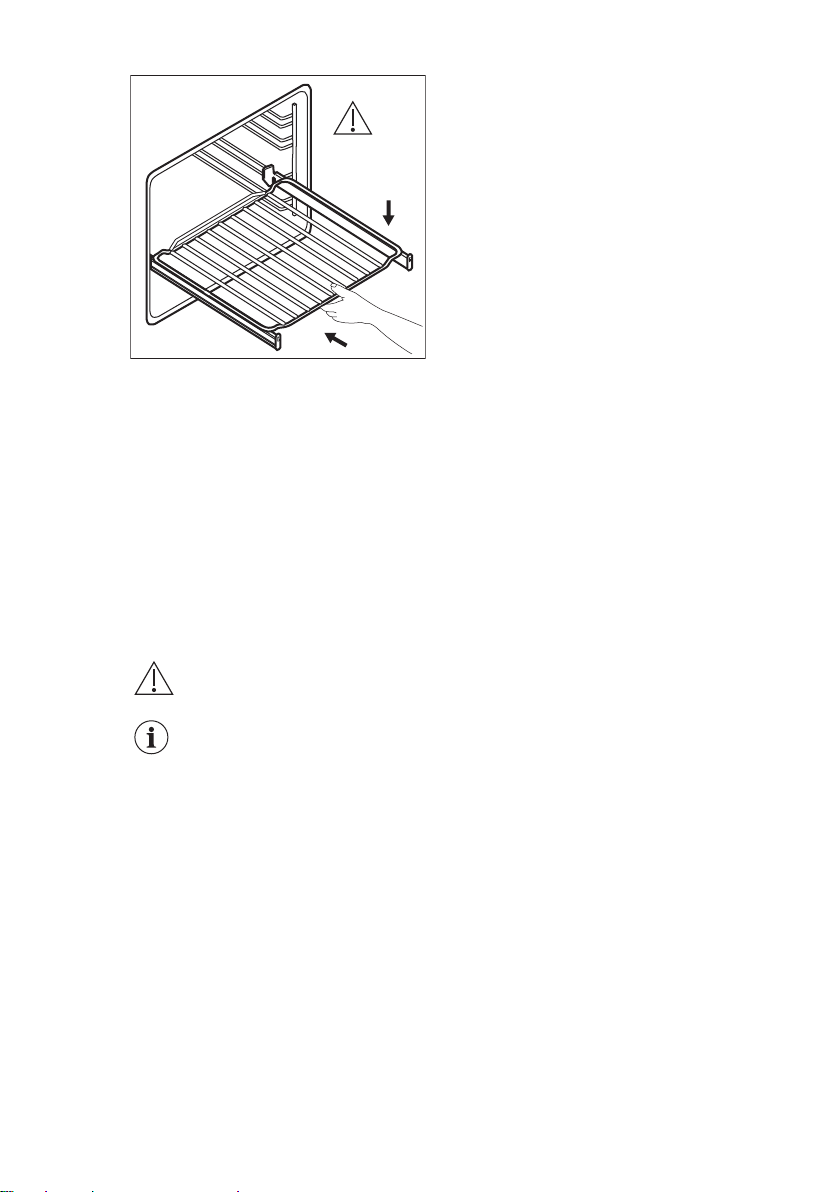

•To remove the shelf supports first pull the front of the
shelf support and then the rear end away from the
side walls. Install the shelf supports in the opposite
sequence.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not pull the appliance by the
handle.
• Keep the minimum distance from the
other appliances and units.
• Make sure that the appliance is
installed below and adjacent safe
structures.
• The sides of the appliance must stay
adjacent to appliances or to units with
the same height.
• The appliance is equipped with an
electric cooling system. It must be
operated with the electric power
supply.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
www.electrolux.com4

• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Do not let mains cables touch or
come near the appliance door,
especially when the door is hot.
• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have
an isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation
device must have a contact opening
width of minimum 3 mm.
• This appliance complies with the
E.E.C. Directives.
2.3 Use
WARNING!
Risk of injury, burns and
electrical shock or explosion.
• This appliance is for household use
only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation
openings are not blocked.
• Do not let the appliance stay
unattended during operation.
• Deactivate the appliance after each
use.
• Be careful when you open the
appliance door while the appliance is
in operation. Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with
water.
• Do not apply pressure on the open
door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully.
The use of ingredients with alcohol
can cause a mixture of alcohol and
air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
WARNING!
Risk of damage to the
appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other
objects in the appliance directly
on the bottom.
– do not put aluminium foil directly
on the bottom of cavity of the
appliance.
– do not put water directly into the
hot appliance.
– do not keep moist dishes and
food in the appliance after you
finish the cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel or
stainless steel has no effect on the
performance of the appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking
purposes only. It must not be used for
other purposes, for example room
heating.
• Always cook with the oven door
closed.
• If the appliance is installed behind a
furniture panel (e.g. a door) make
sure the door is never closed when
the appliance is in operation. Heat
and moisture can build up behind a
closed furniture panel and cause
subsequent damage to the appliance,
ENGLISH 5

the housing unit or the floor. Do not
close the furniture panel until the
appliance has cooled down
completely after use.
2.4 Care and cleaning
WARNING!
Risk of injury, fire, or
damage to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• Make sure the appliance is cold.
There is the risk that the glass panels
can break.
• Replace immediately the door glass
panels when they are damaged.
Contact the Authorised Service
Centre.
• Be careful when you remove the door
from the appliance. The door is
heavy!
• Clean regularly the appliance to
prevent the deterioration of the
surface material.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products,
abrasive cleaning pads, solvents or
metal objects.
• If you use an oven spray, follow the
safety instruction on it's packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
2.5 Internal light
• The type of light bulb or halogen lamp
used for this appliance is only for
household appliances. Do not use it
for house lighting.
WARNING!
Risk of electrical shock.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same
specifications.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the appliance.
2.7 Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
www.electrolux.com6

3. PRODUCT DESCRIPTION
3.1 General overview
9
8
13
12
5
4
1
2
3
4 7631 52
10
11
1Control panel
2Knob for the oven functions
3Power lamp / symbol
4Electronic programmer
5Knob for the temperature
6Temperature indicator / symbol
7Plus Steam button
8Heating element
9Lamp
10 Fan
11 Cavity embossment
12 Shelf support, removable
13 Shelf positions
3.2 Accessories
•Wire shelf
For cookware, cake tins, roasts.
•Combi pan
For cakes and biscuits. To bake and
roast or as a pan to collect fat.
•Telescopic runners
For shelves and trays.
4. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
To set the Time of day refer
to "Clock functions" chapter.
4.1 Initial Cleaning
Remove all accessories and removable
shelf supports from the appliance.
Refer to "Care and cleaning"
chapter.
Clean the appliance and the accessories
before first use.
Put the accessories and the removable
shelf supports back to their initial
position.
4.2 Preheating
Preheat the empty appliance to burn off
the remaining grease.
For True Fan Cooking PLUS
function refer to "Activating
the True Fan Cooking PLUS
function".
1. Set the function and the maximum
temperature.
2. Let the appliance operate for 1 hour.
3. Set the function and set the
maximum temperature.
4. Let the appliance operate for 15
minutes.
5. Set the function , press the Plus
Steam button and set the
maximum temperature.
6. Let the appliance operate for 15
minutes.
ENGLISH 7

Accessories can become hotter than
usual. The appliance can emit an odour
and smoke. This is normal. Make sure
that the airflow in the room is sufficient.
5. DAILY USE
WARNING!
Refer to Safety chapters.
5.1 Retractable knobs
To use the appliance, press the control
knob. The control knob comes out.
5.2 Activating and deactivating
the appliance
It depends on the model if
your appliance has lamps,
knob symbols or
indicators:
• The lamp turns on when
the appliance operates.
• The symbol shows
whether the knob controls
the oven functions or the
temperature.
• The indicator turns on
when the oven heats up.
1. Turn the knob for the oven functions
to select an oven function.
2. Turn the knob for the temperature to
select a temperature.
3. To deactivate the appliance, turn the
knobs for the oven functions and
temperature to the off position.
5.3 Oven functions
Oven function Application
Off position The appliance is off.
Light To activate the lamp without a cooking function.
Moist Fan Bak‐
ing
To bake breads, cakes and cookies. To save energy
during cooking. This function must be used in ac‐
cordance with the Moist Fan Baking table in order to
achieve the desired cooking result. To get more in‐
formation about the recommended settings, refer to
the Hints and Tips chapter, Moist Fan Baking table.
This function was used to define the energy efficien‐
cy class acc. to EN 60350-1. For this function, ther‐
mostat lamp works longer.
www.electrolux.com8

Oven function Application
True Fan Cook‐
ing
To bake on up to three shelf positions at the same
time and to dry food. Set the temperature 20 - 40 °C
lower than for Top / Bottom Heat.
True Fan Cook‐
ing PLUS
To add humidity during the cooking. To get the right
colour and crispy crust during baking. To give more
juiciness during reheating.
Bottom Heat To bake cakes with crispy bottom and to preserve
food.
Turbo Grilling To roast larger meat joints or poultry with bones on
one shelf position. Also to make gratins and to
brown.
Pizza Setting To bake food on one shelf position for a more inten‐
sive browning and a crispy bottom. Set the tempera‐
ture 20 - 40 °C lower than for Top / Bottom Heat.
Defrost This function can be used for defrosting frozen
foods, such as vegetables and fruits. The defrosting
time depends on the amount and size of the frozen
food.
Fast Grilling To grill flat food in large quantities and to toast
bread.
Conventional
Cooking (Top /
Bottom Heat)/
Aqua Cleaning
To bake and roast food on one shelf position.
For more information about Aqua Cleaning, refer to
the chapter "Care and cleaning".
5.4 Activating the True Fan
Cooking PLUS function
This function allows to have an
improvement of humidity during the
cooking.
WARNING!
Risk of burns and damage to
the appliance.
Released humidity can cause burns:
• Open the appliance door with care
after the True Fan Cooking PLUS
function stops.
Refer to “Hints and tips”
chapter.
1. Open the oven door.
2. Fill the cavity embossment with tap
water.
The maximum capacity of the cavity
embossment is 250 ml.
Fill the cavity embossment with water
only when the oven is cold.
3. Put food in the appliance and close
the oven door.
4. Set the True Fan Cooking PLUS
function: .
5. Press the Plus Steam button .
The Plus Steam button works only
with the True Fan Cooking PLUS
function.
The indicator turns on.
6. Turn the knob for the temperature to
select a temperature.
CAUTION!
Do not refill the cavity
embossment with water
during cooking or when
the oven is hot.
ENGLISH 9

7. To deactivate the appliance, press
the Plus Steam button , turn the
knobs for the oven functions and
temperature to the off position.
The indicator of the Plus Steam button
turns off.
8. Remove water from the cavity
embossment.
WARNING!
Make sure that the
appliance is cool before
you remove the
remaining water from the
cavity embossment.
5.5 Display
A B C
A. Function indicators
B. Time display
C. Function indicator
5.6 Buttons
Button Function Description
MINUS To set the time.
CLOCK To set a clock function.
PLUS To set the time.
Plus Steam To activate the True Fan Cooking
PLUS function.
6. CLOCK FUNCTIONS
6.1 Clock functions table
Clock function Application
TIME OF DAY To set, change or check the time of day.
DURATION To set how long the appliance operates.
END To set when the appliance deactivates.
TIME DELAY To combine DURATION and END function.
MINUTE MIND‐
ER
To set countdown time. This function has no effect on
the operation of the appliance. You can set the MINUTE
MINDER at any time, also when the appliance is off.
www.electrolux.com10

6.2 Setting the time. Changing
the time
You must set the time before you
operate the oven.
The flashes when you connect the
appliance to the electrical supply, when
there was a power cut or when the timer
is not set.
Press the or to set the correct
time.
After approximately five seconds, the
flashing stops and the display shows the
time of day you set.
To change the time of day press
again and again until starts to flash.
6.3 Setting the DURATION
1. Set an oven function and
temperature.
2. Press again and again until
starts to flash.
3. Press or to set the DURATION
time.
The display shows .
4. When the time ends, flashes and
an acoustic signal sounds. The
appliance deactivates automatically.
5. Press any button to stop the acoustic
signal.
6. Turn the knob for the oven functions
and the knob for the temperature to
the off position.
6.4 Setting the END
1. Set an oven function and
temperature.
2. Press again and again until
starts to flash.
3. Press or to set the time.
The display shows .
4. When the time ends, flashes and
an acoustic signal sounds. The
appliance deactivates automatically.
5. Press any button to stop the signal.
6. Turn the knob for the oven functions
and the knob for the temperature to
the off position.
6.5 Setting the TIME DELAY
1. Set an oven function and
temperature.
2. Press again and again until
starts to flash.
3. Press or to set the time for
DURATION.
4. Press .
5. Press or to set the time for
END.
6. Press to confirm.
Appliance turns on automatically later on,
works for the set DURATION time and
stops at the set END time. At the set time
an acoustic signal sounds.
7. The appliance deactivates
automatically. Press any button to
stop the signal.
8. Turn the knob for the oven functions
and the knob for the temperature to
the off position.
6.6 Setting the MINUTE
MINDER
1. Press again and again until
starts to flash.
2. Press or to set the necessary
time.
The Minute Minder starts automatically
after 5 seconds.
3. When the set time ends, an acoustic
signal sounds. Press any button to
stop the acoustic signal.
4. Turn the knob for the oven functions
to the off position.
6.7 Cancelling the clock
functions
1. Press the again and again until
the necessary function indicator
starts to flash.
2. Press and hold .
The clock function goes out after some
seconds.
ENGLISH 11

7. USING THE ACCESSORIES
WARNING!
Refer to Safety chapters.
7.1 Inserting the accessories
Wire shelf:
Push the shelf between the guide bars of
the shelf support and make sure that the
feet point down.
Deep pan:
Push the deep pan between the guide
bars of the shelf support.
Wire shelf and deep pan together:
Push the deep pan between the guide
bars of the shelf support and the wire
shelf on the guide bars above.
Small indentation at the top
increase safety. The
indentations are also anti-tip
devices. The high rim
around the shelf prevents
cookware from slipping of
the shelf.
7.2 Telescopic Runners
Keep the installation
instructions for the
telescopic runners for future
use.
With telescopic runners you can put in
and remove the shelves more easily.
CAUTION!
Do not clean the telescopic
runners in the dishwasher.
Do not lubricate the
telescopic runners.
1. Pull out the right and left hand
telescopic runners.
°C
2. Put the wire shelf on the telescopic
runners and carefully push them into
the appliance.
www.electrolux.com12

°C
Make sure you push back the telescopic
runners fully in the appliance before you
close the oven door.
8. ADDITIONAL FUNCTIONS
8.1 Cooling fan
When the appliance operates, the
cooling fan activates automatically to
keep the surfaces of the appliance cool.
If you deactivate the appliance, the
cooling fan can continue to operate until
the appliance cools down.
8.2 Safety thermostat
Incorrect operation of the appliance or
defective components can cause
dangerous overheating. To prevent this,
the oven has a safety thermostat which
interrupts the power supply. The oven
activates again automatically when the
temperature drops.
9. HINTS AND TIPS
WARNING!
Refer to Safety chapters.
The temperature and baking
times in the tables are
guidelines only. They
depend on the recipes and
the quality and quantity of
the ingredients used.
9.1 General information
• The appliance has five shelf positions.
Count the shelf positions from the
bottom of the appliance floor.
• The appliance has a special system
which circulates the air and constantly
recycles the steam. With this system
you can cook in a steamy
environment and keep the food soft
inside and crusty outside. It
decreases the cooking time and
energy consumption to a minimum.
• Moisture can condense in the
appliance or on the door glass panels.
This is normal. Always stand back
from the appliance when you open the
appliance door while cooking. To
decrease the condensation, operate
the appliance for 10 minutes before
cooking.
• Clean the moisture after each use of
the appliance.
• Do not put the objects directly on the
appliance floor and do not put
aluminium foil on the components
when you cook. This can change the
baking results and cause damage to
the enamel.
9.2 Baking cakes
• Do not open the oven door before 3/4
of the set cooking time is up.
• If you use two baking trays at the
same time, keep one empty level
between them.
ENGLISH 13

9.3 Cooking meat and fish
• Use a deep pan for very fatty food to
prevent the oven from stains that can
be permanent.
• Leave the meat for approximately 15
minutes before carving so that the
juice does not seep out.
• To prevent too much smoke in the
oven during roasting, add some water
into the deep pan. To prevent the
smoke condensation, add water each
time after it dries up.
9.4 Cooking times
Cooking times depend on the type of
food, its consistency, and volume.
Initially, monitor the performance when
you cook. Find the best settings (heat
setting, cooking time, etc.) for your
cookware, recipes and quantities when
you use this appliance.
9.5 True Fan Cooking PLUS
Before preheating fill the
cavity embossment with
water only when the oven is
cold.
Refer to "Activating the True Fan
Cooking PLUS function"
Bakery products
Food Water in the
cavity em‐
bossment
(ml)
Tempera‐
ture (°C)
Time (min) Shelf po‐
sition
Comments
Bread 100 180 35 - 40 2 Use baking
tray.1)
Bread rolls 100 200 20 - 25 2 Use baking
tray.1)
Homestyle
pizza
100 230 10 - 20 2 Use baking
tray.1)
Focaccia 100 200 - 210 10 - 20 2 Use baking
tray.1)
Cookies,
scones,
croissants
100 150 - 180 10 - 20 2 Use baking
tray.1)
Plum cake,
apple pie,
cinnamon
rolls
100 - 150 160 - 180 30 - 60 2 Use cake
mould.1)
1) Preheat in an empty oven for 5 minutes before cooking.
Cook from frozen
www.electrolux.com14

Food Water in the cav‐
ity embossment
(ml)
Temperature
(°C)
Time (min) Shelf posi‐
tion
Pizza frozen 150 200 - 210 10 - 20 21)
Frozen lasagna 200 180 - 200 35 - 50 21)
Frozen crois‐
sant
150 170 - 180 15 - 25 21)
1) Preheat in an empty oven for 10 minutes before cooking.
Food regeneration
Food Water in the cav‐
ity embossment
(ml)
Temperature
(°C)
Time (min) Shelf posi‐
tion
Bread 100 110 15 - 25 2
Bread rolls 100 110 10 - 20 2
Homestyle piz‐
za
100 110 15 - 25 2
Focaccia 100 110 15 - 25 2
Vegetables 100 110 15 - 25 2
Rice 100 110 15 - 25 2
Pasta 100 110 15 - 25 2
Meat 100 110 15 - 25 2
Roasting
Food Water in
the cavity
emboss‐
ment (ml)
Tempera‐
ture (°C)
Time (min) Shelf
position
Comments
Roast pork 200 180 65 - 80 2 Glass baking dish
Roast beef 200 200 50 - 60 2 Glass baking dish
Chicken 200 210 60 - 80 2 Glass baking dish
ENGLISH 15

9.6 Baking and roasting table
Cakes
Food Top / Bottom Heat True Fan Cooking Time
(min)
Com‐
ments
Tempera‐
ture (°C)
Shelf po‐
sition
Tempera‐
ture (°C)
Shelf po‐
sition
Whisked
recipes
170 2 160 3 (2 and
4)
45 - 60 In a cake
mould
Short‐
bread
dough
170 2 160 3 (2 and
4)
20 - 30 In a cake
mould
Buttermilk
cheese‐
cake
170 1 165 2 60 - 80 In a 26 cm
cake
mould
Apple
cake (Ap‐
ple pie)1)
170 2 160 2 (left and
right)
80 - 100 In two 20
cm cake
moulds on
a wire
shelf
Strudel 175 3 150 2 60 - 80 In a baking
tray
Jam-tart 170 2 165 2 (left and
right)
30 - 40 In a 26 cm
cake
mould
Sponge
cake
170 2 160 2 50 - 60 In a 26 cm
cake
mould
Christmas
cake /
Rich fruit
cake1)
160 2 150 2 90 - 120 In a 20 cm
cake
mould
Plum
cake1)
175 1 160 2 50 - 60 In a bread
tin
Small
cakes -
one level
170 3 140 - 150 3 20 - 30 In a baking
tray
Small
cakes -
two levels
- - 140 - 150 2 and 4 25 - 35 In a baking
tray
Small
cakes -
three lev‐
els
- - 140 - 150 1, 3 and 5 30 - 45 In a baking
tray
www.electrolux.com16

Food Top / Bottom Heat True Fan Cooking Time
(min)
Com‐
ments
Tempera‐
ture (°C)
Shelf po‐
sition
Tempera‐
ture (°C)
Shelf po‐
sition
Biscuits /
pastry
stripes -
one level
140 3 140 - 150 3 30 - 35 In a baking
tray
Biscuits /
pastry
stripes -
two levels
- - 140 - 150 2 and 4 35 - 40 In a baking
tray
Biscuits /
pastry
stripes -
three lev‐
els
- - 140 - 150 1, 3 and 5 35 - 45 In a baking
tray
Meringues
- one level
120 3 120 3 80 - 100 In a baking
tray
Merin‐
gues- two
levels1)
- - 120 2 and 4 80 - 100 In a baking
tray
Buns1) 190 3 190 3 12 - 20 In a baking
tray
Eclairs -
one level
190 3 170 3 25 - 35 In a baking
tray
Eclairs -
two levels
- - 170 2 and 4 35 - 45 In a baking
tray
Plate tarts 180 2 170 2 45 - 70 In a 20 cm
cake
mould
Rich fruit
cake
160 1 150 2 110 - 120 In a 24 cm
cake
mould
Victoria
sandwich
170 1 160 2 (left and
right)
50 - 60 In a 20 cm
cake
mould
1) Preheat the oven for 10 minutes.
ENGLISH 17

Bread and pizza
Food Top / Bottom Heat True Fan Cooking Time
(min)
Com‐
ments
Tempera‐
ture (°C)
Shelf po‐
sition
Tempera‐
ture (°C)
Shelf po‐
sition
White
bread1)
190 1 190 1 60 - 70 1 - 2
pieces,
500 gr per
piece
Rye bread 190 1 180 1 30 - 45 In a bread
tin
Bread
rolls 1)
190 2 180 2 (2 and
4)
25 - 40 6 - 8 rolls
in a bak‐
ing tray
Pizza1) 230 - 250 1 230 - 250 1 10 - 20 In a bak‐
ing tray or
a deep
pan
Scones1) 200 3 190 3 10 - 20 In a bak‐
ing tray
1) Preheat the oven for 10 minutes.
Flans
Food Top / Bottom Heat True Fan Cooking Time
(min)
Com‐
ments
Tempera‐
ture (°C)
Shelf po‐
sition
Tempera‐
ture (°C)
Shelf po‐
sition
Pasta flan 200 2 180 2 40 - 50 In a mould
Vegetable
flan
200 2 175 2 45 - 60 In a mould
Quiches1) 180 1 180 1 50 - 60 In a mould
Lasagne1) 180 - 190 2 180 - 190 2 25 - 40 In a mould
Cannello‐
ni1)
180 - 190 2 180 - 190 2 25 - 40 In a mould
1) Preheat the oven for 10 minutes.
Meat
Food Top / Bottom Heat True Fan Cooking Time
(min)
Com‐
ments
Tempera‐
ture (°C)
Shelf po‐
sition
Tempera‐
ture (°C)
Shelf po‐
sition
Beef 200 2 190 2 50 - 70 On a wire
shelf
www.electrolux.com18

Food Top / Bottom Heat True Fan Cooking Time
(min)
Com‐
ments
Tempera‐
ture (°C)
Shelf po‐
sition
Tempera‐
ture (°C)
Shelf po‐
sition
Pork 180 2 180 2 90 - 120 On a wire
shelf
Veal 190 2 175 2 90 - 120 On a wire
shelf
English
roast beef,
rare
210 2 200 2 50 - 60 On a wire
shelf
English
roast beef,
medium
210 2 200 2 60 - 70 On a wire
shelf
English
roast beef,
well done
210 2 200 2 70 - 75 On a wire
shelf
Shoulder
of pork
180 2 170 2 120 - 150 With rind
Shin of
pork
180 2 160 2 100 - 120 2 pieces
Lamb 190 2 175 2 110 - 130 Leg
Chicken 220 2 200 2 70 - 85 Whole
Turkey 180 2 160 2 210 - 240 Whole
Duck 175 2 220 2 120 - 150 Whole
Goose 175 2 160 1 150 - 200 Whole
Rabbit 190 2 175 2 60 - 80 Cut in
pieces
Hare 190 2 175 2 150 - 200 Cut in
pieces
Pheasant 190 2 175 2 90 - 120 Whole
Fish
Food Top / Bottom Heat True Fan Cooking Time
(min)
Com‐
ments
Tempera‐
ture (°C)
Shelf po‐
sition
Tempera‐
ture (°C)
Shelf po‐
sition
Trout /
Sea
bream
190 2 175 2 40 - 55 3 - 4 fish
Tuna fish /
Salmon
190 2 175 2 35 - 60 4 - 6 fillets
ENGLISH 19

9.7 Grilling
Preheat the empty oven for
3 minutes before cooking.
Food Quantity Tempera‐
ture (°C)
Time (min) Shelf po‐
sition
Pieces (g) 1st side 2nd side
Fillet
steaks
4 800 max. 12 - 15 12 - 14 4
Beef
steaks
4 600 max. 10 - 12 6 - 8 4
Sausages 8 - max. 12 - 15 10 - 12 4
Pork
chops
4 600 max. 12 - 16 12 - 14 4
Chicken
(cut in 2)
2 1000 max. 30 - 35 25 - 30 4
Kebabs 4 - max. 10 - 15 10 - 12 4
Breast of
chicken
4 400 max. 12 - 15 12 - 14 4
Hambur‐
ger
6 600 max. 20 - 30 - 4
Fish fillet 4 400 max. 12 - 14 10 - 12 4
Toasted
sandwich‐
es
4 - 6 - max. 5 - 7 - 4
Toast 4 - 6 - max. 2 - 4 2 - 3 4
9.8 Turbo Grilling
Beef
Food Quantity Temperature
(°C)
Time (min) Shelf position
Roast beef or fillet,
rare1)
per cm of
thickness
190 - 200 5 - 6 1 or 2
Roast beef or fillet,
medium1)
per cm of
thickness
180 - 190 6 - 8 1 or 2
Roast beef or fillet,
well done1)
per cm of
thickness
170 - 180 8 - 10 1 or 2
1) Preheat the oven.
www.electrolux.com20
