Electrolux EVY3841AOX User manual

EVY3841AOX
EVY5841AAX
EN Oven User Manual

CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................4
3. PRODUCT DESCRIPTION................................................................................ 6
4. CONTROL PANEL............................................................................................. 7
5. BEFORE FIRST USE......................................................................................... 9
6. DAILY USE......................................................................................................... 9
7. CLOCK FUNCTIONS....................................................................................... 13
8. AUTOMATIC PROGRAMMES......................................................................... 14
9. USING THE ACCESSORIES........................................................................... 15
10. ADDITIONAL FUNCTIONS............................................................................ 16
11. HINTS AND TIPS........................................................................................... 18
12. CARE AND CLEANING..................................................................................32
13. TROUBLESHOOTING....................................................................................34
14. ENERGY EFFICIENCY.................................................................................. 35
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2

1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the
result of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of
it appropriately.
•Keep children and pets away from the appliance when
it operates or when it cools down. Accessible parts are
hot.
•If the appliance has a child safety device, this should
be activated.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
•Children aged 3 years and under must be kept away
from this appliance when it is in operation at all times.
1.2 General Safety
•Only a qualified person must install this appliance and
replace the cable.
•WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements. Children less than 8 years
of age shall be kept away unless continuously
supervised.
ENGLISH 3

•Always use oven gloves to remove or put in
accessories or ovenware.
•Before maintenance cut the power supply.
•Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric
shock.
•Do not use a steam cleaner to clean the appliance.
•Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door since they can
scratch the surface, which may result in shattering of
the glass.
•If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
•To remove the shelf supports first pull the front of the
shelf support and then the rear end away from the
side walls. Install the shelf supports in the opposite
sequence.
•Only use the core temperature sensor recommended
for this appliance.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not pull the appliance by the
handle.
• Keep the minimum distance from the
other appliances and units.
• Make sure that the appliance is
installed below and adjacent safe
structures.
• The sides of the appliance must stay
adjacent to appliances or to units with
the same height.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
www.electrolux.com4

• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Do not let mains cables touch or
come near the appliance door,
especially when the door is hot.
• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have
an isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation
device must have a contact opening
width of minimum 3 mm.
• This appliance complies with the
E.E.C. Directives.
2.3 Use
WARNING!
Risk of injury, burns and
electrical shock or explosion.
• This appliance is for household use
only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation
openings are not blocked.
• Do not let the appliance stay
unattended during operation.
• Deactivate the appliance after each
use.
• Be careful when you open the
appliance door while the appliance is
in operation. Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with
water.
• Do not apply pressure on the open
door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully.
The use of ingredients with alcohol
can cause a mixture of alcohol and
air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not use microwave function to
preheat the oven.
WARNING!
Risk of damage to the
appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other
objects in the appliance directly
on the bottom.
– do not put aluminium foil directly
on the bottom of the appliance.
– do not put water directly into the
hot appliance.
– do not keep moist dishes and
food in the appliance after you
finish the cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel has no
effect on the performance of the
appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking
purposes only. It must not be used for
other purposes, for example room
heating.
• Always cook with the oven door
closed.
• If the appliance is installed behind a
furniture panel (e.g. a door) make
sure the door is never closed when
the appliance is in operation. Heat
and moisture can build up behind a
ENGLISH 5

closed furniture panel and cause
subsequent damage to the appliance,
the housing unit or the floor. Do not
close the furniture panel until the
appliance has cooled down
completely after use.
2.4 Care and cleaning
WARNING!
Risk of injury, fire, or
damage to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• Make sure the appliance is cold.
There is the risk that the glass panels
can break.
• Replace immediately the door glass
panels when they are damaged.
Contact the Authorised Service
Centre.
• Be careful when you remove the door
from the appliance. The door is
heavy!
• Clean regularly the appliance to
prevent the deterioration of the
surface material.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal
objects.
• If you use an oven spray, obey the
safety instructions on the packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
2.5 Internal light
• The type of light bulb or halogen lamp
used for this appliance is only for
household appliances. Do not use it
for house lighting.
WARNING!
Risk of electrical shock.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same
specifications.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the appliance.
2.7 Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
3. PRODUCT DESCRIPTION

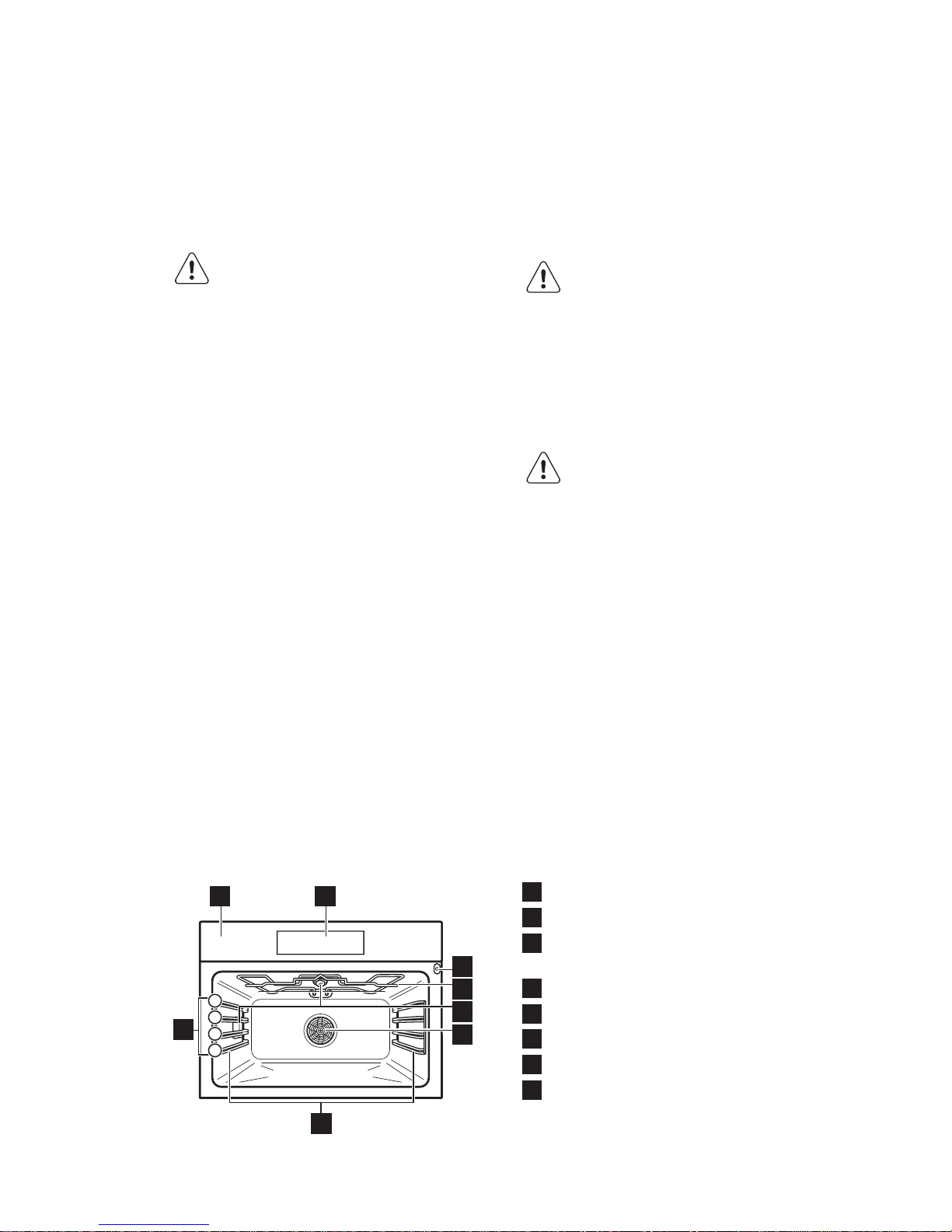

3.1 General overview
1 2
4
3
5
6
7
8
1
2
3
4
1Control panel
2Electronic programmer
3Socket for the core temperature
sensor
4Heating element
5Lamp
6Fan
7Shelf support, removable
8Shelf positions
www.electrolux.com6

3.2 Accessories
Wire shelf
For cookware, cake tins, roasts.
Baking tray
For cakes and biscuits.
Grill- / Roasting pan
To bake and roast or as a pan to collect
fat.
Core temperature sensor
To measure how far the food is cooked.
4. CONTROL PANEL
4.1 Electronic programmer
1 112 4 63 9 105 7 8

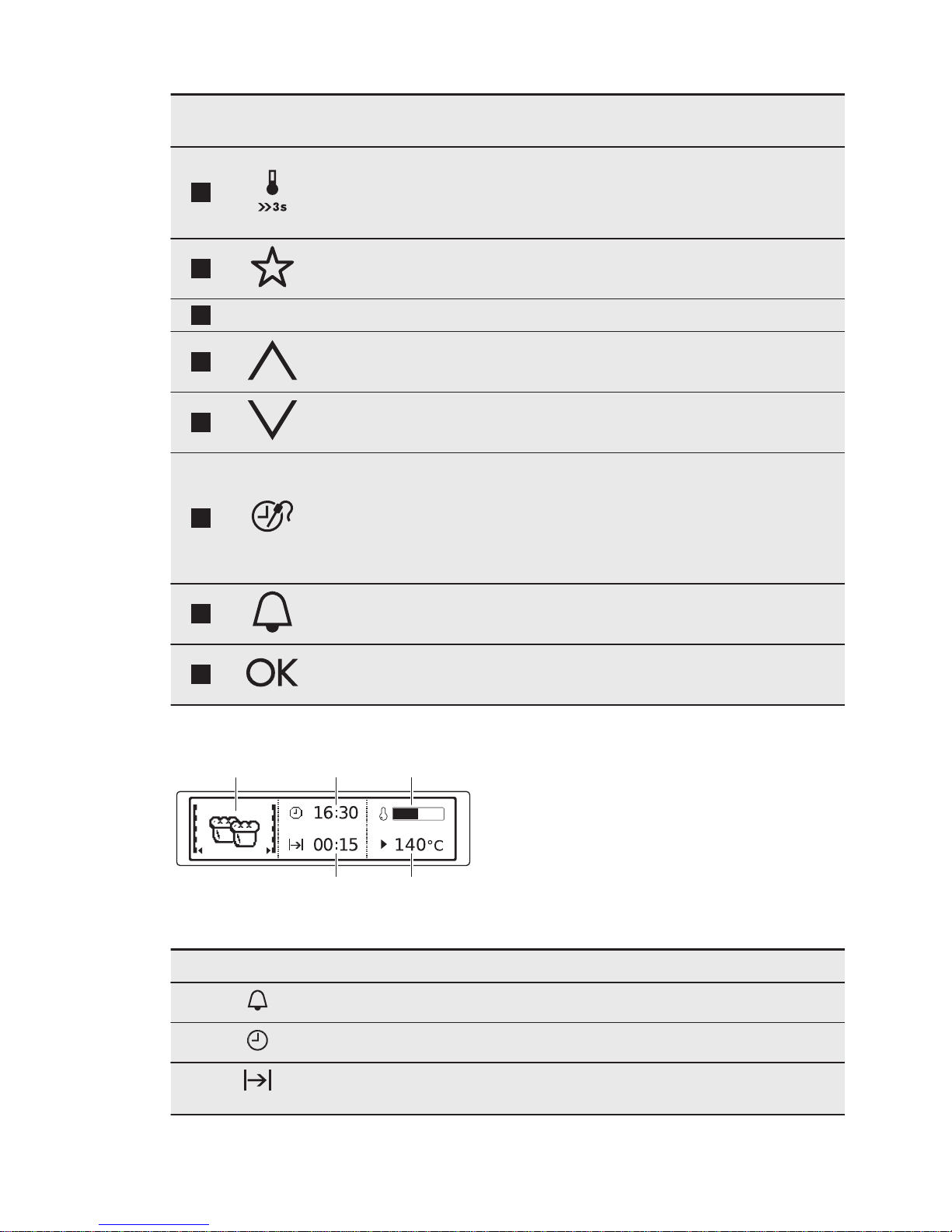

Use the sensor fields to operate the appliance.
Sensor
field
Function Comment
1ON / OFF To activate and deactivate the appliance.
2
Heating Func‐
tions or Assisted
Cooking
Touch the sensor field once to choose a heat‐
ing function or the menu: Assisted Cooking.
Touch the sensor field again to switch between
the menus: Heating Functions, Assisted Cook‐
ing. To activate or deactivate the light, touch
the field for 3 seconds.
3Back key To go back one level in the menu. To show the
main menu, touch the field for 3 seconds.
ENGLISH 7

Sensor
field
Function Comment
4
Temperature se‐
lection
To set the temperature or show the current
temperature in the appliance. Touch the field
for 3 seconds to activate or deactivate the func‐
tion: Fast heat up.
5Favourite Pro‐
gramme
To save and access your favourite pro‐
grammes.
6- Display Shows the current settings of the appliance.
7Up key To move up in the menu.
8Down key To move down in the menu.
9
Time and addi‐
tional functions
To set different functions. When a heating func‐
tion operates, touch the sensor field to set the
timer or the functions: Function Lock, Favourite
Programme, Heat + Hold, Set + Go. You can
also change the settings of the core tempera‐
ture sensor.
10 Minute Minder To set the function: Minute Minder.
11 OK To confirm the selection or setting.
4.2 Display
A
DE
B C
A. Heating function
B. Time of day
C. Heat-up indicator
D. Temperature
E. Duration time or end time of a
function
Other indicators of the display:
Symbol Function
Minute Minder The function operates.
Time of day The display shows the current time.
Duration The display shows the necessary
time for cooking.
www.electrolux.com8

Symbol Function
End Time The display shows when the cook‐
ing time is complete.
Temperature The display shows the temperature.
Time Indication The display shows how long the
heating function operates. Press
and at the same time to reset
the time.
Calculation The appliance calculates the time
for cooking.
Heat-up Indicator The display shows the temperature
in the appliance.
Fast Heat Up Indicator The function is active. It decreases
the heat up time.
Weight Automatic The display shows that the automat‐
ic weight system is active or that
weight can be changed.
Heat + Hold The function is active.
5. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
5.1 Initial Cleaning
Remove all accessories and removable
shelf supports from the appliance.
Refer to "Care and cleaning"
chapter.
Clean the appliance before first use.
Put the accessories and the removable
shelf supports back to their initial
position.
5.2 First Connection
When you connect the appliance to the
mains or after the power cut, you have to
set the language, the display contrast,
the display brightness and the time of the
day.
1. Press or to set the value.
2. Press to confirm.
6. DAILY USE
WARNING!
Refer to Safety chapters.
6.1 Navigating the menus
1. Activate the appliance.
2. Press or to select the menu
option.
3. Press to move to the submenu or
accept the setting.
ENGLISH 9

At each point you can go
back to the main menu with
.
6.2 The menus in overview
Main menu
Sym‐
bol
Menu item Application
Heating Functions Contains a list of heating functions.
Assisted Cooking Contains a list of automatic programmes.
Favourite Programme Contains a list of favourite cooking pro‐
grammes created by the user.
Basic Settings You can use it to set other settings.
Specials Contains a list of additional heating functions.
Submenu for: Basic Settings
Sym‐
bol
Submenu Description
Set Time of Day Sets the current time on the clock.
Time Indication When ON, the display shows the current time
when you deactivate the appliance.
Set + Go When ON, in the Select Options window you
can choose the function: Set + Go.
Heat + Hold When ON, in the Select Options window you
can choose the function: Heat + Hold.
Extra Time Activates and deactivates the time extension
function.
Display Contrast Adjusts the display contrast by degrees.
Display Brightness Adjusts the display brightness by degrees.
Set Language Sets the language for the display.
Buzzer Volume Adjusts the volume of press-tones and signals
by degrees.
Key Tones Activates and deactivates the tone of the touch
fields. It is not possible to deactivate the tone
of the ON / OFF touch field.
Alarm/Error Tones Activates and deactivates the alarm tones.
www.electrolux.com10

Sym‐
bol
Submenu Description
Service Shows the software version and configuration.
Factory Settings Resets all settings to factory settings.
6.3 Heating Functions
Heating function Application
True Fan Cooking To bake on up to 2 shelf positions at the same
time and to dry food. Set the temperature 20 -
40 °C lower than for the function: Conventional
Cooking.
Pizza Setting To bake food on 1 shelf position for a more in‐
tensive browning and a crispy bottom. Set the
temperature 20 - 40 °C lower than for the func‐
tion: Conventional Cooking.
Moist Fan Baking To save energy when you bake and cook dry
baked goods. Also to bake baked goods in tins
on 1 shelf position. This function was used to
define the energy efficiency class acc.
EN50304.
Conventional Cooking To bake and roast food on 1 shelf position.
Slow Cooking To prepare tender, succulent roasts.
Bottom Heat To bake cakes with crispy bottom and to pre‐
serve food.
ECO Roasting The ECO functions let you optimize the energy
consumption during cooking. It is necessary to
set the cooking time first. To get more informa‐
tion about the recommended settings, refer to
the cooking tables with the equivalent function.
Frozen Foods To make your convenience food like e.g.
French Fries, Wedges, spring rolls crispy.
Grilling To grill flat food and to toast bread.
Fast Grilling To grill flat food in large quantities and to toast
bread.
Turbo Grilling To roast larger meat joints or poultry with
bones on 1 shelf position. Also to make gratins
and to brown.
ENGLISH 11

6.4 Specials
Heating function Application
Bread Baking To bake bread.
Au Gratin For dishes such as lasagna or potato gratin. Al‐
so to gratinate and brown.
Dough Proving For controlled rising of yeast dough before bak‐
ing.
Plate Warming To preheat your plate for serving.
Preserving To make vegetable preserves such as pickles.
Drying To dry sliced fruit (e.g. apples, plums, peach‐
es) and vegetables (e.g. tomatoes, zucchini,
mushrooms).
Keep Warm To keep food warm.
Defrost This function can be used for defrosting frozen
foods, such as vegetables and fruits. The de‐
frosting time depends on the amount and size
of the frozen food.
6.5 Activating a heating
function
1. Activate the appliance.
2. Select the menu: Heating Functions.
3. Press to confirm.
4. Set a heating function.
5. Press to confirm.
6. Set the temperature.
7. Press to confirm.
6.6 Heat-up indicator
When you activate a heating function,
the bar on the display comes on. The bar
shows that the temperature increases.
6.7 Fast Heat Up Indicator
This function decreases the heat-up
time.
To activate the function, hold for 3
seconds. The heat-up indicator
alternates.
6.8 Residual heat
When you deactivate the appliance, the
display shows the residual heat. You can
use the heat to keep the food warm.
www.electrolux.com12

7. CLOCK FUNCTIONS
7.1 Clock functions table
Clock function Application
Minute Minder To set a countdown (max. 2 h 30 min).
This function has no effect on the opera‐
tion of the appliance.
Use to activate the function. Press
or to set the minutes and to start.
Duration To set the length of an operation (max. 23
h 59 min).
End Time To set the switch-off time for a heating
function (max. 23 h 59 min).
If you set the time for a clock function,
the time starts to count down after 5
seconds.
If you use the clock
functions: Duration, End
Time, the appliance
deactivates the heating
elements after 90 % of the
set time. The appliance uses
the residual heat to continue
the cooking process until the
time ends (3 - 20 minutes).
7.2 Setting the clock functions
• Before you use the
functions: Duration, End
Time, you must set a
heating function and
temperature first. The
appliance deactivates
automatically.
• You can use the
functions: Duration and
End Time at the same
time if you want to
automatically activate
and deactivate the
appliance on a given time
later.
• The functions: Duration
and End Time do not
work when you use the
core temperature sensor.
1. Set a heating function.
2. Press again and again until the
display shows the necessary clock
function and the related symbol.
3. Press or to set the necessary
time.
4. Press to confirm.
When the time ends, an acoustic signal
sounds. The appliance deactivates. The
display shows a message.
5. Press any symbol to stop the signal.
ENGLISH 13

7.3 Heat + Hold
Conditions for the function:
• The set temperature is more than 80
°C.
• The function: Duration is set.
The function: Heat + Hold keeps
prepared food warm at 80 °C for 30
minutes. It activates after the baking or
roasting procedure ends.
You can activate or deactivate the
function in the menu: Basic Settings.
1. Activate the appliance.
2. Select the heating function.
3. Set the temperature above 80 °C.
4. Press again and again until the
display shows: Heat + Hold.
5. Press to confirm.
When the function ends, an acoustic
signal sounds.
The function stays on if you change the
heating functions.
7.4 Extra Time
The function: Extra Time makes the
heating function continue after the end of
Duration.
Applicable to all heating
functions with Duration or
Weight Automatic.
Not applicable to heating
functions with the core
temperature sensor.
1. When the cooking time ends, an
acoustic signal sounds. Press any
symbol.
The display shows the message.
2. Press to activate or to cancel.
3. Set the length of the function.
4. Press .
8. AUTOMATIC PROGRAMMES
WARNING!
Refer to Safety chapters.
8.1 Recipes online
You can find the recipes for
the automatic programmes
specified for this appliance
on our website. To find the
proper Recipe Book check
the PNC number on the
rating plate on the front
frame of the appliance
cavity.
8.2 Assisted Cooking with
Recipe Automatic
This appliance has a set of recipes you
can use. The recipes are fixed and you
cannot change them.
1. Activate the appliance.
2. Select the menu: Assisted Cooking.
Press to confirm.
3. Select the category and dish. Press
to confirm.
4. Select a recipe. Press to confirm.
When you use the function:
Manual, the appliance uses
the automatic settings. You
can change them as with
other functions.
8.3 Assisted Cooking with
Weight Automatic
This function automatically calculates the
roasting time. To use it, it is necessary to
input the food weight.
1. Activate the appliance.
2. Select the menu: Assisted Cooking.
Press to confirm.
3. Select the category and dish. Press
to confirm.
4. Select the function: Weight
Automatic. Press to confirm.
5. Touch or to set the food
weight. Press to confirm.
The automatic programme starts.
www.electrolux.com14

6. You can change the weight at any
time. Press or to change the
weight.
7. When the time ends, an acoustic
signal sounds. Press any symbol to
deactivate the signal.
With some programmes turn
over the food after 30
minutes. The display shows
a reminder.
9. USING THE ACCESSORIES
WARNING!
Refer to Safety chapters.
9.1 Core temperature sensor
There are two temperatures to be set:
the oven temperature and the core
temperature.
The core temperature sensor measures
the core temperature of the meat. When
the meat is at the set temperature, the
appliance deactivates.
CAUTION!
Only use the core
temperature sensor supplied
or the correct replacement
parts.
The core temperature
sensor must stay in the meat
and in the socket during the
cooking.
1. Activate the appliance.
2. Put the tip of the core temperature
sensor into the centre of the meat.
3. Put the plug of the core temperature
sensor into the socket at the front of
the appliance.
The display shows the core temperature
sensor symbol.
4. Press or in less than 5
seconds to set the core temperature.
5. Set the heating function and, if
necessary, the oven temperature.
The appliance calculates an approximate
end time. The end time is different for the
different quantities of the food, the set
oven temperatures (minimum 120 °C)
and the operating modes. The appliance
calculates the end time in approximately
30 minutes.
6. To change the core temperature,
press .
When the meat is at the set core
temperature, an acoustic signal sounds.
The appliance deactivates automatically.
7. Touch any symbol to stop the signal.
8. Remove the core temperature sensor
plug from the socket and remove the
meat from the oven.
WARNING!
The core temperature
sensor is hot. There is a risk
of burns. Be careful when
you remove the tip and the
plug of the core temperature
sensor.
9.2 Inserting the accessories
Wire shelf:
Push the shelf between the guide bars of
the shelf support and make sure that the
feet point down.
ENGLISH 15

Deep pan:
Push the deep pan between the guide
bars of the shelf support.
Wire shelf and the deep pan together:
Push the deep pan between the guide
bars of the shelf support and the wire
shelf on the guide bars above.
• All accessories have
small indentations at the
top of the right and left
side to increase safety.
The indentations are also
anti-tip devices.
• The high rim around the
shelf is a device which
prevents cookware from
slipping.
10. ADDITIONAL FUNCTIONS
10.1 Favourite Programme
You can save your favourite settings,
such as duration, temperature or heating
function. They are available in the menu:
Favourite Programme. You can save 20
programmes.
Saving a programme
1. Activate the appliance.
2. Set a heating function or an
automatic programme.
3. Touch again and again until the
display shows: SAVE.
4. Press to confirm.
The display shows the first free memory
position.
5. Press to confirm.
6. Enter the name of the programme.
The first letter flashes.
7. Touch or to change the letter.
8. Press .
The next letter flashes.
9. Do step 7 again as necessary.
10. Press and hold to save.
You can overwrite a memory position.
When the display shows the first free
memory position, touch or and
press to overwrite an existing
programme.
You can change the name of a
programme in the menu: Edit
Programme Name.
Activating the programme
1. Activate the appliance.
2. Select the menu: Favourite
Programme.
www.electrolux.com16

3. Press to confirm.
4. Select your favourite programme
name.
5. Press to confirm.
Press to go directly to menu:
Favourite Programme.
10.2 Using the Child Lock
The Child Lock prevents an accidental
operation of the appliance.
1. Activate the appliance.
2. Touch and at the same time
until the display shows a message.
To deactivate the Child Lock function
repeat step 2.
10.3 Function Lock
This function prevents an accidental
change of the heating function. You can
activate it only when the appliance
operates.
1. Activate the appliance.
2. Set a heating function or setting.
3. Press again and again until the
display shows: Function Lock.
4. Press to confirm.
To deactivate the function, press . The
display shows a message. Press
again and then to confirm.
When you deactivate the
appliance, the function also
deactivates.
10.4 Set + Go
The function lets you set a heating
function (or a programme) and use it
later with one press of any symbol.
1. Activate the appliance.
2. Set a heating function.
3. Press again and again until the
display shows: Duration.
4. Set the time.
5. Press again and again until the
display shows: Set + Go.
6. Press to confirm.
Press any symbol (except for ) to start
the function: Set + Go. The set heating
function starts.
When the heating function ends, an
acoustic signal sounds.
• Function Lock is on when
the heating function
operates.
• The menu: Basic Settings
lets you activate and
deactivate the function:
Set + Go.
10.5 Automatic Switch-off
For safety reasons the appliance
deactivates automatically after some time
if a heating function operates and you do
not change any settings.
Temperature (°C) Switch-off time
(h)
30 - 115 12.5
120 - 195 8.5
200 - 245 5.5
250 - maximum 1.5
The Automatic switch-off
does not work with the
functions: Light, core
temperature sensor, End
Time, Duration.
10.6 Brightness of the display
There are two modes of display
brightness:
• Night brightness - when the appliance
is deactivated, the brightness of the
display is lower between 10 PM and 6
AM.
• Day brightness:
– when the appliance is activated.
– if you touch a symbol during the
night brightness (apart from ON /
OFF), the display goes back to
ENGLISH 17

the day brightness mode for the
next 10 seconds.
– if the appliance is deactivated and
you set the function: Minute
Minder. When the function ends,
the display goes back to the night
brightness.
10.7 Cooling fan
When the appliance operates, the
cooling fan activates automatically to
keep the surfaces of the appliance cool.
If you deactivate the appliance, the
cooling fan can continue to operate until
the appliance cools down.
11. HINTS AND TIPS
WARNING!
Refer to Safety chapters.
The temperature and baking
times in the tables are
guidelines only. They
depend on the recipes and
the quality and quantity of
the ingredients used.
11.1 Inner side of the door
In some models, on the inner side of
the door you can find:
• the numbers of the shelf positions.
• information about the heating
functions, recommended shelf
positions and temperatures for typical
dishes.
11.2 Advice for special heating
functions of the oven
Keep Warm
Use this function if you want to keep food
warm.
The temperature regulates itself
automatically to 80 °C.
Plate Warming
For warming plates and dishes.
Distribute plates and dishes evenly on
the wire shelf. Move stacks around after
half of the warming time (swap top and
bottom).
The automatic temperature is 70 °C.
Recommended shelf position: 3.
Dough Proving
You can use this automatic function with
any recipe for yeast dough you like. It
gives you a good atmosphere for rising.
Put the dough into a dish that is big
enough for rising and cover it with a wet
towel or plastic foil. Insert a wire shelf on
the first shelf position and put the dish in.
Close the door and set the function:
Dough Proving. Set the necessary time.
11.3 Baking
• Your oven can bake or roast
differently to the appliance you had
before. Adapt your usual settings
(temperature, cooking times) and
shelf positions to the values in the
tables.
• The manufacturer recommends that
you use the lower temperature the
first time.
• If you cannot find the settings for a
special recipe, look for the one that is
almost the same.
• You can extend baking times by 10 –
15 minutes if you bake cakes on more
than one shelf position.
• Cakes and pastries at different
heights do not always brown equally
at first. If this occurs, do not change
the temperature setting. The
differences equalize during the baking
procedure.
• With longer baking times, you can
deactivate the oven approximately 10
minutes before the end of the baking
time and then use the residual heat.
When you cook frozen food, the trays in
the oven can twist during baking. When
the trays become cold again, the
distortions are gone.
www.electrolux.com18

11.4 Tips on baking
Baking results Possible cause Remedy
The bottom of the cake is
not browned sufficiently.
The shelf position is incor‐
rect.
Put the cake on a lower
shelf.
The cake sinks and be‐
comes soggy, lumpy or
streaky.
The oven temperature is
too high.
The next time you bake,
set a slightly lower oven
temperature.
The cake sinks and be‐
comes soggy, lumpy or
streaky.
The baking time is too
short.
Set a longer baking time.
You cannot decrease
baking times by setting
higher temperatures.
The cake sinks and be‐
comes soggy, lumpy or
streaky.
There is too much liquid in
the mixture.
Use less liquid. Be careful
with mixing times, espe‐
cially if you use a mixing
machine.
The cake is too dry. The oven temperature is
too low.
The next time you bake,
set a higher oven tempera‐
ture.
The cake is too dry. The baking time is too
long.
The next time you bake,
set a shorter baking time.
The cake browns uneven‐
ly.
The oven temperature is
too high and the baking
time is too short.
Set a lower oven tempera‐
ture and a longer baking
time.
The cake browns uneven‐
ly.
The mixture is unevenly
distributed.
Spread the mixture evenly
on the baking tray.
The cake is not ready in
the baking time given.
The oven temperature is
too low.
The next time you bake,
set a slightly higher oven
temperature.
11.5 Baking on one oven level
Baking in tins
Food Function Temper‐
ature
(°C)
Time (min) Shelf posi‐
tion
Ring cake or brioche True Fan
Cooking
150 - 160 50 - 70 1
Madeira cake / Fruit
cakes
True Fan
Cooking
140 - 160 70 - 90 1
Sponge cake / Sponge
cake
True Fan
Cooking
140 - 150 35 - 50 1
Sponge cake / Sponge
cake
Conventional
Cooking
160 35 - 50 1
ENGLISH 19

Food Function Temper‐
ature
(°C)
Time (min) Shelf posi‐
tion
Flan base - short pas‐
try1)
True Fan
Cooking
170 - 180 10 - 25 2
Flan base - sponge
mixture
True Fan
Cooking
150 - 170 20 - 25 2
Apple pie / Apple pie (2
tins Ø 20 cm, diagonal‐
ly off set)
True Fan
Cooking
160 70 - 90 2
Apple pie / Apple pie (2
tins Ø 20 cm, diagonal‐
ly off set)
Conventional
Cooking
180 70 - 90 1
Cheesecake, tray2) Conventional
Cooking
160 - 170 70 - 90 2
1) Preheat the oven.
2) Use a deep pan.
Cakes / pastries / breads on baking trays
Food Function Tempera‐
ture (°C)
Time (min) Shelf posi‐
tion
Plaited bread / bread
crown
Conventional
Cooking
170 - 190 30 - 40 1
Christmas stollen1) Conventional
Cooking
160 - 180 50 - 70 1
Bread (rye bread)1) Conventional
Cooking
1
first 230 20
then 160 - 180 30 - 60
Cream puffs / eclairs1) Conventional
Cooking
190 - 210 20 - 35 2
Swiss Roll1) Conventional
Cooking
180 - 200 10 - 20 2
Cake with crumble top‐
ping (dry)
True Fan
Cooking
150 - 160 20 - 40 2
Buttered almond cake /
sugar cakes1)
Conventional
Cooking
190 - 210 20 - 30 2
Fruit flans (made with
yeast dough / sponge
mixture)2)
True Fan
Cooking
150 - 160 35 - 55 2
www.electrolux.com20
