Electrolux EOC65100 User manual

user manual
Built-In Electric Oven
EOC65100

We were thinking of you
when we made this product

electrolux 3
Welcome to the world of Electrolux
Thank you for choosing a first class
product from Electrolux, which hopefully
will provide you with lots of pleasure in
the future. The Electrolux ambition is to
offer a wide variety of quality products
that make your life more comfortable.
You will find some examples on the cov-
er in this manual. Please take a few min-
utes to study this manual so that you
can take advantage of the benefits of
your new machine. We promise that it
will provide a superior User Experience
delivering Ease-of-Mind. Good luck!

4electrolux contents
Contents
Safety instructions 5
Description of the Appliance 7
Before Using for the first time 10
Using the Oven 12
Uses, Tables and Tips 31
Cleaning and Care 47
What to do if … 57
Installation Instructions 59
Disposal 63
Guarantee/Customer Service 64
Service 66
T
he following symbols are used in this user manual:
1
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
3General information and tips
2Environmental information

safety instructions electrolux 5
Safety instructions
5
This appliance conforms with the
following EU Directives:
–73/23/EEC dated 19.02.1973 Low
Voltage Directive
–89/336/EEC dated 03.05.1989 EMC
Directive inclusive of Amending Di-
rective 92/31/EEC
–93/68/EEC dated 22.07.1993 CE
Marking Directive
Electrical safety
•This appliance must be only con-
nected by a registered electrician.
•In the event of a fault or damage to
the appliance: Take the fuses out or
switch off.
•Repairs to the appliance must only
be carried out by qualified service
engineers. Considerable danger
may result from improper repairs. If
repairs become necessary, please
contact our Customer Services or
your dealer.
Child Safety
•Never leave children unsupervised
when the appliance is in use.
Safety whilst Using
•This appliance is intended to be
used for cooking, roasting and bak-
ing food in the home.
•Take care when connecting electric
appliances to sockets nearby. Do
not allow connecting leads to come
into contact with or to catch beneath
the hot oven door.
•Warning: Risk of burns! The interi-
or of the oven becomes hot during
use.
•Using ingredients containing alcohol
in the oven may create an alcohol-air
mixture that is easily ignited. In this
case, open the door carefully. Do not
have embers, sparks or naked
flames in the vicinity when opening
the door.
Information on acrylamides
According to the latest scientific
knowledge, intensive browning of
food, especially in products con-
taining starch, can constitute a
health risk due to acrylamides.
Therefore we recommend cooking
at the lowest possible temperatures
and not browning foods too much.

6electrolux safety instructions
How to avoid damage to the
appliance
•Do not line the oven with aluminium
foil and do not place baking trays,
pots, etc. on the oven floor, as the
heat that builds up will damage the
oven enamel.
•Fruit juices dripping from the baking
tray will leave stains, which you will
not be able to remove. For very moist
cakes, use a deep tray.
•Do not put any strain on the oven
door when open.
•Never pour water directly into the
oven when it is hot. This could cause
damage to or discoloration of the
enamel.
•Rough handling, especially around
the edges of the front panel, can
cause the glass to break.
•Do not store any flammable materi-
als inside the oven. These could ig-
nite when the oven is switched on.
•Do not store any moist foods inside
the oven. This could damage the
oven enamel.
•After switching off the cooling fan, do
not keep uncovered dishes in the ov-
en. Moisture may condense in the
oven interior or on the glass doors
and may get into the units.
Note on enamel coating
Changes in the colour of the oven’s
enamel coating as a result of use do not
affect the appliance’s suitability for nor-
mal and correct use. They therefore do
not constitute a defect in the sense of
the warranty law.

description of the appliance electrolux 7
Description of the Appliance
General Overview
Full glass door
Control panel
Door
handle

8electrolux description of the appliance
Control Panel
Oven Features
Clock function buttons
Oven Functions Temperature / Time Selection
Temperature / Time Display
Oven Power Indicator Oven Power Indicator
Top heat and heating elements
Oven lighting
Fat Filter
Fan heating element
Fan
Bottom Heat
Shelf positions
Oven shelf runners,
removable

description of the appliance electrolux 9
Inside of door
On the inside of the oven door you will
find the numbers of the different oven
shelves.
You will also find some brief information
about the oven's functions, recom-
mended shelves and temperatures for
cooking the most popular dishes.
Oven accessories
Oven shelf
For cookware, cake tins, roasts and
grilled foods.
Baking tray
For cakes and biscuits.
Roasting Pan
For baking and roasting or as a pan for
collecting fat.

10 electrolux before using for the first time
Before Using for the first time
Setting and changing the time
The oven only operates when the
time has been set.
When the appliance has been connect-
ed to the electrical supply or when there
has been a power cut, the function indi-
cator Time flashes automatically.

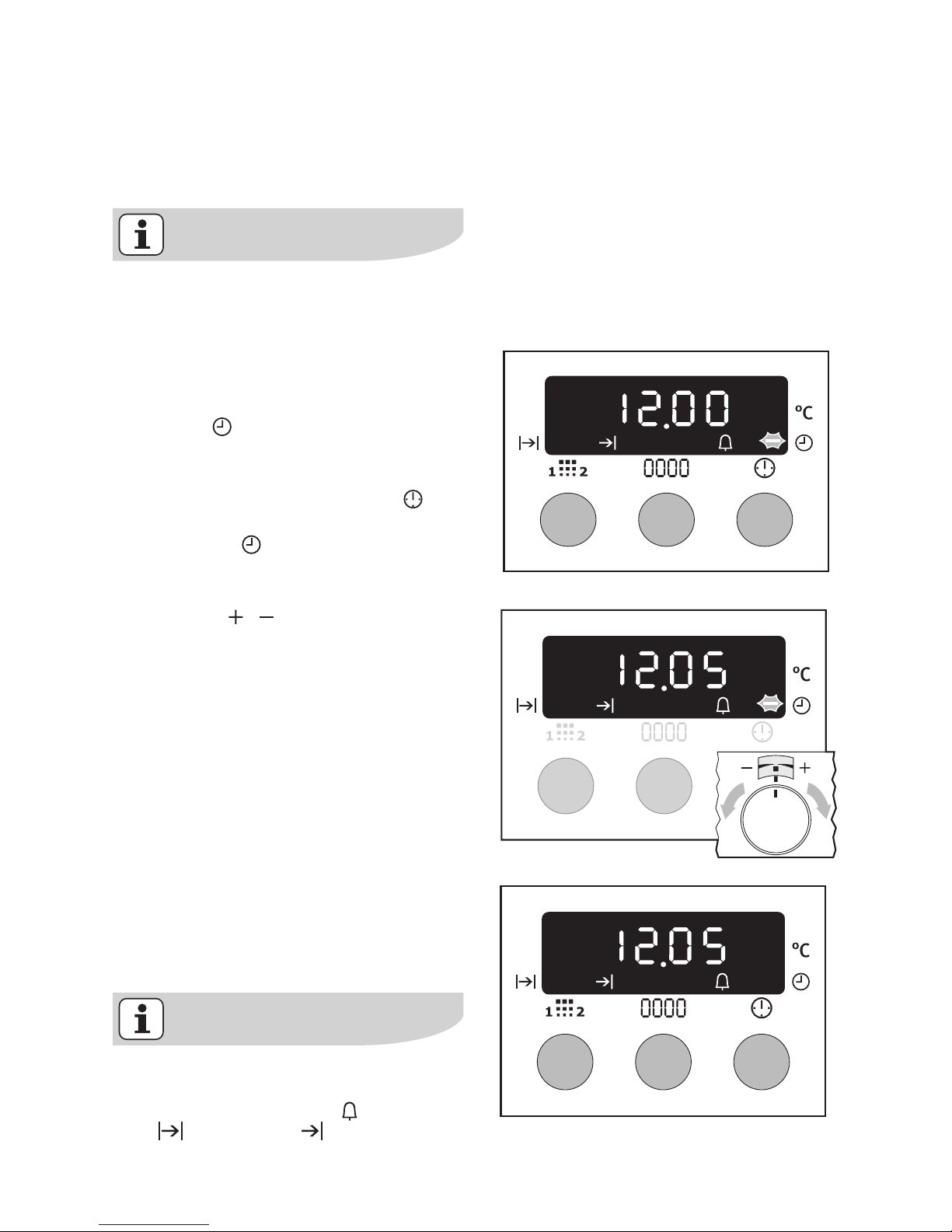

1. To change a time that has already
been set, press the Selection but-
ton repeatedly until the function indi-
cator Time flashes.
2. Using the / control knob, set the
current time.
After approx. 5 seconds, the flashing
stops and the clock displays the time of
day set.
The appliance is now ready to use.
The time can only be modified, if the
child safety device is deactivated,
none of the Countdown , Cook
time or End time clock func-
tions and no oven function is set.

before using for the first time electrolux 11
Initial Cleaning
Before using the oven for the first time
you should clean it thoroughly.
Caution: Do not use any caustic or
abrasive cleaners. The surface
could be damaged.
To clean metal fronts use commer-
cially available cleaning agents.
1. Set the oven functions dial to
Light .
2. Remove all accessories and the shelf
support rails and wash them with
warm water and washing up liquid.
3. Then wash out the oven with warm
water and washing-up liquid, and
dry.
4. Wipe the front of the appliance with
a damp cloth.

12 electrolux using the oven
Using the Oven
Switching the Oven On and Off
Oven Functions Temperature / Time Selection
Temperature / Time Display
Change display
Heat indicator
Oven Power Indicator
Selection buttonPyrolyse time
Oven Power Indicator

using the oven electrolux 13
Switching the oven on

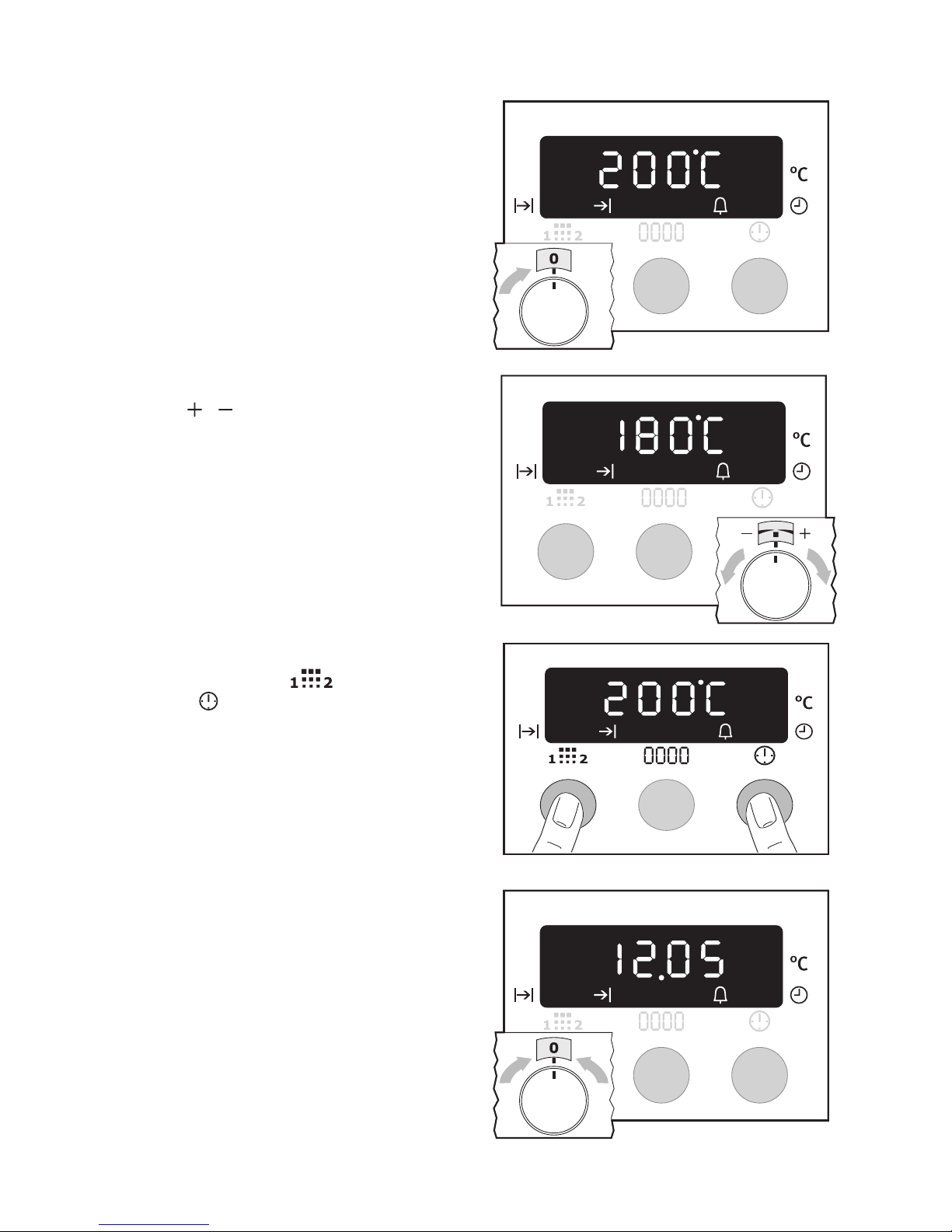

Turn the oven functions selector to the
desired function. The power indicator
light lights up. The temperature display
shows the suggested temperature for
the oven function selected.
The oven starts to heat up.
When the temperature set is reached,
an audible signal sounds.
Changing the oven temperature
Turn the / knob to raise or lower the
temperature.
The setting changes in 5 °C steps.
Checking the temperature
Press Pyrolyse time and
Selection buttons at the same time.
The current oven temperature appears
in the temperature display.
Switching the oven off
To turn the oven off, turn the oven func-
tions selector to the OFF position.

14 electrolux using the oven
Cooling fan
The fan switches on automatically in
order to keep the appliance’s surfaces
cool. When the oven is switched off,
the fan continues to run to cool the
appliance down, then switches itself
off automatically.
Heat indicator
Warming up indicator
When the oven function has been
switched on the bars that slowly
light up one after the other indicate
how far the oven has heated up.
Residual heat indicator
When the oven has been switched
off, the bars that are still lit indicate
the remaining residual heat in the
oven.
With the oven functions Pizza setting ,
Conventional and Convection
grilling the heating up time is short-
ened by the automatic function
Speedcook.

using the oven electrolux 15
Oven Functions
The oven has the following functions:
Oven function Application Heating element/
fan
Light Using this function you can light up
the oven interior, e.g. for cleaning.
---
Convection with
ring heating
element
For roasting and baking on up to
three levels
at the same time.
Set the oven temperatures
20-40 °C lower than when using up-
per/lower heat.
Rear heating element,
fan
Conventional For baking and roasting on one
oven level
.
Top heat, bottomheat
Pizza setting For baking on one oven level dishes
that require
more intensive brown-
ing and a crispy base
.
Set the oven temperatures 20-40 °C
lower than when using Conventional.
Bottom heat, rear wall
heating element, fan
Convection grill-
ing
For roasting larger joints of meat or
poultry on one level.
The function is also suitable for
grati-
nating
and browning .
Grill, top heat, fan
Grill For grilling flat foodstuffs placed in
the
middle of the grill and for
toasting .
Grill
Dual grill For grilling flat foodstuffs in large
quantities
and for toasting .
Grill, top heat
Bottom heat For baking cakes with crispy or
crusty bases
.
Bottom heat
Pyroluxe For automatic pyrolytic cleaning of the
oven. It burns off residues in the oven,
which can then be removed with a
cloth when the oven has cooled down.
The oven is heated to approximately
500 ×C.
Top heat, bottomheat,
grill, fan

16 electrolux using the oven
Inserting the Oven Shelf, Baking
Tray and Roasting Pan
Shelf runner safety and anti-tip de-
vice
As a shelf runner safety device, all
insertable components have a small
curved indentation at the bottom on
the right and left-hand edge.
Always insert insertable compo-
nents so that this indentation is at
the back of the oven interior. This in-
dentation is also important for pre-
venting the insertable components
from tipping.
Inserting the baking tray or roasting
pan
Push the baking tray or roasting pan be-
tween the guide bars of the selected
oven level.
Inserting the oven shelf:
Insert the oven shelf so that the feet
point downwards.
Push the oven shelf between the guide
bars of the selected oven level.
The high rim around the oven shelf
is an additional device to prevent
cookware from slipping.

using the oven electrolux 17
Inserting the oven shelf and roast-
ing pan together
Lay the oven shelf on the roasting pan.
Push the roasting pan between the
guide bars of the selected oven level.
Inserting/Removing the Grease Filter
Only use the grease filter when
roasting to protect the rear heating ele-
ments from fat splashes.
Inserting the grease filter
Hold the grease filter by the grip and

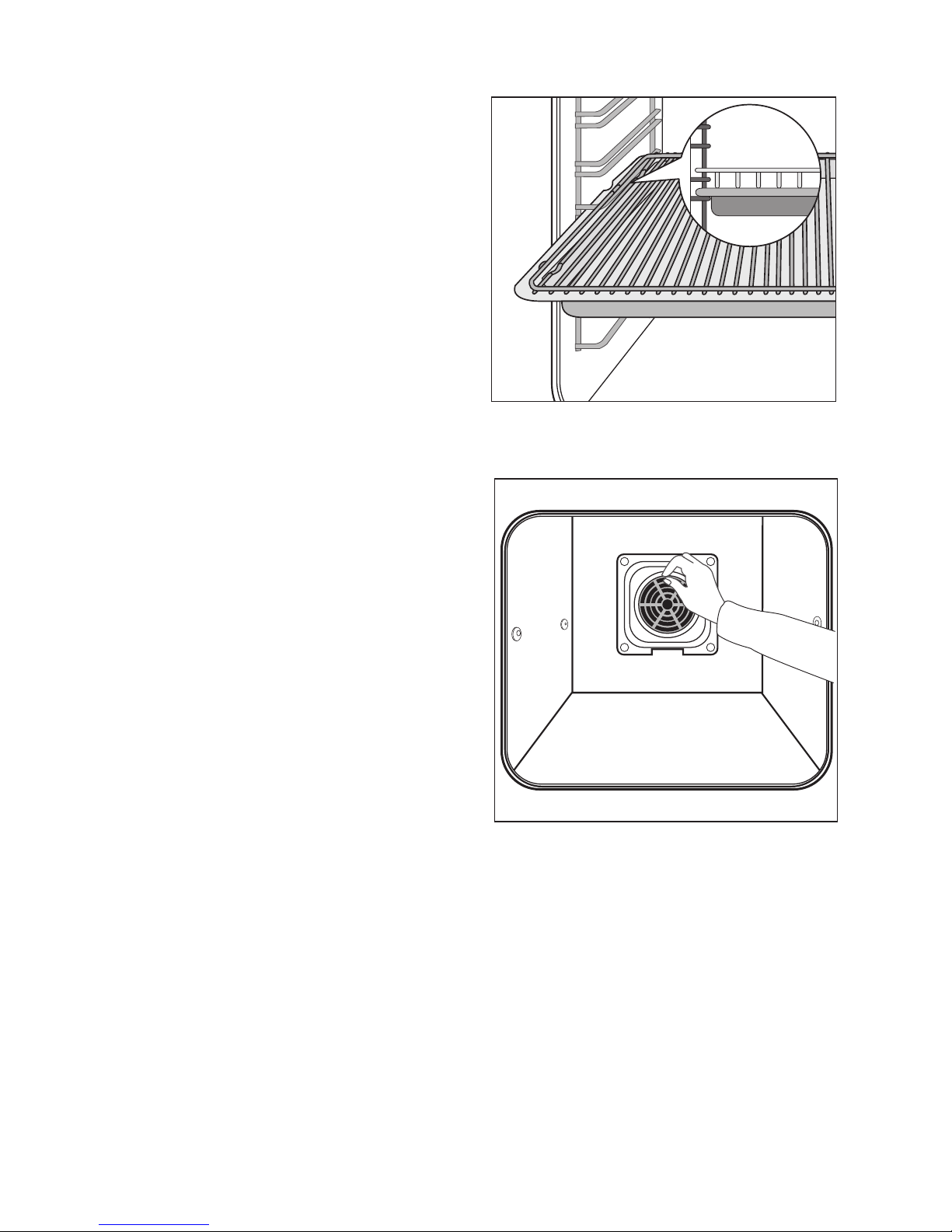

insert the two mounts downwards into
the opening on the rear wall of the
oven (fan opening).
Taking out the grease filter
Hold the grease filter by the grip and
unhook it.

18 electrolux using the oven
Clock Functions
Cook time
To set how long the oven is to be in use.
End time
To set when the oven is to switch off
again.
Countdown
To set a countdown. A signal sounds af-
ter the time has elapsed.
This function does not affect the func-
tioning of the oven.
Time
To set, change or check the time
(See also section “Before Using for the
First Time”).
Temperature / Time Display
Change display
Clock function indicators
Selector Button
Pyrolyse time

using the oven electrolux 19
How to use the clock functions
•After a clock function has been se-
lected, the corresponding function
indicator flashes for
about 5 seconds. During this period,
the desired times can be set or mod-
ified using the / dial.
•When the desired time has been set,
the function indicator continues to
flash for approx. 5 seconds. After
that the function indicator is then lit.
The set time begins to run in the
background.
•When the clock functions Cook
time and End time have been
completed, the oven functions
dial must be turned back to ”0“.
•Using the Change display but-
ton, you can switch between the
oven temperature and the time.
Checking the time set or remaining.
Press the Selection button re-
peatedly, until the appropriate clock
function flashes and the time set or
remaining is displayed.

20 electrolux using the oven
Countdown
1. Press the Selection button re-
peatedly until the function indicator
Countdown flashes.
2. Using the / control knob set the
desired countdown
(max. 99.00minutes).
The function indicator Countdown
lights up.
When 90% of the time set has elapsed,
an audible signal sounds.
When the time has elapsed, ”0.00“ and
the function indicator flash.
An audible signal sounds.
To stop the flashing and the audible sig-
nal:
Press any button.
